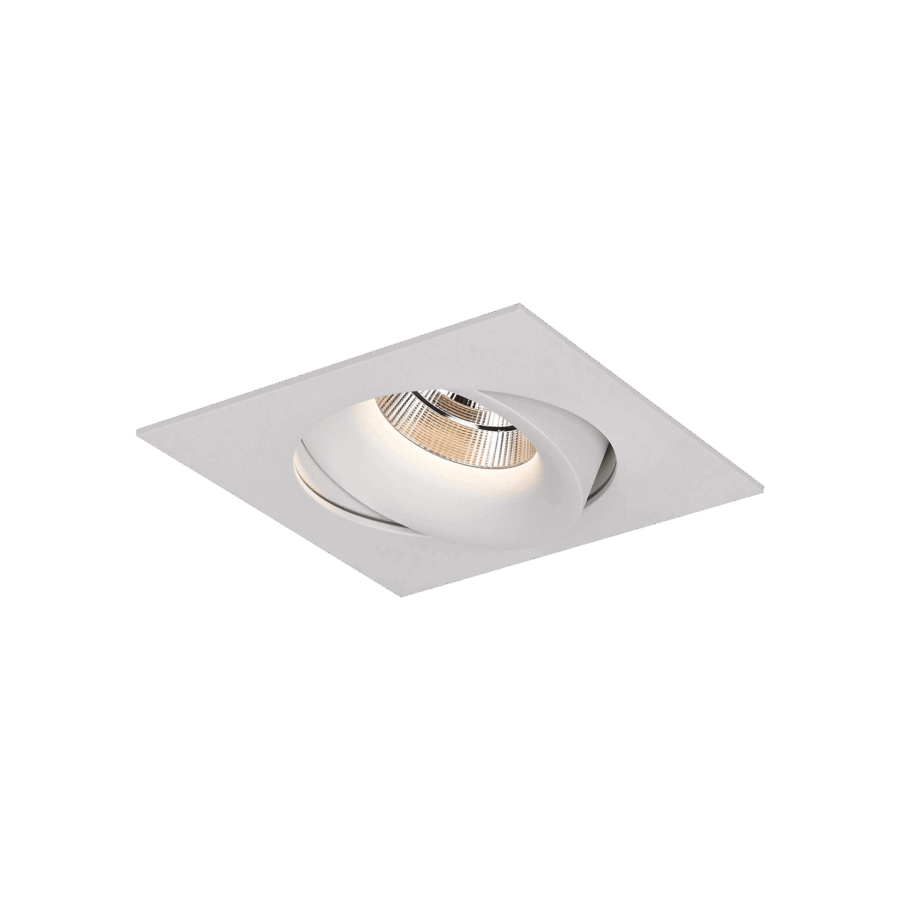

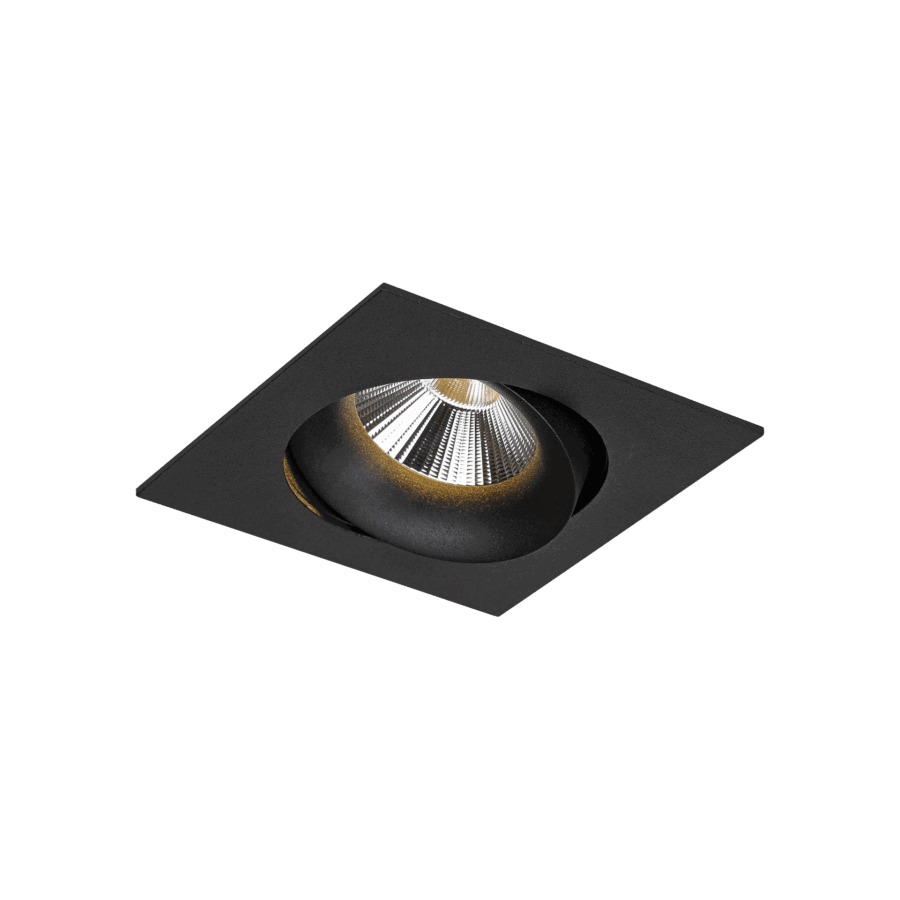

The Piazza is an adjustable led downlight. Besides his stylish square looks, also his versatility is striking. The Karizma Luce Piazza can be ordered with a 30°/45°/60° or 36°/45°/60° aluminium reflector and is 350° rotatable. This takes ambient lighting to another level.
Piazza
Another level of ambiance.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 119CW9273000 | 705 lm | 2700K | 90 | 30° | White | Specular Aluminium |
| 119CW9303000 | 720 lm | 3000K | 90 | 30° | White | Specular Aluminium |
| 119CW9274500 | 705 lm | 2700K | 90 | 45° | White | Specular Aluminium |
| 119CW9304500 | 720 lm | 3000K | 90 | 45° | White | Specular Aluminium |
| 119CB9273000 | 705 lm | 2700K | 90 | 30° | Black | Specular Aluminium |
| 119CB9303000 | 720 lm | 3000K | 90 | 30° | Black | Specular Aluminium |
| 119CB9274500 | 705 lm | 2700K | 90 | 45° | Black | Specular Aluminium |
| 119CB9304500 | 720 lm | 3000K | 90 | 45° | Black | Specular Aluminium |
| 119EW9273600 | 1240 lm | 2700K | 90 | 36° | White | Specular Aluminium |
| 119FW9303600 | 1280 lm | 3000K | 90 | 36° | White | Specular Aluminium |
| 119EW9274500 | 1240 lm | 2700K | 90 | 45° | White | Specular Aluminium |
| 119FW9304500 | 1280 lm | 3000K | 90 | 45° | White | Specular Aluminium |
| 119EB9273600 | 1240 lm | 2700K | 90 | 36° | Black | Specular Aluminium |
| 119FB9303600 | 1280 lm | 3000K | 90 | 36° | Black | Specular Aluminium |
| 119EB9274500 | 1240 lm | 2700K | 90 | 45° | Black | Specular Aluminium |
| 119FB9304500 | 1280 lm | 3000K | 90 | 45° | Black | Specular Aluminium |
| 119DB9403000 | 850 lm | 4000K | 90 | 30° | Black | Specular Aluminium |
| 119DB9404500 | 850 lm | 4000K | 90 | 45° | Black | Specular Aluminium |
| 119DW9403000 | 850 lm | 4000K | 90 | 30° | White | Specular Aluminium |
| 119DW9404500 | 850 lm | 4000K | 90 | 45° | White | Specular Aluminium |
| 119GB9403600 | 1550 lm | 4000K | 90 | 36° | Black | Specular Aluminium |
| 119GB9404500 | 1550 lm | 4000K | 90 | 45° | Black | Specular Aluminium |
| 119GW9403600 | 1550 lm | 4000K | 90 | 36° | White | Specular Aluminium |
| 119GW9404500 | 1550 lm | 4000K | 90 | 45° | White | Specular Aluminium |
| 119EB9276000 | 1240lm | 2700K | 90 | 60° | Black | Specular Aluminium |
| 119EW9276000 | 1240lm | 2700K | 90 | 60° | White | Specular Aluminium |
| 119CB9276000 | 705lm | 2700K | 90 | 60° | Black | Specular Aluminium |
| 119CW9276000 | 705lm | 2700K | 90 | 60° | White | Specular Aluminium |
| 119FB9306000 | 1280lm | 3000K | 90 | 60° | Black | Specular Aluminium |
| 119FW9306000 | 1280lm | 3000K | 90 | 60° | White | Specular Aluminium |
| 119CB9306000 | 720lm | 3000K | 90 | 60° | Black | Specular Aluminium |
| 119CW9306000 | 720lm | 3000K | 90 | 60° | White | Specular Aluminium |
| 119GB9406000 | 1450lm | 4000K | 90 | 60° | Black | Specular Aluminium |
| 119GW9406000 | 1450lm | 4000K | 90 | 60° | White | Specular Aluminium |
| 119DB9406000 | 850lm | 4000K | 90 | 60° | Black | Specular Aluminium |
| 119DW9406000 | 850lm | 4000K | 90 | 60° | White | Specular Aluminium |
Click on specification values for related products.
Luminous Flux1240 lm, 1240lm, 1280 lm, 1280lm, 1450lm, 1550 lm, 705 lm, 705lm, 720 lm, 720lm, 850 lm, 850lm
CRI90
Chromaticity tolerance10 MacAdam, 11 MacAdam, 12 MacAdam, 13 MacAdam, 14 MacAdam, 15 MacAdam, 3 MacAdam, 4 MacAdam, 5 MacAdam, 6 MacAdam, 7 MacAdam, 8 MacAdam, 9 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight0.44Kg

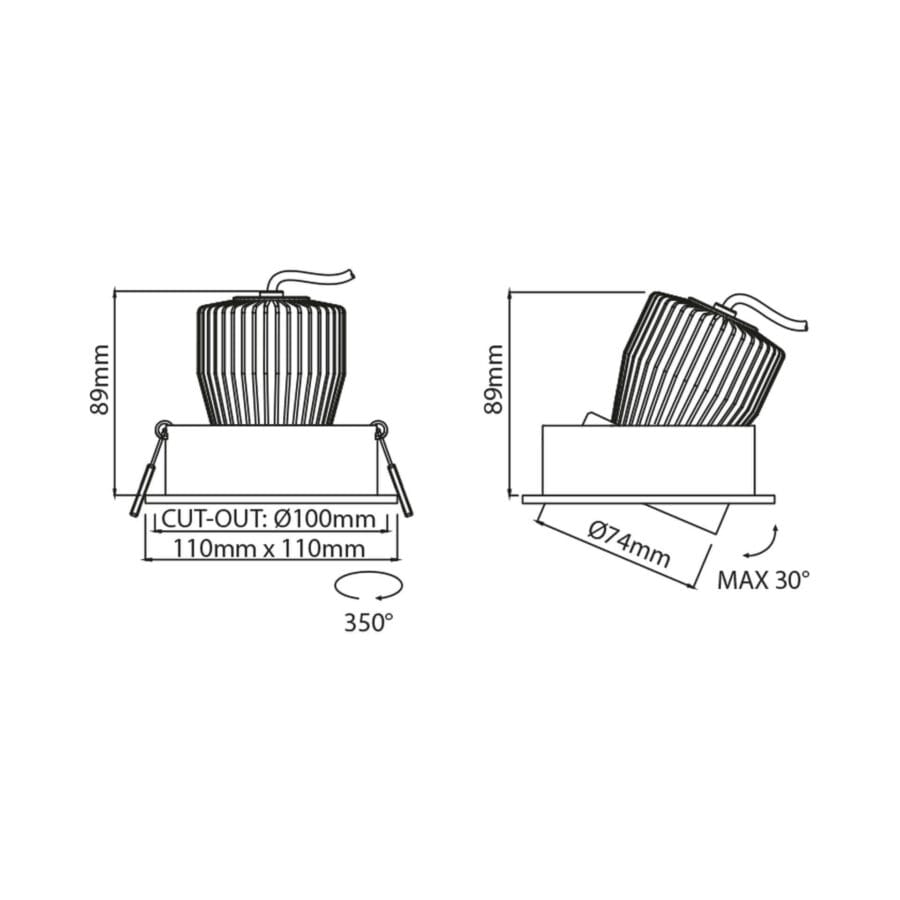

Cut out dimensionØ100mm
Luminaire dimension110x110x77mm
Nominal fV [V]18.4V, 33.8-35.9V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source energy classF
Light source identifierBXRE-27G0800-D-73, BXRE-30G0800-D-73, BXRE-40G0800-D-73
Light source840 (4000K / CRI80), 927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI80), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height90mm
The Karizma Luce Piazza is a square adjustable led downlight from the Delizia Di Luce series. Made from aluminium. The Piazza can be ordered with a 30°/45°/60° or 36°/45°/60° aluminium reflector and is 350° rotatable. Available luminaire flux range: 705-1550 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 36° and 45°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
