Dea Amata M

Dea Amata M

A little love from above.

Everybody loves the Dea Amata. It is one of our most popular luminaires. That’s exactly why we called it Amata. This means ‘loved’ in Italian. In its own way, she makes you feel at home. Exactly in the colour that suits you. Caring, reliable, timeless. That’s how love should be, right?

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Light color from 2700K to 6500K to set an individual color temperature depending on application. Used for well being (daylight simulation) and for increase the performance in offices and workshops.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color

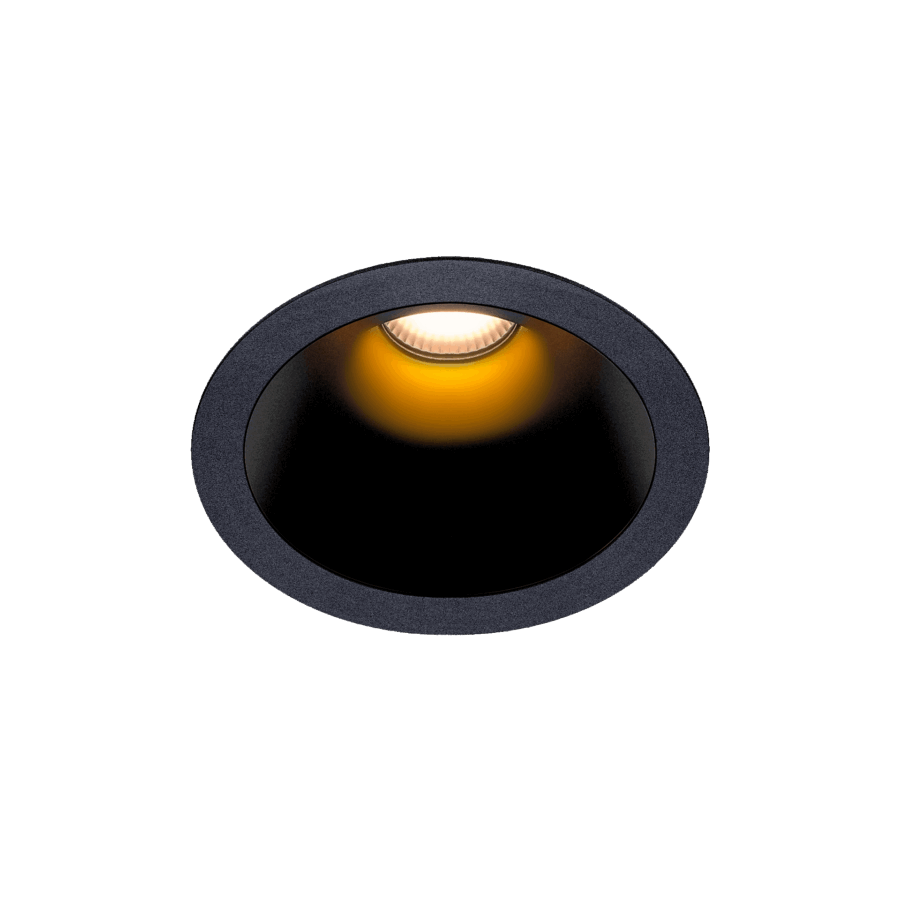

213EB94040BG00	1130 lm	4000K	90	40°	Black	Black High Gloss	1130-lm	4000k	90	40	black	black-high-gloss
213EB92740BG00	1080 lm	2700K	90	40°	Black	Black High Gloss	1080-lm	2700k	90	40	black	black-high-gloss
213EB93040BG00	1120 lm	3000K	90	40°	Black	Black High Gloss	1120-lm	3000k	90	40	black	black-high-gloss
213EW94040BG00	1130 lm	4000K	90	40°	White	Black High Gloss	1130-lm	4000k	90	40	white	black-high-gloss
213EW92740BG00	1080 lm	2700K	90	40°	White	Black High Gloss	1080-lm	2700k	90	40	white	black-high-gloss
213EW93040BG00	1120 lm	3000K	90	40°	White	Black High Gloss	1120-lm	3000k	90	40	white	black-high-gloss
213FB94035SG00	1300 lm	4000K	90	35°	Black	Silver High Gloss	1300-lm	4000k	90	35	black	silver-high-gloss
213FB92735SG00	1250 lm	2700K	90	35°	Black	Silver High Gloss	1250-lm	2700k	90	35	black	silver-high-gloss
213FB93035SG00	1300 lm	3000K	90	35°	Black	Silver High Gloss	1300-lm	3000k	90	35	black	silver-high-gloss

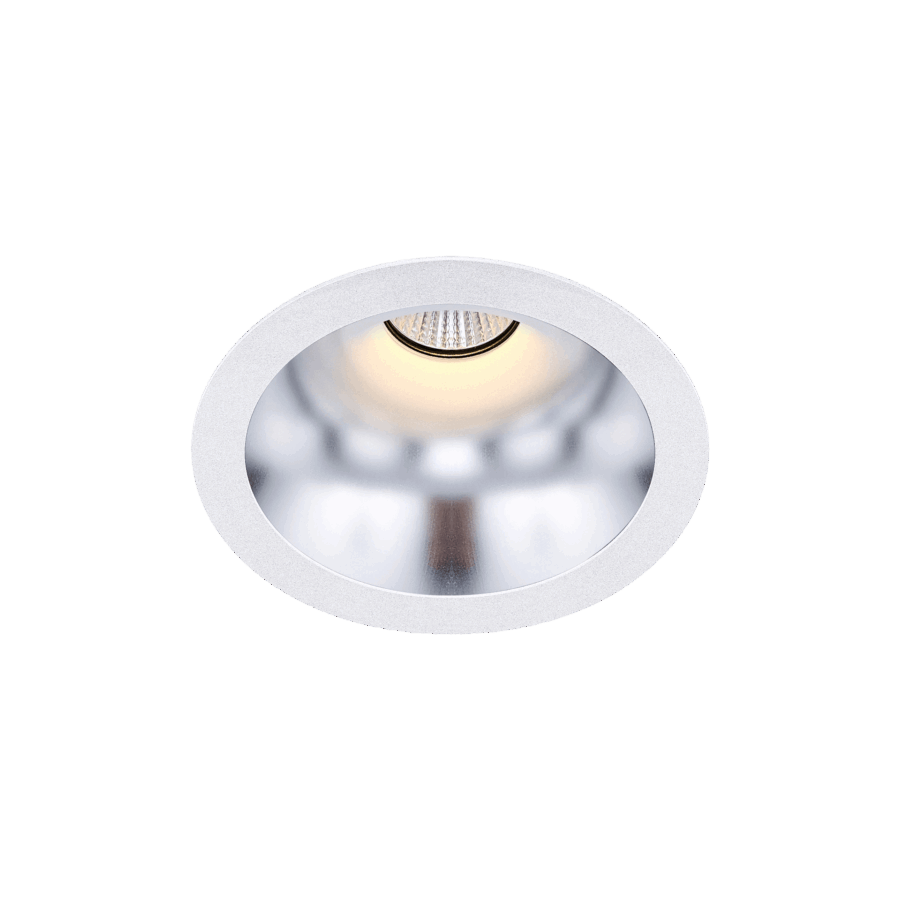

213FW94035SG00	1300 lm	4000K	90	35°	White	Silver High Gloss	1300-lm	4000k	90	35	white	silver-high-gloss
213FW92735SG00	1250 lm	2700K	90	35°	White	Silver High Gloss	1250-lm	2700k	90	35	white	silver-high-gloss
213FW93035SG00	1300 lm	3000K	90	35°	White	Silver High Gloss	1300-lm	3000k	90	35	white	silver-high-gloss
213FB94040CH00	1300 lm	4000K	90	40°	Black	Chrome	1300-lm	4000k	90	40	black	chrome
213FB92740CH00	1250 lm	2700K	90	40°	Black	Chrome	1250-lm	2700k	90	40	black	chrome
213FB93040CH00	1300 lm	3000K	90	40°	Black	Chrome	1300-lm	3000k	90	40	black	chrome

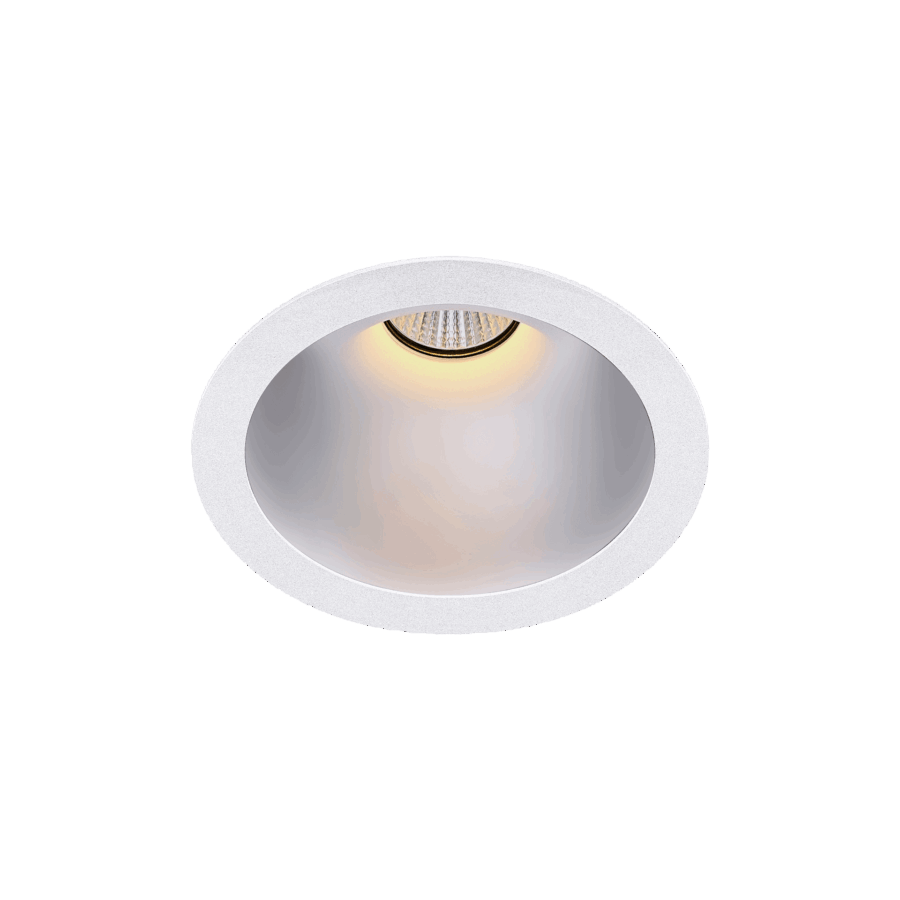

213FW94040CH00	1300 lm	4000K	90	40°	White	Chrome	1300-lm	4000k	90	40	white	chrome
213FW92740CH00	1250 lm	2700K	90	40°	White	Chrome	1250-lm	2700k	90	40	white	chrome
213FW93040CH00	1300 lm	3000K	90	40°	White	Chrome	1300-lm	3000k	90	40	white	chrome
213EB94045WH00	1220 lm	4000K	90	45°	Black	White	1220-lm	4000k	90	45	black	white
213EB92745WH00	1170 lm	2700K	90	45°	Black	White	1170-lm	2700k	90	45	black	white
213EB93045WH00	1220 lm	3000K	90	45°	Black	White	1220-lm	3000k	90	45	black	white
213EW94045WH00	1220 lm	4000K	90	45°	White	White	1220-lm	4000k	90	45	white	white
213EW92745WH00	1170 lm	2700K	90	45°	White	White	1170-lm	2700k	90	45	white	white
213EW93045WH00	1220 lm	3000K	90	45°	White	White	1220-lm	3000k	90	45	white	white

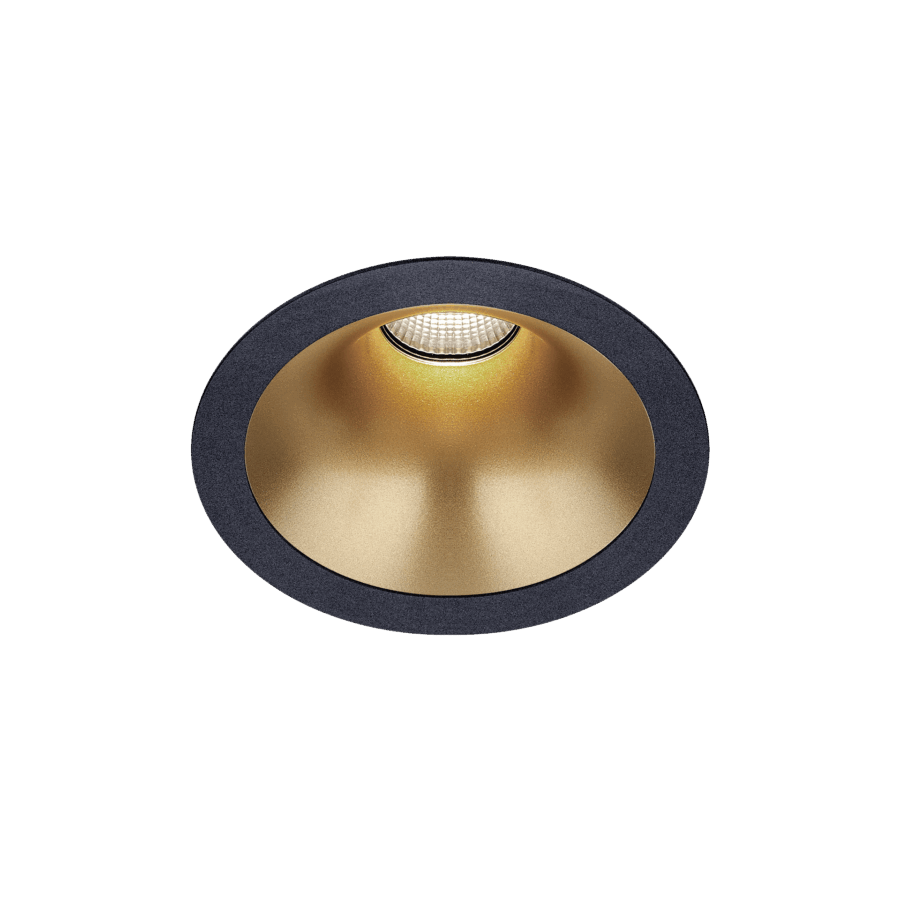

213EB94040GO00	1200 lm	4000K	90	40°	Black	Gold	1200-lm	4000k	90	40	black	gold
213EB92740GO00	1140 lm	2700K	90	40°	Black	Gold	1140-lm	2700k	90	40	black	gold
213EB93040GO00	1190 lm	3000K	90	40°	Black	Gold	1190-lm	3000k	90	40	black	gold
213EW94040GO00	1200 lm	4000K	90	40°	White	Gold	1200-lm	4000k	90	40	white	gold
213EW92740GO00	1140 lm	2700K	90	40°	White	Gold	1140-lm	2700k	90	40	white	gold
213EW93040GO00	1190 lm	3000K	90	40°	White	Gold	1190-lm	3000k	90	40	white	gold

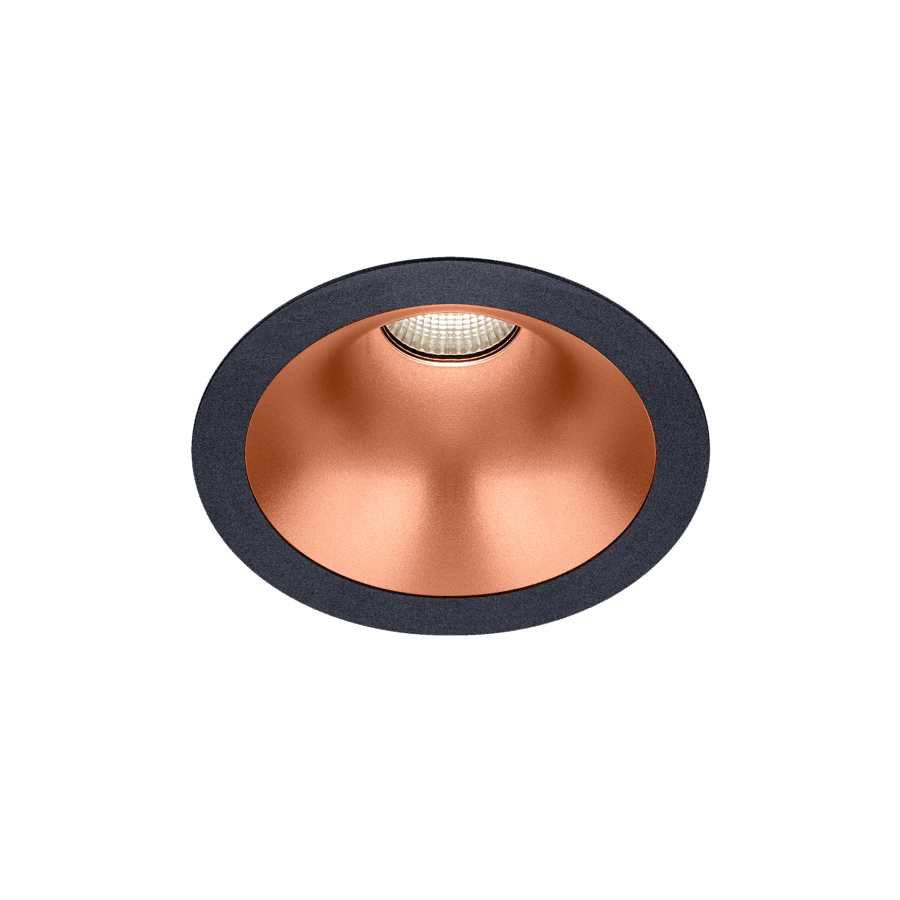

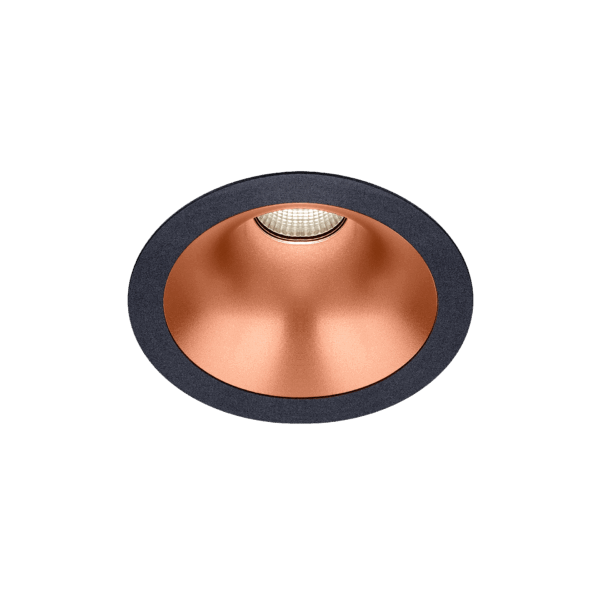

213EB94040CO00	1200 lm	4000K	90	40°	Black	Copper	1200-lm	4000k	90	40	black	copper
213EB92740CO00	1140 lm	2700K	90	40°	Black	Copper	1140-lm	2700k	90	40	black	copper
213EB93040CO00	1190 lm	3000K	90	40°	Black	Copper	1190-lm	3000k	90	40	black	copper

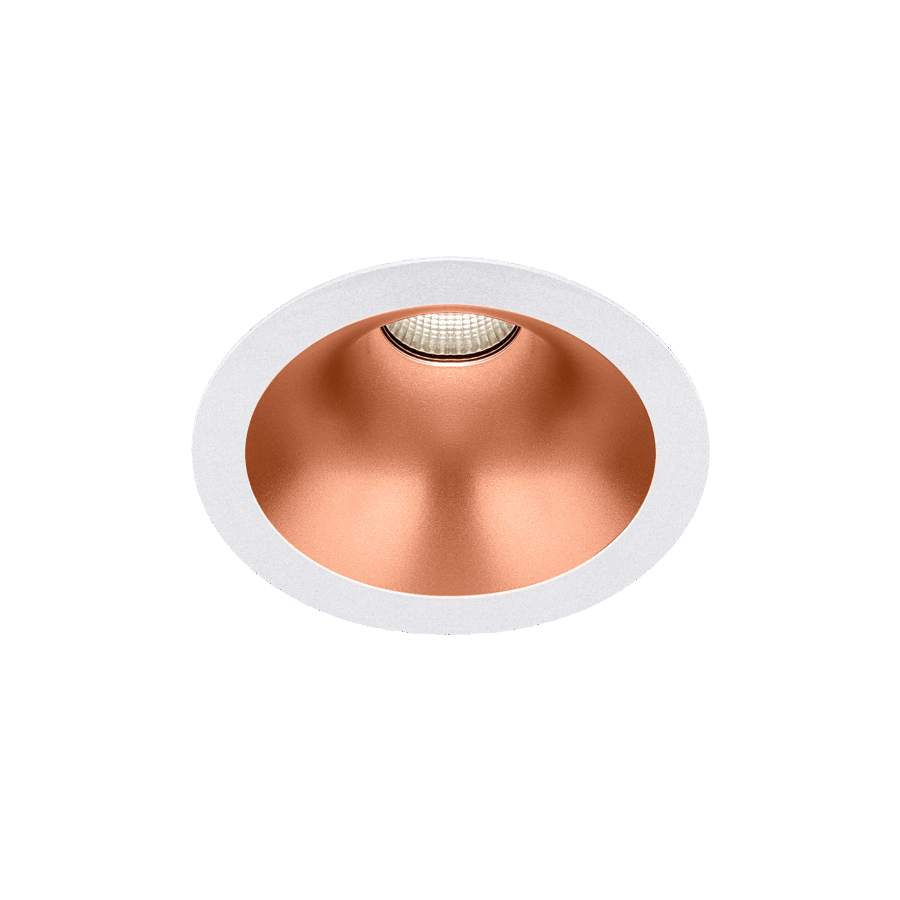

213EW94040CO00	1200 lm	4000K	90	40°	White	Copper	1200-lm	4000k	90	40	white	copper
213EW92740CO00	1140 lm	2700K	90	40°	White	Copper	1140-lm	2700k	90	40	white	copper
213EW93040CO00	1190 lm	3000K	90	40°	White	Copper	1190-lm	3000k	90	40	white	copper
213EB94040BM00	1130 lm	4000K	90	40°	Black	Black Matt	1130-lm	4000k	90	40	black	black-matt
213EB92740BM00	1080 lm	2700K	90	40°	Black	Black Matt	1080-lm	2700k	90	40	black	black-matt
213EB93040BM00	1120 lm	3000K	90	40°	Black	Black Matt	1120-lm	3000k	90	40	black	black-matt
213EW94040BM00	1130 lm	4000K	90	40°	White	Black Matt	1130-lm	4000k	90	40	white	black-matt
213EW92740BM00	1080 lm	2700K	90	40°	White	Black Matt	1080-lm	2700k	90	40	white	black-matt
213EW93040BM00	1120 lm	3000K	90	40°	White	Black Matt	1120-lm	3000k	90	40	white	black-matt

Click on specification values for related products.

Luminous Flux1080 lm, 1120 lm, 1130 lm, 1140 lm, 1170 lm, 1190 lm, 1200 lm, 1220 lm, 1250 lm, 1300 lm

CRI90

CCT2700K, 3000K, 4000K

LED power12.5W

System power14W

System efficiency77lm/W, 80lm/W, 81lm/W, 84lm/W, 85lm/W, 86lm/W, 87lm/W, 89lm/W, 93lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle35°, 40°, 45°

Luminaire colorBlack, White

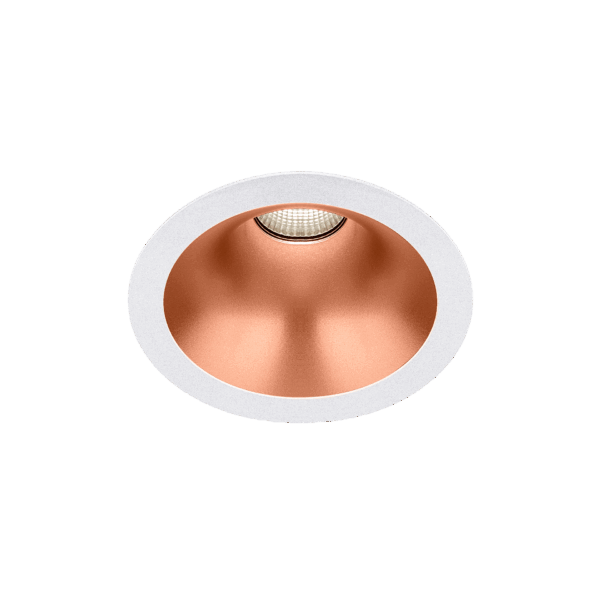

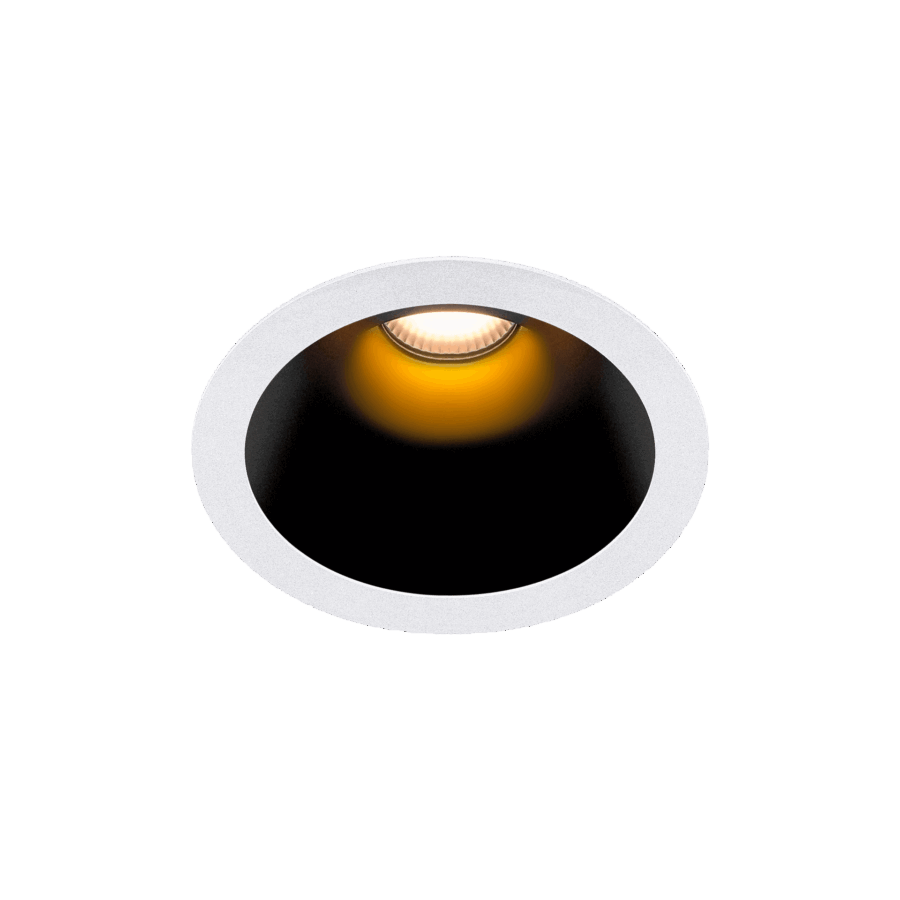

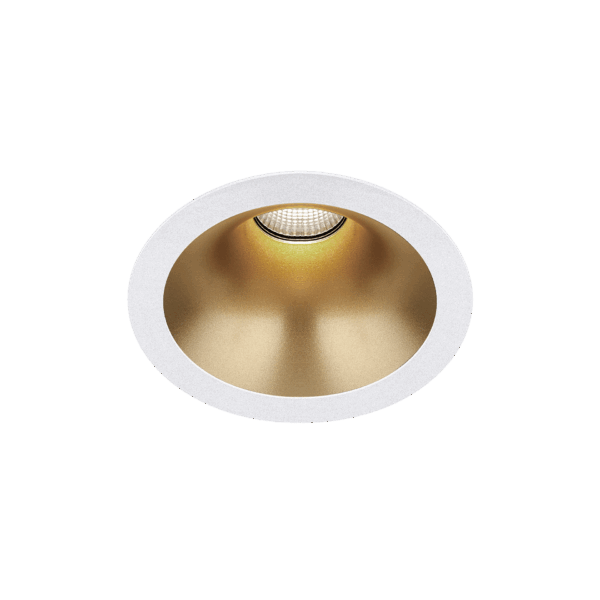

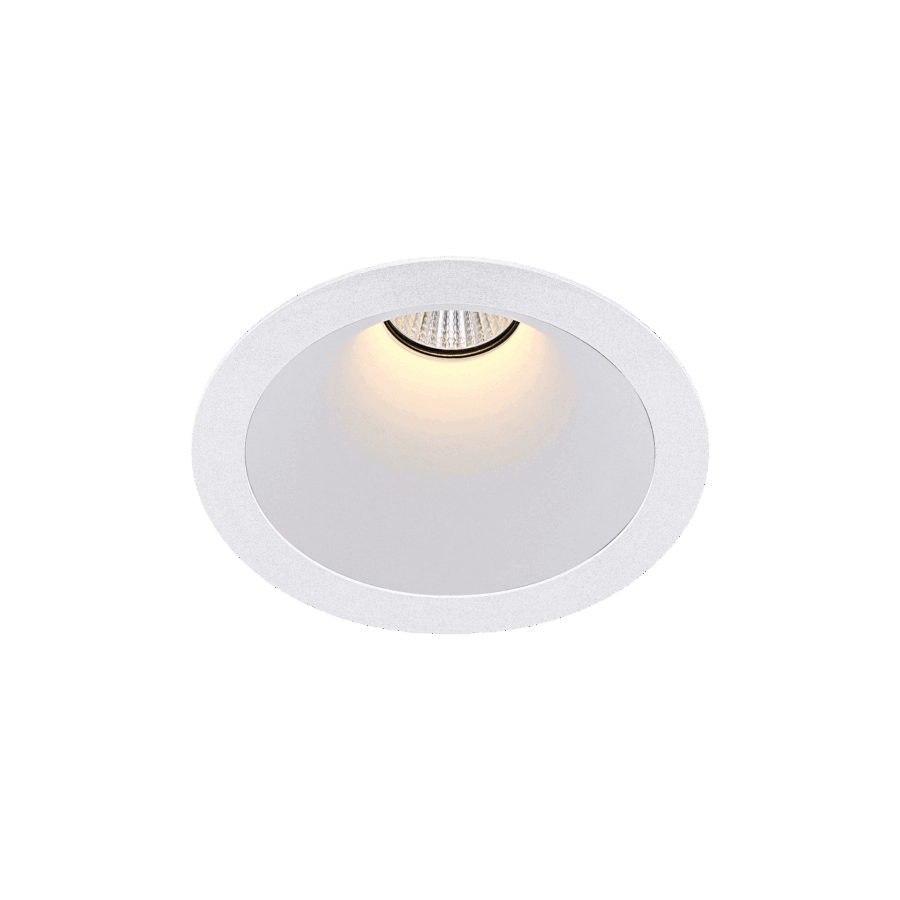

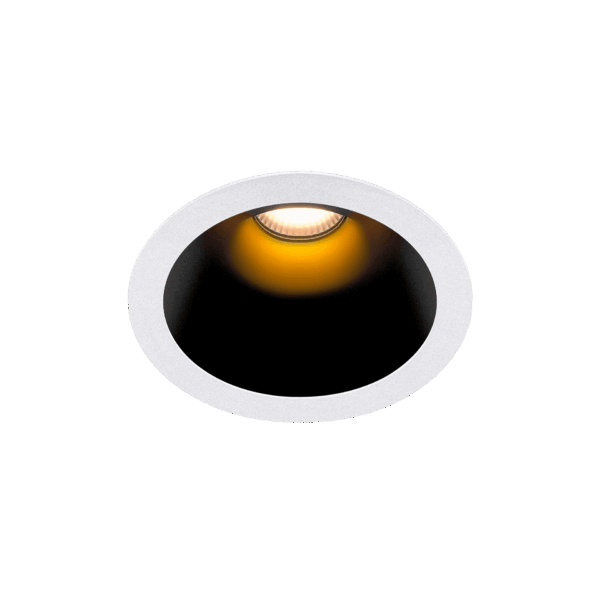

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP54/IP20

Net. Weight0.32Kg

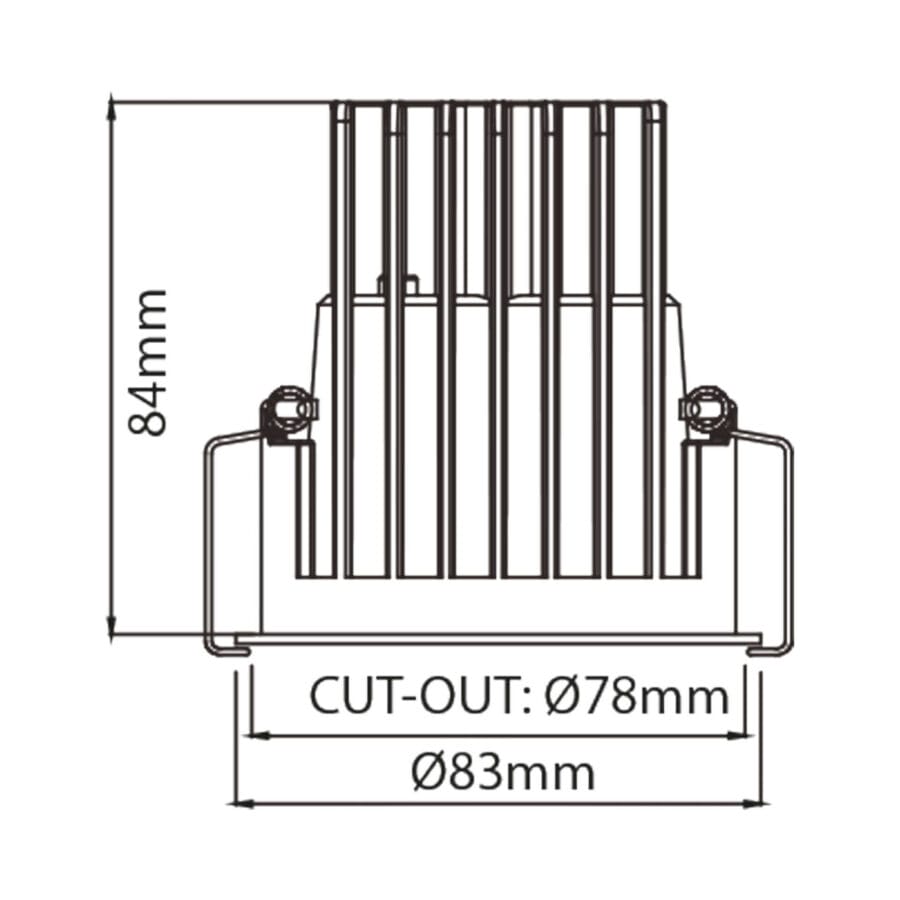

Cut out dimensionØ78mm

Luminaire dimensionØ83x84mm

Nominal fA [mA]350mA

Nominal fV [V]33.8-35.9V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90), Tunable white (2700K – 6500K)

Warranty5Y

CollectionDea Della Luce

Built-in height95mm

ControlCasambi, DALI, Phase Cut

The Karizma Luce Dea Amata M is a recessed fixed downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 1080-1300 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 35°, 40°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
