Dea Amata L

Dea Amata L

A little love from above.

Everybody loves the Dea Amata. It is one of our most popular luminaires. That’s exactly why we called it Amata. This means ‘loved’ in Italian. In its own way, she makes you feel at home. Exactly in the colour that suits you. Caring, reliable, timeless. That’s how love should be, right?

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Light color from 2700K to 6500K to set an individual color temperature depending on application. Used for well being (daylight simulation) and for increase the performance in offices and workshops.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color

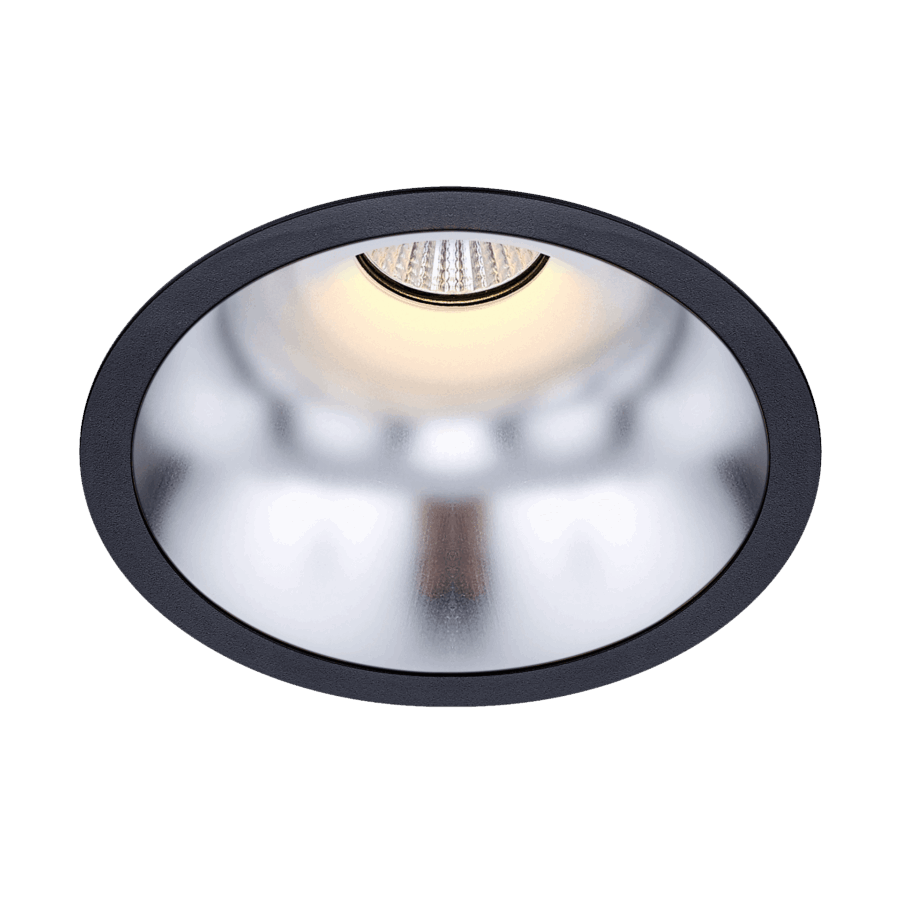

215GB94035SG00	1520-2900 lm	4000K	90	35°	Black	Silver High Gloss	1520-2900-lm	4000k	90	35	black	silver-high-gloss
215FB92735SG00	1480-2720 lm	2700K	90	35°	Black	Silver High Gloss	1480-2720-lm	2700k	90	35	black	silver-high-gloss
215GB93035SG00	1540-2830 lm	3000K	90	35°	Black	Silver High Gloss	1540-2830-lm	3000k	90	35	black	silver-high-gloss

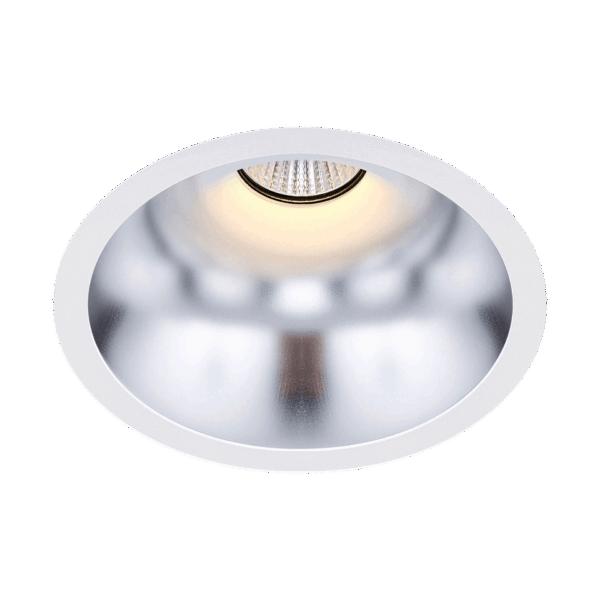

215GW94035SG00	1520-2900 lm	4000K	90	35°	White	Silver High Gloss	1520-2900-lm	4000k	90	35	white	silver-high-gloss
215FW92735SG00	1480-2720 lm	2700K	90	35°	White	Silver High Gloss	1480-2720-lm	2700k	90	35	white	silver-high-gloss
215GW93035SG00	1540-2830 lm	3000K	90	35°	White	Silver High Gloss	1540-2830-lm	3000k	90	35	white	silver-high-gloss
215FW94040BG00	1370-2620 lm	4000K	90	40°	White	Black High Gloss	1370-2620-lm	4000k	90	40	white	black-high-gloss
215FW92740BG00	1340-2460 lm	2700K	90	40°	White	Black High Gloss	1340-2460-lm	2700k	90	40	white	black-high-gloss
215FW93040BG00	1400-2550 lm	3000K	90	40°	White	Black High Gloss	1400-2550-lm	3000k	90	40	white	black-high-gloss

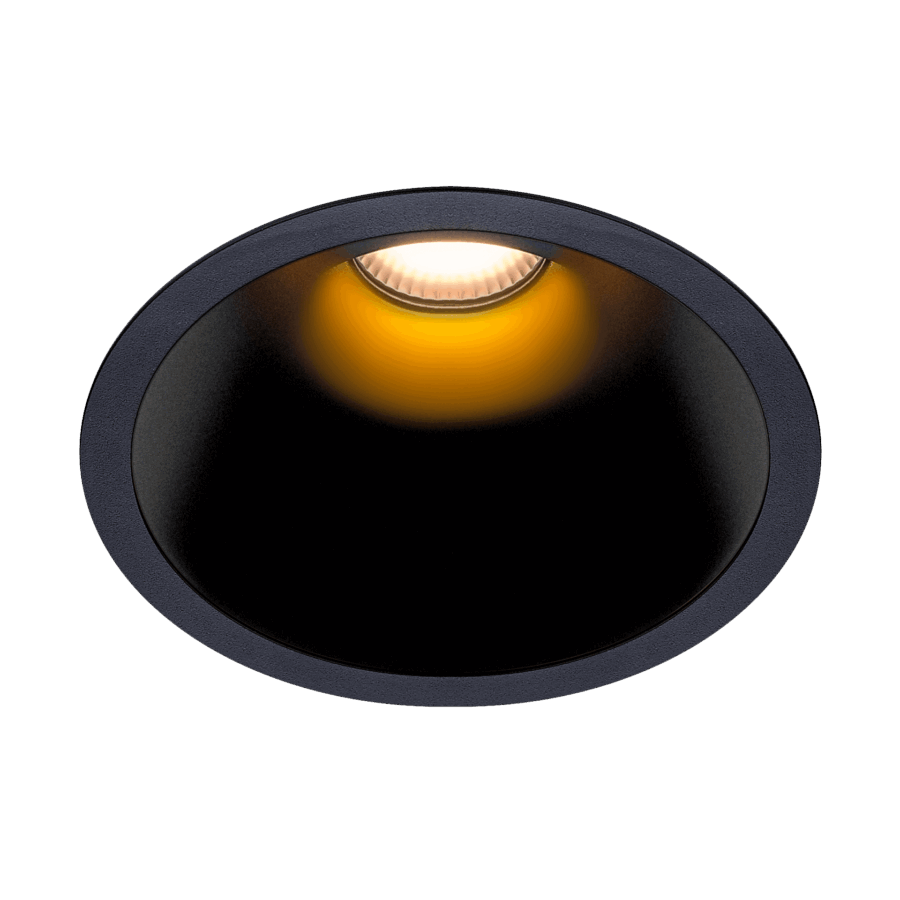

215FB94040BG00	1370-2620 lm	4000K	90	40°	Black	Black High Gloss	1370-2620-lm	4000k	90	40	black	black-high-gloss
215FB92740BG00	1340-2460 lm	2700K	90	40°	Black	Black High Gloss	1340-2460-lm	2700k	90	40	black	black-high-gloss
215FB93040BG00	1400-2550 lm	3000K	90	40°	Black	Black High Gloss	1400-2550-lm	3000k	90	40	black	black-high-gloss

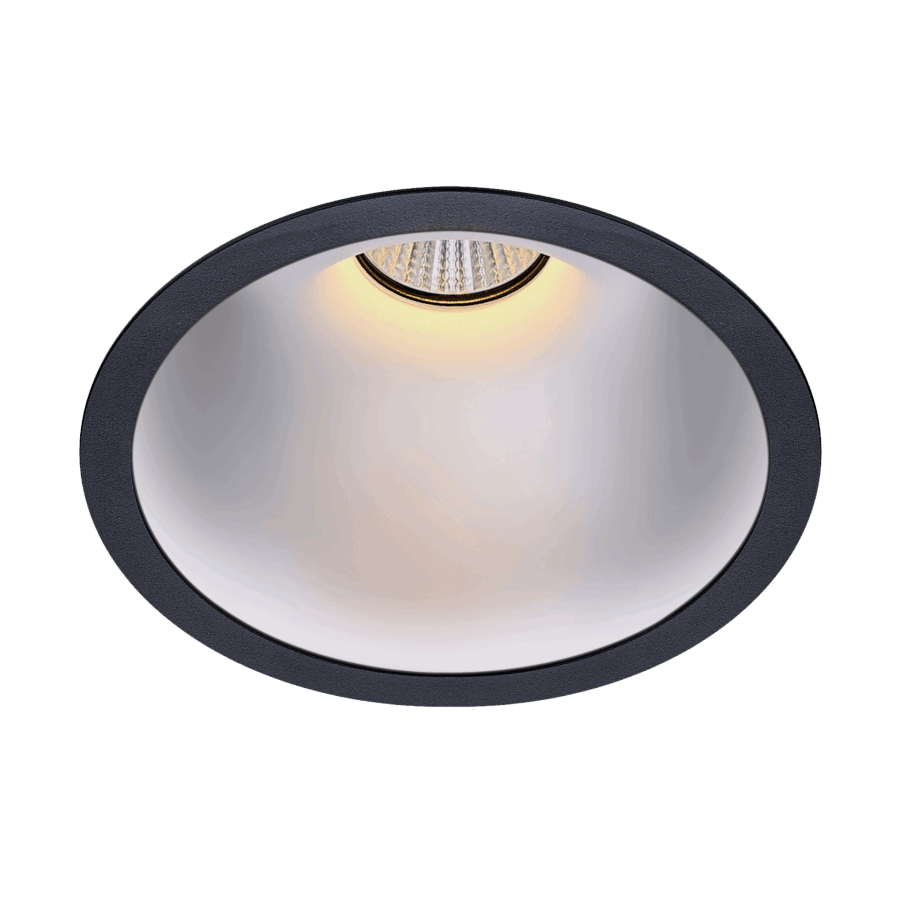

215FB94040CH00	1400-2650 lm	4000K	90	40°	Black	Chrome	1400-2650-lm	4000k	90	40	black	chrome
215FB92740CH00	1300-2500 lm	2700K	90	40°	Black	Chrome	1300-2500-lm	2700k	90	40	black	chrome
215FB93040CH00	1350-2600 lm	3000K	90	40°	Black	Chrome	1350-2600-lm	3000k	90	40	black	chrome
215FW94040CH00	1400-2650 lm	4000K	90	40°	White	Chrome	1400-2650-lm	4000k	90	40	white	chrome
215FW92740CH00	1300-2500 lm	2700K	90	40°	White	Chrome	1300-2500-lm	2700k	90	40	white	chrome
215FW93040CH00	1350-2600 lm	3000K	90	40°	White	Chrome	1350-2600-lm	3000k	90	40	white	chrome

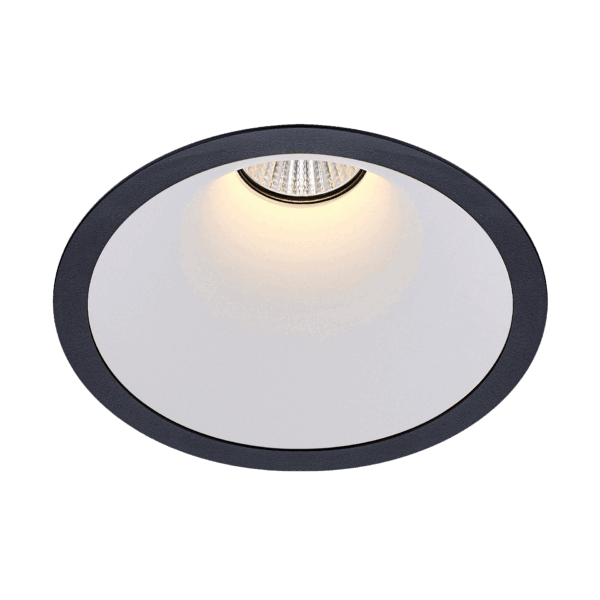

215FB94050WH00	1400-2650 lm	4000K	90	50°	Black	White	1400-2650-lm	4000k	90	50	black	white
215FB92750WH00	1300-2500 lm	2700K	90	50°	Black	White	1300-2500-lm	2700k	90	50	black	white
215FB93050WH00	1350-2600 lm	3000K	90	50°	Black	White	1350-2600-lm	3000k	90	50	black	white

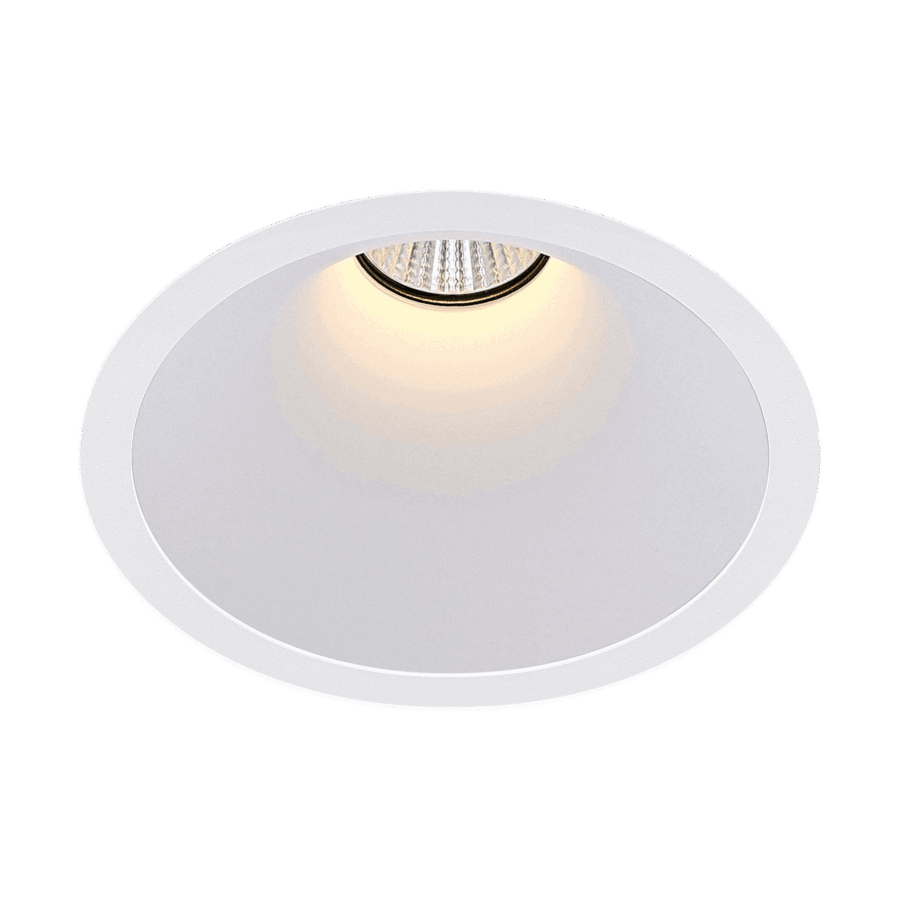

215FW94050WH00	1400-2650 lm	4000K	90	50°	White	White	1400-2650-lm	4000k	90	50	white	white
215FW92750WH00	1300-2500 lm	2700K	90	50°	White	White	1300-2500-lm	2700k	90	50	white	white
215FW93050WH00	1350-2600 lm	3000K	90	50°	White	White	1350-2600-lm	3000k	90	50	white	white
215FB94050GO00	1350-2590 lm	4000K	90	45°	Black	Gold	1350-2590-lm	4000k	90	45	black	gold
215FB92750GO00	1320-2430 lm	2700K	90	45°	Black	Gold	1320-2430-lm	2700k	90	45	black	gold
215FB93050GO00	1380-2520 lm	3000K	90	45°	Black	Gold	1380-2520-lm	3000k	90	45	black	gold

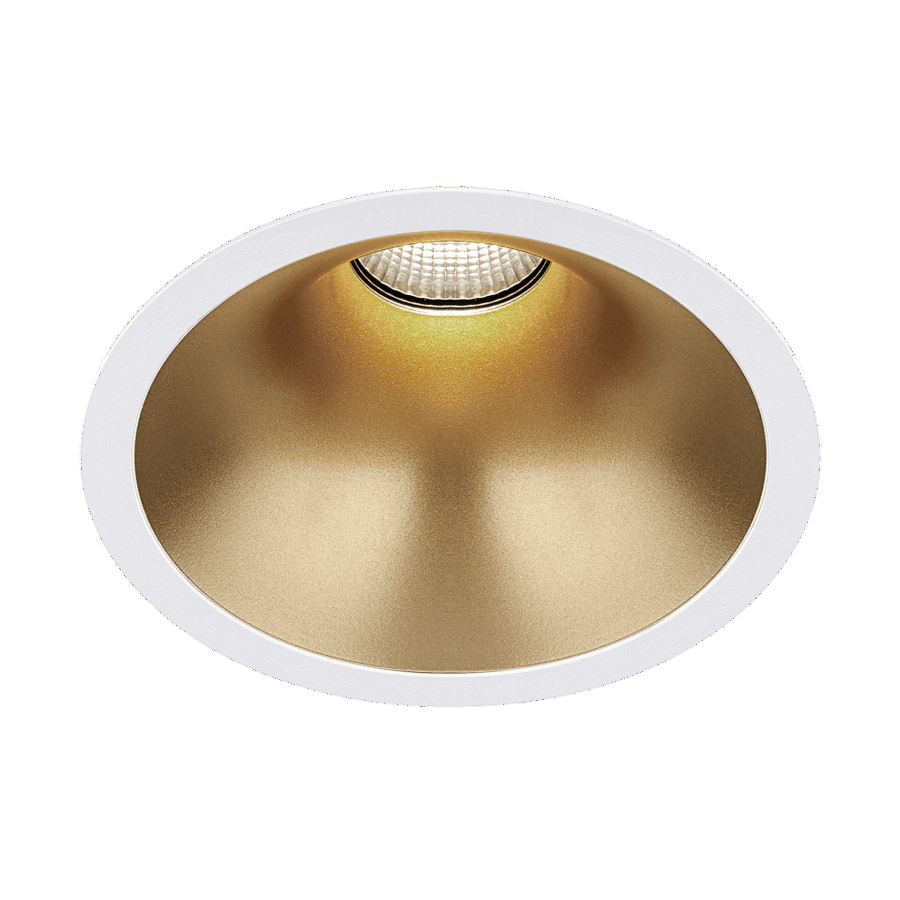

215FW94050GO00	1350-2590 lm	4000K	90	45°	White	Gold	1350-2590-lm	4000k	90	45	white	gold
215FW92750GO00	1320-2430 lm	2700K	90	45°	White	Gold	1320-2430-lm	2700k	90	45	white	gold
215FW93050GO00	1380-2520 lm	3000K	90	45°	White	Gold	1380-2520-lm	3000k	90	45	white	gold

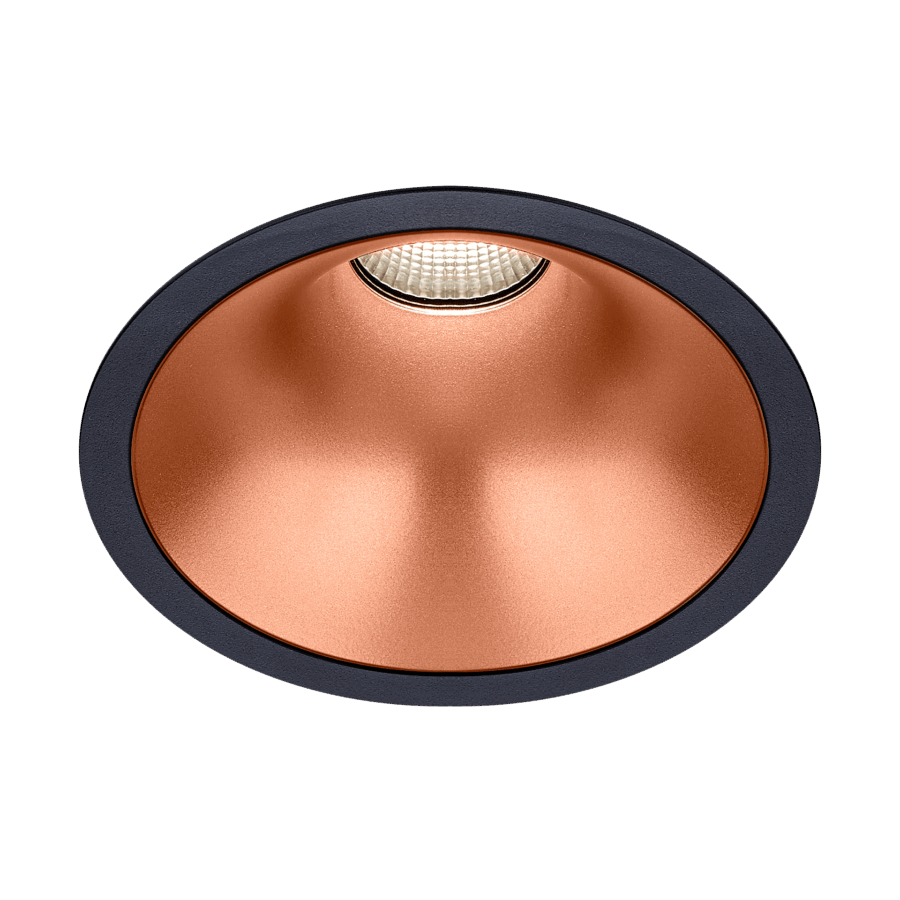

215FB94050CO00	1350-2590 lm	4000K	90	45°	Black	Copper	1350-2590-lm	4000k	90	45	black	copper
215FB92750CO00	1320-2430 lm	2700K	90	45°	Black	Copper	1320-2430-lm	2700k	90	45	black	copper
215FB93050CO00	1380-2520 lm	3000K	90	45°	Black	Copper	1380-2520-lm	3000k	90	45	black	copper
215FW94050CO00	1350-2590 lm	4000K	90	45°	White	Copper	1350-2590-lm	4000k	90	45	white	copper
215FW92750CO00	1320-2430 lm	2700K	90	45°	White	Copper	1320-2430-lm	2700k	90	45	white	copper
215FW93050CO00	1380-2520 lm	3000K	90	45°	White	Copper	1380-2520-lm	3000k	90	45	white	copper
215FB94040BM00	1370-2620 lm	4000K	90	40°	Black	Black Matt	1370-2620-lm	4000k	90	40	black	black-matt
215FB92740BM00	1340-2460 lm	2700K	90	40°	Black	Black Matt	1340-2460-lm	2700k	90	40	black	black-matt
215FB93040BM00	1400-2550 lm	3000K	90	40°	Black	Black Matt	1400-2550-lm	3000k	90	40	black	black-matt
215FW94040BM00	1370-2620 lm	4000K	90	40°	White	Black Matt	1370-2620-lm	4000k	90	40	white	black-matt
215FW92740BM00	1340-2460 lm	2700K	90	40°	White	Black Matt	1340-2460-lm	2700k	90	40	white	black-matt
215FW93040BM00	1400-2550 lm	3000K	90	40°	White	Black Matt	1400-2550-lm	3000k	90	40	white	black-matt

Click on specification values for related products.

Luminous Flux1300-2500 lm, 1320-2430 lm, 1340-2460 lm, 1350-2590 lm, 1350-2600 lm, 1370-2620 lm, 1380-2520 lm, 1400-2550 lm, 1400-2650 lm, 1480-2720 lm, 1520-2900 lm, 1540-2830 lm

CRI90

CCT2700K, 3000K, 4000K

LED power11.5-24W

System power13.5-26W

System efficiency100-99lm/W, 101-100lm/W, 103-98lm/W, 104-107lm/W, 106-104lm/W, 107-102lm/W, 110-105lm/W, 110-109lm/W, 112-107lm/W, 113-112lm/W, 114-109lm/W, 97-93lm/W, 98-97lm/W, 99-95lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle35°, 40°, 45°, 50°

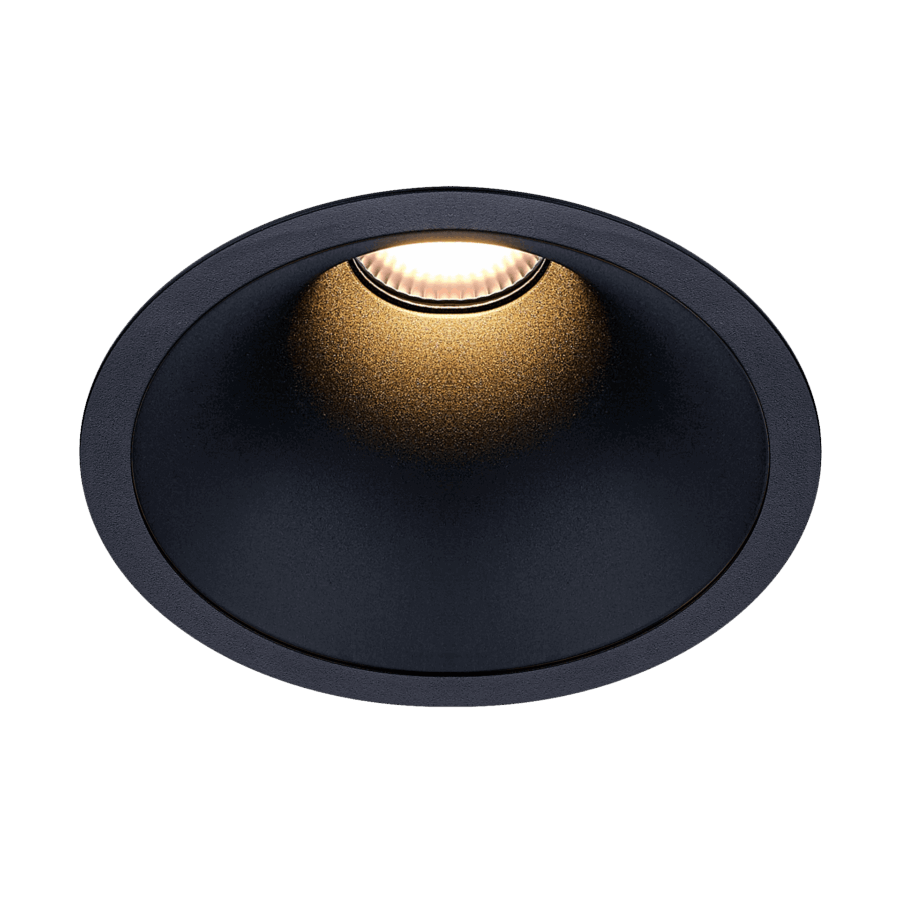

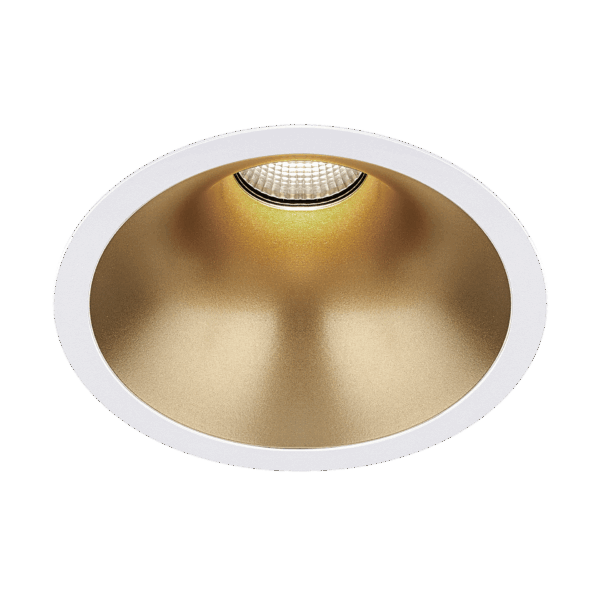

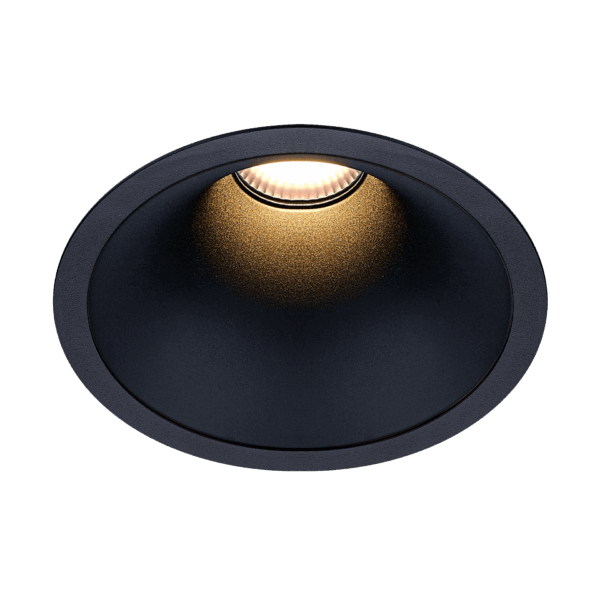

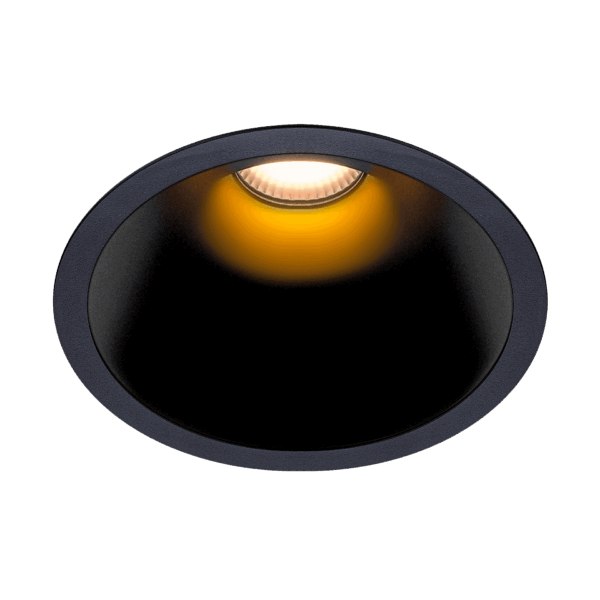

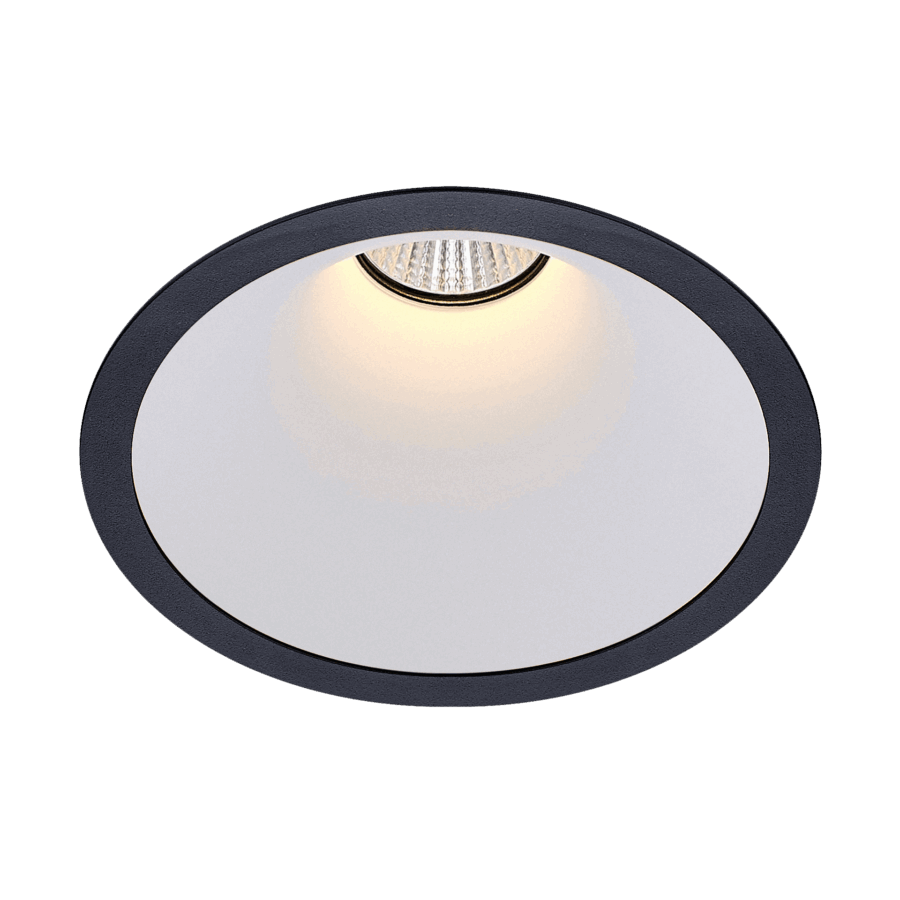

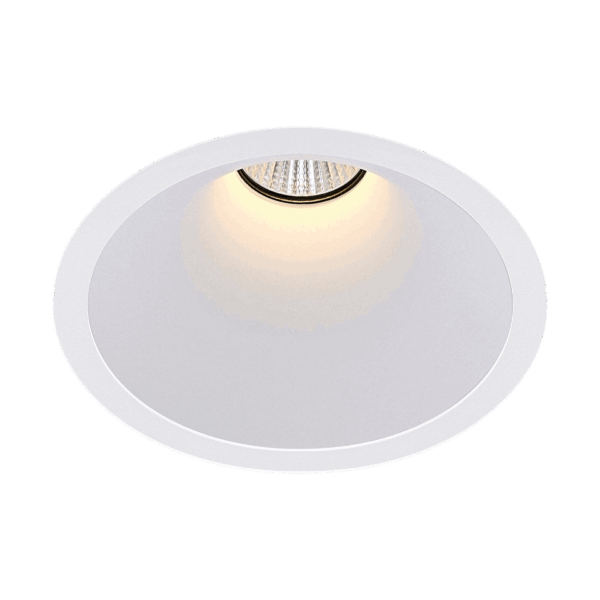

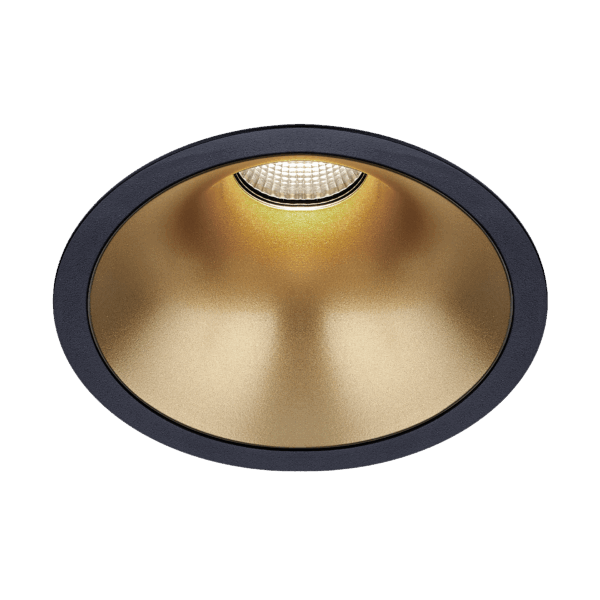

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP43/IP20

Net. Weight0.78Kg

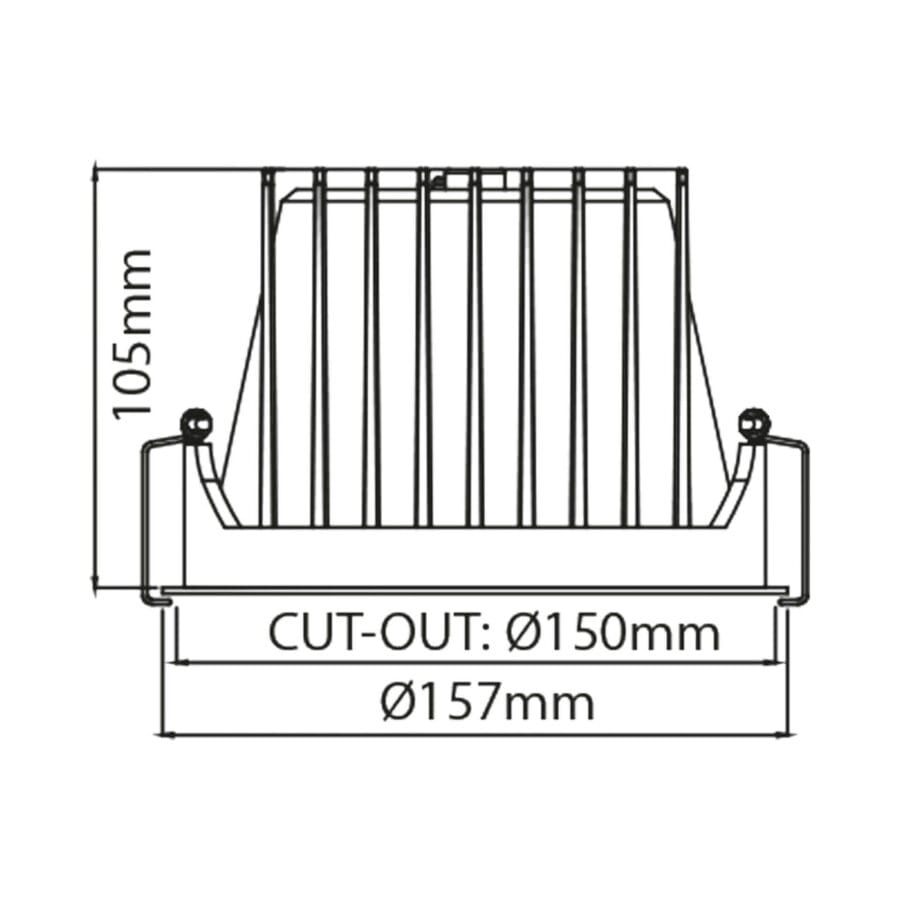

Cut out dimensionØ150mm

Luminaire dimensionØ157x105mm

Nominal fA [mA]350-700mA

Nominal fV [V]32.4-34.1V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE

Light source identifierCLU038-1208C4-273H5M3-F1, CLU038-1208C4-303H5M3-F1, CLU038-1208C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90), Tunable white (2700K – 6500K)

Warranty5Y

CollectionDea Della Luce

Built-in height120mm

ControlCasambi, DALI, Phase Cut

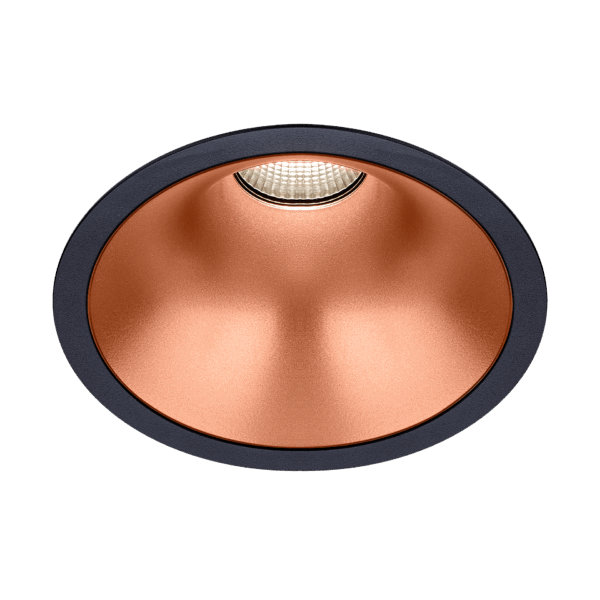

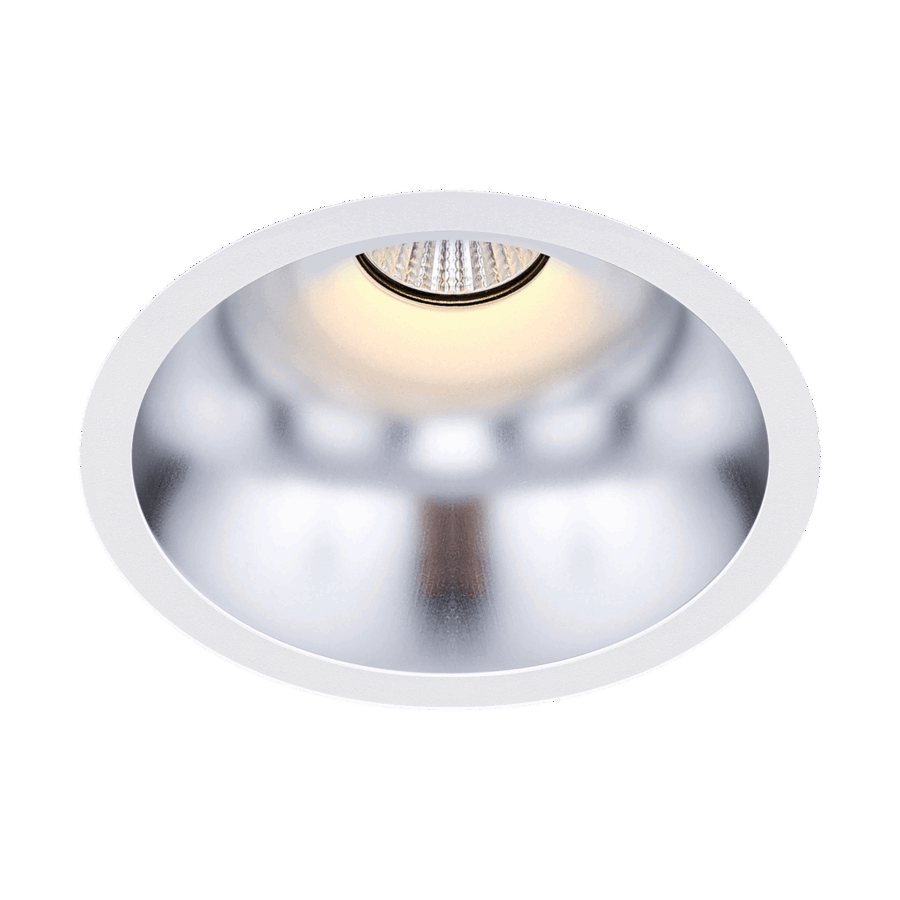

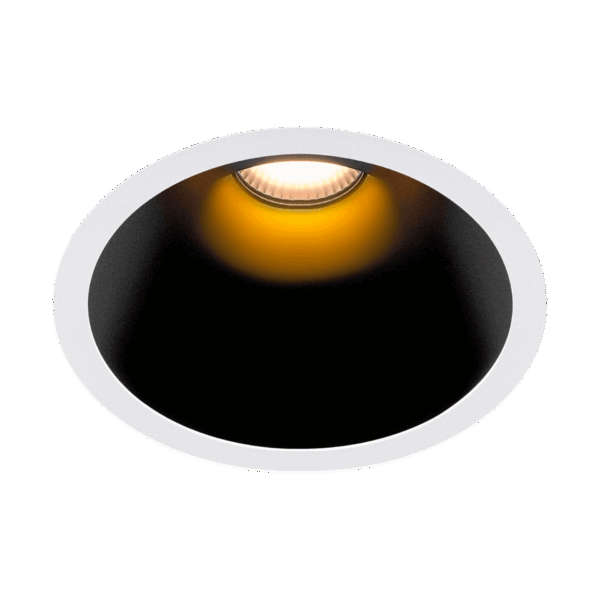

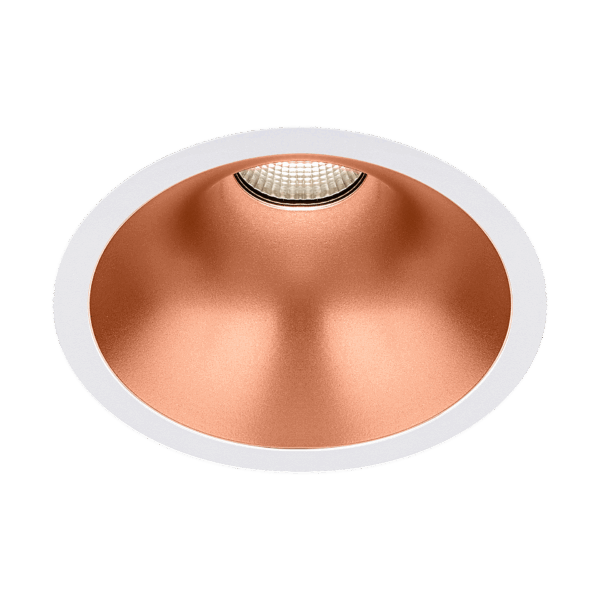

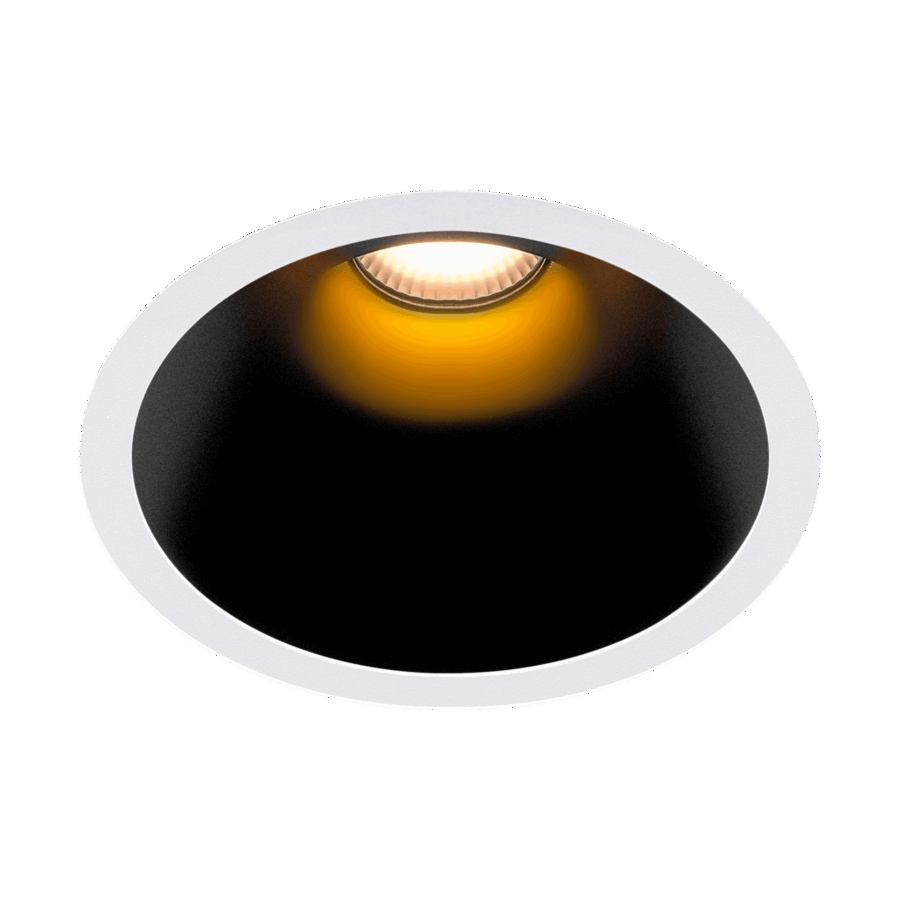

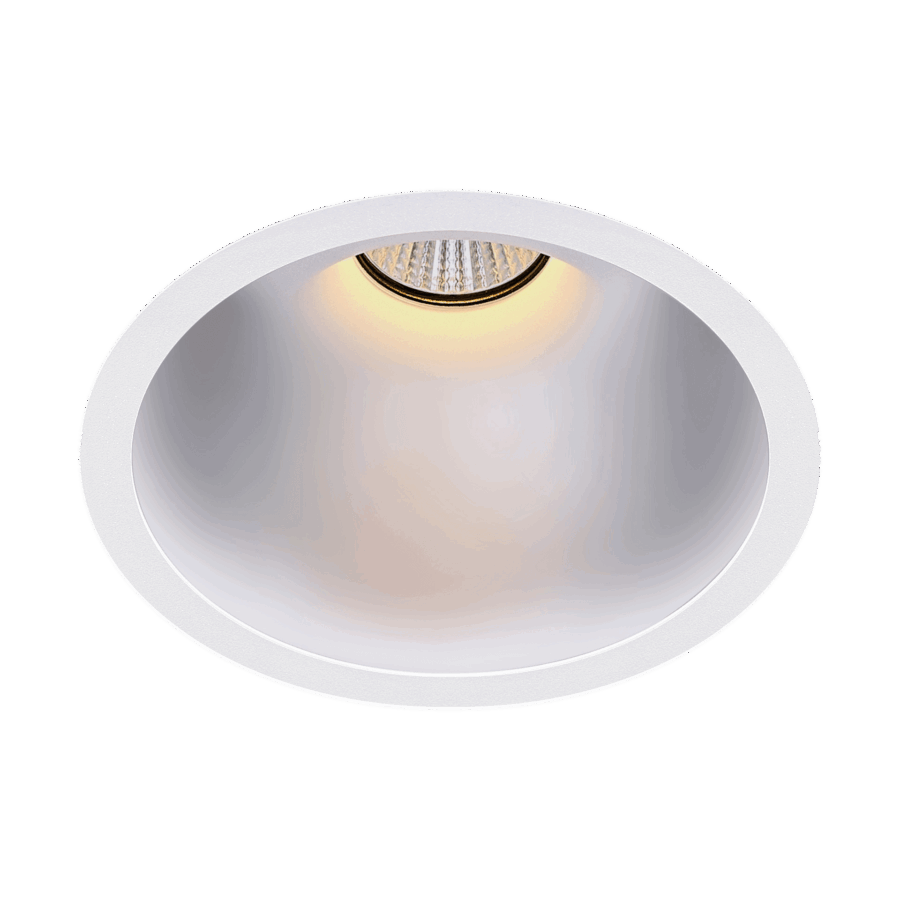

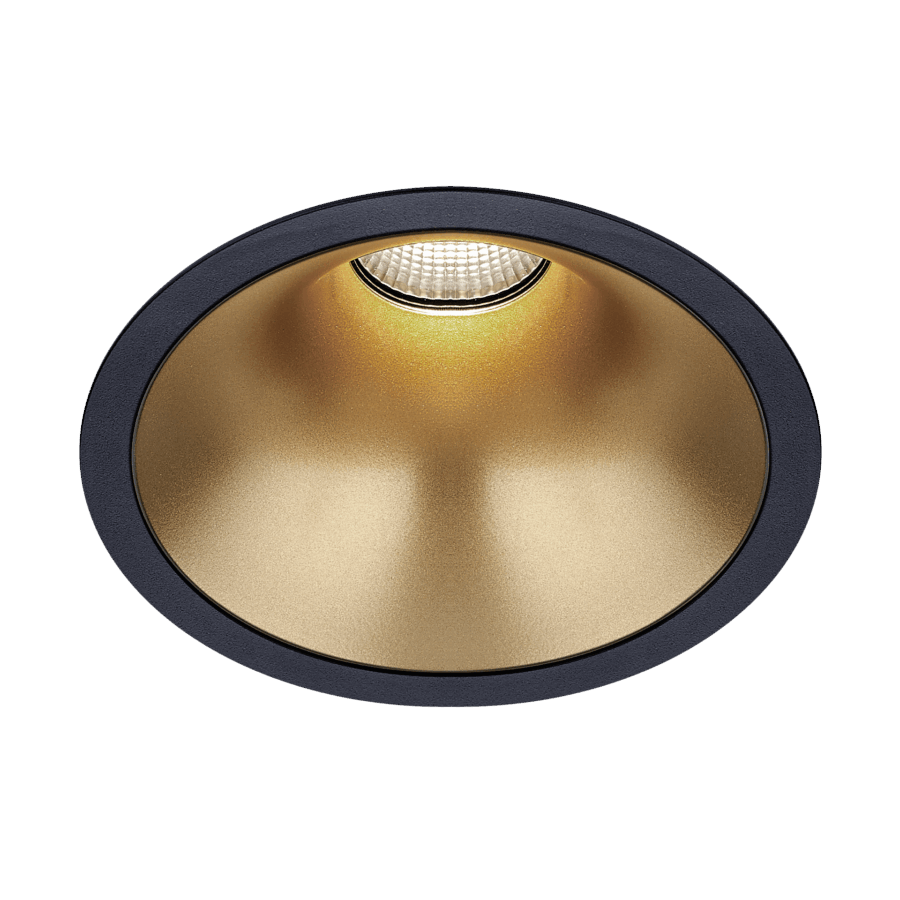

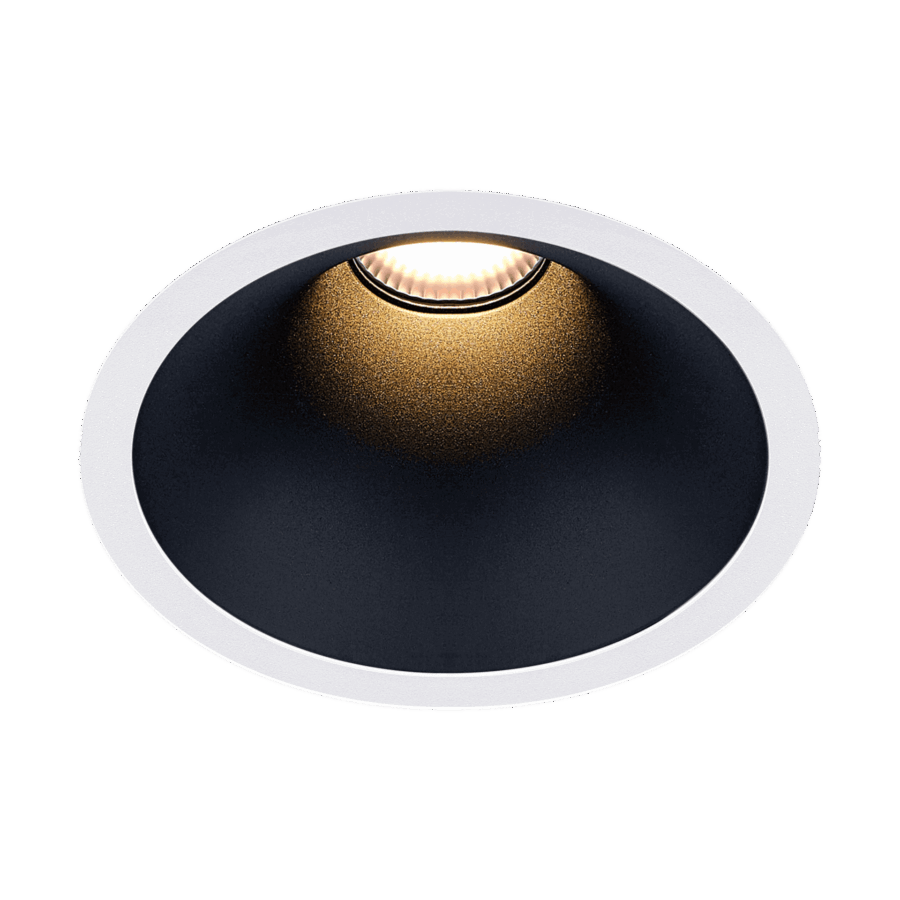

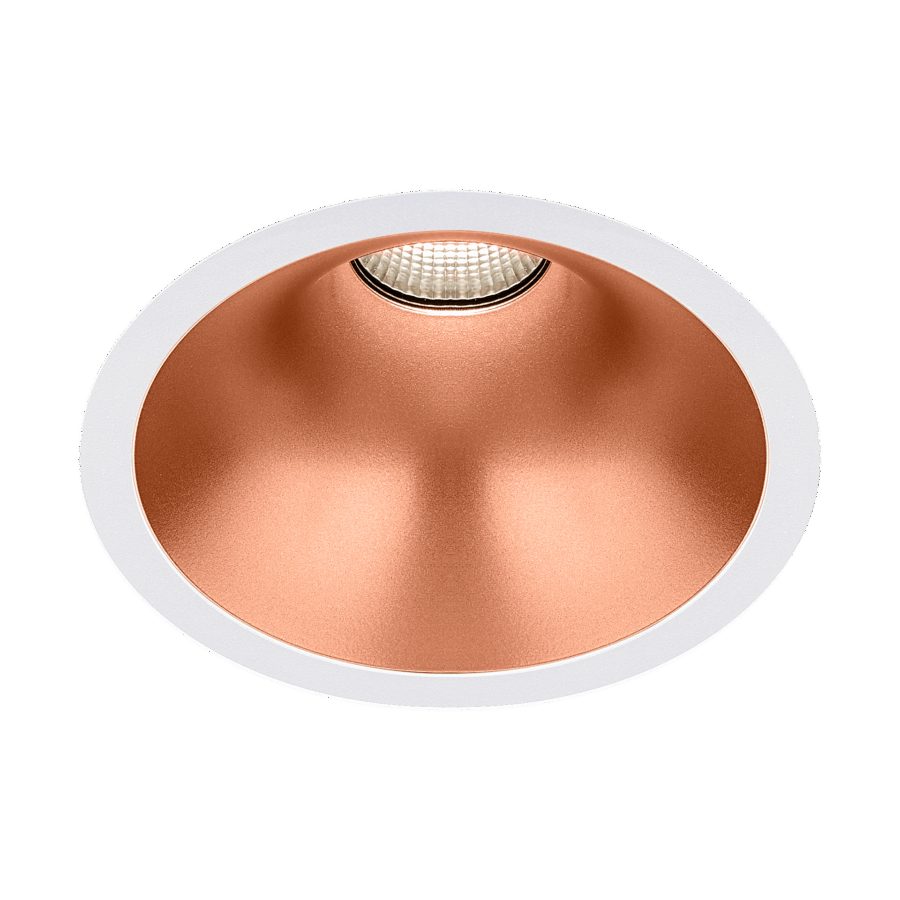

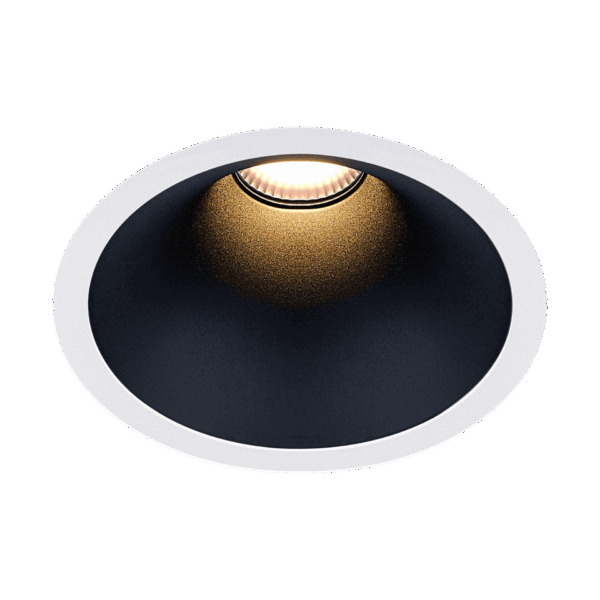

The Karizma Luce Dea Amata L is a recessed fixed downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 1300-2650 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 38°, 45° and 50°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
