Dea Amata XS

A little love from above.

Everybody loves the Dea Amata. It is one of our most popular luminaires. That’s exactly why we called it Amata. This means ‘loved’ in Italian. In its own way, she makes you feel at home. Exactly in the colour that suits you. Caring, reliable, timeless. That’s how love should be, right?

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
211AB92718BG00	150 lm	2700K	90	18°	Black	Black High Gloss	150-lm	2700k	90	18	black	black-high-gloss
211AB93018BG00	160 lm	3000K	90	18°	Black	Black High Gloss	160-lm	3000k	90	18	black	black-high-gloss
211AW92718BG00	150 lm	2700K	90	18°	White	Black High Gloss	150-lm	2700k	90	18	white	black-high-gloss
211AW93018BG00	160 lm	3000K	90	18°	White	Black High Gloss	160-lm	3000k	90	18	white	black-high-gloss
211AB92718SG00	150 lm	2700K	90	18°	Black	Silver High Gloss	150-lm	2700k	90	18	black	silver-high-gloss
211AB93018SG00	160 lm	3000K	90	18°	Black	Silver High Gloss	160-lm	3000k	90	18	black	silver-high-gloss
211AW92718SG00	150 lm	2700K	90	18°	White	Silver High Gloss	150-lm	2700k	90	18	white	silver-high-gloss
211AW93018SG00	160 lm	3000K	90	18°	White	Silver High Gloss	160-lm	3000k	90	18	white	silver-high-gloss
211AB92718CH00	150 lm	2700K	90	18°	Black	Chrome	150-lm	2700k	90	18	black	chrome
211AB93018CH00	160 lm	3000K	90	18°	Black	Chrome	160-lm	3000k	90	18	black	chrome
211AW92718CH00	150 lm	2700K	90	18°	White	Chrome	150-lm	2700k	90	18	white	chrome
211AW93018CH00	160 lm	3000K	90	18°	White	Chrome	160-lm	3000k	90	18	white	chrome
211AB92718WH00	150 lm	2700K	90	18°	Black	White	150-lm	2700k	90	18	black	white
211AB93018WH00	160 lm	3000K	90	18°	Black	White	160-lm	3000k	90	18	black	white
211AW92718WH00	150 lm	2700K	90	18°	White	White	150-lm	2700k	90	18	white	white
211AW93018WH00	160 lm	3000K	90	18°	White	White	160-lm	3000k	90	18	white	white
211AB92718GO00	150 lm	2700K	90	18°	Black	Gold	150-lm	2700k	90	18	black	gold
211AB93018GO00	160 lm	3000K	90	18°	Black	Gold	160-lm	3000k	90	18	black	gold
211AW92718GO00	150 lm	2700K	90	18°	White	Gold	150-lm	2700k	90	18	white	gold
211AW93018GO00	160 lm	3000K	90	18°	White	Gold	160-lm	3000k	90	18	white	gold
211AB92718BM00	150 lm	2700K	90	18°	Black	Black Matt	150-lm	2700k	90	18	black	black-matt
211AB93018BM00	160 lm	3000K	90	18°	Black	Black Matt	160-lm	3000k	90	18	black	black-matt
211AW92718BM00	150 lm	2700K	90	18°	White	Black Matt	150-lm	2700k	90	18	white	black-matt
211AW93018BM00	160 lm	3000K	90	18°	White	Black Matt	160-lm	3000k	90	18	white	black-matt
211AB92718CO00	150 lm	2700K	90	18°	Black	Copper	150-lm	2700k	90	18	black	copper
211AB93018CO00	160 lm	3000K	90	18°	Black	Copper	160-lm	3000k	90	18	black	copper
211AW92718CO00	150 lm	2700K	90	18°	White	Copper	150-lm	2700k	90	18	white	copper
211AW93018CO00	160 lm	3000K	90	18°	White	Copper	160-lm	3000k	90	18	white	copper
211AB94018BG00	190 lm	4000K	90	18°	Black	Black High Gloss	190-lm	4000k	90	18	black	black-high-gloss
211AB94018BM00	190 lm	4000K	90	18°	Black	Black Matt	190-lm	4000k	90	18	black	black-matt
211AB94018CH00	190 lm	4000K	90	18°	Black	Chrome	190-lm	4000k	90	18	black	chrome
211AB94018CO00	190 lm	4000K	90	18°	Black	Copper	190-lm	4000k	90	18	black	copper
211AB94018GO00	190 lm	4000K	90	18°	Black	Gold	190-lm	4000k	90	18	black	gold
211AB94018SG00	190 lm	4000K	90	18°	Black	Silver High Gloss	190-lm	4000k	90	18	black	silver-high-gloss
211AB94018WH00	190 lm	4000K	90	18°	Black	White	190-lm	4000k	90	18	black	white
211AW94018BG00	170 lm	4000K	90	18°	White	Black High Gloss	170-lm	4000k	90	18	white	black-high-gloss
211AW94018BM00	170 lm	4000K	90	18°	White	Black Matt	170-lm	4000k	90	18	white	black-matt
211AW94018CH00	170 lm	4000K	90	18°	White	Chrome	170-lm	4000k	90	18	white	chrome
211AW94018CO00	170 lm	4000K	90	18°	White	Copper	170-lm	4000k	90	18	white	copper
211AW94018GO00	170 lm	4000K	90	18°	White	Gold	170-lm	4000k	90	18	white	gold
211AW94018SG00	170 lm	4000K	90	18°	White	Silver High Gloss	170-lm	4000k	90	18	white	silver-high-gloss
211AW94018WH00	170 lm	4000K	90	18°	White	White	170-lm	4000k	90	18	white	white

Click on specification values for related products.

Luminous Flux150 lm, 160 lm, 170 lm, 180 lm, 190 lm

CRI80, 90

CCT2700K, 3000K, 4000K

LED power2.1W

System power3.2W

System efficiency47lm/W, 50lm/W, 53lm/W, 56lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle18°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP43/IP20

Net. Weight0.1Kg

Cut out dimensionØ40mm

Luminaire dimensionØ44x58mm

Nominal fA [mA]700mA

Nominal fV [V]3V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height75mm

ControlDALI

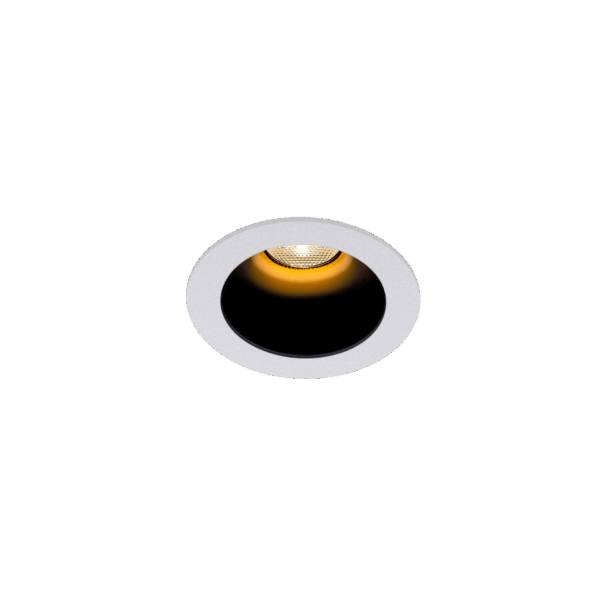

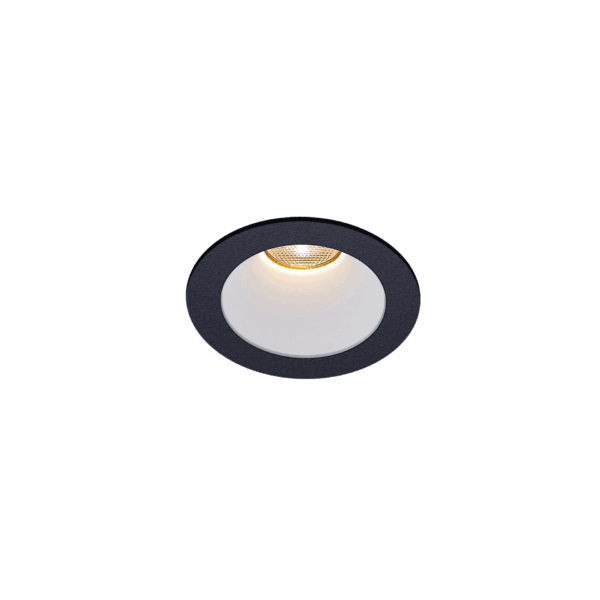

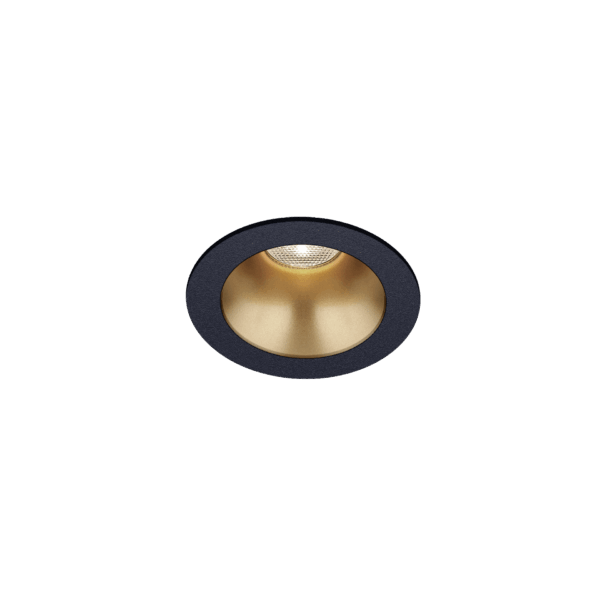

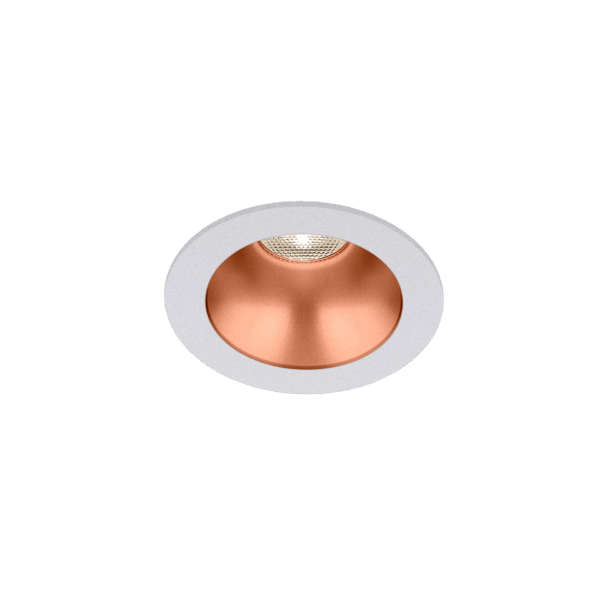

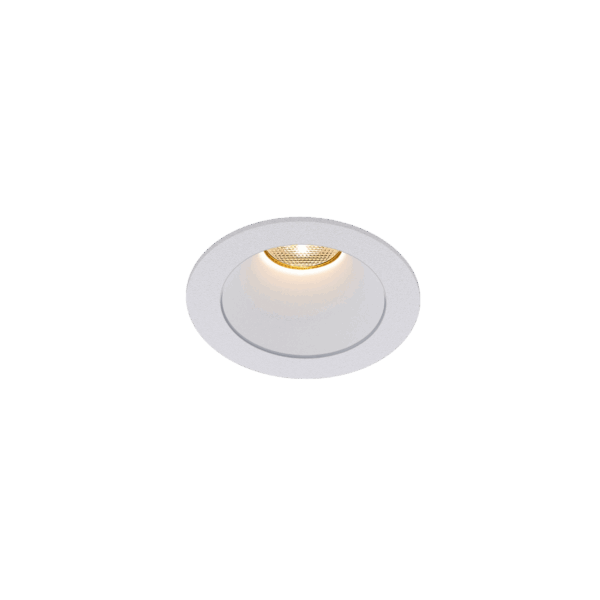

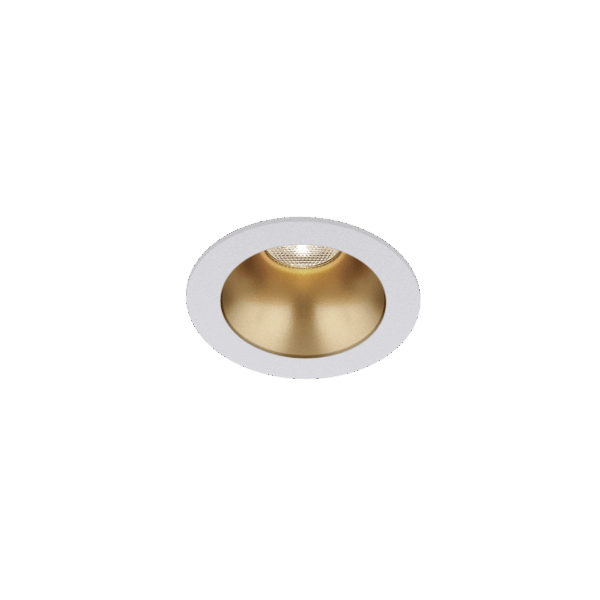

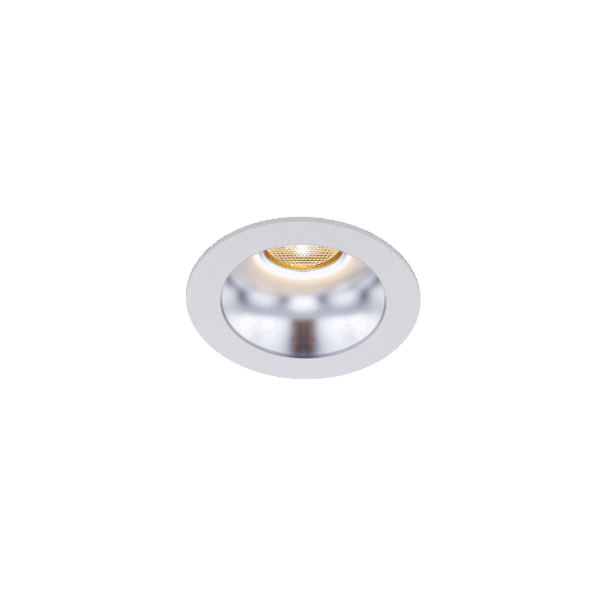

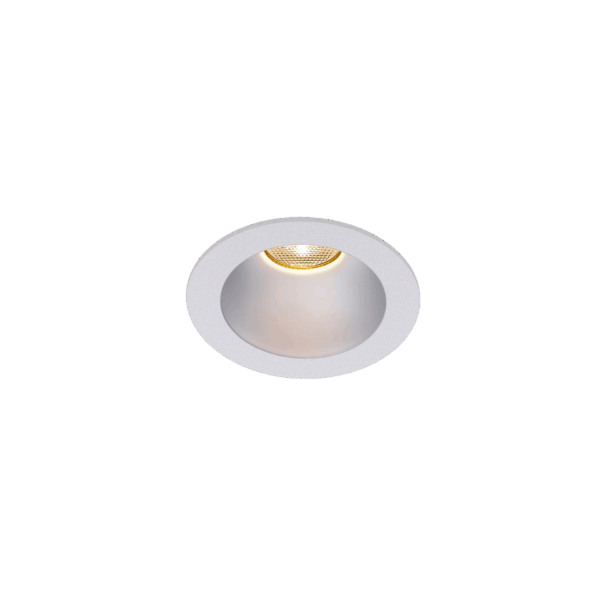

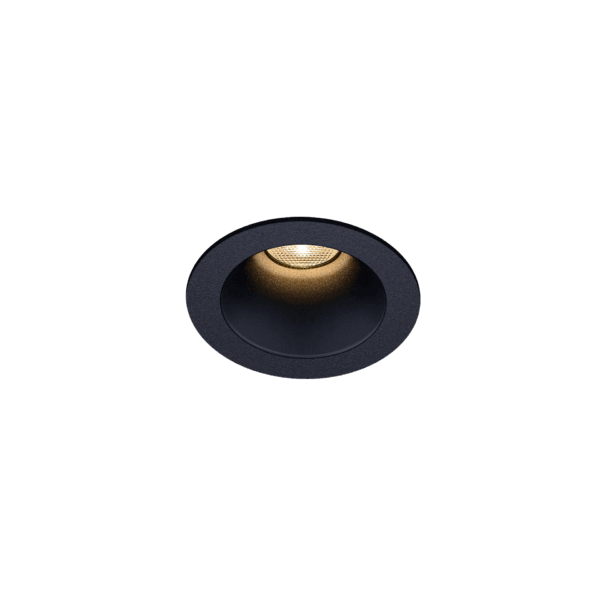

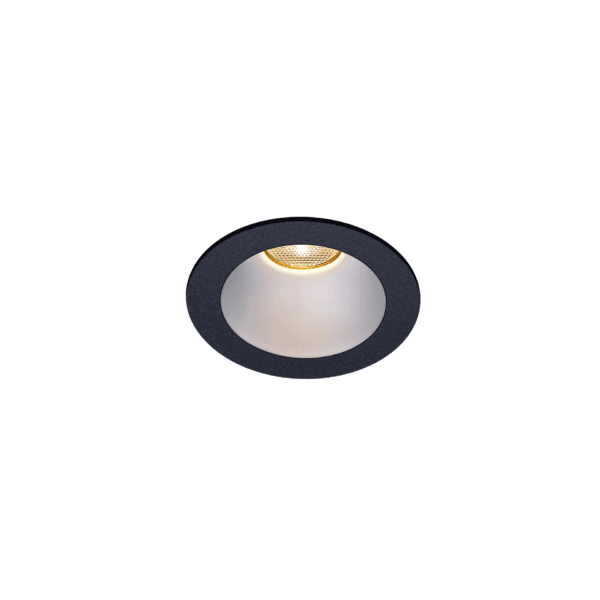

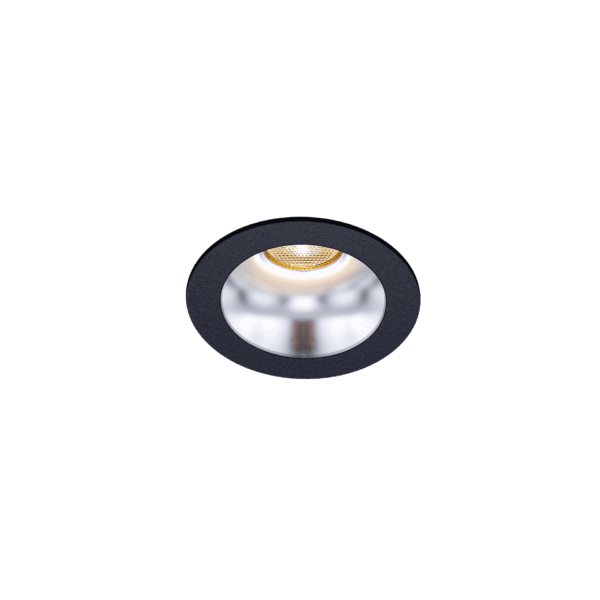

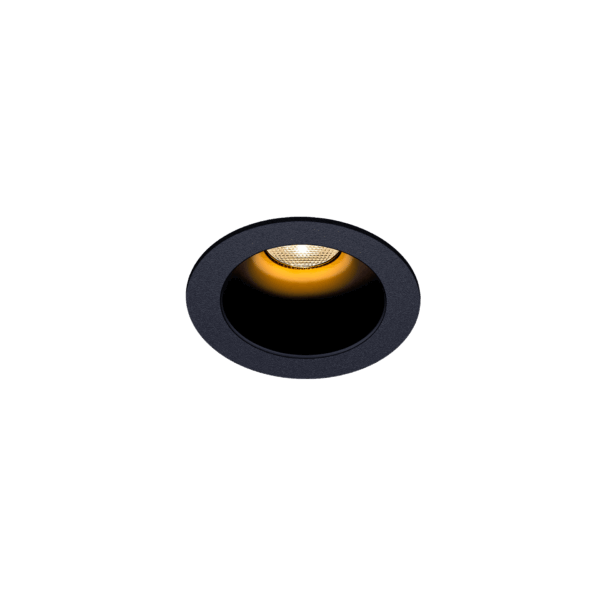

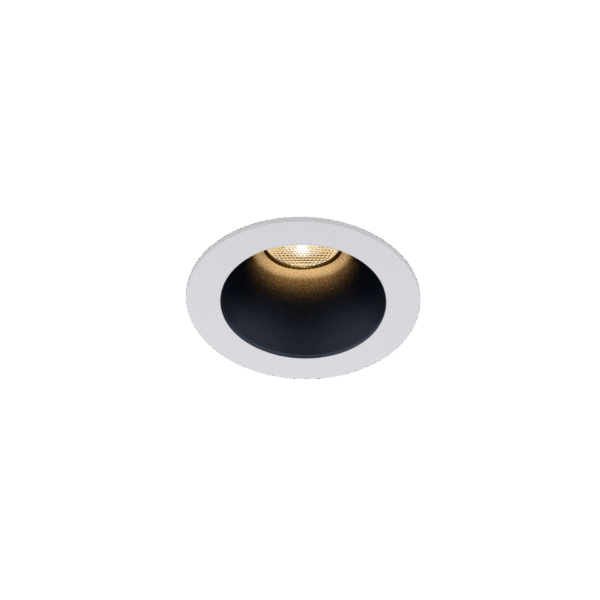

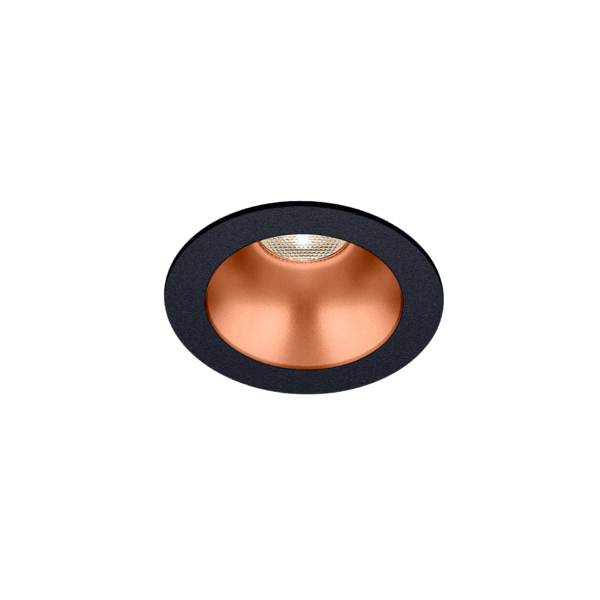

The Karizma Luce Dea Amata XS is a recessed fixed downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 150-180 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 18°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
