Dea Amata S

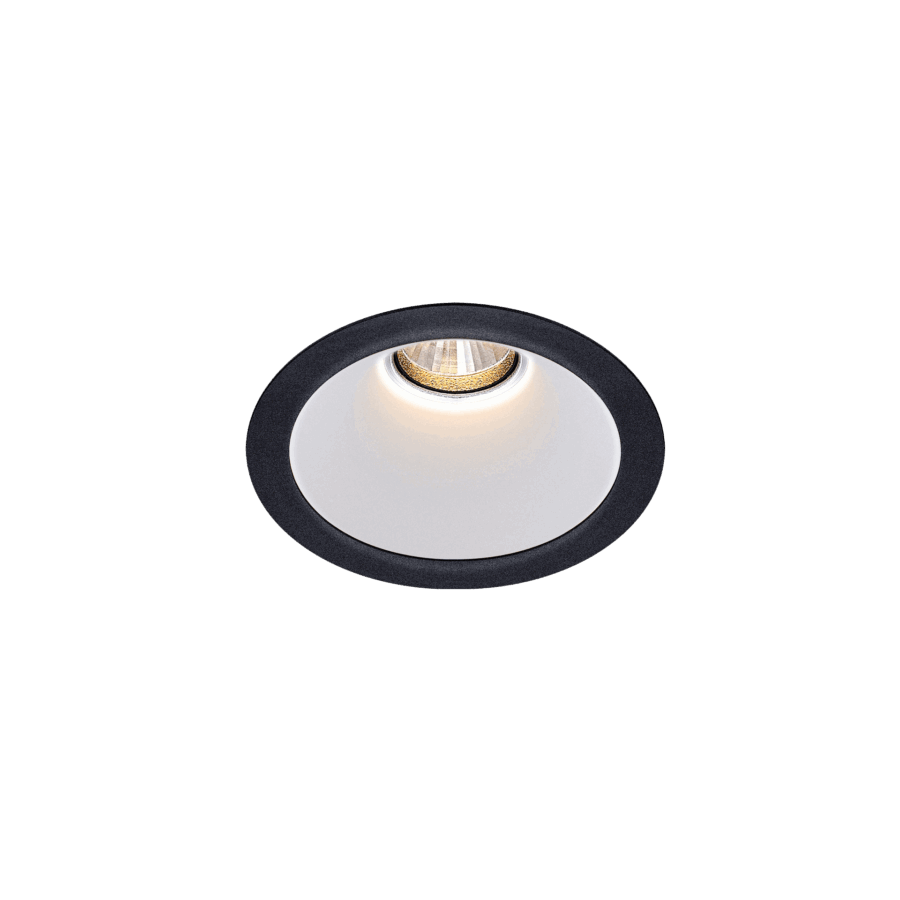

Dea Amata S

A little love from above.

Everybody loves the Dea Amata. It is one of our most popular luminaires. That’s exactly why we called it Amata. This means ‘loved’ in Italian. In its own way, she makes you feel at home. Exactly in the colour that suits you. Caring, reliable, timeless. That’s how love should be, right?

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color

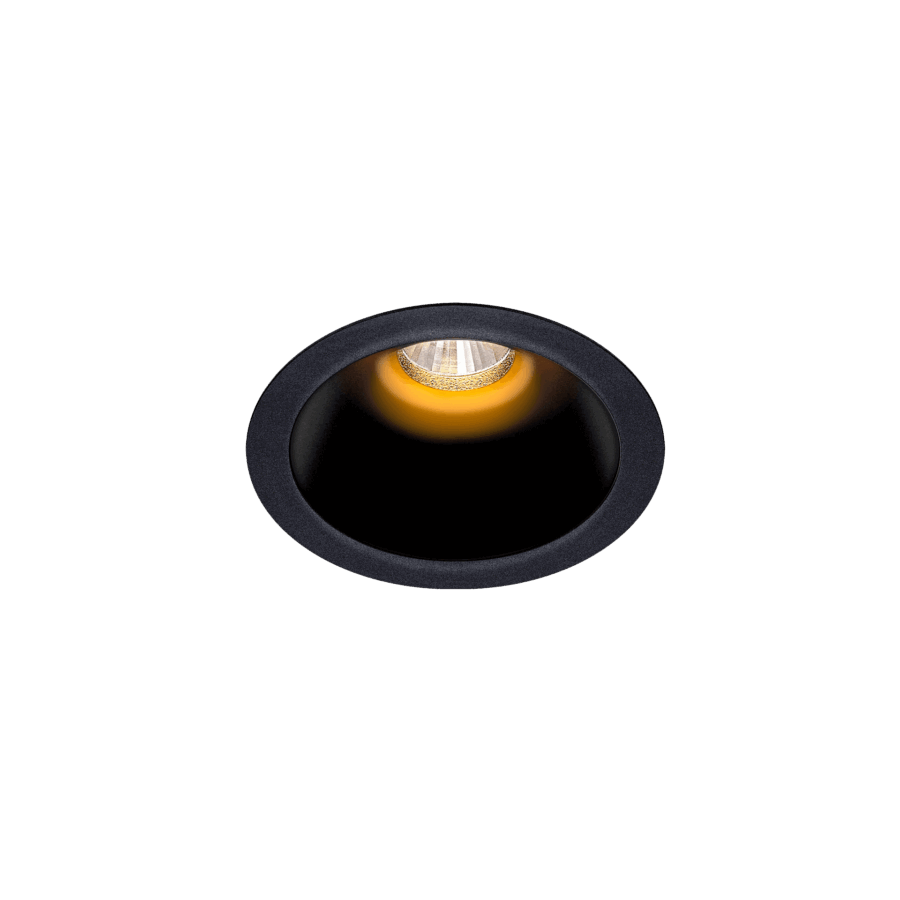

212CB94060BG00	700 lm	4000K	90	60°	Black	Black High Gloss	700-lm	4000k	90	60	black	black-high-gloss
212CB92760BG00	600 lm	2700K	90	60°	Black	Black High Gloss	600-lm	2700k	90	60	black	black-high-gloss
212CB93060BG00	630 lm	3000K	90	60°	Black	Black High Gloss	630-lm	3000k	90	60	black	black-high-gloss
212CW94060BG00	700 lm	4000K	90	60°	White	Black High Gloss	700-lm	4000k	90	60	white	black-high-gloss
212CW92760BG00	600 lm	2700K	90	60°	White	Black High Gloss	600-lm	2700k	90	60	white	black-high-gloss
212CW93060BG00	630 lm	3000K	90	60°	White	Black High Gloss	630-lm	3000k	90	60	white	black-high-gloss

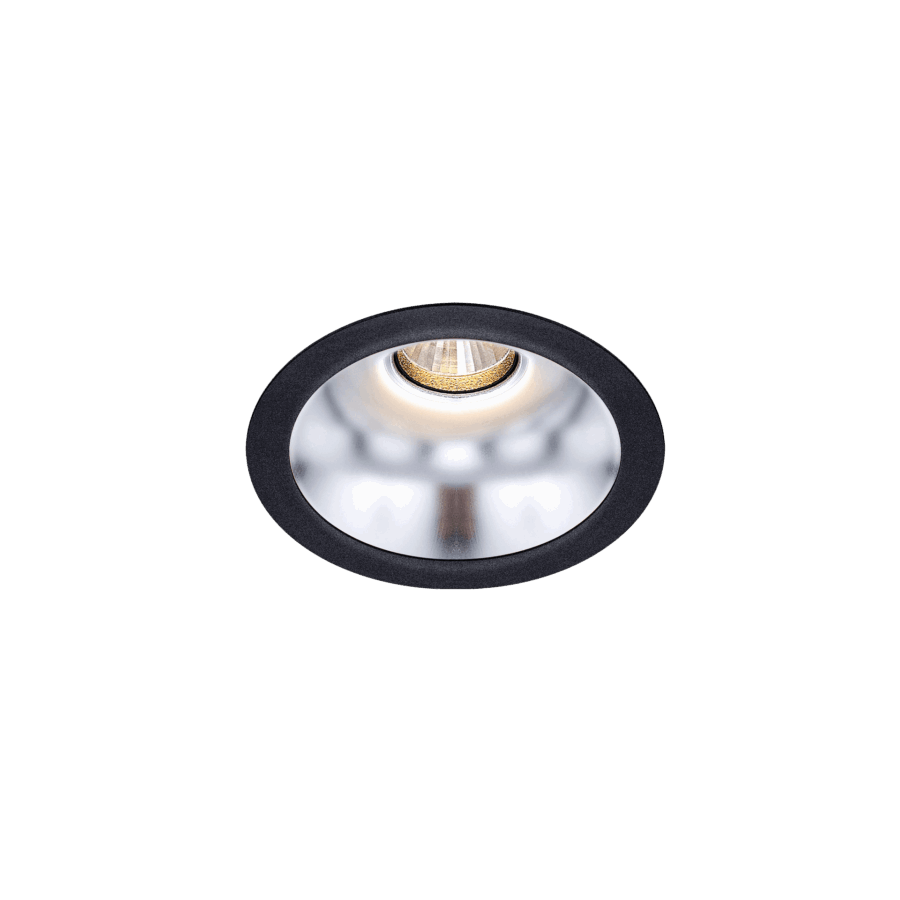

212CB94060SG00	730 lm	4000K	90	60°	Black	Silver High Gloss	730-lm	4000k	90	60	black	silver-high-gloss
212CB92760SG00	630 lm	2700K	90	60°	Black	Silver High Gloss	630-lm	2700k	90	60	black	silver-high-gloss
212CB93060SG00	670 lm	3000K	90	60°	Black	Silver High Gloss	670-lm	3000k	90	60	black	silver-high-gloss

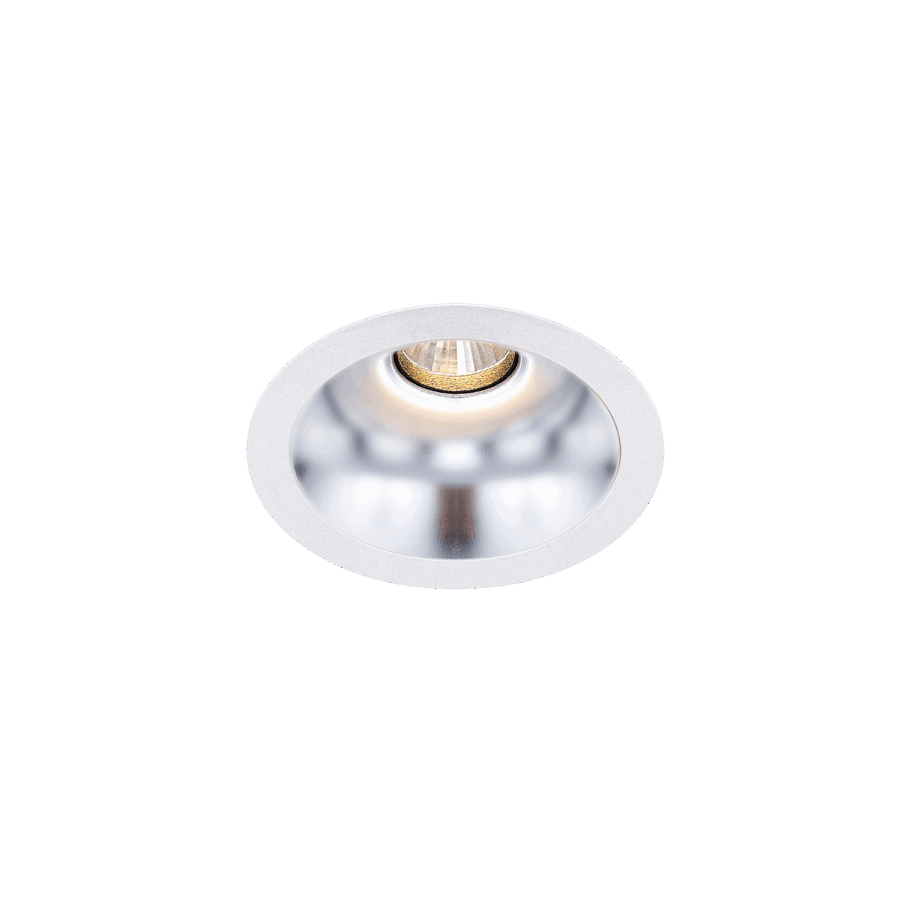

212CW94060SG00	730 lm	4000K	90	60°	White	Silver High Gloss	730-lm	4000k	90	60	white	silver-high-gloss
212CW92760SG00	630 lm	2700K	90	60°	White	Silver High Gloss	630-lm	2700k	90	60	white	silver-high-gloss
212CW93060SG00	670 lm	3000K	90	60°	White	Silver High Gloss	670-lm	3000k	90	60	white	silver-high-gloss

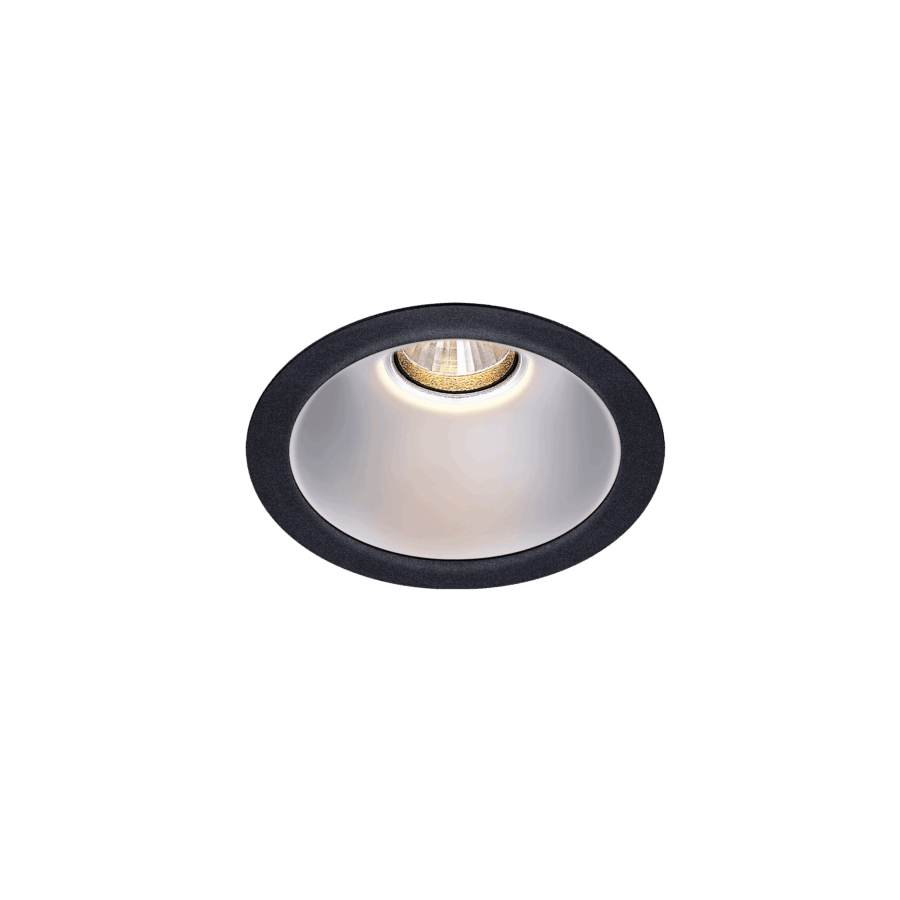

212CB94055CH00	720 lm	4000K	90	55°	Black	Chrome	720-lm	4000k	90	55	black	chrome
212CB92755CH00	620 lm	2700K	90	55°	Black	Chrome	620-lm	2700k	90	55	black	chrome
212CB93055CH00	660 lm	3000K	90	55°	Black	Chrome	660-lm	3000k	90	55	black	chrome

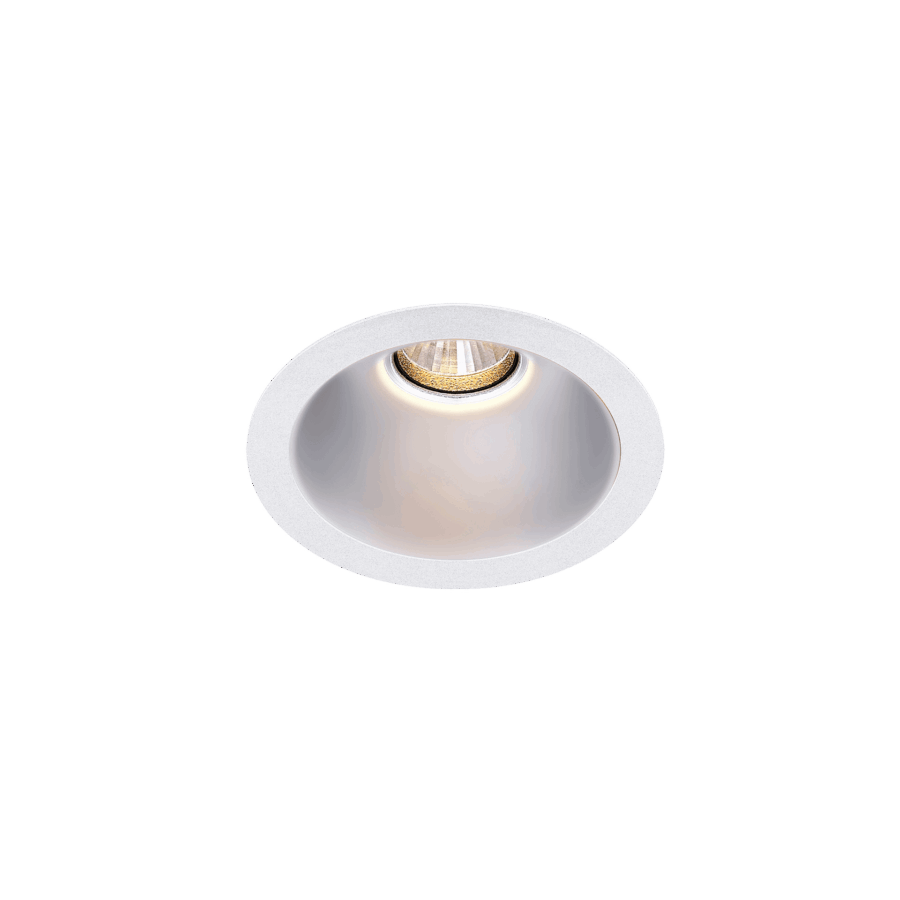

212CW94055CH00	720 lm	4000K	90	55°	White	Chrome	720-lm	4000k	90	55	white	chrome
212CW92755CH00	620 lm	2700K	90	55°	White	Chrome	620-lm	2700k	90	55	white	chrome
212CW93055CH00	660 lm	3000K	90	55°	White	Chrome	660-lm	3000k	90	55	white	chrome
212CB94060WH00	700 lm	4000K	90	60°	Black	White	700-lm	4000k	90	60	black	white
212CB92760WH00	620 lm	2700K	90	60°	Black	White	620-lm	2700k	90	60	black	white
212CB93060WH00	650 lm	3000K	90	60°	Black	White	650-lm	3000k	90	60	black	white

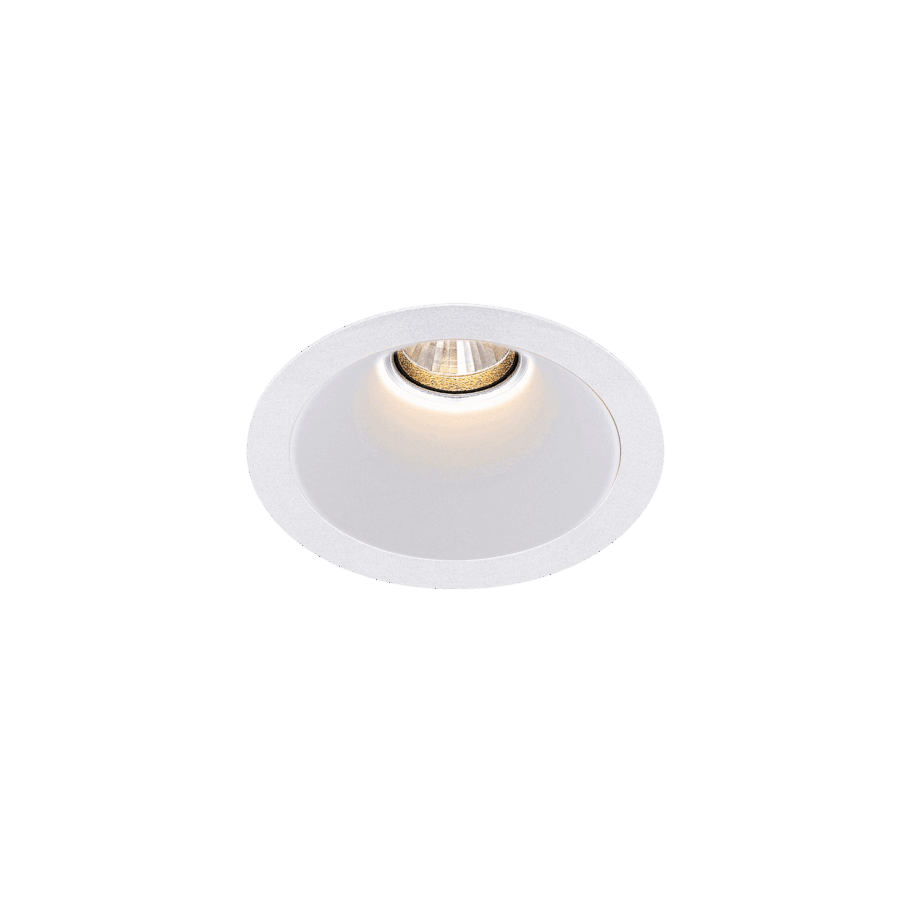

212CW94060WH00	700 lm	4000K	90	60°	White	White	700-lm	4000k	90	60	white	white
212CW92760WH00	620 lm	2700K	90	60°	White	White	620-lm	2700k	90	60	white	white
212CW93060WH00	650 lm	3000K	90	60°	White	White	650-lm	3000k	90	60	white	white
212CB94055GO00	700 lm	4000K	90	55°	Black	Gold	700-lm	4000k	90	55	black	gold
212CB92755GO00	600 lm	2700K	90	55°	Black	Gold	600-lm	2700k	90	55	black	gold
212CB93055GO00	640 lm	3000K	90	55°	Black	Gold	640-lm	3000k	90	55	black	gold

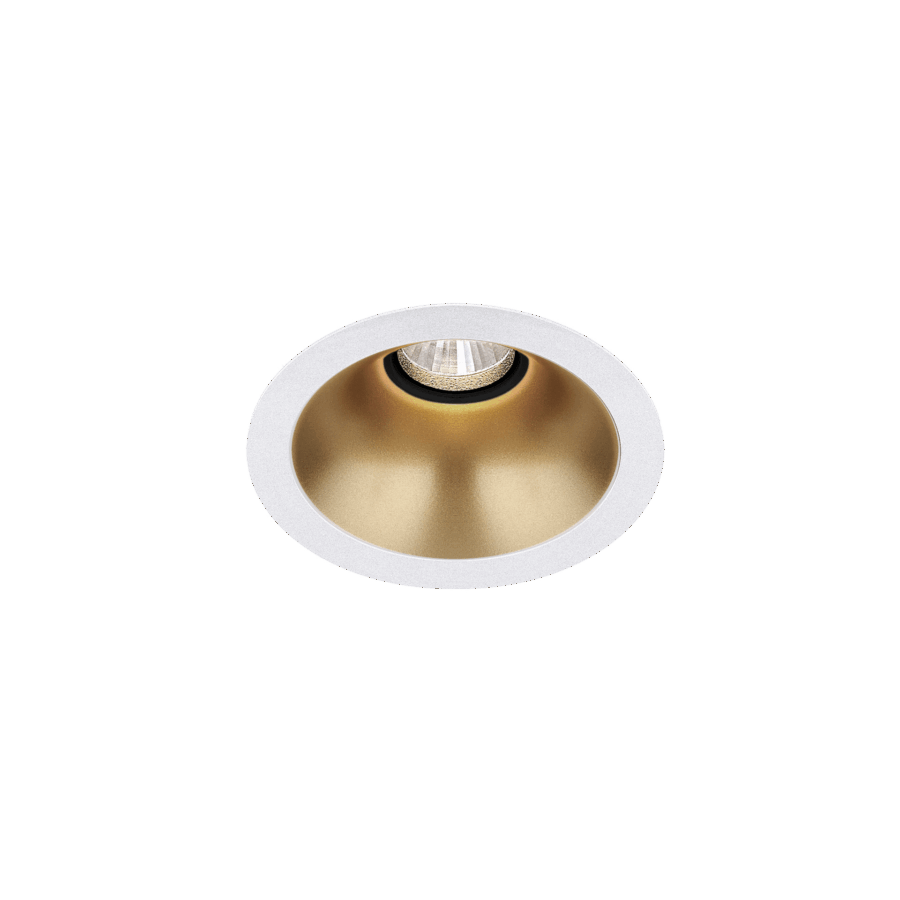

212CW94055GO00	700 lm	4000K	90	55°	White	Gold	700-lm	4000k	90	55	white	gold
212CW92755GO00	600 lm	2700K	90	55°	White	Gold	600-lm	2700k	90	55	white	gold
212CW93055GO00	640 lm	3000K	90	55°	White	Gold	640-lm	3000k	90	55	white	gold

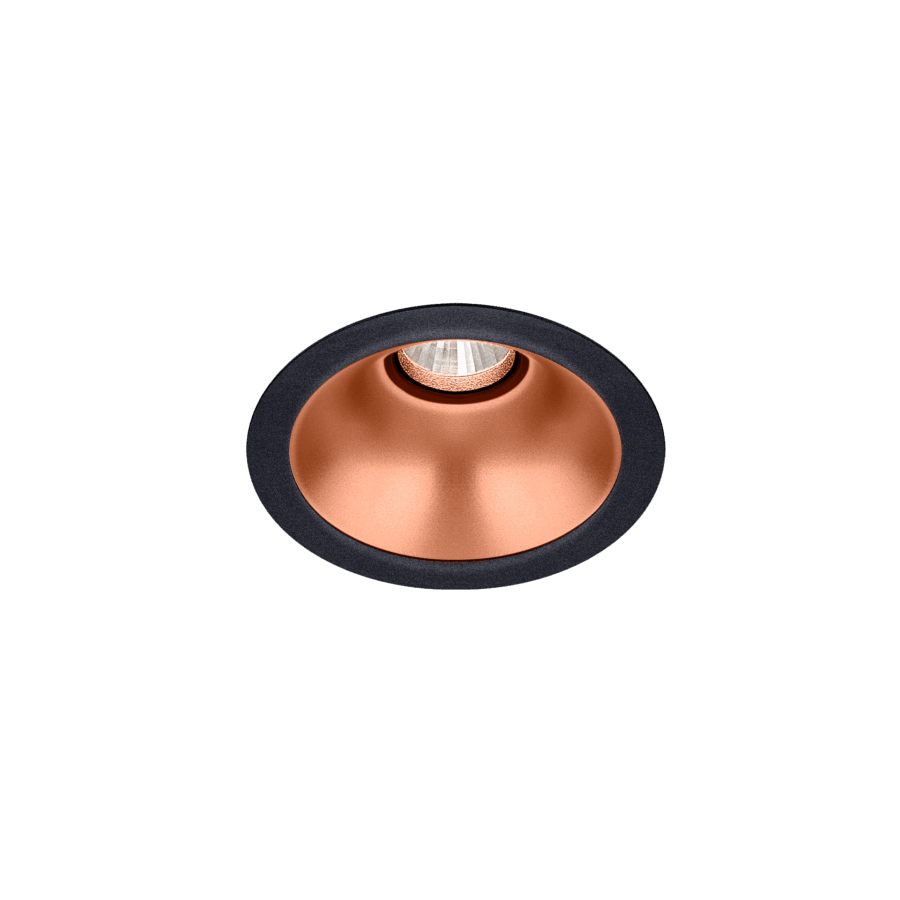

212CB94055CO00	700 lm	4000K	90	55°	Black	Copper	700-lm	4000k	90	55	black	copper
212CB92755CO00	600 lm	2700K	90	55°	Black	Copper	600-lm	2700k	90	55	black	copper
212CB93055CO00	640 lm	3000K	90	55°	Black	Copper	640-lm	3000k	90	55	black	copper

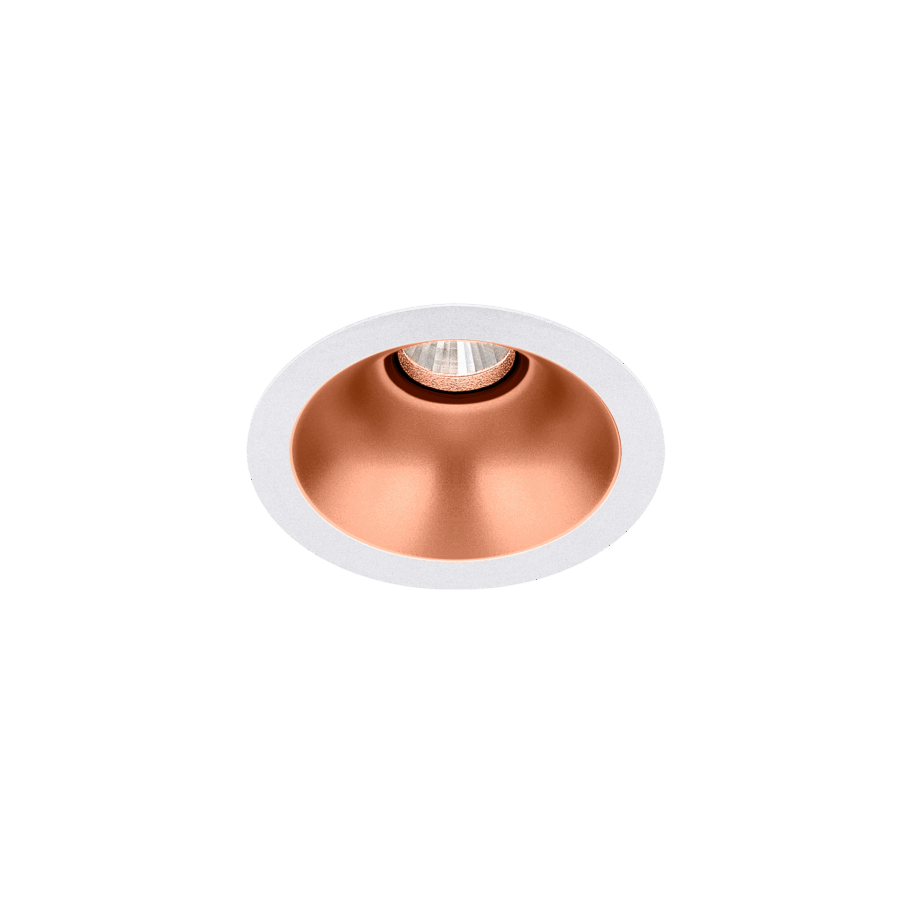

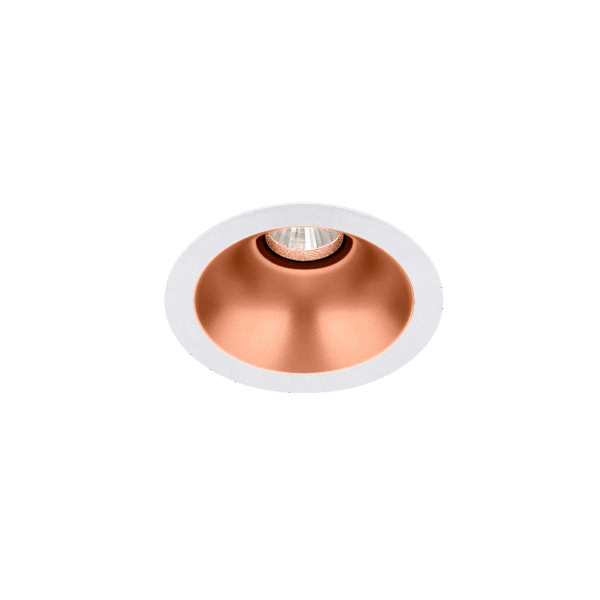

212CW94055CO00	700 lm	4000K	90	55°	White	Copper	700-lm	4000k	90	55	white	copper
212CW92755CO00	600 lm	2700K	90	55°	White	Copper	600-lm	2700k	90	55	white	copper
212CW93055CO00	640 lm	3000K	90	55°	White	Copper	640-lm	3000k	90	55	white	copper

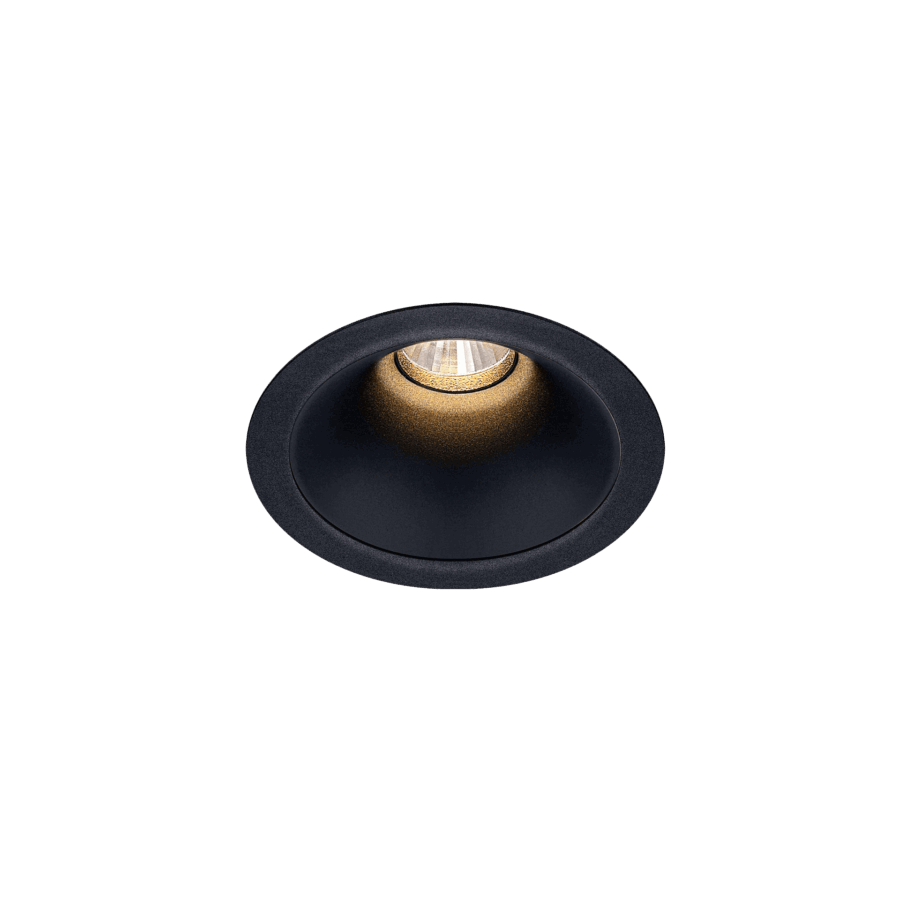

212CB94060BM00	700 lm	4000K	90	60°	Black	Black Matt	700-lm	4000k	90	60	black	black-matt
212CB92760BM00	600 lm	2700K	90	60°	Black	Black Matt	600-lm	2700k	90	60	black	black-matt
212CB93060BM00	630 lm	3000K	90	60°	Black	Black Matt	630-lm	3000k	90	60	black	black-matt

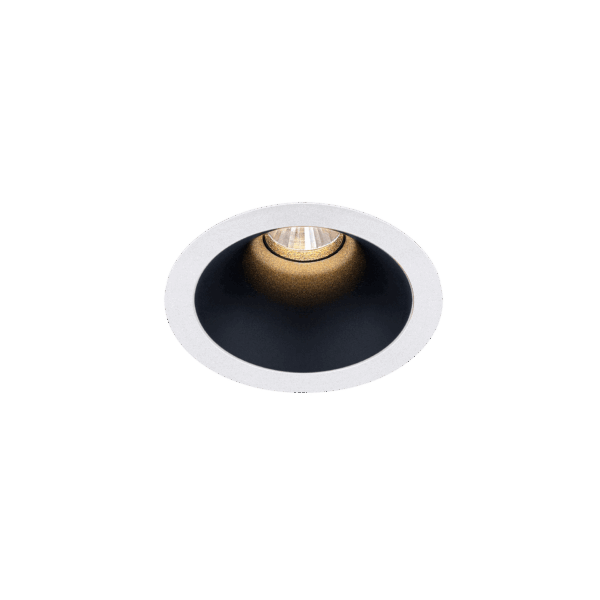

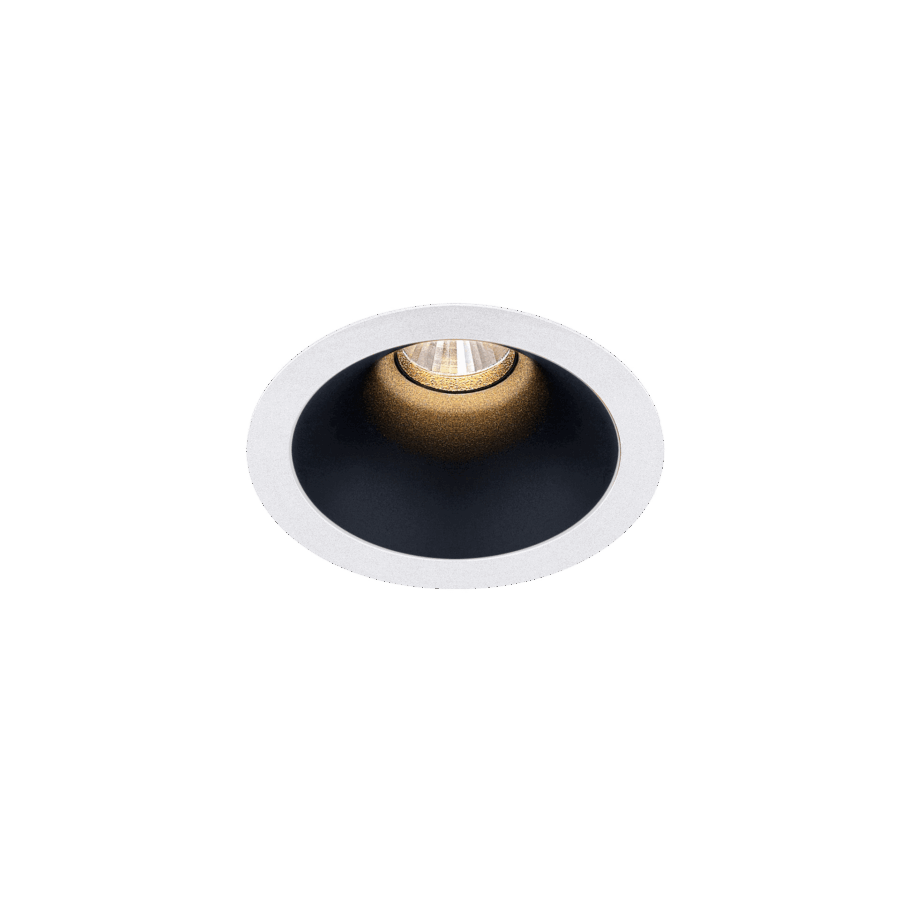

212CW94060BM00	700 lm	4000K	90	60°	White	Black Matt	700-lm	4000k	90	60	white	black-matt
212CW92760BM00	600 lm	2700K	90	60°	White	Black Matt	600-lm	2700k	90	60	white	black-matt
212CW93060BM00	630 lm	3000K	90	60°	White	Black Matt	630-lm	3000k	90	60	white	black-matt

Click on specification values for related products.

Luminous Flux600 lm, 620 lm, 630 lm, 640 lm, 650 lm, 660 lm, 670 lm, 700 lm, 720 lm, 730 lm

CRI90

CCT2700K, 3000K, 4000K

LED power8.5W

System power10W

System efficiency60lm/W, 62lm/W, 63lm/W, 64lm/W, 65lm/W, 66lm/W, 67lm/W, 70lm/W, 72lm/W, 73lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle55°, 60°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP43/IP20

Net. Weight0.18Kg

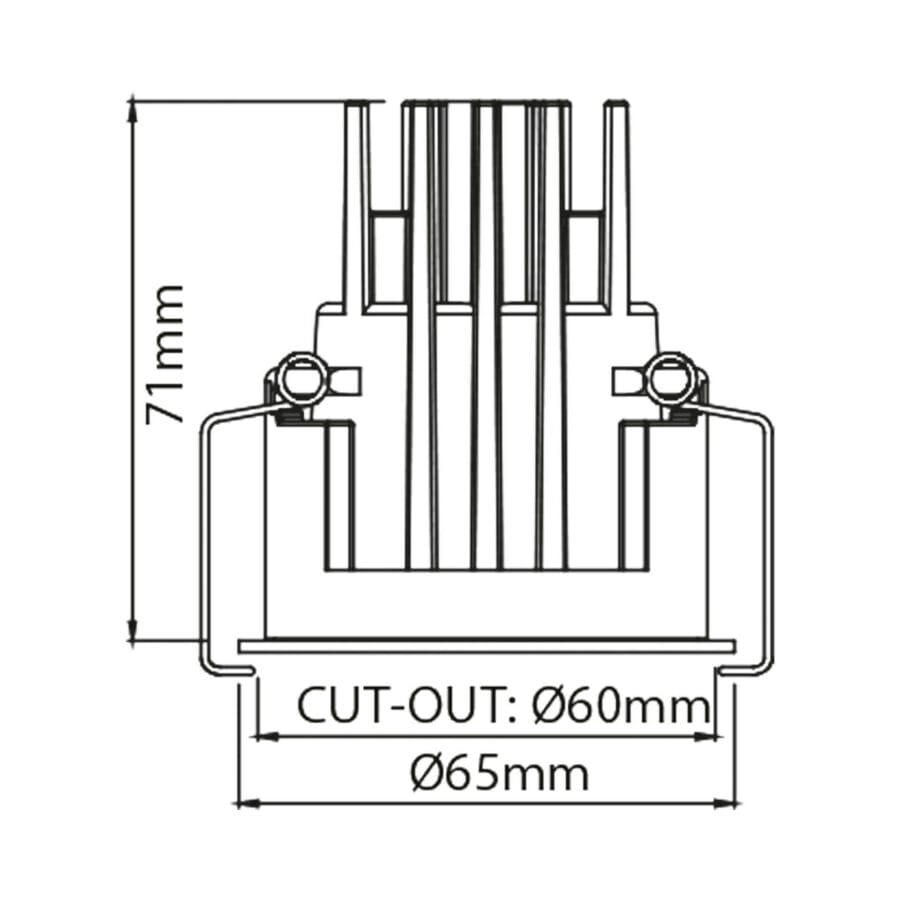

Cut out dimensionØ60mm

Luminaire dimensionØ65x71mm

Nominal fA [mA]250mA

Nominal fV [V]29.9-31.7V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classF

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height90mm

ControlDALI, Phase Cut

The Karizma Luce Dea Amata S is a recessed fixed downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 1080-1300 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 35°, 40°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
