Products

Profondo

A deep impression.

The Profondo is a fixed downlight with a deep recessed lamp position. Profondo means ‘deep’, and that is exactly what this luminaire does: it makes a deep impression. Not only because of the elegant looks, but also of the compact size and pleasant, no glare, lighting it creates by the recessed light source.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
201CW9273200	705 lm	2700K	90	32°	White	Specular Aluminium	705-lm	2700k	90	32	white	specular-aluminium
201CW9303200	720 lm	3000K	90	32°	White	Specular Aluminium	720-lm	3000k	90	32	white	specular-aluminium
201CW9274000	705 lm	2700K	90	40°	White	Specular Aluminium	705-lm	2700k	90	40	white	specular-aluminium
201CW9304000	720 lm	3000K	90	40°	White	Specular Aluminium	720-lm	3000k	90	40	white	specular-aluminium
201CB9273200	705 lm	2700K	90	32°	Black	Specular Aluminium	705-lm	2700k	90	32	black	specular-aluminium
201CB9303200	720 lm	3000K	90	32°	Black	Specular Aluminium	720-lm	3000k	90	32	black	specular-aluminium
201CB9274000	705 lm	2700K	90	40°	Black	Specular Aluminium	705-lm	2700k	90	40	black	specular-aluminium
201CB9304000	720 lm	3000K	90	40°	Black	Specular Aluminium	720-lm	3000k	90	40	black	specular-aluminium
201EW9273200	1240 lm	2700K	90	32°	White	Specular Aluminium	1240-lm	2700k	90	32	white	specular-aluminium
201FW9303200	1280 lm	3000K	90	32°	White	Specular Aluminium	1280-lm	3000k	90	32	white	specular-aluminium
201EW9274000	1240 lm	2700K	90	40°	White	Specular Aluminium	1240-lm	2700k	90	40	white	specular-aluminium
201FW9304000	1280 lm	3000K	90	40°	White	Specular Aluminium	1280-lm	3000k	90	40	white	specular-aluminium
201EB9273200	1240 lm	2700K	90	32°	Black	Specular Aluminium	1240-lm	2700k	90	32	black	specular-aluminium
201FB9303200	1280 lm	3000K	90	32°	Black	Specular Aluminium	1280-lm	3000k	90	32	black	specular-aluminium
201EB9274000	1240 lm	2700K	90	40°	Black	Specular Aluminium	1240-lm	2700k	90	40	black	specular-aluminium
201FB9304000	1280 lm	3000K	90	40°	Black	Specular Aluminium	1280-lm	3000k	90	40	black	specular-aluminium
201DW9403200	850 lm	4000K	90	32°	White	Specular Aluminium	850-lm	4000k	90	32	white	specular-aluminium
201DW9404000	850 lm	4000K	90	40°	White	Specular Aluminium	850-lm	4000k	90	40	white	specular-aluminium
201DB9403200	850 lm	4000K	90	32°	Black	Specular Aluminium	850-lm	4000k	90	32	black	specular-aluminium
201DB9404000	850 lm	4000K	90	40°	Black	Specular Aluminium	850-lm	4000k	90	40	black	specular-aluminium
201GW9403200	1380 lm	4000K	90	32°	White	Specular Aluminium	1380-lm	4000k	90	32	white	specular-aluminium
201GW9404000	1380 lm	4000K	90	40°	White	Specular Aluminium	1380-lm	4000k	90	40	white	specular-aluminium
201GB9403200	1380 lm	4000K	90	32°	Black	Specular Aluminium	1380-lm	4000k	90	32	black	specular-aluminium
201GB9404000	1380 lm	4000K	90	40°	Black	Specular Aluminium	1380-lm	4000k	90	40	black	specular-aluminium

Click on specification values for related products.

Luminous Flux1240 lm, 1240lm, 1280 lm, 1280lm, 1380 lm, 1450lm, 380lm, 705 lm, 705lm, 720 lm, 720lm, 850 lm, 850lm

CRI90

CCT1800K – 3000K, 2700K, 3000K, 4000K

LED power12.5W, 12W, 6W, 9W

System power11.5W, 11W, 14W

System efficiency64lm/W, 65lm/W, 74lm/W, 89lm/W, 91lm/W, 99lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle32°, 40°, 60°

Luminaire colorBlack, White

Reflector colorSpecular Aluminium

IP ratingIP43/IP20, IP43/IP21, IP43/IP22, IP43/IP23, IP43/IP24, IP43/IP25, IP43/IP26, IP43/IP27, IP43/IP28, IP43/IP29, IP43/IP30, IP43/IP31, IP43/IP32, IP43/IP33, IP43/IP34, IP43/IP35, IP43/IP36

Net. Weight0.32Kg

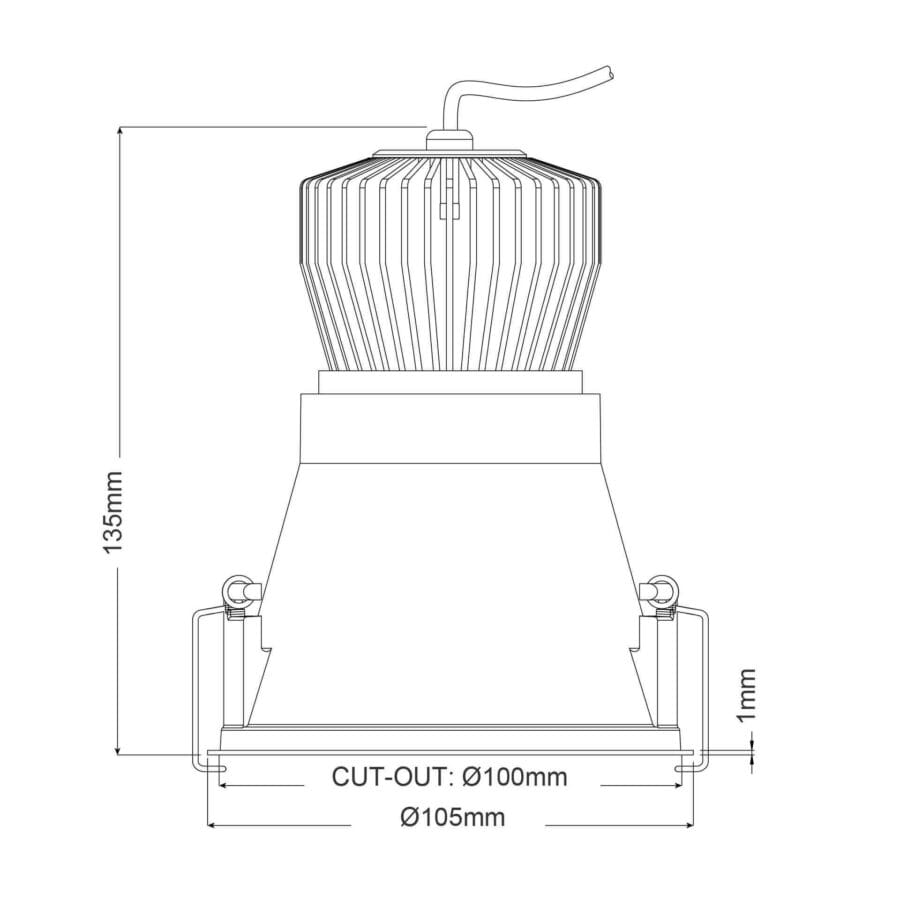

Cut out dimensionØ100mm

Luminaire dimensionØ105x134mm

Nominal fA [mA]350mA, 500mA

Nominal fV [V]18.4V, 33.8-35.9 V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDelizia di Luce

Built-in height144mm

ControlCasambi, DALI, Phase Cut

The Karizma Luce Profondo is a fixed led downlight with deep recessed lamp position from the Delizia Di Luce series. Made from aluminium. Available luminaire flux range: 705-1550 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 32° / 40° / 60°. Luminaire available in black and white. Reflector colour: Specular Aluminium.

Related products

Impressed with this fixture? Then these related products will also appeal to you. Combine them and create an unrivalled lighting experience.

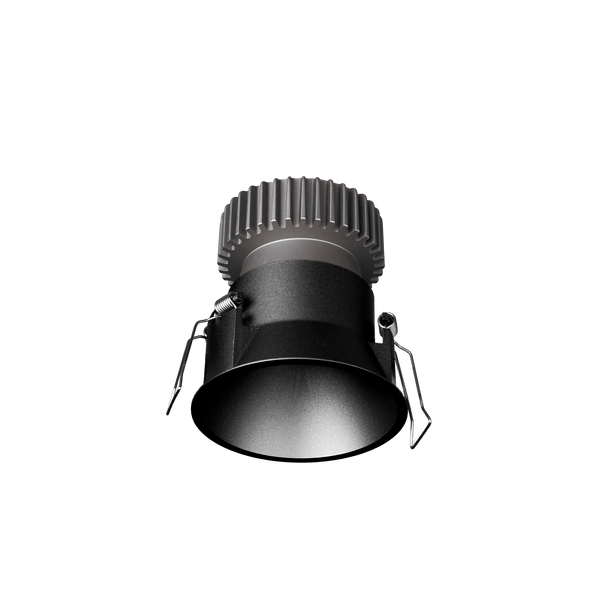

Profondo Basso
