Dea Juno-Q1 duo XS

Dea Juno-Q1 duo XS

Small, smart and balanced.

The 48V luminaire Dea Juno duo is a real eye-catcher thanks to its small measurements, deep recessed light source and beautiful colour options. This double 48V track spot ensures you not only a timeless design, it also offers maximum modern-day efficiency.

Product sheet

Installation manual

Track parts

48 Volt Power Supply System
Warranty on quality in years.
Digital dimming interface.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
Q612BW92734SGF0	2x490 lm	2700K	90	34°	White	Silver High Gloss	2x490-lm	2700k	90	34	white	silver-high-gloss
Q612BW93034SGF0	2x500 lm	3000K	90	34°	White	Silver High Gloss	2x500-lm	3000k	90	34	white	silver-high-gloss
Q612BW94034SGF0	2x510 lm	4000K	90	34°	White	Silver High Gloss	2x510-lm	4000k	90	34	white	silver-high-gloss
Q612BW92734BGF0	2x490 lm	2700K	90	34°	White	Black High Gloss	2x490-lm	2700k	90	34	white	black-high-gloss
Q612BW93034BGF0	2x500 lm	3000K	90	34°	White	Black High Gloss	2x500-lm	3000k	90	34	white	black-high-gloss
Q612BW94034BGF0	2x510 lm	4000K	90	34°	White	Black High Gloss	2x510-lm	4000k	90	34	white	black-high-gloss
Q612BW92734WHF0	2x490 lm	2700K	90	34°	White	White	2x490-lm	2700k	90	34	white	white
Q612BW93034WHF0	2x500 lm	3000K	90	34°	White	White	2x500-lm	3000k	90	34	white	white
Q612BW94034WHF0	2x510 lm	4000K	90	34°	White	White	2x510-lm	4000k	90	34	white	white
Q612BW92734CHF0	2x490 lm	2700K	90	34°	White	Chrome	2x490-lm	2700k	90	34	white	chrome
Q612BW93034CHF0	2x500 lm	3000K	90	34°	White	Chrome	2x500-lm	3000k	90	34	white	chrome
Q612BW94034CHF0	2x510 lm	4000K	90	34°	White	Chrome	2x510-lm	4000k	90	34	white	chrome
Q612BW92734GOF0	2x490 lm	2700K	90	34°	White	Gold	2x490-lm	2700k	90	34	white	gold
Q612BW93034GOF0	2x500 lm	3000K	90	34°	White	Gold	2x500-lm	3000k	90	34	white	gold
Q612BW94034GOF0	2x510 lm	4000K	90	34°	White	Gold	2x510-lm	4000k	90	34	white	gold
Q612BW92734BMF0	2x490 lm	2700K	90	34°	White	Black Matt	2x490-lm	2700k	90	34	white	black-matt
Q612BW93034BMF0	2x500 lm	3000K	90	34°	White	Black Matt	2x500-lm	3000k	90	34	white	black-matt
Q612BW94034BMF0	2x510 lm	4000K	90	34°	White	Black Matt	2x510-lm	4000k	90	34	white	black-matt
Q612BB92734SGF0	2x490 lm	2700K	90	34°	Black	Silver High Gloss	2x490-lm	2700k	90	34	black	silver-high-gloss
Q612BB93034SGF0	2x500 lm	3000K	90	34°	Black	Silver High Gloss	2x500-lm	3000k	90	34	black	silver-high-gloss
Q612BB94034SGF0	2x510 lm	4000K	90	34°	Black	Silver High Gloss	2x510-lm	4000k	90	34	black	silver-high-gloss
Q612BB92734BGF0	2x490 lm	2700K	90	34°	Black	Black High Gloss	2x490-lm	2700k	90	34	black	black-high-gloss
Q612BB93034BGF0	2x500 lm	3000K	90	34°	Black	Black High Gloss	2x500-lm	3000k	90	34	black	black-high-gloss
Q612BB94034BGF0	2x510 lm	4000K	90	34°	Black	Black High Gloss	2x510-lm	4000k	90	34	black	black-high-gloss
Q612BB92734WHF0	2x490 lm	2700K	90	34°	Black	White	2x490-lm	2700k	90	34	black	white
Q612BB93034WHF0	2x500 lm	3000K	90	34°	Black	White	2x500-lm	3000k	90	34	black	white
Q612BB94034WHF0	2x510 lm	4000K	90	34°	Black	White	2x510-lm	4000k	90	34	black	white
Q612BB92734CHF0	2x490 lm	2700K	90	34°	Black	Chrome	2x490-lm	2700k	90	34	black	chrome
Q612BB93034CHF0	2x500 lm	3000K	90	34°	Black	Chrome	2x500-lm	3000k	90	34	black	chrome
Q612BB94034CHF0	2x510 lm	4000K	90	34°	Black	Chrome	2x510-lm	4000k	90	34	black	chrome
Q612BB92734GOF0	2x490 lm	2700K	90	34°	Black	Gold	2x490-lm	2700k	90	34	black	gold
Q612BB93034GOF0	2x500 lm	3000K	90	34°	Black	Gold	2x500-lm	3000k	90	34	black	gold
Q612BB94034GOF0	2x510 lm	4000K	90	34°	Black	Gold	2x510-lm	4000k	90	34	black	gold
Q612BB92734BMF0	2x490 lm	2700K	90	34°	Black	Black Matt	2x490-lm	2700k	90	34	black	black-matt
Q612BB93034BMF0	2x500 lm	3000K	90	34°	Black	Black Matt	2x500-lm	3000k	90	34	black	black-matt
Q612BB94034BMF0	2x510 lm	4000K	90	34°	Black	Black Matt	2x510-lm	4000k	90	34	black	black-matt
Q612BW92734COF0	2x490 lm	2700K	90	34°	White	Copper	2x490-lm	2700k	90	34	white	copper
Q612BW93034COF0	2x500 lm	3000K	90	34°	White	Copper	2x500-lm	3000k	90	34	white	copper
Q612BW94034COF0	2x510 lm	4000K	90	34°	White	Copper	2x510-lm	4000k	90	34	white	copper
Q612BB92734COF0	2x490 lm	2700K	90	34°	Black	Copper	2x490-lm	2700k	90	34	black	copper
Q612BB93034COF0	2x500 lm	3000K	90	34°	Black	Copper	2x500-lm	3000k	90	34	black	copper
Q612BB94034COF0	2x510 lm	4000K	90	34°	Black	Copper	2x510-lm	4000k	90	34	black	copper

Click on specification values for related products.

Luminous Flux2×490 lm, 2×500 lm, 2×510 lm

CRI90

CCT2700K, 3000K, 4000K

LED power2×6.2W

System power14W

System efficiency70lm/W, 71.5lm/W, 71lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle34°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight#N/A, 0,4 kg

Cut out dimensionN/A

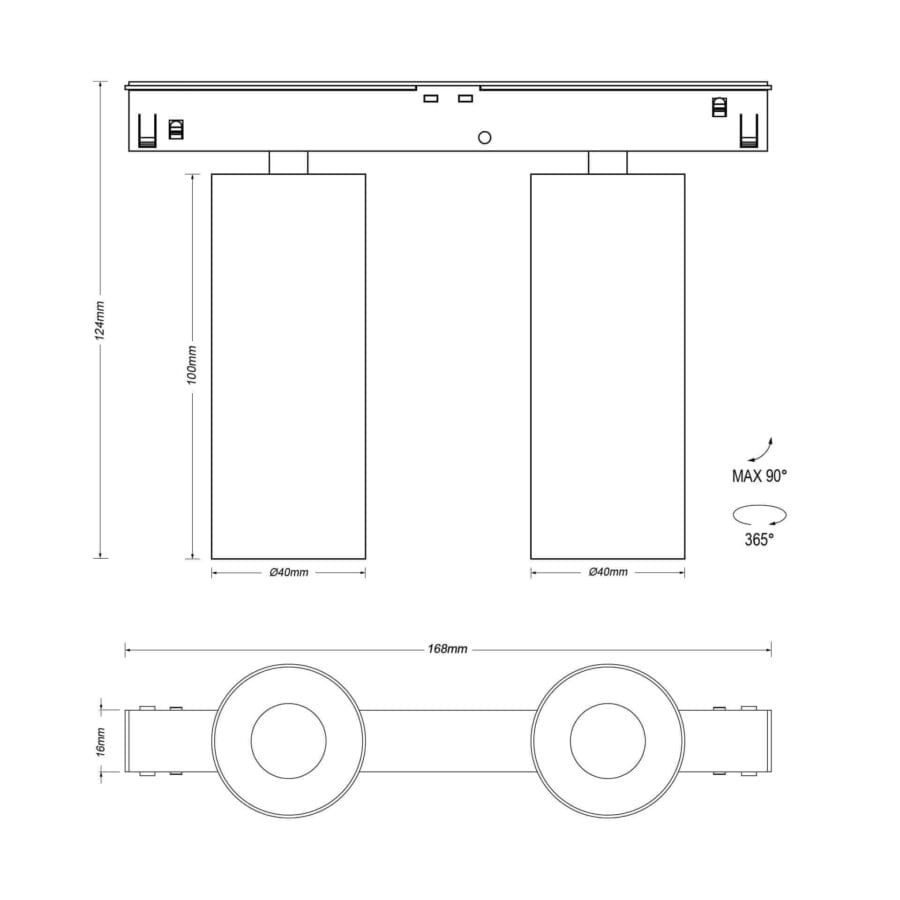

Luminaire dimensionØ40mm

Power supplyincluded 48V DC/DC converter ON/OFF

Mains Voltage48V DC

El. ClassClass III

Housing materialAluminum Die Cast

Lifetime50000h

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

ControlDALI

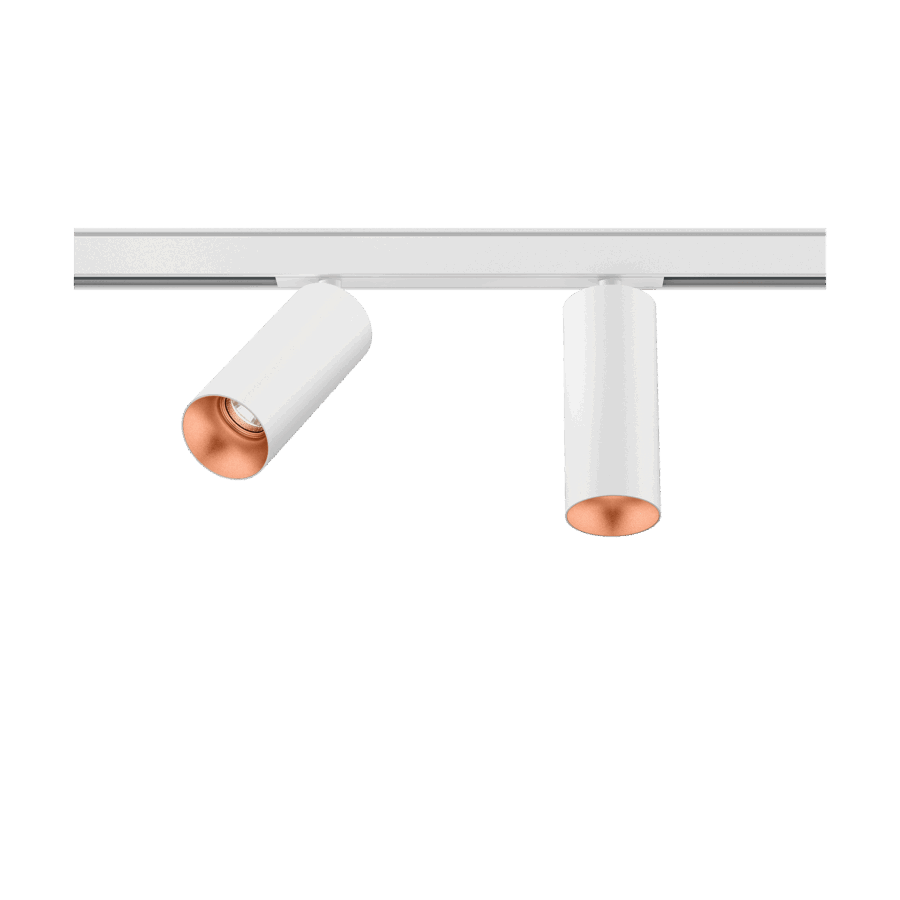

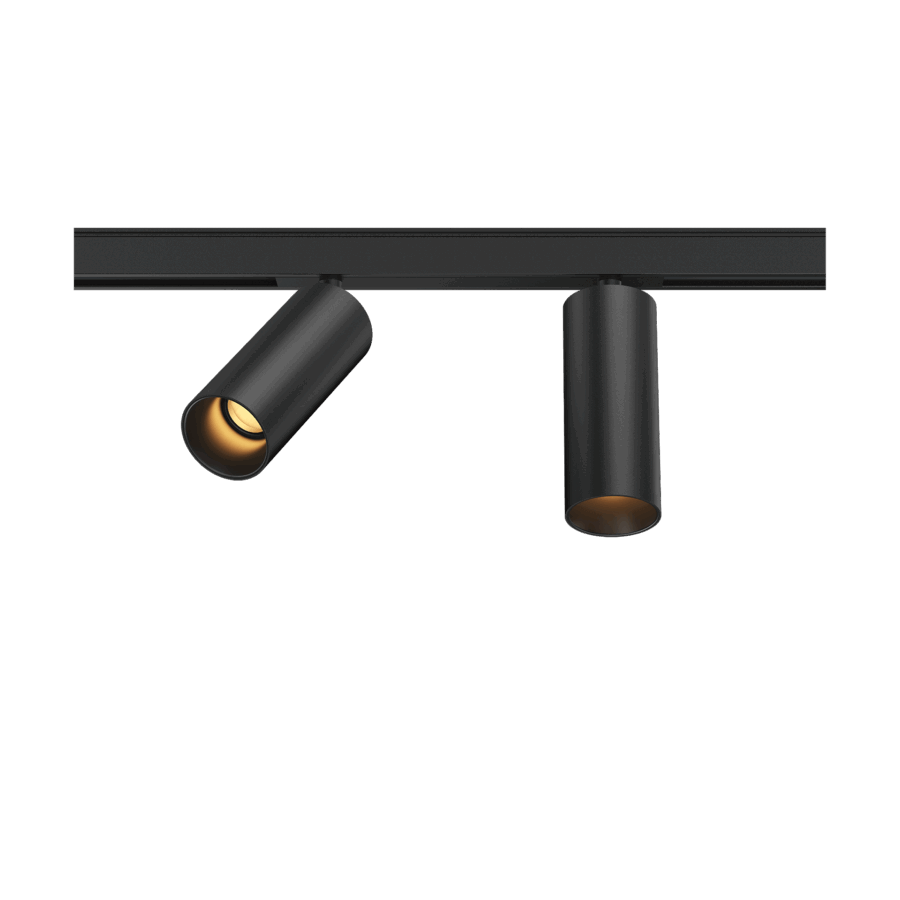

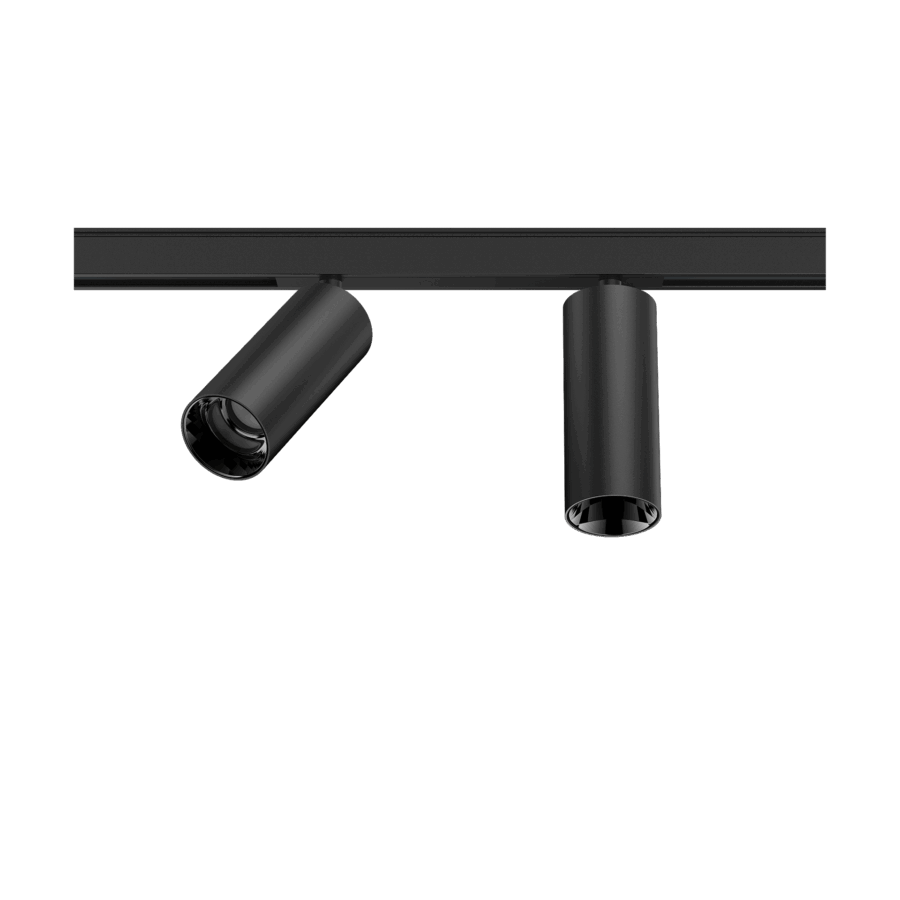

The Karizma Luce Dea Juno-Q1 duo XS is an extra small double 48V track spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 2×490- 2×510 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 34°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
