Dea Juno S

Dea Juno S

Like a pristine flower.

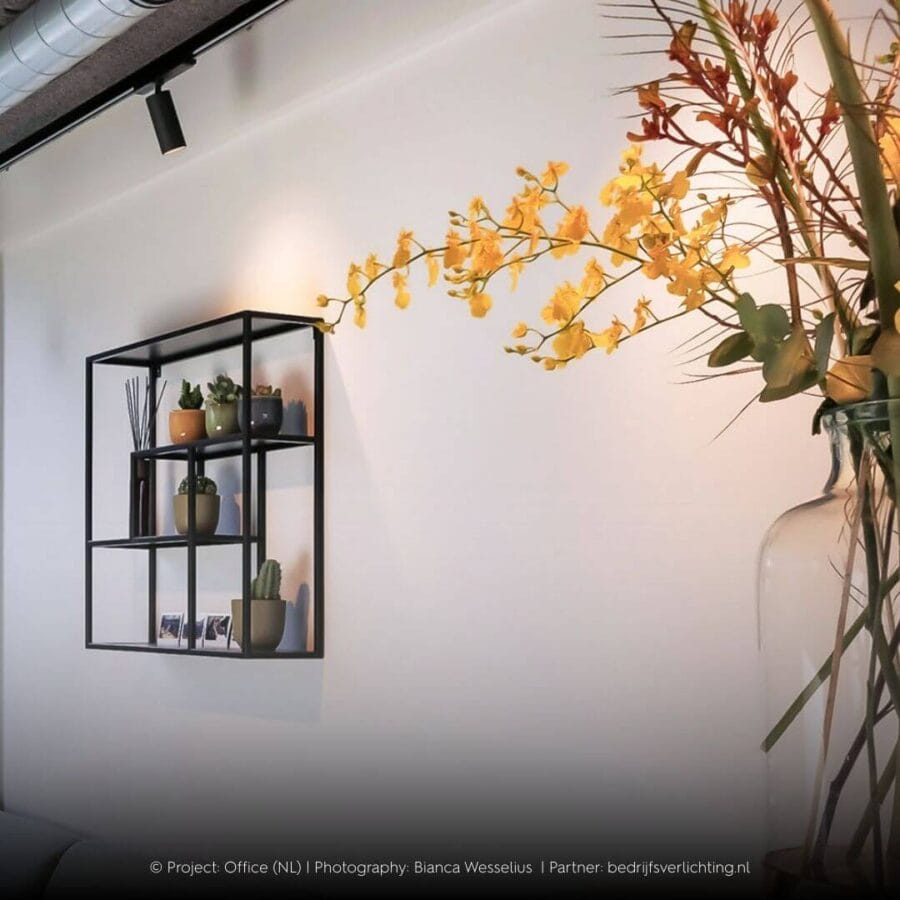

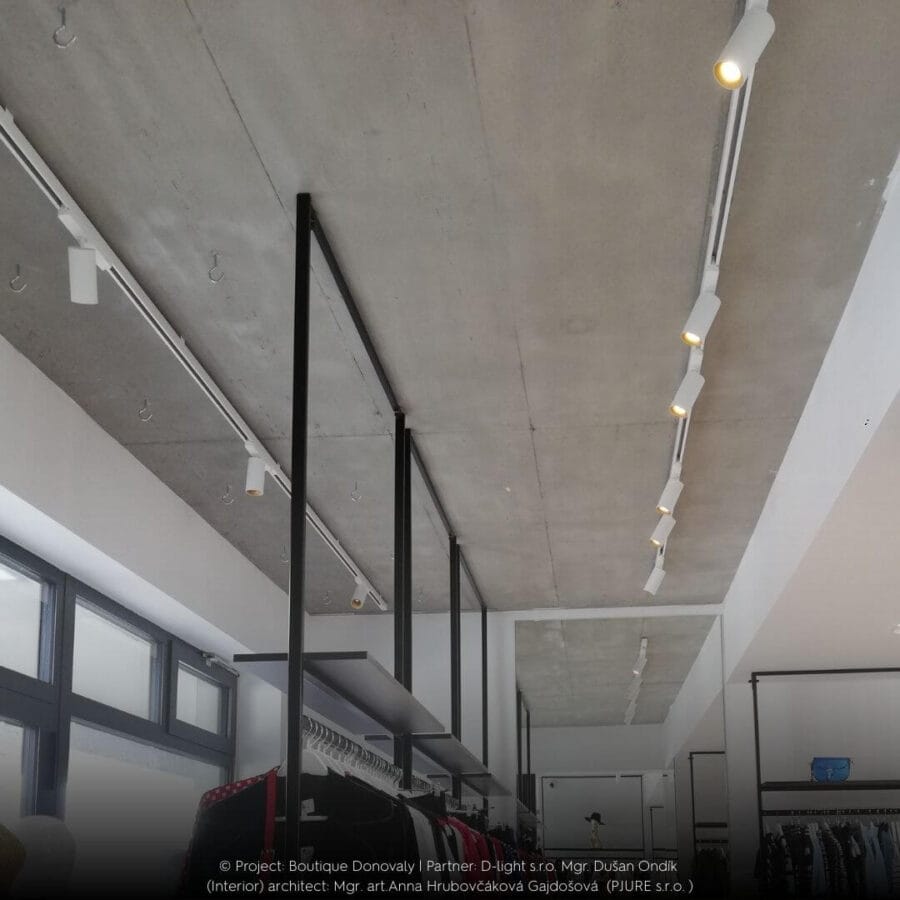

The 3-phase track luminaire Dea Juno is a real eye-catcher thanks to its small measurements, deep recessed light source and beautiful colour options. Use the Dea Juno in combination with Casambi to create a smart and balanced lighting solution. Particularly suitable for use in boutiques, hospitality and even in homes. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
606EW92740SGF0	1050 lm	2700K	90	40°	White	Silver High Gloss	1050-lm	2700k	90	40	white	silver-high-gloss
606EW93040SGF0	1100 lm	3000K	90	40°	White	Silver High Gloss	1100-lm	3000k	90	40	white	silver-high-gloss
606EW94040SGF0	1120 lm	4000K	90	40°	White	Silver High Gloss	1120-lm	4000k	90	40	white	silver-high-gloss
606DW92740BGF0	960 lm	2700K	90	40°	White	Black High Gloss	960-lm	2700k	90	40	white	black-high-gloss
606EW93040BGF0	1000 lm	3000K	90	40°	White	Black High Gloss	1000-lm	3000k	90	40	white	black-high-gloss
606EW94040BGF0	1020 lm	4000K	90	40°	White	Black High Gloss	1020-lm	4000k	90	40	white	black-high-gloss
606DW92740WHF0	970 lm	2700K	90	40°	White	White	970-lm	2700k	90	40	white	white
606EW93040WHF0	1020 lm	3000K	90	40°	White	White	1020-lm	3000k	90	40	white	white
606EW94040WHF0	1030 lm	4000K	90	40°	White	White	1030-lm	4000k	90	40	white	white
606EW92740CHF0	1030 lm	2700K	90	40°	White	Chrome	1030-lm	2700k	90	40	white	chrome
606EW93040CHF0	1080 lm	3000K	90	40°	White	Chrome	1080-lm	3000k	90	40	white	chrome
606EW94040CHF0	1100 lm	4000K	90	40°	White	Chrome	1100-lm	4000k	90	40	white	chrome
606DW92740GOF0	970 lm	2700K	90	40°	White	Gold	970-lm	2700k	90	40	white	gold
606EW93040GOF0	1020 lm	3000K	90	40°	White	Gold	1020-lm	3000k	90	40	white	gold
606EW94040GOF0	1030 lm	4000K	90	40°	White	Gold	1030-lm	4000k	90	40	white	gold
606DW92740COF0	970 lm	2700K	90	40°	White	Copper	970-lm	2700k	90	40	white	copper
606EW93040COF0	1020 lm	3000K	90	40°	White	Copper	1020-lm	3000k	90	40	white	copper
606EW94040COF0	1030 lm	4000K	90	40°	White	Copper	1030-lm	4000k	90	40	white	copper
606DW92740BMF0	880 lm	2700K	90	40°	White	Black Matt	880-lm	2700k	90	40	white	black-matt
606DW93040BMF0	930 lm	3000K	90	40°	White	Black Matt	930-lm	3000k	90	40	white	black-matt
606DW94040BMF0	940 lm	4000K	90	40°	White	Black Matt	940-lm	4000k	90	40	white	black-matt
606EB92740SGF0	1050 lm	2700K	90	40°	Black	Silver High Gloss	1050-lm	2700k	90	40	black	silver-high-gloss
606EB93040SGF0	1100 lm	3000K	90	40°	Black	Silver High Gloss	1100-lm	3000k	90	40	black	silver-high-gloss
606EB94040SGF0	1120 lm	4000K	90	40°	Black	Silver High Gloss	1120-lm	4000k	90	40	black	silver-high-gloss
606DB92740BGF0	960 lm	2700K	90	40°	Black	Black High Gloss	960-lm	2700k	90	40	black	black-high-gloss
606EB93040BGF0	1000 lm	3000K	90	40°	Black	Black High Gloss	1000-lm	3000k	90	40	black	black-high-gloss
606EB94040BGF0	1020 lm	4000K	90	40°	Black	Black High Gloss	1020-lm	4000k	90	40	black	black-high-gloss
606DB92740WHF0	970 lm	2700K	90	40°	Black	White	970-lm	2700k	90	40	black	white
606EB93040WHF0	1020 lm	3000K	90	40°	Black	White	1020-lm	3000k	90	40	black	white
606EB94040WHF0	1030 lm	4000K	90	40°	Black	White	1030-lm	4000k	90	40	black	white
606EB92740CHF0	1030 lm	2700K	90	40°	Black	Chrome	1030-lm	2700k	90	40	black	chrome
606EB93040CHF0	1080 lm	3000K	90	40°	Black	Chrome	1080-lm	3000k	90	40	black	chrome
606EB94040CHF0	1100 lm	4000K	90	40°	Black	Chrome	1100-lm	4000k	90	40	black	chrome
606DB92740GOF0	970 lm	2700K	90	40°	Black	Gold	970-lm	2700k	90	40	black	gold
606EB93040GOF0	1020 lm	3000K	90	40°	Black	Gold	1020-lm	3000k	90	40	black	gold
606EB94040GOF0	1030 lm	4000K	90	40°	Black	Gold	1030-lm	4000k	90	40	black	gold
606DB92740COF0	970 lm	2700K	90	40°	Black	Copper	970-lm	2700k	90	40	black	copper
606EB93040COF0	1020 lm	3000K	90	40°	Black	Copper	1020-lm	3000k	90	40	black	copper
606EB94040COF0	1030 lm	4000K	90	40°	Black	Copper	1030-lm	4000k	90	40	black	copper
606DB92740BMF0	880 lm	2700K	90	40°	Black	Black Matt	880-lm	2700k	90	40	black	black-matt
606DB93040BMF0	930 lm	3000K	90	40°	Black	Black Matt	930-lm	3000k	90	40	black	black-matt
606DB94040BMF0	940 lm	4000K	90	40°	Black	Black Matt	940-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux1000 lm, 1020 lm, 1030 lm, 1050 lm, 1080 lm, 1100 lm, 1120 lm, 880 lm, 930 lm, 940 lm, 960 lm, 970 lm

CRI90

CCT2700K, 3000K, 4000K

LED powerN/A

System power12W

System efficiency73lm/W, 78lm/W, 80lm/W, 81lm/W, 83lm/W, 85lm/W, 86lm/W, 88lm/W, 90lm/W, 92lm/W, 93lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.5Kg

Cut out dimensionN/A

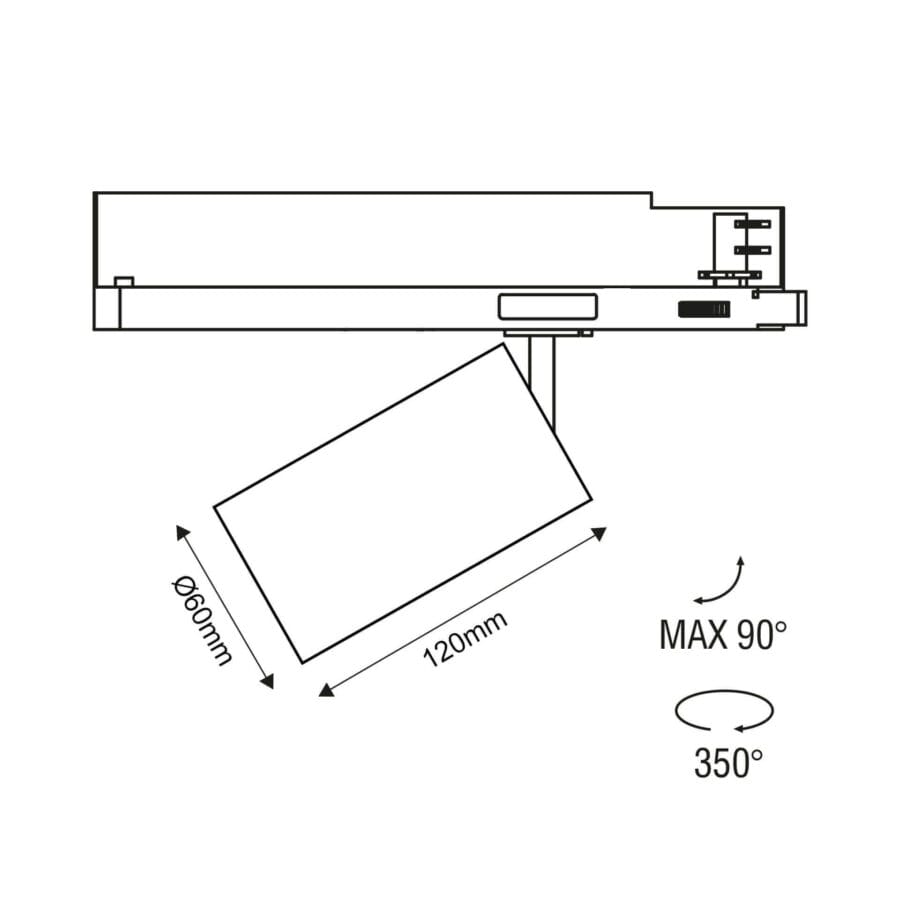

Luminaire dimensionØ60x120mm

Nominal fA [mA]N/A

Nominal fV [V]N/A

Power supplyIncluded ON/OFF

Mains Voltage220-240V / 50 -60Hz

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

ControlCasambi, DALI

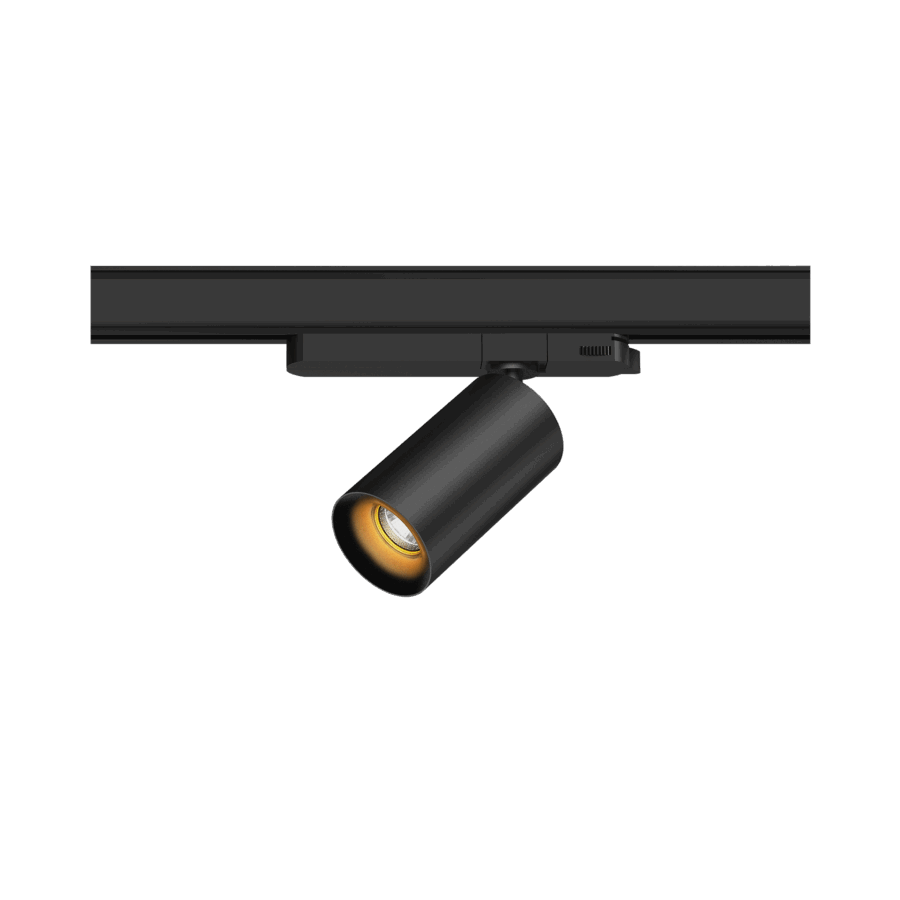

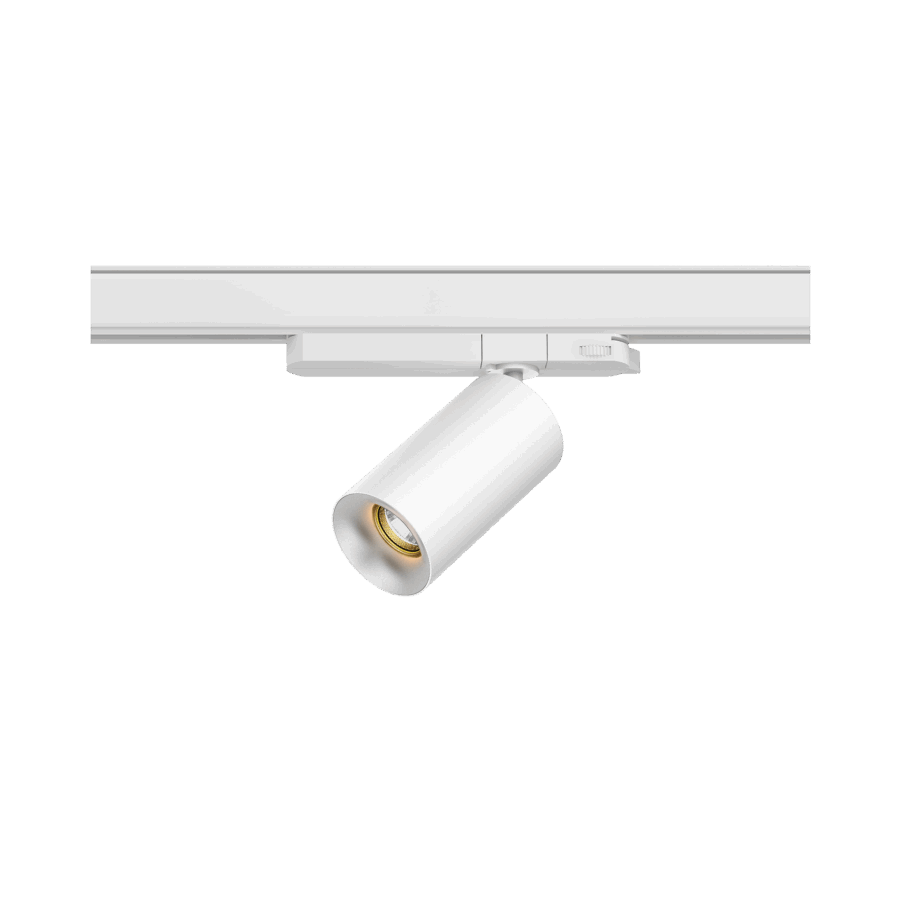

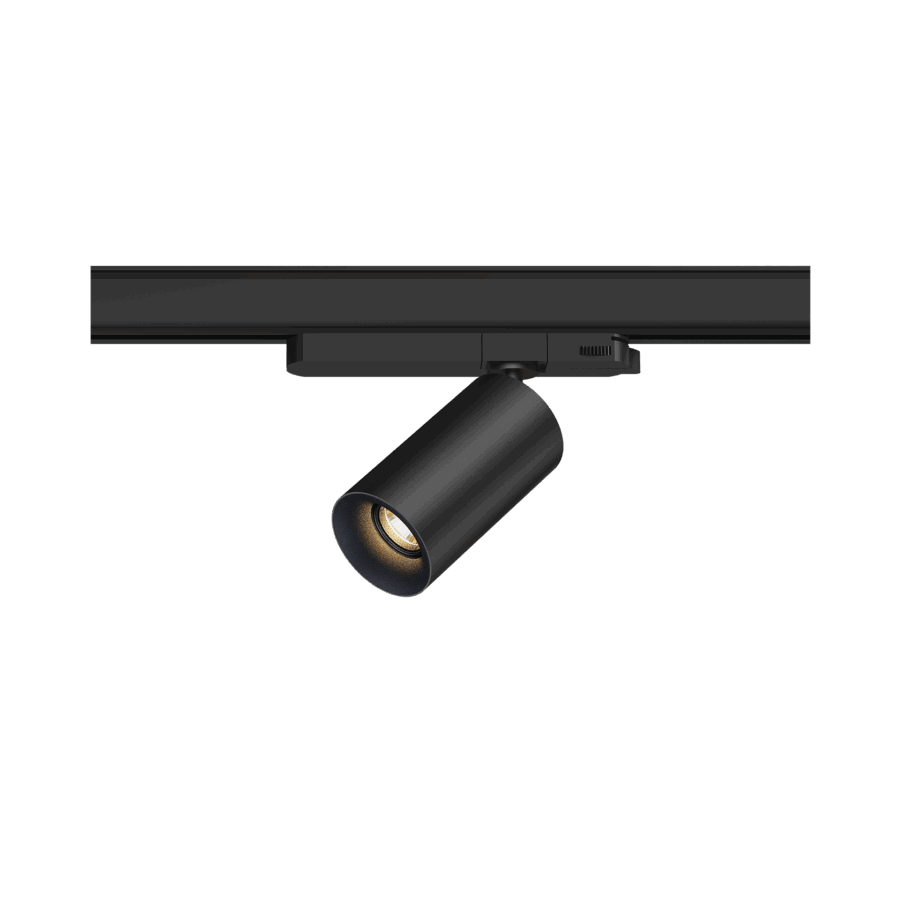

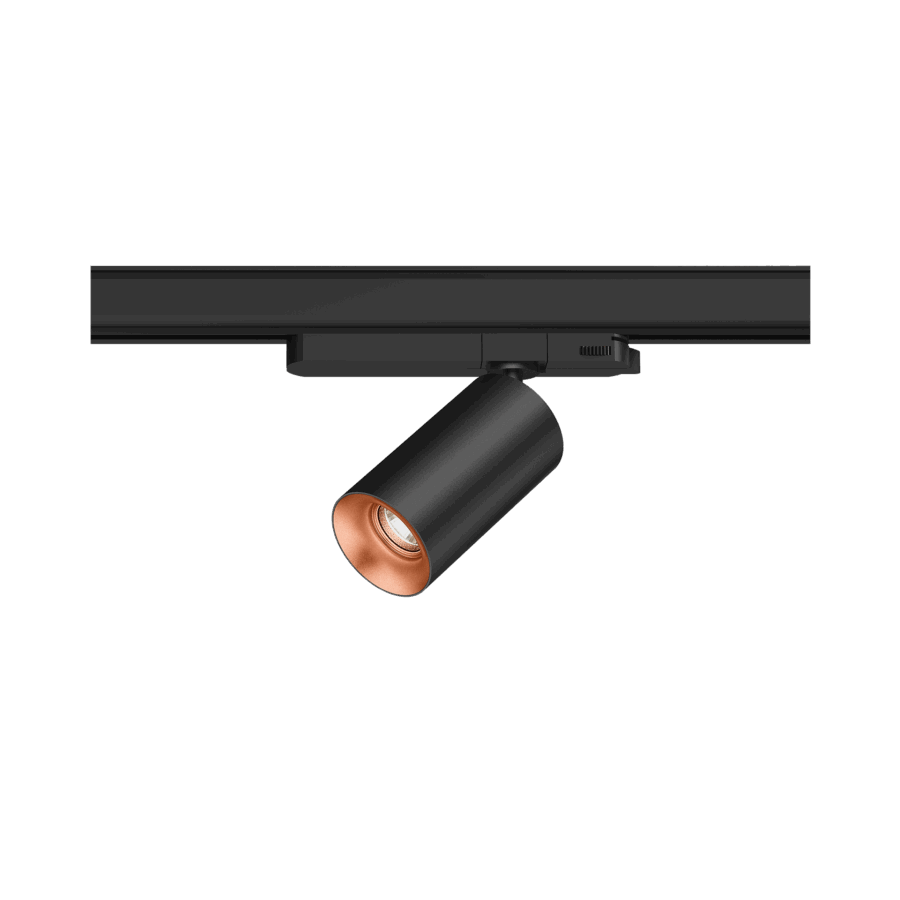

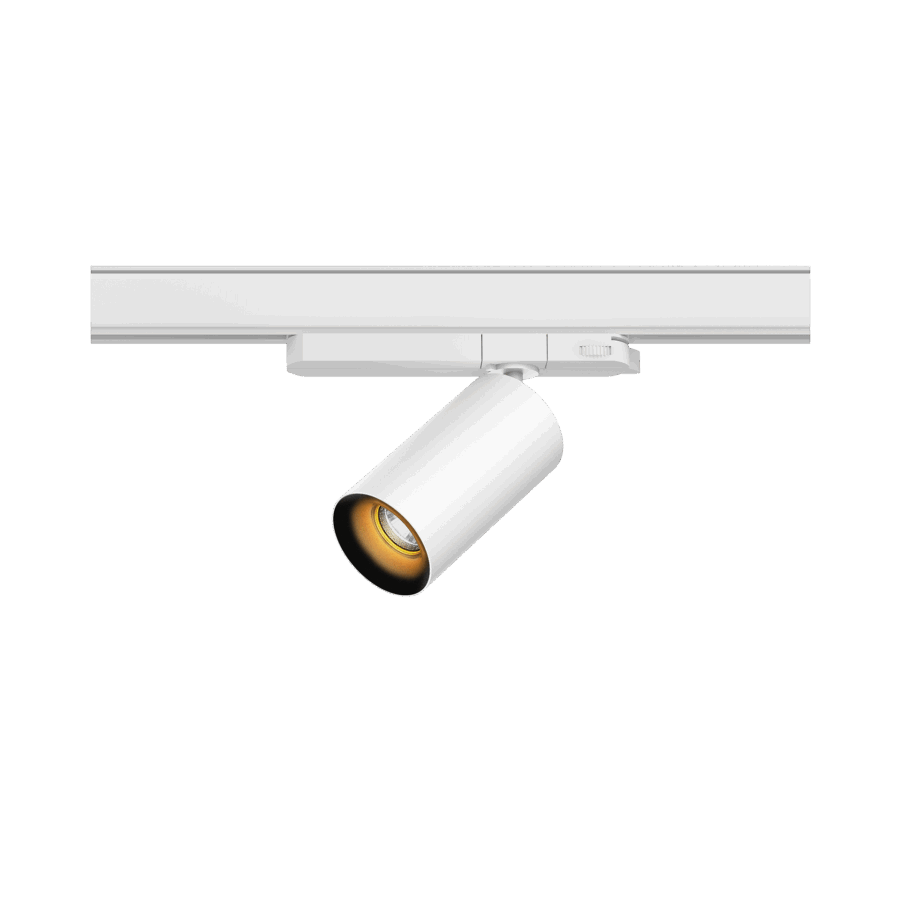

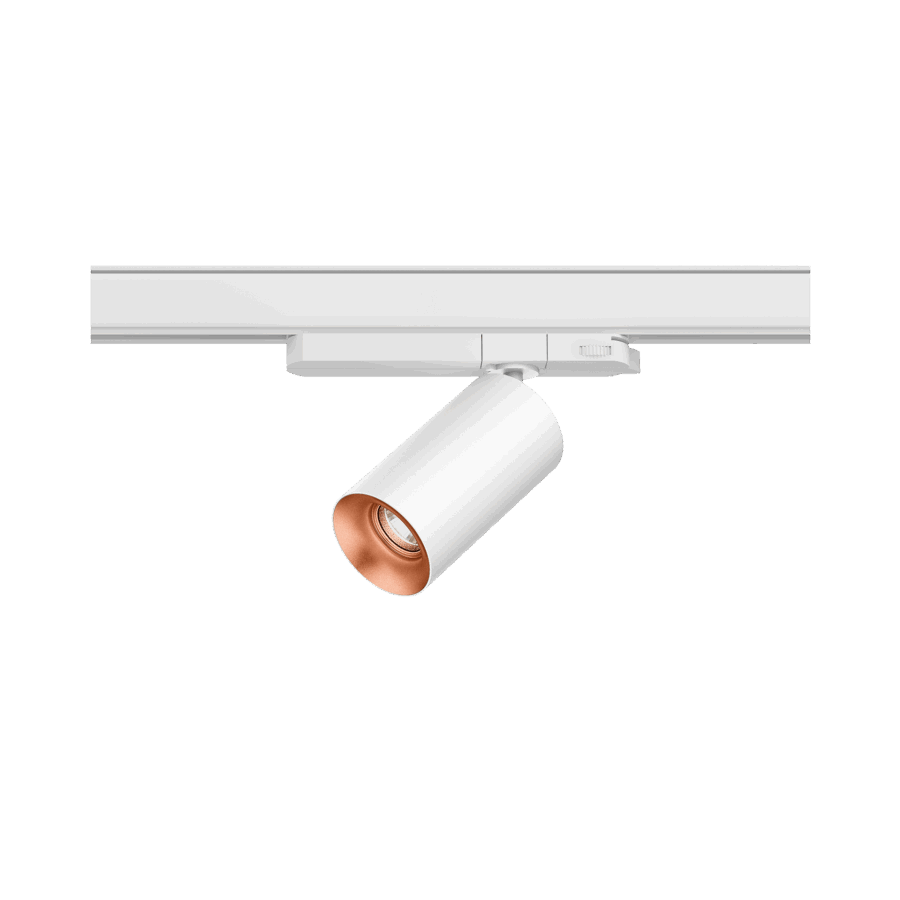

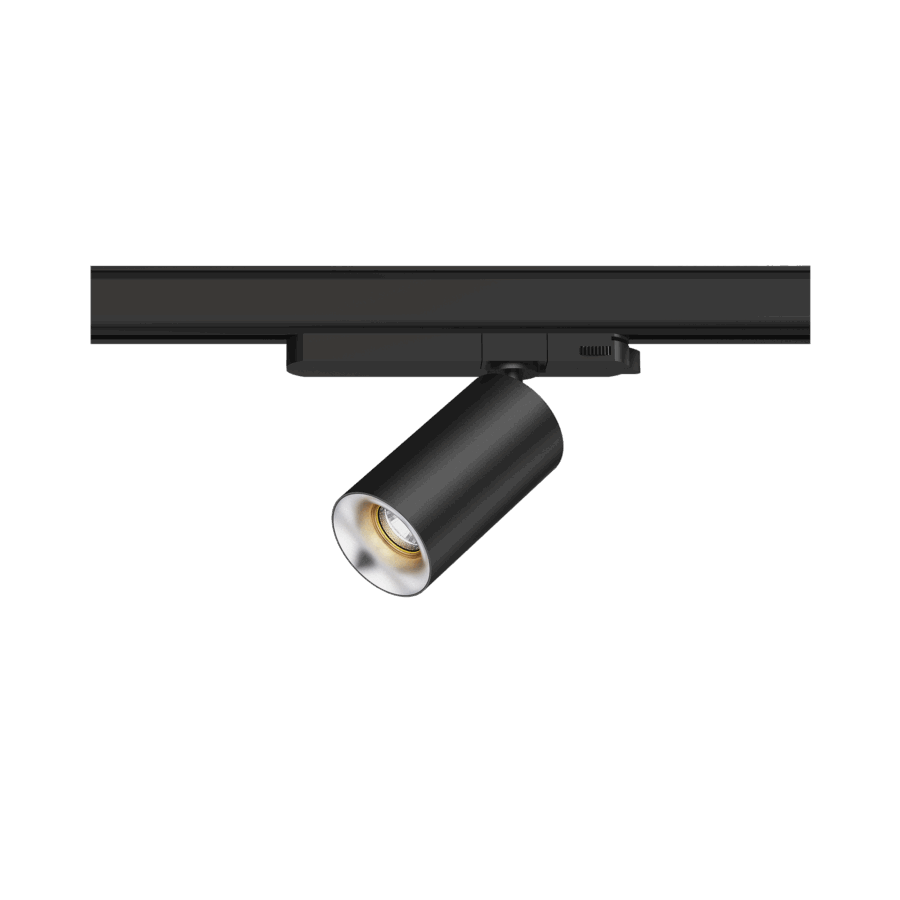

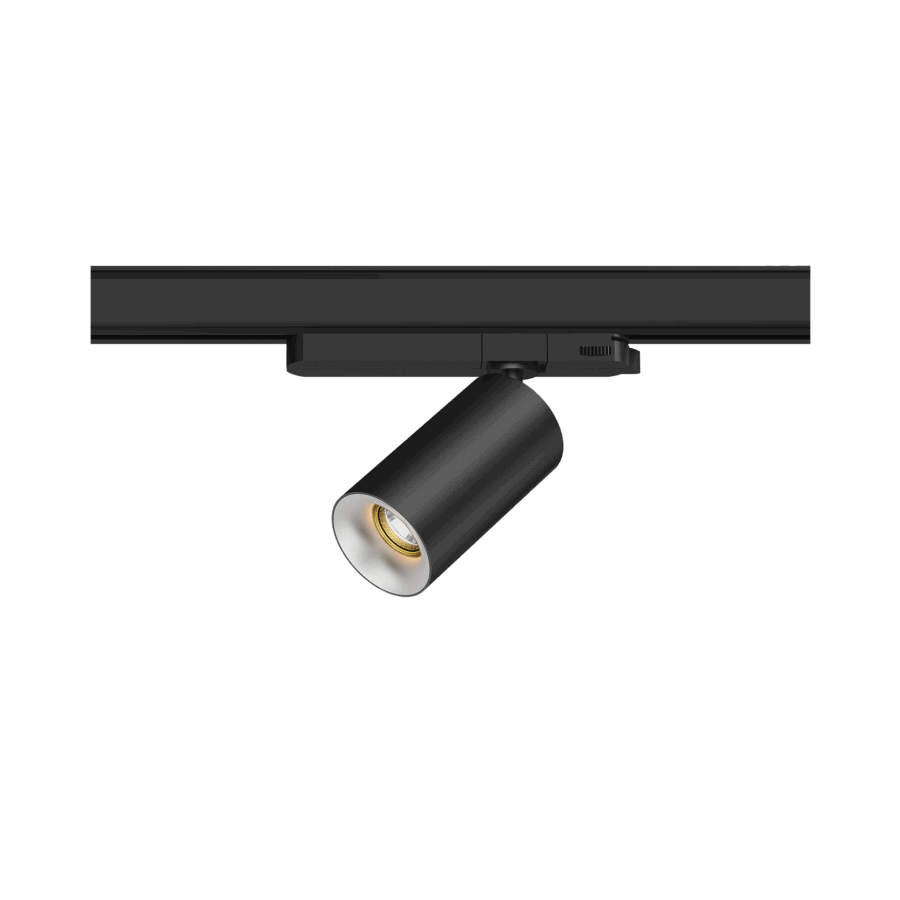

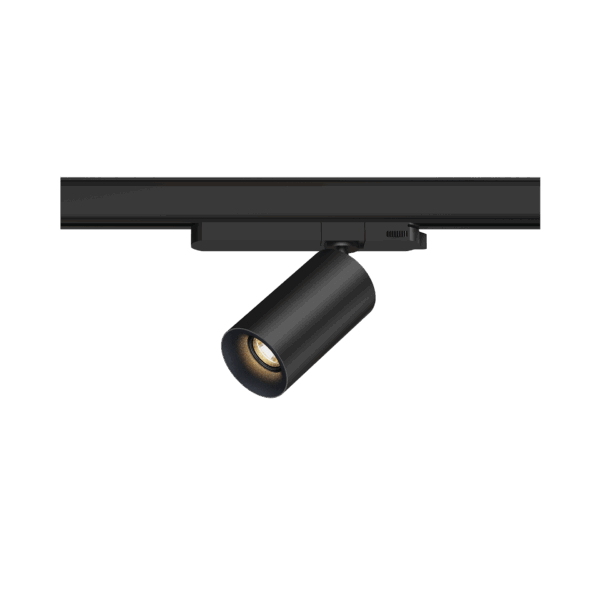

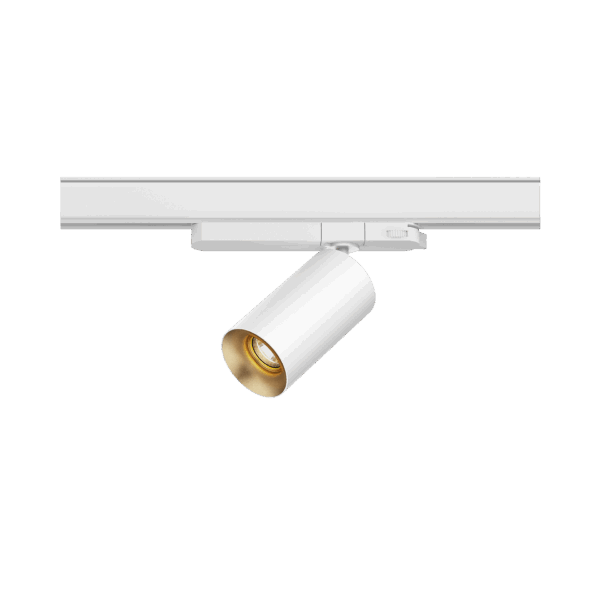

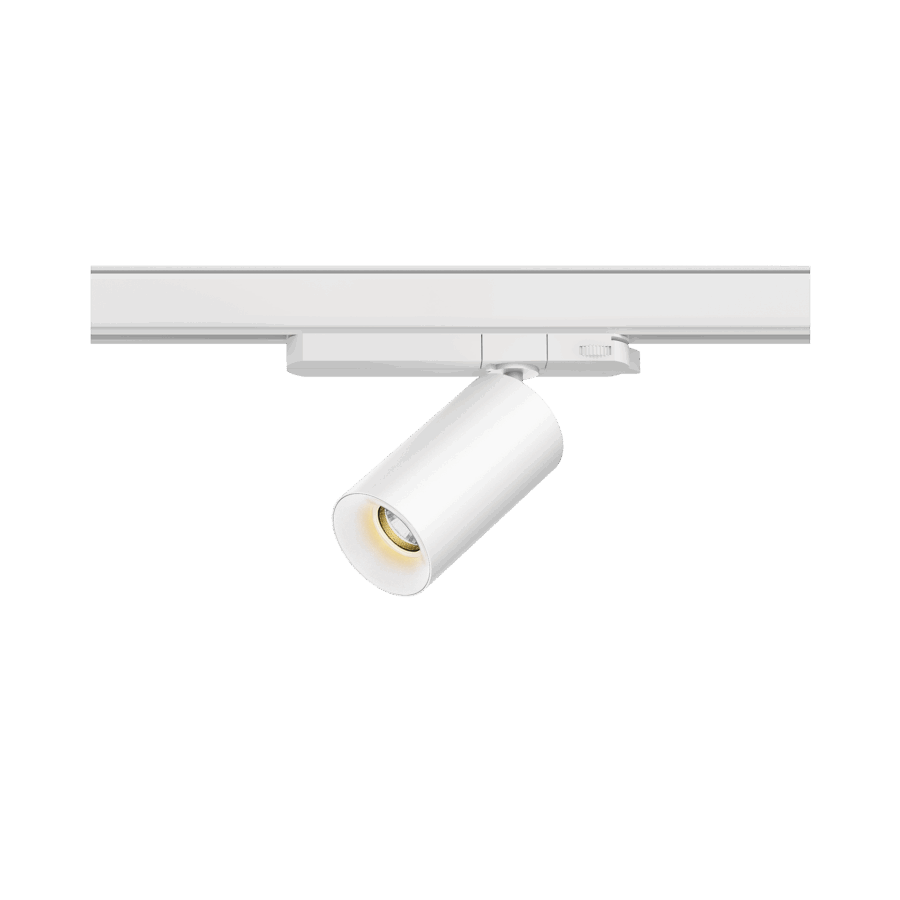

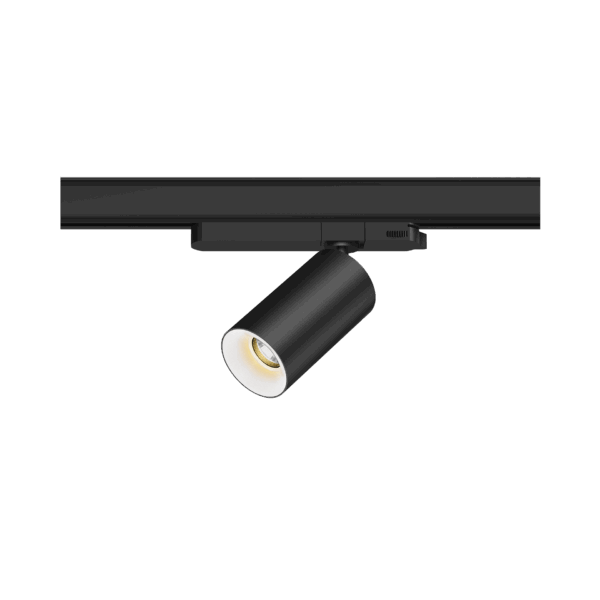

The Karizma Luce Dea Juno S is a small 3-phase 220V track spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 880- 1030 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.

Products

Dea Juno S

Datasheets

Related products

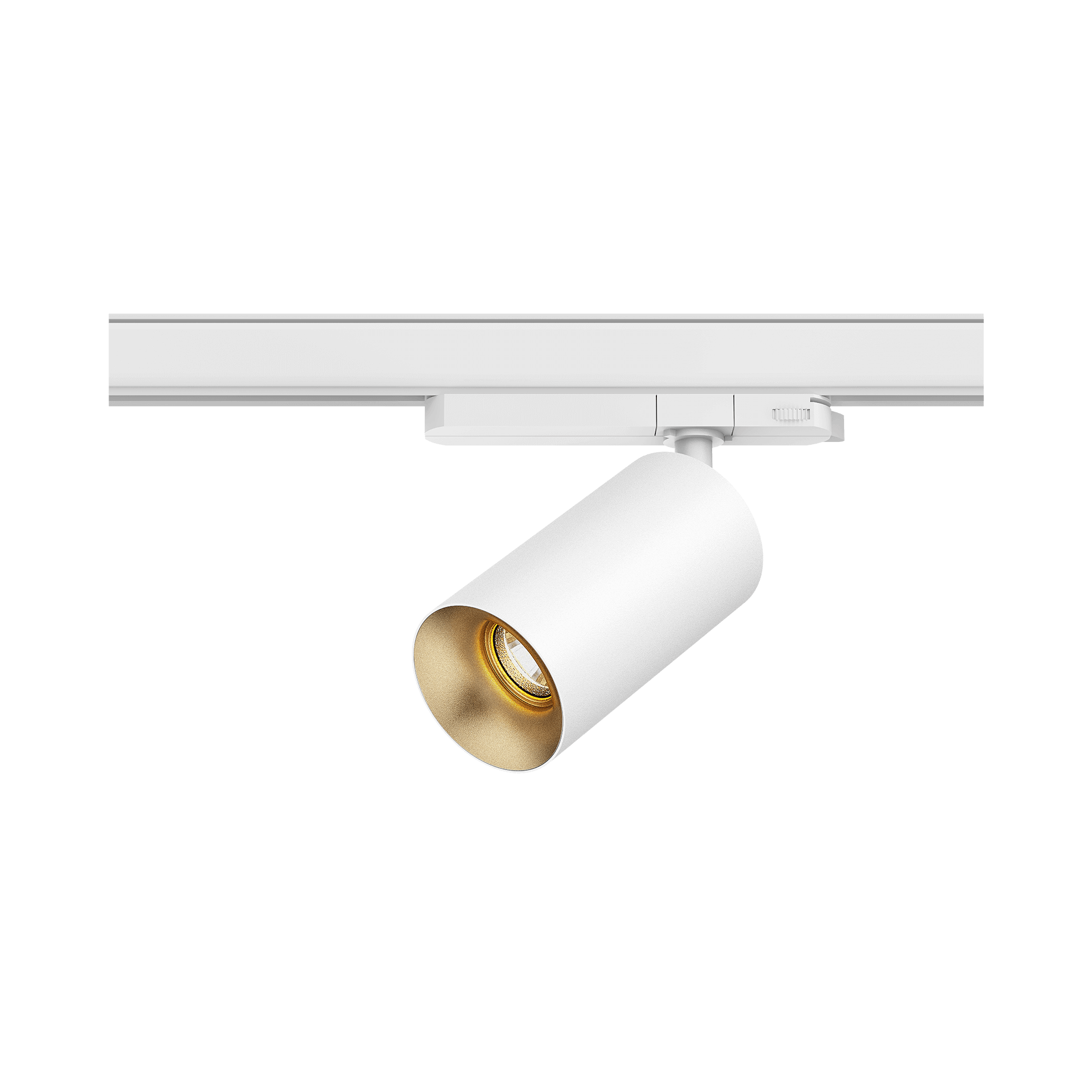

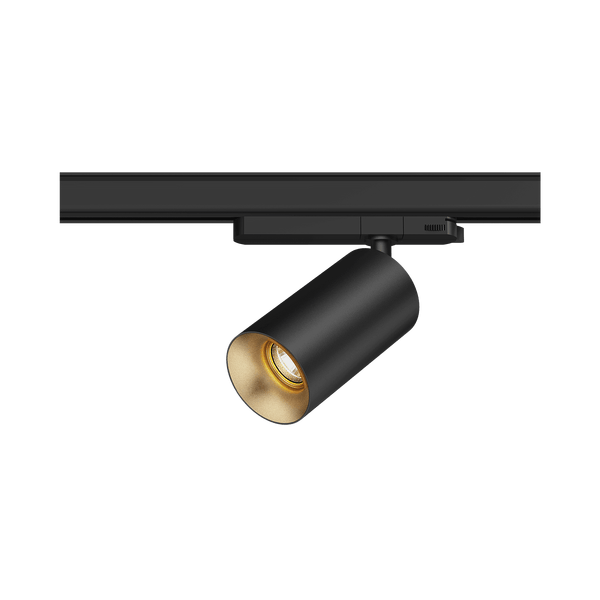

Dea Juno M
