Dea Juno-Q2 XS

Dea Juno-Q2 XS

Small, smart and balanced.

The 48V luminaire Dea Juno is a real eye-catcher thanks to its small measurements, deep recessed light source and beautiful colour options. Particularly suitable for use in boutiques, hospitality settings and in luxurious homes.

Product sheet

Installation manual

Track parts

Designed to be supplied from a separated extra-low voltage (SELV) power source
48 Volt Power Supply System
Warranty on quality in years.
Digital dimming interface.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
Q621BB92734BGF0	490 lm	2700K	90	34°	Black	Black High Gloss	490-lm	2700k	90	34	black	black-high-gloss
Q621BB92734BMF0	490 lm	2700K	90	34°	Black	Black Matt	490-lm	2700k	90	34	black	black-matt
Q621BB92734CHF0	490 lm	2700K	90	34°	Black	Chrome	490-lm	2700k	90	34	black	chrome
Q621BB92734COF0	490 lm	2700K	90	34°	Black	Copper	490-lm	2700k	90	34	black	copper
Q621BB92734GOF0	490 lm	2700K	90	34°	Black	Gold	490-lm	2700k	90	34	black	gold
Q621BB92734SGF0	490 lm	2700K	90	34°	Black	Silver High Gloss	490-lm	2700k	90	34	black	silver-high-gloss
Q621BB92734WHF0	490 lm	2700K	90	34°	Black	White	490-lm	2700k	90	34	black	white
Q621BB93034BGF0	500 lm	3000K	90	34°	Black	Black High Gloss	500-lm	3000k	90	34	black	black-high-gloss
Q621BB93034BMF0	500 lm	3000K	90	34°	Black	Black Matt	500-lm	3000k	90	34	black	black-matt
Q621BB93034CHF0	500 lm	3000K	90	34°	Black	Chrome	500-lm	3000k	90	34	black	chrome
Q621BB93034COF0	500 lm	3000K	90	34°	Black	Copper	500-lm	3000k	90	34	black	copper
Q621BB93034GOF0	500 lm	3000K	90	34°	Black	Gold	500-lm	3000k	90	34	black	gold
Q621BB93034SGF0	500 lm	3000K	90	34°	Black	Silver High Gloss	500-lm	3000k	90	34	black	silver-high-gloss
Q621BB93034WHF0	500 lm	3000K	90	34°	Black	White	500-lm	3000k	90	34	black	white
Q621BB94034BGF0	510 lm	4000K	90	34°	Black	Black High Gloss	510-lm	4000k	90	34	black	black-high-gloss
Q621BB94034BMF0	510 lm	4000K	90	34°	Black	Black Matt	510-lm	4000k	90	34	black	black-matt
Q621BB94034CHF0	510 lm	4000K	90	34°	Black	Chrome	510-lm	4000k	90	34	black	chrome
Q621BB94034COF0	510 lm	4000K	90	34°	Black	Copper	510-lm	4000k	90	34	black	copper
Q621BB94034GOF0	510 lm	4000K	90	34°	Black	Gold	510-lm	4000k	90	34	black	gold
Q621BB94034SGF0	510 lm	4000K	90	34°	Black	Silver High Gloss	510-lm	4000k	90	34	black	silver-high-gloss
Q621BB94034WHF0	510 lm	4000K	90	34°	Black	White	510-lm	4000k	90	34	black	white
Q621BW92734BGF0	490 lm	2700K	90	34°	White	Black High Gloss	490-lm	2700k	90	34	white	black-high-gloss
Q621BW92734BMF0	490 lm	2700K	90	34°	White	Black Matt	490-lm	2700k	90	34	white	black-matt
Q621BW92734CHF0	490 lm	2700K	90	34°	White	Chrome	490-lm	2700k	90	34	white	chrome
Q621BW92734COF0	490 lm	2700K	90	34°	White	Copper	490-lm	2700k	90	34	white	copper
Q621BW92734GOF0	490 lm	2700K	90	34°	White	Gold	490-lm	2700k	90	34	white	gold
Q621BW92734SGF0	490 lm	2700K	90	34°	White	Silver High Gloss	490-lm	2700k	90	34	white	silver-high-gloss
Q621BW92734WHF0	490 lm	2700K	90	34°	White	White	490-lm	2700k	90	34	white	white
Q621BW93034BGF0	500 lm	3000K	90	34°	White	Black High Gloss	500-lm	3000k	90	34	white	black-high-gloss
Q621BW93034BMF0	500 lm	3000K	90	34°	White	Black Matt	500-lm	3000k	90	34	white	black-matt
Q621BW93034CHF0	500 lm	3000K	90	34°	White	Chrome	500-lm	3000k	90	34	white	chrome
Q621BW93034COF0	500 lm	3000K	90	34°	White	Copper	500-lm	3000k	90	34	white	copper
Q621BW93034GOF0	500 lm	3000K	90	34°	White	Gold	500-lm	3000k	90	34	white	gold
Q621BW93034SGF0	500 lm	3000K	90	34°	White	Silver High Gloss	500-lm	3000k	90	34	white	silver-high-gloss
Q621BW93034WHF0	500 lm	3000K	90	34°	White	White	500-lm	3000k	90	34	white	white
Q621BW94034BGF0	510 lm	4000K	90	34°	White	Black High Gloss	510-lm	4000k	90	34	white	black-high-gloss
Q621BW94034BMF0	510 lm	4000K	90	34°	White	Black Matt	510-lm	4000k	90	34	white	black-matt
Q621BW94034CHF0	510 lm	4000K	90	34°	White	Chrome	510-lm	4000k	90	34	white	chrome
Q621BW94034COF0	510 lm	4000K	90	34°	White	Copper	510-lm	4000k	90	34	white	copper
Q621BW94034GOF0	510 lm	4000K	90	34°	White	Gold	510-lm	4000k	90	34	white	gold
Q621BW94034SGF0	510 lm	4000K	90	34°	White	Silver High Gloss	510-lm	4000k	90	34	white	silver-high-gloss
Q621BW94034WHF0	510 lm	4000K	90	34°	White	White	510-lm	4000k	90	34	white	white

Click on specification values for related products.

Luminous Flux490 lm, 500 lm, 510 lm

CRI90

CCT2700K, 3000K, 4000K

LED power6.2W

System power7W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle34°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight#N/A, 0,3 kg

Cut out dimensionN/A

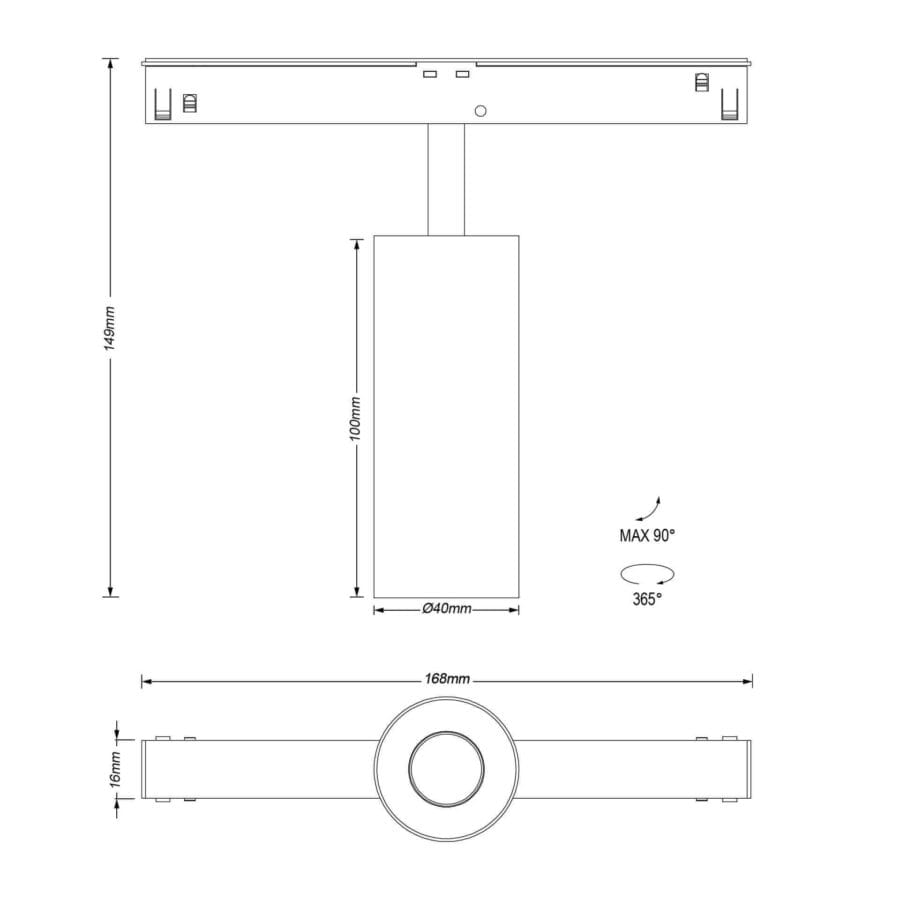

Luminaire dimension134mmx40mm

Power supplyincluded 48V DC/DC converter ON/OFF

Mains Voltage48V DC

El. ClassClass III

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classF

Light source identifierCLU701-1002C4-273H5K2, CLU701-1002C4-303H5K2, CLU701-1002C4-403H5K2

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

ControlDALI

The Karizma Luce Dea Juno-Q1 XS is an extra small 48V trackspot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 490- 510 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 34°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
