Dea Juno M

Dea Juno M

Like a pristine flower.

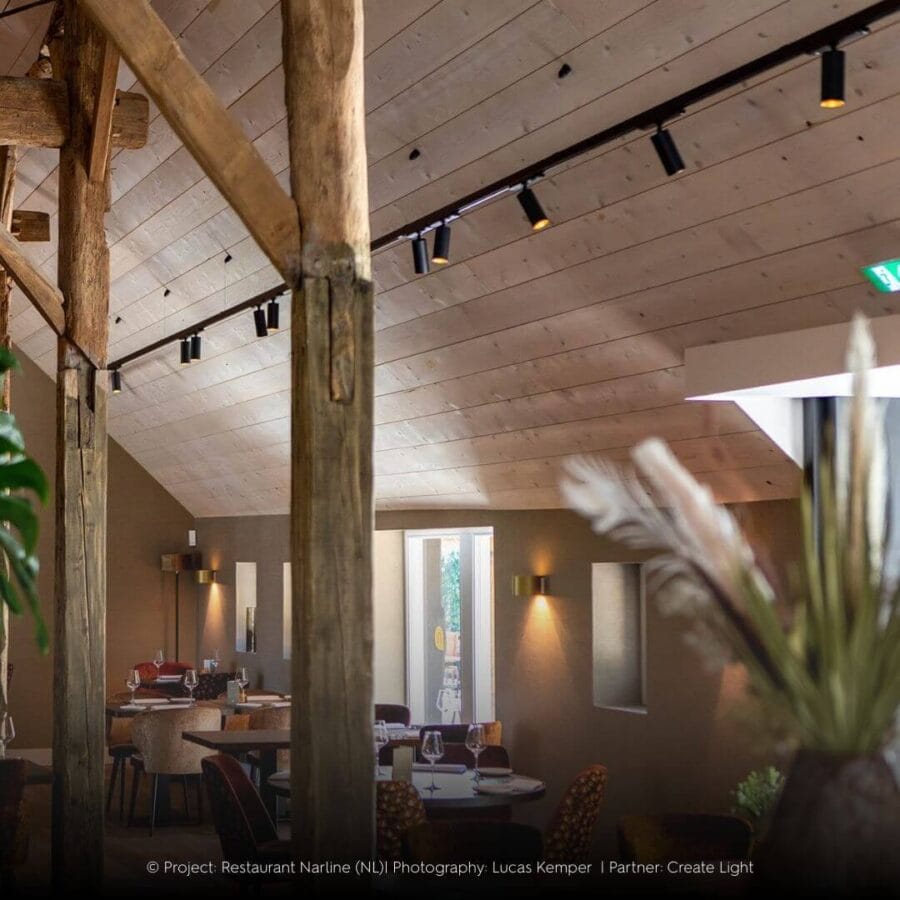

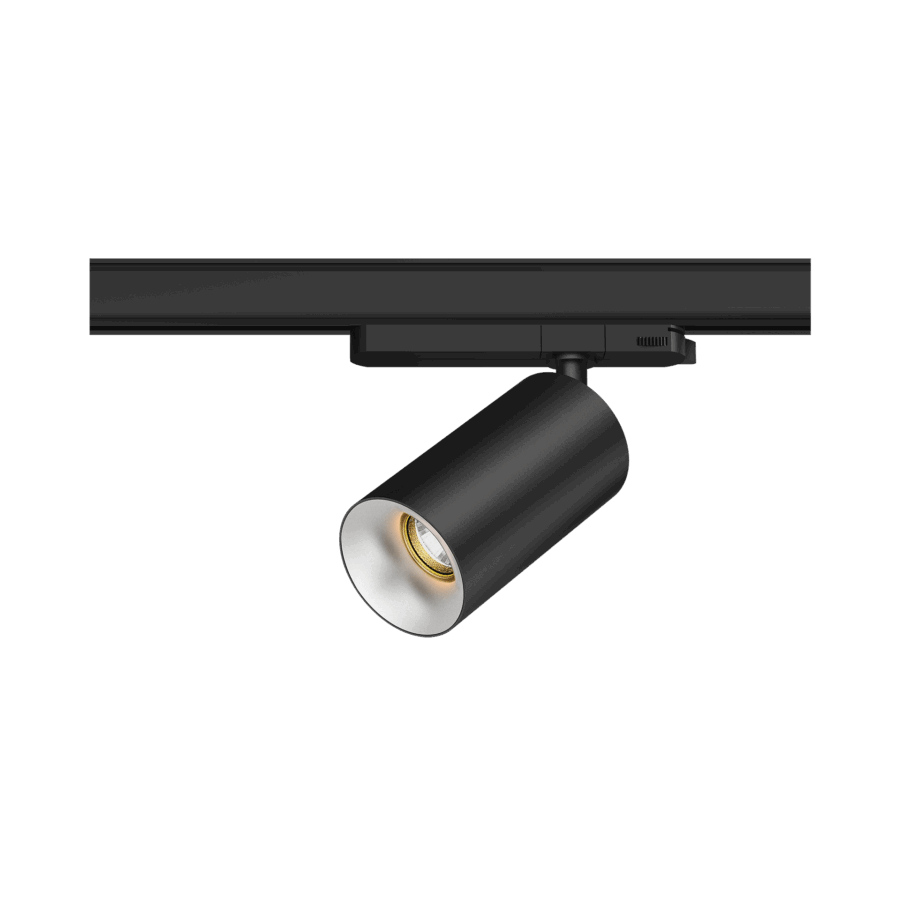

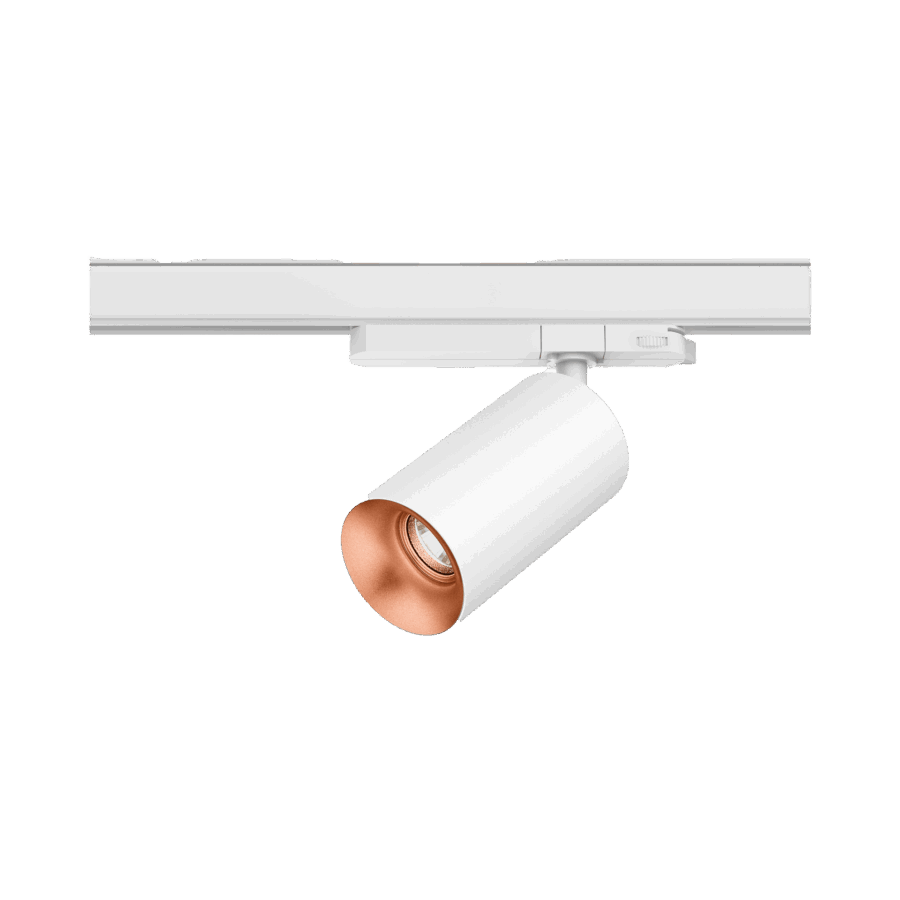

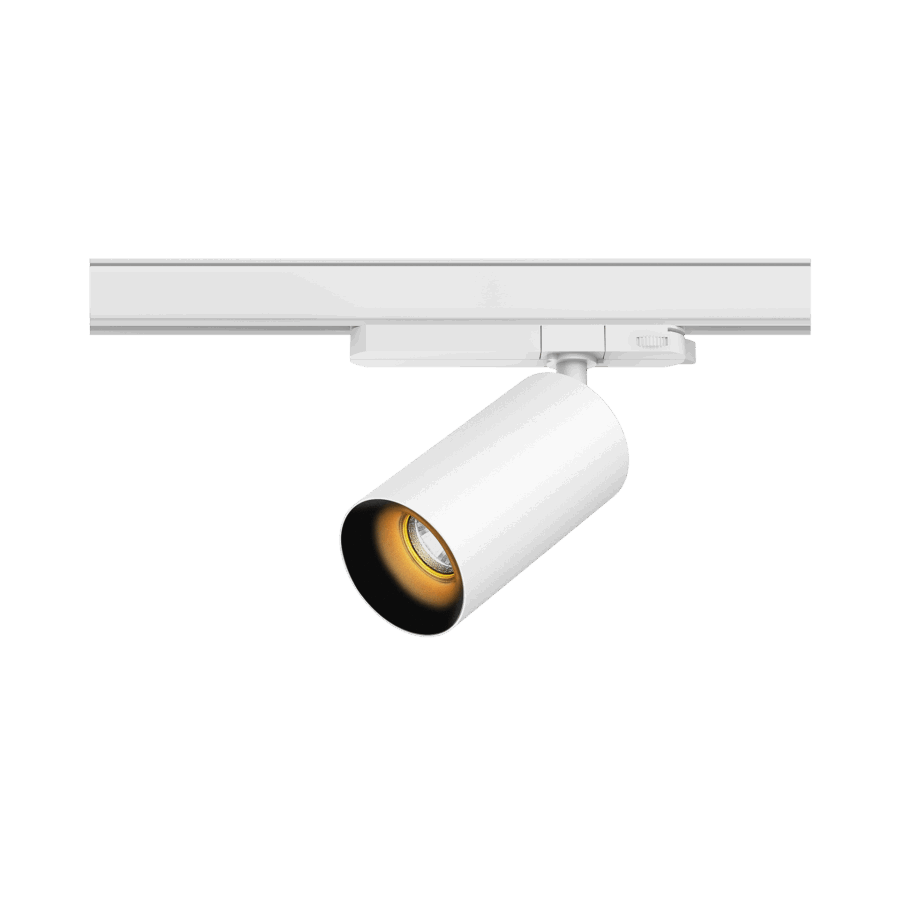

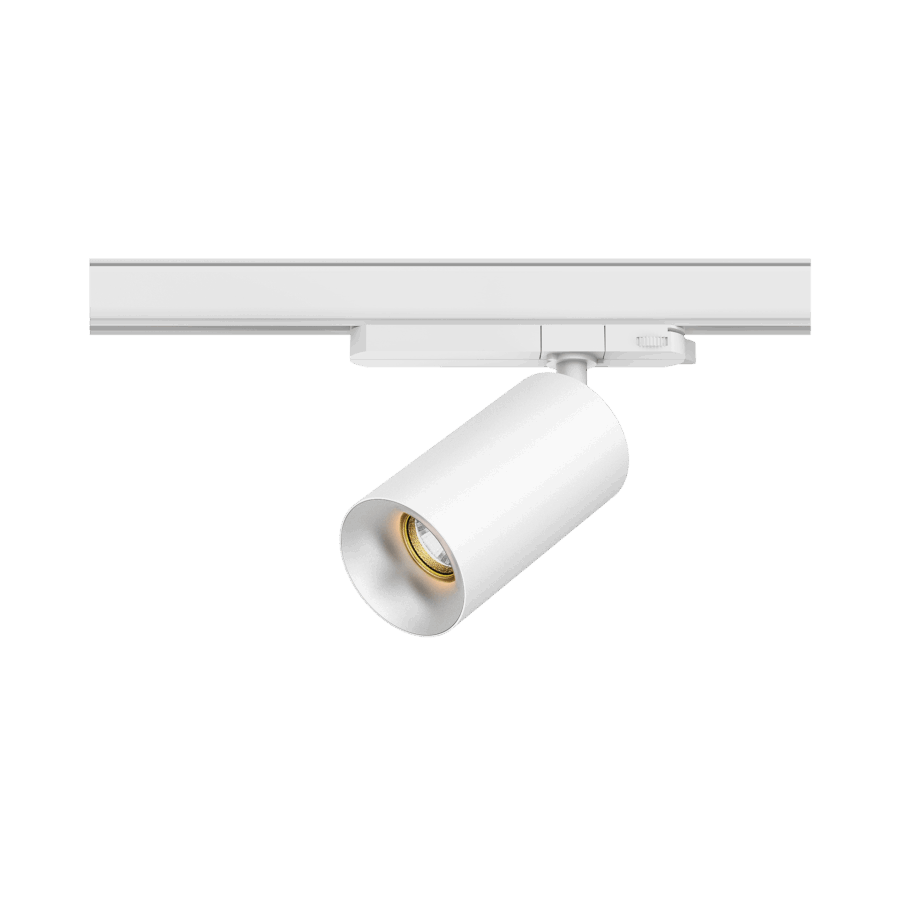

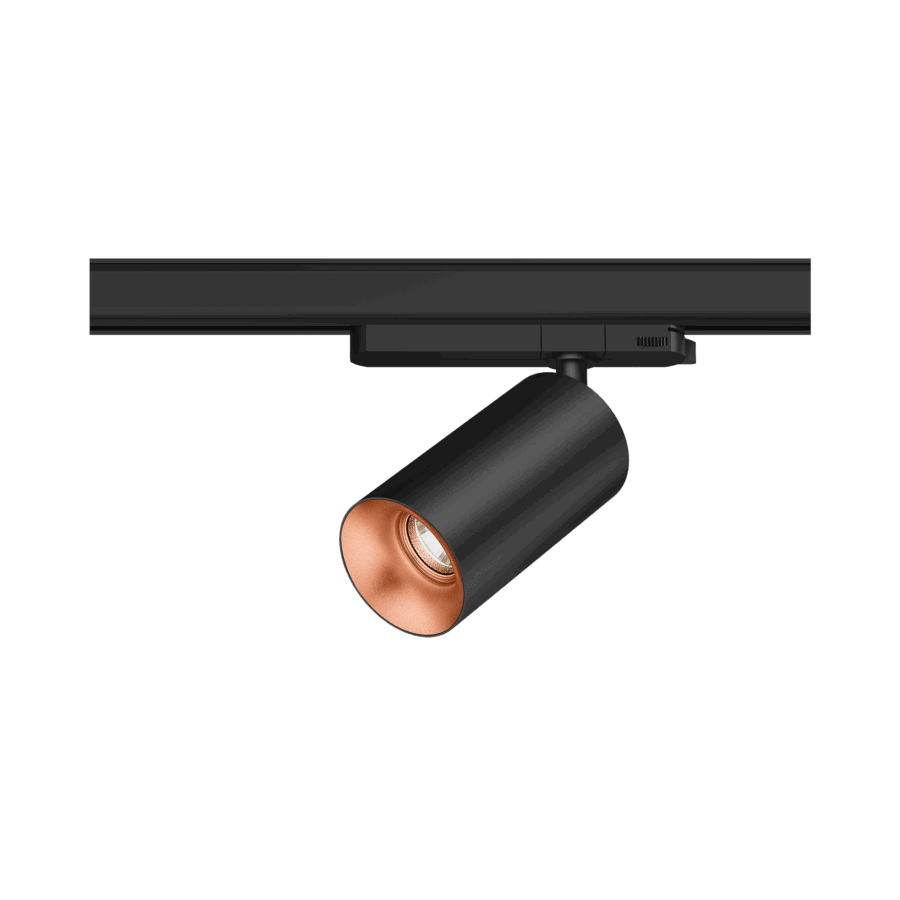

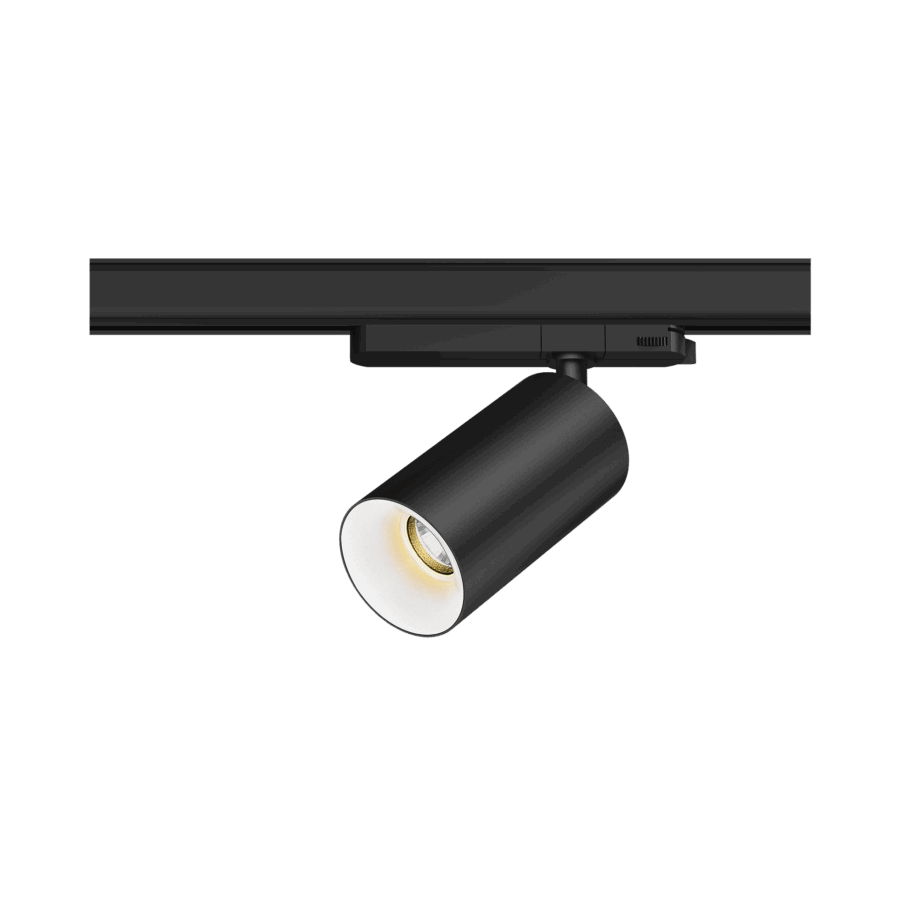

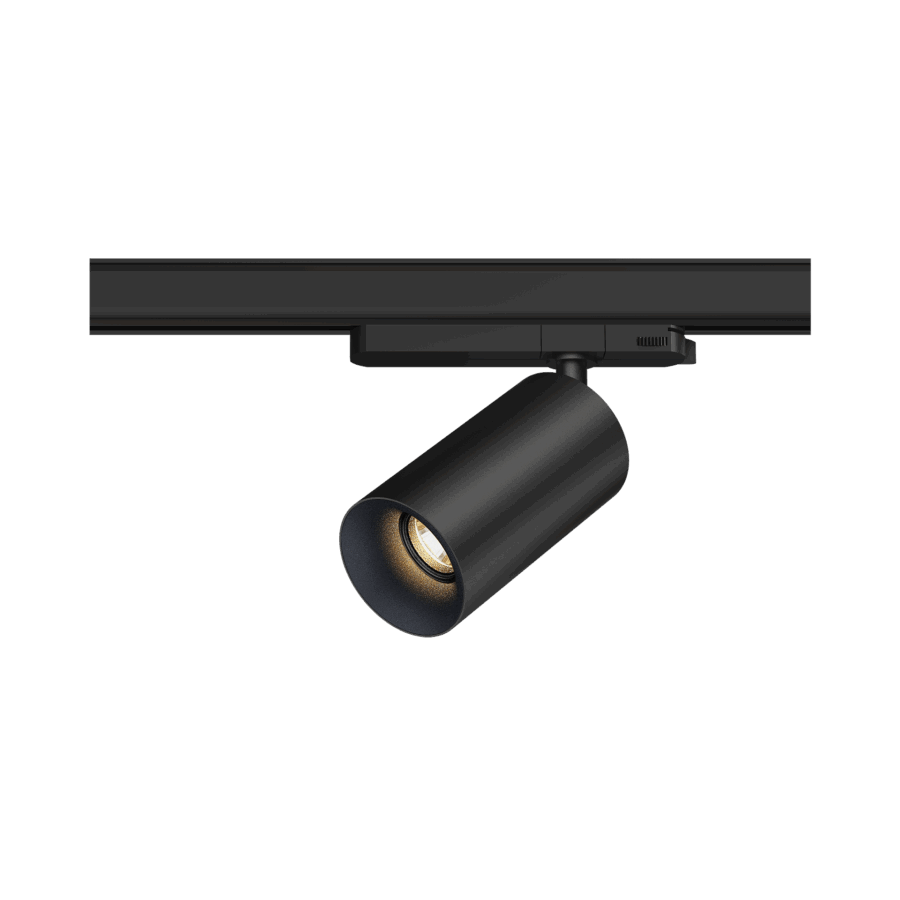

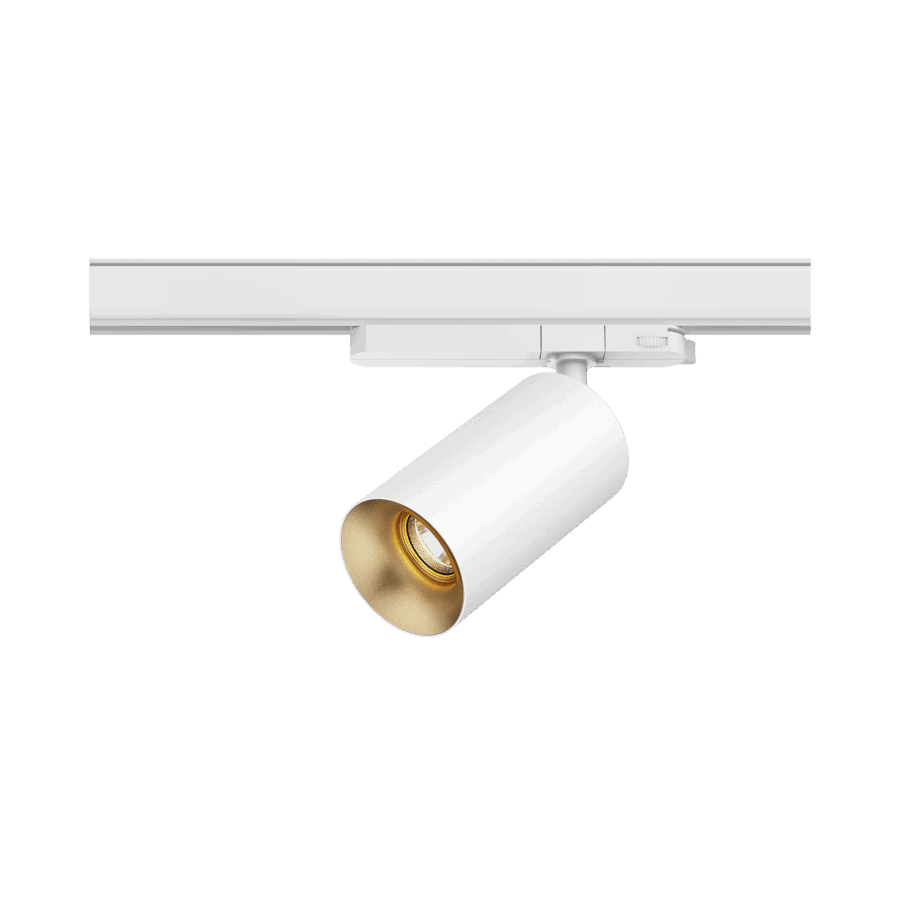

The 3-phase track luminaire Dea Juno is a real eye-catcher thanks to its small measurements, deep recessed light source and beautiful colour options. Use the Dea Juno in combination with Casambi to create a smart and balanced lighting solution. Particularly suitable for use in boutiques, hospitality and even in homes. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
607HW92740SGF0	1750 lm	2700K	90	40°	White	Silver High Gloss	1750-lm	2700k	90	40	white	silver-high-gloss
607HW93040SGF0	1750 lm	3000K	90	40°	White	Silver High Gloss	1750-lm	3000k	90	40	white	silver-high-gloss
607HW94040SGF0	1800 lm	4000K	90	40°	White	Silver High Gloss	1800-lm	4000k	90	40	white	silver-high-gloss
607GW92740BGF0	1550 lm	2700K	90	40°	White	Black High Gloss	1550-lm	2700k	90	40	white	black-high-gloss
607GW93040BGF0	1600 lm	3000K	90	40°	White	Black High Gloss	1600-lm	3000k	90	40	white	black-high-gloss
607GW94040BGF0	1650 lm	4000K	90	40°	White	Black High Gloss	1650-lm	4000k	90	40	white	black-high-gloss
607GW92740WHF0	1650 lm	2700K	90	40°	White	White	1650-lm	2700k	90	40	white	white
607GW93040WHF0	1650 lm	3000K	90	40°	White	White	1650-lm	3000k	90	40	white	white
607GW94040WHF0	1700 lm	4000K	90	40°	White	White	1700-lm	4000k	90	40	white	white
607GW92740CHF0	1650 lm	2700K	90	40°	White	Chrome	1650-lm	2700k	90	40	white	chrome
607GW93040CHF0	1700 lm	3000K	90	40°	White	Chrome	1700-lm	3000k	90	40	white	chrome
607HW94040CHF0	1750 lm	4000K	90	40°	White	Chrome	1750-lm	4000k	90	40	white	chrome
607GW92740GOF0	1600 lm	2700K	90	40°	White	Gold	1600-lm	2700k	90	40	white	gold
607GW93040GOF0	1650 lm	3000K	90	40°	White	Gold	1650-lm	3000k	90	40	white	gold
607GW94040GOF0	1700 lm	4000K	90	40°	White	Gold	1700-lm	4000k	90	40	white	gold
607GW92740COF0	1600 lm	2700K	90	40°	White	Copper	1600-lm	2700k	90	40	white	copper
607GW93040COF0	1650 lm	3000K	90	40°	White	Copper	1650-lm	3000k	90	40	white	copper
607GW94040COF0	1700 lm	4000K	90	40°	White	Copper	1700-lm	4000k	90	40	white	copper
607GW92740BMF0	1500 lm	2700K	90	40°	White	Black Matt	1500-lm	2700k	90	40	white	black-matt
607GW93040BMF0	1550 lm	3000K	90	40°	White	Black Matt	1550-lm	3000k	90	40	white	black-matt
607GW94040BMF0	1600 lm	4000K	90	40°	White	Black Matt	1600-lm	4000k	90	40	white	black-matt
607HB92740SGF0	1750 lm	2700K	90	40°	Black	Silver High Gloss	1750-lm	2700k	90	40	black	silver-high-gloss
607HB93040SGF0	1750 lm	3000K	90	40°	Black	Silver High Gloss	1750-lm	3000k	90	40	black	silver-high-gloss
607HB94040SGF0	1800 lm	4000K	90	40°	Black	Silver High Gloss	1800-lm	4000k	90	40	black	silver-high-gloss
607GB92740BGF0	1550 lm	2700K	90	40°	Black	Black High Gloss	1550-lm	2700k	90	40	black	black-high-gloss
607GB93040BGF0	1600 lm	3000K	90	40°	Black	Black High Gloss	1600-lm	3000k	90	40	black	black-high-gloss
607GB94040BGF0	1650 lm	4000K	90	40°	Black	Black High Gloss	1650-lm	4000k	90	40	black	black-high-gloss
607GB92740WHF0	1650 lm	2700K	90	40°	Black	White	1650-lm	2700k	90	40	black	white
607GB93040WHF0	1650 lm	3000K	90	40°	Black	White	1650-lm	3000k	90	40	black	white
607GB94040WHF0	1700 lm	4000K	90	40°	Black	White	1700-lm	4000k	90	40	black	white
607GB92740CHF0	1650 lm	2700K	90	40°	Black	Chrome	1650-lm	2700k	90	40	black	chrome
607GB93040CHF0	1700 lm	3000K	90	40°	Black	Chrome	1700-lm	3000k	90	40	black	chrome
607HB94040CHF0	1750 lm	4000K	90	40°	Black	Chrome	1750-lm	4000k	90	40	black	chrome
607GB92740GOF0	1600 lm	2700K	90	40°	Black	Gold	1600-lm	2700k	90	40	black	gold
607GB93040GOF0	1650 lm	3000K	90	40°	Black	Gold	1650-lm	3000k	90	40	black	gold
607GB94040GOF0	1700 lm	4000K	90	40°	Black	Gold	1700-lm	4000k	90	40	black	gold
607GB92740COF0	1600 lm	2700K	90	40°	Black	Copper	1600-lm	2700k	90	40	black	copper
607GB93040COF0	1650 lm	3000K	90	40°	Black	Copper	1650-lm	3000k	90	40	black	copper
607GB94040COF0	1700 lm	4000K	90	40°	Black	Copper	1700-lm	4000k	90	40	black	copper
607GB92740BMF0	1500 lm	2700K	90	40°	Black	Black Matt	1500-lm	2700k	90	40	black	black-matt
607GB93040BMF0	1550 lm	3000K	90	40°	Black	Black Matt	1550-lm	3000k	90	40	black	black-matt
607GB94040BMF0	1600 lm	4000K	90	40°	Black	Black Matt	1600-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux1500 lm, 1550 lm, 1600 lm, 1650 lm, 1700 lm, 1750 lm, 1800 lm

CRI90

CCT2700K, 3000K, 4000K

LED powerN/A

System power20W

System efficiency75lm/W, 78lm/W, 80lm/W, 83lm/W, 85lm/W, 88lm/W, 90lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.68Kg

Cut out dimensionN/A

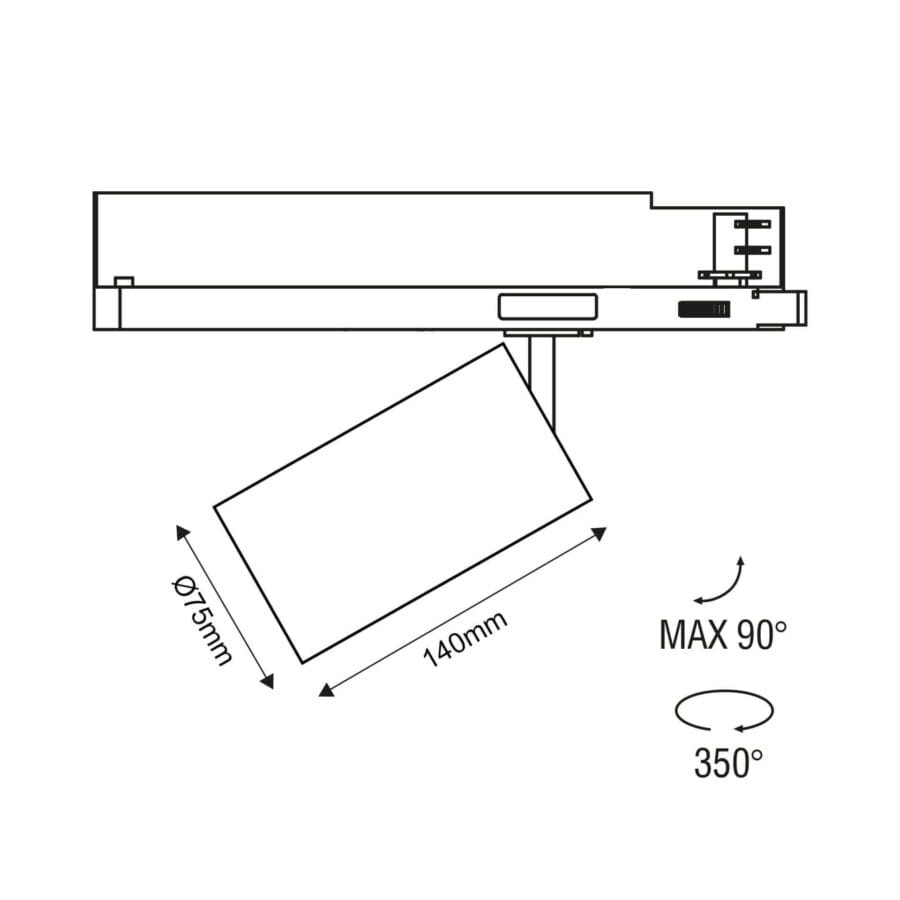

Luminaire dimensionØ75x140mm

Nominal fA [mA]N/A

Nominal fV [V]N/A

Power supplyIncluded ON/OFF

Mains Voltage220-240V / 50 -60Hz

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

ControlCasambi, DALI

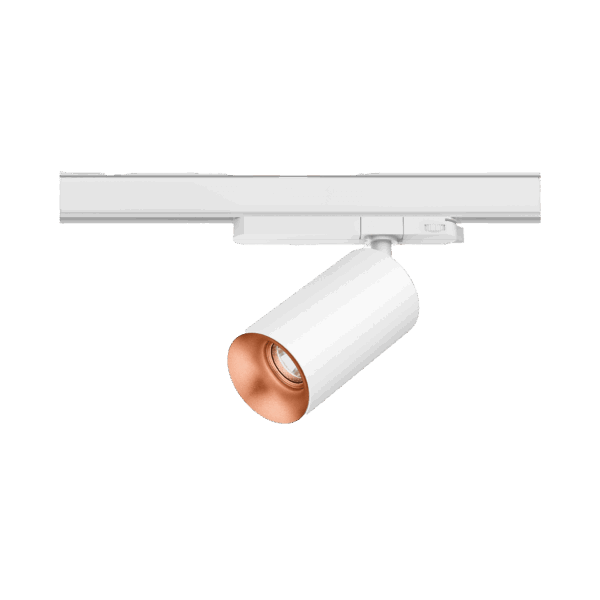

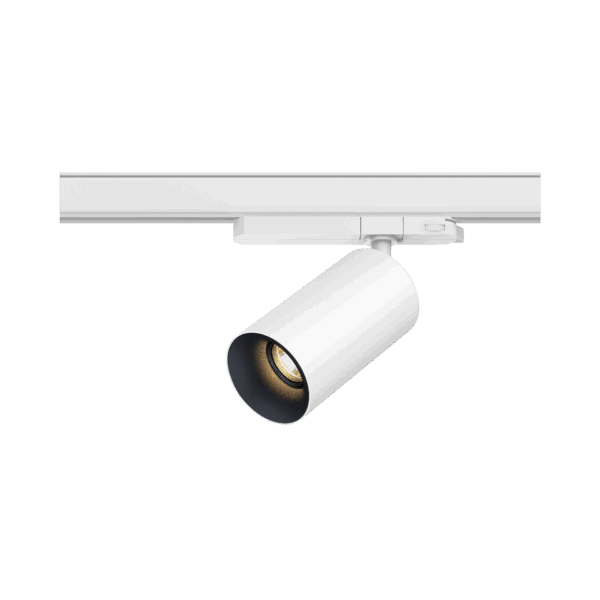

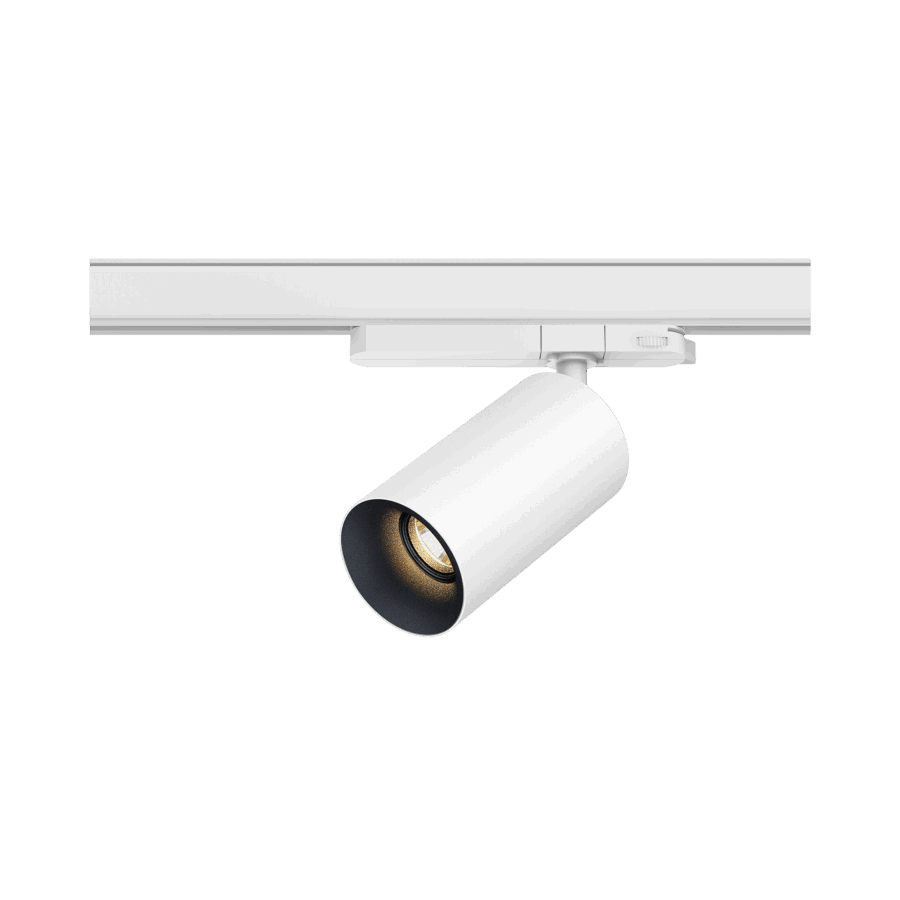

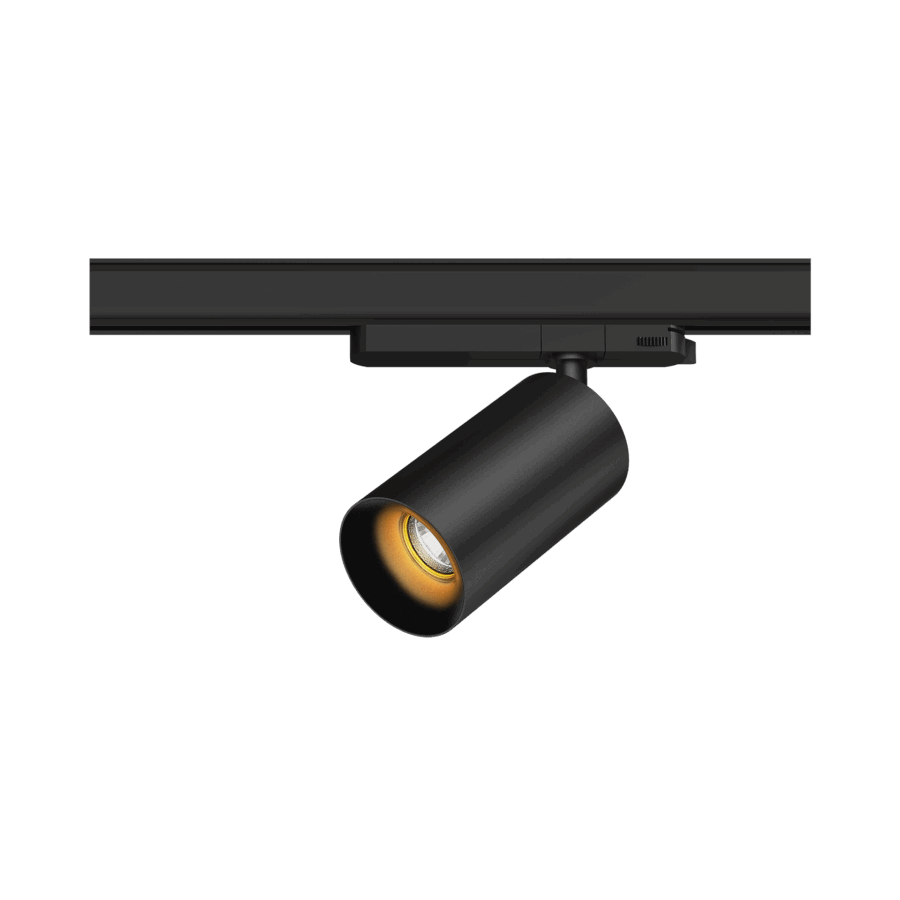

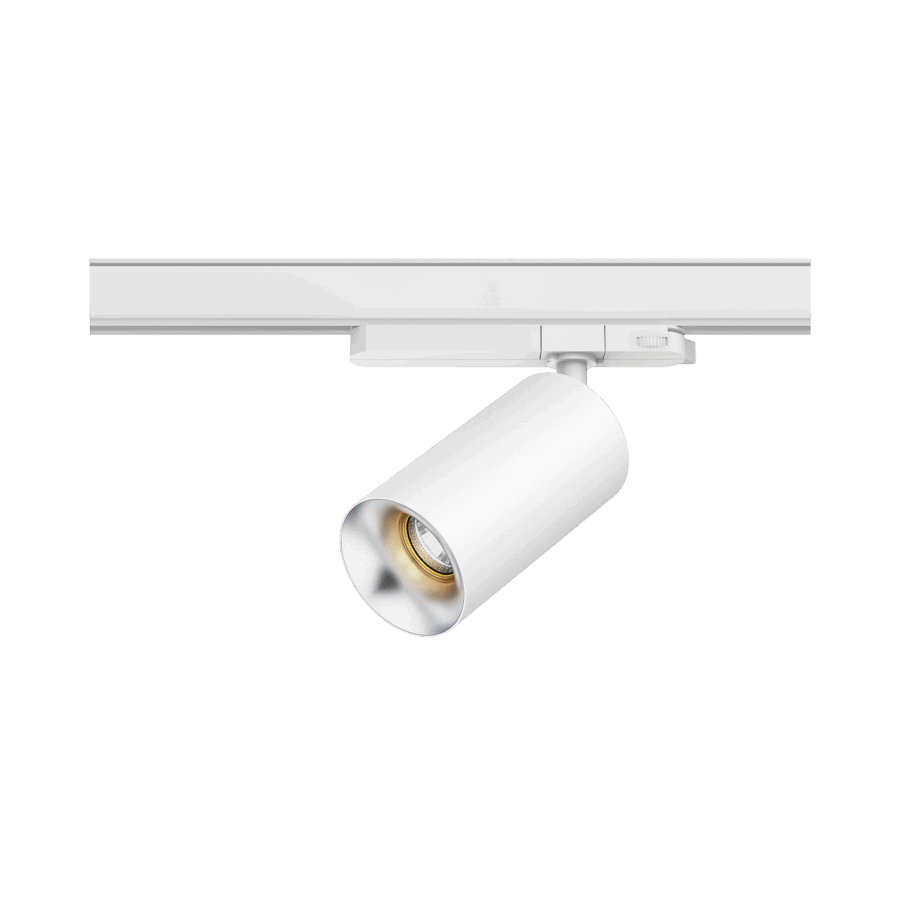

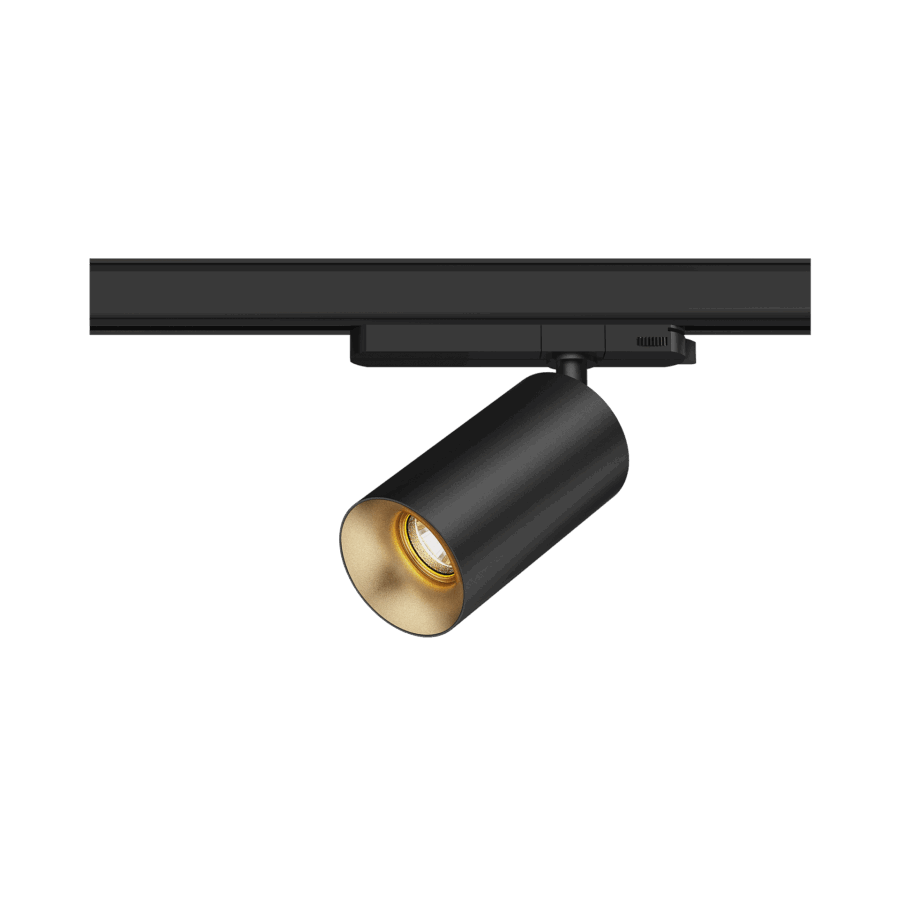

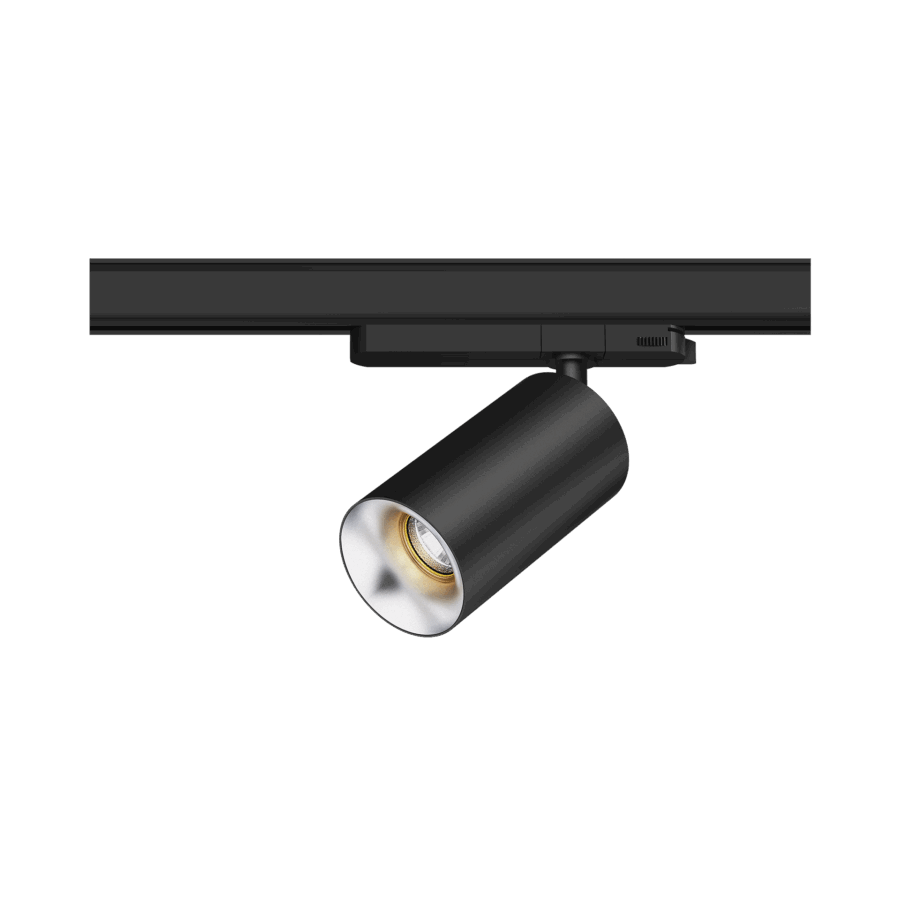

The Karizma Luce Dea Juno M is a 3-phase 220V track spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 1500- 1800 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.

Products

Dea Juno M

Datasheets

Related products

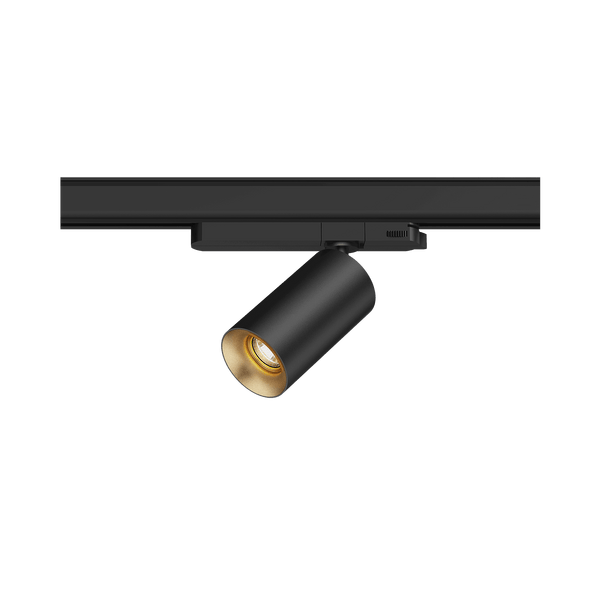

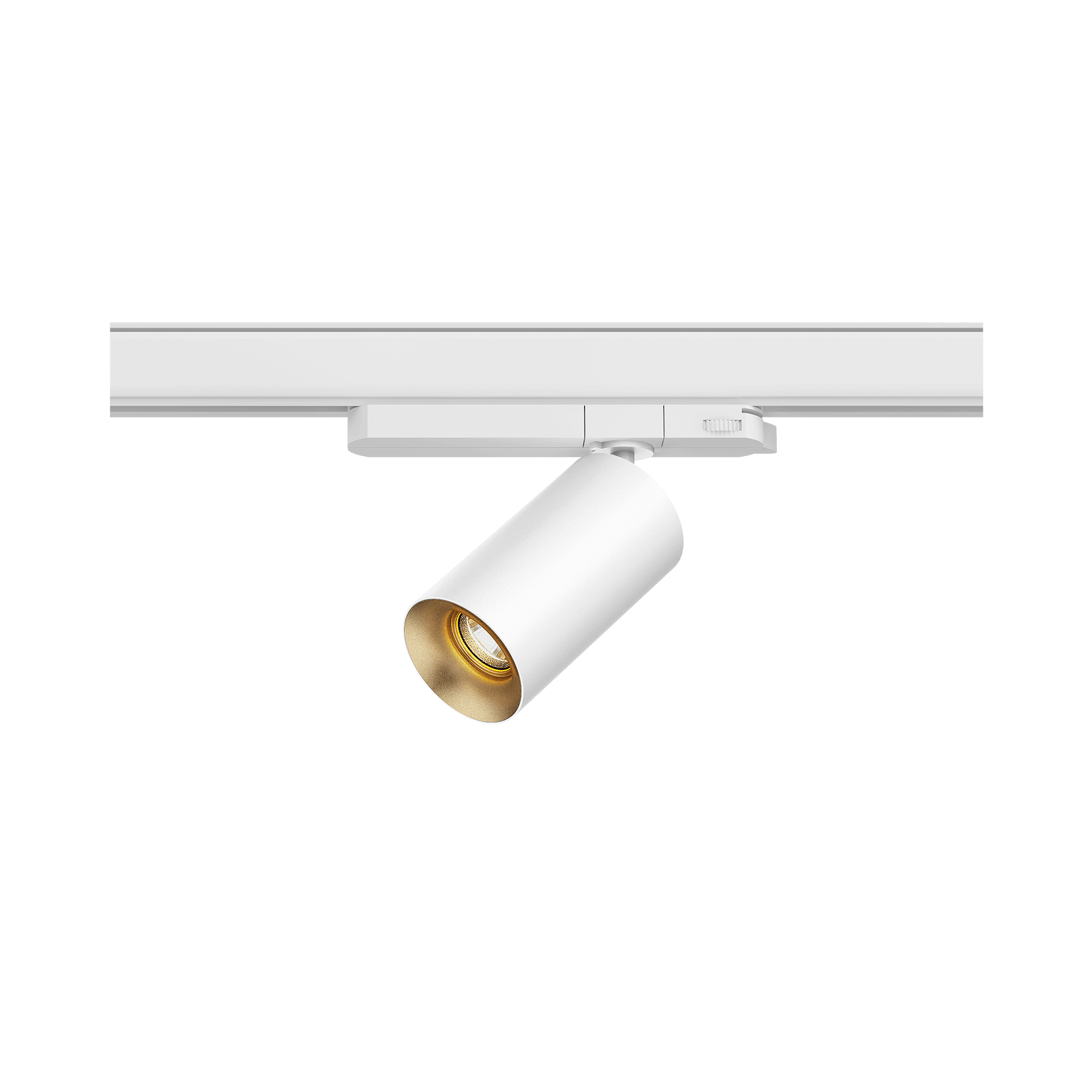

Dea Juno S
