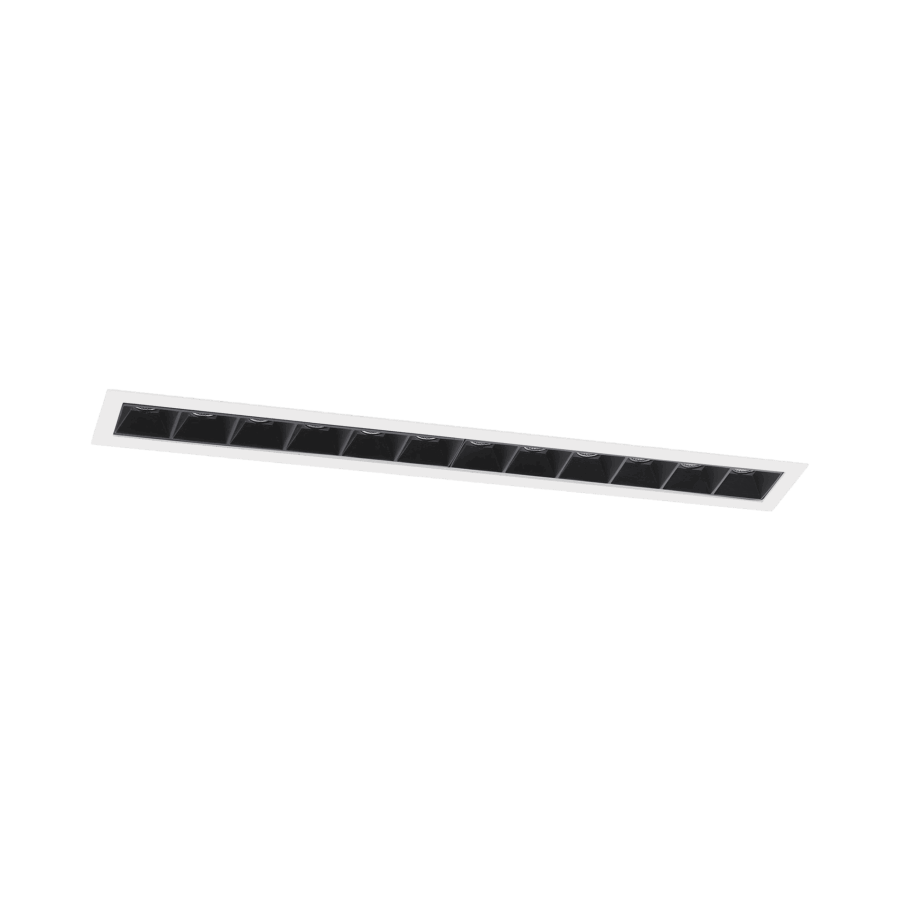

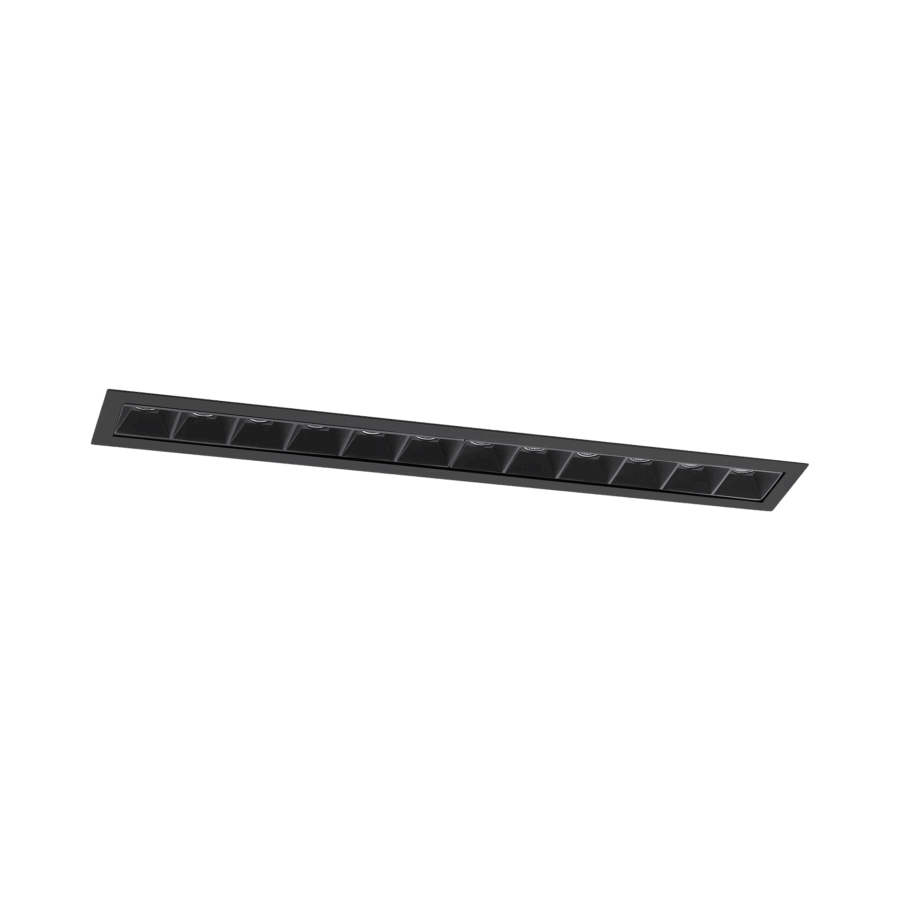

The Dodici includes 12 (Dodici) reflectors and has a very low glare. This makes it perfect for use in utility and office lighting. The recessed Dodici unites modern form and function with perfect illumination for minimum operating costs. The different beam angles (15°, 30°, 45°), colours, CCT, and CRI make this a luminaire with unrivalled possibilities.
Dodici
Powerfull, yet balanced.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 303GW92715F0 | 1550 lm | 2700K | 90 | 15° | White | Specular Aluminium | 1550-lm | 2700k | 90 | 15 | white | specular-aluminium |
| 303GW93015F0 | 1650 lm | 3000K | 90 | 15° | White | Specular Aluminium | 1650-lm | 3000k | 90 | 15 | white | specular-aluminium |
| 303GW92730F0 | 1550 lm | 2700K | 90 | 30° | White | Specular Aluminium | 1550-lm | 2700k | 90 | 30 | white | specular-aluminium |
| 303GW93030F0 | 1650 lm | 3000K | 90 | 30° | White | Specular Aluminium | 1650-lm | 3000k | 90 | 30 | white | specular-aluminium |
| 303GW92745F0 | 1550 lm | 2700K | 90 | 45° | White | Specular Aluminium | 1550-lm | 2700k | 90 | 45 | white | specular-aluminium |
| 303GW93045F0 | 1650 lm | 3000K | 90 | 45° | White | Specular Aluminium | 1650-lm | 3000k | 90 | 45 | white | specular-aluminium |
| 303GB92715F0 | 1550 lm | 2700K | 90 | 15° | Black | Specular Aluminium | 1550-lm | 2700k | 90 | 15 | black | specular-aluminium |
| 303GB93015F0 | 1650 lm | 3000K | 90 | 15° | Black | Specular Aluminium | 1650-lm | 3000k | 90 | 15 | black | specular-aluminium |
| 303GB92730F0 | 1550 lm | 2700K | 90 | 30° | Black | Specular Aluminium | 1550-lm | 2700k | 90 | 30 | black | specular-aluminium |
| 303GB93030F0 | 1650 lm | 3000K | 90 | 30° | Black | Specular Aluminium | 1650-lm | 3000k | 90 | 30 | black | specular-aluminium |
| 303GB92745F0 | 1550 lm | 2700K | 90 | 45° | Black | Specular Aluminium | 1550-lm | 2700k | 90 | 45 | black | specular-aluminium |
| 303GB93045F0 | 1650 lm | 3000K | 90 | 45° | Black | Specular Aluminium | 1650-lm | 3000k | 90 | 45 | black | specular-aluminium |
Click on specification values for related products.
CRI90
LED powerN/A
System power19.5W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium

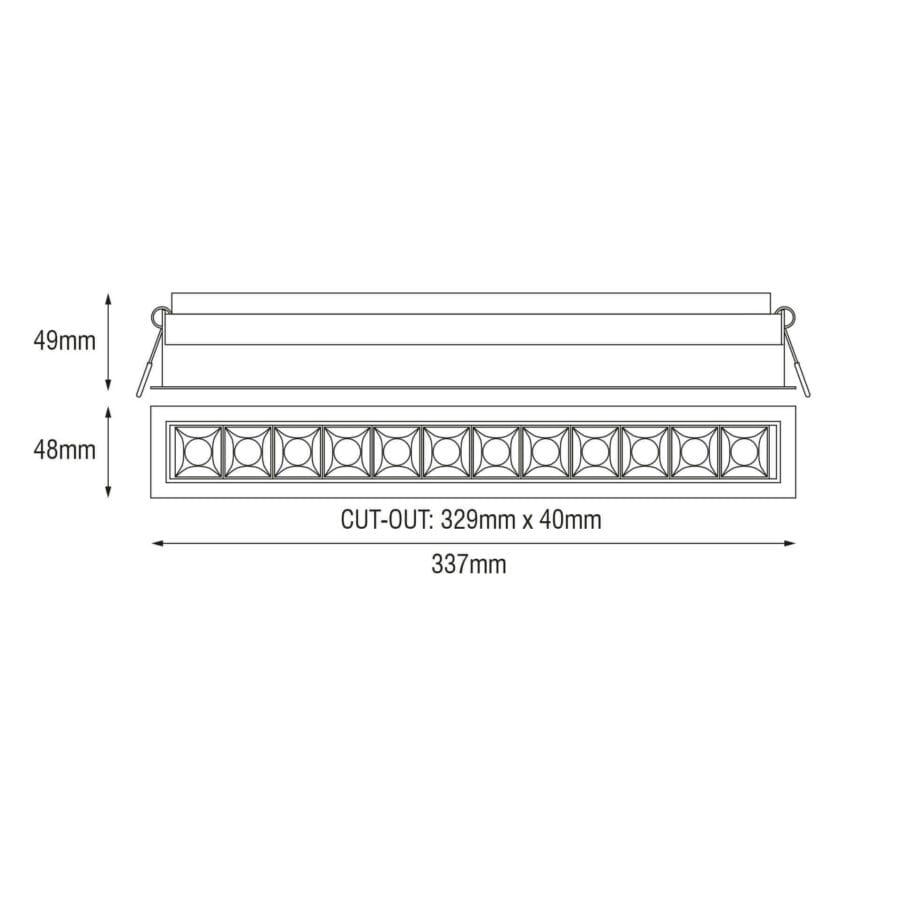

Cut out dimension329x40mm
Luminaire dimension337x48x49mm
Nominal fA [mA]N/A
Nominal fV [V]N/A
Power supplyIncluded ON/OFF
Mains Voltage220-240V / 50 -60Hz
El. ClassClass II
Housing materialExtruded Aluminum
Lifetime50000h
Light source927 (2700K / CRI90), 930 (3000K / CRI90)
Warranty3Y
CollectionDelizia di Luce
Built-in height80mm
