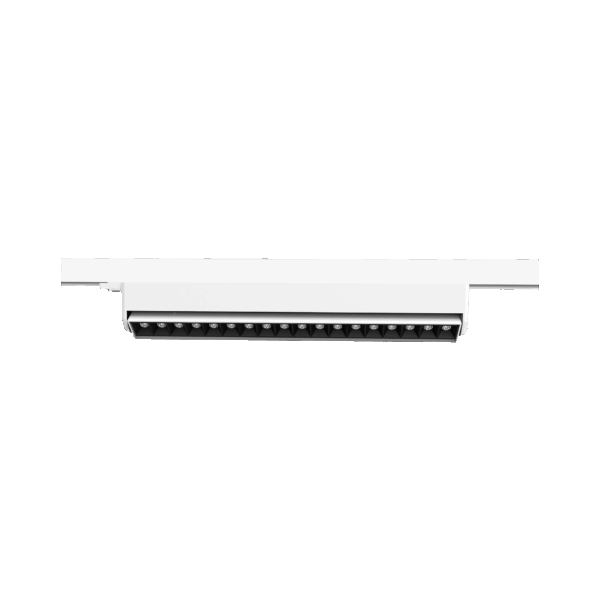

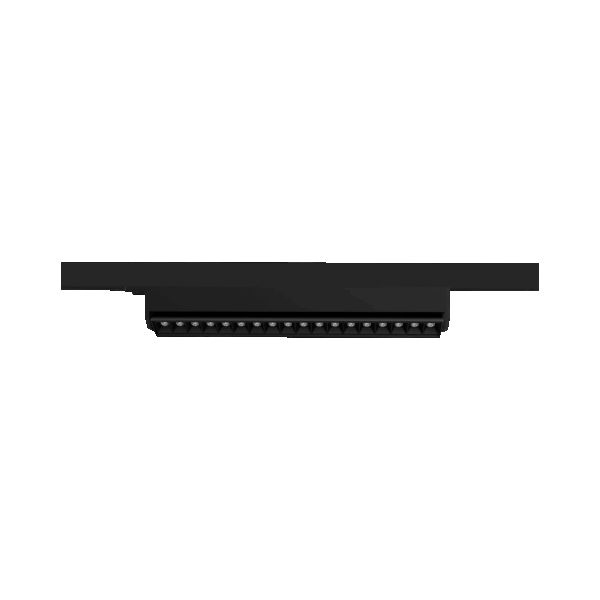

Looking for a flexible and powerful lighting solution? The Diciotto Track (18 light sources, 506 mm) offers you freedom of movement. Simply click the elegant fixture in the track and tilt as desired. Thanks to its low glare it creates the perfect light image in any office, showroom or general area in no time.
Diciotto Track
Modern form and function.
- Warranty on quality in years.
- Digital dimming interface.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 702JW92730F0 | 2400 lm | 2700K | 90 | 30° | White | Specular Aluminium |
| 702JW92745F0 | 2400 lm | 2700K | 90 | 45° | White | Specular Aluminium |
| 702JB92715F0 | 2400 lm | 2700K | 90 | 15° | Black | Specular Aluminium |
| 702JB92730F0 | 2400 lm | 2700K | 90 | 30° | Black | Specular Aluminium |
| 702JB92745F0 | 2400 lm | 2700K | 90 | 45° | Black | Specular Aluminium |
| 702KW93030F0 | 2550 lm | 3000K | 90 | 30° | White | Specular Aluminium |
| 702KW93045F0 | 2550 lm | 3000K | 90 | 45° | White | Specular Aluminium |
| 702KB93030F0 | 2550 lm | 3000K | 90 | 30° | Black | Specular Aluminium |
| 702KB93045F0 | 2550 lm | 3000K | 90 | 45° | Black | Specular Aluminium |
Click on specification values for related products.
CRI90
LED powerN/A
System power32W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight1.6Kg
Cut out dimensionN/A

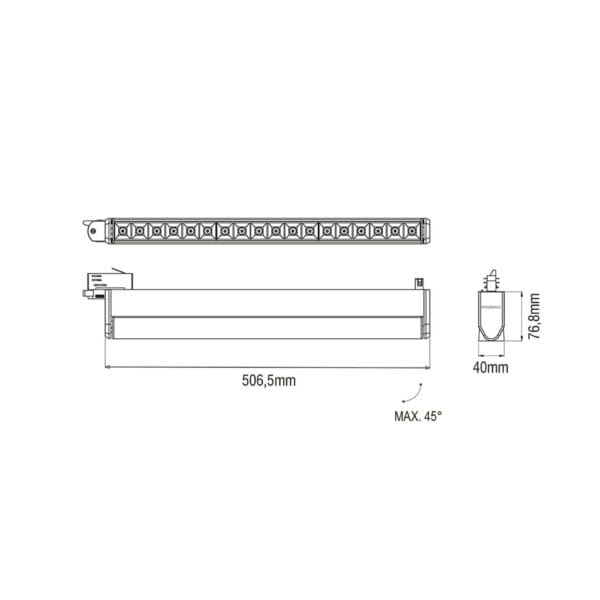

Luminaire dimension506.5×76.8x40mm
Nominal fA [mA]N/A
Nominal fV [V]N/A
Power supplyIncluded ON/OFF
Mains Voltage220-240V / 50 -60Hz
El. ClassClass I
Housing materialExtruded Aluminum
Lifetime50000h
Light source927 (2700K / CRI90), 930 (3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
ControlDALI
