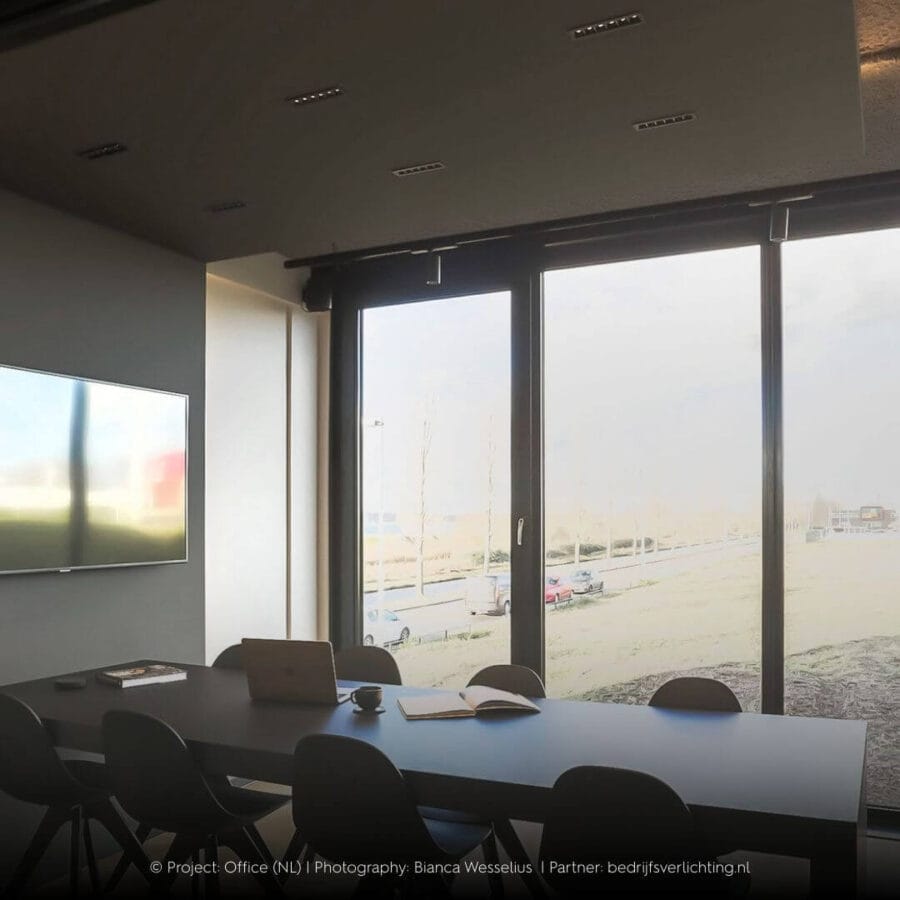

The functional design of this highly efficient linear downlight includes 6 (Sei) reflectors, a very low glare and offers different beam angles (15°, 30°, 45°). These options and low installation height make it a perfect luminaire for use in utility and office lighting. The Karizma Luce Sei unites modern form and function with perfect illumination for minimum operating costs.
Sei
Functional and highly efficient.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 302DW92715F0 | 760 lm | 2700K | 90 | 15° | White | Specular Aluminium | 760-lm | 2700k | 90 | 15 | white | specular-aluminium |
| 302DW93015F0 | 850 lm | 3000K | 90 | 15° | White | Specular Aluminium | 850-lm | 3000k | 90 | 15 | white | specular-aluminium |
| 302DW92730F0 | 760 lm | 2700K | 90 | 30° | White | Specular Aluminium | 760-lm | 2700k | 90 | 30 | white | specular-aluminium |
| 302DW93030F0 | 850 lm | 3000K | 90 | 30° | White | Specular Aluminium | 850-lm | 3000k | 90 | 30 | white | specular-aluminium |
| 302DW92745F0 | 760 lm | 2700K | 90 | 45° | White | Specular Aluminium | 760-lm | 2700k | 90 | 45 | white | specular-aluminium |
| 302DW93045F0 | 850 lm | 3000K | 90 | 45° | White | Specular Aluminium | 850-lm | 3000k | 90 | 45 | white | specular-aluminium |
| 302DB92715F0 | 760 lm | 2700K | 90 | 15° | Black | Specular Aluminium | 760-lm | 2700k | 90 | 15 | black | specular-aluminium |
| 302DB93015F0 | 850 lm | 3000K | 90 | 15° | Black | Specular Aluminium | 850-lm | 3000k | 90 | 15 | black | specular-aluminium |
| 302DB92730F0 | 760 lm | 2700K | 90 | 30° | Black | Specular Aluminium | 760-lm | 2700k | 90 | 30 | black | specular-aluminium |
| 302DB93030F0 | 850 lm | 3000K | 90 | 30° | Black | Specular Aluminium | 850-lm | 3000k | 90 | 30 | black | specular-aluminium |
| 302DB92745F0 | 760 lm | 2700K | 90 | 45° | Black | Specular Aluminium | 760-lm | 2700k | 90 | 45 | black | specular-aluminium |
| 302DB93045F0 | 850 lm | 3000K | 90 | 45° | Black | Specular Aluminium | 850-lm | 3000k | 90 | 45 | black | specular-aluminium |
Click on specification values for related products.
CRI90
LED powerN/A
System power10W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight0.36Kg

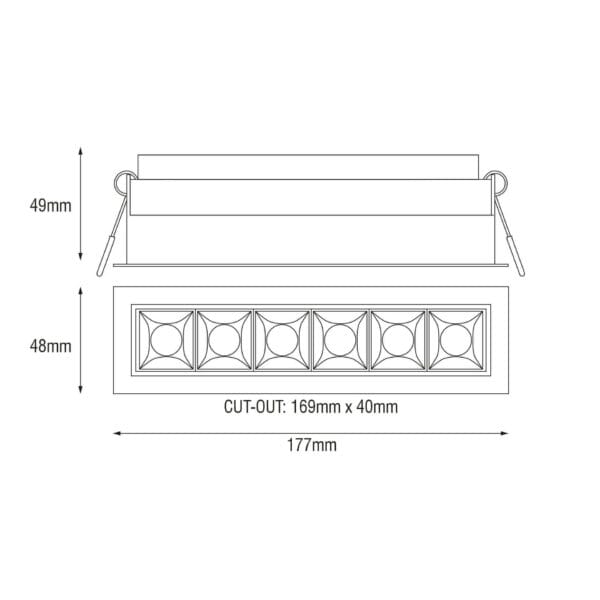

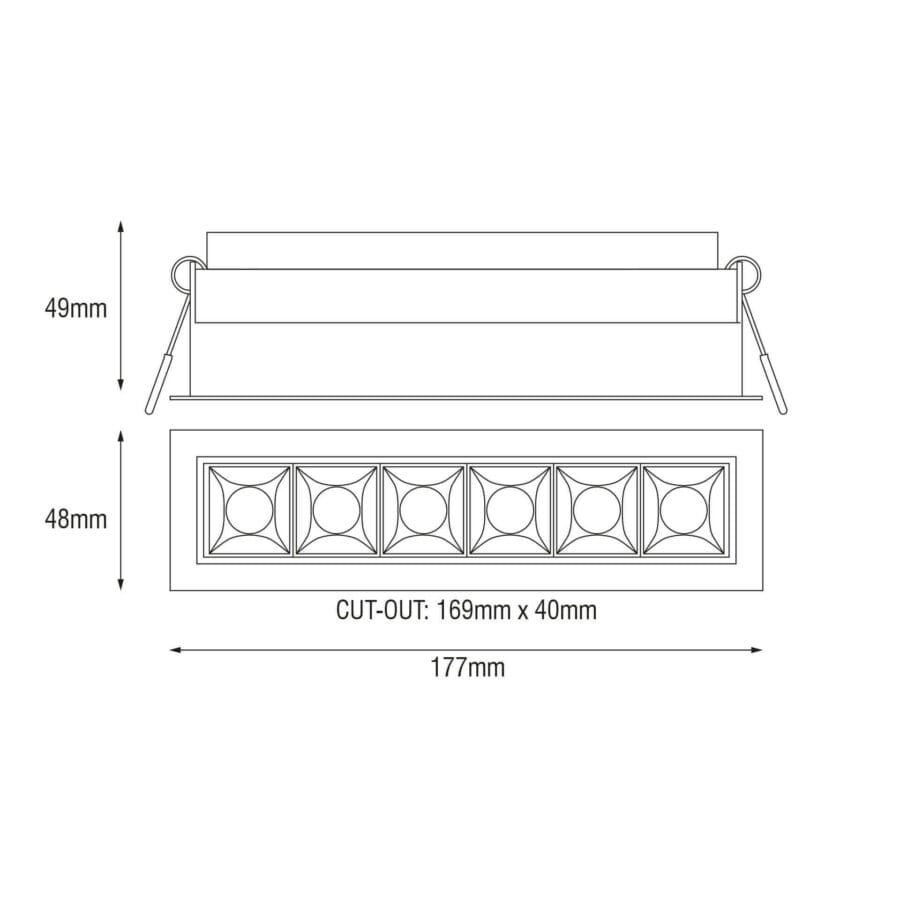

Cut out dimension169x40mm
Luminaire dimension177x48x49mm
Nominal fA [mA]N/A
Nominal fV [V]N/A
Power supplyIncluded ON/OFF
Mains Voltage220-240V / 50 -60Hz
El. ClassClass II
Housing materialExtruded Aluminum
Lifetime50000h
Light source927 (2700K / CRI90), 930 (3000K / CRI90)
Warranty3Y
CollectionDelizia di Luce
Built-in height80mm

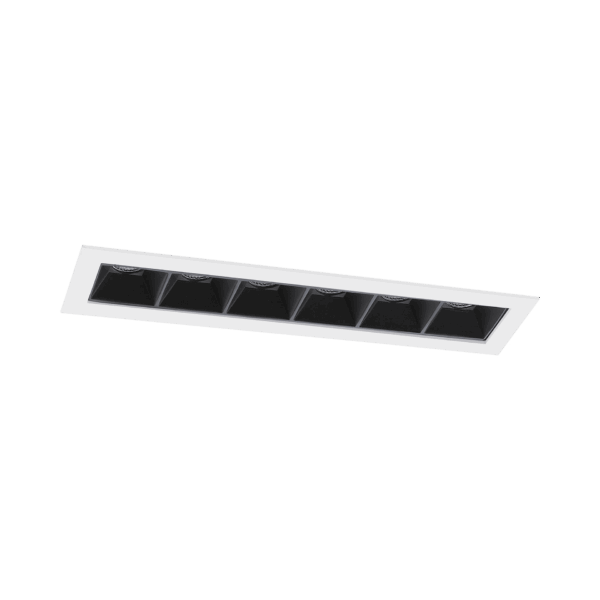

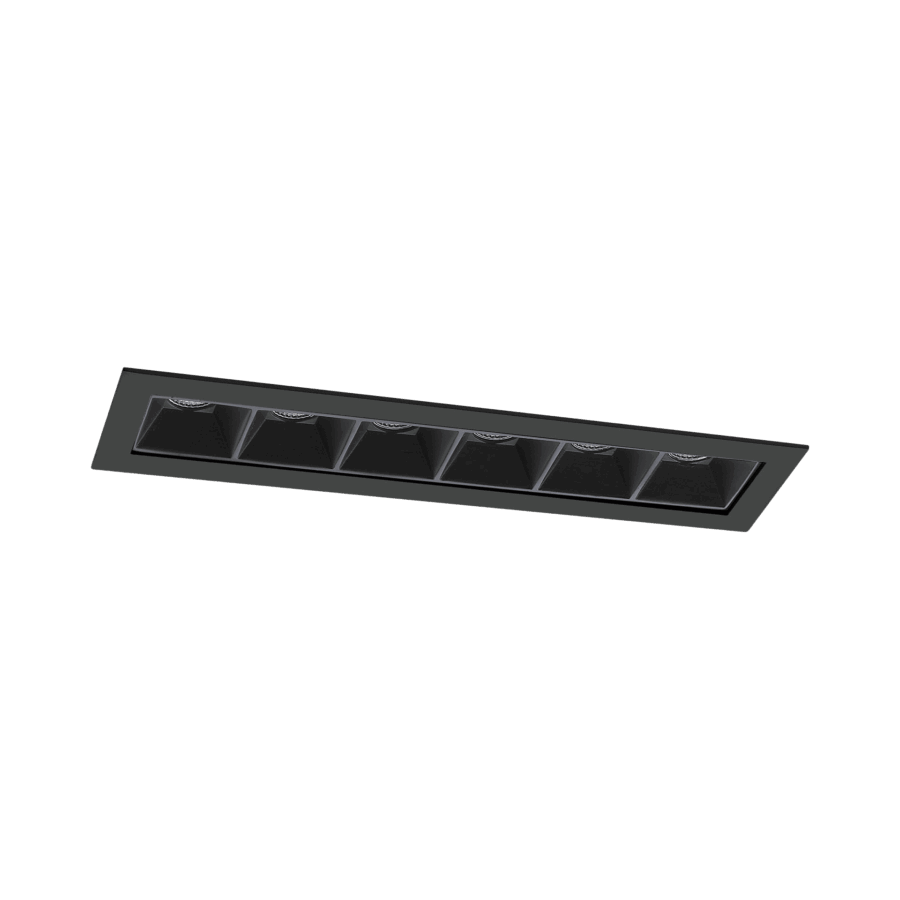

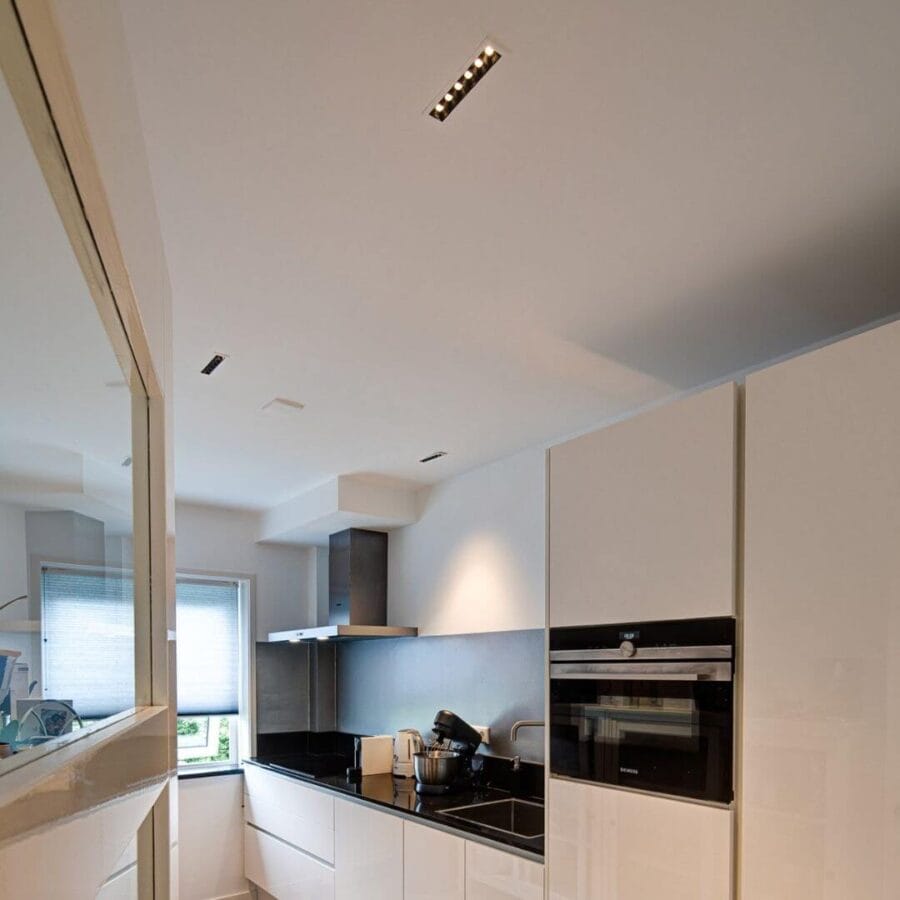

The Karizma Luce Sei is a linear led downlight. Thanks to different options, low glare and low installation height it is an ideal solution for corridors, pathways or narrow hallways. The maximum visual comfort makes the luminaire also suitable for residential or retail applications. Available luminaire flux: 850-760 lm. CCT: 2700K, 3000K. Beam angles: 15°, 30° and 45°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
