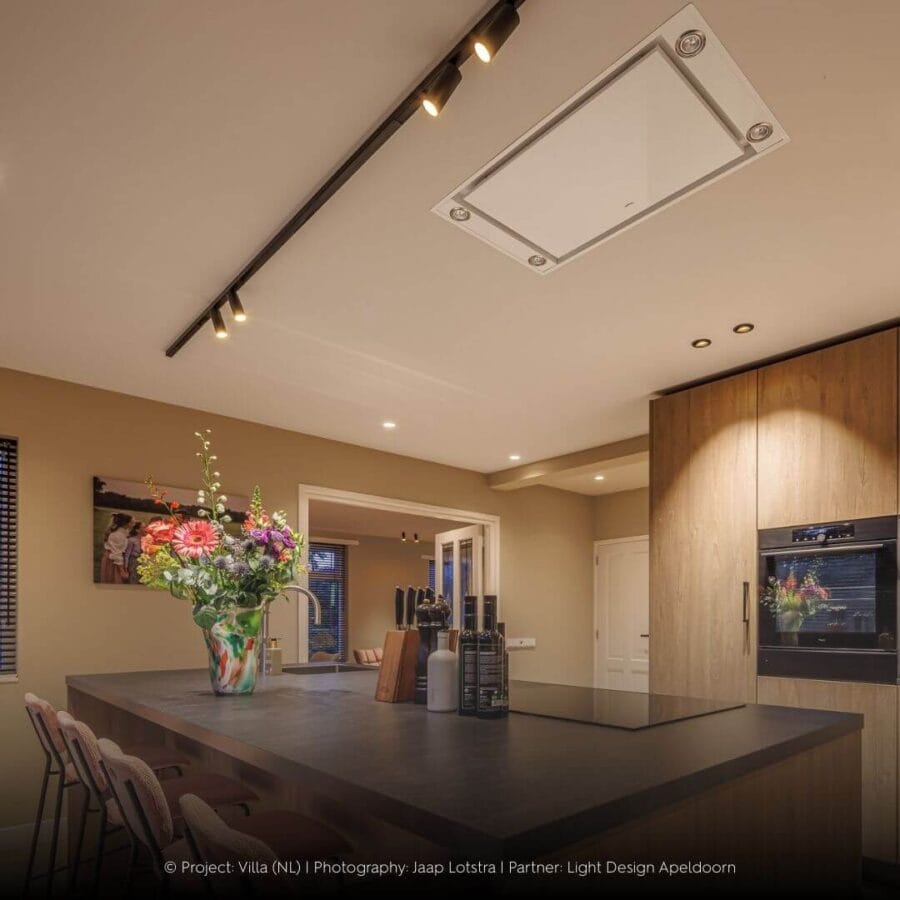

The 48V luminaire Dea Juno is a real eye-catcher thanks to its small measurements, deep recessed light source and beautiful reflector colour options. These make it possible to adapt this luminaire to any interior and smoothly create a unique, personal ambience. Particularly suitable for use in boutiques, hospitality settings and in luxurious homes.
Dea Juno-Q1 XS
Small, yet versatile.
- Warranty on quality in years.
- Designed to be supplied from a separated extra-low voltage (SELV) power source
- 48 Volt Power Supply System
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| Q611BW92734SGF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| Q611BW93034SGF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| Q611BW94034SGF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| Q611BW92734BGF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Black High Gloss |
| Q611BW93034BGF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Black High Gloss |
| Q611BW94034BGF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Black High Gloss |
| Q611BW92734WHF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | White |
| Q611BW93034WHF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | White |
| Q611BW94034WHF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | White |
| Q611BW92734CHF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Chrome |
| Q611BW93034CHF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Chrome |
| Q611BW94034CHF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Chrome |
| Q611BW92734GOF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Gold |
| Q611BW93034GOF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Gold |
| Q611BW94034GOF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Gold |
| Q611BW92734BMF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Black Matt |
| Q611BW93034BMF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Black Matt |
| Q611BW94034BMF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Black Matt |
| Q611BB92734SGF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| Q611BB93034SGF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| Q611BB94034SGF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| Q611BB92734BGF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Black High Gloss |
| Q611BB93034BGF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Black High Gloss |
| Q611BB94034BGF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Black High Gloss |
| Q611BB92734WHF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | White |
| Q611BB93034WHF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | White |
| Q611BB94034WHF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | White |
| Q611BB92734CHF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Chrome |
| Q611BB93034CHF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Chrome |
| Q611BB94034CHF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Chrome |
| Q611BB92734GOF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Gold |
| Q611BB93034GOF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Gold |
| Q611BB94034GOF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Gold |
| Q611BB92734BMF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Black Matt |
| Q611BB93034BMF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Black Matt |
| Q611BB94034BMF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Black Matt |
| Q611BB92734COF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Copper |
| Q611BB93034COF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Copper |
| Q611BB94034COF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Copper |
| Q611BW92734COF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Copper |
| Q611BW93034COF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Copper |
| Q611BW94034COF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Copper |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), Black(RAL9005)(RAL9005), White(RAL9003), White(RAL9003)(RAL9003)

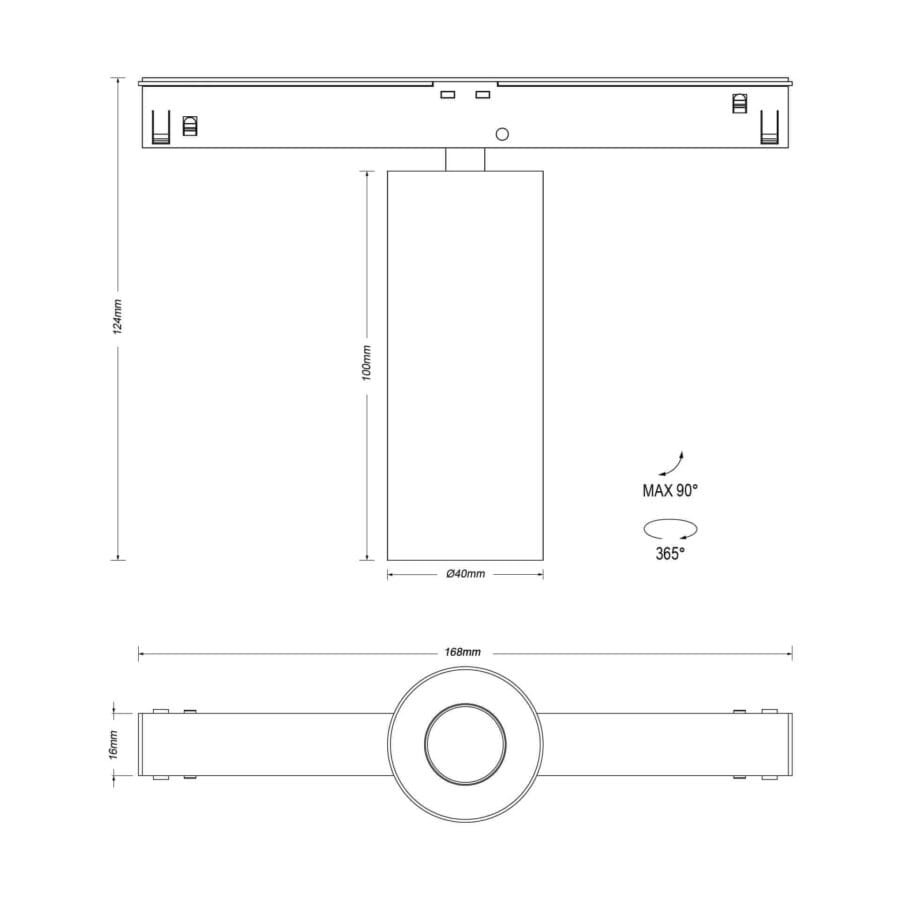

Luminaire Dimension [mm]124mmx40mm
Cut-Out [mm]N/A
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
Beam Angle [deg]34°
LED Power [W]6.2W
System Power [W]7W
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]48V DC
Power Supplyincluded 48V DC/DC converter ON/OFF
Ambient Temperature [degC]35°C
Ingress ProtectionIP20
Light Source Energy ClassF
Light Source IdentifierCLU701-1002C4-273H5K2, CLU701-1002C4-303H5K2, CLU701-1002C4-403H5K2
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass III
Net Weight [Kg]0.3 kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
ControlDALI

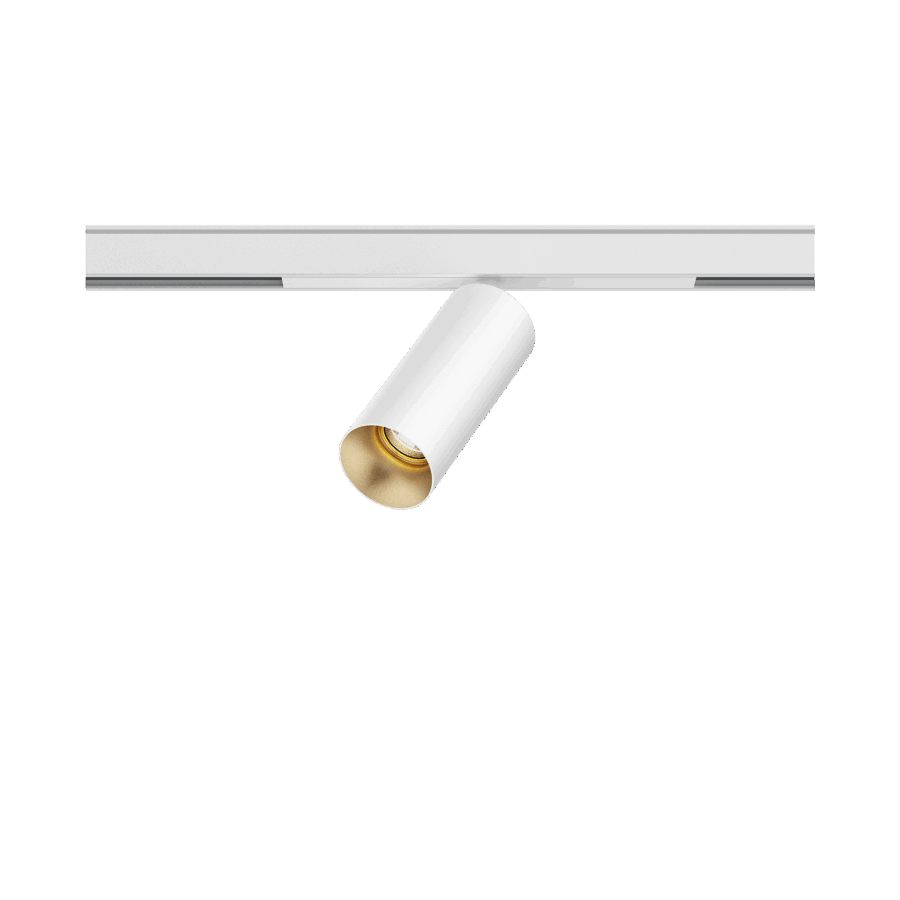

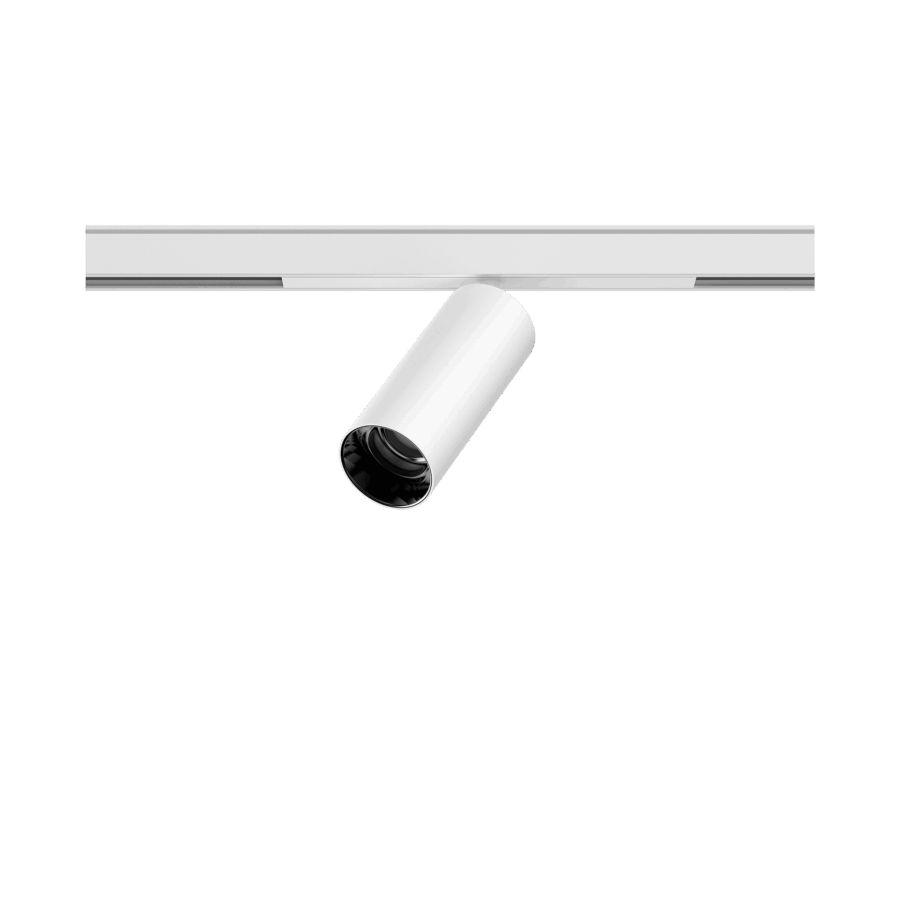

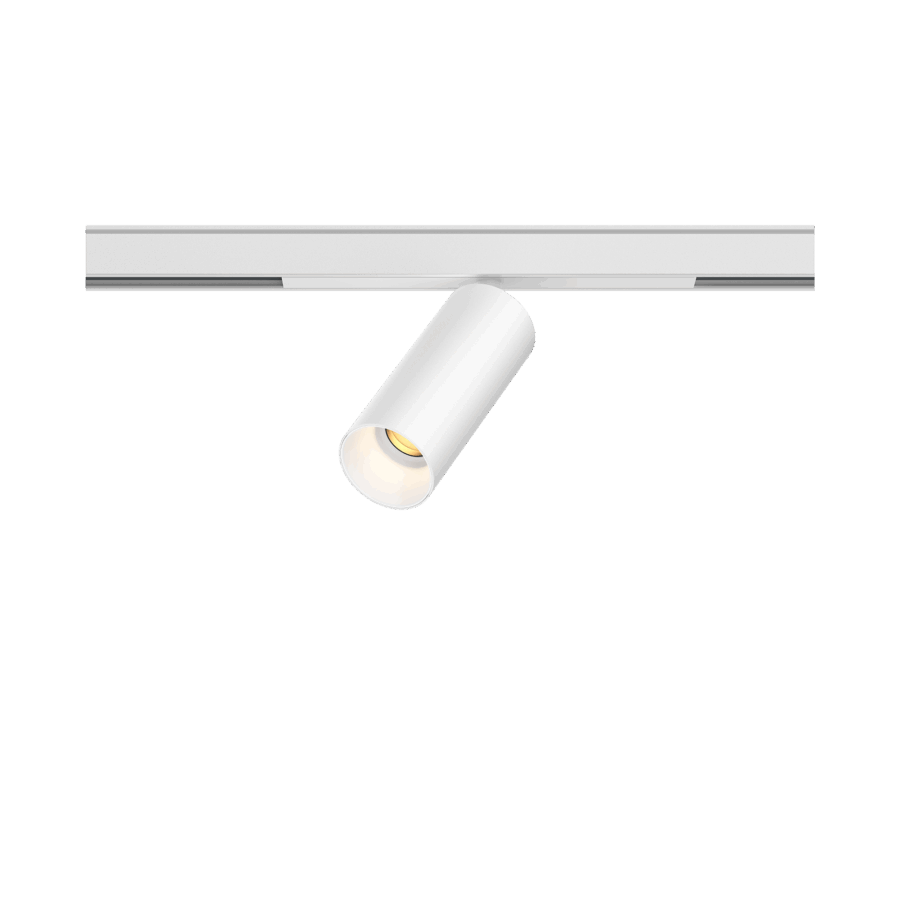

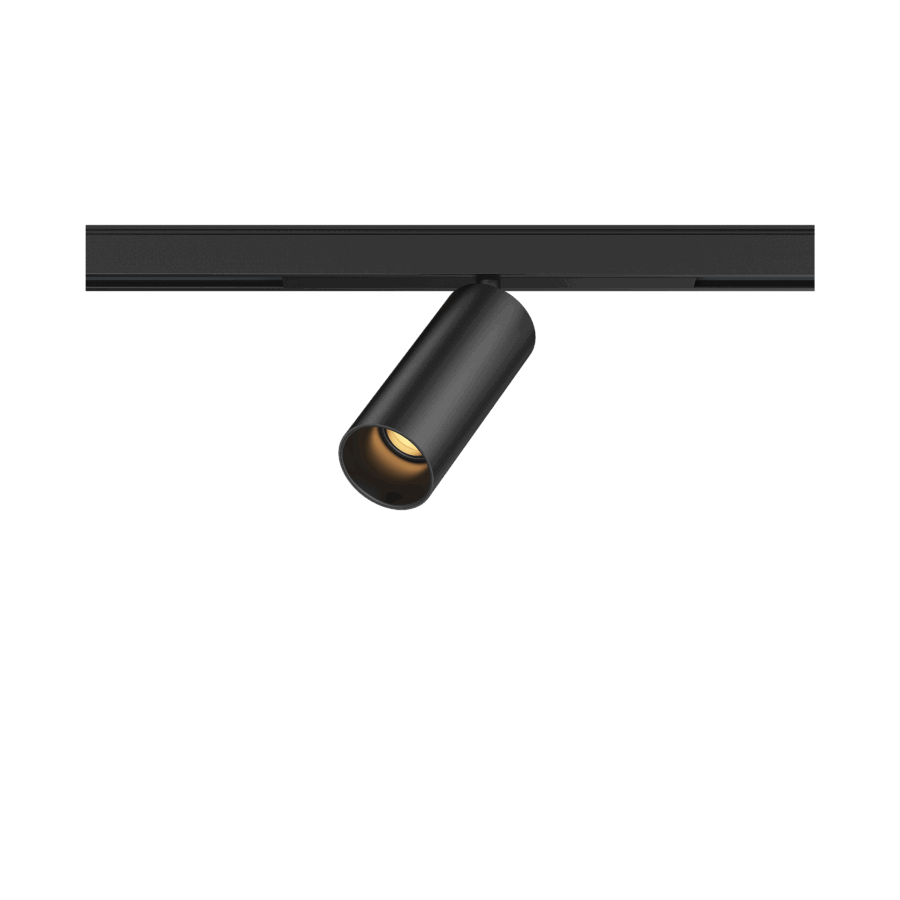

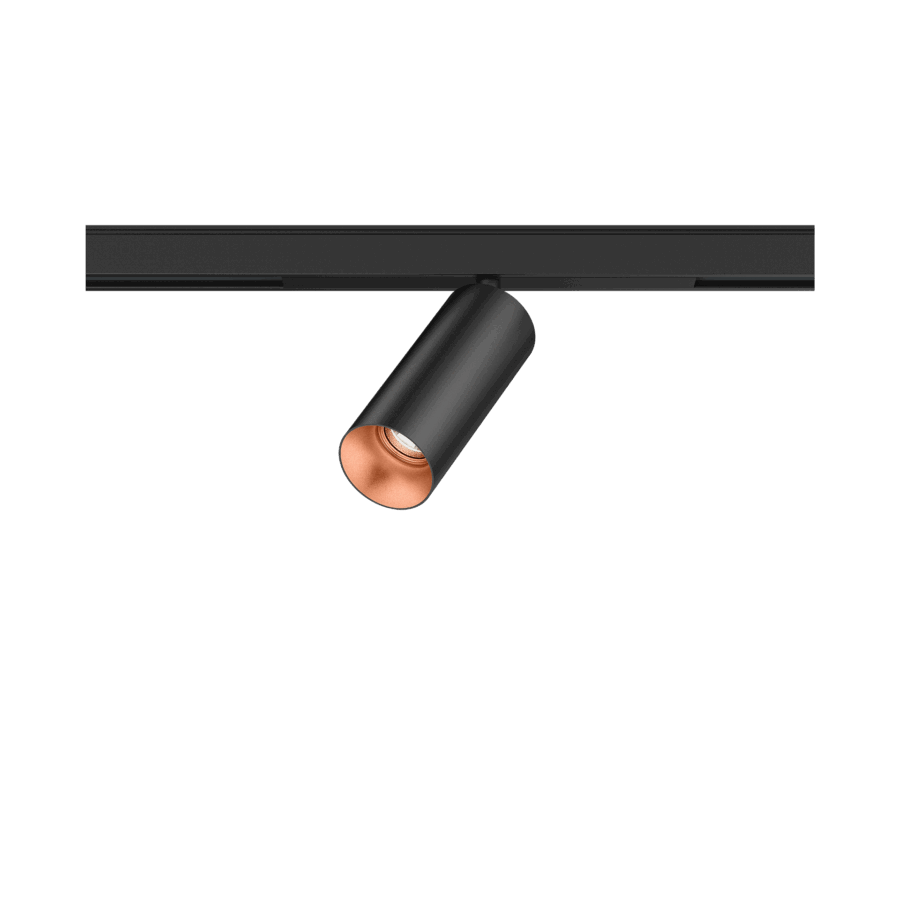

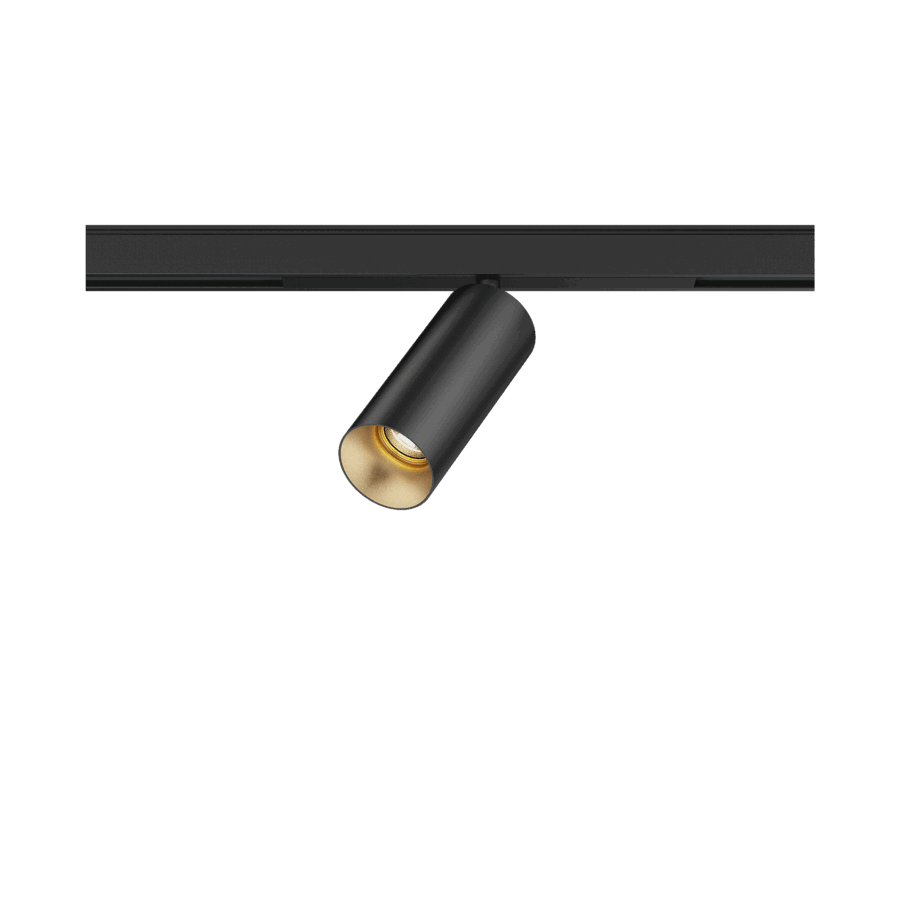

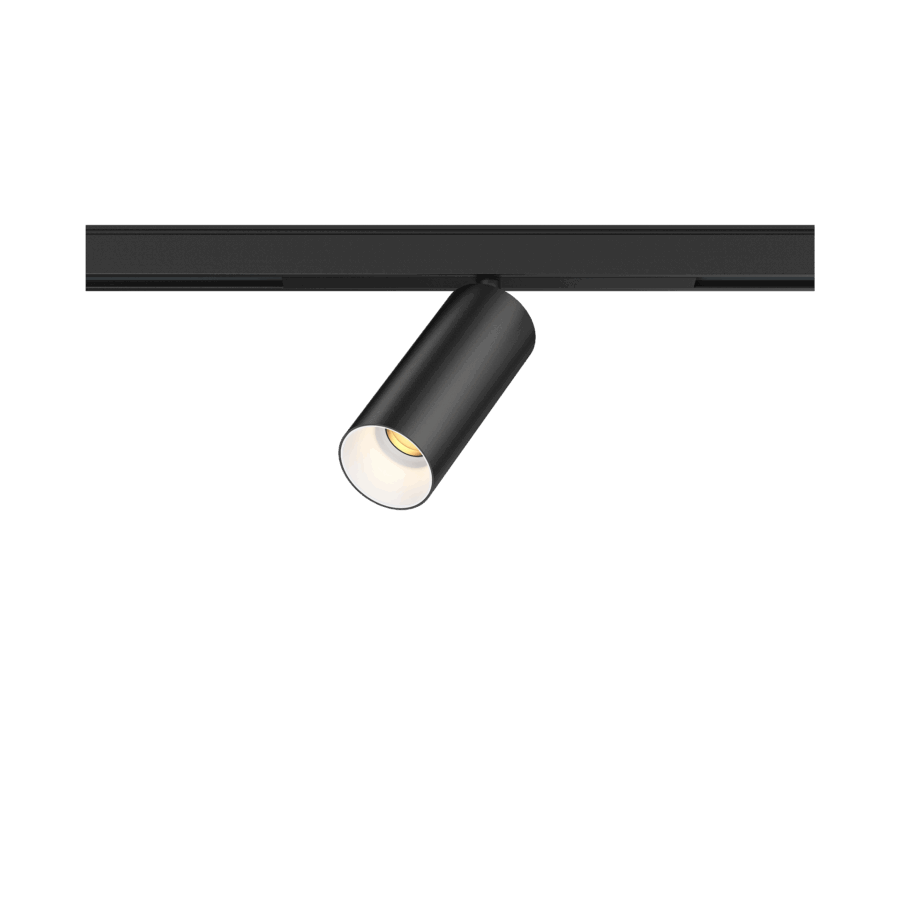

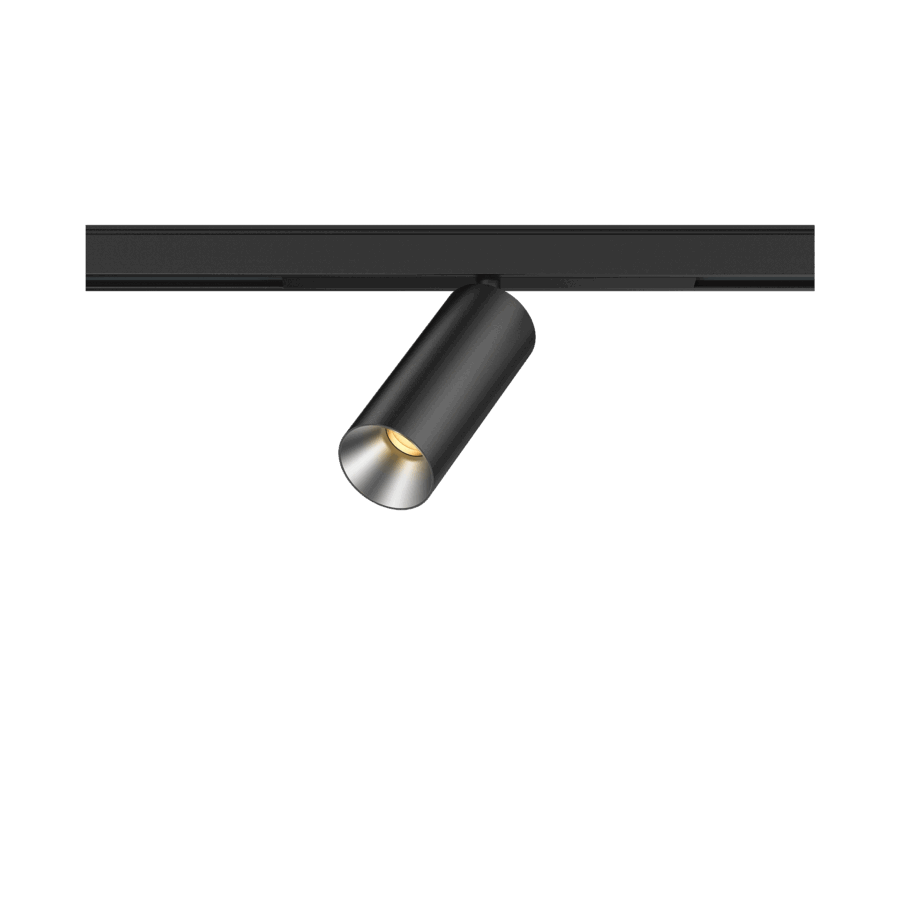

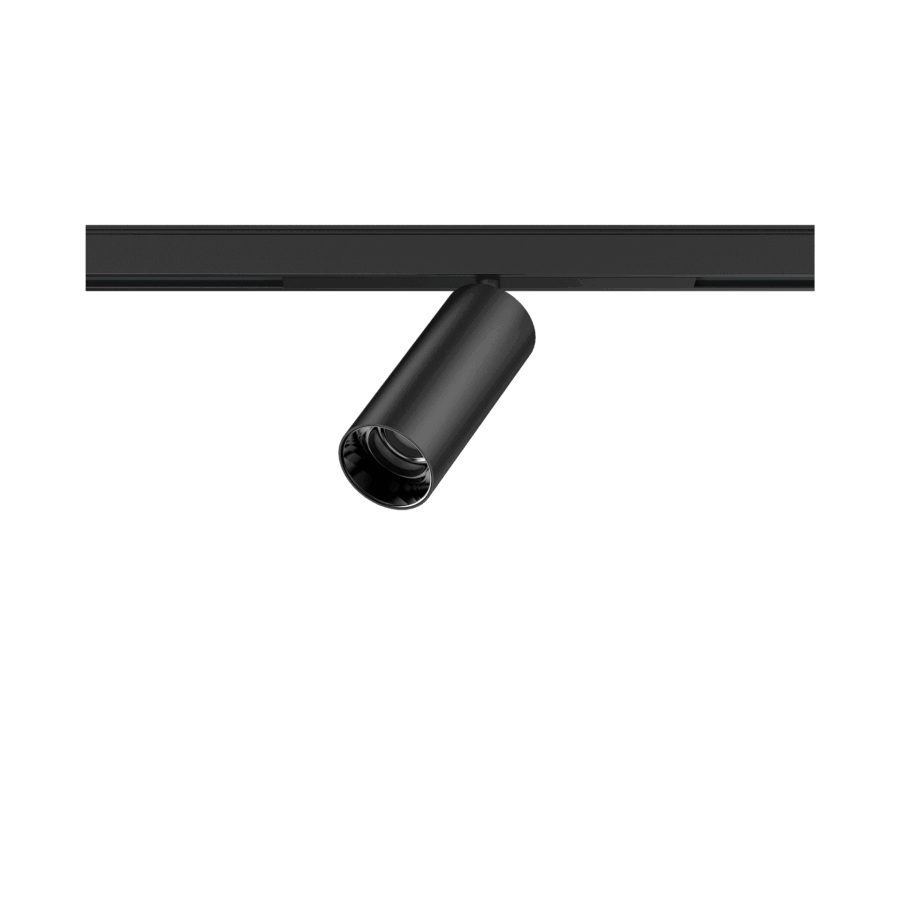

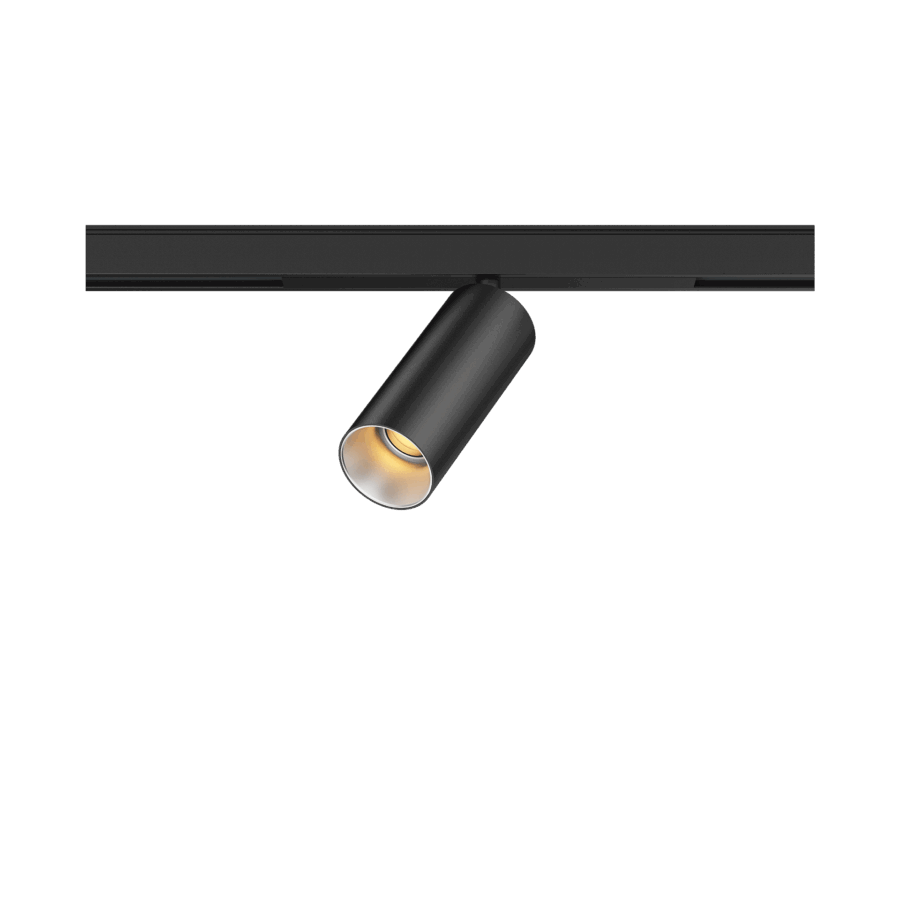

The Karizma Luce Dea Juno-Q1 XS is a extra small 48V track spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 490- 510 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 34°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
