Dea Ceres S duo

Dea Ceres S duo

Let’s double up!

Let’s double up! The same charming looks and double the possibilities. Just adjust your beam angle and flux according to your required illumination. Create exactly your atmosphere of choice thanks to the various colours and dim to warm option. The high CRI and 4000K possibilities enable the Dea Concordia to freshen up any office. Available in small and medium size. On request available in 24°

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
132DW92740SG00	2x900 lm	2700K	90	40°	White	Silver High Gloss	2x900-lm	2700k	90	40	white	silver-high-gloss
132DW93040SG00	2x950 lm	3000K	90	40°	White	Silver High Gloss	2x950-lm	3000k	90	40	white	silver-high-gloss
132DW94040SG00	2x960 lm	4000K	90	40°	White	Silver High Gloss	2x960-lm	4000k	90	40	white	silver-high-gloss
132DW92740BG00	2x830 lm	2700K	90	40°	White	Black High Gloss	2x830-lm	2700k	90	40	white	black-high-gloss
132DW93040BG00	2x860 lm	3000K	90	40°	White	Black High Gloss	2x860-lm	3000k	90	40	white	black-high-gloss
132DW94040BG00	2x870 lm	4000K	90	40°	White	Black High Gloss	2x870-lm	4000k	90	40	white	black-high-gloss
132DW92740WH00	2x840 lm	2700K	90	40°	White	White	2x840-lm	2700k	90	40	white	white
132DW93040WH00	2x880 lm	3000K	90	40°	White	White	2x880-lm	3000k	90	40	white	white
132DW94040WH00	2x890 lm	4000K	90	40°	White	White	2x890-lm	4000k	90	40	white	white
132DW92740CH00	2x890 lm	2700K	90	40°	White	Chrome	2x890-lm	2700k	90	40	white	chrome
132DW93040CH00	2x930 lm	3000K	90	40°	White	Chrome	2x930-lm	3000k	90	40	white	chrome
132DW94040CH00	2x940 lm	4000K	90	40°	White	Chrome	2x940-lm	4000k	90	40	white	chrome
132DW92740GO00	2x840 lm	2700K	90	40°	White	Gold	2x840-lm	2700k	90	40	white	gold
132DW93040GO00	2x880 lm	3000K	90	40°	White	Gold	2x880-lm	3000k	90	40	white	gold
132DW94040GO00	2x890 lm	4000K	90	40°	White	Gold	2x890-lm	4000k	90	40	white	gold
132DW92740CO00	2x840 lm	2700K	90	40°	White	Copper	2x840-lm	2700k	90	40	white	copper
132DW93040CO00	2x880 lm	3000K	90	40°	White	Copper	2x880-lm	3000k	90	40	white	copper
132DW94040CO00	2x890 lm	4000K	90	40°	White	Copper	2x890-lm	4000k	90	40	white	copper
132DW92740BM00	2x760 lm	2700K	90	40°	White	Black Matt	2x760-lm	2700k	90	40	white	black-matt
132DW93040BM00	2x800 lm	3000K	90	40°	White	Black Matt	2x800-lm	3000k	90	40	white	black-matt
132DW94040BM00	2x810 lm	4000K	90	40°	White	Black Matt	2x810-lm	4000k	90	40	white	black-matt
132DB92740SG00	2x900 lm	2700K	90	40°	Black	Silver High Gloss	2x900-lm	2700k	90	40	black	silver-high-gloss
132DB93040SG00	2x950 lm	3000K	90	40°	Black	Silver High Gloss	2x950-lm	3000k	90	40	black	silver-high-gloss
132DB94040SG00	2x960 lm	4000K	90	40°	Black	Silver High Gloss	2x960-lm	4000k	90	40	black	silver-high-gloss
132DB92740BG00	2x830 lm	2700K	90	40°	Black	Black High Gloss	2x830-lm	2700k	90	40	black	black-high-gloss
132DB93040BG00	2x860 lm	3000K	90	40°	Black	Black High Gloss	2x860-lm	3000k	90	40	black	black-high-gloss
132DB94040BG00	2x870 lm	4000K	90	40°	Black	Black High Gloss	2x870-lm	4000k	90	40	black	black-high-gloss
132DB92740WH00	2x840 lm	2700K	90	40°	Black	White	2x840-lm	2700k	90	40	black	white
132DB93040WH00	2x880 lm	3000K	90	40°	Black	White	2x880-lm	3000k	90	40	black	white
132DB94040WH00	2x890 lm	4000K	90	40°	Black	White	2x890-lm	4000k	90	40	black	white
132DB92740CH00	2x890 lm	2700K	90	40°	Black	Chrome	2x890-lm	2700k	90	40	black	chrome
132DB93040CH00	2x930 lm	3000K	90	40°	Black	Chrome	2x930-lm	3000k	90	40	black	chrome
132DB94040CH00	2x940 lm	4000K	90	40°	Black	Chrome	2x940-lm	4000k	90	40	black	chrome
132DB92740GO00	2x840 lm	2700K	90	40°	Black	Gold	2x840-lm	2700k	90	40	black	gold
132DB93040GO00	2x880 lm	3000K	90	40°	Black	Gold	2x880-lm	3000k	90	40	black	gold
132DB94040GO00	2x890 lm	4000K	90	40°	Black	Gold	2x890-lm	4000k	90	40	black	gold
132DB92740CO00	2x840 lm	2700K	90	40°	Black	Copper	2x840-lm	2700k	90	40	black	copper
132DB93040CO00	2x880 lm	3000K	90	40°	Black	Copper	2x880-lm	3000k	90	40	black	copper
132DB94040CO00	2x890 lm	4000K	90	40°	Black	Copper	2x890-lm	4000k	90	40	black	copper
132DB92740BM00	2x760 lm	2700K	90	40°	Black	Black Matt	2x760-lm	2700k	90	40	black	black-matt
132DB93040BM00	2x800 lm	3000K	90	40°	Black	Black Matt	2x800-lm	3000k	90	40	black	black-matt
132DB94040BM00	2x810 lm	4000K	90	40°	Black	Black Matt	2x810-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux2×760 lm, 2×800 lm, 2×810 lm, 2×830 lm, 2×840 lm, 2×860 lm, 2×870 lm, 2×880 lm, 2×890 lm, 2×900 lm, 2×930 lm, 2×940 lm, 2×950 lm, 2×960 lm

CRI90

CCT2700K, 3000K, 4000K

LED power2×8.5W

System power2×10.5W

System efficiency72lm/W, 76lm/W, 77lm/W, 79lm/W, 80lm/W, 82lm/W, 83lm/W, 84lm/W, 85lm/W, 86lm/W, 89lm/W, 90lm/W, 91lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

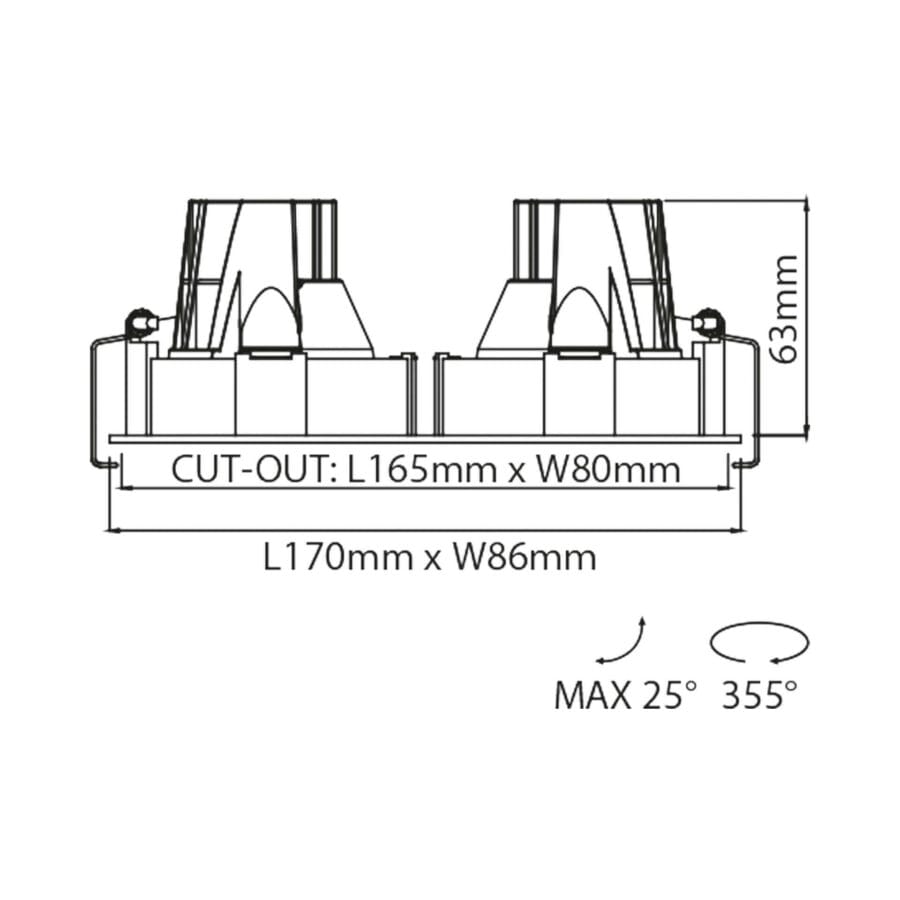

Cut out dimension165x80mm

Luminaire dimension170x86x63mm

Nominal fA [mA]250mA

Nominal fV [V]33.2V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height100mm

ControlDALI, Phase Cut

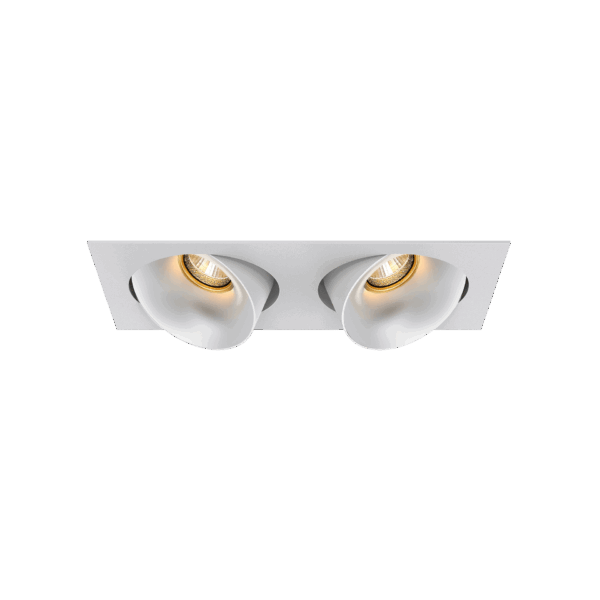

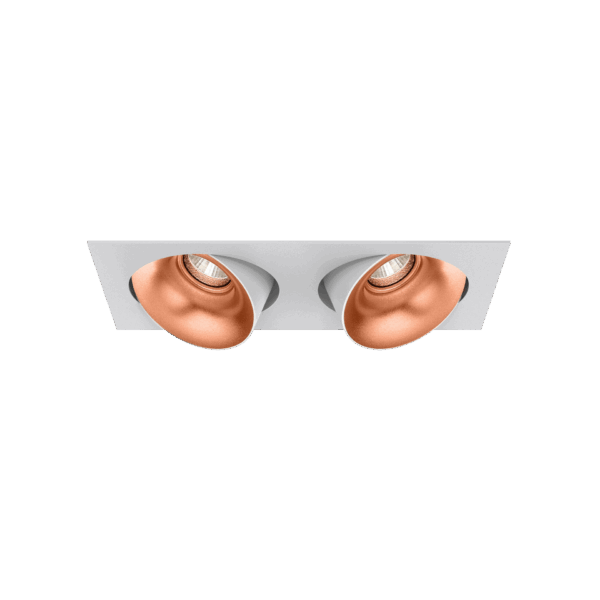

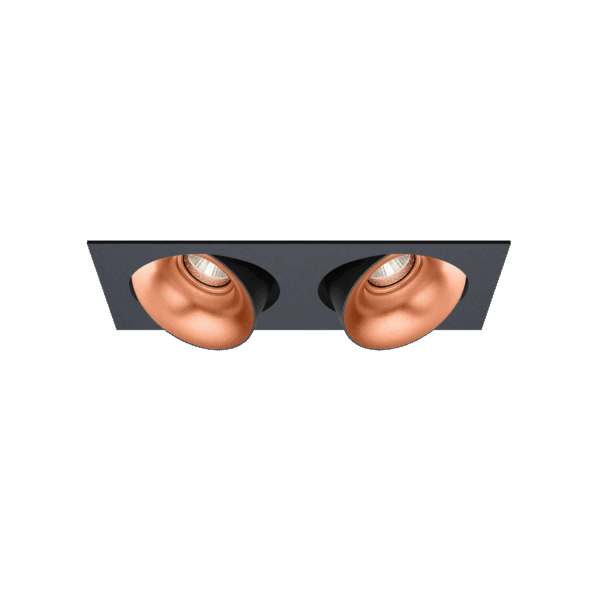

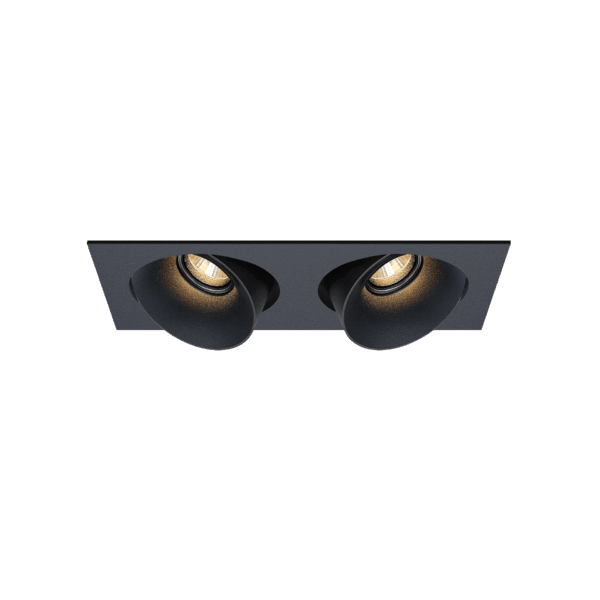

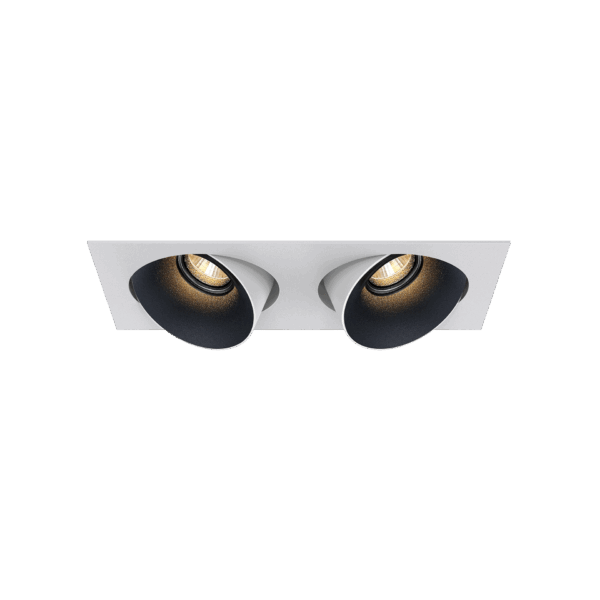

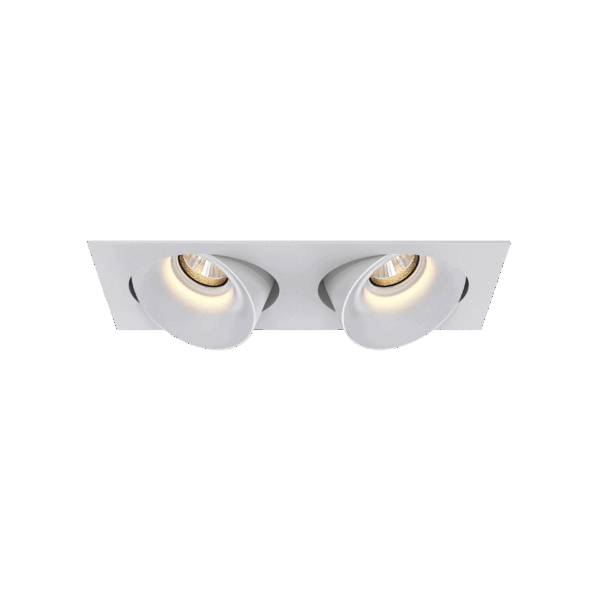

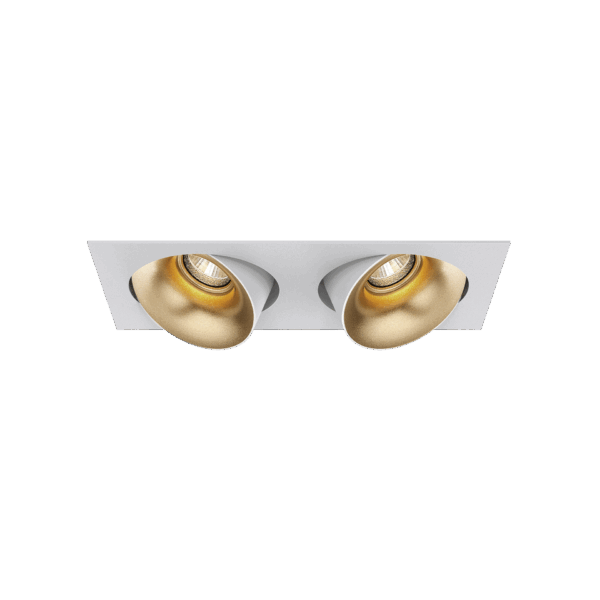

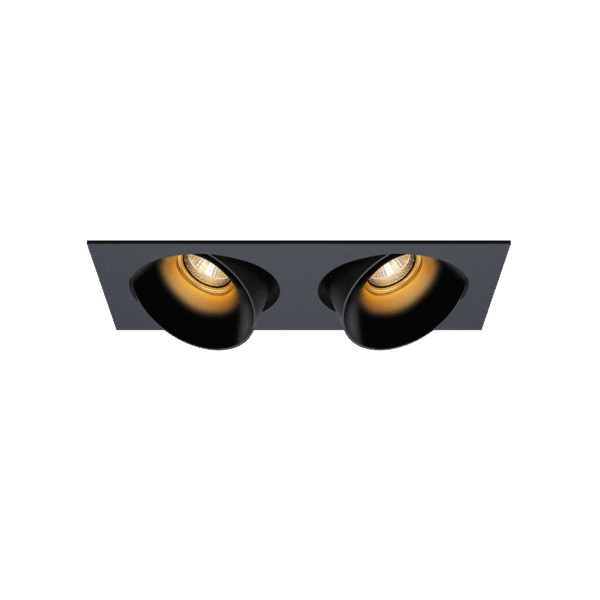

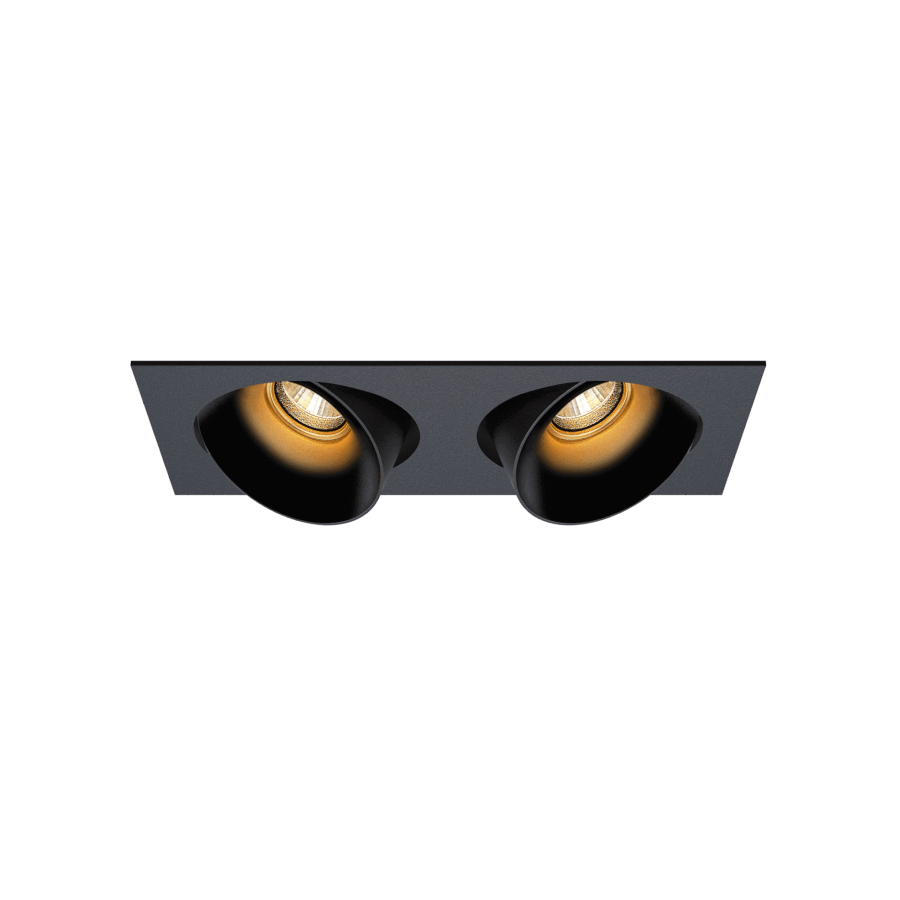

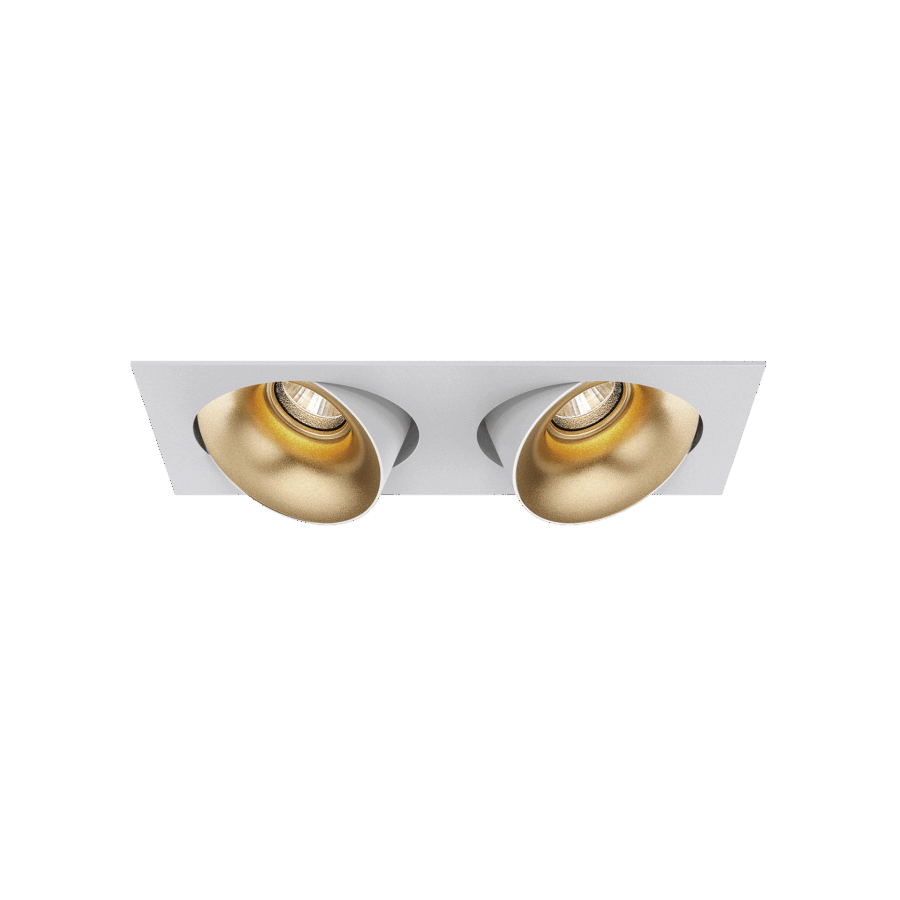

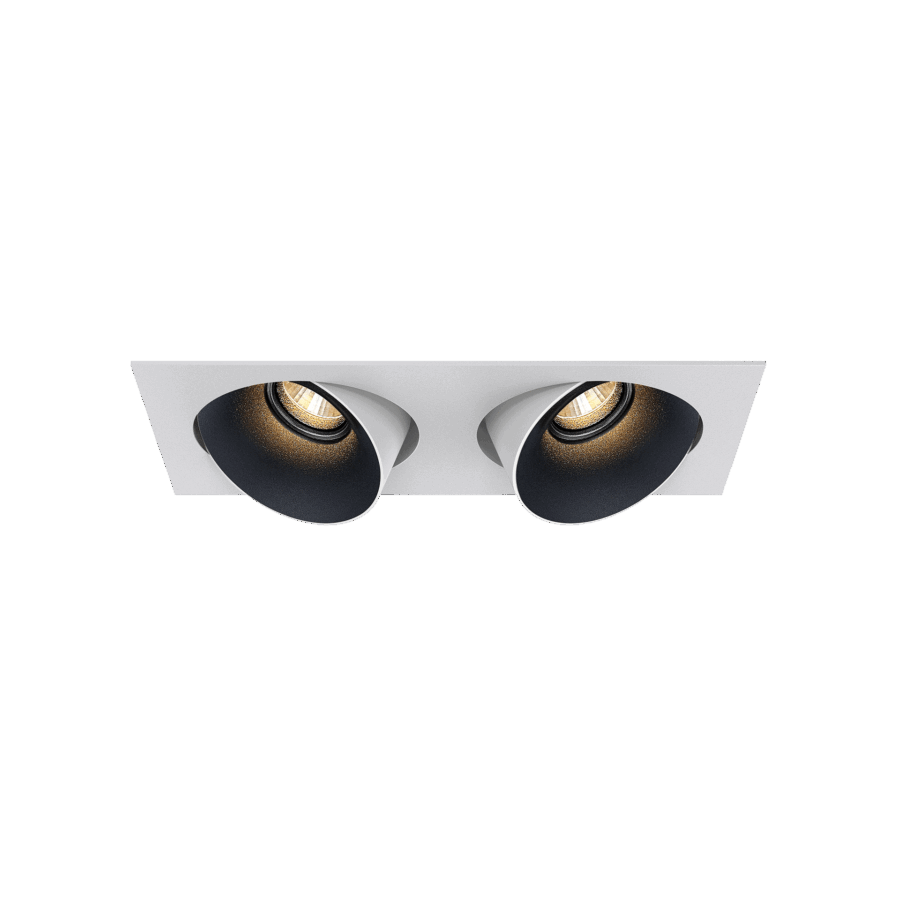

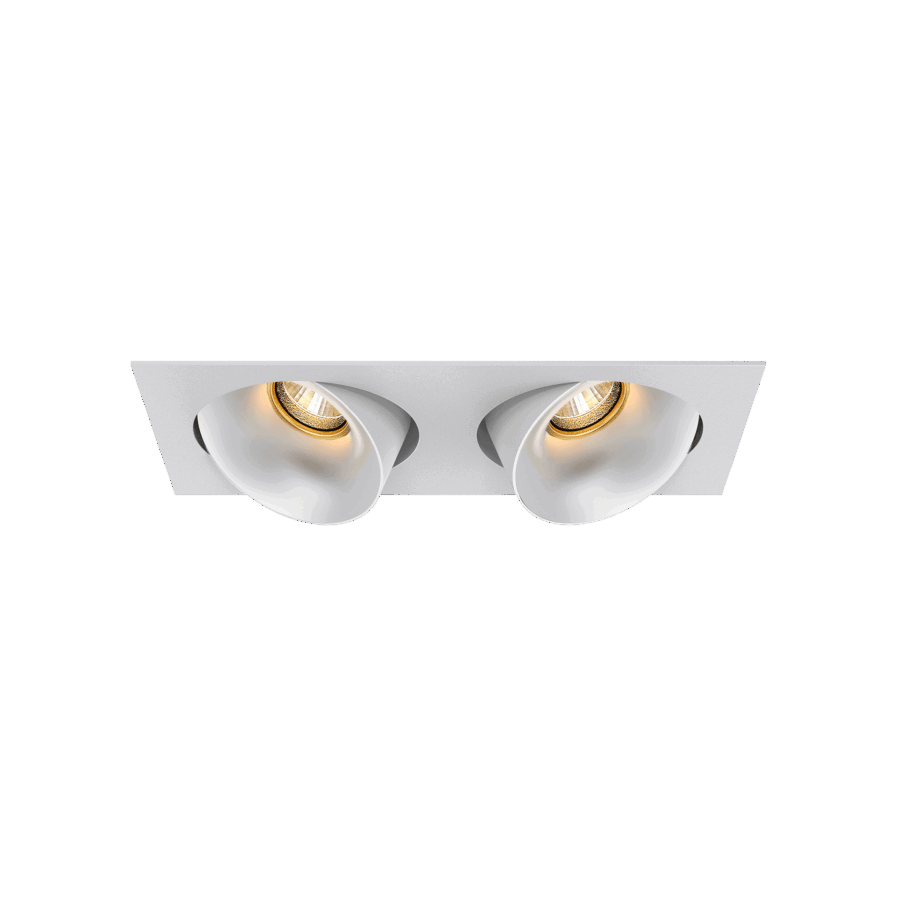

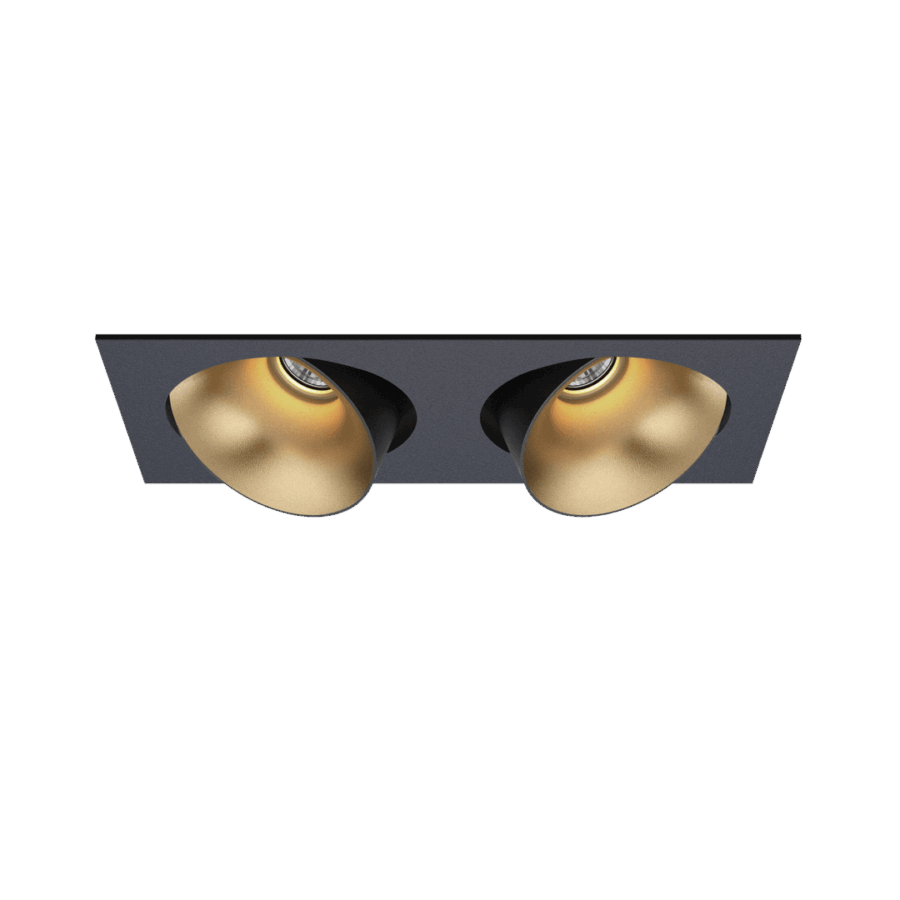

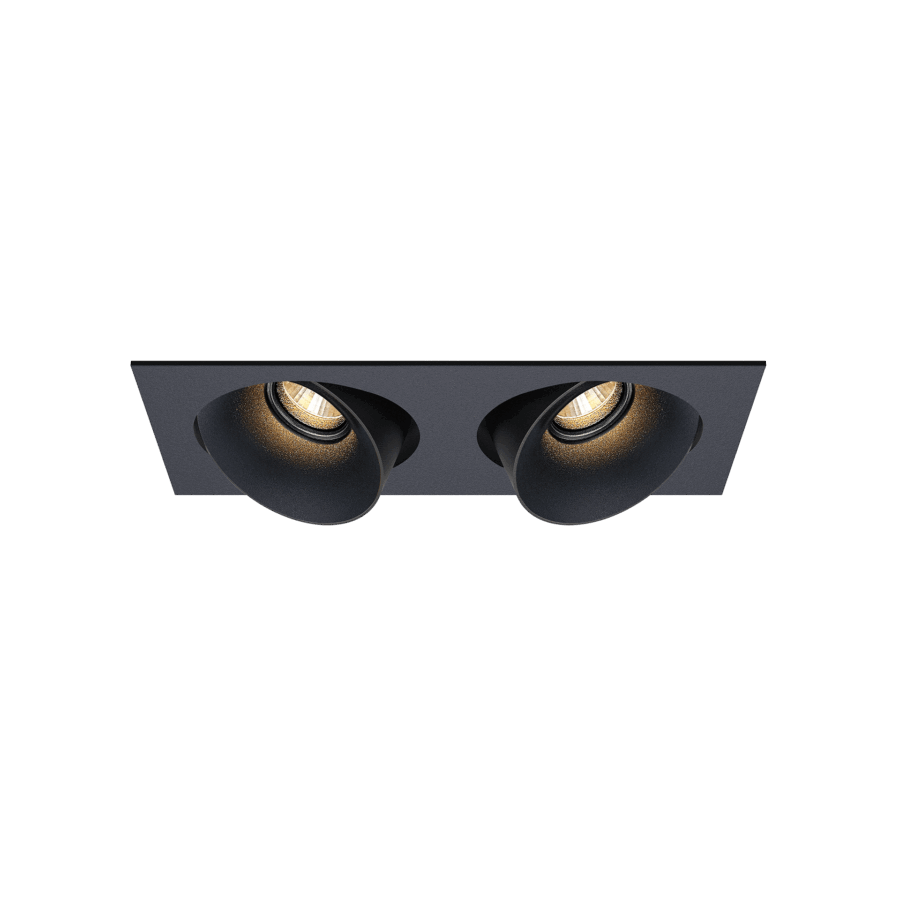

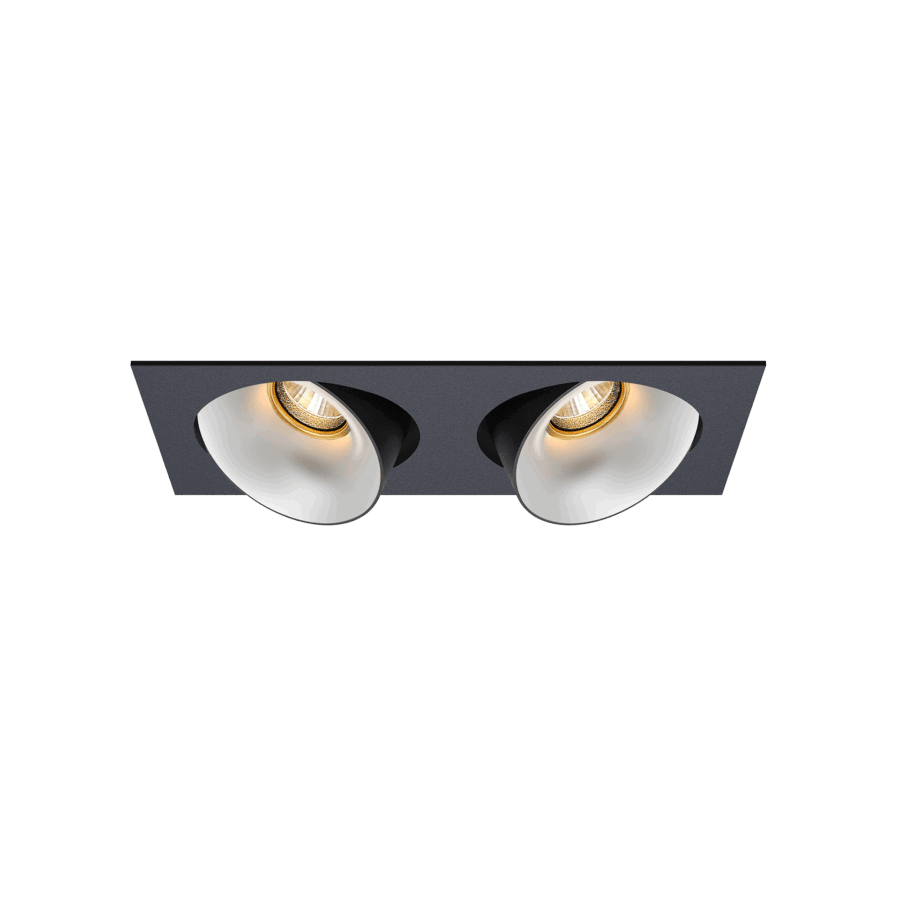

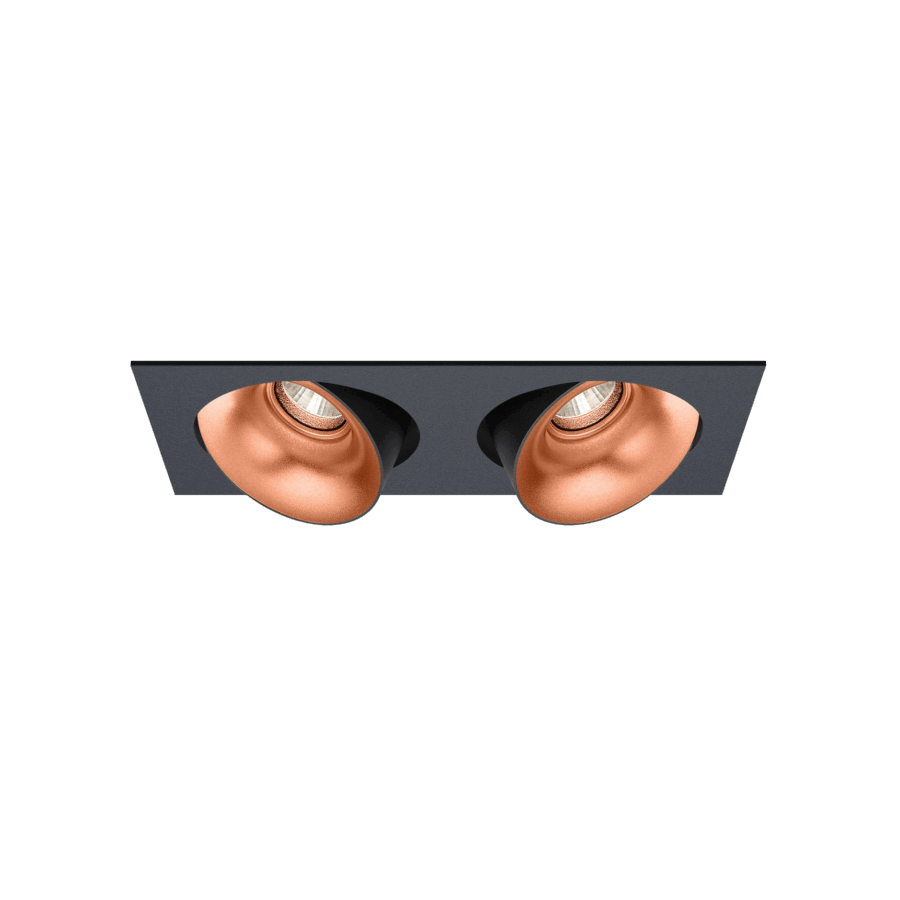

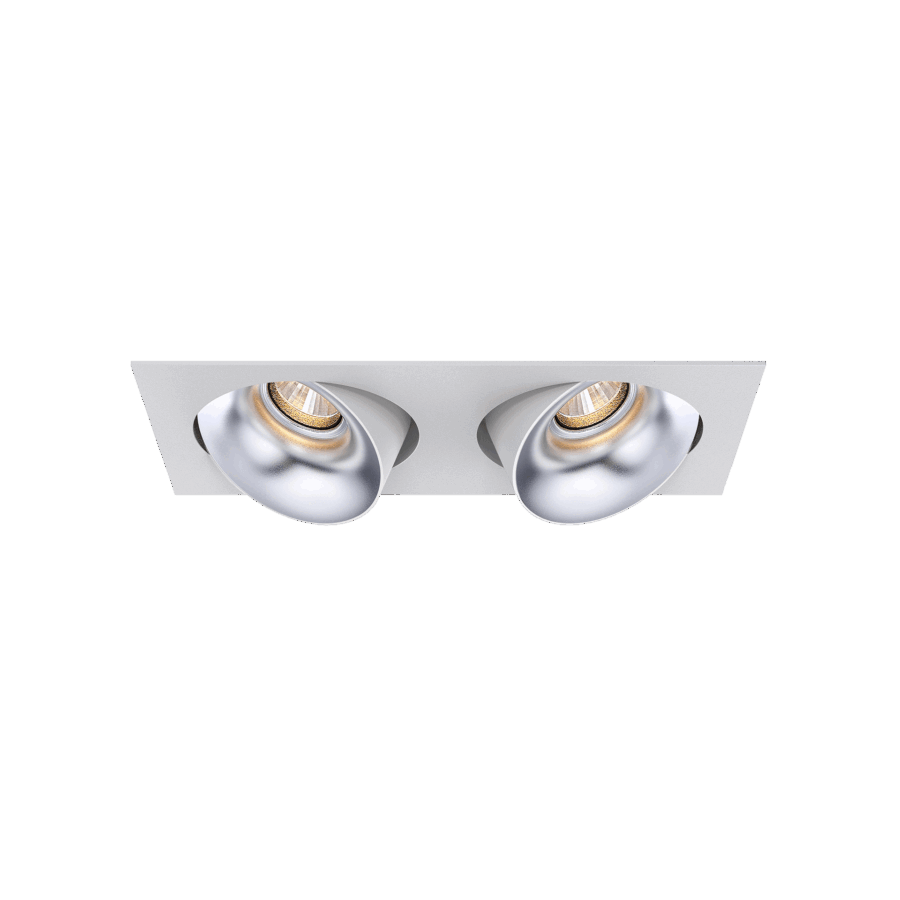

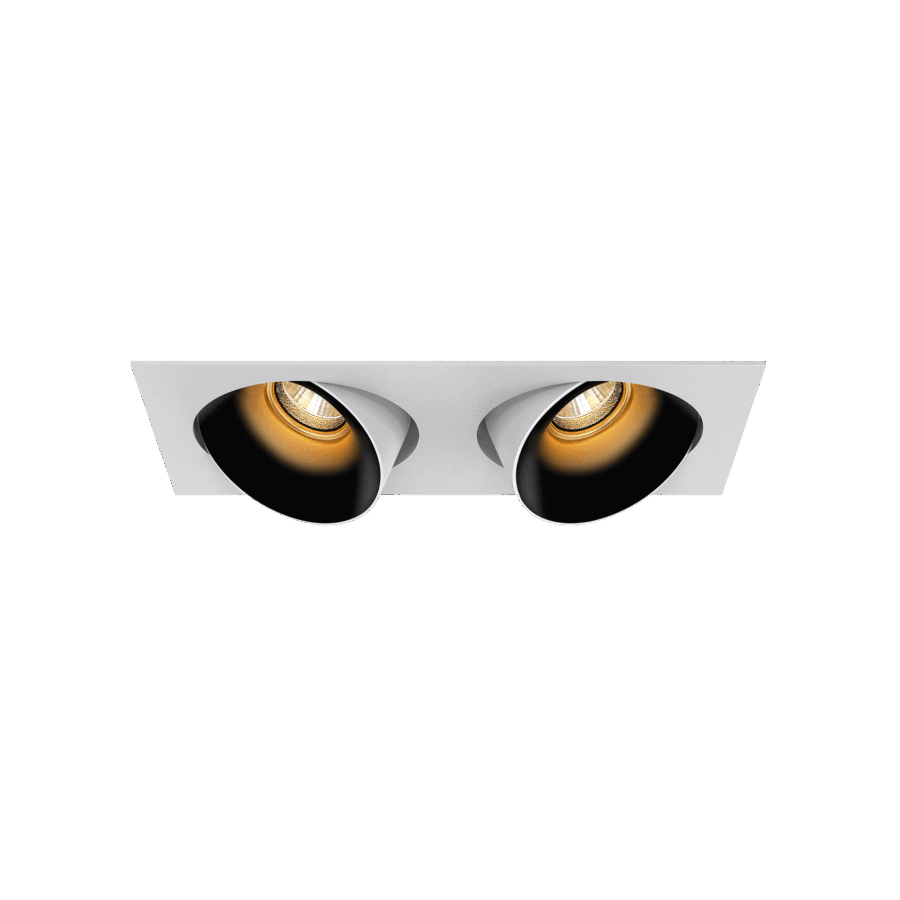

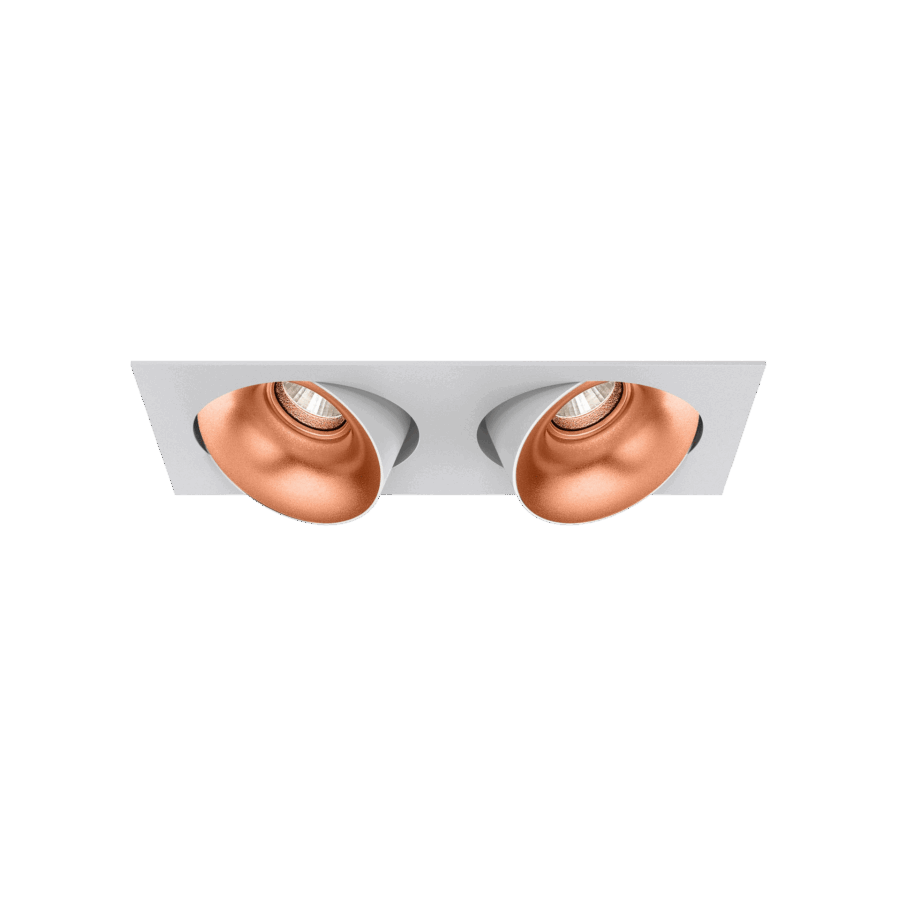

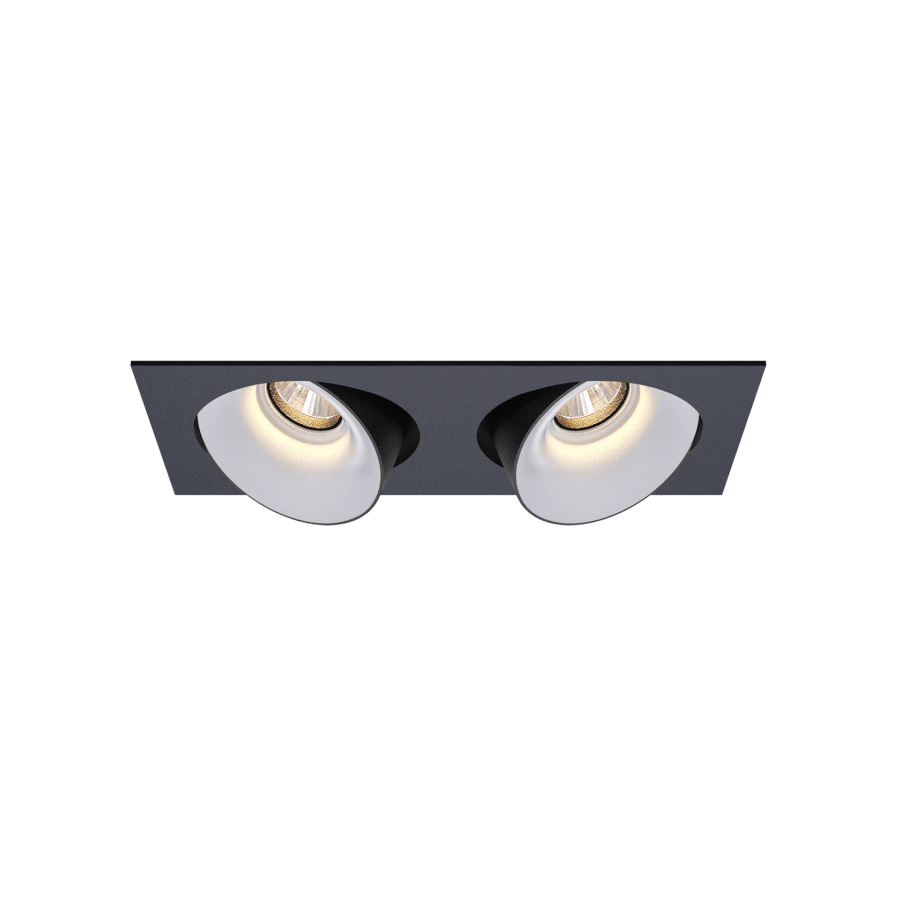

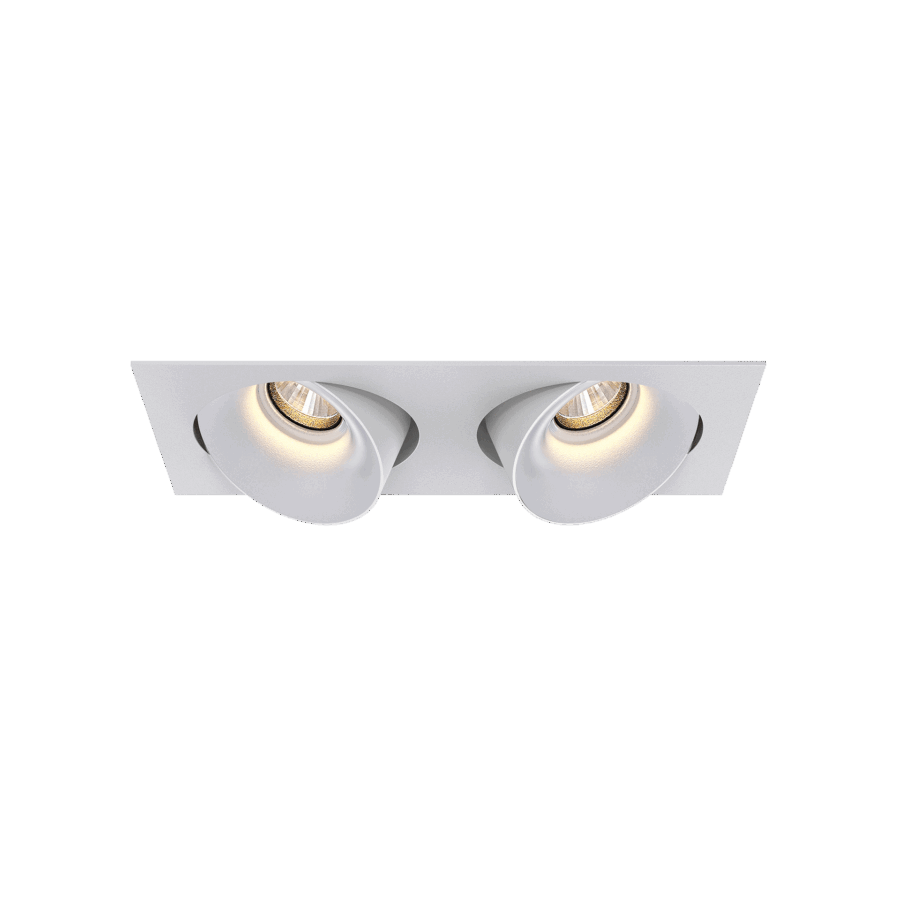

The Karizma Luce Dea Ceres S duo (formerly known as Dea Concordia S) is a recessed adjustable downlight from the Dea Della Luce series. Made from aluminium. Available in small and medium size. Available luminaire flux: in range 2×840- 2×960 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
