Dea Carmenta S

Dea Carmenta S

Creating perfect ambiance.

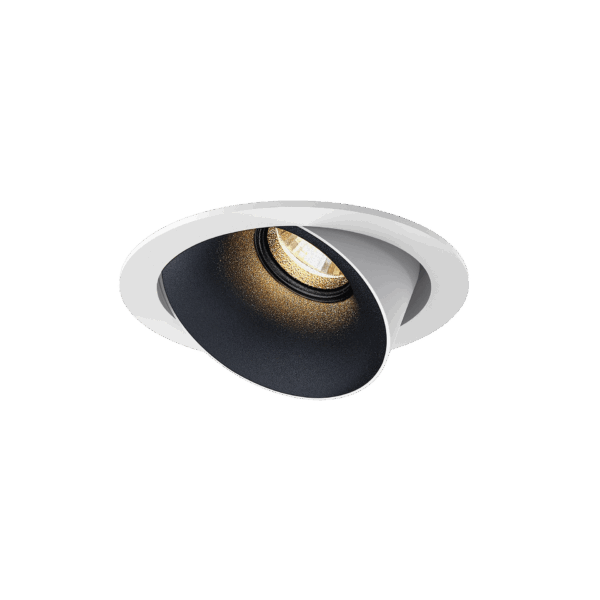

A true piece of art, just by the design itself. This beautiful adjustable luminaire offers a wide selection of different colours in reflectors. Thanks to its low glare, the Dea Carmenta gracefully enriches workspaces and offices, especially when you choose the White or Silver reflector. Go Black or Gold if you want to put an extra dimension to hotel or restaurant atmospheres. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
128DW92740SG00	900 lm	2700K	90	40°	White	Silver High Gloss	900-lm	2700k	90	40	white	silver-high-gloss
128DW93040SG00	950 lm	3000K	90	40°	White	Silver High Gloss	950-lm	3000k	90	40	white	silver-high-gloss
128DW94040SG00	960 lm	4000K	90	40°	White	Silver High Gloss	960-lm	4000k	90	40	white	silver-high-gloss
128DW92740BG00	830 lm	2700K	90	40°	White	Black High Gloss	830-lm	2700k	90	40	white	black-high-gloss
128DW93040BG00	860 lm	3000K	90	40°	White	Black High Gloss	860-lm	3000k	90	40	white	black-high-gloss
128DW94040BG00	870 lm	4000K	90	40°	White	Black High Gloss	870-lm	4000k	90	40	white	black-high-gloss
128DW92740WH00	840 lm	2700K	90	40°	White	White	840-lm	2700k	90	40	white	white
128DW93040WH00	880 lm	3000K	90	40°	White	White	880-lm	3000k	90	40	white	white
128DW94040WH00	890 lm	4000K	90	40°	White	White	890-lm	4000k	90	40	white	white
128DW92740CH00	890 lm	2700K	90	40°	White	Chrome	890-lm	2700k	90	40	white	chrome
128DW93040CH00	930 lm	3000K	90	40°	White	Chrome	930-lm	3000k	90	40	white	chrome
128DW94040CH00	940 lm	4000K	90	40°	White	Chrome	940-lm	4000k	90	40	white	chrome
128DW92740GO00	840 lm	2700K	90	40°	White	Gold	840-lm	2700k	90	40	white	gold
128DW93040GO00	880 lm	3000K	90	40°	White	Gold	880-lm	3000k	90	40	white	gold
128DW94040GO00	890 lm	4000K	90	40°	White	Gold	890-lm	4000k	90	40	white	gold
128DW92740CO00	840 lm	2700K	90	40°	White	Copper	840-lm	2700k	90	40	white	copper
128DW93040CO00	880 lm	3000K	90	40°	White	Copper	880-lm	3000k	90	40	white	copper
128DW94040CO00	890 lm	4000K	90	40°	White	Copper	890-lm	4000k	90	40	white	copper
128DW92740BM00	760 lm	2700K	90	40°	White	Black Matt	760-lm	2700k	90	40	white	black-matt
128DW93040BM00	800 lm	3000K	90	40°	White	Black Matt	800-lm	3000k	90	40	white	black-matt
128DW94040BM00	810 lm	4000K	90	40°	White	Black Matt	810-lm	4000k	90	40	white	black-matt
128DB92740SG00	900 lm	2700K	90	40°	Black	Silver High Gloss	900-lm	2700k	90	40	black	silver-high-gloss
128DB93040SG00	950 lm	3000K	90	40°	Black	Silver High Gloss	950-lm	3000k	90	40	black	silver-high-gloss
128DB94040SG00	960 lm	4000K	90	40°	Black	Silver High Gloss	960-lm	4000k	90	40	black	silver-high-gloss
128DB92740BG00	830 lm	2700K	90	40°	Black	Black High Gloss	830-lm	2700k	90	40	black	black-high-gloss
128DB93040BG00	860 lm	3000K	90	40°	Black	Black High Gloss	860-lm	3000k	90	40	black	black-high-gloss
128DB94040BG00	870 lm	4000K	90	40°	Black	Black High Gloss	870-lm	4000k	90	40	black	black-high-gloss
128DB92740WH00	840 lm	2700K	90	40°	Black	White	840-lm	2700k	90	40	black	white
128DB93040WH00	880 lm	3000K	90	40°	Black	White	880-lm	3000k	90	40	black	white
128DB94040WH00	890 lm	4000K	90	40°	Black	White	890-lm	4000k	90	40	black	white
128DB92740CH00	890 lm	2700K	90	40°	Black	Chrome	890-lm	2700k	90	40	black	chrome
128DB93040CH00	930 lm	3000K	90	40°	Black	Chrome	930-lm	3000k	90	40	black	chrome
128DB94040CH00	940 lm	4000K	90	40°	Black	Chrome	940-lm	4000k	90	40	black	chrome
128DB92740GO00	840 lm	2700K	90	40°	Black	Gold	840-lm	2700k	90	40	black	gold
128DB93040GO00	880 lm	3000K	90	40°	Black	Gold	880-lm	3000k	90	40	black	gold
128DB94040GO00	890 lm	4000K	90	40°	Black	Gold	890-lm	4000k	90	40	black	gold
128DB92740CO00	840 lm	2700K	90	40°	Black	Copper	840-lm	2700k	90	40	black	copper
128DB93040CO00	880 lm	3000K	90	40°	Black	Copper	880-lm	3000k	90	40	black	copper
128DB94040CO00	890 lm	4000K	90	40°	Black	Copper	890-lm	4000k	90	40	black	copper
128DB92740BM00	760 lm	2700K	90	40°	Black	Black Matt	760-lm	2700k	90	40	black	black-matt
128DB93040BM00	800 lm	3000K	90	40°	Black	Black Matt	800-lm	3000k	90	40	black	black-matt
128DB94040BM00	810 lm	4000K	90	40°	Black	Black Matt	810-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux760 lm, 800 lm, 810 lm, 830 lm, 840 lm, 860 lm, 870 lm, 880 lm, 890 lm, 900 lm, 930 lm, 940 lm, 950 lm, 960 lm

CRI90

CCT2700K, 3000K, 4000K

LED power8.5W

System power10.5W

System efficiency72lm/W, 76lm/W, 77lm/W, 79lm/W, 80lm/W, 82lm/W, 83lm/W, 84lm/W, 85lm/W, 86lm/W, 89lm/W, 90lm/W, 91lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

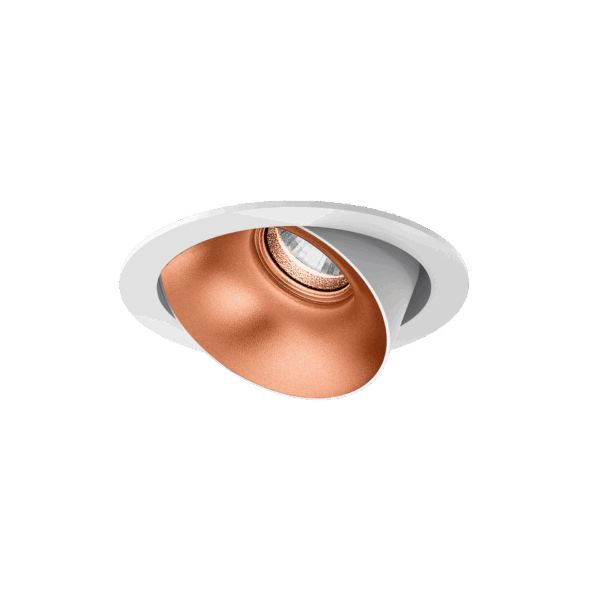

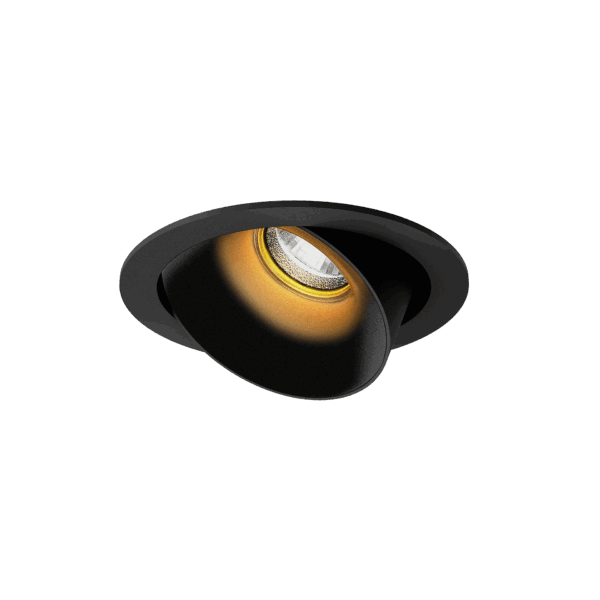

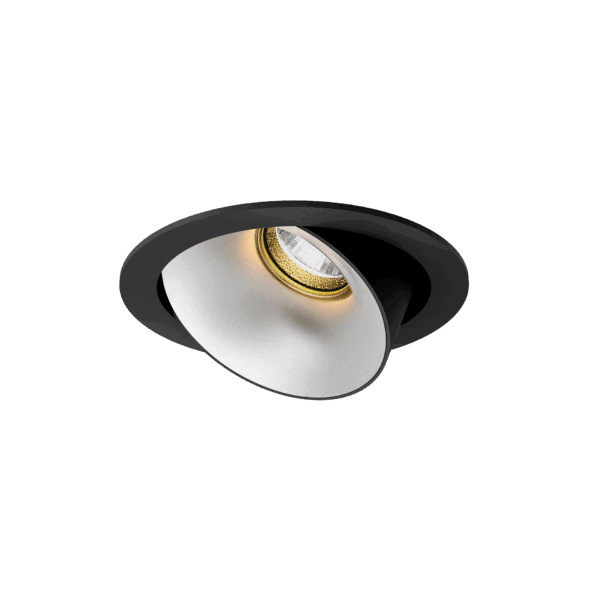

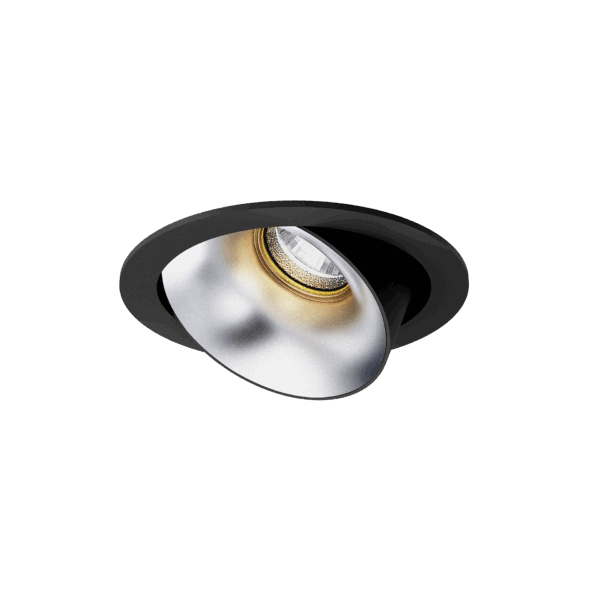

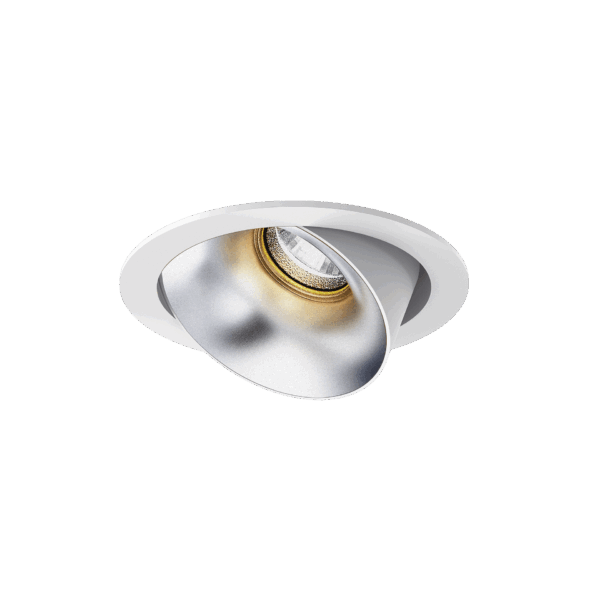

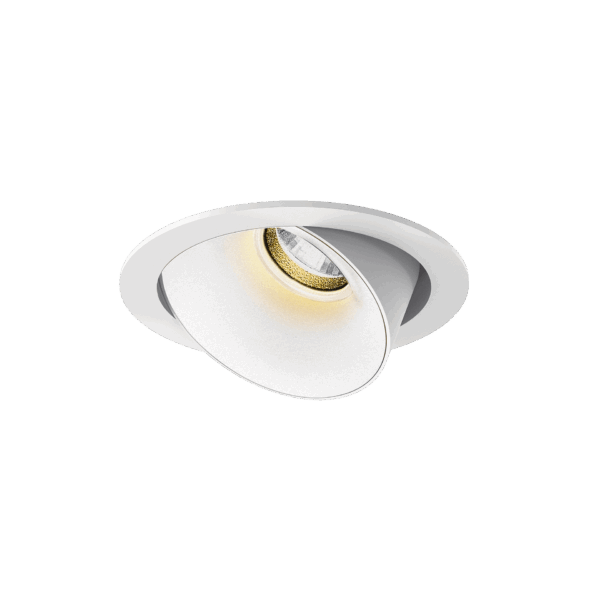

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.24Kg

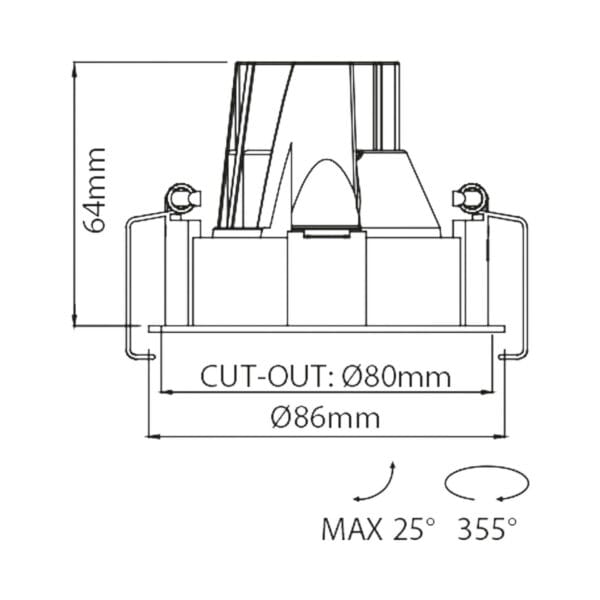

Cut out dimensionØ80mm

Luminaire dimensionØ86x64mm

Nominal fA [mA]250mA

Nominal fV [V]33.2V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height80mm

ControlDALI, Phase Cut

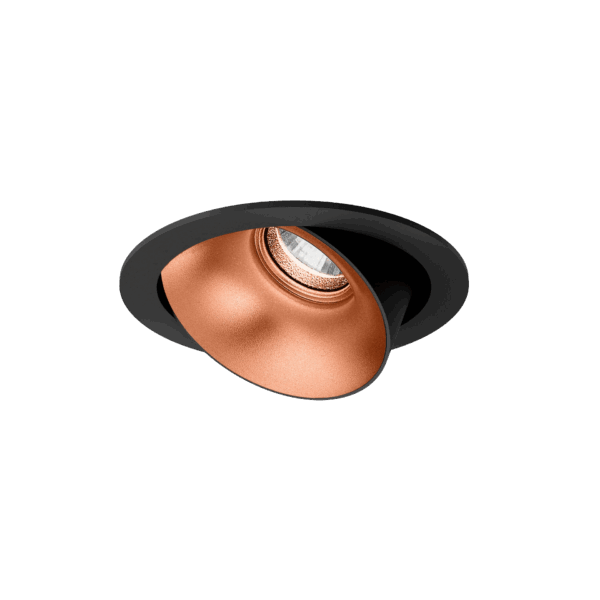

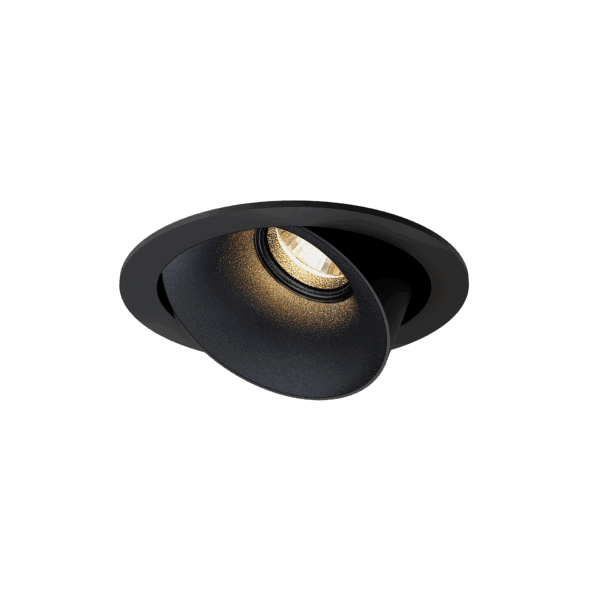

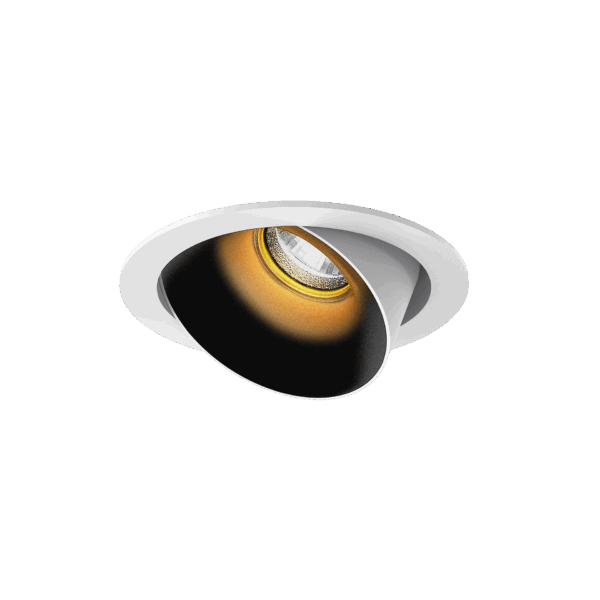

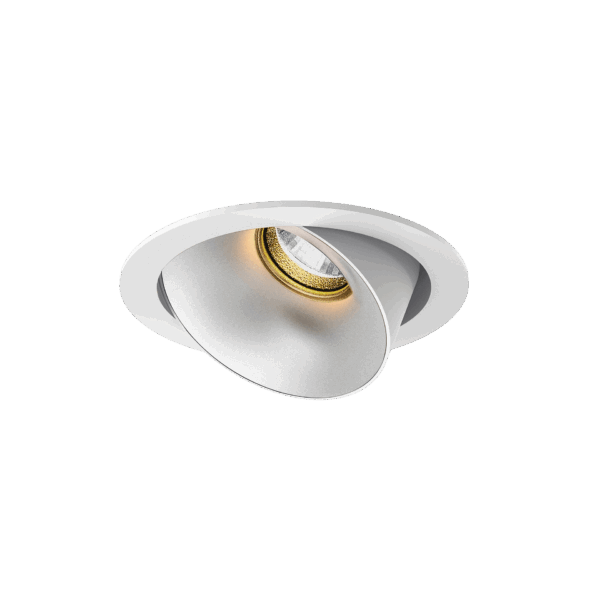

The Karizma Luce Dea Carmenta S is a recessed adjustable downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 760-940 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
