Dea Carmenta M

Dea Carmenta M

Creating perfect ambiance.

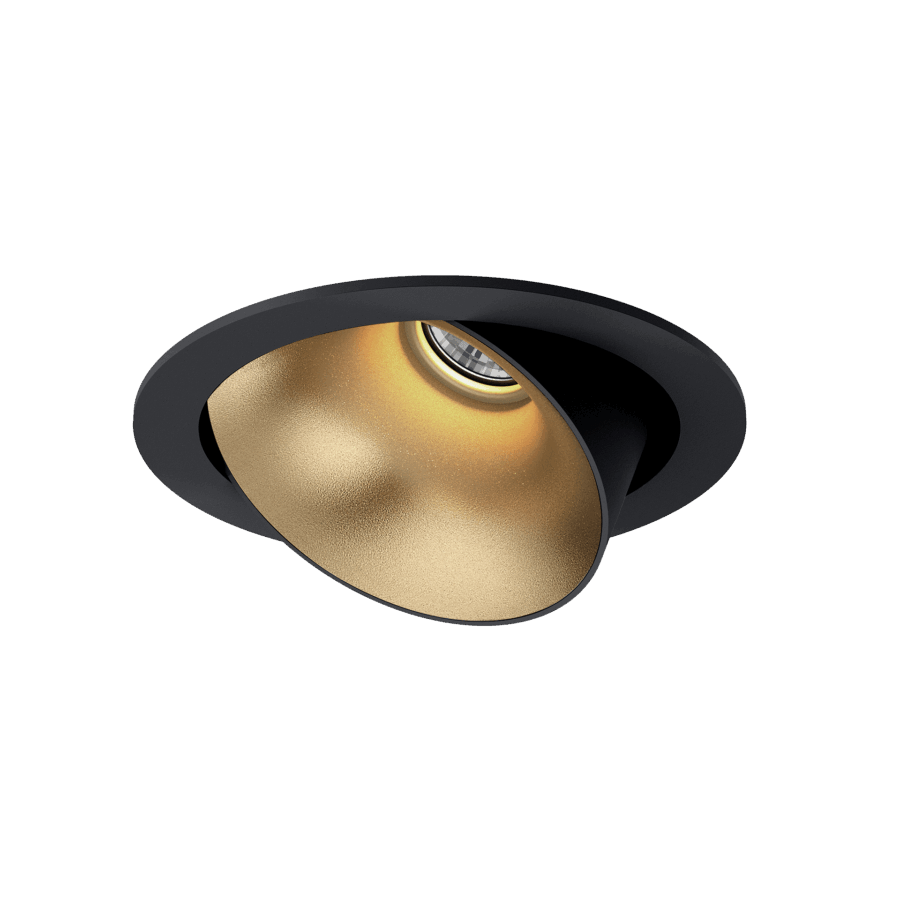

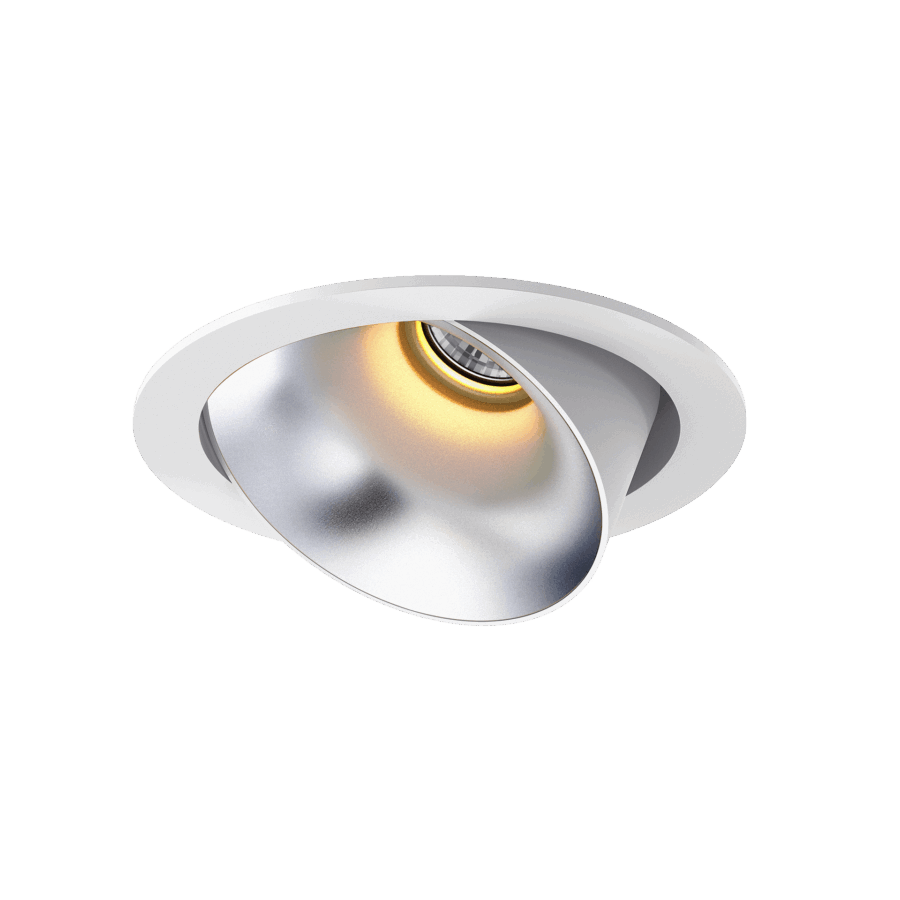

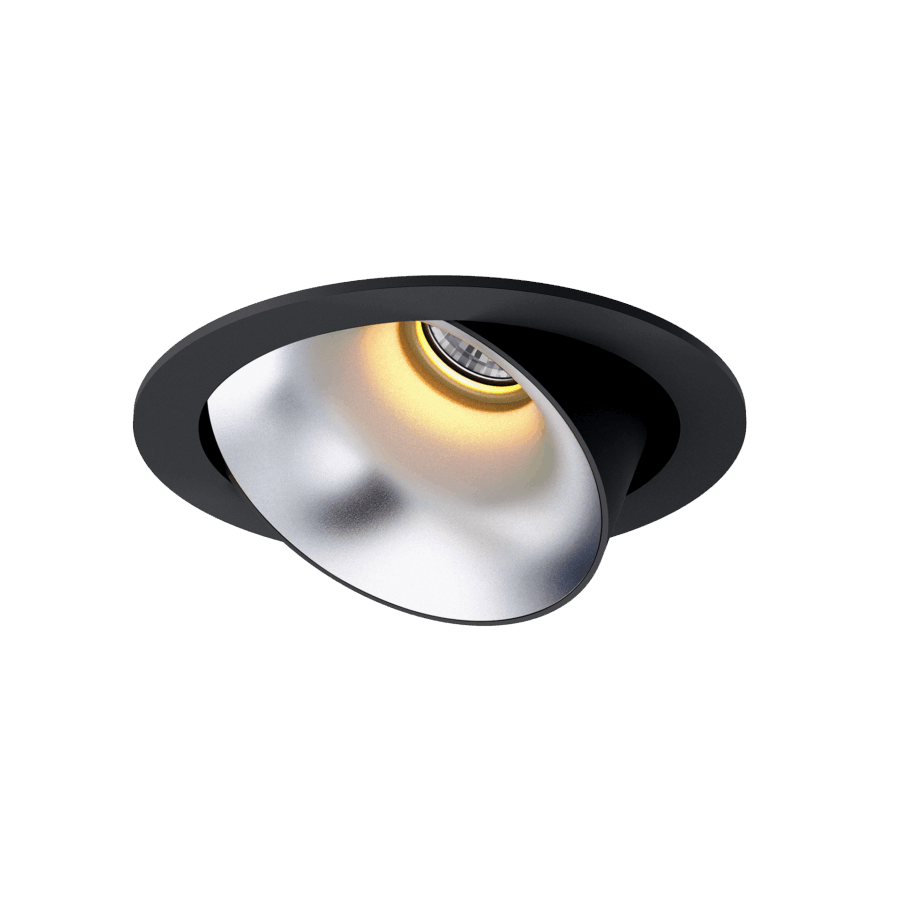

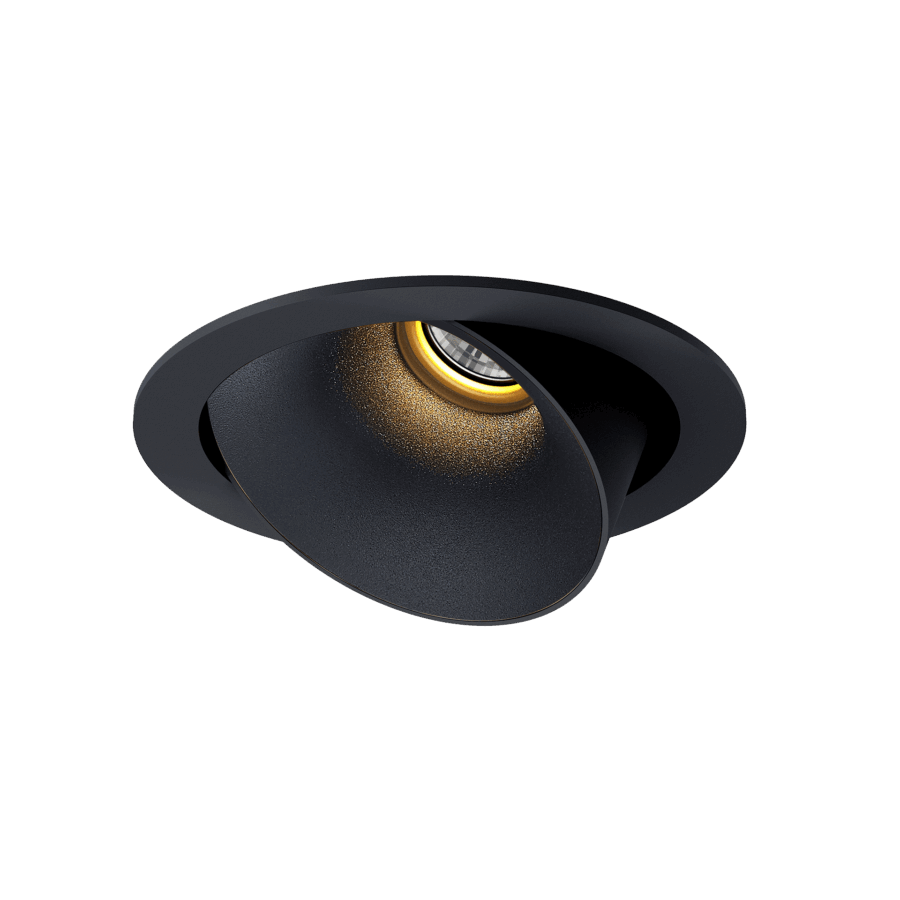

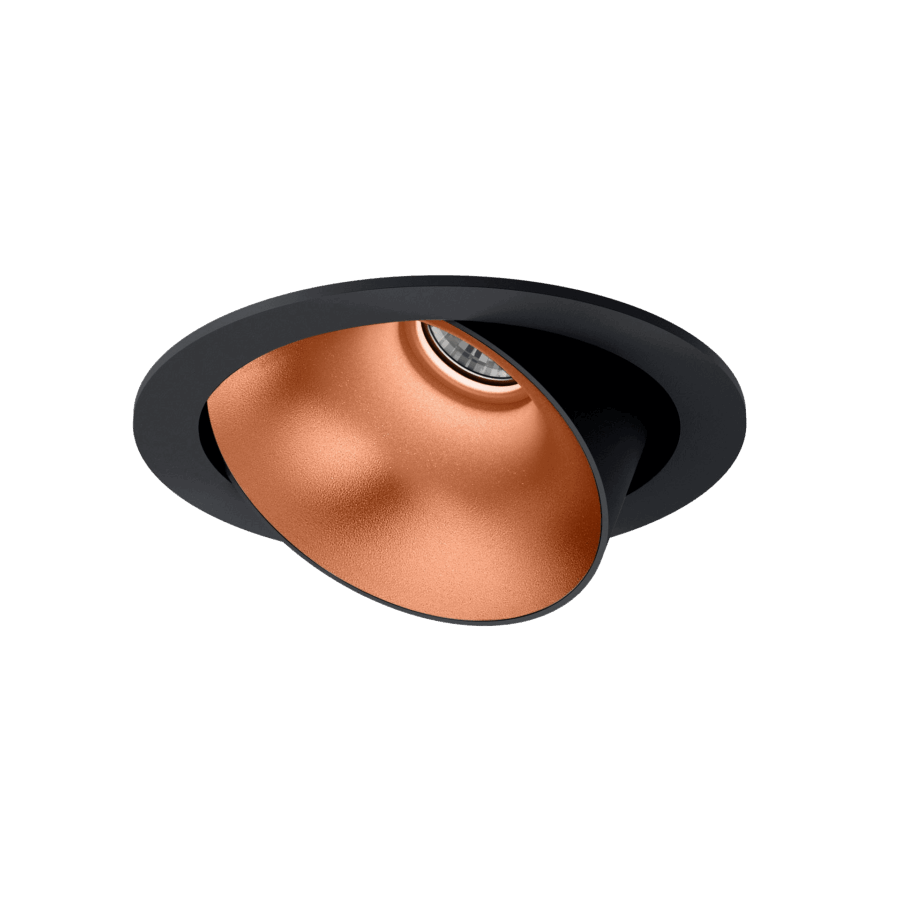

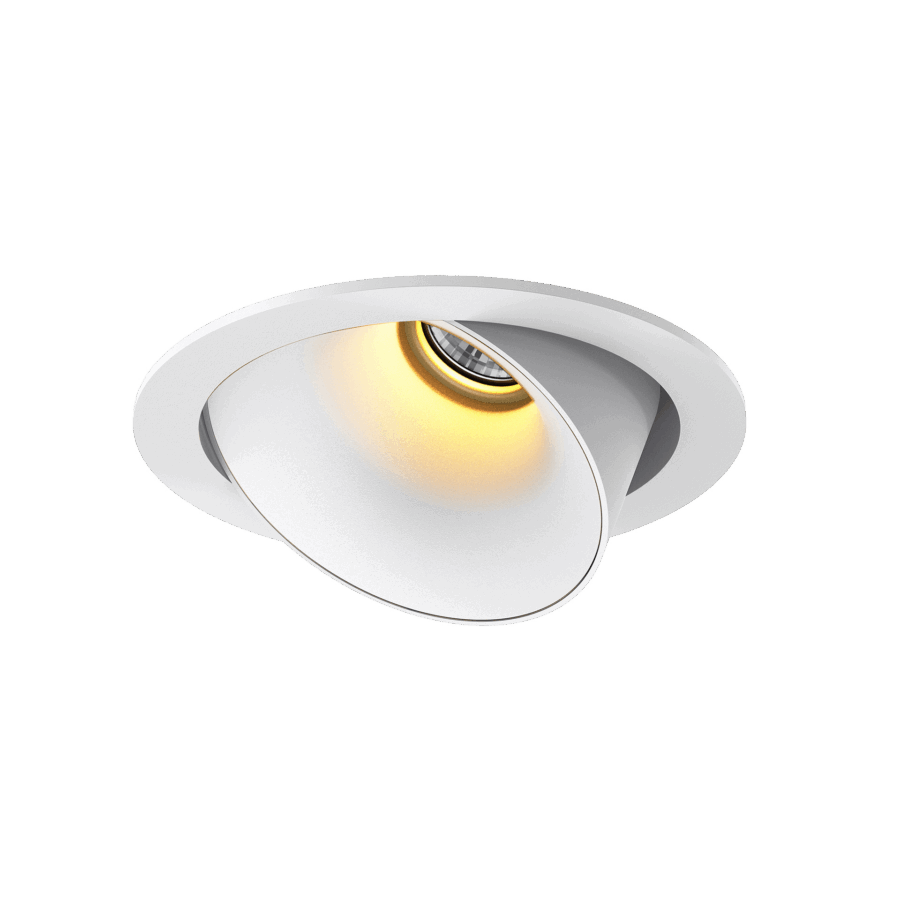

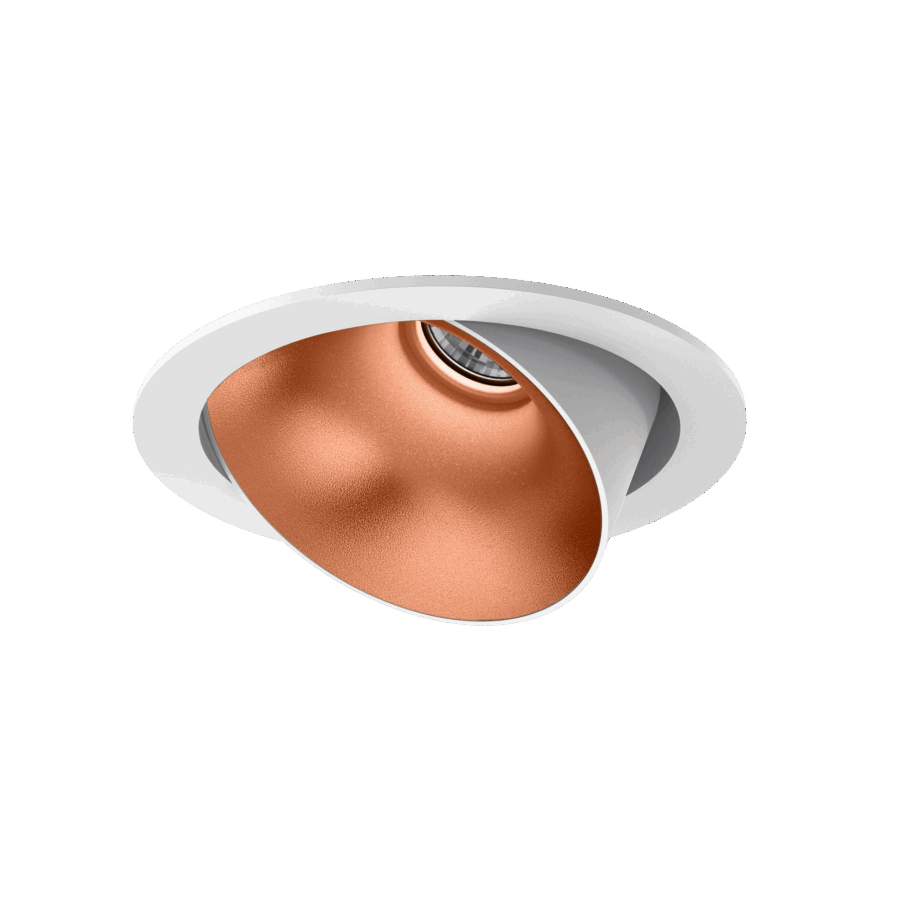

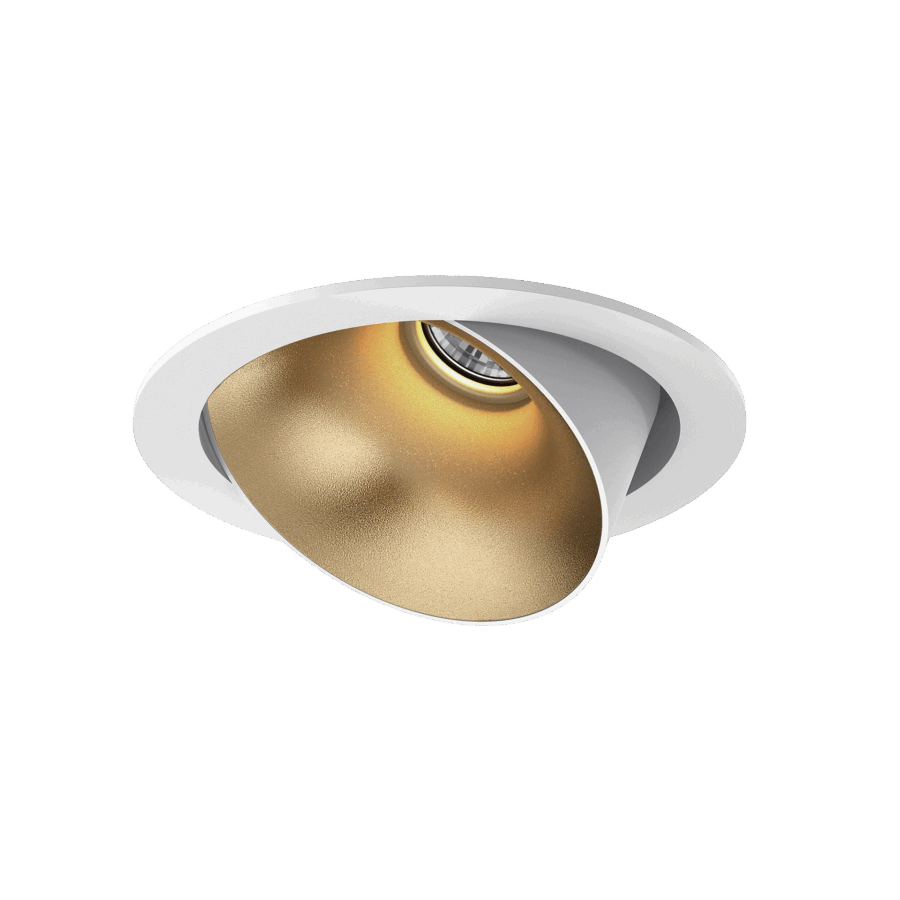

A true piece of art, just by the design itself. This beautiful adjustable luminaire offers a wide selection of different colours in reflectors. Thanks to its low glare, the Dea Carmenta gracefully enriches workspaces and offices, especially when you choose the White or Silver reflector. Go Black or Gold if you want to put an extra dimension to hotel or restaurant atmospheres. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Light color from 2700K to 6500K to set an individual color temperature depending on application. Used for well being (daylight simulation) and for increase the performance in offices and workshops.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
130EW92740SG00	1240 lm	2700K	90	40°	White	Silver High Gloss	1240-lm	2700k	90	40	white	silver-high-gloss
130FW93040SG00	1290 lm	3000K	90	40°	White	Silver High Gloss	1290-lm	3000k	90	40	white	silver-high-gloss
130FW94040SG00	1300 lm	4000K	90	40°	White	Silver High Gloss	1300-lm	4000k	90	40	white	silver-high-gloss
130EW92740BG00	1140 lm	2700K	90	40°	White	Black High Gloss	1140-lm	2700k	90	40	white	black-high-gloss
130EW93040BG00	1180 lm	3000K	90	40°	White	Black High Gloss	1180-lm	3000k	90	40	white	black-high-gloss
130EW94040BG00	1200 lm	4000K	90	40°	White	Black High Gloss	1200-lm	4000k	90	40	white	black-high-gloss
130EW92740WH00	1160 lm	2700K	90	40°	White	White	1160-lm	2700k	90	40	white	white
130EW93040WH00	1200 lm	3000K	90	40°	White	White	1200-lm	3000k	90	40	white	white
130EW94040WH00	1220 lm	4000K	90	40°	White	White	1220-lm	4000k	90	40	white	white
130EW92740CH00	1200 lm	2700K	90	40°	White	Chrome	1200-lm	2700k	90	40	white	chrome
130FW93040CH00	1260 lm	3000K	90	40°	White	Chrome	1260-lm	3000k	90	40	white	chrome
130FW94040CH00	1270 lm	4000K	90	40°	White	Chrome	1270-lm	4000k	90	40	white	chrome
130EW92740GO00	1160 lm	2700K	90	40°	White	Gold	1160-lm	2700k	90	40	white	gold
130EW93040GO00	1200 lm	3000K	90	40°	White	Gold	1200-lm	3000k	90	40	white	gold
130EW94040GO00	1220 lm	4000K	90	40°	White	Gold	1220-lm	4000k	90	40	white	gold
130EW92740CO00	1160 lm	2700K	90	40°	White	Copper	1160-lm	2700k	90	40	white	copper
130EW93040CO00	1200 lm	3000K	90	40°	White	Copper	1200-lm	3000k	90	40	white	copper
130EW94040CO00	1220 lm	4000K	90	40°	White	Copper	1220-lm	4000k	90	40	white	copper
130EW92740BM00	1060 lm	2700K	90	40°	White	Black Matt	1060-lm	2700k	90	40	white	black-matt
130EW93040BM00	1120 lm	3000K	90	40°	White	Black Matt	1120-lm	3000k	90	40	white	black-matt
130EW94040BM00	1130 lm	4000K	90	40°	White	Black Matt	1130-lm	4000k	90	40	white	black-matt
130EB92740SG00	1240 lm	2700K	90	40°	Black	Silver High Gloss	1240-lm	2700k	90	40	black	silver-high-gloss
130FB93040SG00	1290 lm	3000K	90	40°	Black	Silver High Gloss	1290-lm	3000k	90	40	black	silver-high-gloss
130FB94040SG00	1300 lm	4000K	90	40°	Black	Silver High Gloss	1300-lm	4000k	90	40	black	silver-high-gloss
130EB92740BG00	1140 lm	2700K	90	40°	Black	Black High Gloss	1140-lm	2700k	90	40	black	black-high-gloss
130EB93040BG00	1180 lm	3000K	90	40°	Black	Black High Gloss	1180-lm	3000k	90	40	black	black-high-gloss
130EB94040BG00	1200 lm	4000K	90	40°	Black	Black High Gloss	1200-lm	4000k	90	40	black	black-high-gloss
130EB92740WH00	1160 lm	2700K	90	40°	Black	White	1160-lm	2700k	90	40	black	white
130EB93040WH00	1200 lm	3000K	90	40°	Black	White	1200-lm	3000k	90	40	black	white
130EB94040WH00	1220 lm	4000K	90	40°	Black	White	1220-lm	4000k	90	40	black	white
130EB92740CH00	1200 lm	2700K	90	40°	Black	Chrome	1200-lm	2700k	90	40	black	chrome
130FB93040CH00	1260 lm	3000K	90	40°	Black	Chrome	1260-lm	3000k	90	40	black	chrome
130FB94040CH00	1270 lm	4000K	90	40°	Black	Chrome	1270-lm	4000k	90	40	black	chrome
130EB92740GO00	1160 lm	2700K	90	40°	Black	Gold	1160-lm	2700k	90	40	black	gold
130EB93040GO00	1200 lm	3000K	90	40°	Black	Gold	1200-lm	3000k	90	40	black	gold
130EB94040GO00	1220 lm	4000K	90	40°	Black	Gold	1220-lm	4000k	90	40	black	gold
130EB92740CO00	1160 lm	2700K	90	40°	Black	Copper	1160-lm	2700k	90	40	black	copper
130EB93040CO00	1200 lm	3000K	90	40°	Black	Copper	1200-lm	3000k	90	40	black	copper
130EB94040CO00	1220 lm	4000K	90	40°	Black	Copper	1220-lm	4000k	90	40	black	copper
130EB92740BM00	1060 lm	2700K	90	40°	Black	Black Matt	1060-lm	2700k	90	40	black	black-matt
130EB93040BM00	1120 lm	3000K	90	40°	Black	Black Matt	1120-lm	3000k	90	40	black	black-matt
130EB94040BM00	1130 lm	4000K	90	40°	Black	Black Matt	1130-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux1060 lm, 1120 lm, 1130 lm, 1140 lm, 1160 lm, 1180 lm, 1200 lm, 1220 lm, 1240 lm, 1260 lm, 1270 lm, 1290 lm, 1300 lm

CRI90

CCT2700K, 3000K, 4000K

LED power12.5W

System power14W

System efficiency76lm/W, 80lm/W, 81lm/W, 83lm/W, 84lm/W, 86lm/W, 87lm/W, 89lm/W, 90lm/W, 91lm/W, 92lm/W, 93lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.34Kg

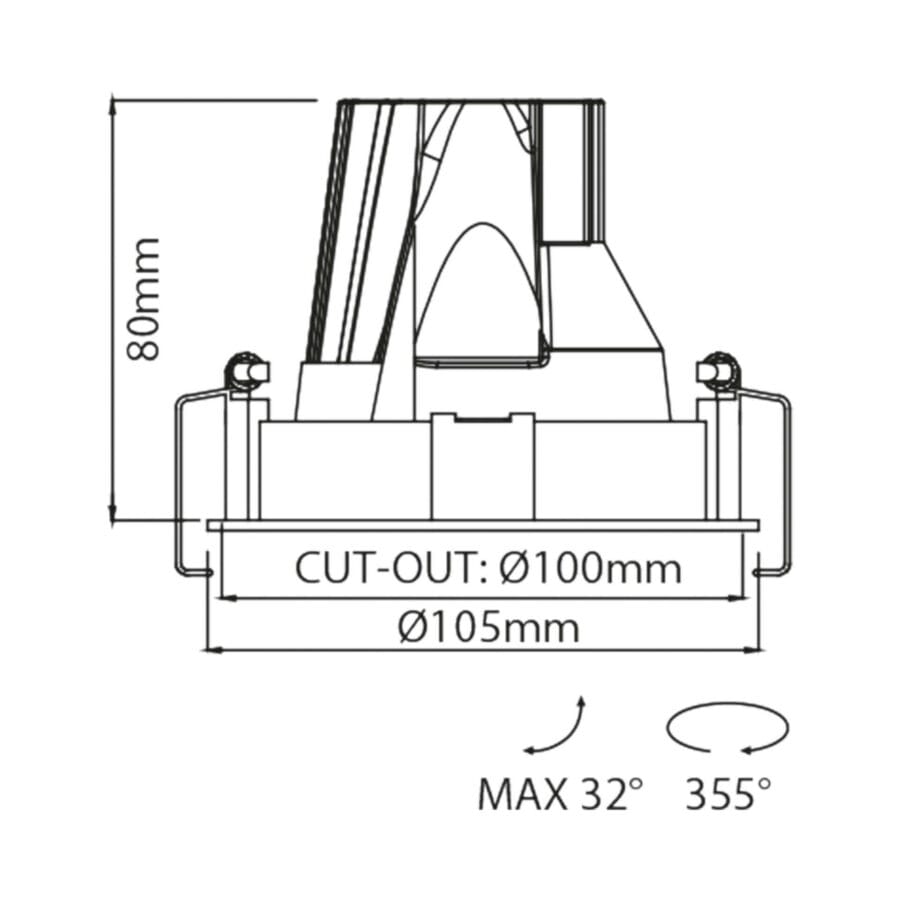

Cut out dimensionØ100mm

Luminaire dimensionØ105x80mm

Nominal fA [mA]350mA

Nominal fV [V]34.1V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90), Tunable white (2700K – 6500K)

Warranty5Y

CollectionDea Della Luce

Built-in height100mm

ControlCasambi, DALI, Phase Cut

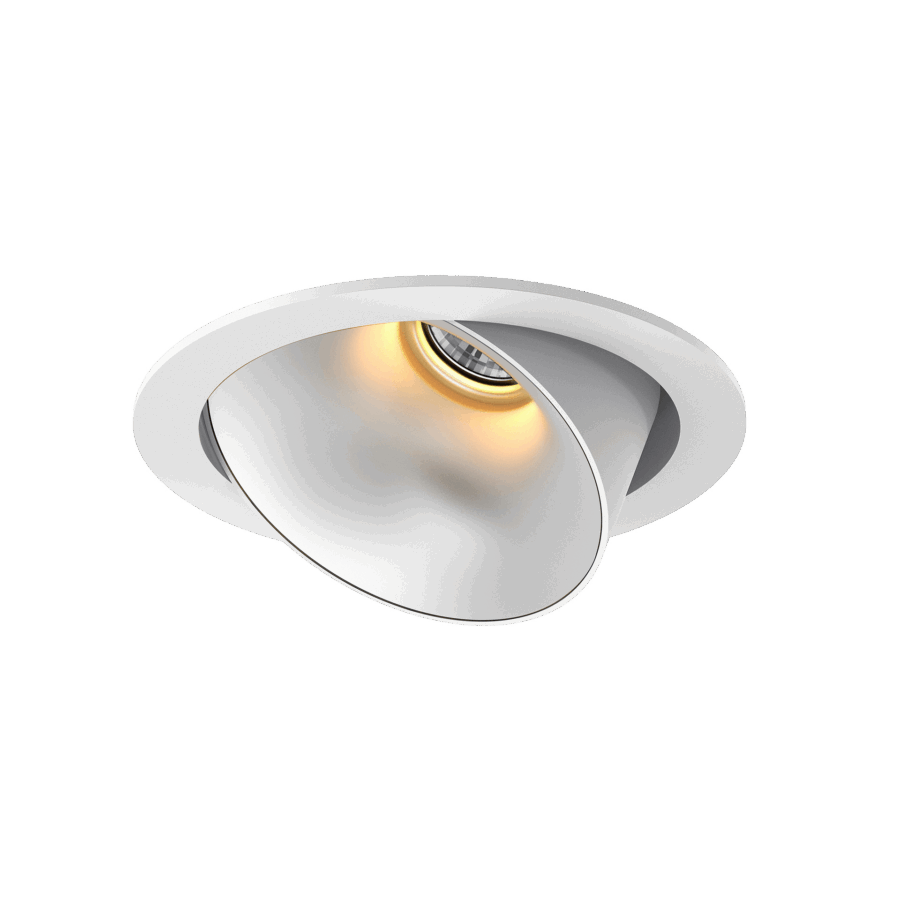

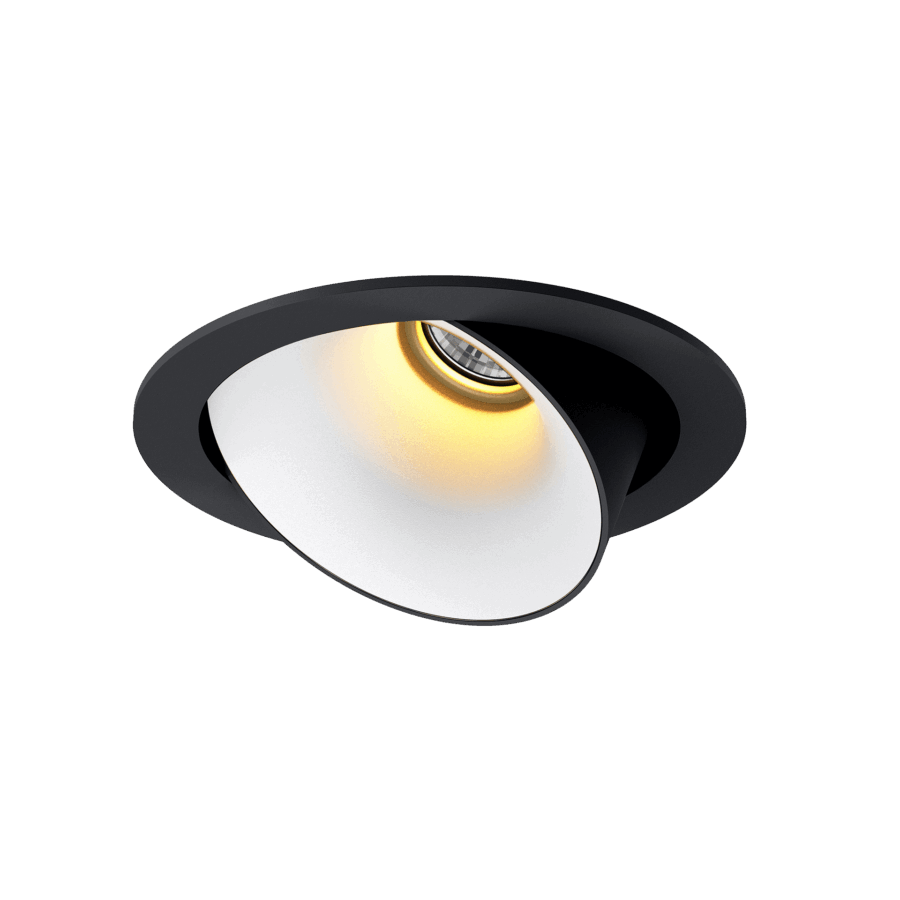

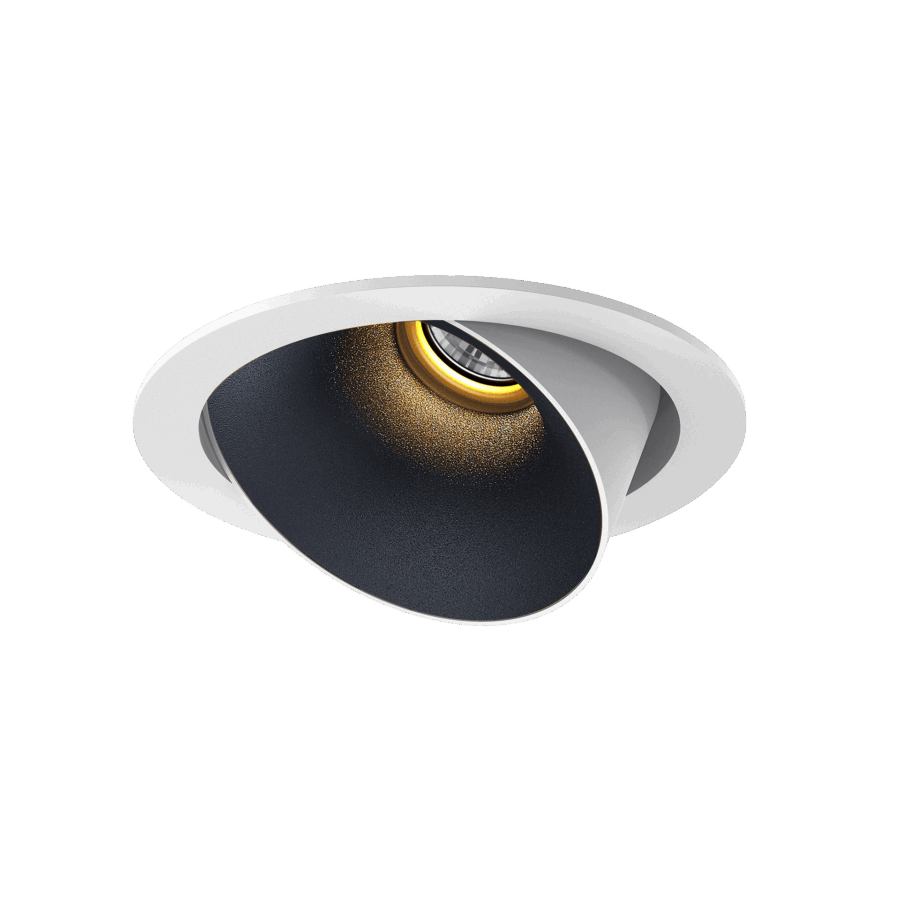

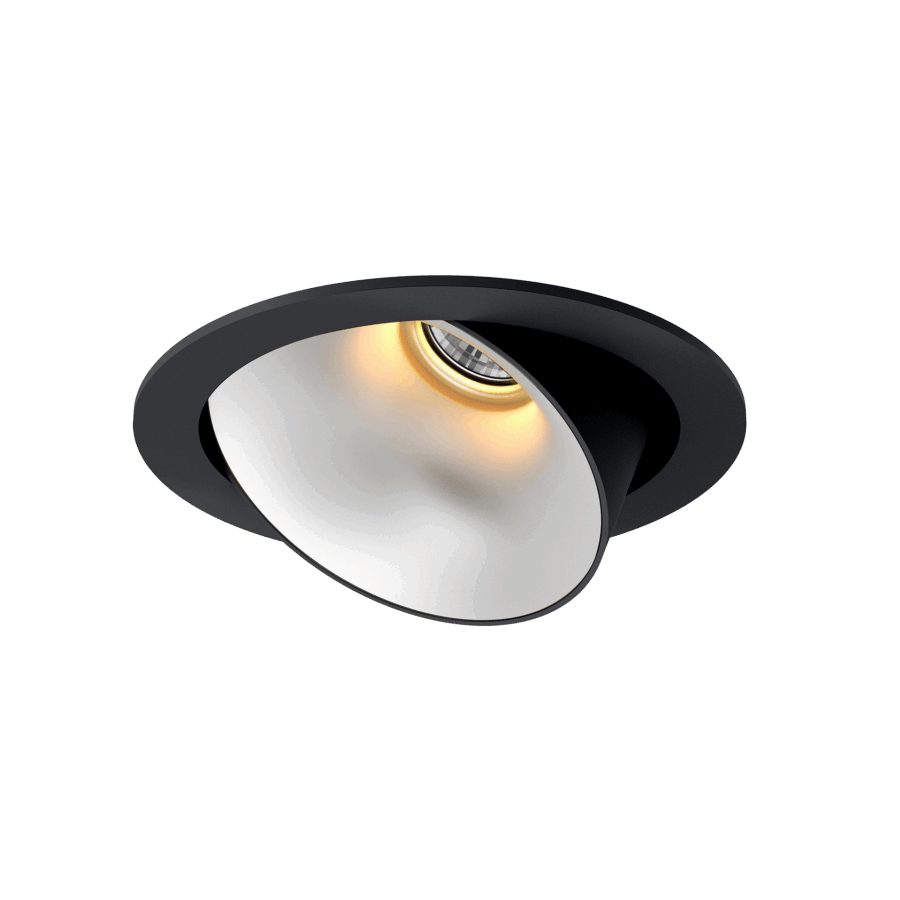

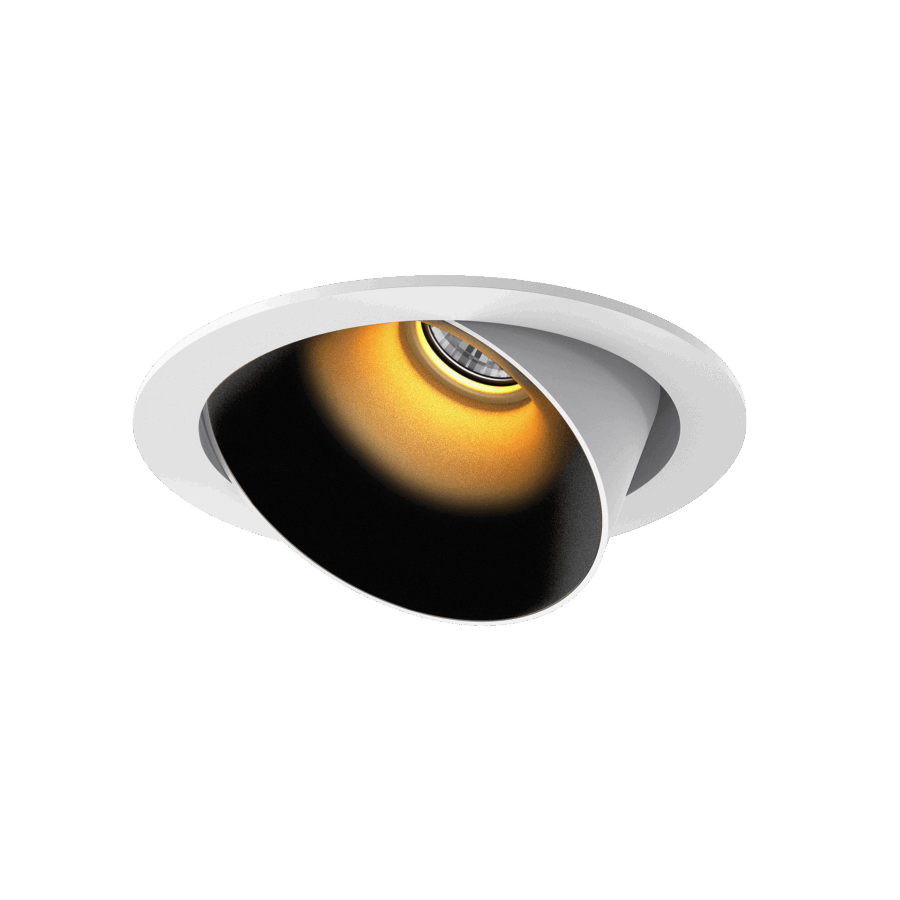

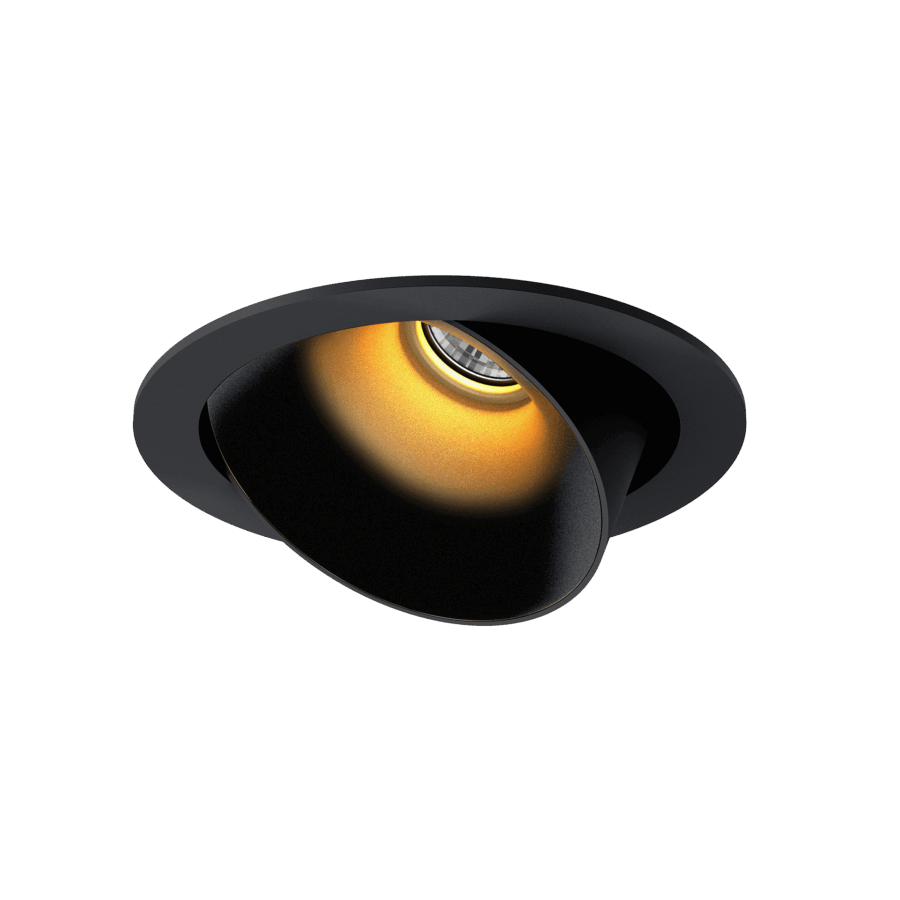

The Karizma Luce Dea Carmenta M is a recessed adjustable downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 840-960 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.

Products

Dea Carmenta M

Datasheets

Related products

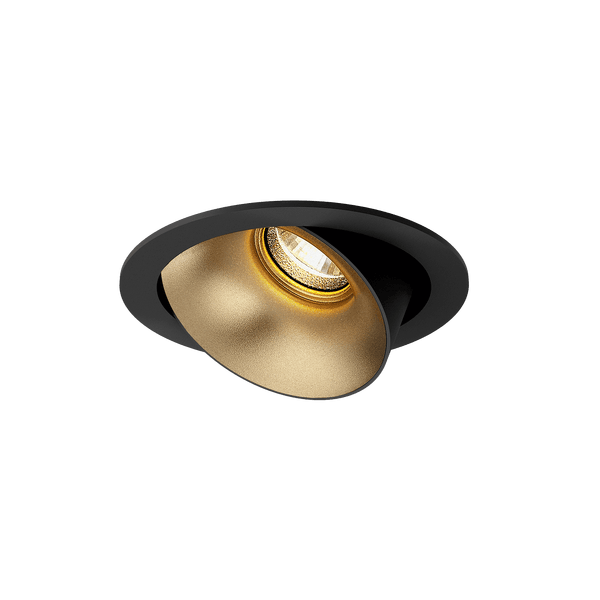

Dea Carmenta S
