Piazza Lente

Another level of ambiance.

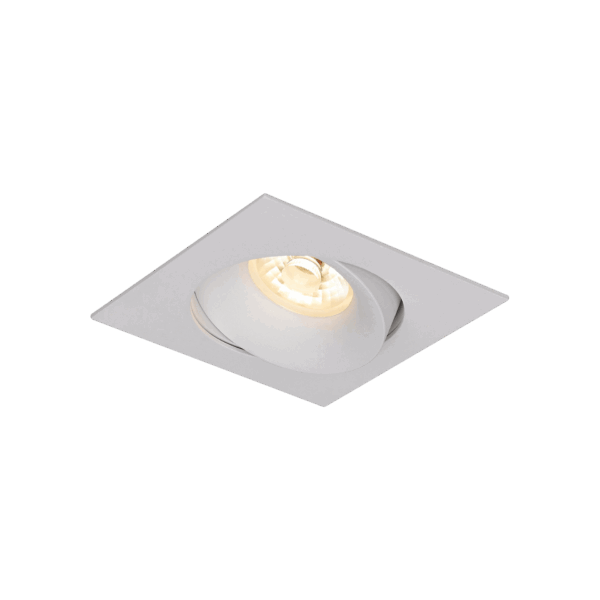

The Piazza Lente is an adjustable led downlight. The square shape makes it ideal for use in modern architecture. The spot can be rotated 350°, available with three types of optical lenses. This makes the Karizma Luce Piazza Lente like an Italian square: lively and versatile.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
118CW9272200	705 lm	2700K	90	22°	White	N/A	705-lm	2700k	90	22	white	n-a
118CW9302200	720 lm	3000K	90	22°	White	N/A	720-lm	3000k	90	22	white	n-a
118CW9273600	705 lm	2700K	90	36°	White	N/A	705-lm	2700k	90	36	white	n-a
118CW9303600	720 lm	3000K	90	36°	White	N/A	720-lm	3000k	90	36	white	n-a
118CW9276000	705 lm	2700K	90	60°	White	N/A	705-lm	2700k	90	60	white	n-a
118CW9306000	720 lm	3000K	90	60°	White	N/A	720-lm	3000k	90	60	white	n-a
118CB9272200	705 lm	2700K	90	22°	Black	N/A	705-lm	2700k	90	22	black	n-a
118CB9302200	720 lm	3000K	90	22°	Black	N/A	720-lm	3000k	90	22	black	n-a
118CB9273600	705 lm	2700K	90	36°	Black	N/A	705-lm	2700k	90	36	black	n-a
118CB9303600	720 lm	3000K	90	36°	Black	N/A	720-lm	3000k	90	36	black	n-a
118CB9276000	705 lm	2700K	90	60°	Black	N/A	705-lm	2700k	90	60	black	n-a
118CB9306000	720 lm	3000K	90	60°	Black	N/A	720-lm	3000k	90	60	black	n-a
118EW9273000	1240 lm	2700K	90	30°	White	N/A	1240-lm	2700k	90	30	white	n-a
118FW9303000	1280 lm	3000K	90	30°	White	N/A	1280-lm	3000k	90	30	white	n-a
118GW8403000	1550 lm	4000K	80	30°	White	N/A	1550-lm	4000k	80	30	white	n-a
118EW9274000	1240 lm	2700K	90	40°	White	N/A	1240-lm	2700k	90	40	white	n-a
118FW9304000	1280 lm	3000K	90	40°	White	N/A	1280-lm	3000k	90	40	white	n-a
118GW8404000	1550 lm	4000K	80	40°	White	N/A	1550-lm	4000k	80	40	white	n-a
118EW9276000	1240 lm	2700K	90	60°	White	N/A	1240-lm	2700k	90	60	white	n-a
118FW9306000	1280 lm	3000K	90	60°	White	N/A	1280-lm	3000k	90	60	white	n-a
118GW8406000	1550 lm	4000K	80	60°	White	N/A	1550-lm	4000k	80	60	white	n-a
118EB9273000	1240 lm	2700K	90	30°	Black	N/A	1240-lm	2700k	90	30	black	n-a
118FB9303000	1280 lm	3000K	90	30°	Black	N/A	1280-lm	3000k	90	30	black	n-a
118GB8403000	1550 lm	4000K	80	30°	Black	N/A	1550-lm	4000k	80	30	black	n-a
118EB9274000	1240 lm	2700K	90	40°	Black	N/A	1240-lm	2700k	90	40	black	n-a
118FB9304000	1280 lm	3000K	90	40°	Black	N/A	1280-lm	3000k	90	40	black	n-a
118GB8404000	1550 lm	4000K	80	40°	Black	N/A	1550-lm	4000k	80	40	black	n-a
118EB9276000	1240 lm	2700K	90	60°	Black	N/A	1240-lm	2700k	90	60	black	n-a
118FB9306000	1280 lm	3000K	90	60°	Black	N/A	1280-lm	3000k	90	60	black	n-a
118GB8406000	1550 lm	4000K	80	60°	Black	N/A	1550-lm	4000k	80	60	black	n-a
118DB9402200	850 lm	4000K	90	22°	Black	N/A	850-lm	4000k	90	22	black	n-a
118DB9403600	850 lm	4000K	90	36°	Black	N/A	850-lm	4000k	90	36	black	n-a
118DB9406000	850 lm	4000K	90	60°	Black	N/A	850-lm	4000k	90	60	black	n-a
118DW9402200	850 lm	4000K	90	22°	White	N/A	850-lm	4000k	90	22	white	n-a
118DW9403600	850 lm	4000K	90	36°	White	N/A	850-lm	4000k	90	36	white	n-a
118DW9406000	850 lm	4000K	90	60°	White	N/A	850-lm	4000k	90	60	white	n-a

Click on specification values for related products.

Luminous Flux1240 lm, 1280 lm, 1550 lm, 705 lm, 720 lm, 850 lm

CRI80, 90

CCT2700K, 3000K, 4000K

LED power12.5W, 9W

System power11.5W, 14W

System efficiency111lm/W, 61lm/W, 63lm/W, 79lm/W, 89lm/W, 91lm/W

Chromaticity tolerance3 MacAdam

OpticLens

Beam angle22°, 30°, 36°, 40°, 60°

Luminaire colorBlack, White

Reflector colorN/A

IP ratingIP43/IP20

Net. Weight0.44Kg

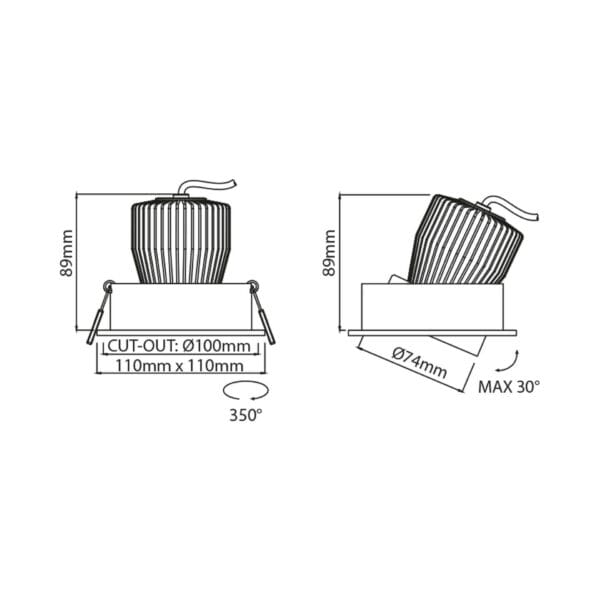

Cut out dimensionØ100mm

Luminaire dimension110x110x77mm

Nominal fA [mA]350mA, 500mA

Nominal fV [V]18.4V, 33.8-35.9V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classF

Light source identifierBXRE-27G0800-D-73, BXRE-30G0800-D-73, BXRE-40G0800-D-73

Light source840 (4000K / CRI80), 927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDelizia di Luce

Built-in height90mm

ControlCasambi, DALI, Phase Cut
