The 48V track spot Juno-Q1 XS Lente is a one-of-a-kind luminaire. This uniqueness is attributed to the unprecedentedly narrow beam angle of only 10 degrees. The distinctive lens creates a spectacular light image, perfect for accentuating valuable art in museums and luxury homes. Ideal for creating intensely sharp focus in eye-catching product presentations in boutiques, perfume shops and jewellery stores.
Juno-Q1 XS Lente
Precision at its finest.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Designed to be supplied from a separated extra-low voltage (SELV) power source
- 48 Volt Power Supply System
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| Q667AB92710BMF0 | 380lm | 2700K | 90 | 10° | Black(RAL9005) | |
| Q667AB93010BMF0 | 400lm | 3000K | 90 | 10° | Black(RAL9005) | |
| Q667AB94010BMF0 | 420lm | 4000K | 90 | 10° | Black(RAL9005) | |
| Q667AW92710WHF0 | 380lm | 2700K | 90 | 10° | White(RAL9003) | |
| Q667AW93010WHF0 | 400lm | 3000K | 90 | 10° | White(RAL9003) | |
| Q667AW94010WHF0 | 420lm | 4000K | 90 | 10° | White(RAL9003) |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), Black(RAL9005)(RAL9005), White(RAL9003), White(RAL9003)(RAL9003)

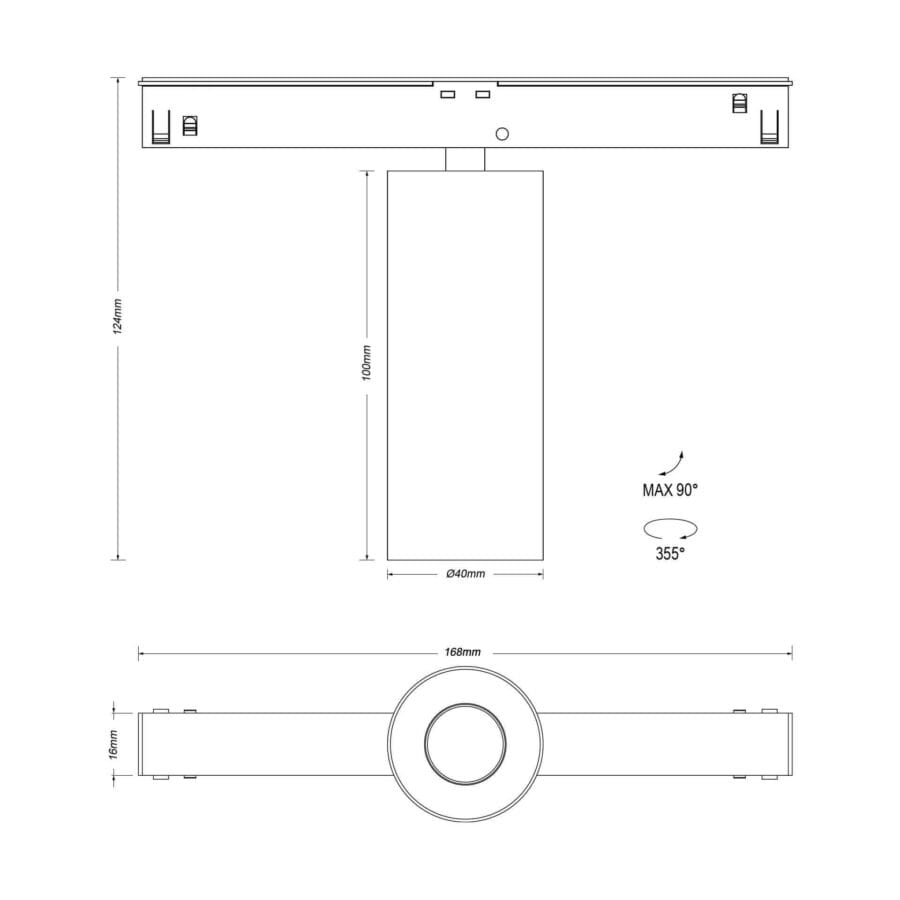

Luminaire Dimension [mm]100mmx40mm
Cut-Out [mm]N/A
OpticLens
Beam Angle [deg]10°
System Power [W]8.5W
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]48V DC
Power Supplyincluded 48V DC/DC converter ON/OFF
Ambient Temperature [degC]35°C
Ingress ProtectionIP20
Light Source Energy ClassG
Light Source IdentifierBXRH-27G0400-C-83, BXRH-30G0400-C-83, BXRH-40G0400-C-83
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass III
Net Weight [Kg]0.3Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDelizia di Luce
ControlDALI

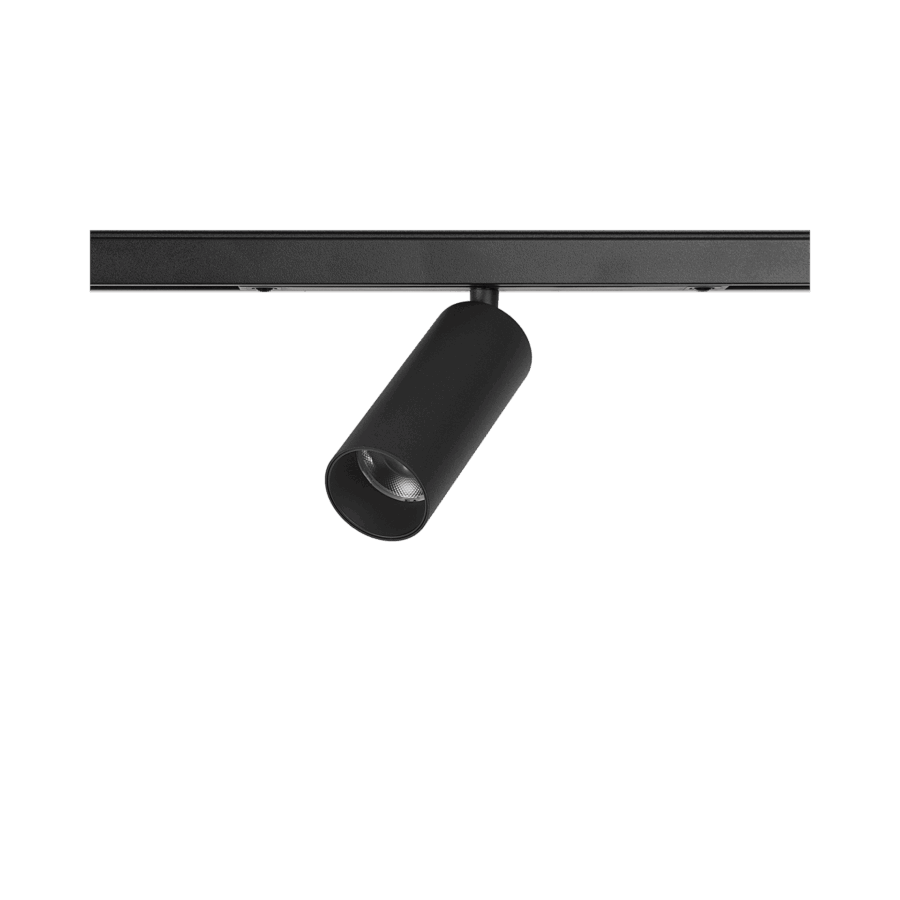

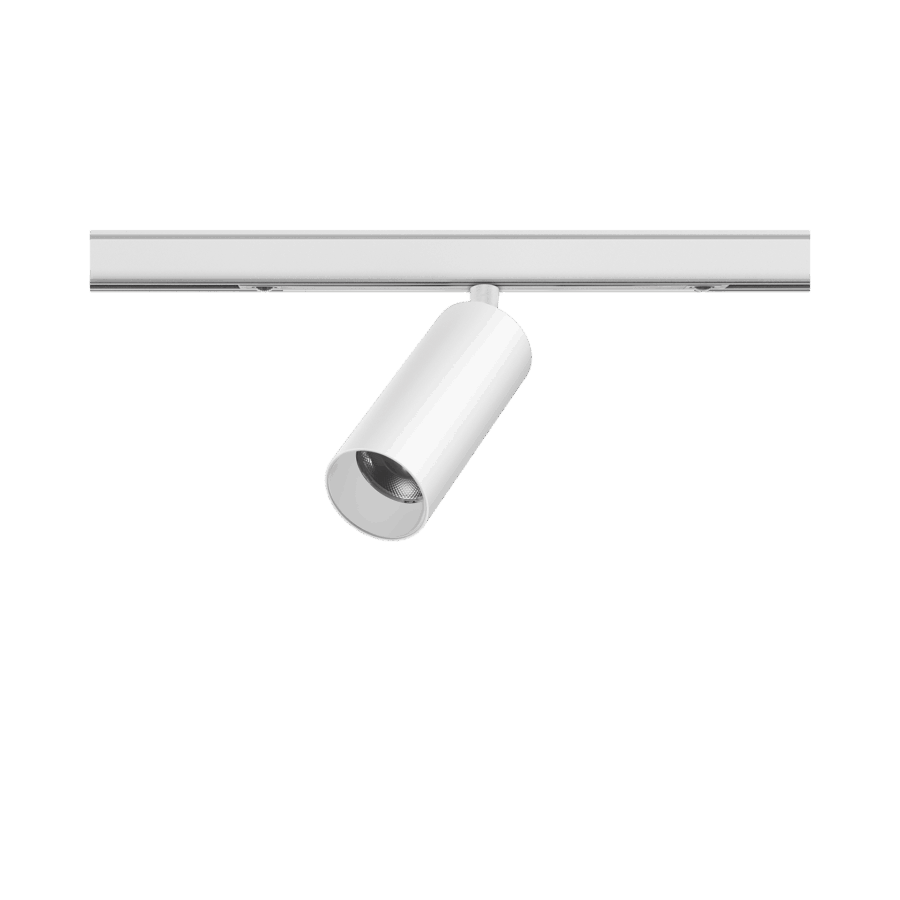

The Karizma Luce Juno-Q1 XS Lente is an extra small 48V track spot from the Delizia di Luce series. Made from aluminum. Available luminaire flux: in 380lm, 400lm and 420lm. CCT: 2700K, 3000K, 4000K. Beam angle: 10°. Luminaire available in black and white.
