Dea Vesta S PE

Dea Vesta S PE

Simple yet elegant.

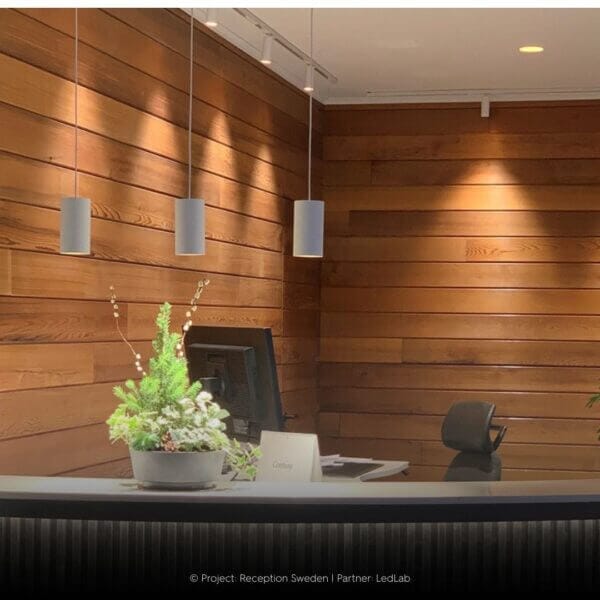

The Dea Vesta is like a beautiful dress. You keep looking at it. Simple yet elegant. This pendant luminaire has its own refined way to put light to the place where it’s needed: a luxurious kitchen, a beautiful staircase, a stylish bar, a large dinner table. Apply the Dea Vesta in a series to make even more impact. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
502DW92740SGF0	900 lm	2700K	90	40°	White	Silver High Gloss	900-lm	2700k	90	40	white	silver-high-gloss
502DW93040SGF0	950 lm	3000K	90	40°	White	Silver High Gloss	950-lm	3000k	90	40	white	silver-high-gloss
502DW94040SGF0	960 lm	4000K	90	40°	White	Silver High Gloss	960-lm	4000k	90	40	white	silver-high-gloss
502DW92740BGF0	830 lm	2700K	90	40°	White	Black High Gloss	830-lm	2700k	90	40	white	black-high-gloss
502DW93040BGF0	860 lm	3000K	90	40°	White	Black High Gloss	860-lm	3000k	90	40	white	black-high-gloss
502DW94040BGF0	870 lm	4000K	90	40°	White	Black High Gloss	870-lm	4000k	90	40	white	black-high-gloss
502DW92740WHF0	840 lm	2700K	90	40°	White	White	840-lm	2700k	90	40	white	white
502DW93040WHF0	880 lm	3000K	90	40°	White	White	880-lm	3000k	90	40	white	white
502DW94040WHF0	890 lm	4000K	90	40°	White	White	890-lm	4000k	90	40	white	white
502DW92740CHF0	890 lm	2700K	90	40°	White	Chrome	890-lm	2700k	90	40	white	chrome
502DW93040CHF0	930 lm	3000K	90	40°	White	Chrome	930-lm	3000k	90	40	white	chrome
502DW94040CHF0	940 lm	4000K	90	40°	White	Chrome	940-lm	4000k	90	40	white	chrome
502DW92740GOF0	840 lm	2700K	90	40°	White	Gold	840-lm	2700k	90	40	white	gold
502DW93040GOF0	880 lm	3000K	90	40°	White	Gold	880-lm	3000k	90	40	white	gold
502DW94040GOF0	890 lm	4000K	90	40°	White	Gold	890-lm	4000k	90	40	white	gold
502DW92740BMF0	760 lm	2700K	90	40°	White	Black Matt	760-lm	2700k	90	40	white	black-matt
502DW93040BMF0	800 lm	3000K	90	40°	White	Black Matt	800-lm	3000k	90	40	white	black-matt
502DW94040BMF0	810 lm	4000K	90	40°	White	Black Matt	810-lm	4000k	90	40	white	black-matt
502DB92740SGF0	900 lm	2700K	90	40°	Black	Silver High Gloss	900-lm	2700k	90	40	black	silver-high-gloss
502DB93040SGF0	950 lm	3000K	90	40°	Black	Silver High Gloss	950-lm	3000k	90	40	black	silver-high-gloss
502DB94040SGF0	960 lm	4000K	90	40°	Black	Silver High Gloss	960-lm	4000k	90	40	black	silver-high-gloss
502DB92740BGF0	830 lm	2700K	90	40°	Black	Black High Gloss	830-lm	2700k	90	40	black	black-high-gloss
502DB93040BGF0	860 lm	3000K	90	40°	Black	Black High Gloss	860-lm	3000k	90	40	black	black-high-gloss
502DB94040BGF0	870 lm	4000K	90	40°	Black	Black High Gloss	870-lm	4000k	90	40	black	black-high-gloss
502DB92740WHF0	840 lm	2700K	90	40°	Black	White	840-lm	2700k	90	40	black	white
502DB93040WHF0	880 lm	3000K	90	40°	Black	White	880-lm	3000k	90	40	black	white
502DB94040WHF0	890 lm	4000K	90	40°	Black	White	890-lm	4000k	90	40	black	white
502DB92740CHF0	890 lm	2700K	90	40°	Black	Chrome	890-lm	2700k	90	40	black	chrome
502DB93040CHF0	930 lm	3000K	90	40°	Black	Chrome	930-lm	3000k	90	40	black	chrome
502DB94040CHF0	940 lm	4000K	90	40°	Black	Chrome	940-lm	4000k	90	40	black	chrome
502DB92740GOF0	840 lm	2700K	90	40°	Black	Gold	840-lm	2700k	90	40	black	gold
502DB93040GOF0	880 lm	3000K	90	40°	Black	Gold	880-lm	3000k	90	40	black	gold
502DB94040GOF0	890 lm	4000K	90	40°	Black	Gold	890-lm	4000k	90	40	black	gold
502DB92740BMF0	760 lm	2700K	90	40°	Black	Black Matt	760-lm	2700k	90	40	black	black-matt
502DB93040BMF0	800 lm	3000K	90	40°	Black	Black Matt	800-lm	3000k	90	40	black	black-matt
502DB94040BMF0	810 lm	4000K	90	40°	Black	Black Matt	810-lm	4000k	90	40	black	black-matt
502DW92740COF0	840 lm	2700K	90	40°	White	Copper	840-lm	2700k	90	40	white	copper
502DW93040COF0	880 lm	3000K	90	40°	White	Copper	880-lm	3000k	90	40	white	copper
502DW94040COF0	890 lm	4000K	90	40°	White	Copper	890-lm	4000k	90	40	white	copper
502DB92740COF0	840 lm	2700K	90	40°	Black	Copper	840-lm	2700k	90	40	black	copper
502DB93040COF0	880 lm	3000K	90	40°	Black	Copper	880-lm	3000k	90	40	black	copper
502DB94040COF0	890 lm	4000K	90	40°	Black	Copper	890-lm	4000k	90	40	black	copper

Click on specification values for related products.

Luminous Flux760 lm, 800 lm, 810 lm, 830 lm, 840 lm, 860 lm, 870 lm, 880 lm, 890 lm, 900 lm, 930 lm, 940 lm, 950 lm, 960 lm

CRI90

CCT2700K, 3000K, 4000K

LED powerN/A

System power10.5W

System efficiency72lm/W, 76lm/W, 77lm/W, 79lm/W, 80lm/W, 82lm/W, 83lm/W, 84lm/W, 85lm/W, 86lm/W, 89lm/W, 90lm/W, 91lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Cut out dimensionN/A

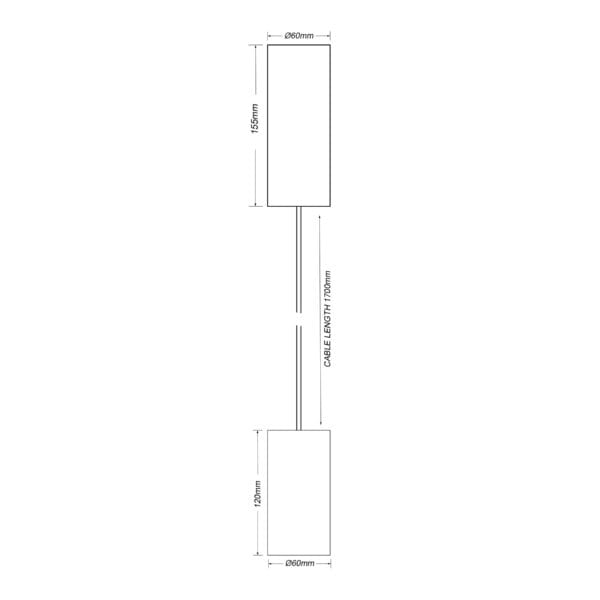

Luminaire dimensionØ60x120mm

Nominal fA [mA]N/A

Nominal fV [V]N/A

Power supplyIncluded 1-10V, Included DALI, Included ON/OFF

Mains Voltage220-240V / 50 -60Hz

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE

Light source identifierCLU028-1202C4-273H5M3-F1, CLU028-1202C4-303H5M3-F1, CLU028-1202C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Control1-10V, DALI, Phase Cut

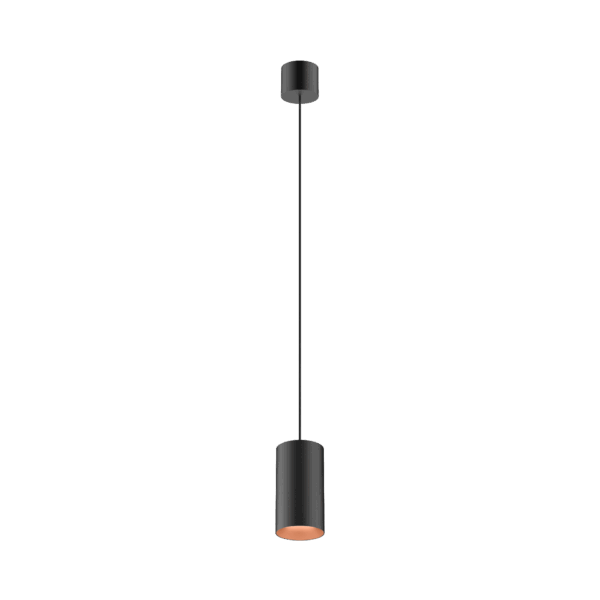

The Karizma Luce Dea Vesta S PE (pendulo) is a small pendant luminaire from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 760- 960 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.

Products

Dea Vesta S PE

Datasheets

Related products

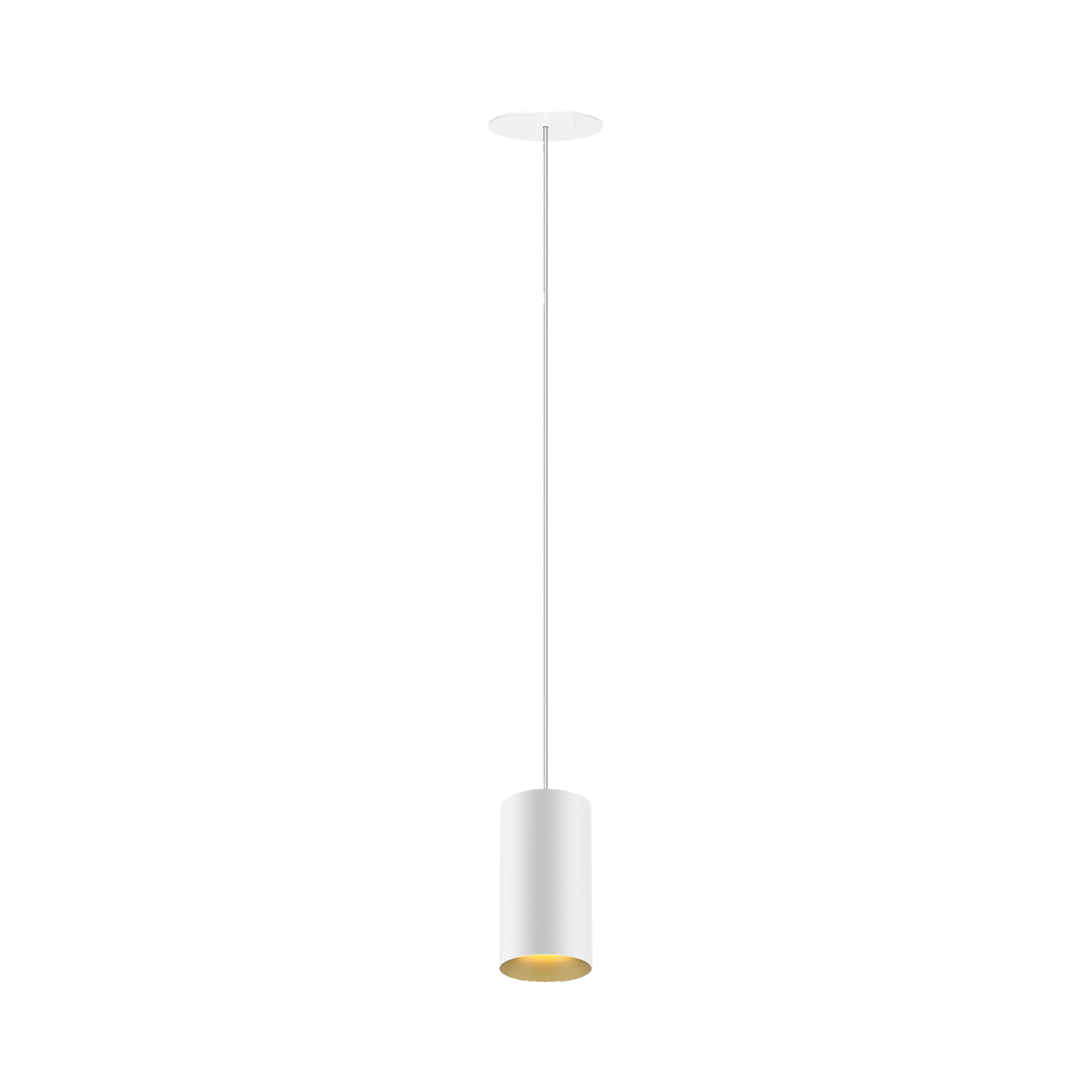

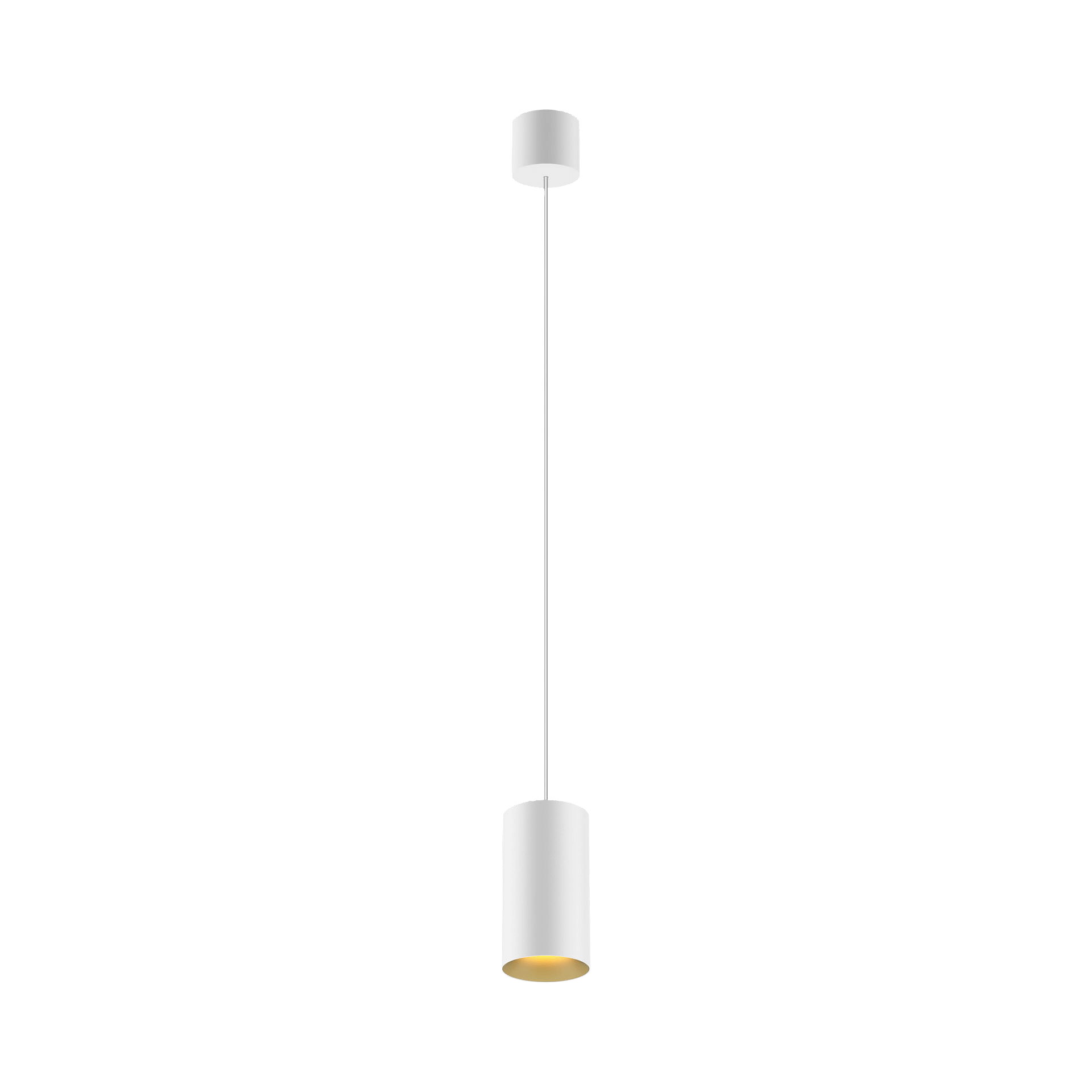

Dea Vesta M PE-in

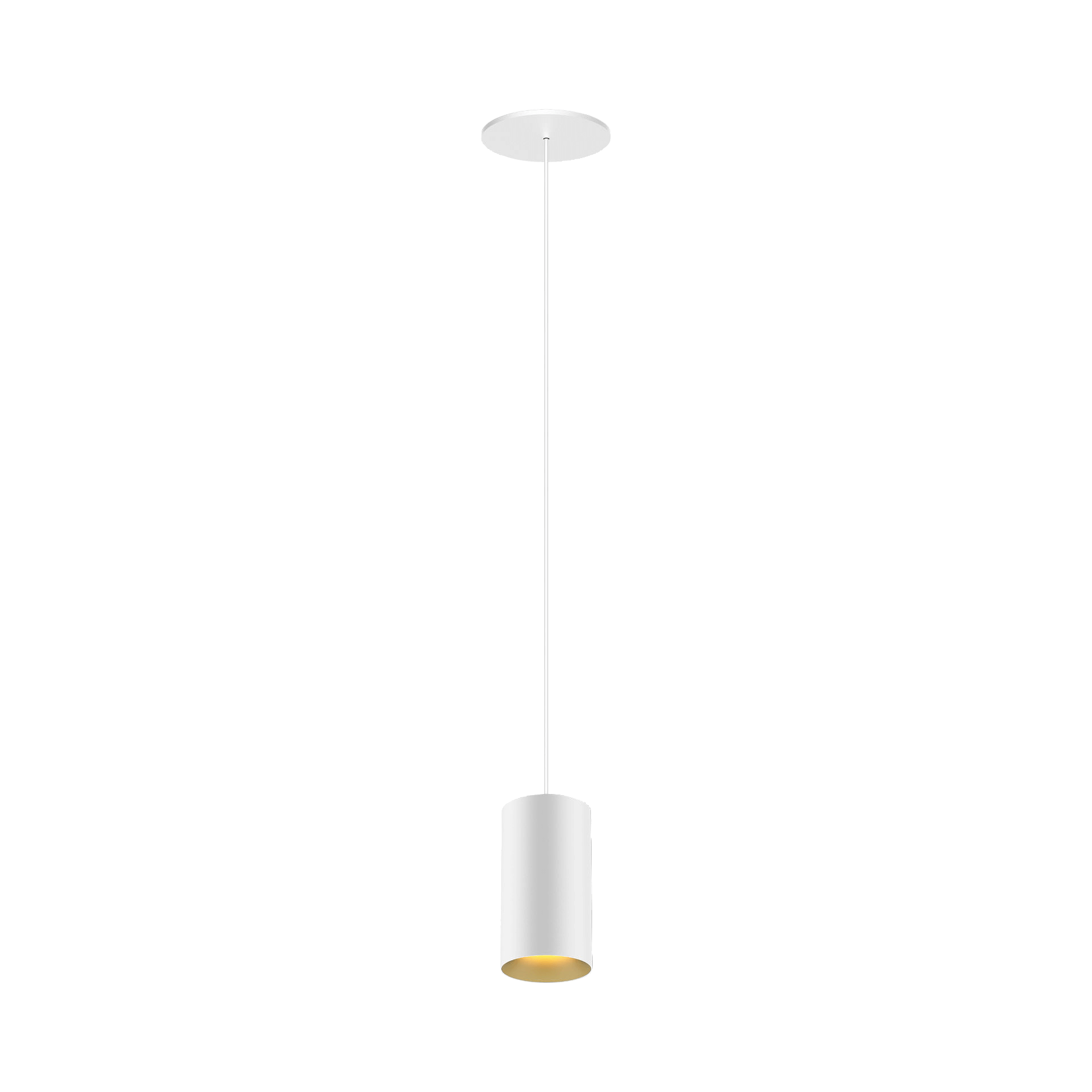

Dea Vesta S PE-in

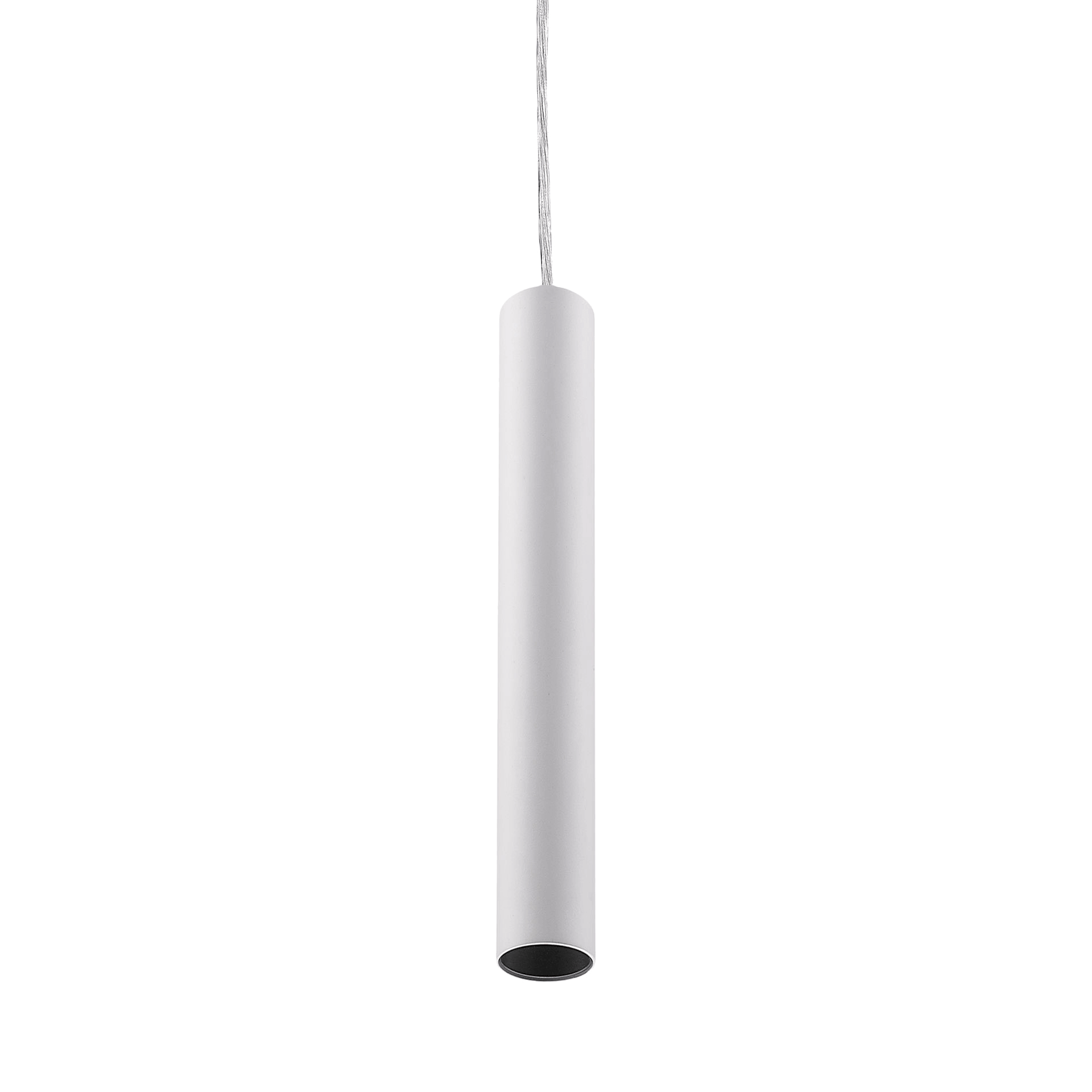

Perla
