Vesta XXS Q3-Q4

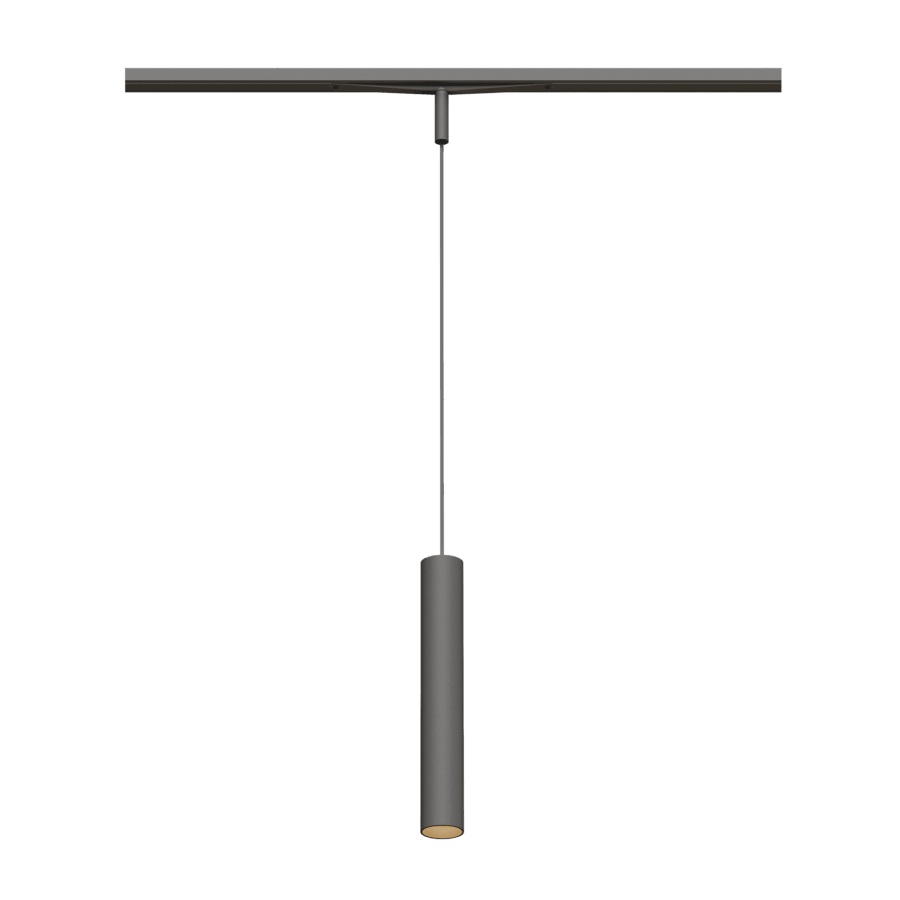

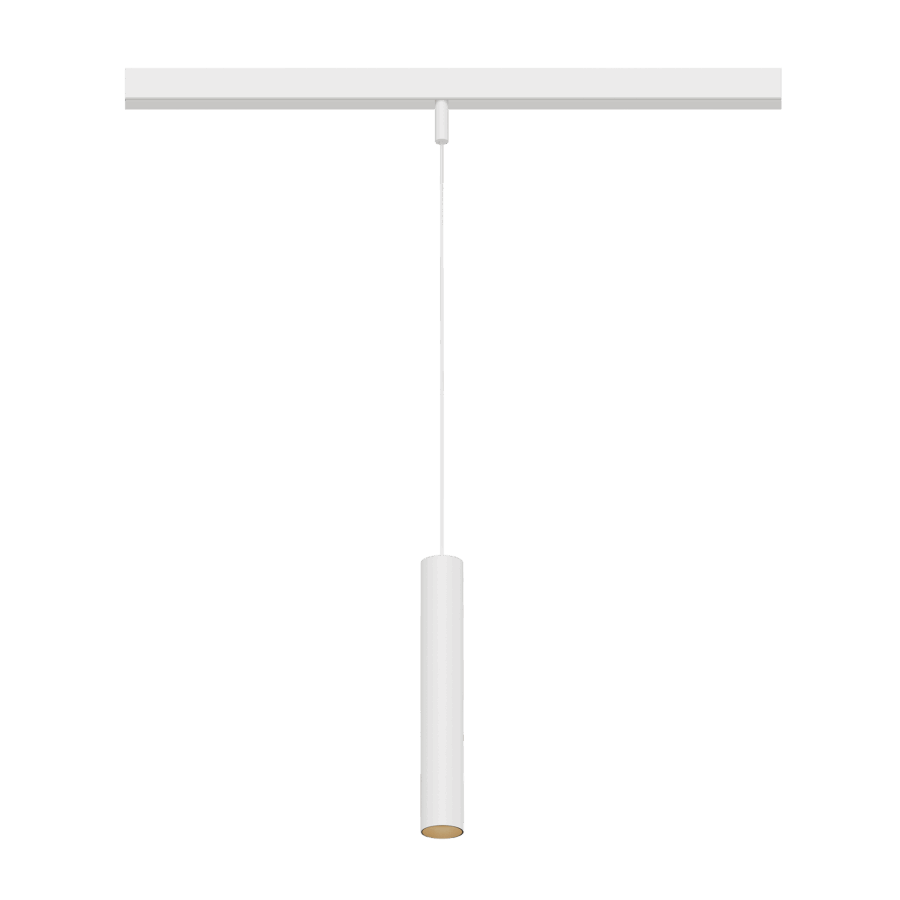

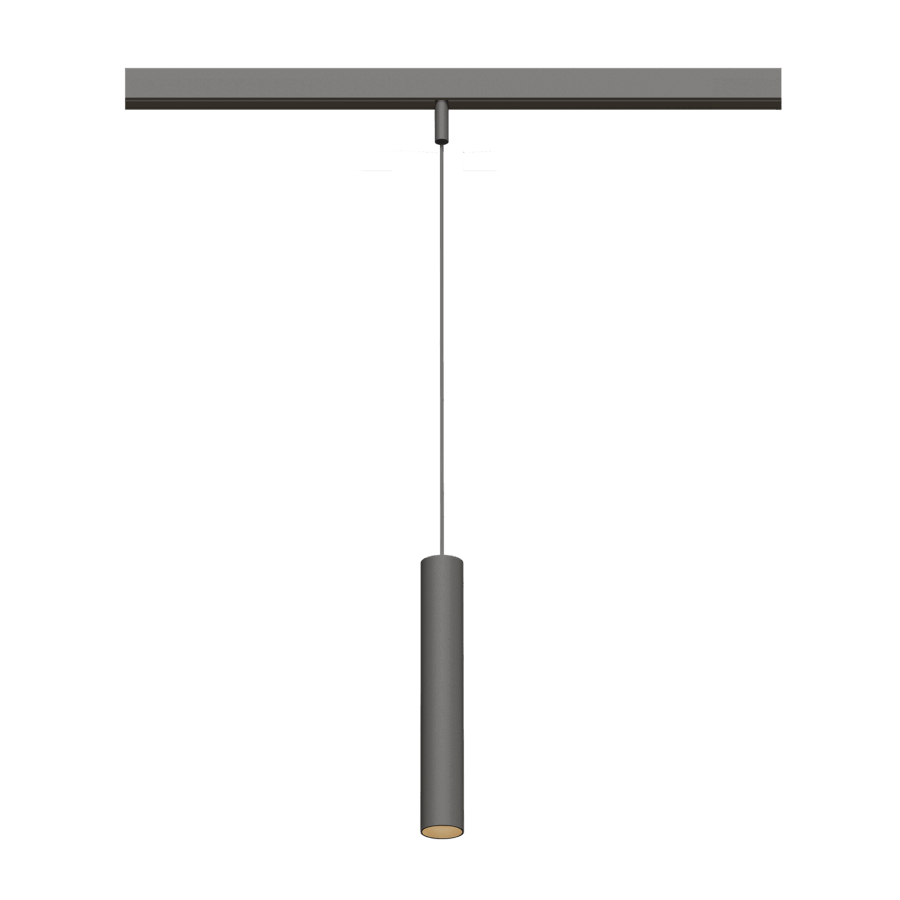

Vesta XXS Q3-Q4 is a suspended 48V track luminaire for the Q3 and Q4 mini systems. With its slim 30mm diameter and 200mm length, it blends seamlessly into refined interiors such as hotel rooms, boutiques, bars, restaurants, and private residences. The elegant, minimal body creates a discreet yet sophisticated presence, while providing comfortable light for accent or general illumination.

Vesta XXS Q3-Q4 offers single CCT or dim-to-warm functionality and delivers up to 670lm. Beam angles of 28°, 37°, and 48° enable precise lighting control. A black reflector ensures low glare and visual comfort. The housing is available in black or white, with other colours on request. Drivers include DALI or Casambi, making Vesta XXS Q3-Q4 a flexible and stylish choice for modern lighting schemes.

Warranty on quality in years.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Designed to be supplied from a separated extra-low voltage (SELV) power source
48 Volt Power Supply System
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.

SKU	Luminous Flux [lm]	CCT [K]	Beam Angle [deg]	Housing Colour	Reflector Colour	System Power [W]	Power Supply
Q637BB92728BMD0	640lm	2700K	28°	Black	Black Matt	11.5W	DALI
Q637BB92737BMD0	640lm	2700K	37°	Black	Black Matt	11.5W	DALI
Q637BB92748BMD0	640lm	2700K	48°	Black	Black Matt	11.5W	DALI
Q637BB93028BMD0	660lm	3000K	28°	Black	Black Matt	11.5W	DALI
Q637BB93037BMD0	660lm	3000K	37°	Black	Black Matt	11.5W	DALI
Q637BB93048BMD0	660lm	3000K	48°	Black	Black Matt	11.5W	DALI
Q637BB183028BMD0	560lm	1800K-3000K Dim to Warm	28°	Black	Black Matt	11.5W	DALI
Q637BB183037BMD0	560lm	1800K-3000K Dim to Warm	37°	Black	Black Matt	11.5W	DALI
Q637BB183048BMD0	560lm	1800K-3000K Dim to Warm	48°	Black	Black Matt	11.5W	DALI
Q637BW92728BMD0	640lm	2700K	28°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW92737BMD0	640lm	2700K	37°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW92748BMD0	640lm	2700K	48°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW93028BMD0	660lm	3000K	28°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW93037BMD0	660lm	3000K	37°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW93048BMD0	660lm	3000K	48°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BB94028BMD0	670lm	4000K	28°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BB94037BMD0	670lm	4000K	37°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BB94048BMD0	670lm	4000K	48°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW94028BMD0	670lm	4000K	28°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW94037BMD0	670lm	4000K	37°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW94048BMD0	670lm	4000K	48°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW183028BMD0	560lm	1800K-3000K Dim to Warm	28°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW183037BMD0	560lm	1800K-3000K Dim to Warm	37°	White (RAL 9003)	Black Matt	11.5W	DALI
Q637BW183048BMD0	560lm	1800K-3000K Dim to Warm	48°	White (RAL 9003)	Black Matt	11.5W	DALI
