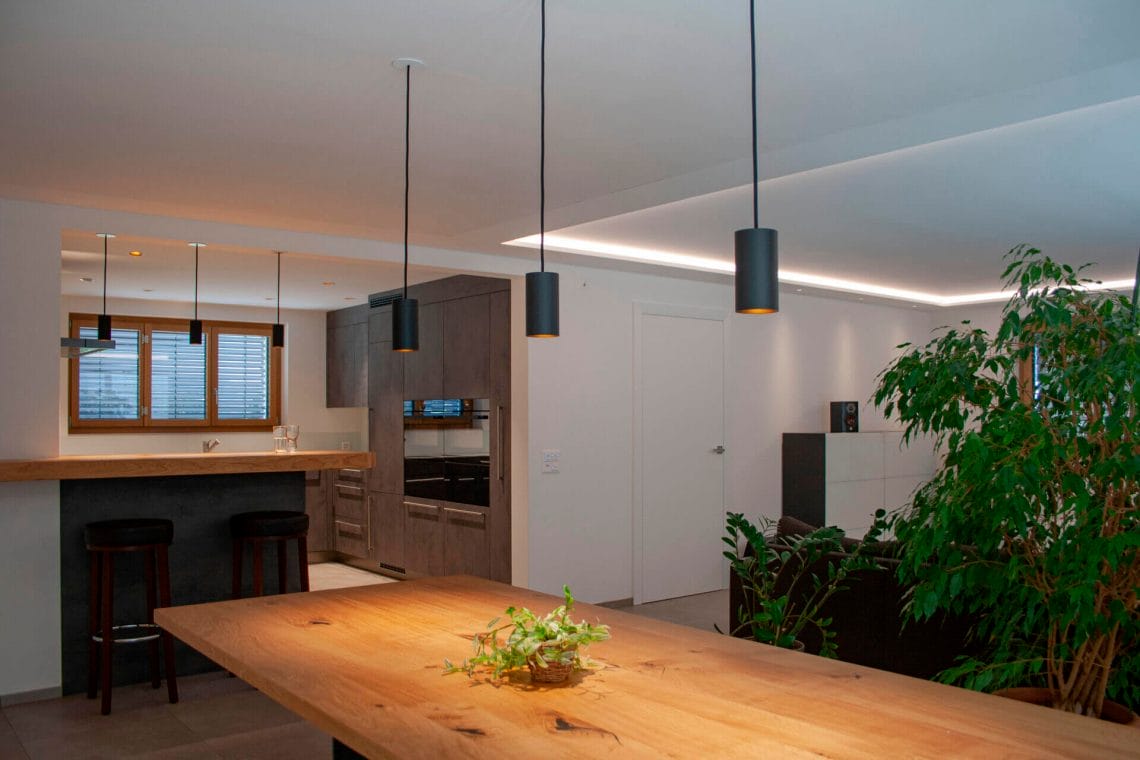

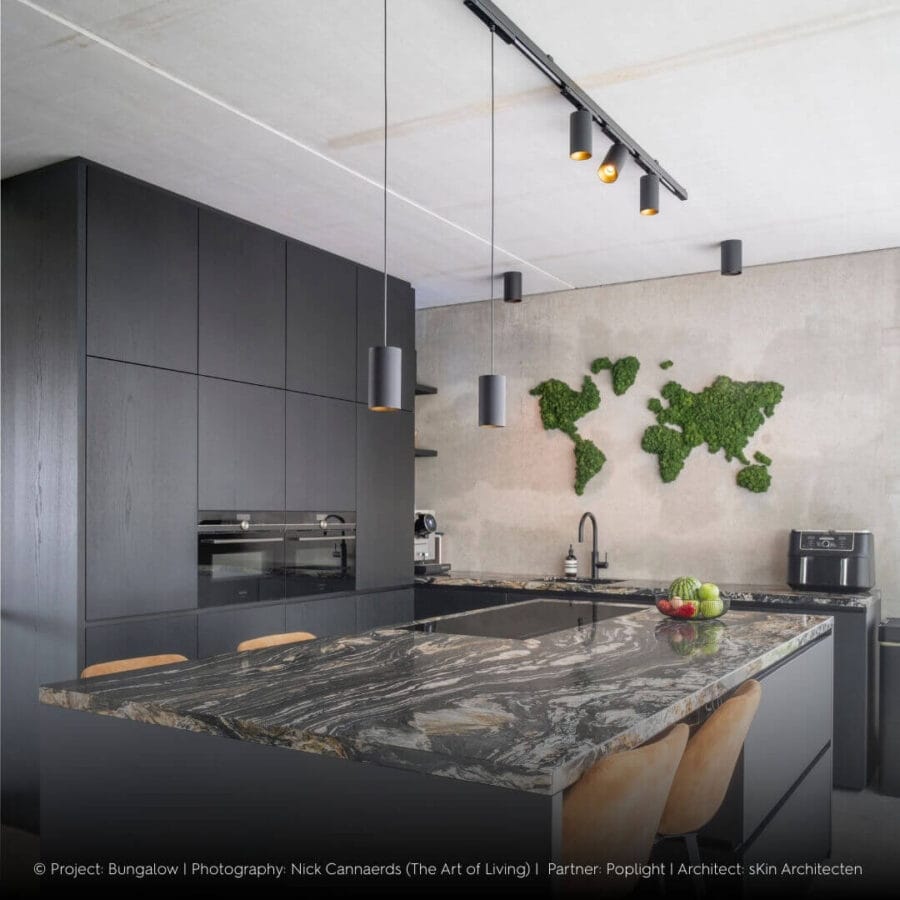

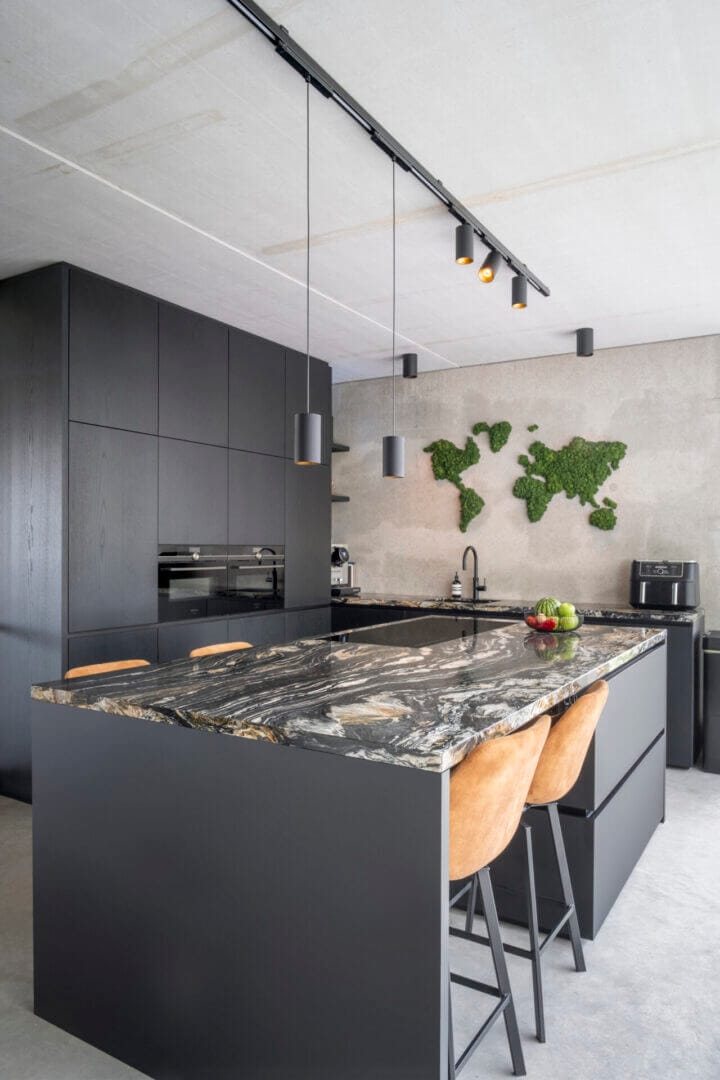

The Dea Vesta is like a beautiful dress. You keep looking at it. Simple yet elegant. This pendant luminaire has its own refined way to put light to the place where it’s needed: a luxurious kitchen, a beautiful staircase, a stylish bar, a large dinner table. Apply the Dea Vesta in a series to make even more impact. On request available in 24°.
Dea Vesta M PE
Simple yet elegant.
- Warranty on quality in years.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 501EW92740SGF0 | 1240 lm | 2700K | 90 | 40° | White | Silver High Gloss |
| 501FW93040SGF0 | 1290 lm | 3000K | 90 | 40° | White | Silver High Gloss |
| 501FW94040SGF0 | 1300 lm | 4000K | 90 | 40° | White | Silver High Gloss |
| 501EW92740BGF0 | 1140 lm | 2700K | 90 | 40° | White | Black High Gloss |
| 501EW93040BGF0 | 1180 lm | 3000K | 90 | 40° | White | Black High Gloss |
| 501EW94040BGF0 | 1200 lm | 4000K | 90 | 40° | White | Black High Gloss |
| 501EW92740WHF0 | 1160 lm | 2700K | 90 | 40° | White | White |
| 501EW93040WHF0 | 1200 lm | 3000K | 90 | 40° | White | White |
| 501EW94040WHF0 | 1220 lm | 4000K | 90 | 40° | White | White |
| 501EW92740CHF0 | 1200 lm | 2700K | 90 | 40° | White | Chrome |
| 501FW93040CHF0 | 1260 lm | 3000K | 90 | 40° | White | Chrome |
| 501FW94040CHF0 | 1270 lm | 4000K | 90 | 40° | White | Chrome |
| 501EW92740GOF0 | 1160 lm | 2700K | 90 | 40° | White | Gold |
| 501EW93040GOF0 | 1200 lm | 3000K | 90 | 40° | White | Gold |
| 501EW94040GOF0 | 1220 lm | 4000K | 90 | 40° | White | Gold |
| 501EW92740BMF0 | 1060 lm | 2700K | 90 | 40° | White | Black Matt |
| 501EW93040BMF0 | 1120 lm | 3000K | 90 | 40° | White | Black Matt |
| 501EW94040BMF0 | 1130 lm | 4000K | 90 | 40° | White | Black Matt |
| 501EB92740SGF0 | 1240 lm | 2700K | 90 | 40° | Black | Silver High Gloss |
| 501FB93040SGF0 | 1290 lm | 3000K | 90 | 40° | Black | Silver High Gloss |
| 501FB94040SGF0 | 1300 lm | 4000K | 90 | 40° | Black | Silver High Gloss |
| 501EB92740BGF0 | 1140 lm | 2700K | 90 | 40° | Black | Black High Gloss |
| 501EB93040BGF0 | 1180 lm | 3000K | 90 | 40° | Black | Black High Gloss |
| 501EB94040BGF0 | 1200 lm | 4000K | 90 | 40° | Black | Black High Gloss |
| 501EB92740WHF0 | 1160 lm | 2700K | 90 | 40° | Black | White |
| 501EB93040WHF0 | 1200 lm | 3000K | 90 | 40° | Black | White |
| 501EB94040WHF0 | 1220 lm | 4000K | 90 | 40° | Black | White |
| 501EB92740CHF0 | 1200 lm | 2700K | 90 | 40° | Black | Chrome |
| 501FB93040CHF0 | 1260 lm | 3000K | 90 | 40° | Black | Chrome |
| 501FB94040CHF0 | 1270 lm | 4000K | 90 | 40° | Black | Chrome |
| 501EB92740GOF0 | 1160 lm | 2700K | 90 | 40° | Black | Gold |
| 501EB93040GOF0 | 1200 lm | 3000K | 90 | 40° | Black | Gold |
| 501EB94040GOF0 | 1220 lm | 4000K | 90 | 40° | Black | Gold |
| 501EB92740BMF0 | 1060 lm | 2700K | 90 | 40° | Black | Black Matt |
| 501EB93040BMF0 | 1120 lm | 3000K | 90 | 40° | Black | Black Matt |
| 501EB94040BMF0 | 1130 lm | 4000K | 90 | 40° | Black | Black Matt |
| 501EW92740COF0 | 1160 lm | 2700K | 90 | 40° | White | Copper |
| 501EW93040COF0 | 1200 lm | 3000K | 90 | 40° | White | Copper |
| 501EW94040COF0 | 1220 lm | 4000K | 90 | 40° | White | Copper |
| 501EB92740COF0 | 1160 lm | 2700K | 90 | 40° | Black | Copper |
| 501EB93040COF0 | 1200 lm | 3000K | 90 | 40° | Black | Copper |
| 501EB94040COF0 | 1220 lm | 4000K | 90 | 40° | Black | Copper |
Click on specification values for related products.
Luminous Flux1060 lm, 1120 lm, 1130 lm, 1140 lm, 1160 lm, 1180 lm, 1200 lm, 1220 lm, 1240 lm, 1260 lm, 1270 lm, 1290 lm, 1300 lm
CRI90
LED powerN/A
System power14W
Chromaticity tolerance3 MacAdam
OpticReflector
Beam angle40°
Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White
Net. Weight0.54Kg
Cut out dimensionN/A

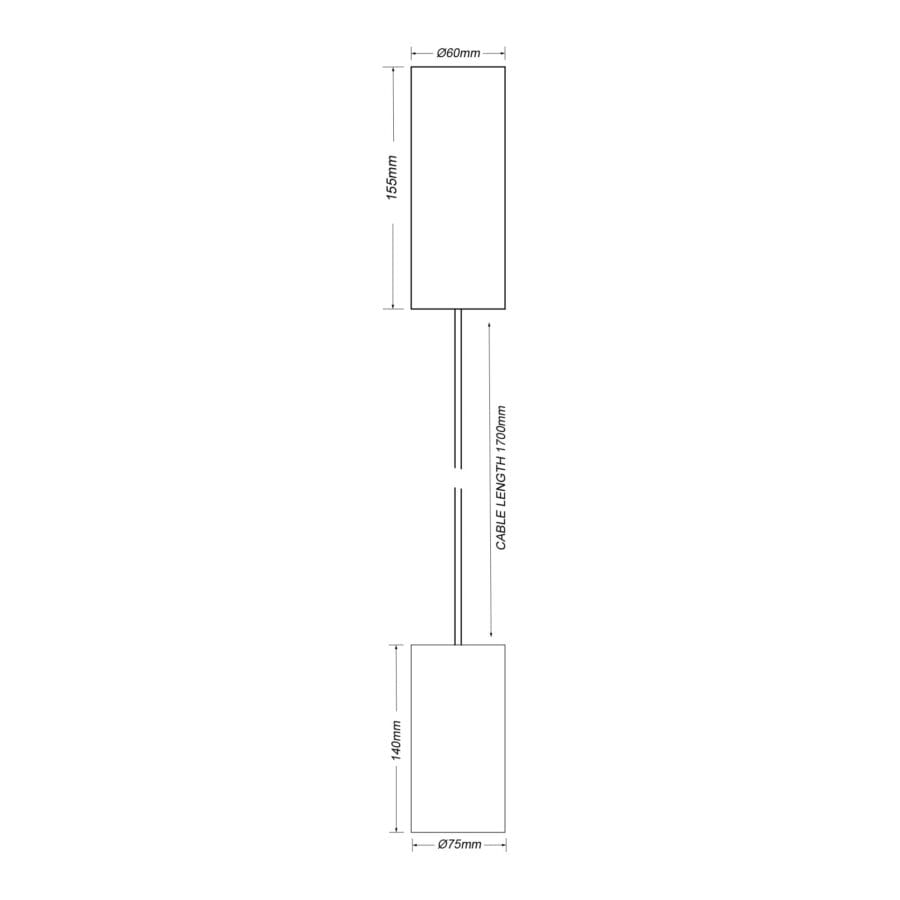

Luminaire dimensionØ75x140mm
Nominal fA [mA]N/A
Nominal fV [V]N/A
Power supplyIncluded ON/OFF
Mains Voltage220-240V / 50 -60Hz
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source energy classE
Light source identifierCLU028-1202C4-273H5M3-F1, CLU028-1202C4-303H5M3-F1, CLU028-1202C4-403H5M3-F1
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDea Della Luce

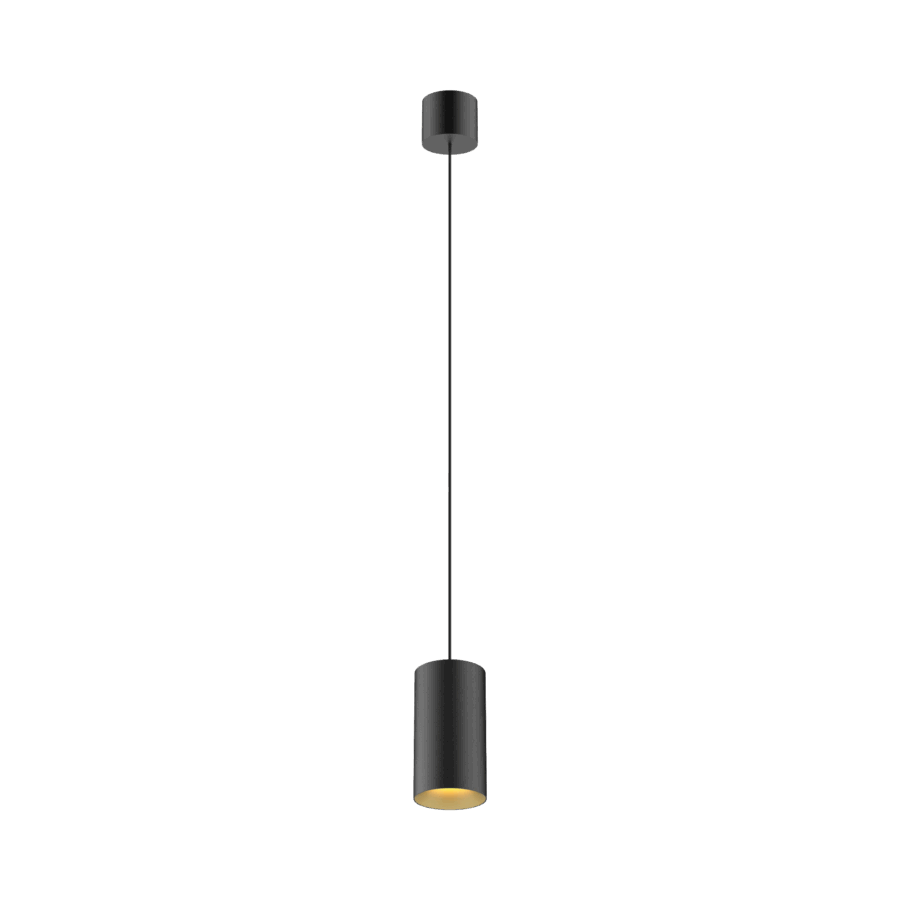

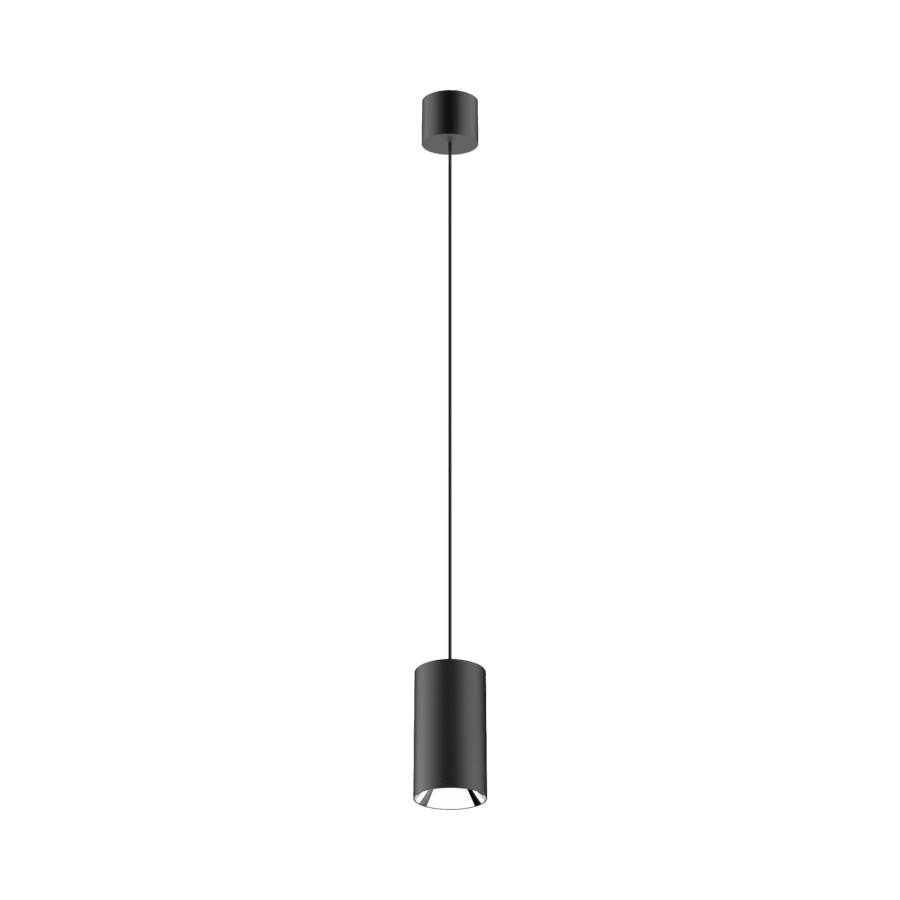

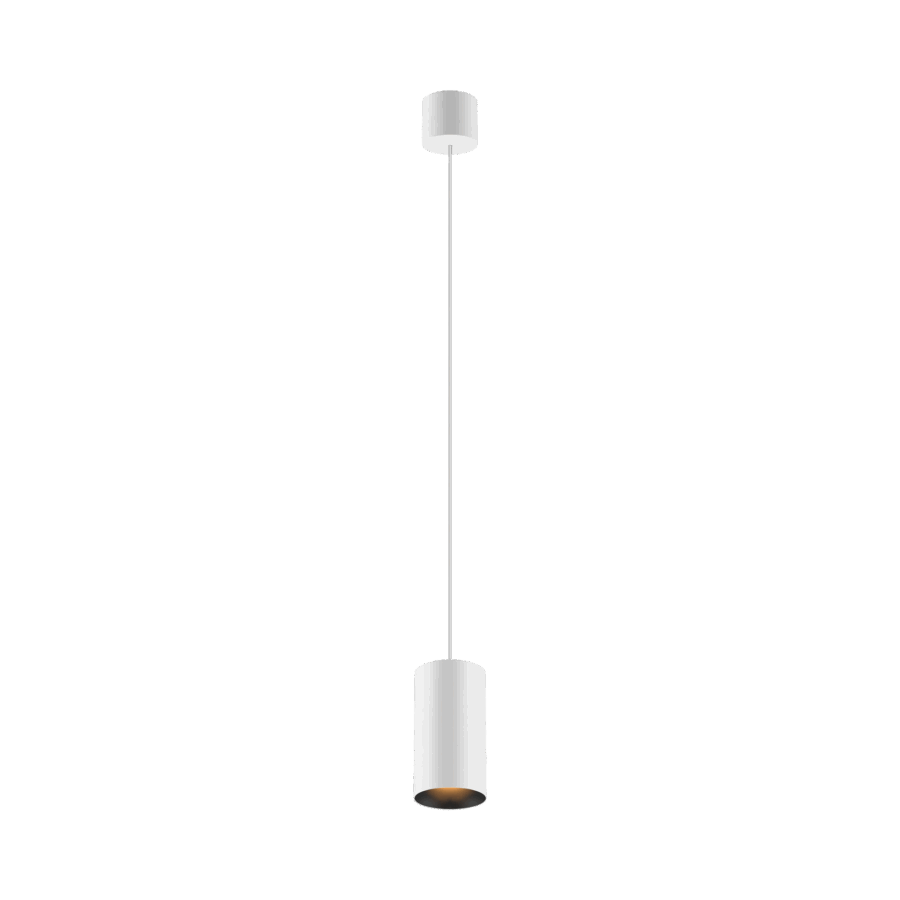

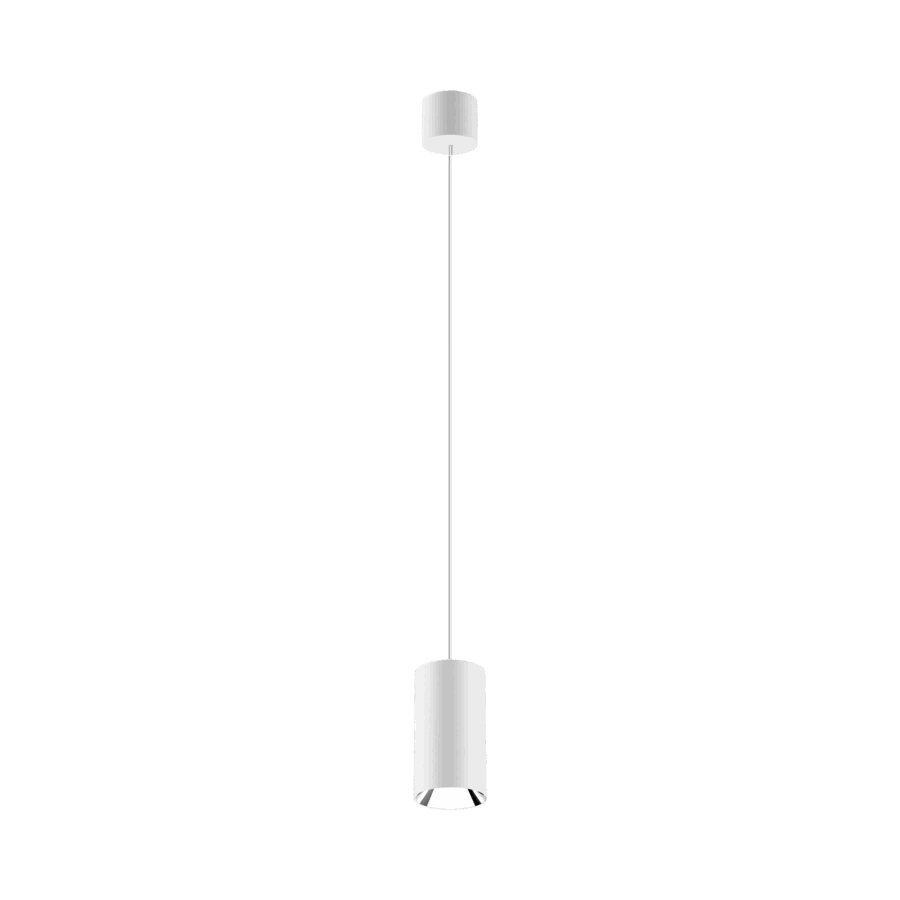

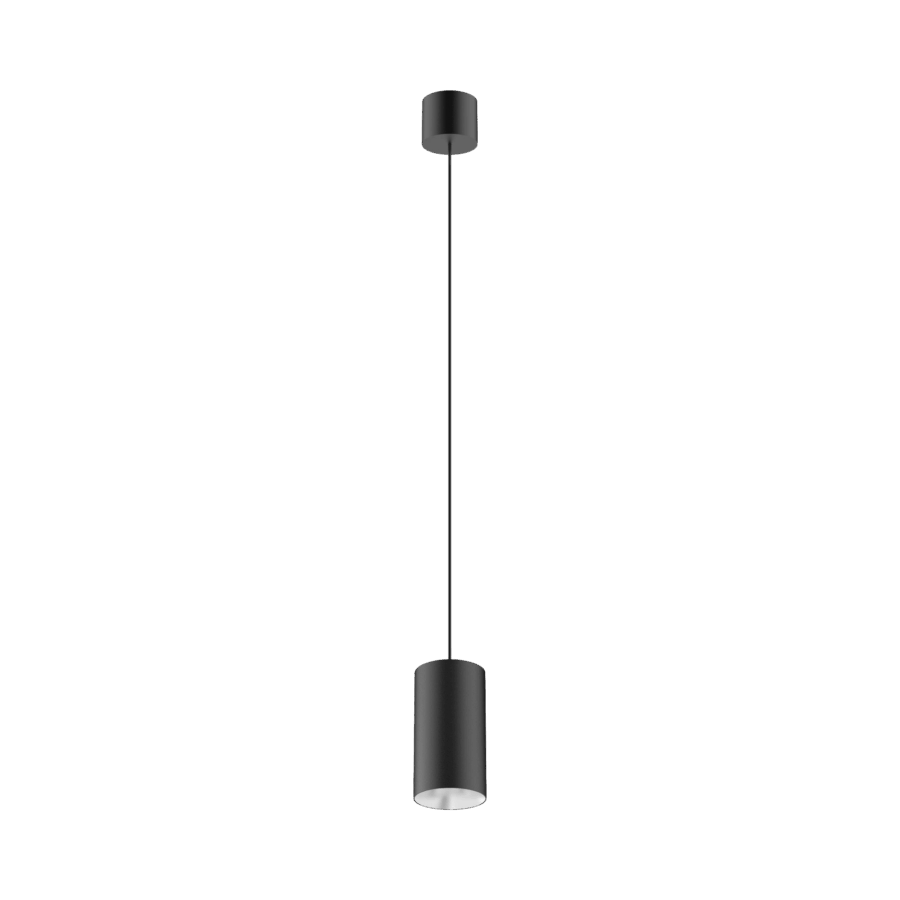

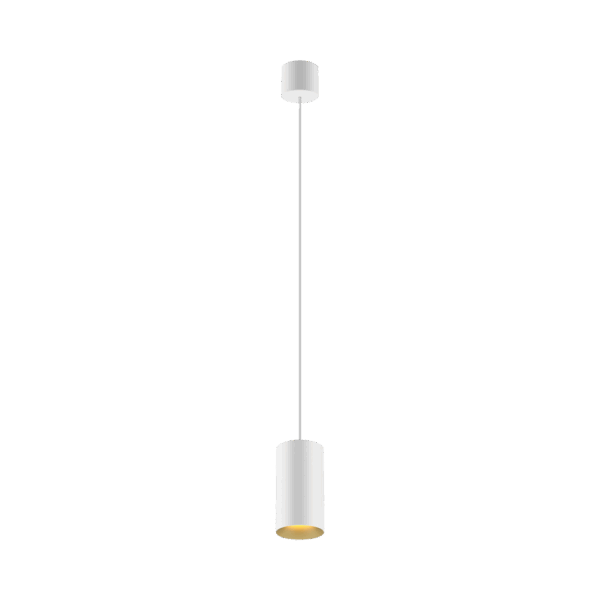

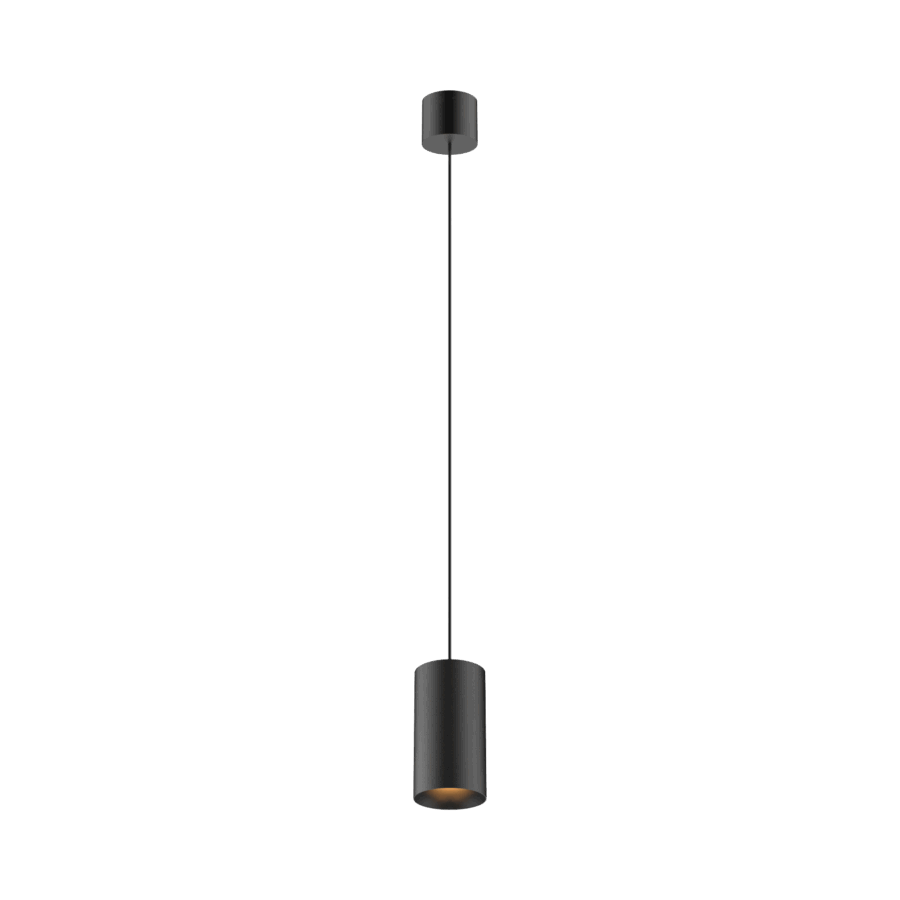

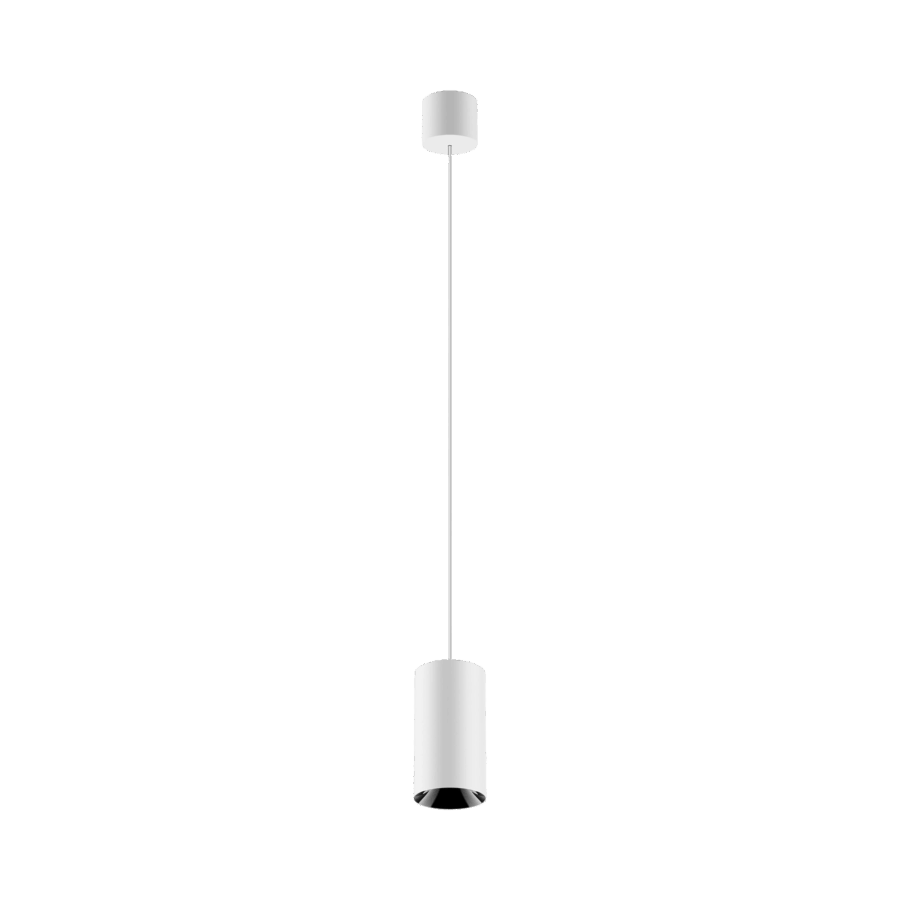

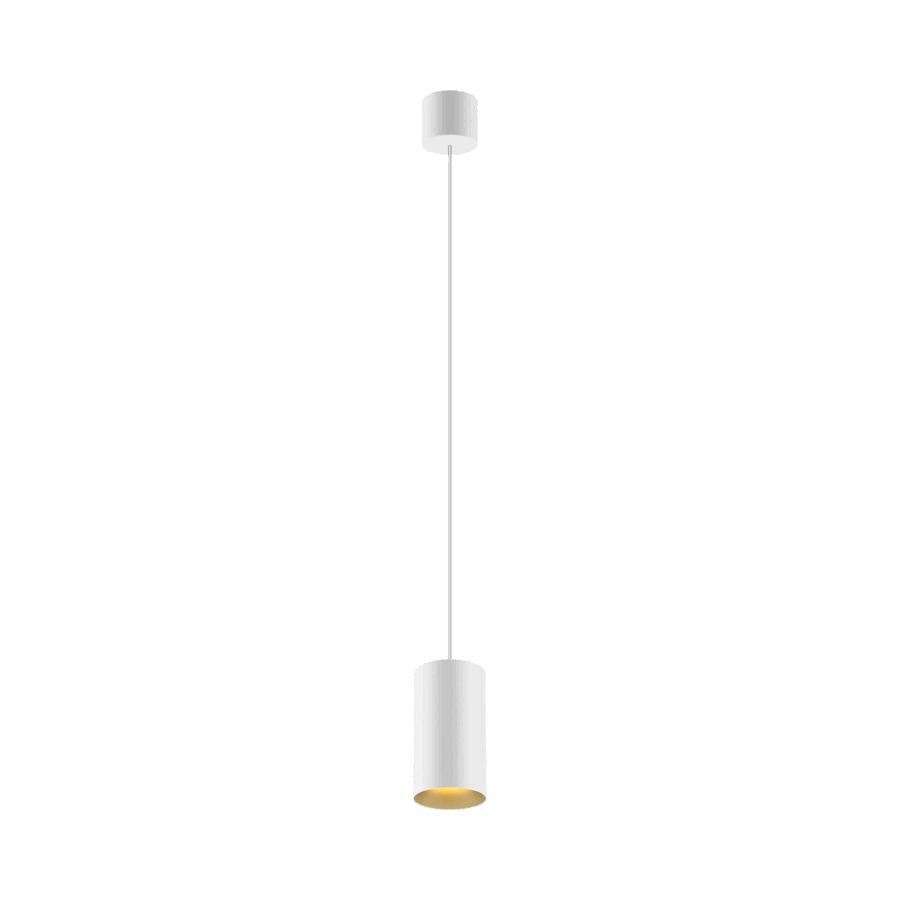

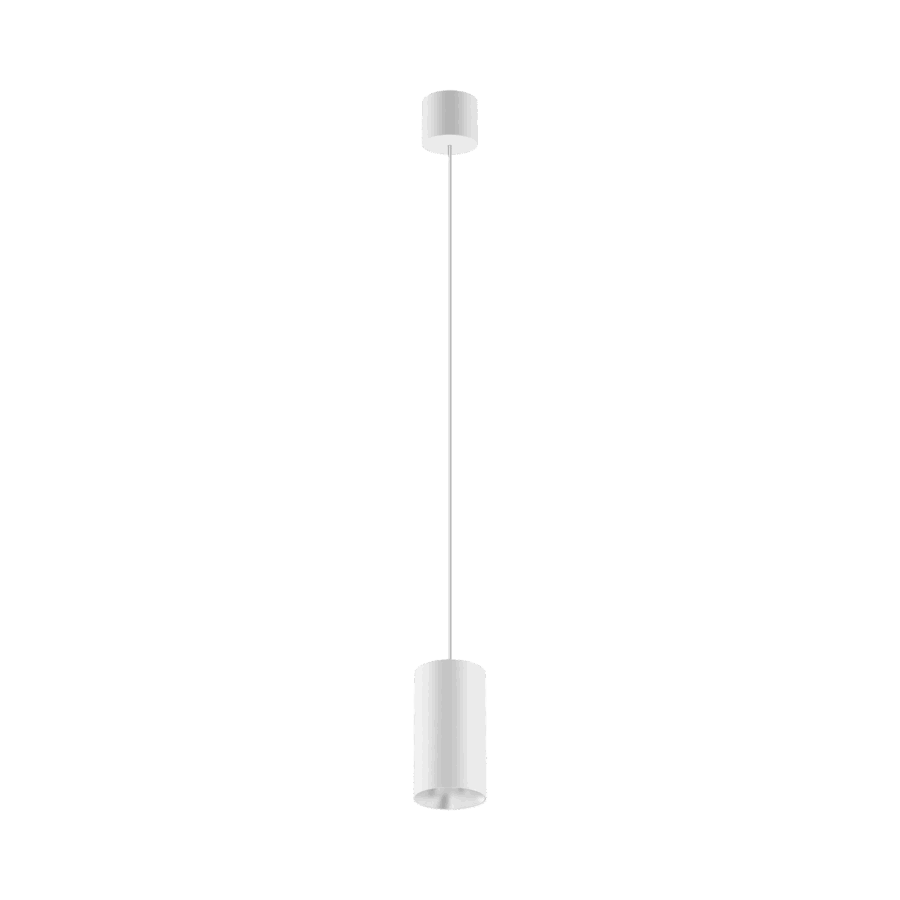

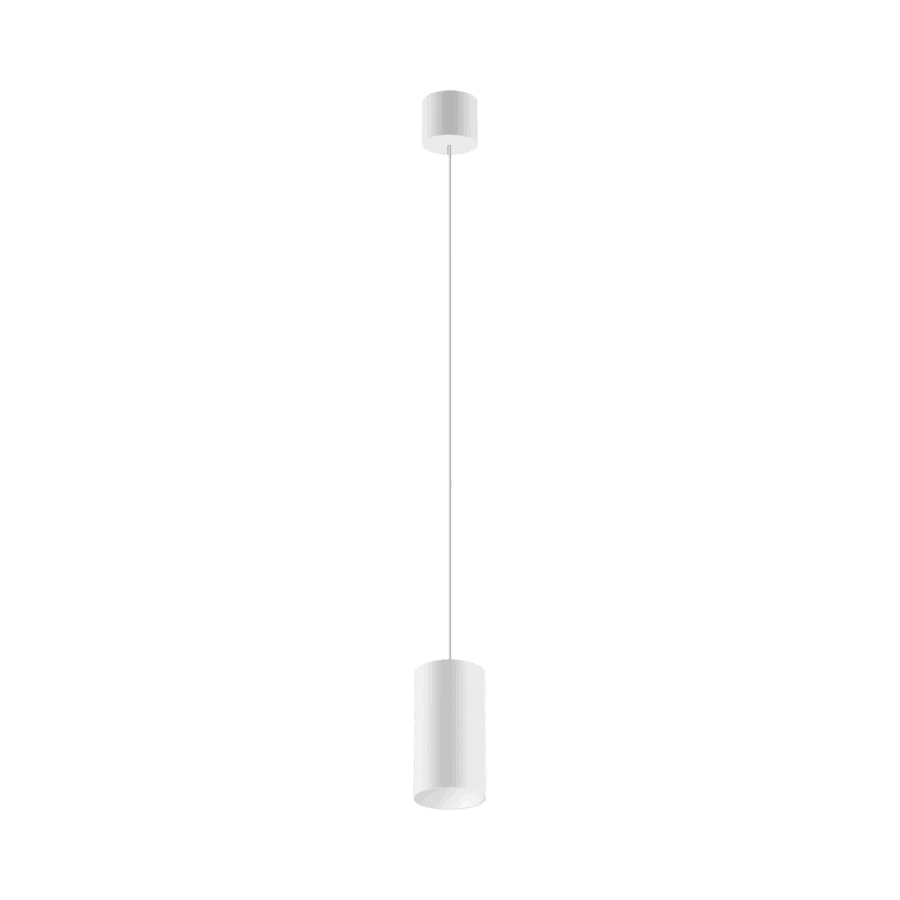

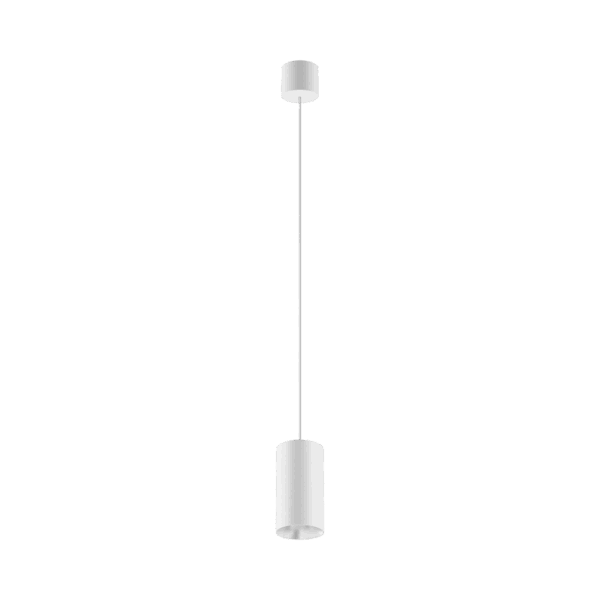

The Karizma Luce Dea Vesta M PE (pendulo) is a pendant luminaire from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 1140- 1300 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
