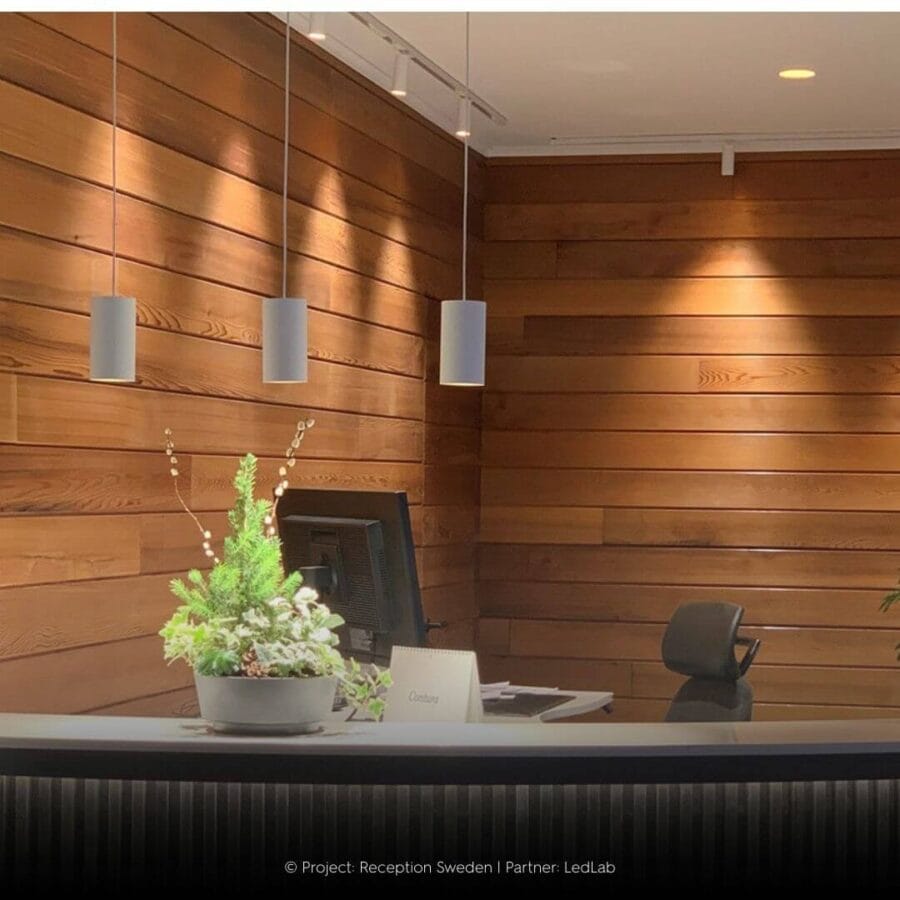

The Dea Vesta is like a beautiful dress. You keep looking at it. Simple yet elegant. This pendant luminaire has its own refined way to put light to the place where it’s needed: a luxurious kitchen, a beautiful staircase, a stylish bar, a large dinner table. Apply the Dea Vesta in a series to make even more impact.
Dea Vesta S PE-in
Simple yet elegant.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 505DW92740SGF0 | 900lm | 2700K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 505DW93040SGF0 | 950lm | 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 505DW94040SGF0 | 960lm | 4000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 505DW92740BGF0 | 830lm | 2700K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 505DW93040BGF0 | 860lm | 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 505DW94040BGF0 | 870lm | 4000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 505DW92740WHF0 | 840lm | 2700K | 90 | 40° | White(RAL9003) | White |
| 505DW93040WHF0 | 880lm | 3000K | 90 | 40° | White(RAL9003) | White |
| 505DW94040WHF0 | 890lm | 4000K | 90 | 40° | White(RAL9003) | White |
| 505DW92740CHF0 | 890lm | 2700K | 90 | 40° | White(RAL9003) | Chrome |
| 505DW93040CHF0 | 930lm | 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 505DW94040CHF0 | 940lm | 4000K | 90 | 40° | White(RAL9003) | Chrome |
| 505DW92740GOF0 | 840lm | 2700K | 90 | 40° | White(RAL9003) | Gold |
| 505DW93040GOF0 | 880lm | 3000K | 90 | 40° | White(RAL9003) | Gold |
| 505DW94040GOF0 | 890lm | 4000K | 90 | 40° | White(RAL9003) | Gold |
| 505DW92740COF0 | 840lm | 2700K | 90 | 40° | White(RAL9003) | Copper |
| 505DW93040COF0 | 880lm | 3000K | 90 | 40° | White(RAL9003) | Copper |
| 505DW94040COF0 | 890lm | 4000K | 90 | 40° | White(RAL9003) | Copper |
| 505DW92740BMF0 | 760lm | 2700K | 90 | 40° | White(RAL9003) | Black Matt |
| 505DW93040BMF0 | 800lm | 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 505DW94040BMF0 | 810lm | 4000K | 90 | 40° | White(RAL9003) | Black Matt |
| 505DB92740SGF0 | 900lm | 2700K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 505DB93040SGF0 | 950lm | 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 505DB94040SGF0 | 960lm | 4000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 505DB92740BGF0 | 830lm | 2700K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 505DB93040BGF0 | 860lm | 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 505DB94040BGF0 | 870lm | 4000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 505DB92740WHF0 | 840lm | 2700K | 90 | 40° | Black(RAL9005) | White |
| 505DB93040WHF0 | 880lm | 3000K | 90 | 40° | Black(RAL9005) | White |
| 505DB94040WHF0 | 890lm | 4000K | 90 | 40° | Black(RAL9005) | White |
| 505DB92740CHF0 | 890lm | 2700K | 90 | 40° | Black(RAL9005) | Chrome |
| 505DB93040CHF0 | 930lm | 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 505DB94040CHF0 | 940lm | 4000K | 90 | 40° | Black(RAL9005) | Chrome |
| 505DB92740GOF0 | 840lm | 2700K | 90 | 40° | Black(RAL9005) | Gold |
| 505DB93040GOF0 | 880lm | 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 505DB94040GOF0 | 890lm | 4000K | 90 | 40° | Black(RAL9005) | Gold |
| 505DB92740COF0 | 840lm | 2700K | 90 | 40° | Black(RAL9005) | Copper |
| 505DB93040COF0 | 880lm | 3000K | 90 | 40° | Black(RAL9005) | Copper |
| 505DB94040COF0 | 890lm | 4000K | 90 | 40° | Black(RAL9005) | Copper |
| 505DB92740BMF0 | 760lm | 2700K | 90 | 40° | Black(RAL9005) | Black Matt |
| 505DB93040BMF0 | 800lm | 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 505DB94040BMF0 | 810lm | 4000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 505CW183040WHP0 | 570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | White |
| 505CW183040BGP0 | 570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 505CW183040BMP0 | 570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 505CW183040GOP0 | 570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Gold |
| 505CW183040CHP0 | 570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 505CW183040SGP0 | 570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 505CW183040COP0 | 570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Copper |
| 505CB183040WHP0 | 570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | White |
| 505CB183040BGP0 | 570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 505CB183040BMP0 | 570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 505CB183040GOP0 | 570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 505CB183040CHP0 | 570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 505CB183040SGP0 | 570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 505CB183040COP0 | 570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Copper |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), Black(RAL9005)(RAL9005), White(RAL9003), White(RAL9003)(RAL9003)

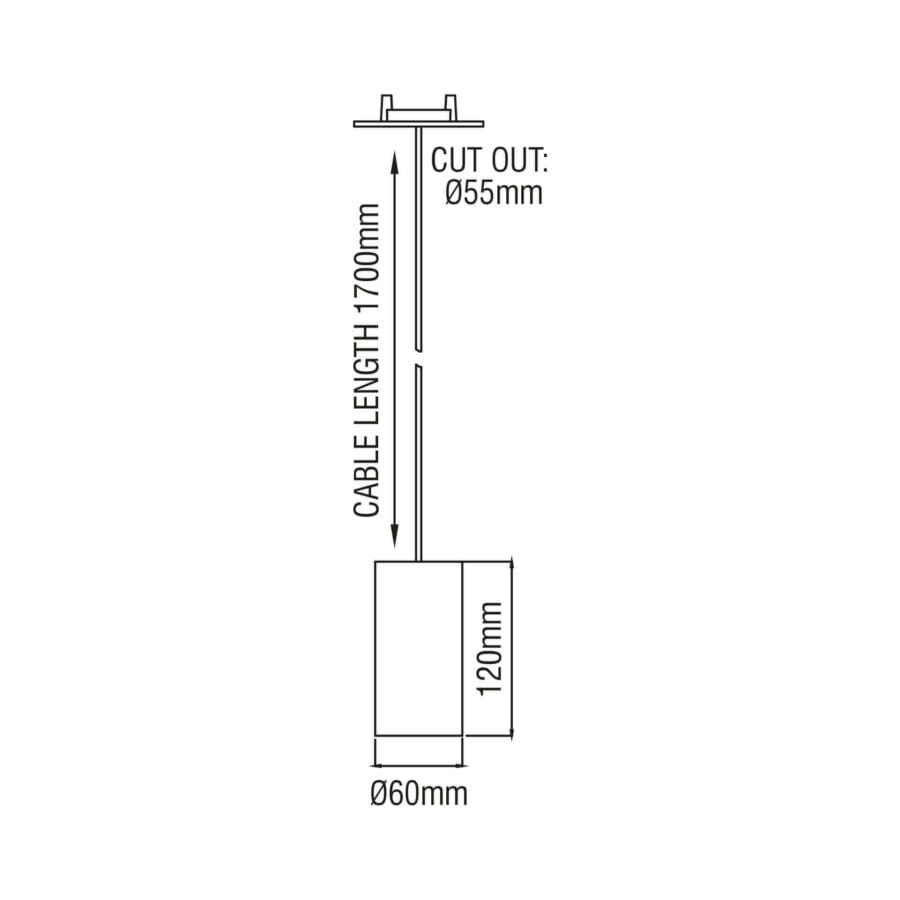

Luminaire Dimension [mm]Ø60x120mm
Cut-Out [mm]Ø55mm
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
Beam Angle [deg]40°
LED Power [W]N/A
Luminous Flux [lm]570lm, 870lm810lm, 760lm, 800lm, 810lm, 830lm, 840lm, 860lm, 870lm, 880lm, 890lm, 900lm, 930lm, 940lm, 950lm, 960lm
System Efficiency [lm/W]57lm/W, 72lm/W, 76lm/W, 77lm/W, 79lm/W, 80lm/W, 82lm/W, 83lm/W, 84lm/W, 85lm/W, 86lm/W, 89lm/W, 90lm/W, 91lm/W
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]220-240V / 50 -60Hz
Power SupplyIncluded ON/OFF, Included Phase Cut
Nominal Current [mA]N/A
Forward Voltage [V]N/A
Ambient Temperature [degC]35°C
Ingress ProtectionIP20
Light Source Energy ClassE
Light Source IdentifierCLU028-1202C4-273H5M3-F1, CLU028-1202C4-303H5M3-F1, CLU028-1202C4-403H5M3-F1
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.5Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce

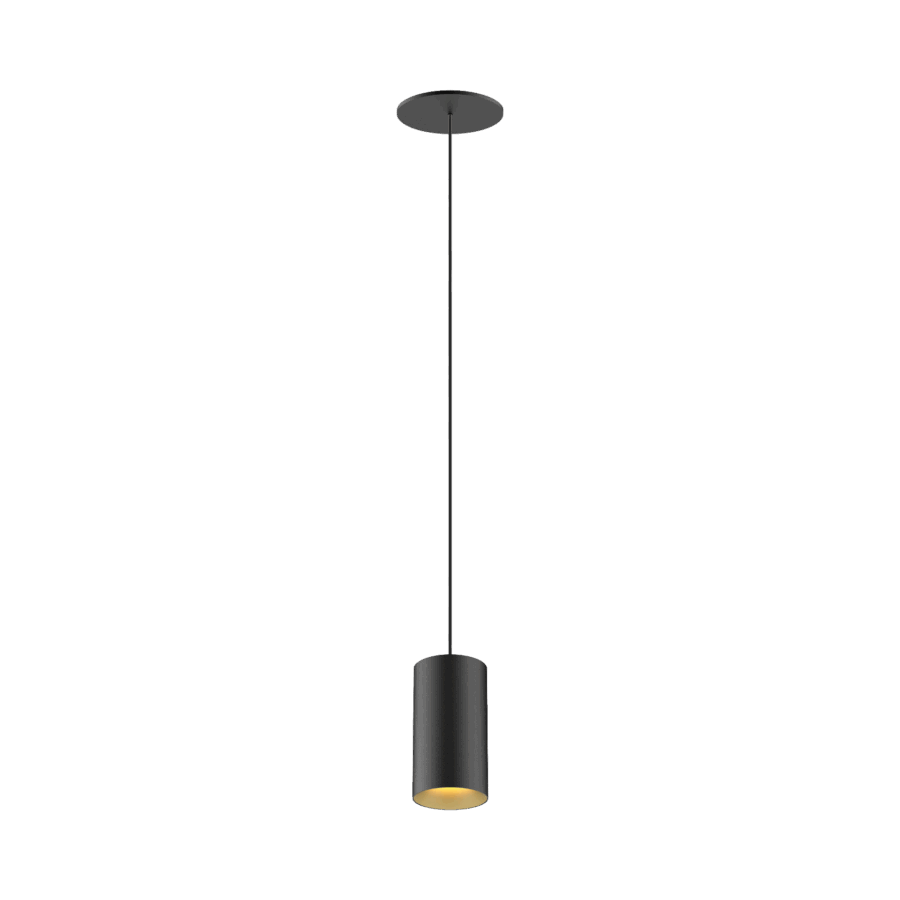

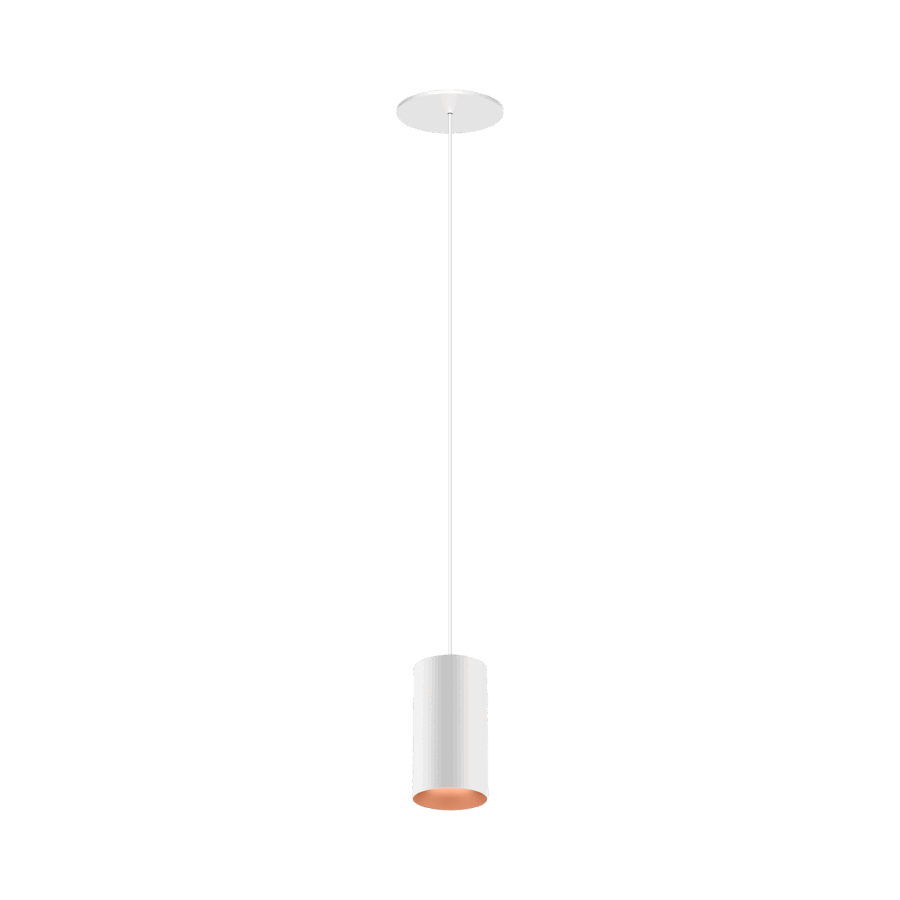

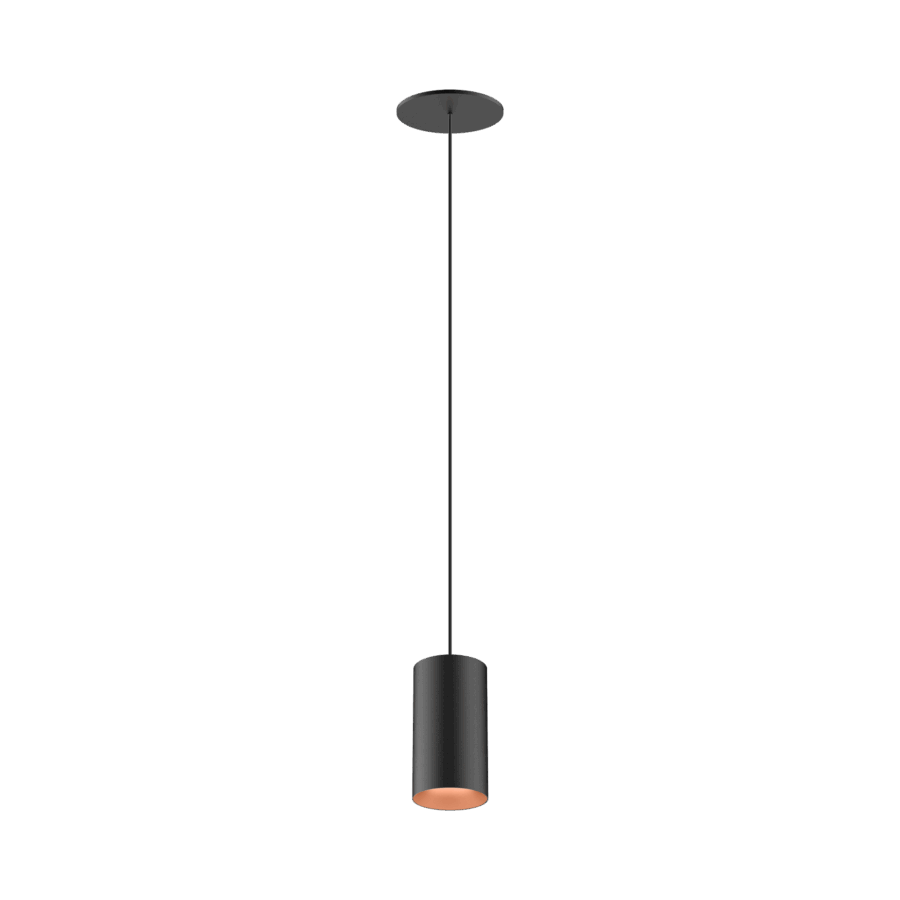

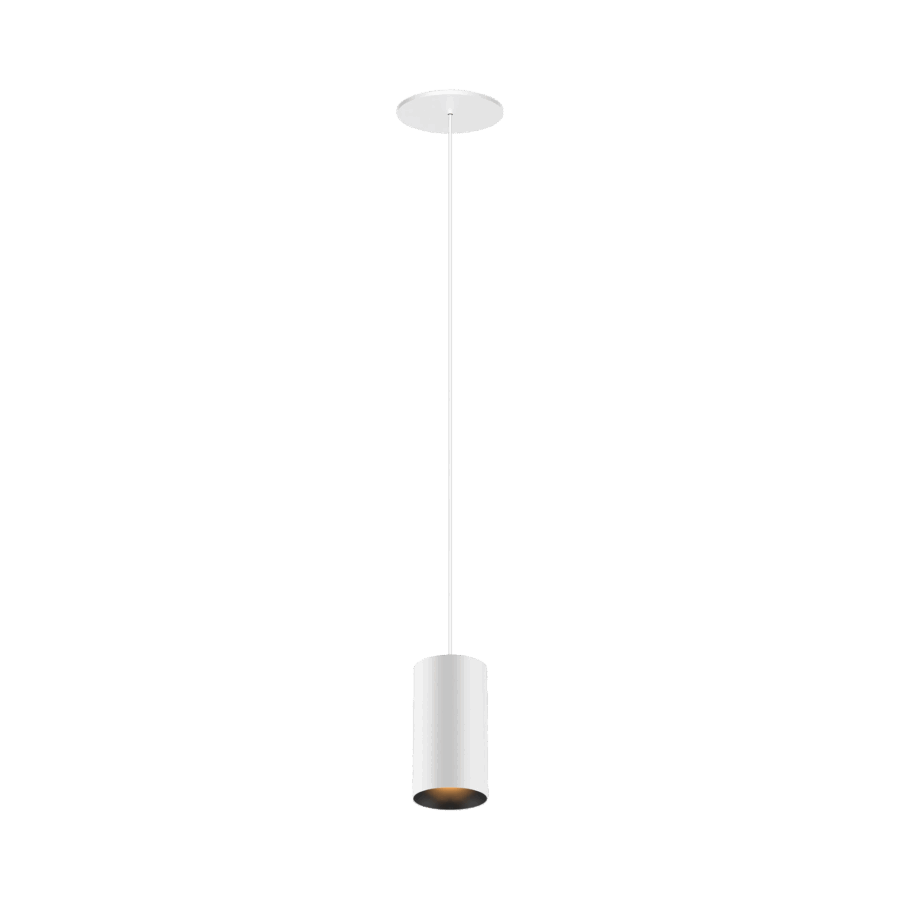

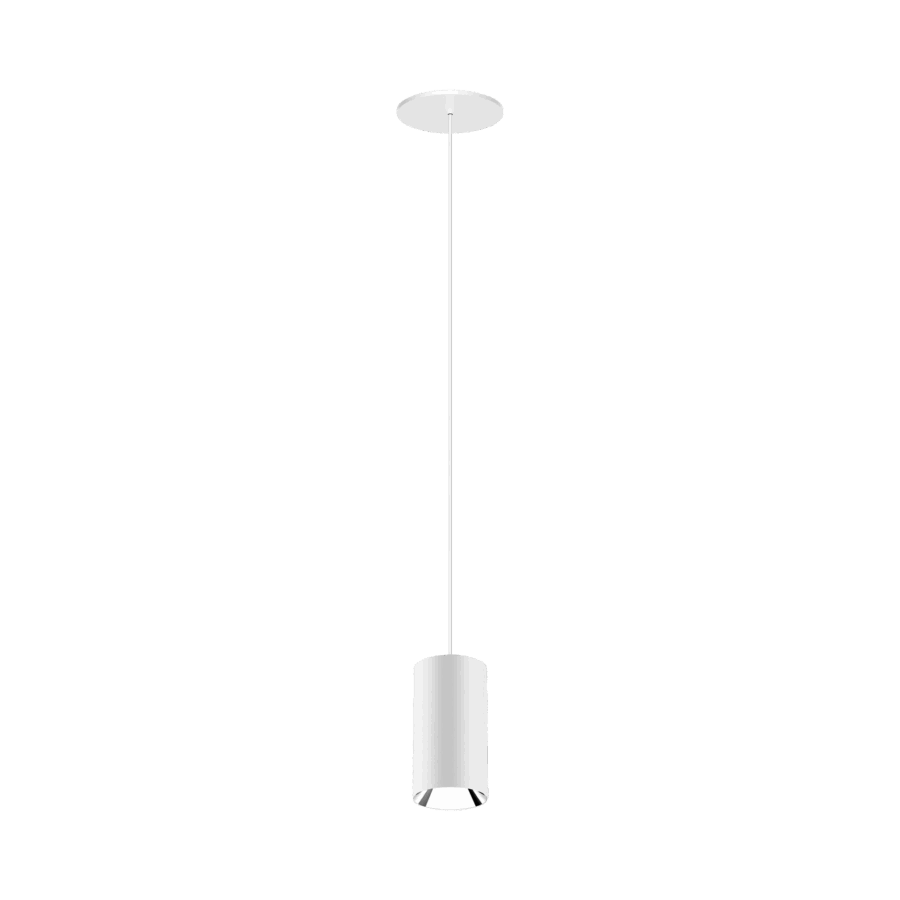

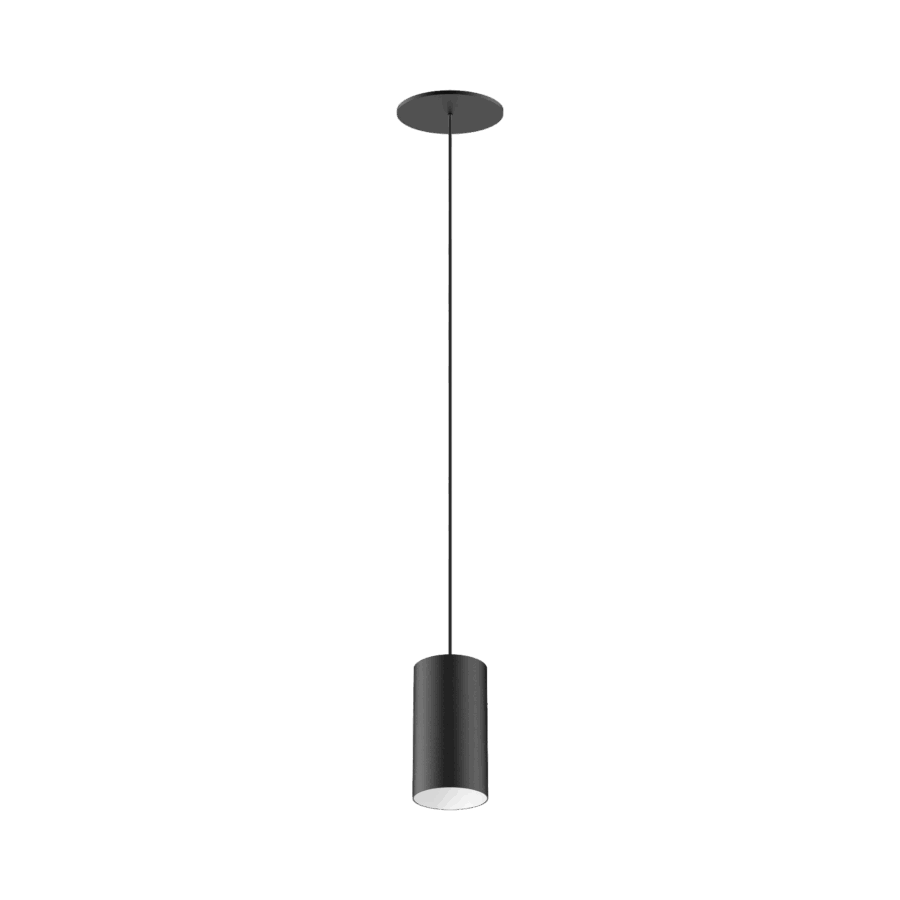

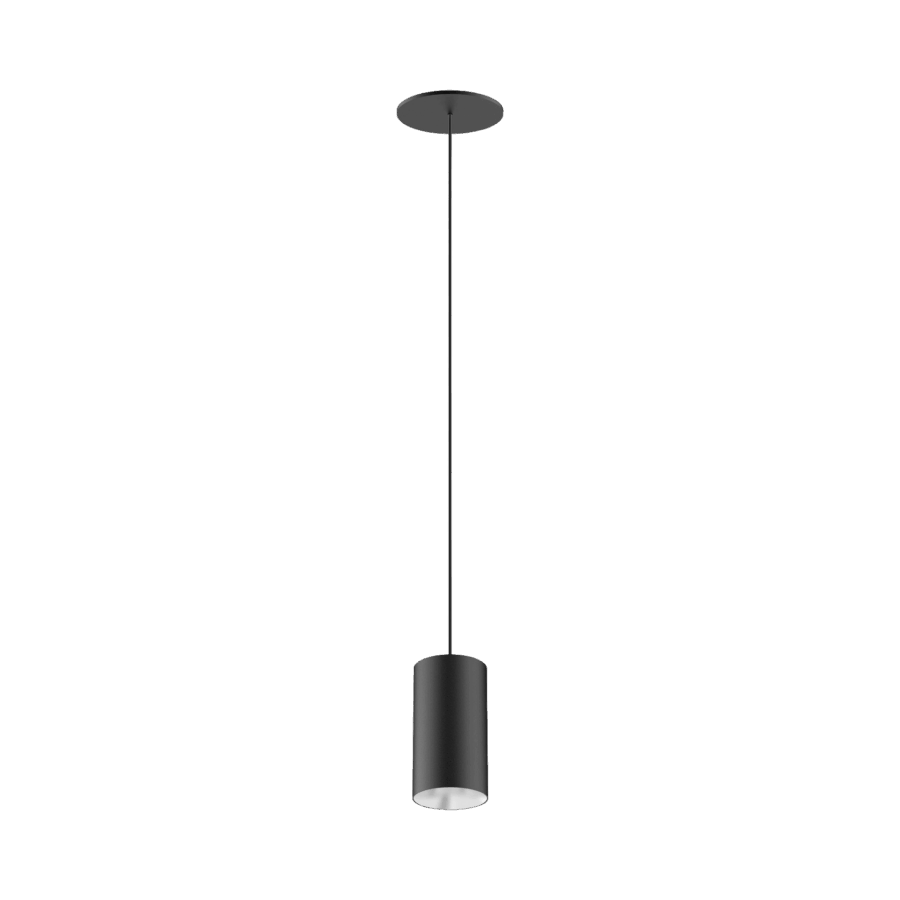

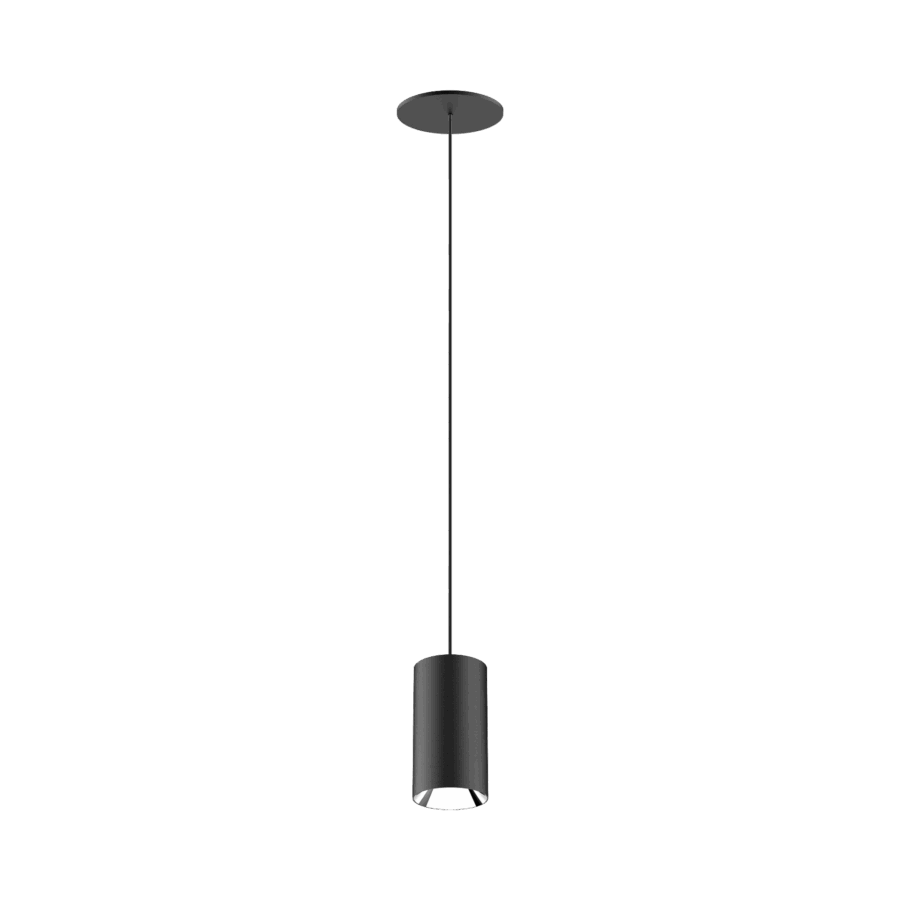

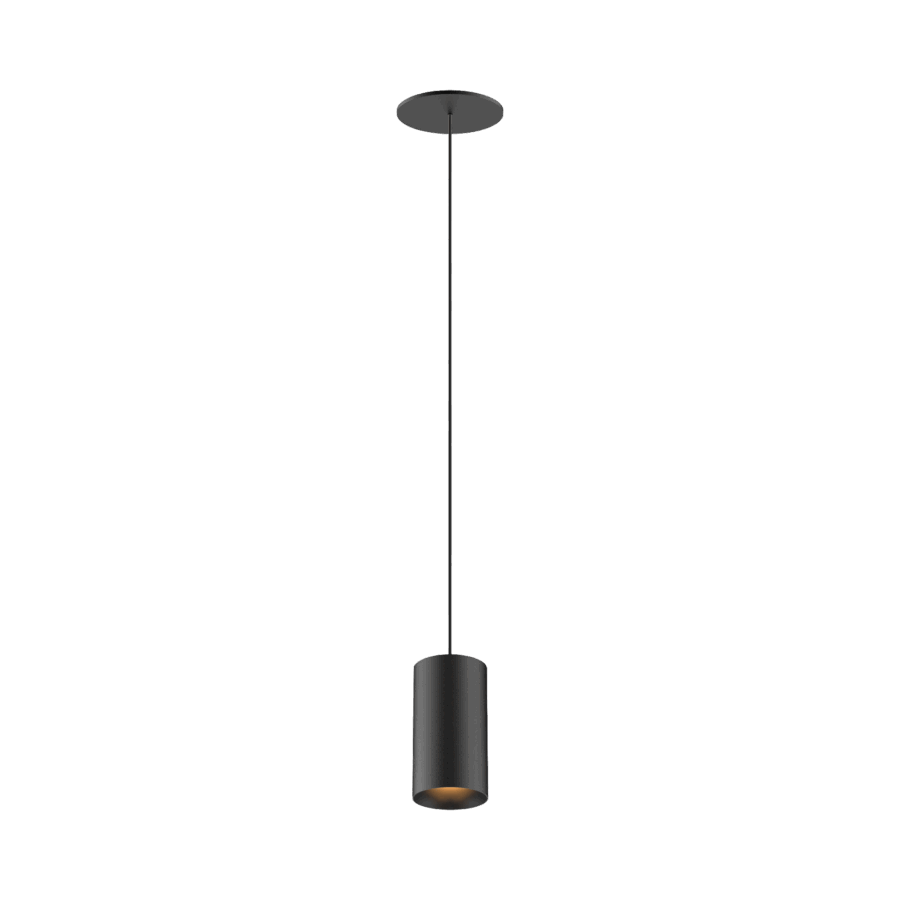

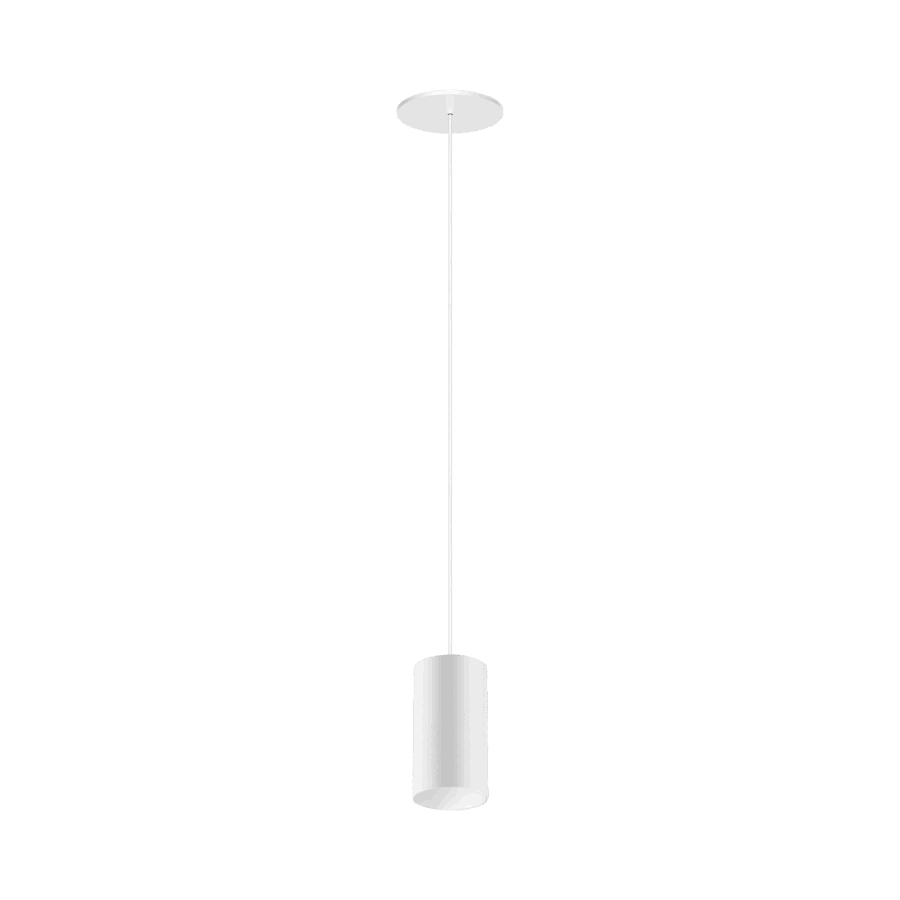

The Karizma Luce Dea Vesta S PE-in (pendulo-incasatto) is a recessed pendant luminaire from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 830- 940 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
