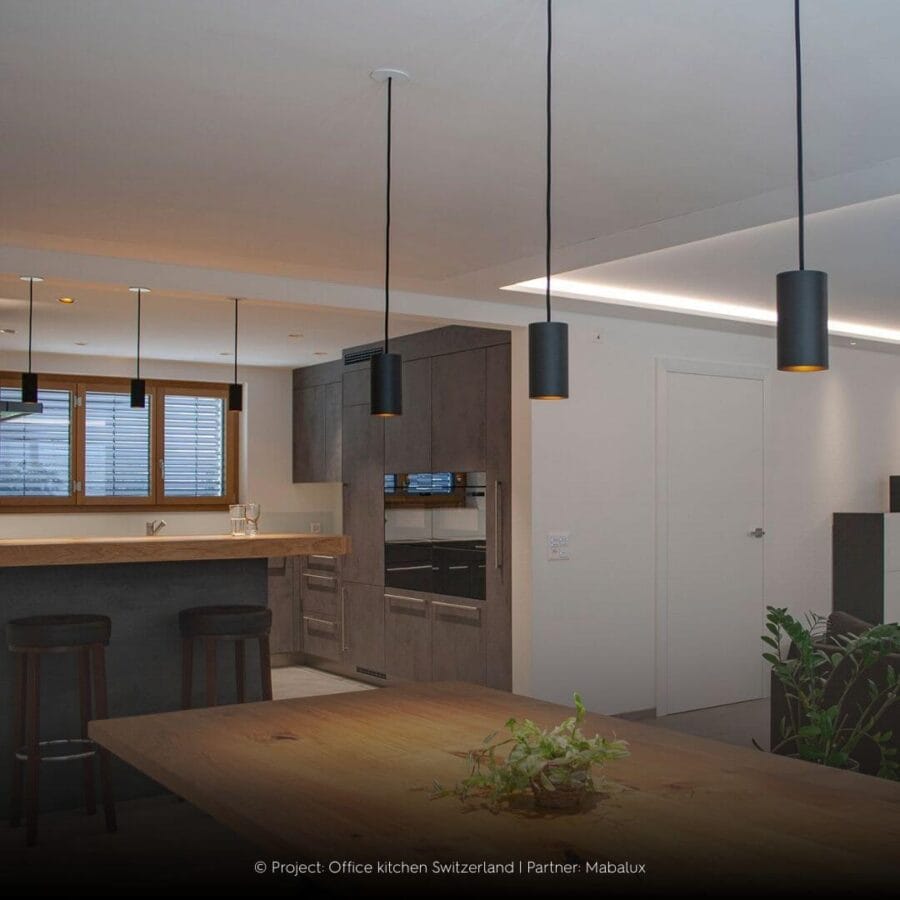

The Dea Vesta is like a beautiful dress. You keep looking at it. Simple yet elegant. This pendant luminaire has its own refined way to put light to the place where it’s needed: a luxurious kitchen, a beautiful staircase, a stylish bar, a large dinner table. Apply the Dea Vesta in a series to make even more impact.
Dea Vesta M PE-in
Simple yet elegant.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 504EW92740SGF0 | 1240lm | 2700K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 504FW93040SGF0 | 1290lm | 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 504FW94040SGF0 | 1300lm | 4000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 504EW92740BGF0 | 1140lm | 2700K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 504EW93040BGF0 | 1180lm | 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 504EW94040BGF0 | 1200lm | 4000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 504EW92740WHF0 | 1160lm | 2700K | 90 | 40° | White(RAL9003) | White |
| 504EW93040WHF0 | 1200lm | 3000K | 90 | 40° | White(RAL9003) | White |
| 504EW94040WHF0 | 1220lm | 4000K | 90 | 40° | White(RAL9003) | White |
| 504EW92740CHF0 | 1200lm | 2700K | 90 | 40° | White(RAL9003) | Chrome |
| 504FW93040CHF0 | 1260lm | 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 504FW94040CHF0 | 1270lm | 4000K | 90 | 40° | White(RAL9003) | Chrome |
| 504EW92740GOF0 | 1160lm | 2700K | 90 | 40° | White(RAL9003) | Gold |
| 504EW93040GOF0 | 1200lm | 3000K | 90 | 40° | White(RAL9003) | Gold |
| 504EW94040GOF0 | 1220lm | 4000K | 90 | 40° | White(RAL9003) | Gold |
| 504EW92740COF0 | 1160lm | 2700K | 90 | 40° | White(RAL9003) | Copper |
| 504EW93040COF0 | 1200lm | 3000K | 90 | 40° | White(RAL9003) | Copper |
| 504EW94040COF0 | 1220lm | 4000K | 90 | 40° | White(RAL9003) | Copper |
| 504EW92740BMF0 | 1060lm | 2700K | 90 | 40° | White(RAL9003) | Black Matt |
| 504EW93040BMF0 | 1120lm | 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 504EW94040BMF0 | 1130lm | 4000K | 90 | 40° | White(RAL9003) | Black Matt |
| 504EB92740SGF0 | 1240lm | 2700K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 504FB93040SGF0 | 1290lm | 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 504FB94040SGF0 | 1300lm | 4000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 504EB92740BGF0 | 1140lm | 2700K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 504EB93040BGF0 | 1180lm | 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 504EB94040BGF0 | 1200lm | 4000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 504EB92740WHF0 | 1160lm | 2700K | 90 | 40° | Black(RAL9005) | White |
| 504EB93040WHF0 | 1200lm | 3000K | 90 | 40° | Black(RAL9005) | White |
| 504EB94040WHF0 | 1220lm | 4000K | 90 | 40° | Black(RAL9005) | White |
| 504EB92740CHF0 | 1200lm | 2700K | 90 | 40° | Black(RAL9005) | Chrome |
| 504FB93040CHF0 | 1260lm | 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 504FB94040CHF0 | 1270lm | 4000K | 90 | 40° | Black(RAL9005) | Chrome |
| 504EB92740GOF0 | 1160lm | 2700K | 90 | 40° | Black(RAL9005) | Gold |
| 504EB93040GOF0 | 1200lm | 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 504EB94040GOF0 | 1220lm | 4000K | 90 | 40° | Black(RAL9005) | Gold |
| 504EB92740COF0 | 1160lm | 2700K | 90 | 40° | Black(RAL9005) | Copper |
| 504EB93040COF0 | 1200lm | 3000K | 90 | 40° | Black(RAL9005) | Copper |
| 504EB94040COF0 | 1220lm | 4000K | 90 | 40° | Black(RAL9005) | Copper |
| 504EB92740BMF0 | 1060lm | 2700K | 90 | 40° | Black(RAL9005) | Black Matt |
| 504EB93040BMF0 | 1120lm | 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 504EB94040BMF0 | 1130lm | 4000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 504EW183040WHP0 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | White |
| 504EW183040BMP0 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 504EW183040SGP0 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 504EW183040CHP0 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 504EW183040BGP0 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 504EW183040GOP0 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Gold |
| 504EW183040COP0 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Copper |
| 504EB183040WHP0 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | White |
| 504EB183040BMP0 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 504EB183040SGP0 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 504EB183040CHP0 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 504EB183040BGP0 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 504EB183040GOP0 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 504EB183040COP0 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Copper |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), Black(RAL9005)(RAL9005), White(RAL9003), White(RAL9003)(RAL9003)

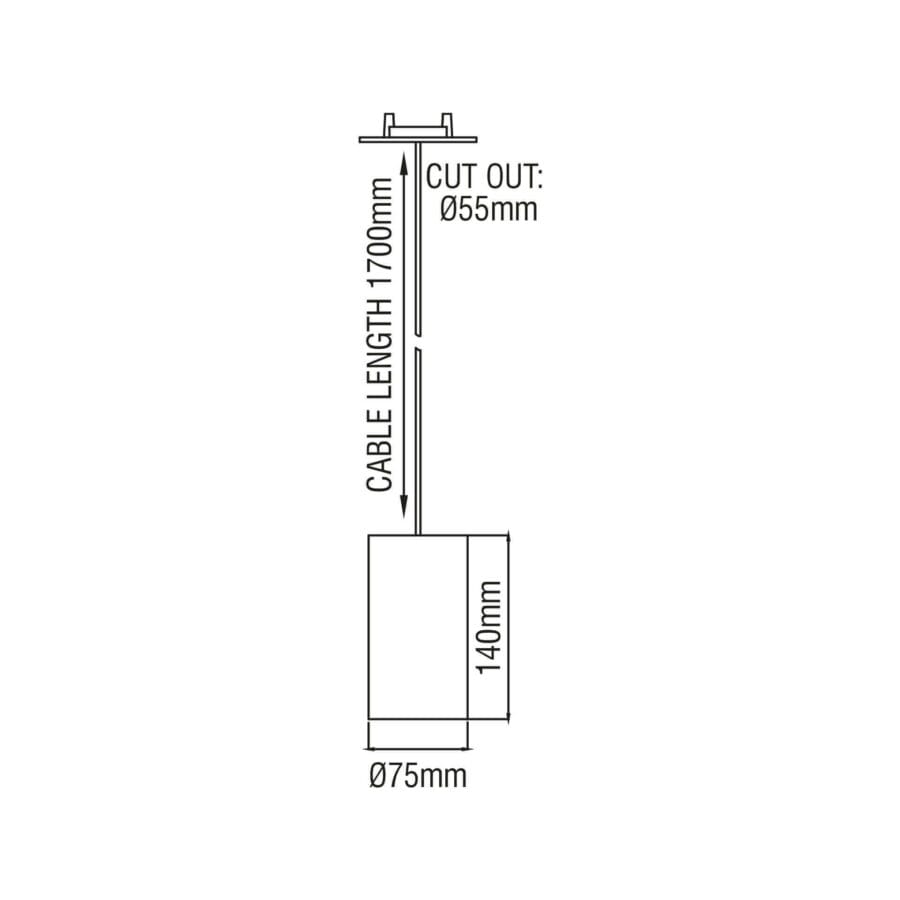

Luminaire Dimension [mm]Ø75x140mm
Cut-Out [mm]Ø55mm
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
Beam Angle [deg]40°
System Power [W]14W
Luminous Flux [lm]850lm, 1060lm, 1120lm, 1130lm, 1140lm, 1160lm, 1180lm, 1200lm, 1220lm, 1240lm, 1260lm, 1270lm, 1290lm, 1300lm
System Efficiency [lm/W]61lm/W, 76lm/W, 80lm/W, 81lm/W, 83lm/W, 84lm/W, 86lm/W, 87lm/W, 89lm/W, 90lm/W, 91lm/W, 92lm/W, 93lm/W
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]220-240V / 50 -60Hz
Power SupplyIncluded ON/OFF, Included Phase Cut
Ambient Temperature [degC]35°C
Ingress ProtectionIP20
Light Source Energy ClassE
Light Source IdentifierCLU028-1202C4-273H5M3-F1, CLU028-1202C4-303H5M3-F1, CLU028-1202C4-403H5M3-F1
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.54Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce

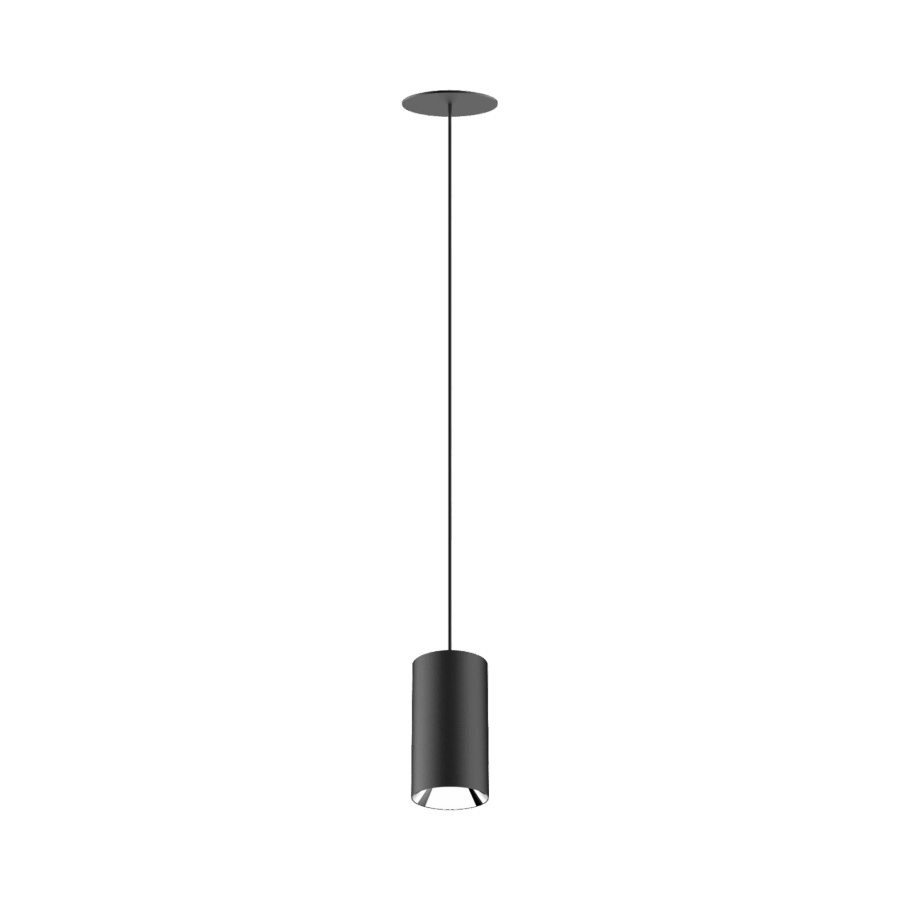

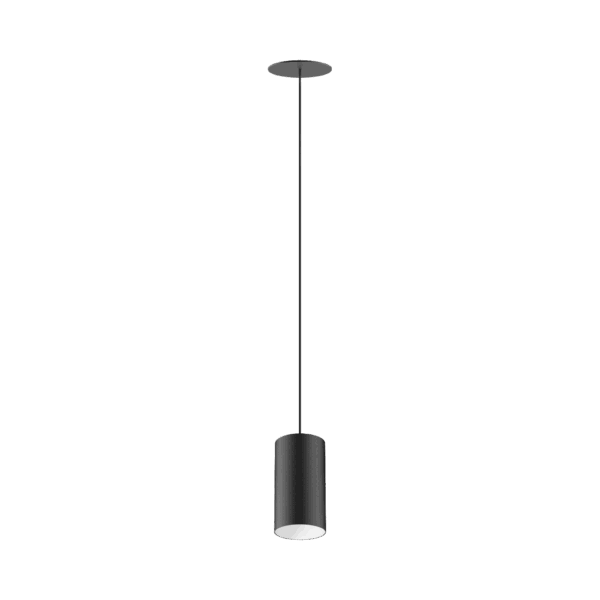

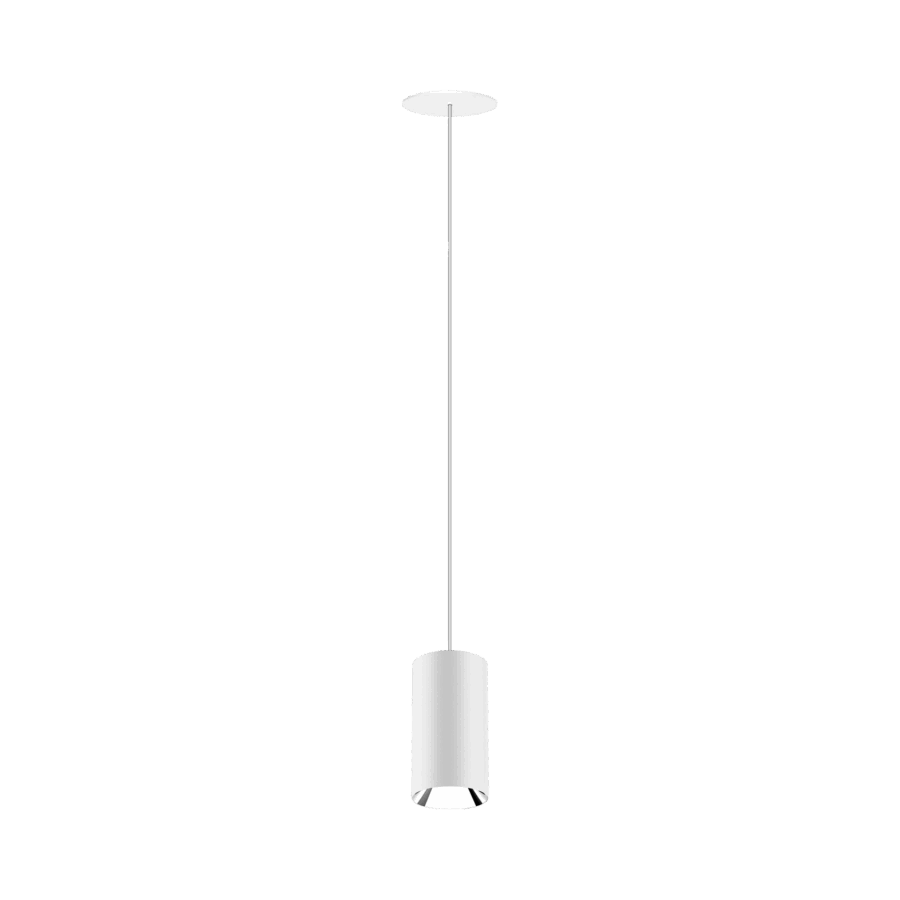

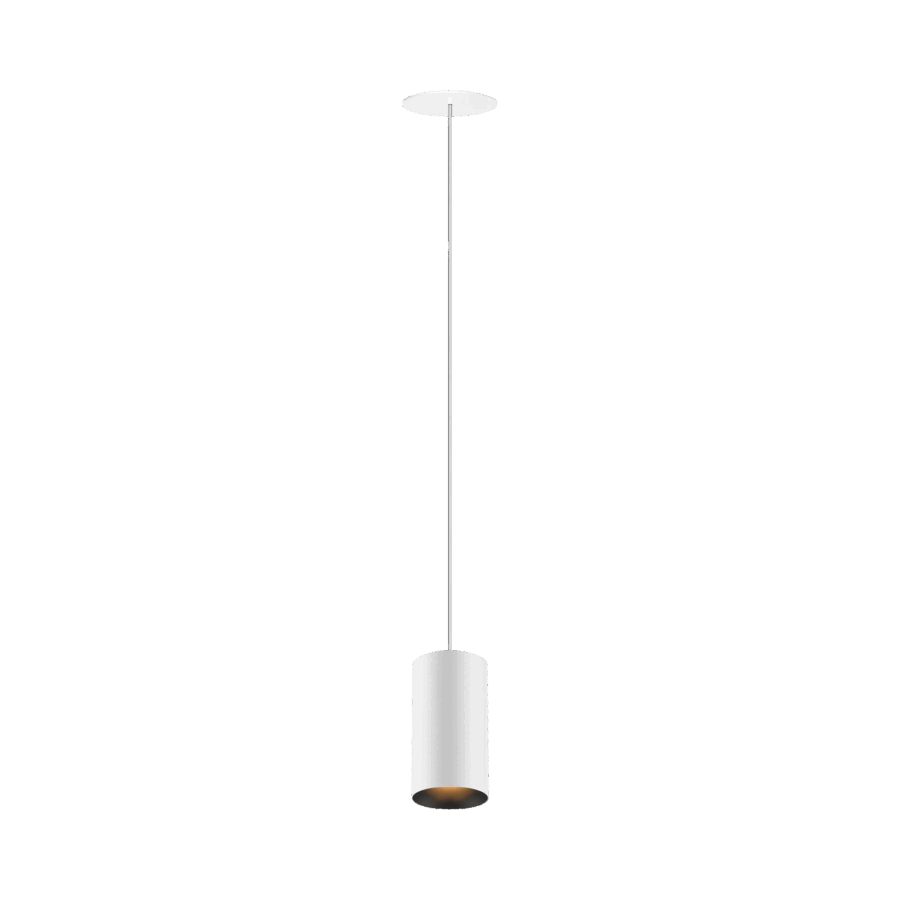

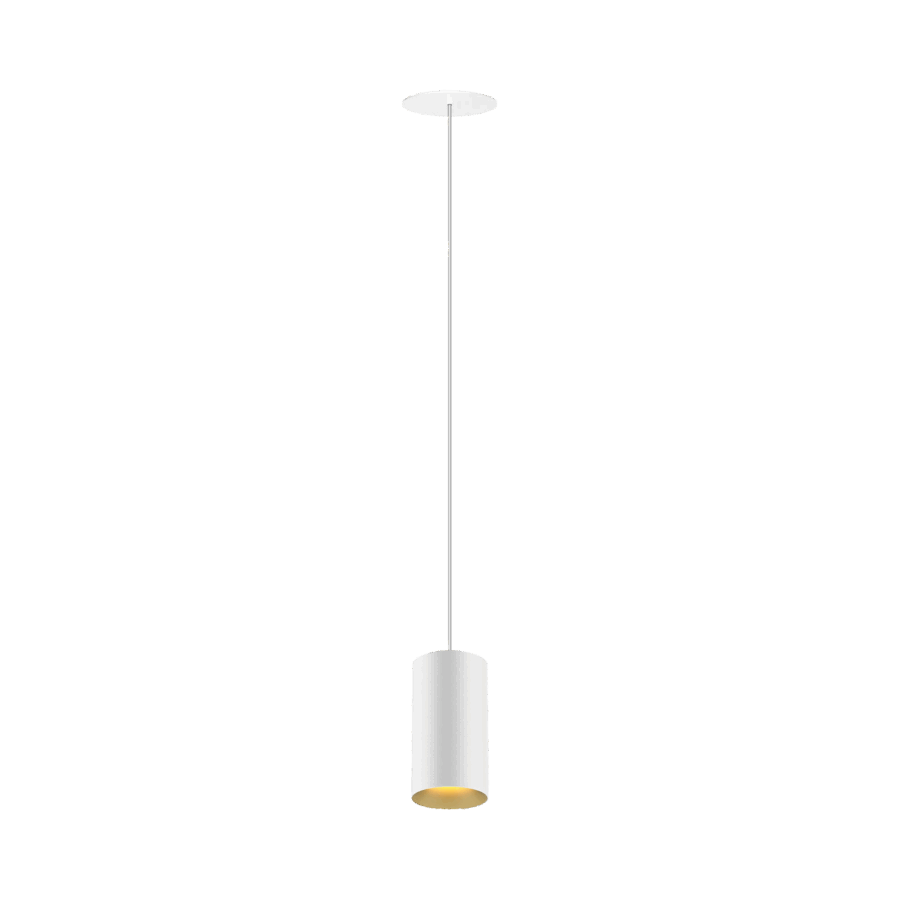

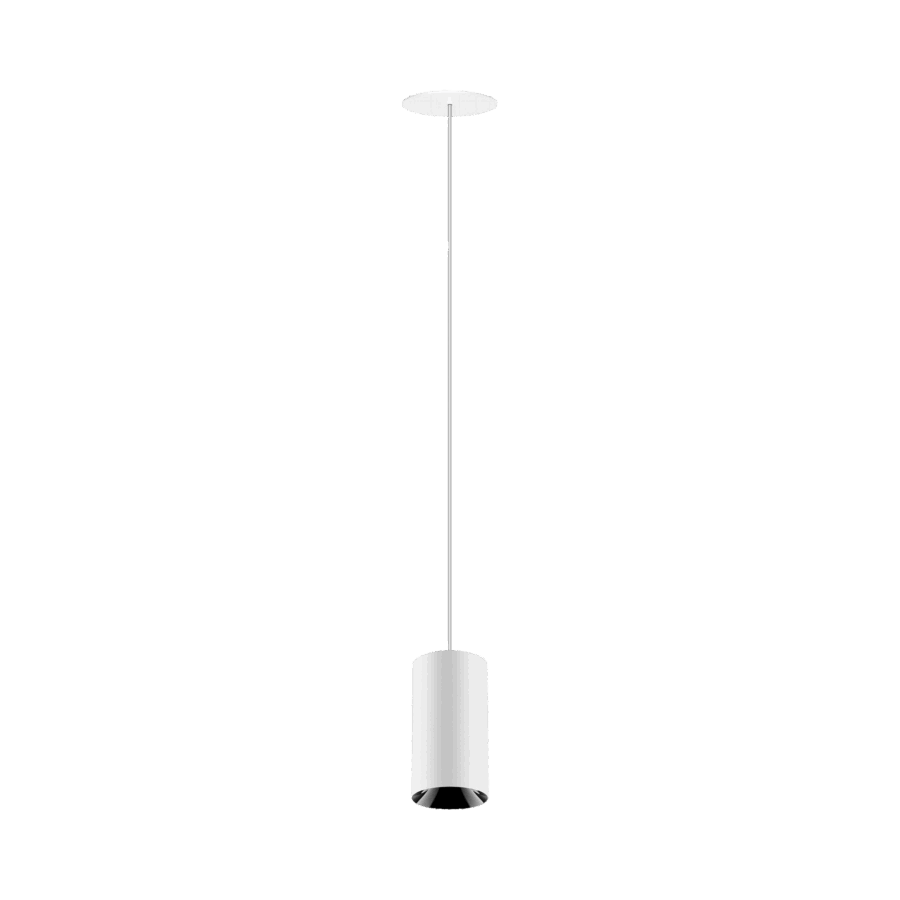

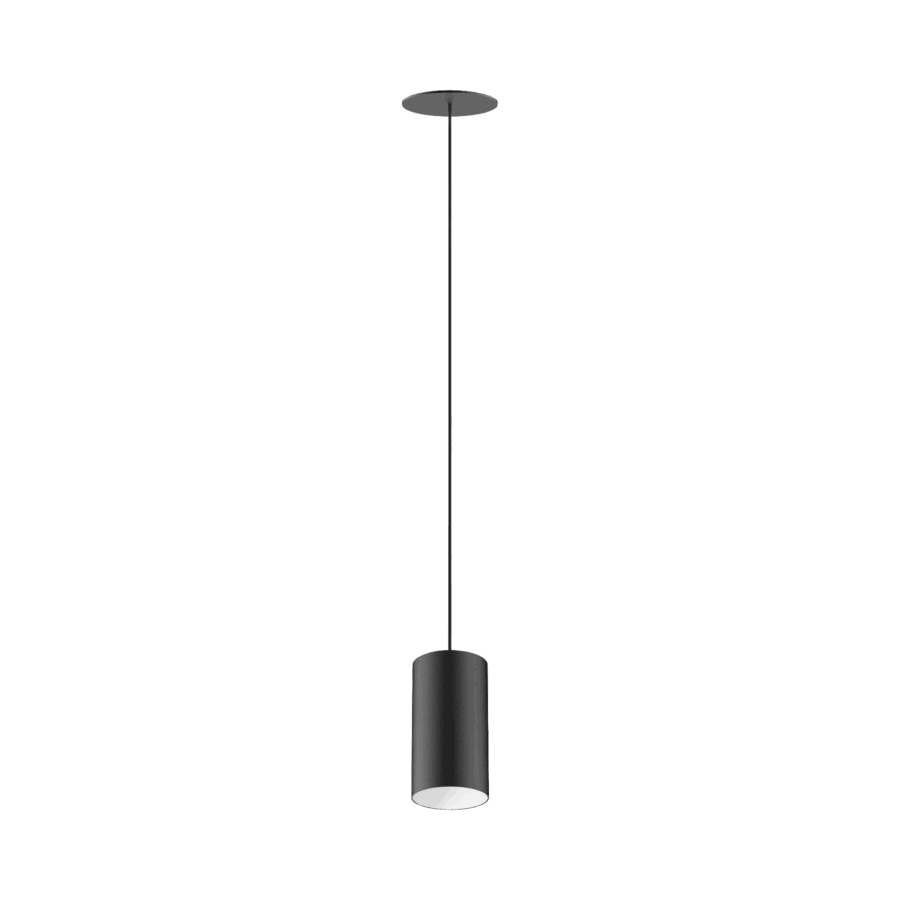

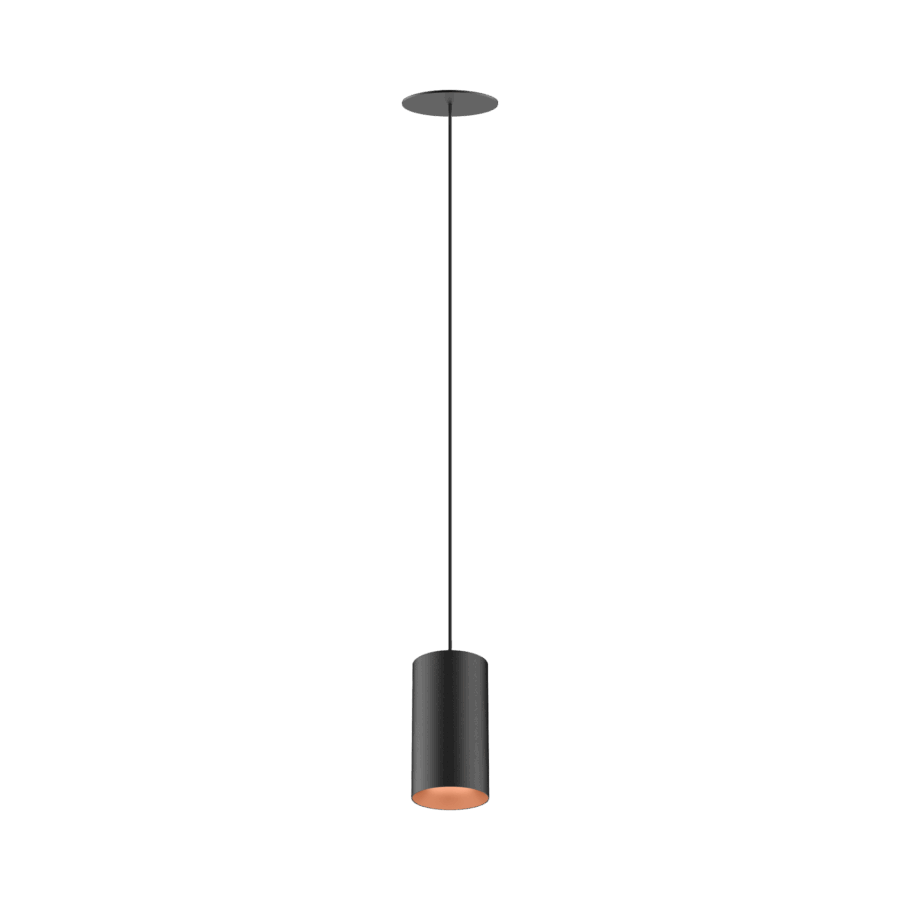

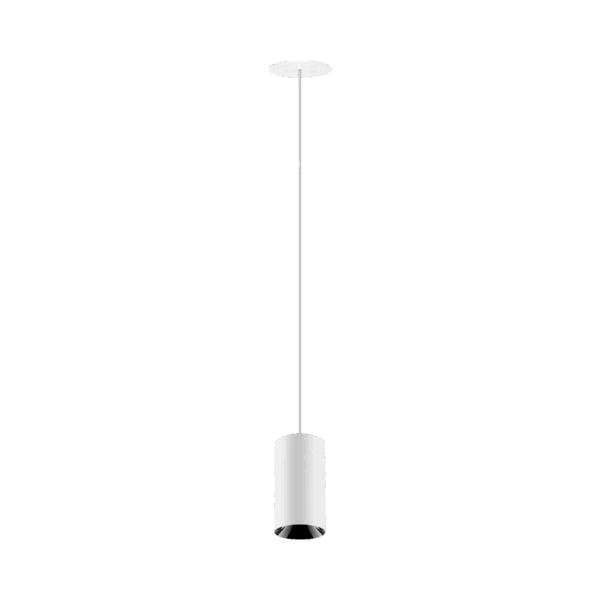

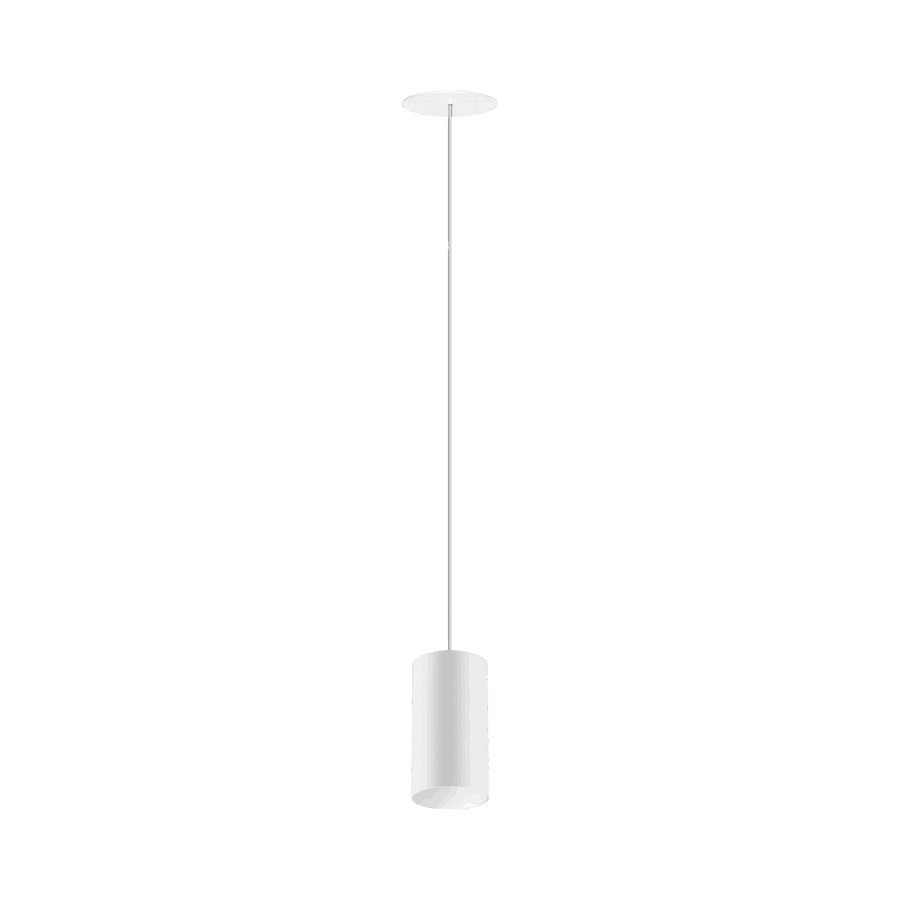

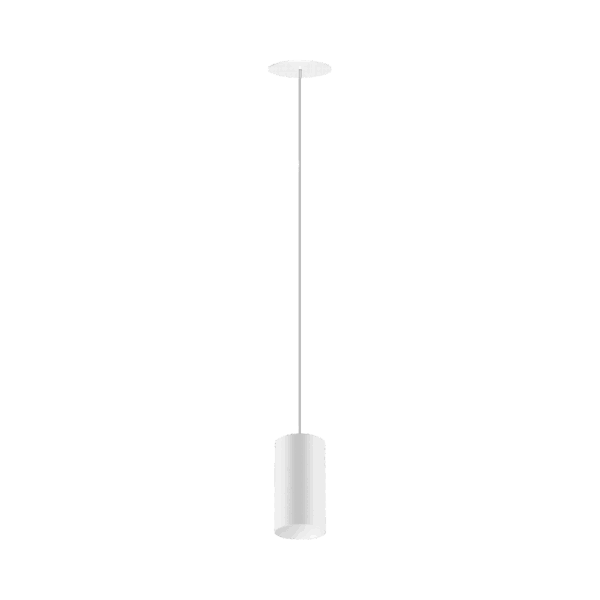

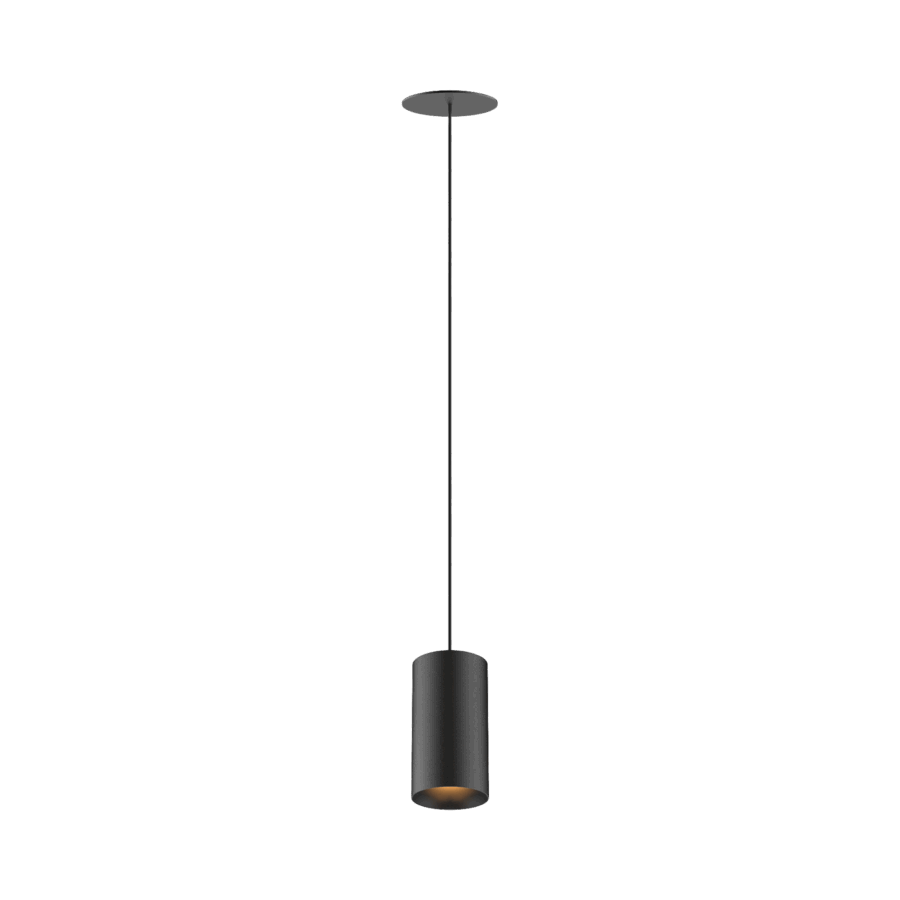

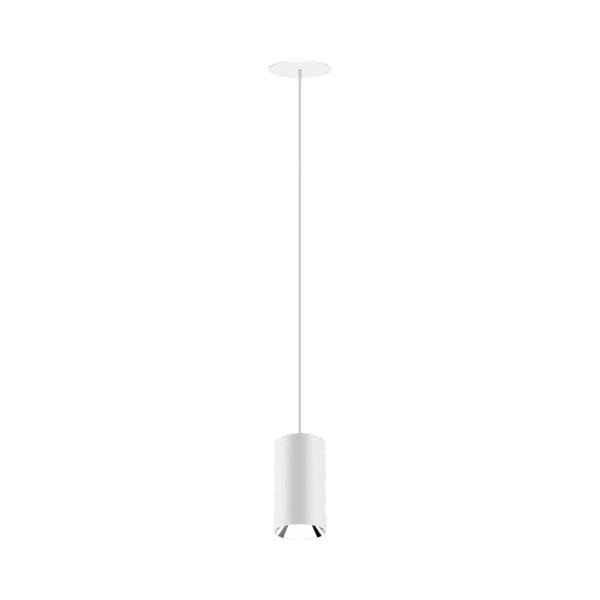

The Karizma Luce Dea Vesta M PE-in (pendulo-incasatto) is a recessed pendant luminaire from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 1140- 1300 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
