The push in/push out luminaire Dea Trivia is named after the Roman goddess of magic. This downlight-to-spot fixture offers unparalleled flexibility. It seamlessly transitions from downlight to adjustable spotlight and back, simply by pushing it gently. Providing consistent performance and aesthetic harmony, the Dea Trivia is a valuable addition to the Dea Athena modular system. Choose your mounting option separately to fit your project.
Dea Trivia M
A touch of magic.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 179AW92724BM00 | 950lm | 2700K | 90 | 24° | White(RAL9003) | Black Matt |
| 179AB92724BM00 | 950lm | 2700K | 90 | 24° | Black(RAL9005) | Black Matt |
| 179AW93024BM00 | 1050lm | 3000K | 90 | 24° | White(RAL9003) | Black Matt |
| 179AB93024BM00 | 1050lm | 3000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 179AW94024BM00 | 1150lm | 4000K | 90 | 24° | White(RAL9003) | Black Matt |
| 179AB94024BM00 | 1150lm | 4000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 179AW92724BG00 | 950lm | 2700K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 179AB92724BG00 | 950lm | 2700K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 179AW93024BG00 | 1050lm | 3000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 179AB93024BG00 | 1050lm | 3000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 179AW94024BG00 | 1150lm | 4000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 179AB94024BG00 | 1150lm | 4000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 179AW92724WH00 | 950lm | 2700K | 90 | 24° | White(RAL9003) | White |
| 179AB92724WH00 | 950lm | 2700K | 90 | 24° | Black(RAL9005) | White |
| 179AW93024WH00 | 1050lm | 3000K | 90 | 24° | White(RAL9003) | White |
| 179AB93024WH00 | 1050lm | 3000K | 90 | 24° | Black(RAL9005) | White |
| 179AW94024WH00 | 1150lm | 4000K | 90 | 24° | White(RAL9003) | White |
| 179AB94024WH00 | 1150lm | 4000K | 90 | 24° | Black(RAL9005) | White |
| 179AW92724SG00 | 950lm | 2700K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 179AB92724SG00 | 950lm | 2700K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 179AW93024SG00 | 1050lm | 3000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 179AB93024SG00 | 1050lm | 3000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 179AW94024SG00 | 1150lm | 4000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 179AB94024SG00 | 1150lm | 4000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 179AW92724CH00 | 950lm | 2700K | 90 | 24° | White(RAL9003) | Chrome |
| 179AB92724CH00 | 950lm | 2700K | 90 | 24° | Black(RAL9005) | Chrome |
| 179AW93024CH00 | 1050lm | 3000K | 90 | 24° | White(RAL9003) | Chrome |
| 179AB93024CH00 | 1050lm | 3000K | 90 | 24° | Black(RAL9005) | Chrome |
| 179AW94024CH00 | 1150lm | 4000K | 90 | 24° | White(RAL9003) | Chrome |
| 179AB94024CH00 | 1150lm | 4000K | 90 | 24° | Black(RAL9005) | Chrome |
| 179AW92724GO00 | 950lm | 2700K | 90 | 24° | White(RAL9003) | Gold |
| 179AB92724GO00 | 950lm | 2700K | 90 | 24° | Black(RAL9005) | Gold |
| 179AW93024GO00 | 1050lm | 3000K | 90 | 24° | White(RAL9003) | Gold |
| 179AB93024GO00 | 1050lm | 3000K | 90 | 24° | Black(RAL9005) | Gold |
| 179AW94024GO00 | 1150lm | 4000K | 90 | 24° | White(RAL9003) | Gold |
| 179AB94024GO00 | 1150lm | 4000K | 90 | 24° | Black(RAL9005) | Gold |
| 179AW92724CO00 | 950lm | 2700K | 90 | 24° | White(RAL9003) | Copper |
| 179AB92724CO00 | 950lm | 2700K | 90 | 24° | Black(RAL9005) | Copper |
| 179AW93024CO00 | 1050lm | 3000K | 90 | 24° | White(RAL9003) | Copper |
| 179AB93024CO00 | 1050lm | 3000K | 90 | 24° | Black(RAL9005) | Copper |
| 179AW94024CO00 | 1150lm | 4000K | 90 | 24° | White(RAL9003) | Copper |
| 179AB94024CO00 | 1150lm | 4000K | 90 | 24° | Black(RAL9005) | Copper |
| 179AW92740BM00 | 950lm | 2700K | 90 | 40° | White(RAL9003) | Black Matt |
| 179AW92760BM00 | 950lm | 2700K | 90 | 60° | White(RAL9003) | Black Matt |
| 179AB92740BM00 | 950lm | 2700K | 90 | 40° | Black(RAL9005) | Black Matt |
| 179AB92760BM00 | 950lm | 2700K | 90 | 60° | Black(RAL9005) | Black Matt |
| 179AW93040BM00 | 1050lm | 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 179AW93060BM00 | 1050lm | 3000K | 90 | 60° | White(RAL9003) | Black Matt |
| 179AB93040BM00 | 1050lm | 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 179AB93060BM00 | 1050lm | 3000K | 90 | 60° | Black(RAL9005) | Black Matt |
| 179AW94040BM00 | 1150lm | 4000K | 90 | 40° | White(RAL9003) | Black Matt |
| 179AW94060BM00 | 1150lm | 4000K | 90 | 60° | White(RAL9003) | Black Matt |
| 179AB94040BM00 | 1150lm | 4000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 179AB94060BM00 | 1150lm | 4000K | 90 | 60° | Black(RAL9005) | Black Matt |
| 179AW92740BG00 | 950lm | 2700K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 179AW92760BG00 | 950lm | 2700K | 90 | 60° | White(RAL9003) | Black High Gloss |
| 179AB92740BG00 | 950lm | 2700K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 179AB92760BG00 | 950lm | 2700K | 90 | 60° | Black(RAL9005) | Black High Gloss |
| 179AW93040BG00 | 1050lm | 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 179AW93060BG00 | 1050lm | 3000K | 90 | 60° | White(RAL9003) | Black High Gloss |
| 179AB93040BG00 | 1050lm | 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 179AB93060BG00 | 1050lm | 3000K | 90 | 60° | Black(RAL9005) | Black High Gloss |
| 179AW94040BG00 | 1150lm | 4000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 179AW94060BG00 | 1150lm | 4000K | 90 | 60° | White(RAL9003) | Black High Gloss |
| 179AB94040BG00 | 1150lm | 4000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 179AB94060BG00 | 1150lm | 4000K | 90 | 60° | Black(RAL9005) | Black High Gloss |
| 179AW92740WH00 | 950lm | 2700K | 90 | 40° | White(RAL9003) | White |
| 179AW92760WH00 | 950lm | 2700K | 90 | 60° | White(RAL9003) | White |
| 179AB92740WH00 | 950lm | 2700K | 90 | 40° | Black(RAL9005) | White |
| 179AB92760WH00 | 950lm | 2700K | 90 | 60° | Black(RAL9005) | White |
| 179AW93040WH00 | 1050lm | 3000K | 90 | 40° | White(RAL9003) | White |
| 179AW93060WH00 | 1050lm | 3000K | 90 | 60° | White(RAL9003) | White |
| 179AB93040WH00 | 1050lm | 3000K | 90 | 40° | Black(RAL9005) | White |
| 179AB93060WH00 | 1050lm | 3000K | 90 | 60° | Black(RAL9005) | White |
| 179AW94040WH00 | 1150lm | 4000K | 90 | 40° | White(RAL9003) | White |
| 179AW94060WH00 | 1150lm | 4000K | 90 | 60° | White(RAL9003) | White |
| 179AB94040WH00 | 1150lm | 4000K | 90 | 40° | Black(RAL9005) | White |
| 179AB94060WH00 | 1150lm | 4000K | 90 | 60° | Black(RAL9005) | White |
| 179AW92740SG00 | 950lm | 2700K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 179AW92760SG00 | 950lm | 2700K | 90 | 60° | White(RAL9003) | Silver High Gloss |
| 179AB92740SG00 | 950lm | 2700K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 179AB92760SG00 | 950lm | 2700K | 90 | 60° | Black(RAL9005) | Silver High Gloss |
| 179AW93040SG00 | 1050lm | 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 179AW93060SG00 | 1050lm | 3000K | 90 | 60° | White(RAL9003) | Silver High Gloss |
| 179AB93040SG00 | 1050lm | 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 179AB93060SG00 | 1050lm | 3000K | 90 | 60° | Black(RAL9005) | Silver High Gloss |
| 179AW94040SG00 | 1150lm | 4000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 179AW94060SG00 | 1150lm | 4000K | 90 | 60° | White(RAL9003) | Silver High Gloss |
| 179AB94040SG00 | 1150lm | 4000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 179AB94060SG00 | 1150lm | 4000K | 90 | 60° | Black(RAL9005) | Silver High Gloss |
| 179AW92740CH00 | 950lm | 2700K | 90 | 40° | White(RAL9003) | Chrome |
| 179AW92760CH00 | 950lm | 2700K | 90 | 60° | White(RAL9003) | Chrome |
| 179AB92740CH00 | 950lm | 2700K | 90 | 40° | Black(RAL9005) | Chrome |
| 179AB92760CH00 | 950lm | 2700K | 90 | 60° | Black(RAL9005) | Chrome |
| 179AW93040CH00 | 1050lm | 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 179AW93060CH00 | 1050lm | 3000K | 90 | 60° | White(RAL9003) | Chrome |
| 179AB93040CH00 | 1050lm | 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 179AB93060CH00 | 1050lm | 3000K | 90 | 60° | Black(RAL9005) | Chrome |
| 179AW94040CH00 | 1150lm | 4000K | 90 | 40° | White(RAL9003) | Chrome |
| 179AW94060CH00 | 1150lm | 4000K | 90 | 60° | White(RAL9003) | Chrome |
| 179AB94040CH00 | 1150lm | 4000K | 90 | 40° | Black(RAL9005) | Chrome |
| 179AB94060CH00 | 1150lm | 4000K | 90 | 60° | Black(RAL9005) | Chrome |
| 179AW92740GO00 | 950lm | 2700K | 90 | 40° | White(RAL9003) | Gold |
| 179AW92760GO00 | 950lm | 2700K | 90 | 60° | White(RAL9003) | Gold |
| 179AB92740GO00 | 950lm | 2700K | 90 | 40° | Black(RAL9005) | Gold |
| 179AB92760GO00 | 950lm | 2700K | 90 | 60° | Black(RAL9005) | Gold |
| 179AW93040GO00 | 1050lm | 3000K | 90 | 40° | White(RAL9003) | Gold |
| 179AW93060GO00 | 1050lm | 3000K | 90 | 60° | White(RAL9003) | Gold |
| 179AB93040GO00 | 1050lm | 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 179AB93060GO00 | 1050lm | 3000K | 90 | 60° | Black(RAL9005) | Gold |
| 179AW94040GO00 | 1150lm | 4000K | 90 | 40° | White(RAL9003) | Gold |
| 179AW94060GO00 | 1150lm | 4000K | 90 | 60° | White(RAL9003) | Gold |
| 179AB94040GO00 | 1150lm | 4000K | 90 | 40° | Black(RAL9005) | Gold |
| 179AB94060GO00 | 1150lm | 4000K | 90 | 60° | Black(RAL9005) | Gold |
| 179AW92740CO00 | 950lm | 2700K | 90 | 40° | White(RAL9003) | Copper |
| 179AW92760CO00 | 950lm | 2700K | 90 | 60° | White(RAL9003) | Copper |
| 179AB92740CO00 | 950lm | 2700K | 90 | 40° | Black(RAL9005) | Copper |
| 179AB92760CO00 | 950lm | 2700K | 90 | 60° | Black(RAL9005) | Copper |
| 179AW93040CO00 | 1050lm | 3000K | 90 | 40° | White(RAL9003) | Copper |
| 179AW93060CO00 | 1050lm | 3000K | 90 | 60° | White(RAL9003) | Copper |
| 179AB93040CO00 | 1050lm | 3000K | 90 | 40° | Black(RAL9005) | Copper |
| 179AB93060CO00 | 1050lm | 3000K | 90 | 60° | Black(RAL9005) | Copper |
| 179AW94040CO00 | 1150lm | 4000K | 90 | 40° | White(RAL9003) | Copper |
| 179AW94060CO00 | 1150lm | 4000K | 90 | 60° | White(RAL9003) | Copper |
| 179AB94040CO00 | 1150lm | 4000K | 90 | 40° | Black(RAL9005) | Copper |
| 179AB94060CO00 | 1150lm | 4000K | 90 | 60° | Black(RAL9005) | Copper |
| 179EW183040WH00 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | White |
| 179EW183040BM00 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 179EW183040SG00 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 179EW183040CH00 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 179EW183040BG00 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 179EW183040GO00 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Gold |
| 179EW183040CO00 | 850lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Copper |
| 179EB183040WH00 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | White |
| 179EB183040BM00 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 179EB183040SG00 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 179EB183040CH00 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 179EB183040BG00 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 179EB183040GO00 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 179EB183040CO00 | 850lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Copper |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), White(RAL9003)

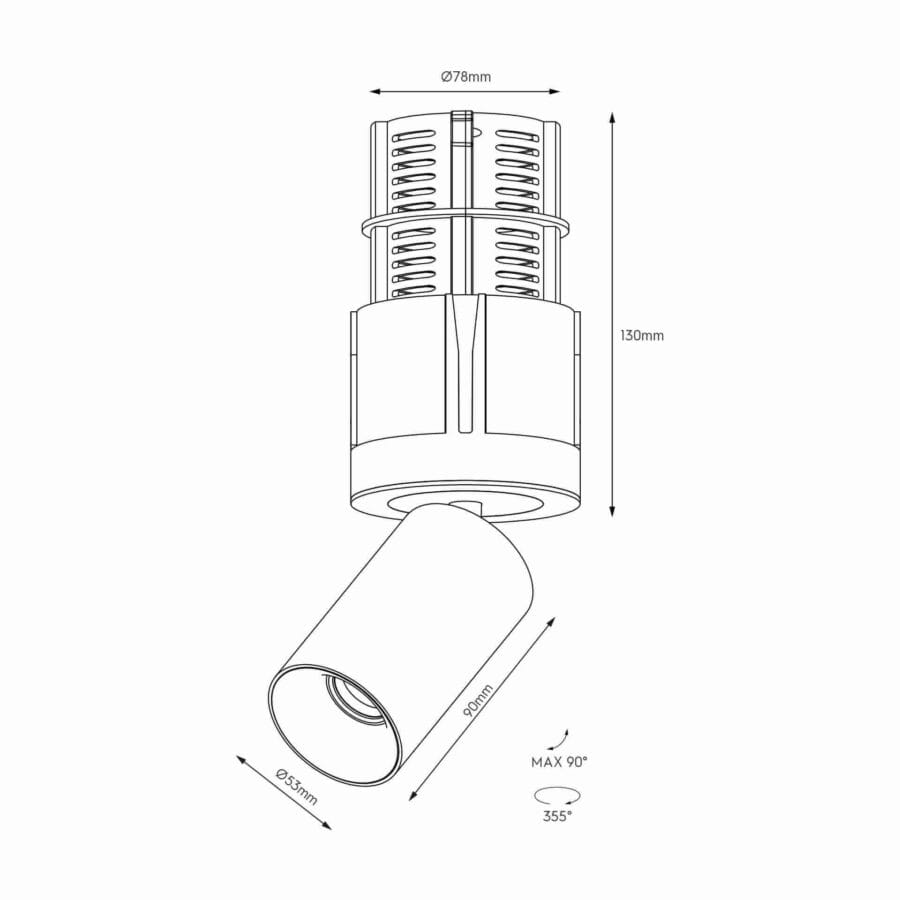

Luminaire Dimension [mm]Ø78x220mm
Cut-Out [mm]Based on selected frame
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
System Power [W]14W
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]N/A
Power SupplySeparate Available
Nominal Current [mA]350mA
Forward Voltage [V]34V
Ambient Temperature [degC]35°C
Ingress ProtectionIP43/IP20
Light Source Energy ClassF
Light Source IdentifierBXRE-27G1000-A-83, BXRE-30G1000-A-83, BXRE-40G1000-A-83, BXRH-27G1000-B-83, BXRH-30G1000-B-83, BXRH-40G1000-B-83
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.23Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
Built-in Height [mm]160mm

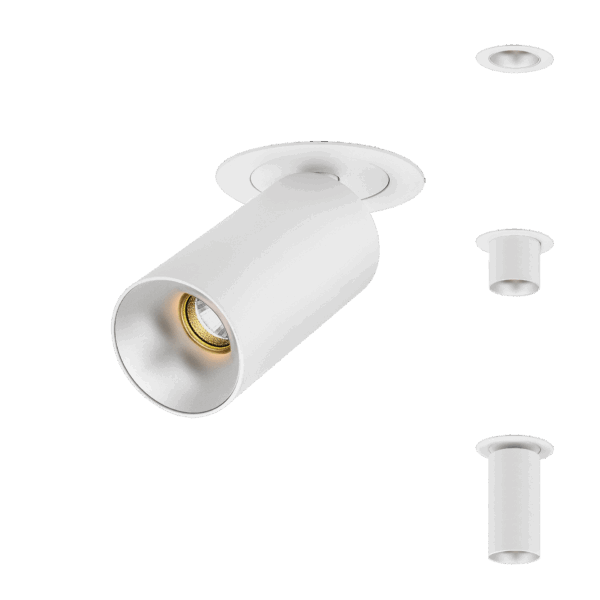

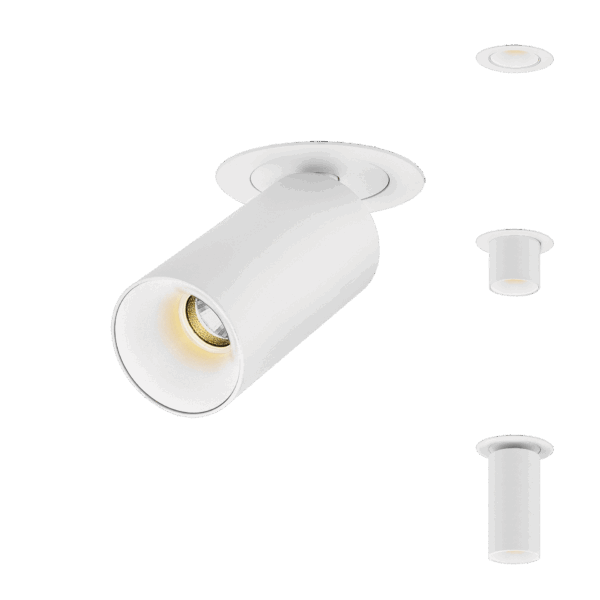

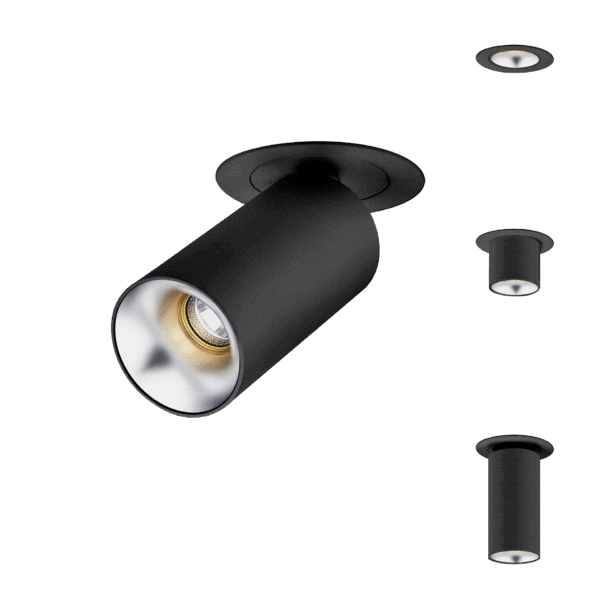

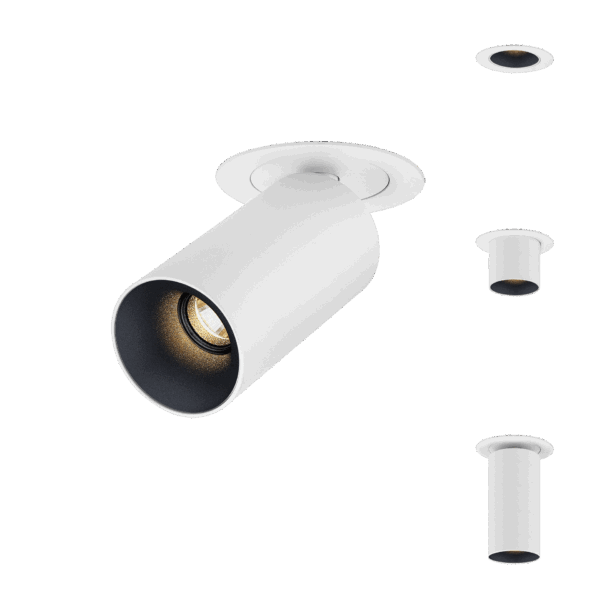

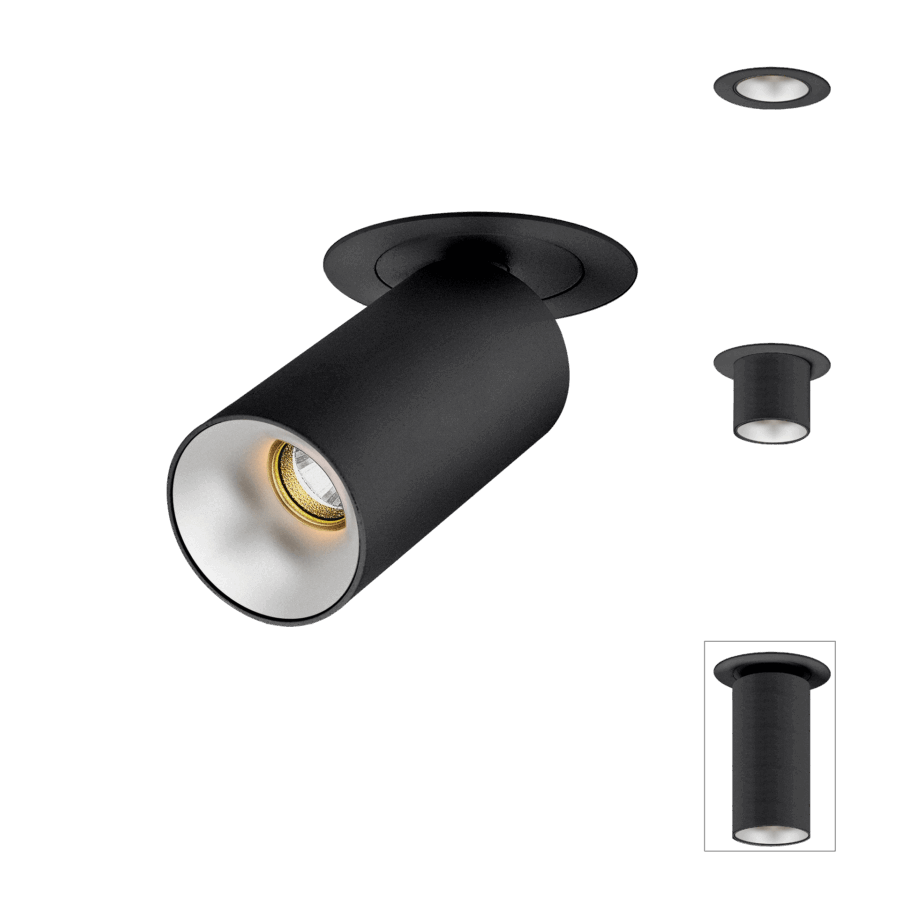

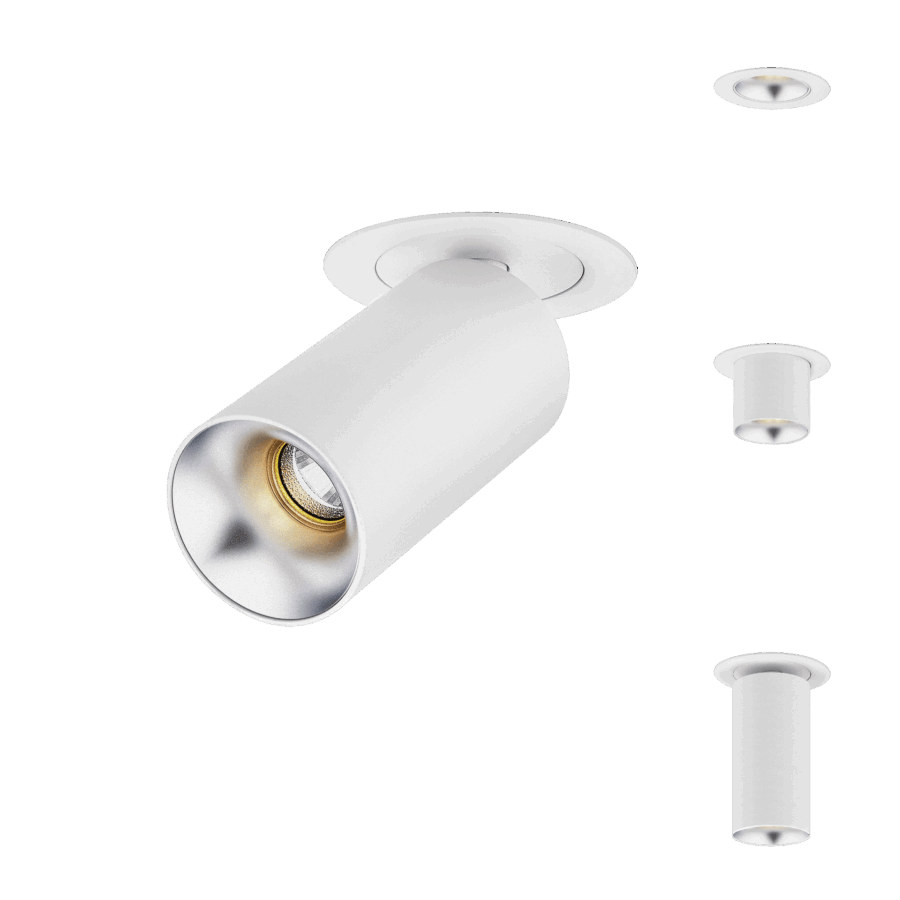

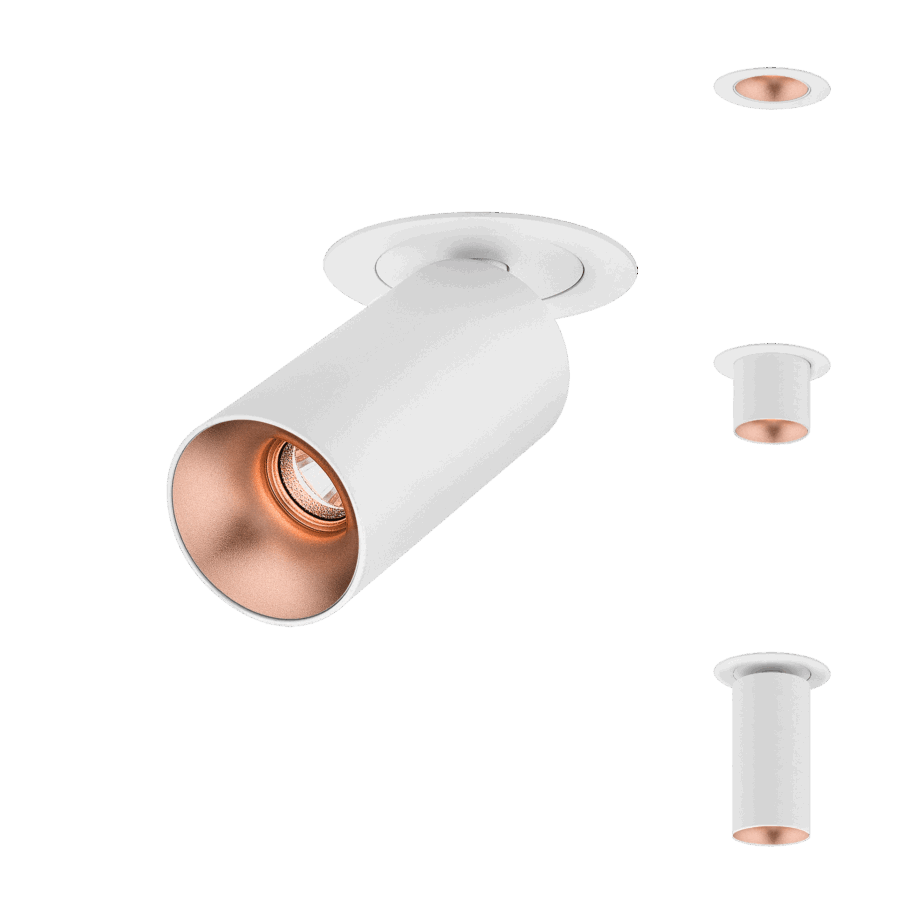

The Karizma Luce Dea Trivia M is an unique recessed adjustable downlight from the Dea Della Luce series. Compatible with the Dea Athena modular system. Made from aluminium. Available luminaire flux: in range 950 – 1150 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24°|40°|60°. Luminaire available in black and white.
