The push in/push out luminaire Dea Trivia is named after the Roman goddess of magic. This downlight-to-spot fixture offers unparalleled flexibility. It seamlessly transitions from downlight to adjustable spotlight and back, simply by pushing it gently. Providing consistent performance and aesthetic harmony, the Dea Trivia is a valuable addition to the Dea Athena modular system. Choose your mounting option separately to fit your project.
Dea Trivia XS
A touch of magic.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Digital dimming interface.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 157AW92724WH00 | 270lm | 2700K | 90 | 24° | White(RAL9003) | White |
| 157AW92736WH00 | 270lm | 2700K | 90 | 36° | White(RAL9003) | White |
| 157AW92755WH00 | 270lm | 2700K | 90 | 55° | White(RAL9003) | White |
| 157AB92724BM00 | 270lm | 2700K | 90 | 24° | Black(RAL9005) | Black |
| 157AB92736BM00 | 270lm | 2700K | 90 | 36° | Black(RAL9005) | Black |
| 157AB92755BM00 | 270lm | 2700K | 90 | 55° | Black(RAL9005) | Black |
| 157AW93024WH00 | 280lm | 3000K | 90 | 24° | White(RAL9003) | White |
| 157AW93036WH00 | 280lm | 3000K | 90 | 36° | White(RAL9003) | White |
| 157AW93055WH00 | 280lm | 3000K | 90 | 55° | White(RAL9003) | White |
| 157AB93024BM00 | 280lm | 3000K | 90 | 24° | Black(RAL9005) | Black |
| 157AB93036BM00 | 280lm | 3000K | 90 | 36° | Black(RAL9005) | Black |
| 157AB93055BM00 | 280lm | 3000K | 90 | 55° | Black(RAL9005) | Black |
| 157AW94024WH00 | 290lm | 4000K | 90 | 24° | White(RAL9003) | White |
| 157AW94036WH00 | 290lm | 4000K | 90 | 36° | White(RAL9003) | White |
| 157AW94055WH00 | 290lm | 4000K | 90 | 55° | White(RAL9003) | White |
| 157AB94024BM00 | 290lm | 4000K | 90 | 24° | Black(RAL9005) | Black |
| 157AB94036BM00 | 290lm | 4000K | 90 | 36° | Black(RAL9005) | Black |
| 157AB94055BM00 | 290lm | 4000K | 90 | 55° | Black(RAL9005) | Black |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), White(RAL9003)

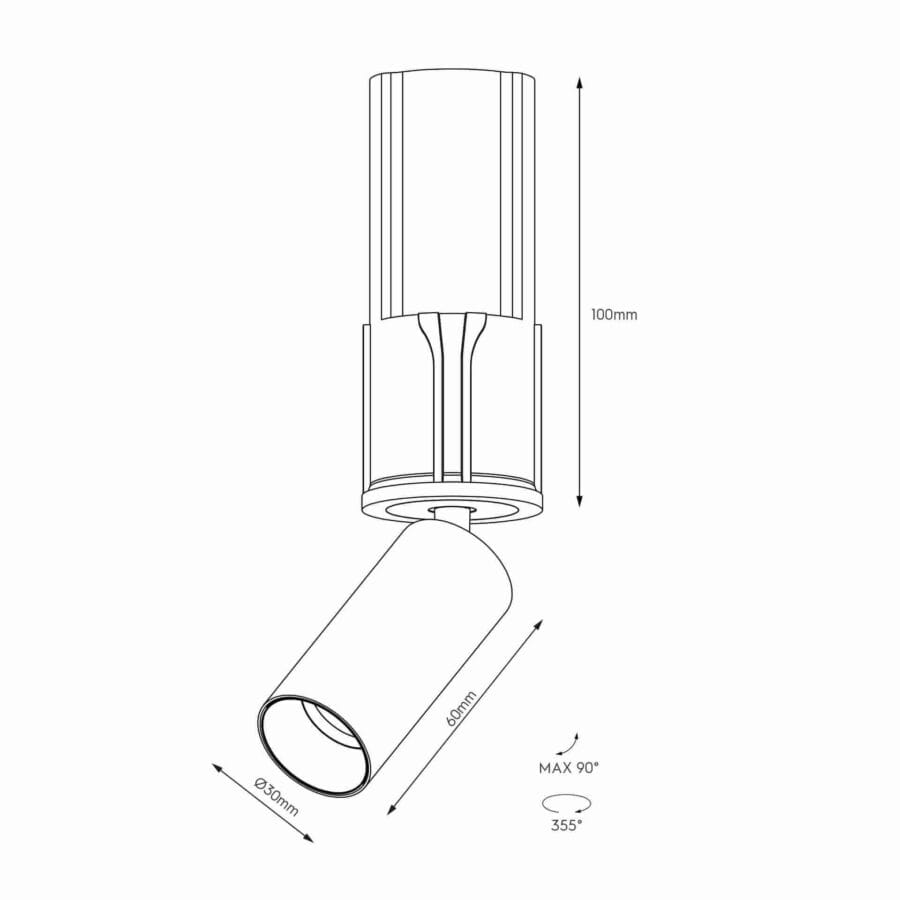

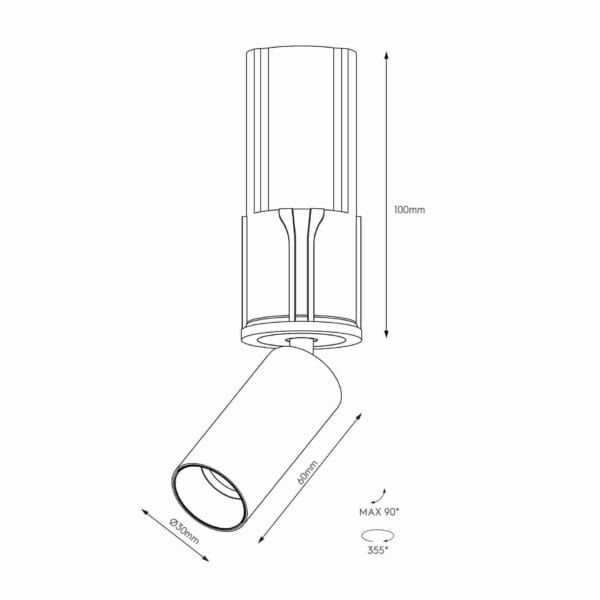

Luminaire Dimension [mm]Ø40x165mm
Cut-Out [mm]Based on selected frame
OpticReflector
LED Power [W]3.5W
System Power [W]4,5W
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]N/A
Power SupplySeparate Available
Nominal Current [mA]100mA
Forward Voltage [V]36V
Ambient Temperature [degC]35°C
Ingress ProtectionIP20
Light Source IdentifierBXRE-27G0400-B-83, BXRE-30G0400-B-83, BXRE-40G0400-B-83
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.116Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
ControlDALI
Built-in Height [mm]140mm

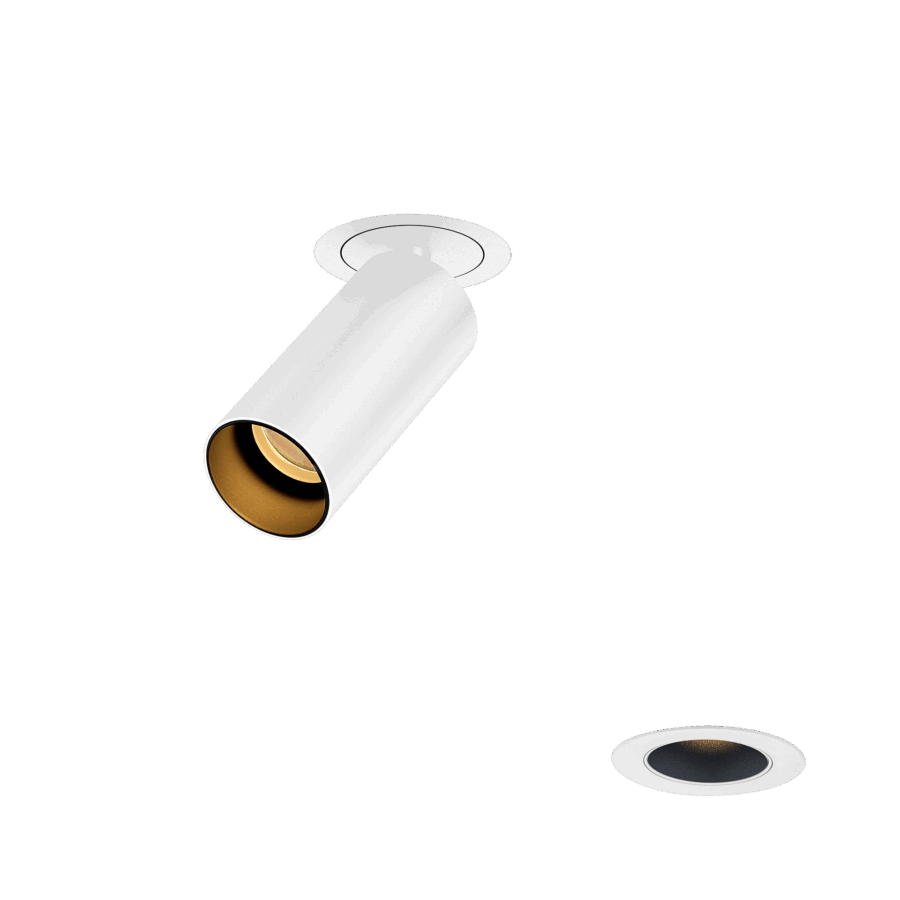

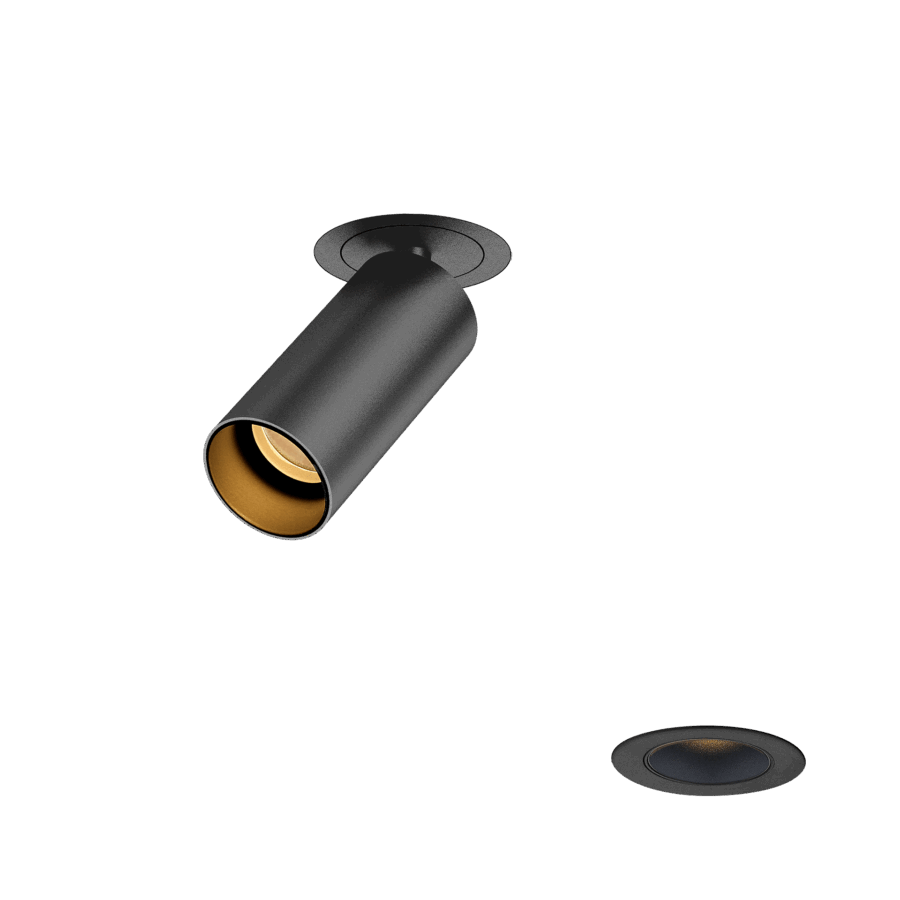

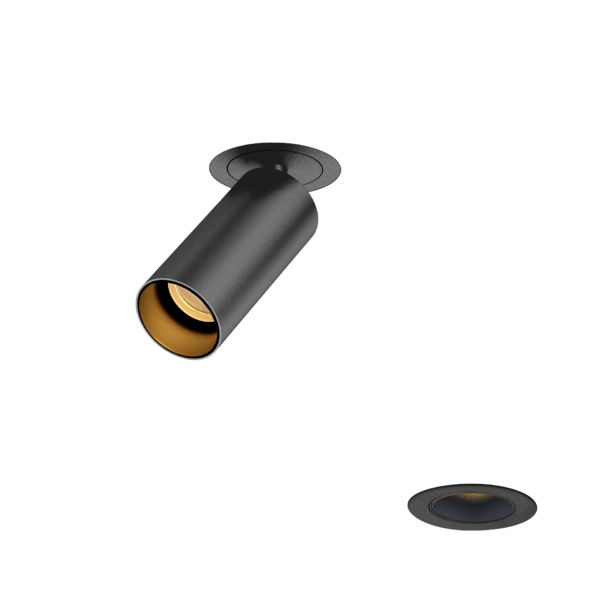

The Karizma Luce Dea Trivia XS is an unique recessed adjustable downlight from the Dea Della Luce series. Compatible with the Dea Athena modular system. Made from aluminium. Available luminaire flux: in range 270 – 290 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24°|36°|55°. Luminaire available in black and white.
