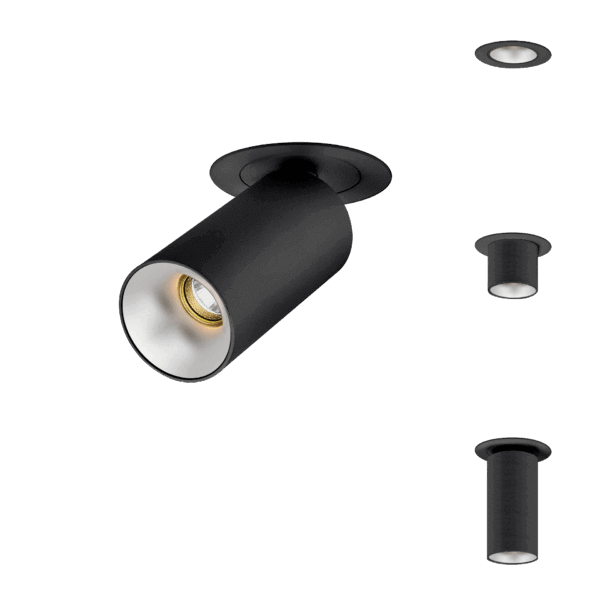

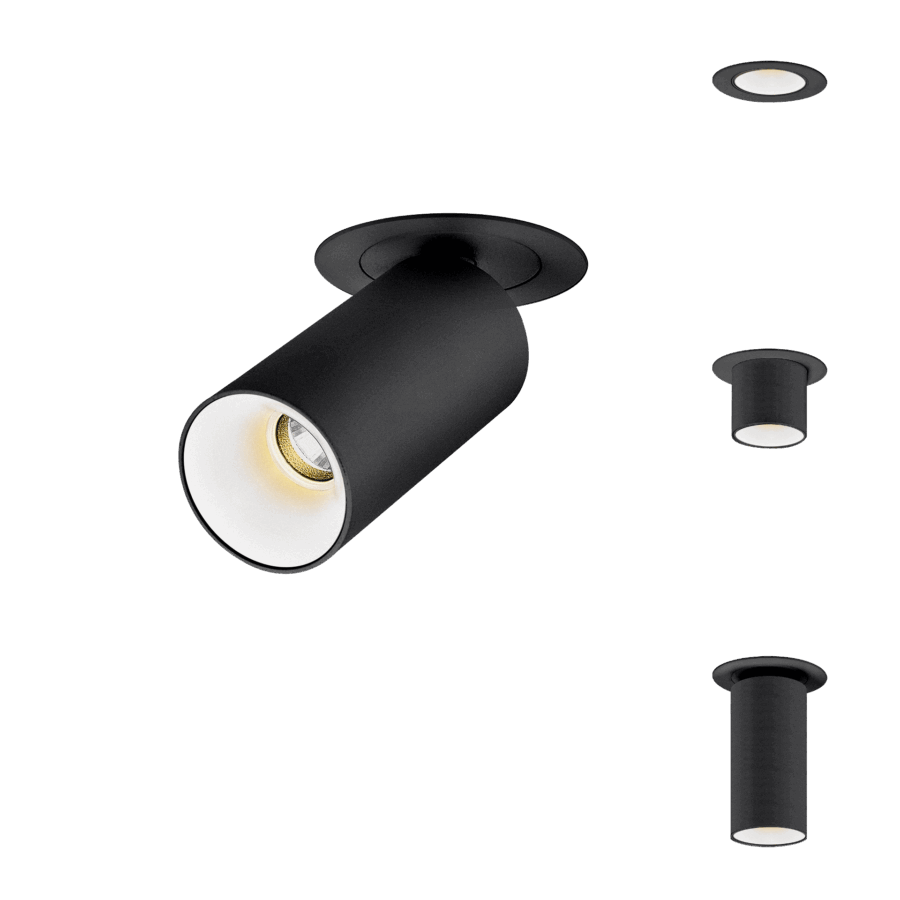

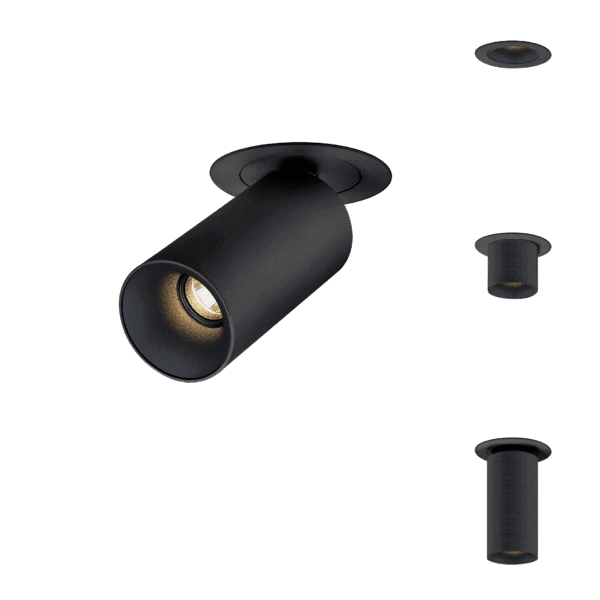

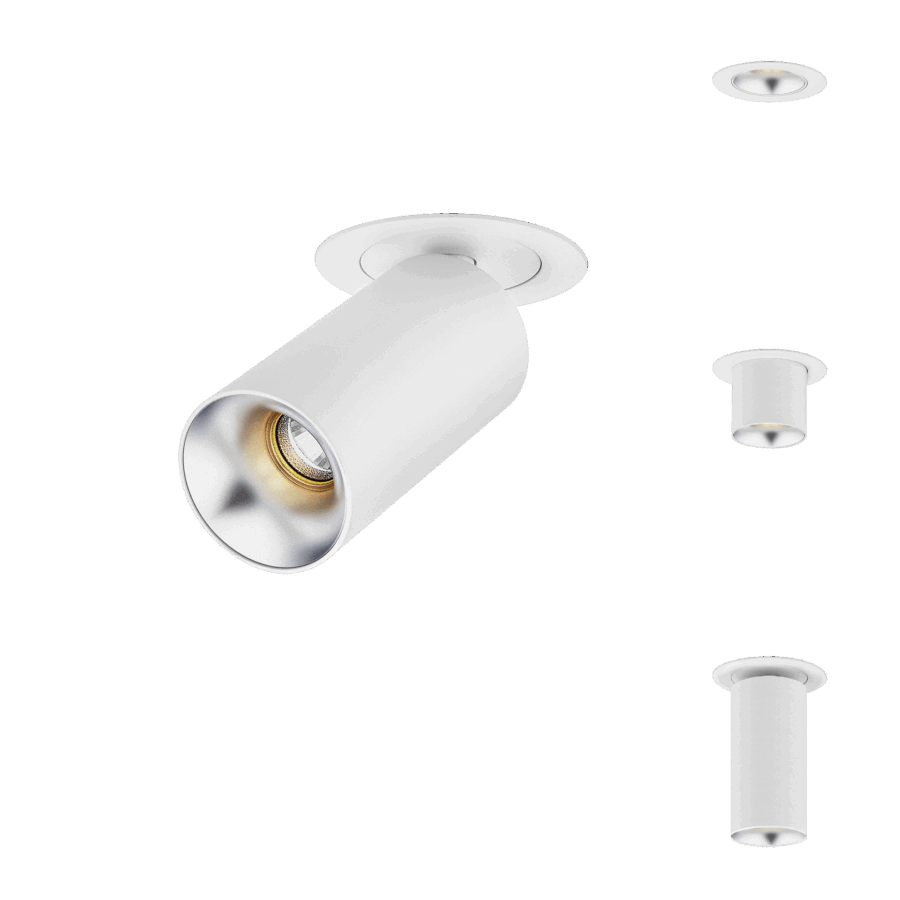

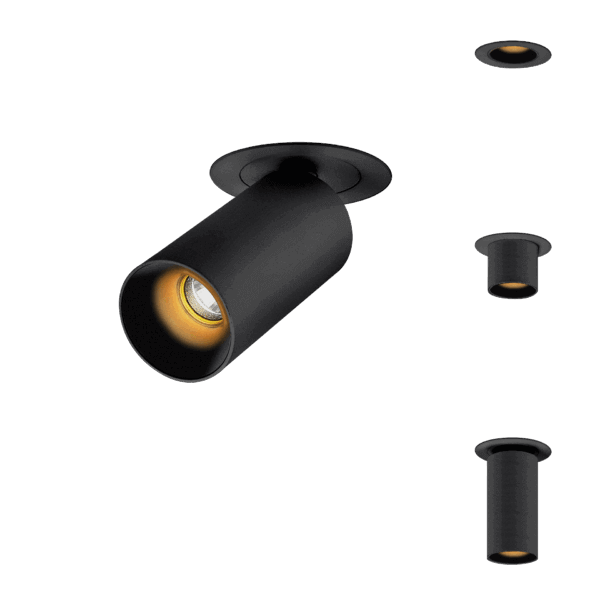

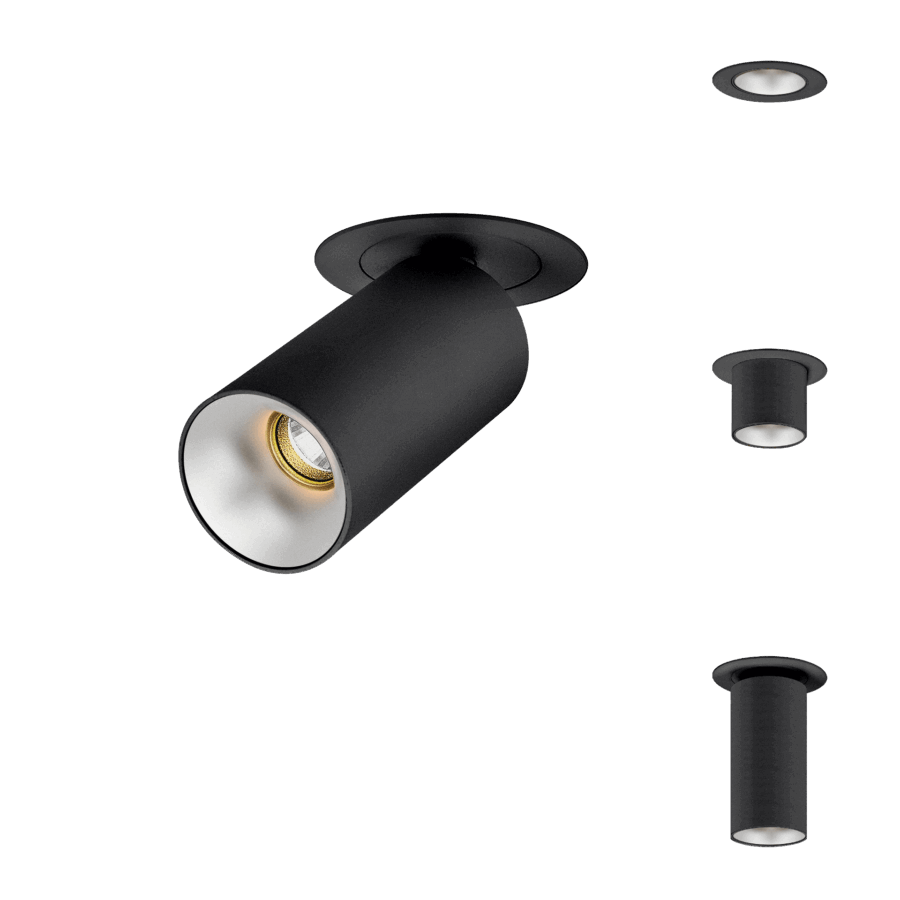

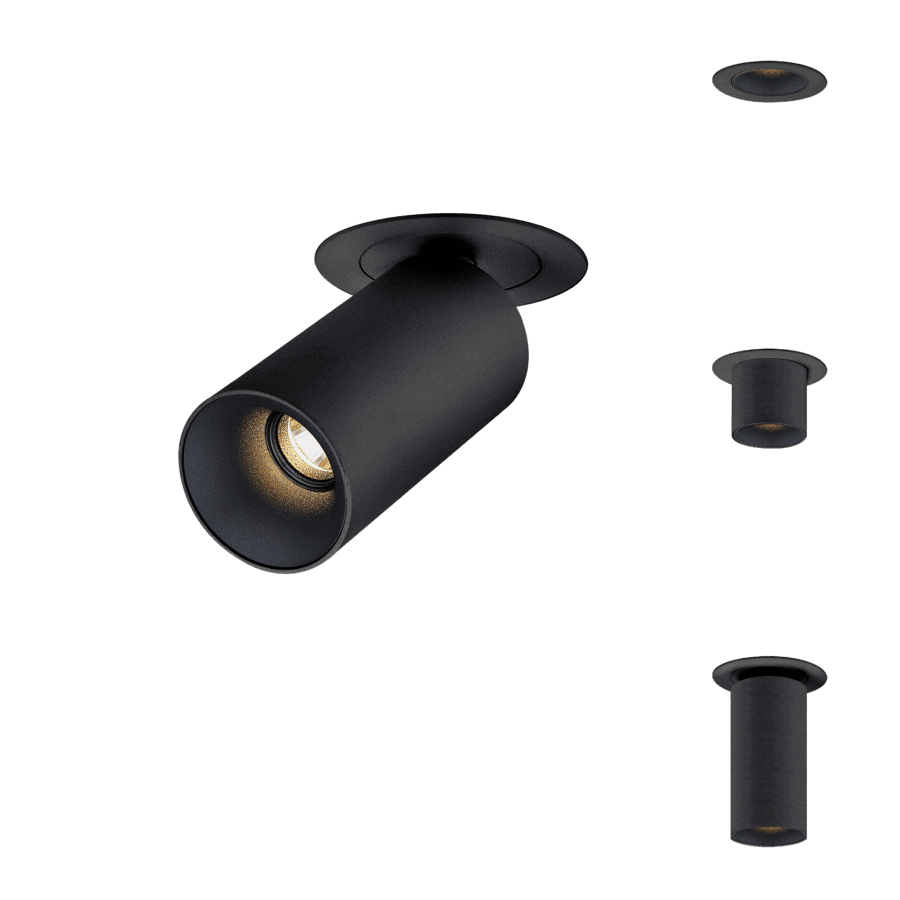

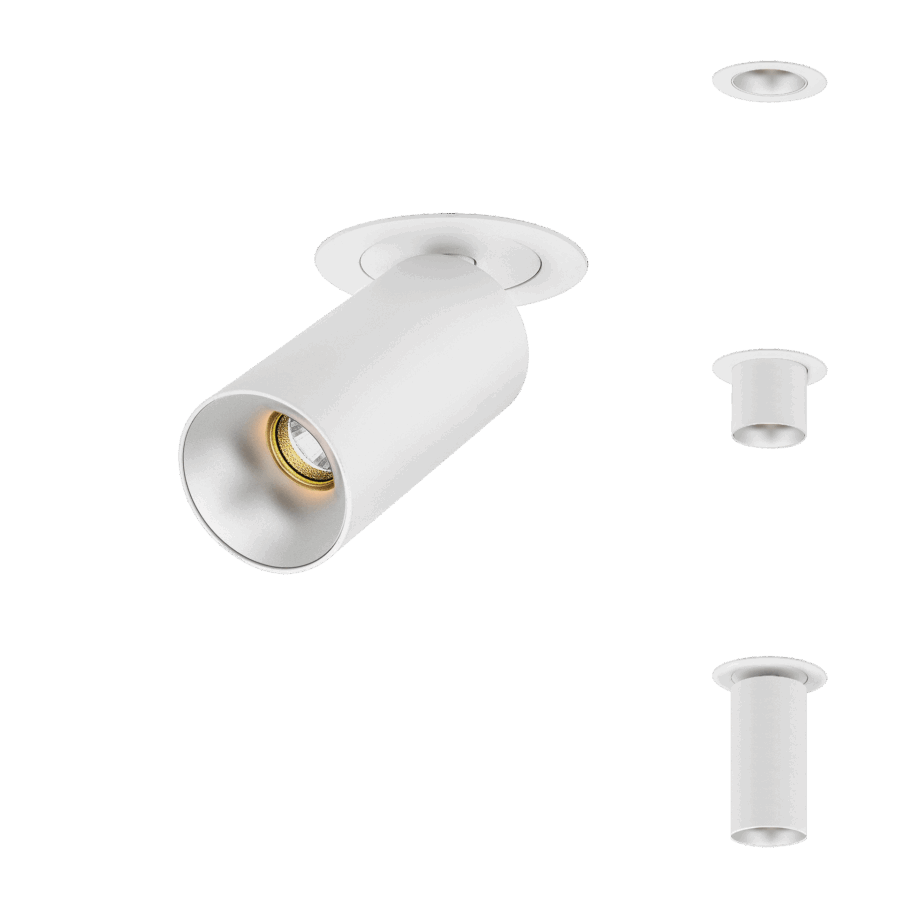

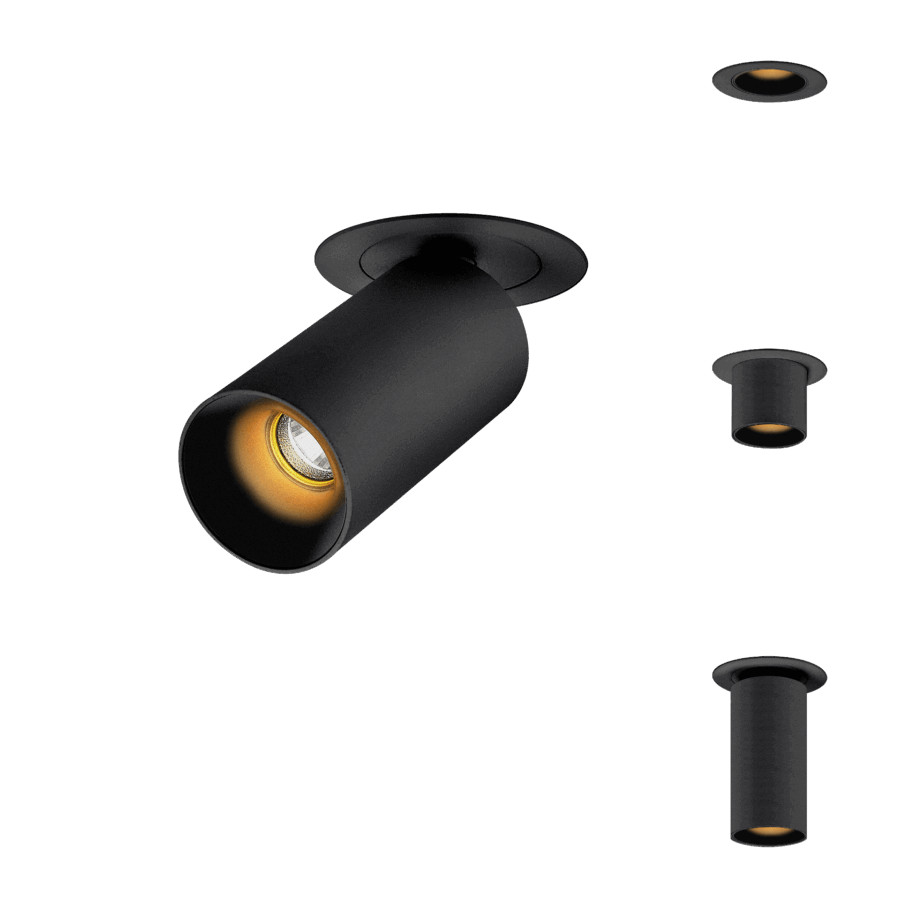

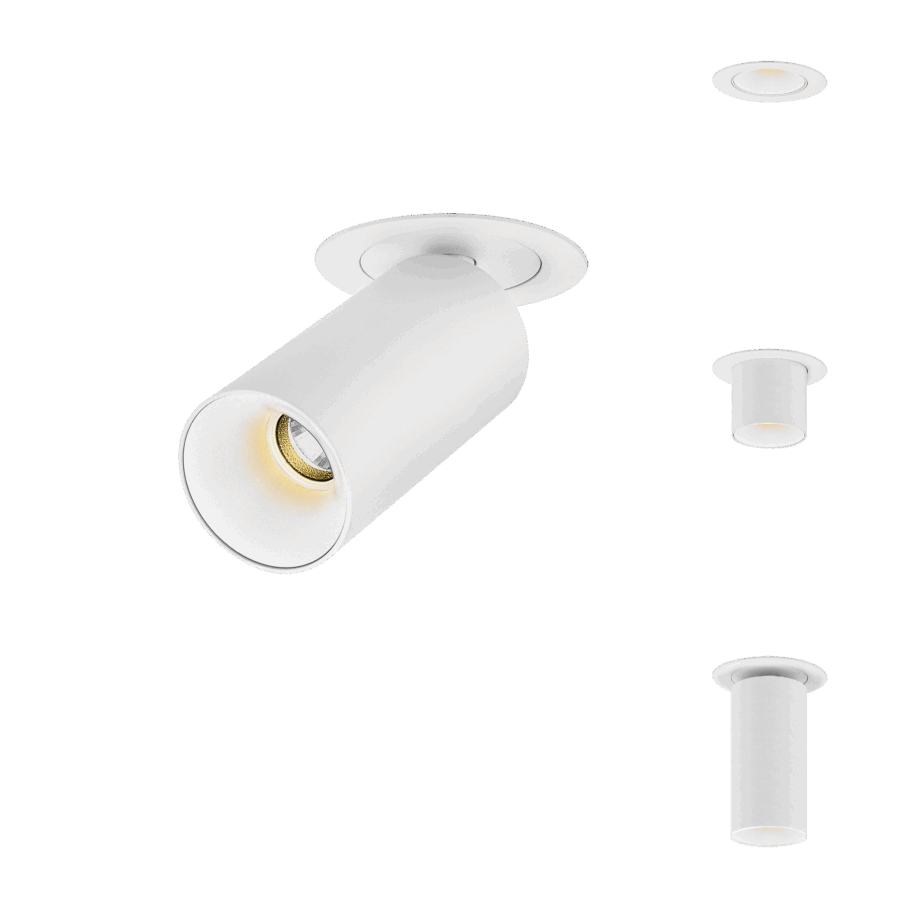

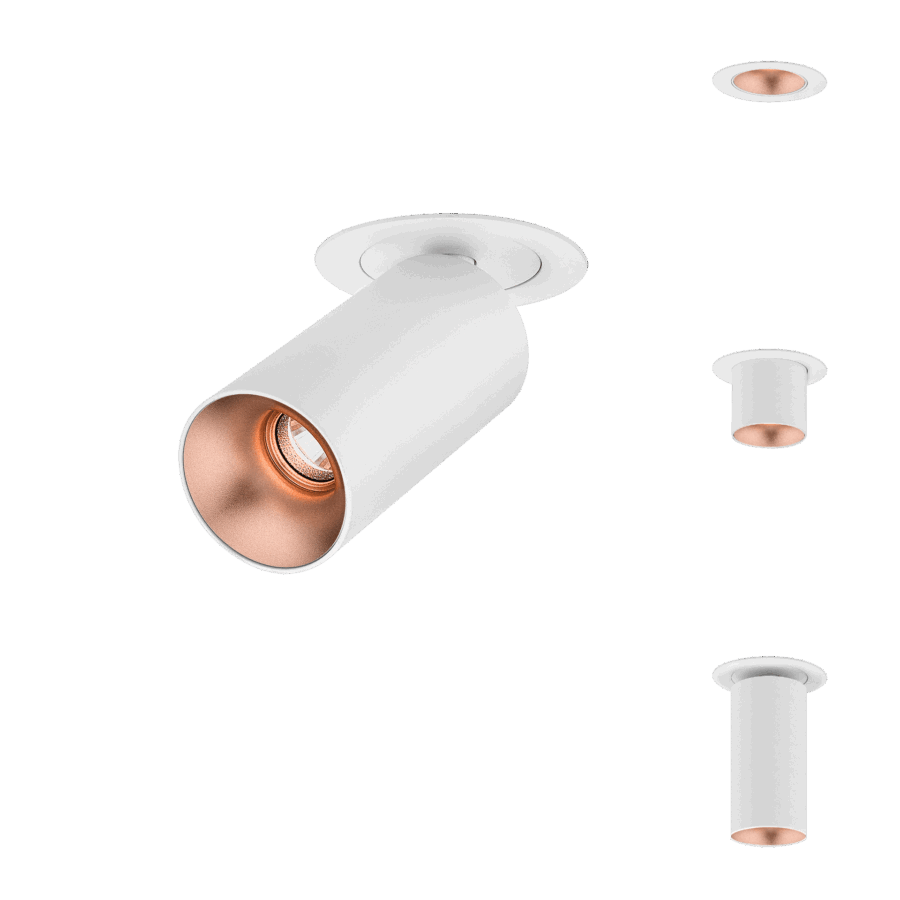

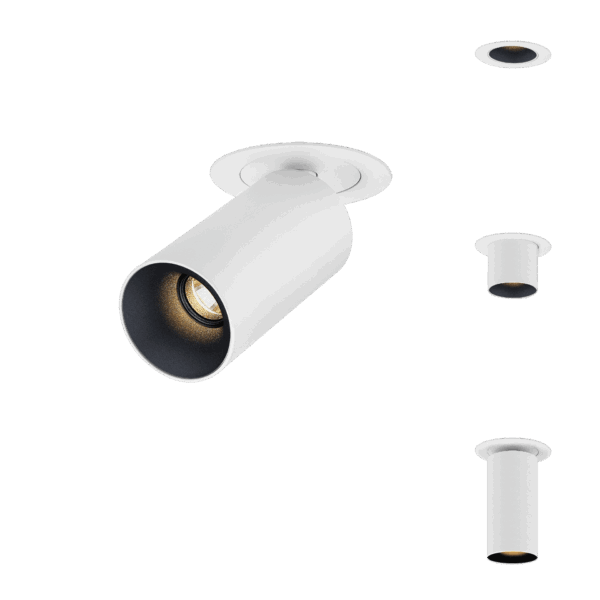

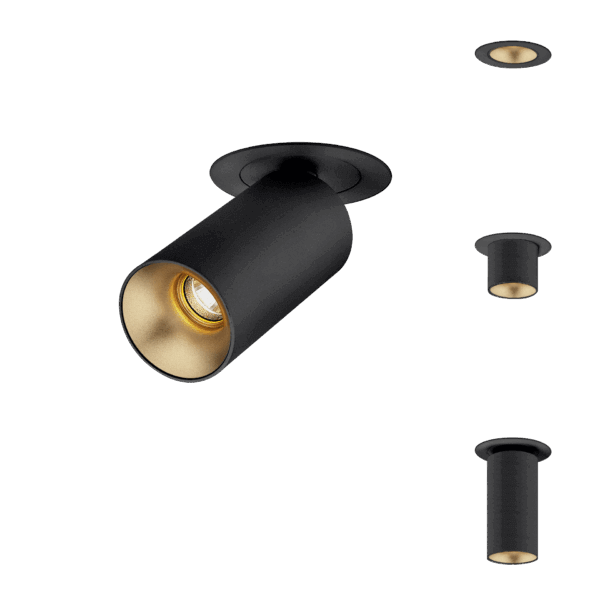

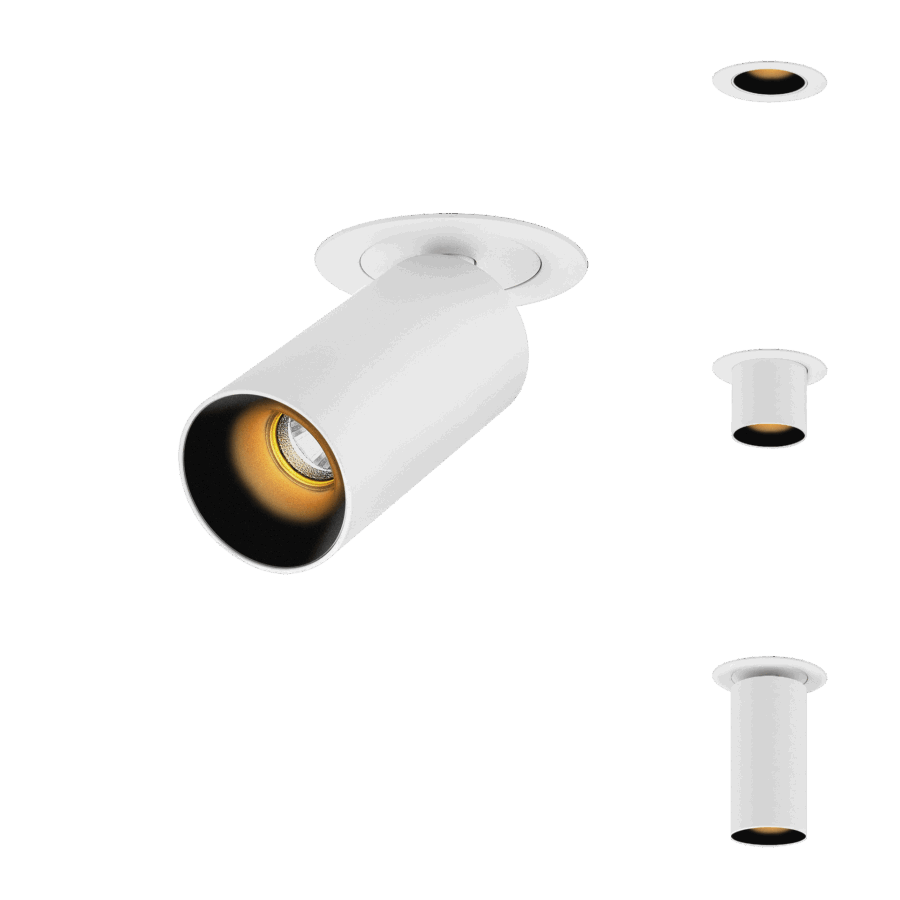

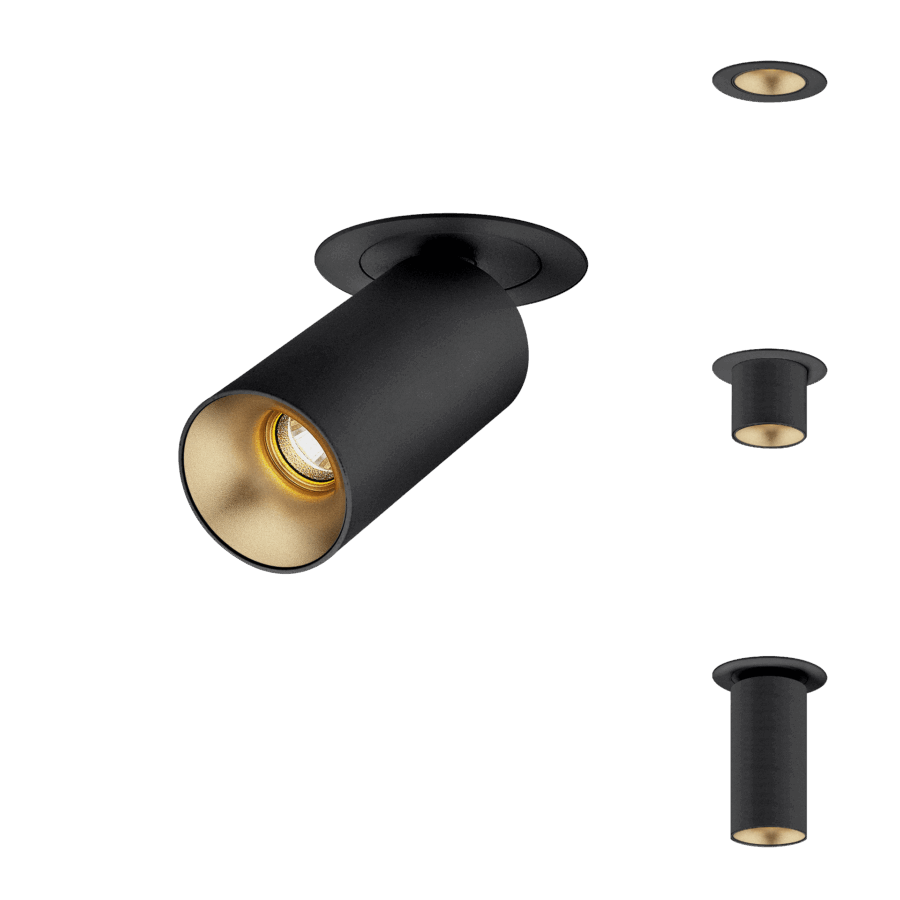

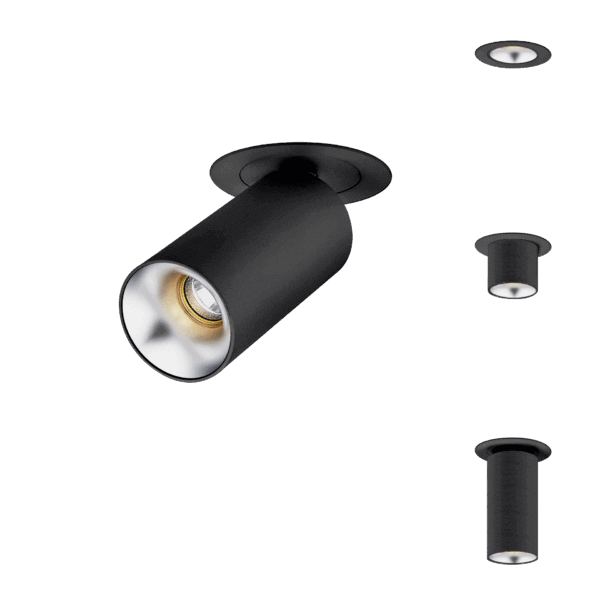

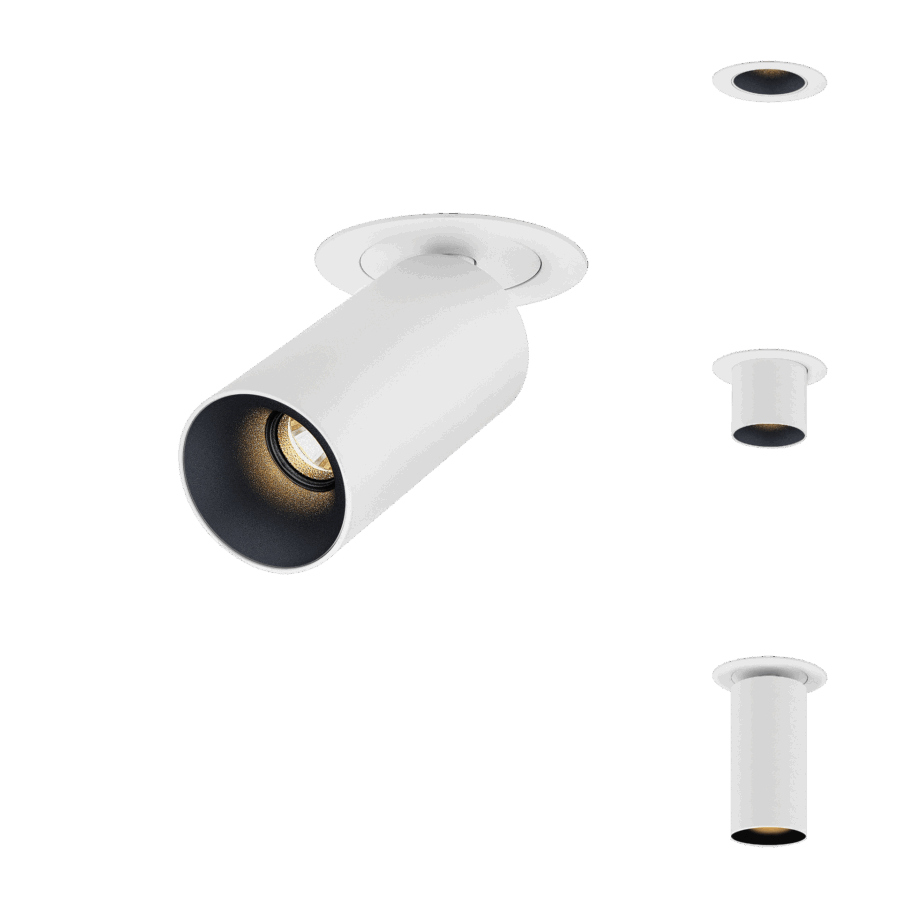

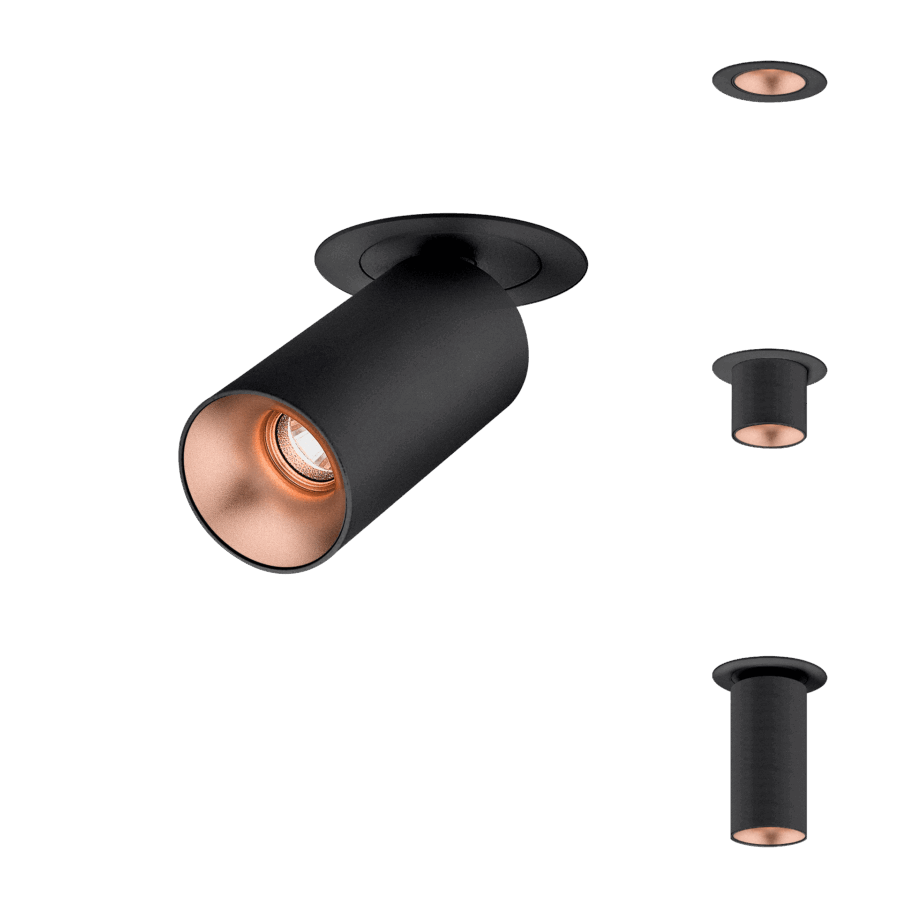

The push in/push out luminaire Dea Trivia is named after the Roman goddess of magic. This downlight-to-spot fixture offers unparalleled flexibility. It seamlessly transitions from downlight to adjustable spotlight and back, simply by pushing it gently. Providing consistent performance and aesthetic harmony, the Dea Trivia is a valuable addition to the Dea Athena modular system. Choose your mounting option separately to fit your project.
Dea Trivia S
A touch of magic.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 173AW92724BM00 | 580lm | 2700K | 90 | 24° | White(RAL9003) | Black Matt |
| 173AW92736BM00 | 580lm | 2700K | 90 | 36° | White(RAL9003) | Black Matt |
| 173AW92755BM00 | 580lm | 2700K | 90 | 55° | White(RAL9003) | Black Matt |
| 173AB92724BM00 | 580lm | 2700K | 90 | 24° | Black(RAL9005) | Black Matt |
| 173AB92736BM00 | 580lm | 2700K | 90 | 36° | Black(RAL9005) | Black Matt |
| 173AB92755BM00 | 580lm | 2700K | 90 | 55° | Black(RAL9005) | Black Matt |
| 173AW93024BM00 | 600lm | 3000K | 90 | 24° | White(RAL9003) | Black Matt |
| 173AW93036BM00 | 600lm | 3000K | 90 | 36° | White(RAL9003) | Black Matt |
| 173AW93055BM00 | 600lm | 3000K | 90 | 55° | White(RAL9003) | Black Matt |
| 173AB93024BM00 | 600lm | 3000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 173AB93036BM00 | 600lm | 3000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 173AB93055BM00 | 600lm | 3000K | 90 | 55° | Black(RAL9005) | Black Matt |
| 173AW94024BM00 | 620lm | 4000K | 90 | 24° | White(RAL9003) | Black Matt |
| 173AW94036BM00 | 620lm | 4000K | 90 | 36° | White(RAL9003) | Black Matt |
| 173AW94055BM00 | 620lm | 4000K | 90 | 55° | White(RAL9003) | Black Matt |
| 173AB94024BM00 | 620lm | 4000K | 90 | 24° | Black(RAL9005) | Black Matt |
| 173AB94036BM00 | 620lm | 4000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 173AB94055BM00 | 620lm | 4000K | 90 | 55° | Black(RAL9005) | Black Matt |
| 173AW92724BG00 | 580lm | 2700K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 173AW92736BG00 | 580lm | 2700K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 173AW92755BG00 | 580lm | 2700K | 90 | 55° | White(RAL9003) | Black High Gloss |
| 173AB92724BG00 | 580lm | 2700K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 173AB92736BG00 | 580lm | 2700K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 173AB92755BG00 | 580lm | 2700K | 90 | 55° | Black(RAL9005) | Black High Gloss |
| 173AW93024BG00 | 600lm | 3000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 173AW93036BG00 | 600lm | 3000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 173AW93055BG00 | 600lm | 3000K | 90 | 55° | White(RAL9003) | Black High Gloss |
| 173AB93024BG00 | 600lm | 3000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 173AB93036BG00 | 600lm | 3000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 173AB93055BG00 | 600lm | 3000K | 90 | 55° | Black(RAL9005) | Black High Gloss |
| 173AW94024BG00 | 620lm | 4000K | 90 | 24° | White(RAL9003) | Black High Gloss |
| 173AW94036BG00 | 620lm | 4000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 173AW94055BG00 | 620lm | 4000K | 90 | 55° | White(RAL9003) | Black High Gloss |
| 173AB94024BG00 | 620lm | 4000K | 90 | 24° | Black(RAL9005) | Black High Gloss |
| 173AB94036BG00 | 620lm | 4000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 173AB94055BG00 | 620lm | 4000K | 90 | 55° | Black(RAL9005) | Black High Gloss |
| 173AW92724WH00 | 580lm | 2700K | 90 | 24° | White(RAL9003) | White |
| 173AW92736WH00 | 580lm | 2700K | 90 | 36° | White(RAL9003) | White |
| 173AW92755WH00 | 580lm | 2700K | 90 | 55° | White(RAL9003) | White |
| 173AB92724WH00 | 580lm | 2700K | 90 | 24° | Black(RAL9005) | White |
| 173AB92736WH00 | 580lm | 2700K | 90 | 36° | Black(RAL9005) | White |
| 173AB92755WH00 | 580lm | 2700K | 90 | 55° | Black(RAL9005) | White |
| 173AW93024WH00 | 600lm | 3000K | 90 | 24° | White(RAL9003) | White |
| 173AW93036WH00 | 600lm | 3000K | 90 | 36° | White(RAL9003) | White |
| 173AW93055WH00 | 600lm | 3000K | 90 | 55° | White(RAL9003) | White |
| 173AB93024WH00 | 600lm | 3000K | 90 | 24° | Black(RAL9005) | White |
| 173AB93036WH00 | 600lm | 3000K | 90 | 36° | Black(RAL9005) | White |
| 173AB93055WH00 | 600lm | 3000K | 90 | 55° | Black(RAL9005) | White |
| 173AW94024WH00 | 620lm | 4000K | 90 | 24° | White(RAL9003) | White |
| 173AW94036WH00 | 620lm | 4000K | 90 | 36° | White(RAL9003) | White |
| 173AW94055WH00 | 620lm | 4000K | 90 | 55° | White(RAL9003) | White |
| 173AB94024WH00 | 620lm | 4000K | 90 | 24° | Black(RAL9005) | White |
| 173AB94036WH00 | 620lm | 4000K | 90 | 36° | Black(RAL9005) | White |
| 173AB94055WH00 | 620lm | 4000K | 90 | 55° | Black(RAL9005) | White |
| 173AW92724SG00 | 580lm | 2700K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 173AW92736SG00 | 580lm | 2700K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 173AW92755SG00 | 580lm | 2700K | 90 | 55° | White(RAL9003) | Silver High Gloss |
| 173AB92724SG00 | 580lm | 2700K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 173AB92736SG00 | 580lm | 2700K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 173AB92755SG00 | 580lm | 2700K | 90 | 55° | Black(RAL9005) | Silver High Gloss |
| 173AW93024SG00 | 600lm | 3000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 173AW93036SG00 | 600lm | 3000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 173AW93055SG00 | 600lm | 3000K | 90 | 55° | White(RAL9003) | Silver High Gloss |
| 173AB93024SG00 | 600lm | 3000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 173AB93036SG00 | 600lm | 3000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 173AB93055SG00 | 600lm | 3000K | 90 | 55° | Black(RAL9005) | Silver High Gloss |
| 173AW94024SG00 | 620lm | 4000K | 90 | 24° | White(RAL9003) | Silver High Gloss |
| 173AW94036SG00 | 620lm | 4000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 173AW94055SG00 | 620lm | 4000K | 90 | 55° | White(RAL9003) | Silver High Gloss |
| 173AB94024SG00 | 620lm | 4000K | 90 | 24° | Black(RAL9005) | Silver High Gloss |
| 173AB94036SG00 | 620lm | 4000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 173AB94055SG00 | 620lm | 4000K | 90 | 55° | Black(RAL9005) | Chrome |
| 173AW92724CH00 | 580lm | 2700K | 90 | 24° | White(RAL9003) | Chrome |
| 173AW92736CH00 | 580lm | 2700K | 90 | 36° | White(RAL9003) | Chrome |
| 173AW92755CH00 | 580lm | 2700K | 90 | 55° | White(RAL9003) | Chrome |
| 173AB92724CH00 | 580lm | 2700K | 90 | 24° | Black(RAL9005) | Chrome |
| 173AB92736CH00 | 580lm | 2700K | 90 | 36° | Black(RAL9005) | Chrome |
| 173AB92755CH00 | 580lm | 2700K | 90 | 55° | Black(RAL9005) | Chrome |
| 173AW93024CH00 | 600lm | 3000K | 90 | 24° | White(RAL9003) | Chrome |
| 173AW93036CH00 | 600lm | 3000K | 90 | 36° | White(RAL9003) | Chrome |
| 173AW93055CH00 | 600lm | 3000K | 90 | 55° | White(RAL9003) | Chrome |
| 173AB93024CH00 | 600lm | 3000K | 90 | 24° | Black(RAL9005) | Chrome |
| 173AB93036CH00 | 600lm | 3000K | 90 | 36° | Black(RAL9005) | Chrome |
| 173AB93055CH00 | 600lm | 3000K | 90 | 55° | Black(RAL9005) | Chrome |
| 173AW94024CH00 | 620lm | 4000K | 90 | 24° | White(RAL9003) | Chrome |
| 173AW94036CH00 | 620lm | 4000K | 90 | 36° | White(RAL9003) | Chrome |
| 173AW94055CH00 | 620lm | 4000K | 90 | 55° | White(RAL9003) | Chrome |
| 173AB94024CH00 | 620lm | 4000K | 90 | 24° | Black(RAL9005) | Chrome |
| 173AB94036CH00 | 620lm | 4000K | 90 | 36° | Black(RAL9005) | Chrome |
| 173AB94055CH00 | 620lm | 4000K | 90 | 55° | Black(RAL9005) | Chrome |
| 173AW92724GO00 | 580lm | 2700K | 90 | 24° | White(RAL9003) | Gold |
| 173AW92736GO00 | 580lm | 2700K | 90 | 36° | White(RAL9003) | Gold |
| 173AW92755GO00 | 580lm | 2700K | 90 | 55° | White(RAL9003) | Gold |
| 173AB92724GO00 | 580lm | 2700K | 90 | 24° | Black(RAL9005) | Gold |
| 173AB92736GO00 | 580lm | 2700K | 90 | 36° | Black(RAL9005) | Gold |
| 173AB92755GO00 | 580lm | 2700K | 90 | 55° | Black(RAL9005) | Gold |
| 173AW93024GO00 | 600lm | 3000K | 90 | 24° | White(RAL9003) | Gold |
| 173AW93036GO00 | 600lm | 3000K | 90 | 36° | White(RAL9003) | Gold |
| 173AW93055GO00 | 600lm | 3000K | 90 | 55° | White(RAL9003) | Gold |
| 173AB93024GO00 | 600lm | 3000K | 90 | 24° | Black(RAL9005) | Gold |
| 173AB93036GO00 | 600lm | 3000K | 90 | 36° | Black(RAL9005) | Gold |
| 173AB93055GO00 | 600lm | 3000K | 90 | 55° | Black(RAL9005) | Gold |
| 173AW94024GO00 | 620lm | 4000K | 90 | 24° | White(RAL9003) | Gold |
| 173AW94036GO00 | 620lm | 4000K | 90 | 36° | White(RAL9003) | Gold |
| 173AW94055GO00 | 620lm | 4000K | 90 | 55° | White(RAL9003) | Gold |
| 173AB94024GO00 | 620lm | 4000K | 90 | 24° | Black(RAL9005) | Gold |
| 173AB94036GO00 | 620lm | 4000K | 90 | 36° | Black(RAL9005) | Gold |
| 173AB94055GO00 | 620lm | 4000K | 90 | 55° | Black(RAL9005) | Gold |
| 173AW92724CO00 | 580lm | 2700K | 90 | 24° | White(RAL9003) | Copper |
| 173AW92736CO00 | 580lm | 2700K | 90 | 36° | White(RAL9003) | Copper |
| 173AW92755CO00 | 580lm | 2700K | 90 | 55° | White(RAL9003) | Copper |
| 173AB92724CO00 | 580lm | 2700K | 90 | 24° | Black(RAL9005) | Copper |
| 173AB92736CO00 | 580lm | 2700K | 90 | 36° | Black(RAL9005) | Copper |
| 173AB92755CO00 | 580lm | 2700K | 90 | 55° | Black(RAL9005) | Copper |
| 173AW93024CO00 | 600lm | 3000K | 90 | 24° | White(RAL9003) | Copper |
| 173AW93036CO00 | 600lm | 3000K | 90 | 36° | White(RAL9003) | Copper |
| 173AW93055CO00 | 600lm | 3000K | 90 | 55° | White(RAL9003) | Copper |
| 173AB93024CO00 | 600lm | 3000K | 90 | 24° | Black(RAL9005) | Copper |
| 173AB93036CO00 | 600lm | 3000K | 90 | 36° | Black(RAL9005) | Copper |
| 173AB93055CO00 | 600lm | 3000K | 90 | 55° | Black(RAL9005) | Copper |
| 173AW94024CO00 | 620lm | 4000K | 90 | 24° | White(RAL9003) | Copper |
| 173AW94036CO00 | 620lm | 4000K | 90 | 36° | White(RAL9003) | Copper |
| 173AW94055CO00 | 620lm | 4000K | 90 | 55° | White(RAL9003) | Copper |
| 173AB94024CO00 | 620lm | 4000K | 90 | 24° | Black(RAL9005) | Copper |
| 173AB94036CO00 | 620lm | 4000K | 90 | 36° | Black(RAL9005) | Copper |
| 173AB94055CO00 | 620lm | 4000K | 90 | 55° | Black(RAL9005) | Copper |
| 173CW183036WH00 | 300lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | White |
| 173CW183036BM00 | 300lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Black Matt |
| 173CW183036BG00 | 300lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Black High Gloss |
| 173CW183036CH00 | 300lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Chrome |
| 173CW183036SG00 | 300lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Silver High Gloss |
| 173CW183036GO00 | 300lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Gold |
| 173CW183036CO00 | 300lm | 1800K - 3000K | 90 | 36° | White(RAL9003) | Copper |
| 173CB183036WH00 | 300lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | White |
| 173CB183036BM00 | 300lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Black Matt |
| 173CB183036BG00 | 300lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Black High Gloss |
| 173CB183036CH00 | 300lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Chrome |
| 173CB183036SG00 | 300lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Silver High Gloss |
| 173CB183036GO00 | 300lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Gold |
| 173CB183036CO00 | 300lm | 1800K - 3000K | 90 | 36° | Black(RAL9005) | Copper |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), White(RAL9003)

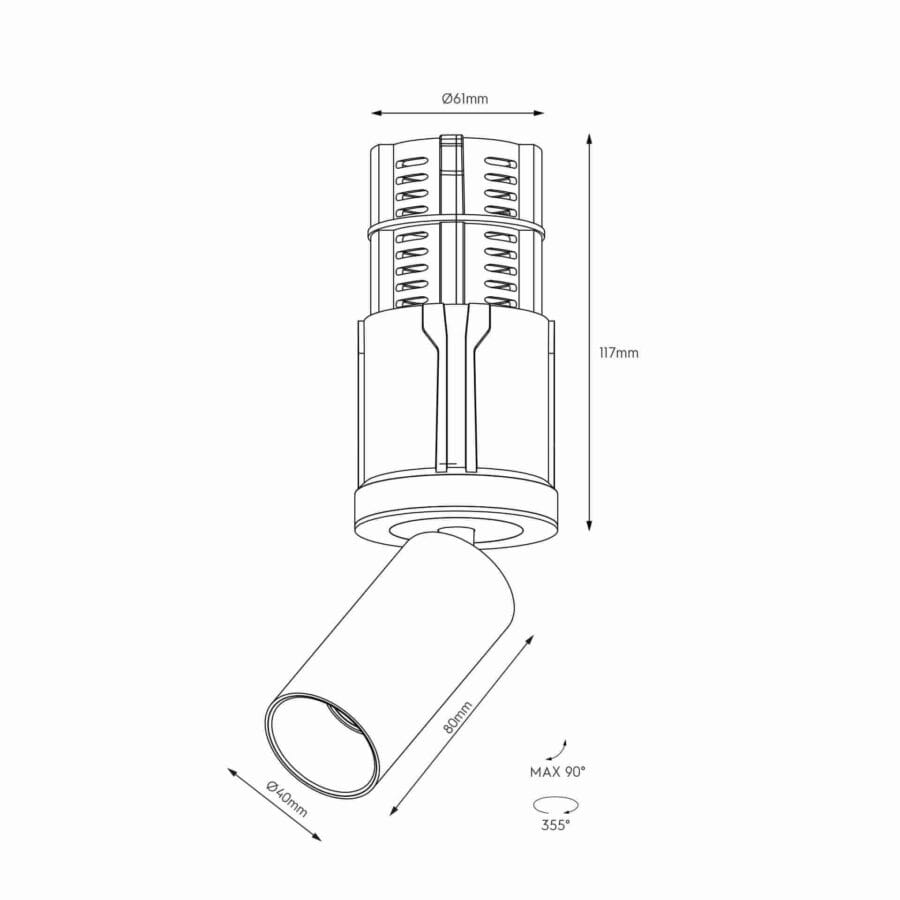

Luminaire Dimension [mm]Ø60x198mm
Cut-Out [mm]Based on selected frame
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]N/A
Power SupplySeparate Available
Ambient Temperature [degC]35°C
Ingress ProtectionIP43/IP20
Light Source Energy ClassF
Light Source IdentifierBXRV-DR-1830G-0600-A-23, BXRH-27G1000-B-83, BXRH-30G1000-B-83, BXRH-40G1000-B-83
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.25Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
The Karizma Luce Dea Trivia S is an unique recessed adjustable downlight from the Dea Della Luce series. Compatible with the Dea Athena modular system. Made from aluminium. Available luminaire flux: in range 580 – 620 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24°|36°|55°. Luminaire available in black and white.
