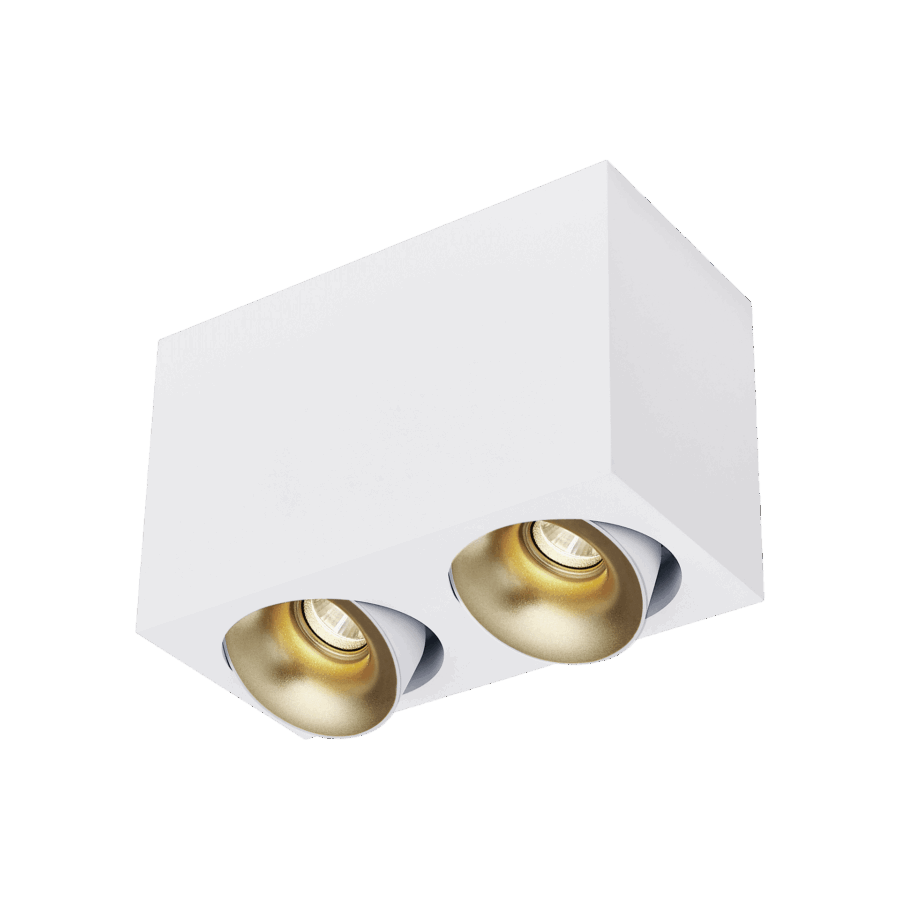

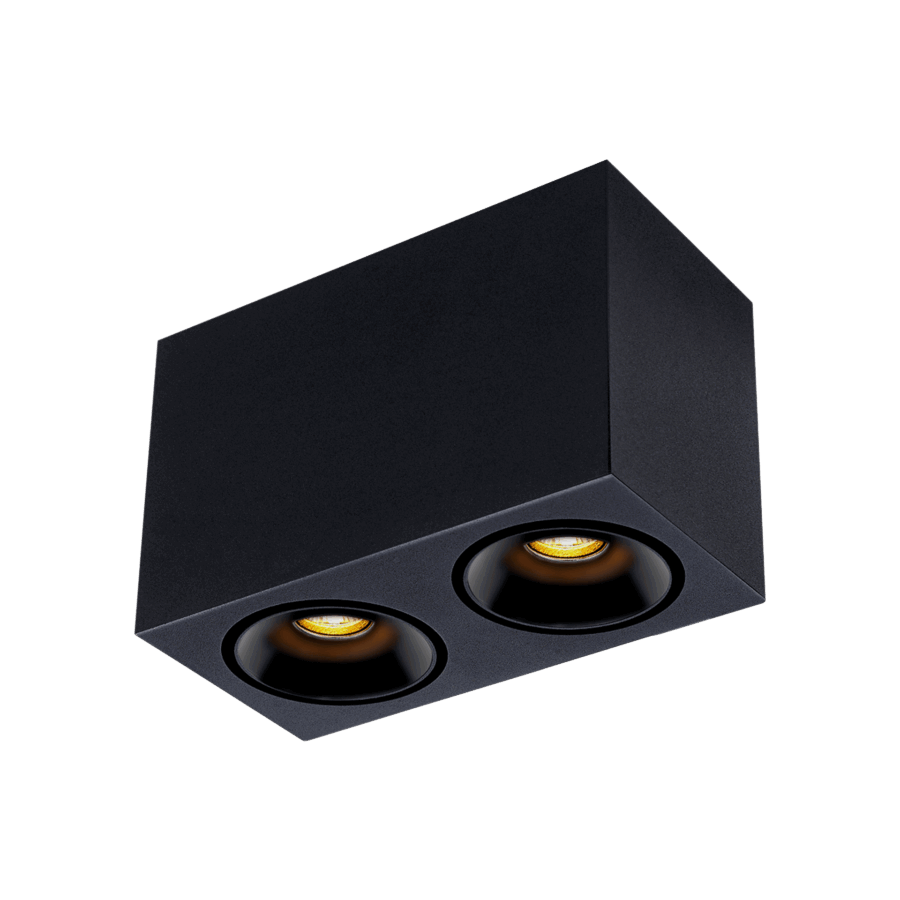

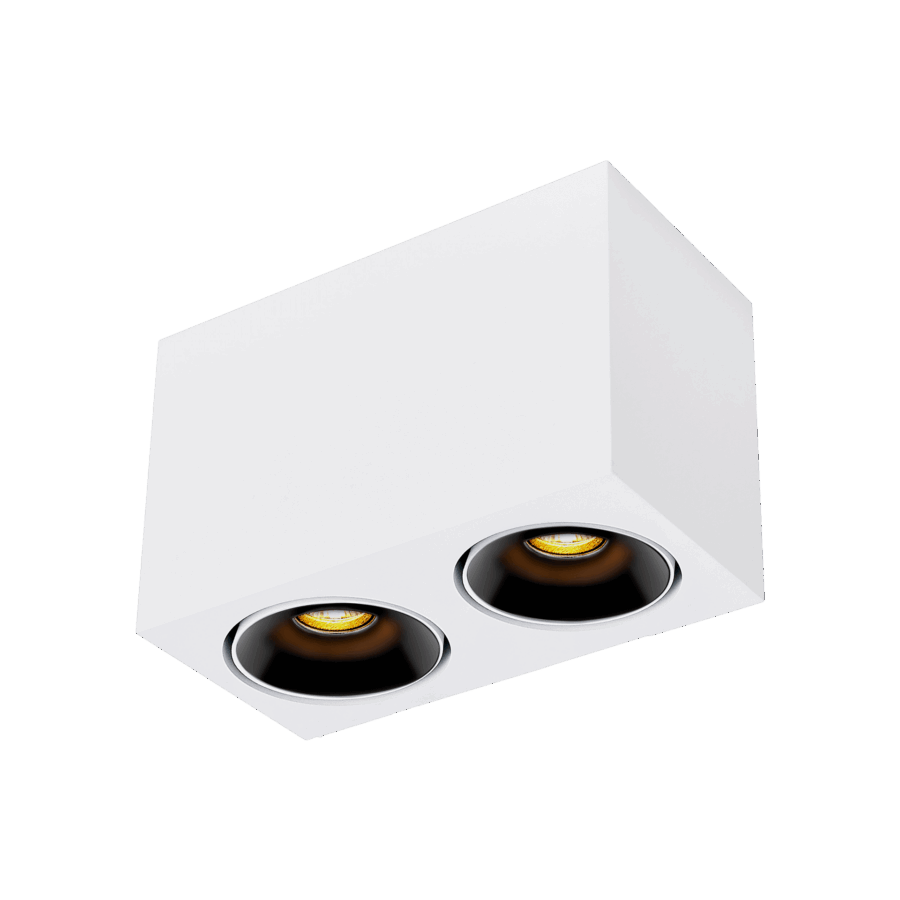

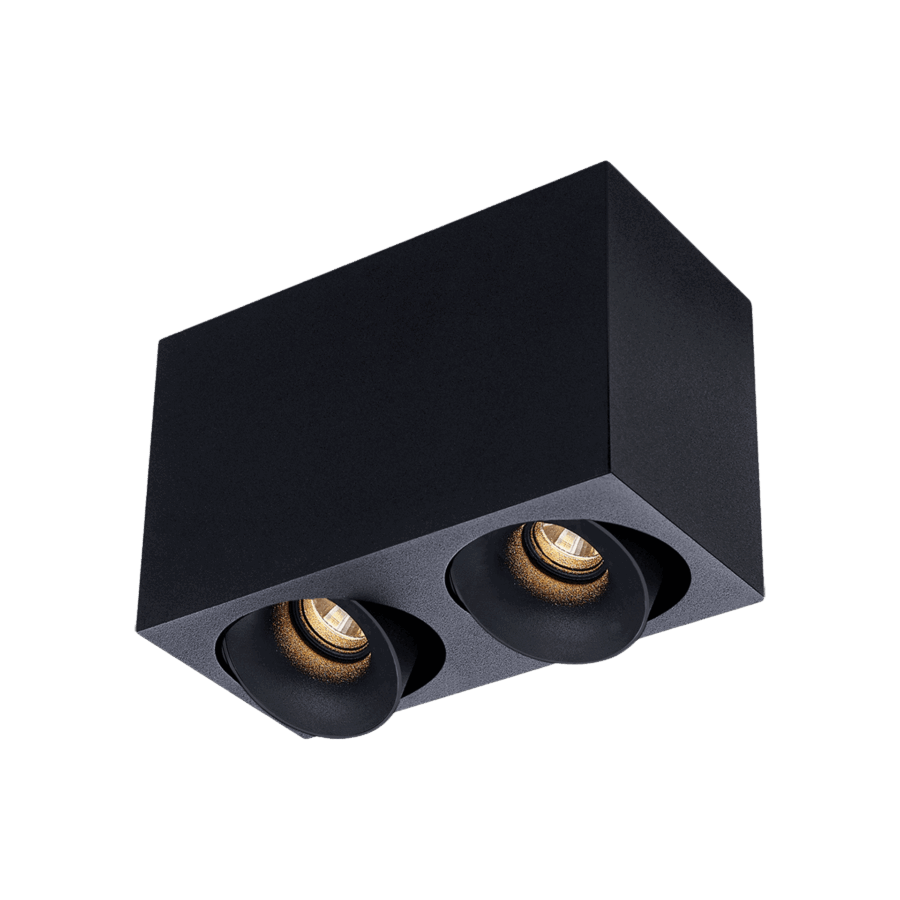

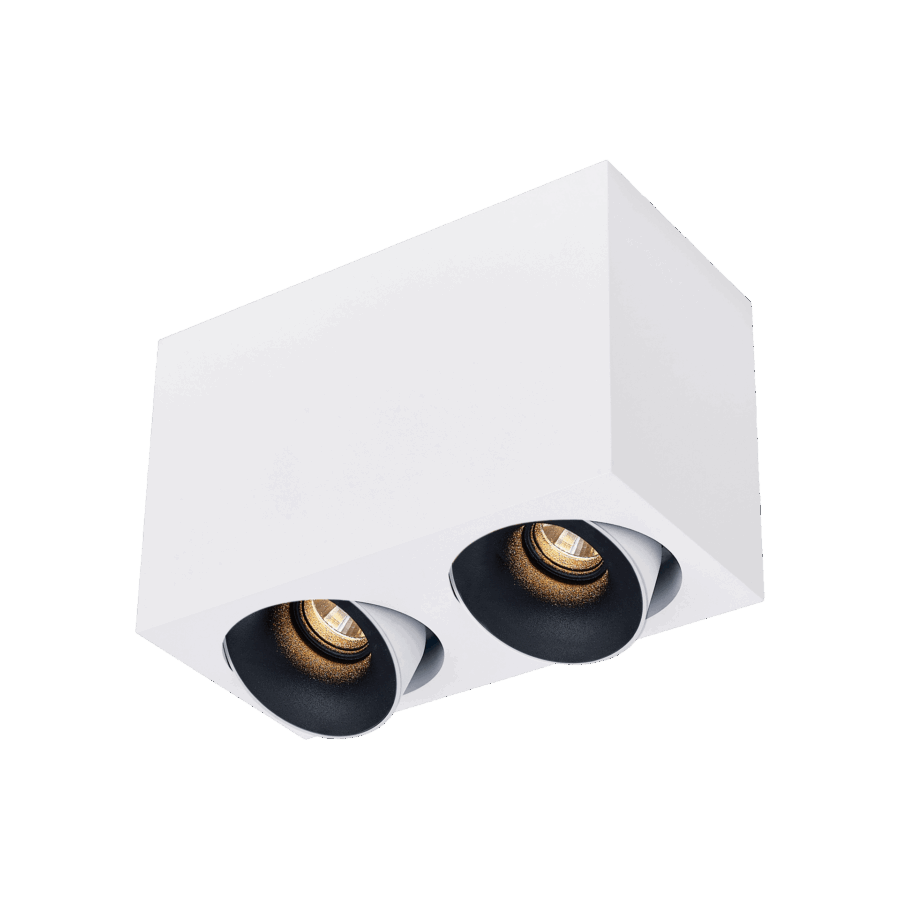

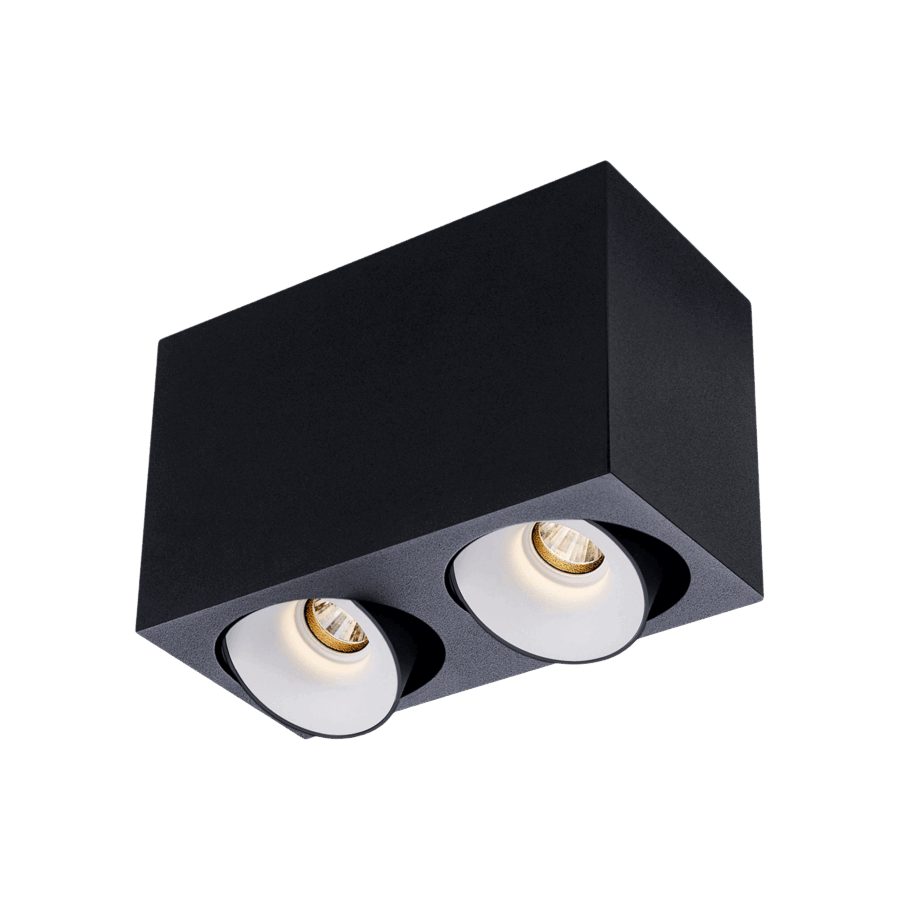

The Dea Fauna S duo is a square tiltable surface-mounted downlight. The light sources can be controlled independently of each other, giving you the opportunity to add that magical touch anywhere you like. This double downlight offers the same sizes and lumen packages as our recessed downlights. This guarantees a very high performance, also in rooms where ceilings don’t permit recessed luminaires. On request available in 24°.
Dea Fauna S duo
Fair and square.
- Warranty on quality in years.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 406DW92740COF0 | 2x840lm | 2700K | 90 | 40° | White(RAL9003) | Copper |
| 406DW93040COF0 | 2x880lm | 3000K | 90 | 40° | White(RAL9003) | Copper |
| 406DW94040COF0 | 2x890lm | 4000K | 90 | 40° | White(RAL9003) | Copper |
| 406DW92740BMF0 | 2x760lm | 2700K | 90 | 40° | White(RAL9003) | Black Matt |
| 406DW93040BMF0 | 2x800lm | 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 406DW94040BMF0 | 2x810lm | 4000K | 90 | 40° | White(RAL9003) | Black Matt |
| 406DB92740SGF0 | 2x900lm | 2700K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 406DB93040SGF0 | 2x950lm | 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 406DB94040SGF0 | 2x960lm | 4000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 406DB92740BGF0 | 2x830lm | 2700K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 406DB93040BGF0 | 2x860lm | 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 406DB94040BGF0 | 2x870lm | 4000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 406DB92740WHF0 | 2x840lm | 2700K | 90 | 40° | Black(RAL9005) | White |
| 406DB93040WHF0 | 2x880lm | 3000K | 90 | 40° | Black(RAL9005) | White |
| 406DB94040WHF0 | 2x890lm | 4000K | 90 | 40° | Black(RAL9005) | White |
| 406DB92740CHF0 | 2x890lm | 2700K | 90 | 40° | Black(RAL9005) | Chrome |
| 406DB93040CHF0 | 2x930lm | 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 406DB94040CHF0 | 2x940lm | 4000K | 90 | 40° | Black(RAL9005) | Chrome |
| 406DB92740GOF0 | 2x840lm | 2700K | 90 | 40° | Black(RAL9005) | Gold |
| 406DB93040GOF0 | 2x880lm | 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 406DB94040GOF0 | 2x890lm | 4000K | 90 | 40° | Black(RAL9005) | Gold |
| 406DB92740COF0 | 2x840lm | 2700K | 90 | 40° | Black(RAL9005) | Copper |
| 406DB93040COF0 | 2x880lm | 3000K | 90 | 40° | Black(RAL9005) | Copper |
| 406DB94040COF0 | 2x890lm | 4000K | 90 | 40° | Black(RAL9005) | Copper |
| 406DB92740BMF0 | 2x760lm | 2700K | 90 | 40° | Black(RAL9005) | Black Matt |
| 406DB93040BMF0 | 2x800lm | 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 406DB94040BMF0 | 2x810lm | 4000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 406DW92740SGF0 | 2x900lm | 2700K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 406DW93040SGF0 | 2x950lm | 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 406DW94040SGF0 | 2x960lm | 4000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 406DW92740BGF0 | 2x830lm | 2700K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 406DW93040BGF0 | 2x860lm | 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 406DW94040BGF0 | 2x870lm | 4000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 406DW92740WHF0 | 2x840lm | 2700K | 90 | 40° | White(RAL9003) | White |
| 406DW93040WHF0 | 2x880lm | 3000K | 90 | 40° | White(RAL9003) | White |
| 406DW94040WHF0 | 2x890lm | 4000K | 90 | 40° | White(RAL9003) | White |
| 406DW92740CHF0 | 2x890lm | 2700K | 90 | 40° | White(RAL9003) | Chrome |
| 406DW93040CHF0 | 2x930lm | 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 406DW94040CHF0 | 2x940lm | 4000K | 90 | 40° | White(RAL9003) | Chrome |
| 406DW92740GOF0 | 2x840lm | 2700K | 90 | 40° | White(RAL9003) | Gold |
| 406DW93040GOF0 | 2x880lm | 3000K | 90 | 40° | White(RAL9003) | Gold |
| 406DW94040GOF0 | 2x890lm | 4000K | 90 | 40° | White(RAL9003) | Gold |
| 406CW183040WHP0 | 2x570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | White |
| 406CW183040BGP0 | 2x570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black High Gloss |
| 406CW183040BMP0 | 2x570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Black Matt |
| 406CW183040GOP0 | 2x570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Gold |
| 406CW183040CHP0 | 2x570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Chrome |
| 406CW183040SGP0 | 2x570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Silver High Gloss |
| 406CW183040COP0 | 2x570lm | 1800K - 3000K | 90 | 40° | White(RAL9003) | Copper |
| 406CB183040WHP0 | 2x570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | White |
| 406CB183040BGP0 | 2x570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black High Gloss |
| 406CB183040BMP0 | 2x570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Black Matt |
| 406CB183040GOP0 | 2x570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Gold |
| 406CB183040CHP0 | 2x570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Chrome |
| 406CB183040SGP0 | 2x570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Silver High Gloss |
| 406CB183040COP0 | 2x570lm | 1800K - 3000K | 90 | 40° | Black(RAL9005) | Copper |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), Black(RAL9005)(RAL9005), White(RAL9003), White(RAL9003)(RAL9003)

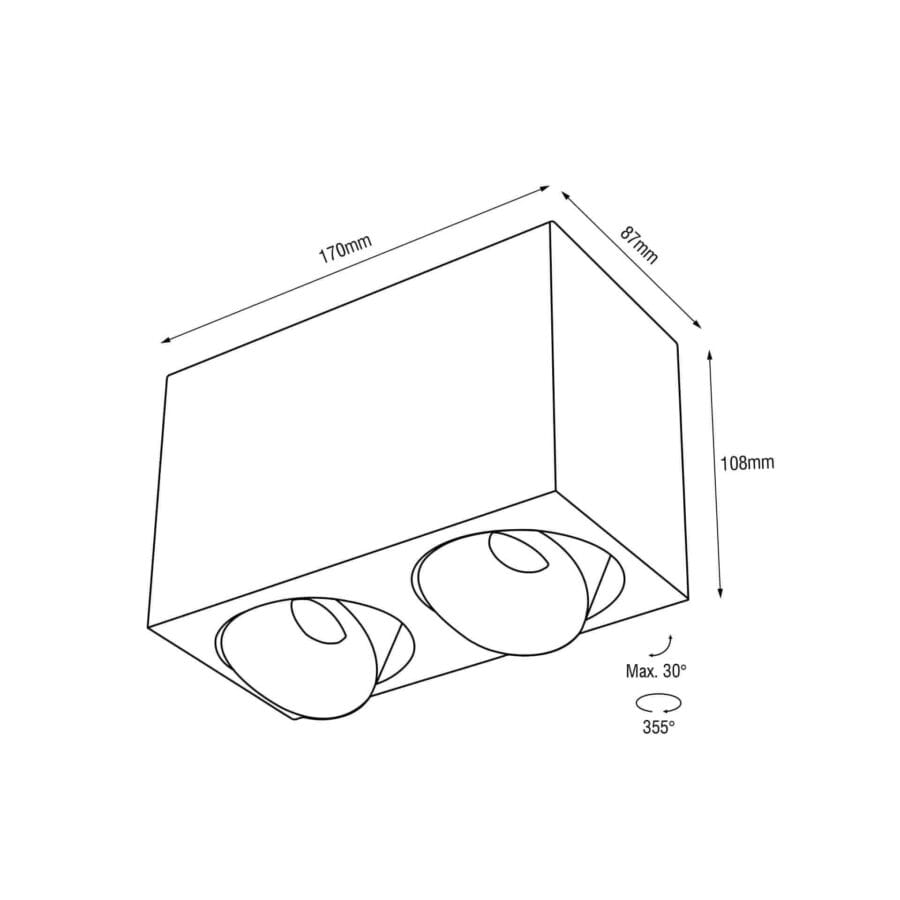

Luminaire Dimension [mm]170x87x108mm
Cut-Out [mm]N/A
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
Beam Angle [deg]40°
LED Power [W]N/A
Luminous Flux [lm]2x570lm, 2x760lm, 2x800lm, 2x810lm, 2x830lm, 2x840lm, 2x860lm, 2x870lm, 2x880lm, 2x890lm, 2x900lm, 2x930lm, 2x940lm, 2x950lm, 2x960lm
System Efficiency [lm/W]57lm/W, 72lm/W, 76lm/W, 77lm/W, 79lm/W, 80lm/W, 82lm/W, 83lm/W, 84lm/W, 85lm/W, 86lm/W, 89lm/W, 90lm/W, 91lm/W
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]220-240V / 50 -60Hz
Power SupplyIncluded ON/OFF, Included Phase Cut
Nominal Current [mA]N/A
Forward Voltage [V]N/A
Ambient Temperature [degC]35°C
Ingress ProtectionIP20
Light Source IdentifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]1.2Kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
ControlPhase Cut

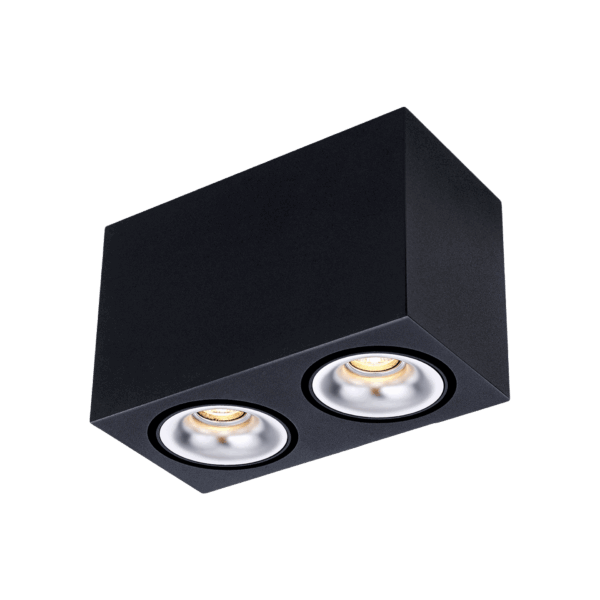

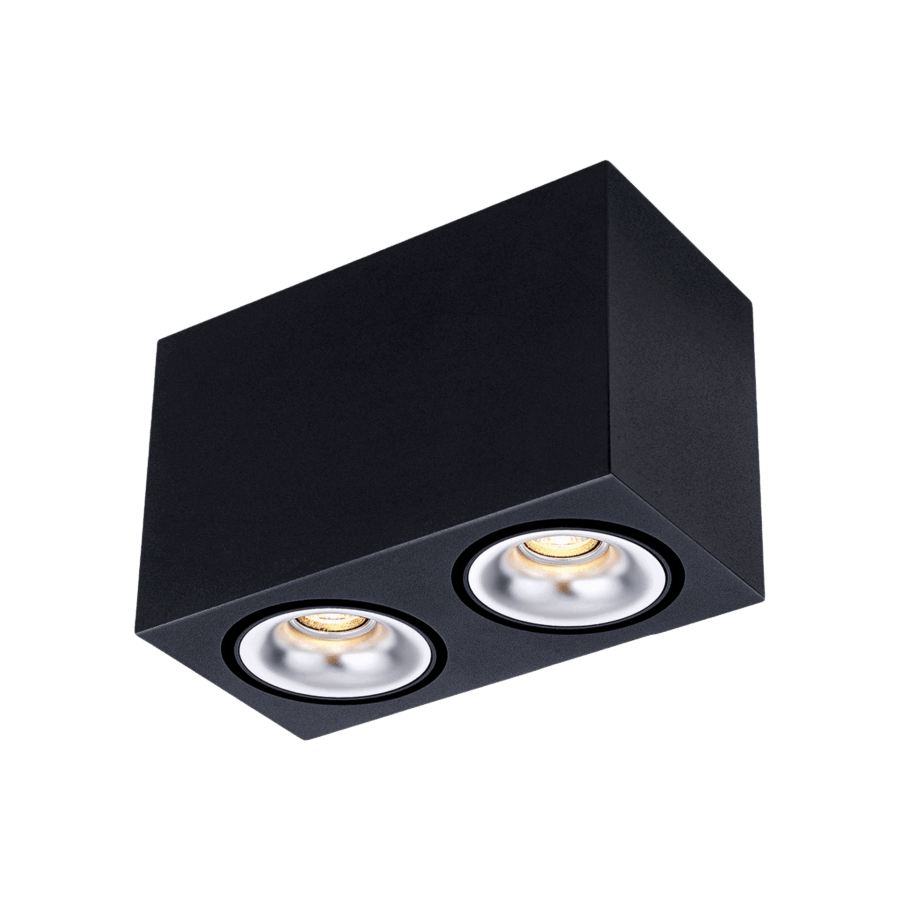

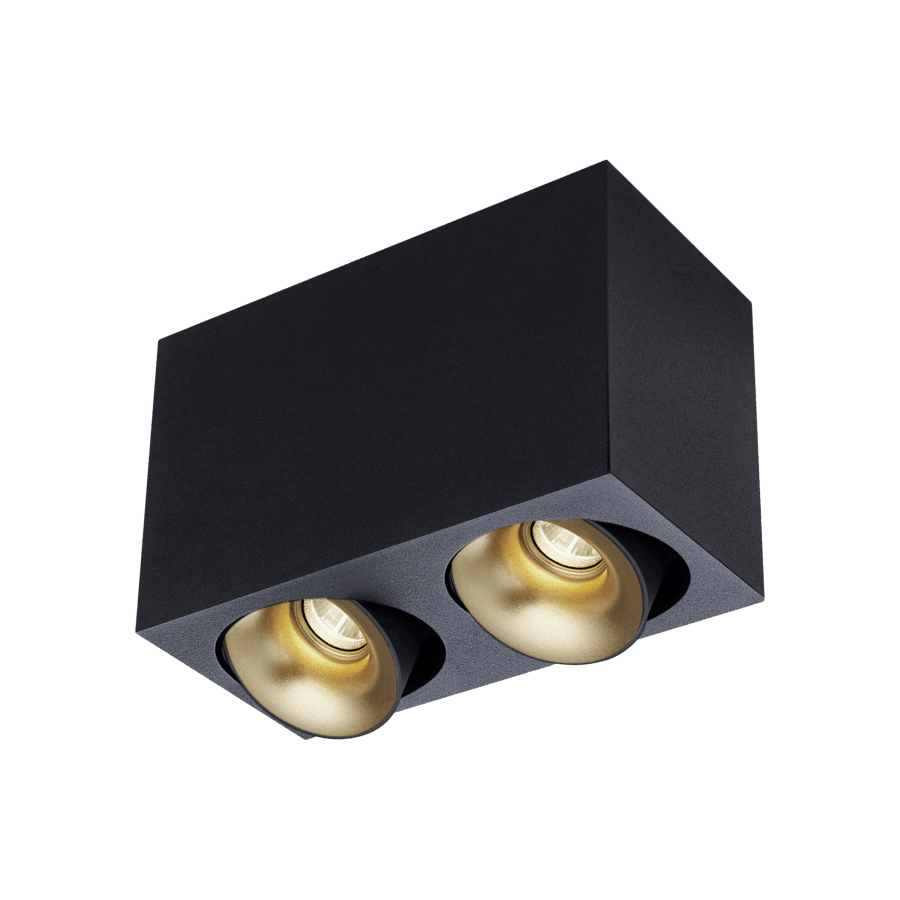

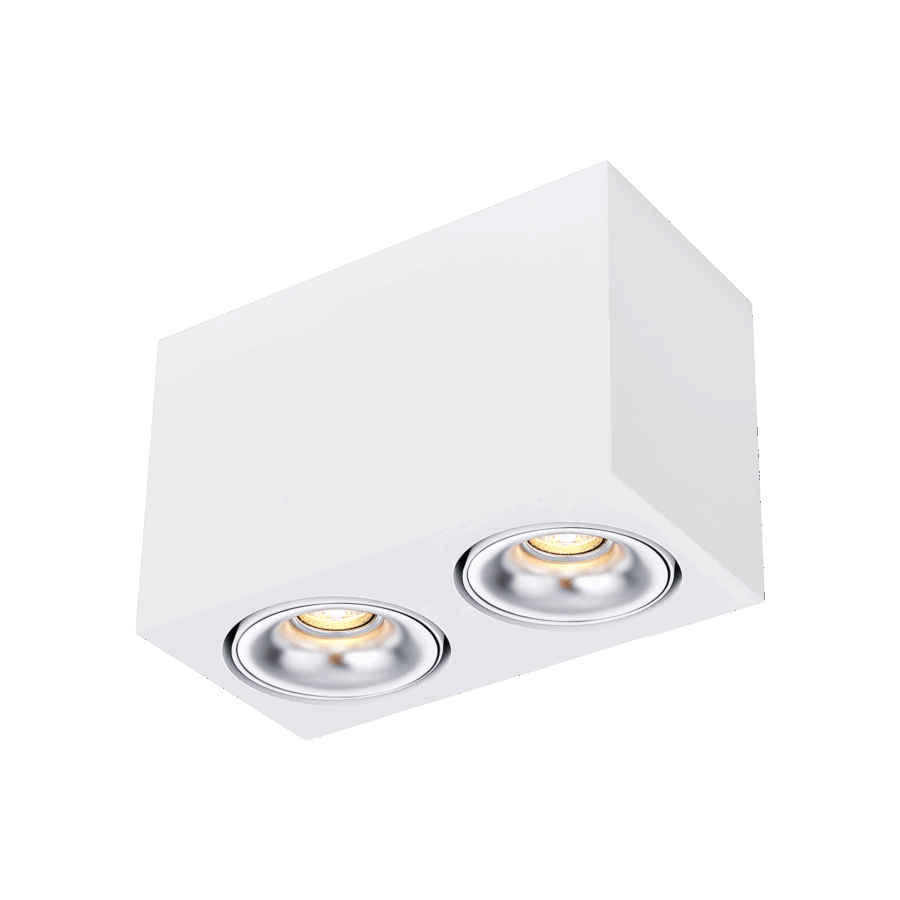

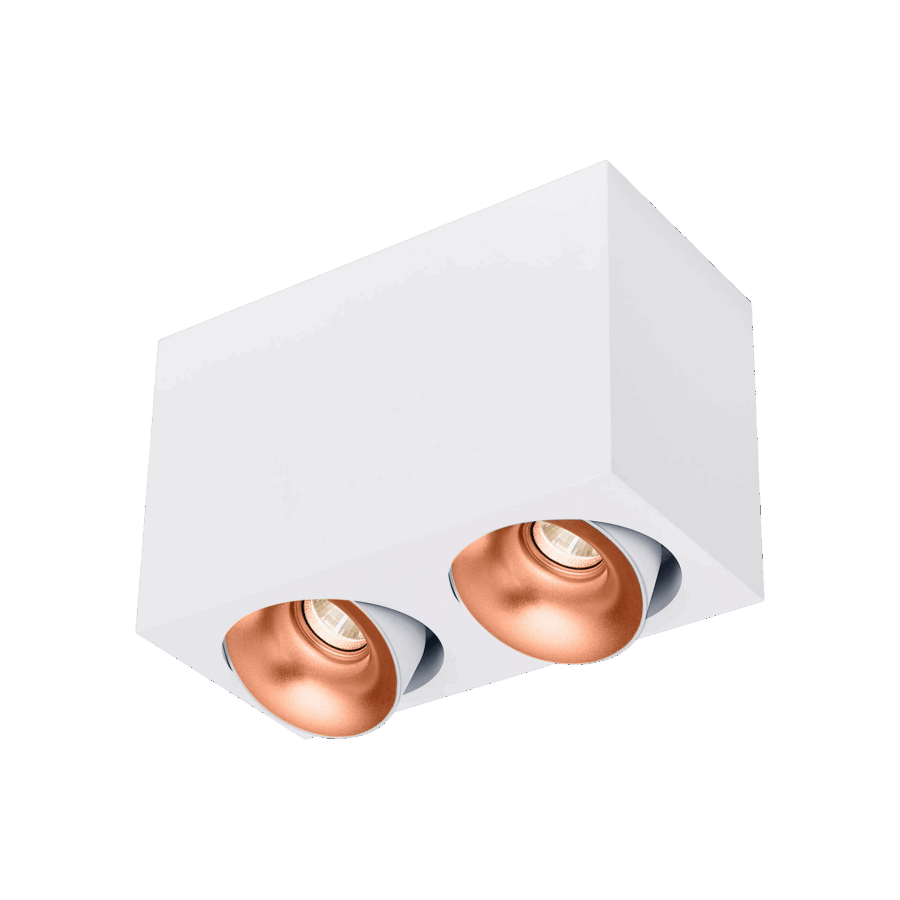

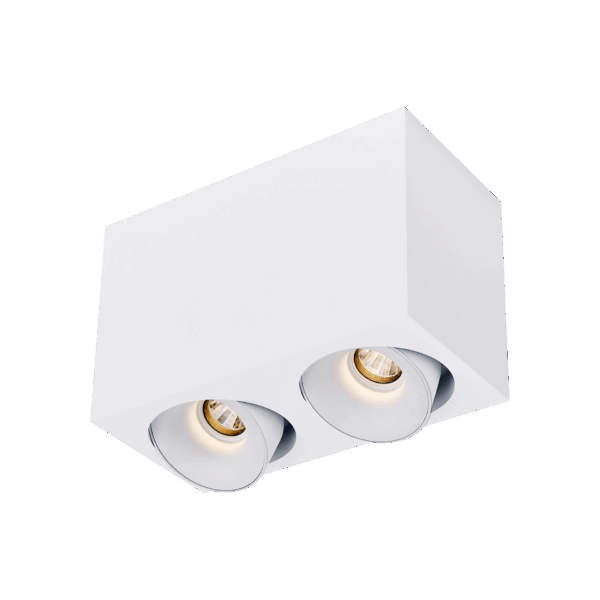

The Karizma Luce Dea Fauna S duo (formerly known as Dea Fortuna S) is a double square tiltable surface-mounted fixture from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 2×760- 2×960 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
