Dea Fauna M

Dea Fauna M

Fair and square.

The Dea Fauna is a square tiltable surface-mounted downlight. It truly is an outstanding feature in every environment. This downlight offers the same sizes and lumen packages as our recessed downlights. This guarantees a very high performance, also in rooms where ceilings don’t permit recessed luminaires. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
403EW92740SGF0	1240 lm	2700K	90	40°	White	Silver High Gloss	1240-lm	2700k	90	40	white	silver-high-gloss
403FW93040SGF0	1290 lm	3000K	90	40°	White	Silver High Gloss	1290-lm	3000k	90	40	white	silver-high-gloss
403FW94040SGF0	1300 lm	4000K	90	40°	White	Silver High Gloss	1300-lm	4000k	90	40	white	silver-high-gloss
403EW92740BGF0	1140 lm	2700K	90	40°	White	Black High Gloss	1140-lm	2700k	90	40	white	black-high-gloss
403EW93040BGF0	1180 lm	3000K	90	40°	White	Black High Gloss	1180-lm	3000k	90	40	white	black-high-gloss
403EW94040BGF0	1200 lm	4000K	90	40°	White	Black High Gloss	1200-lm	4000k	90	40	white	black-high-gloss
403EW92740WHF0	1160 lm	2700K	90	40°	White	White	1160-lm	2700k	90	40	white	white
403EW93040WHF0	1200 lm	3000K	90	40°	White	White	1200-lm	3000k	90	40	white	white
403EW94040WHF0	1220 lm	4000K	90	40°	White	White	1220-lm	4000k	90	40	white	white
403EW92740CHF0	1200 lm	2700K	90	40°	White	Chrome	1200-lm	2700k	90	40	white	chrome
403FW93040CHF0	1260 lm	3000K	90	40°	White	Chrome	1260-lm	3000k	90	40	white	chrome
403FW94040CHF0	1270 lm	4000K	90	40°	White	Chrome	1270-lm	4000k	90	40	white	chrome
403EW92740GOF0	1160 lm	2700K	90	40°	White	Gold	1160-lm	2700k	90	40	white	gold
403EW93040GOF0	1200 lm	3000K	90	40°	White	Gold	1200-lm	3000k	90	40	white	gold
403EW94040GOF0	1220 lm	4000K	90	40°	White	Gold	1220-lm	4000k	90	40	white	gold
403EW92740COF0	1160 lm	2700K	90	40°	White	Copper	1160-lm	2700k	90	40	white	copper
403EW93040COF0	1200 lm	3000K	90	40°	White	Copper	1200-lm	3000k	90	40	white	copper
403EW94040COF0	1220 lm	4000K	90	40°	White	Copper	1220-lm	4000k	90	40	white	copper
403EW92740BMF0	1060 lm	2700K	90	40°	White	Black Matt	1060-lm	2700k	90	40	white	black-matt
403EW93040BMF0	1120 lm	3000K	90	40°	White	Black Matt	1120-lm	3000k	90	40	white	black-matt
403EW94040BMF0	1130 lm	4000K	90	40°	White	Black Matt	1130-lm	4000k	90	40	white	black-matt
403EB92740SGF0	1240 lm	2700K	90	40°	Black	Silver High Gloss	1240-lm	2700k	90	40	black	silver-high-gloss
403FB93040SGF0	1290 lm	3000K	90	40°	Black	Silver High Gloss	1290-lm	3000k	90	40	black	silver-high-gloss
403FB94040SGF0	1300 lm	4000K	90	40°	Black	Silver High Gloss	1300-lm	4000k	90	40	black	silver-high-gloss
403EB92740BGF0	1140 lm	2700K	90	40°	Black	Black High Gloss	1140-lm	2700k	90	40	black	black-high-gloss
403EB93040BGF0	1180 lm	3000K	90	40°	Black	Black High Gloss	1180-lm	3000k	90	40	black	black-high-gloss
403EB94040BGF0	1200 lm	4000K	90	40°	Black	Black High Gloss	1200-lm	4000k	90	40	black	black-high-gloss
403EB92740WHF0	1160 lm	2700K	90	40°	Black	White	1160-lm	2700k	90	40	black	white
403EB93040WHF0	1200 lm	3000K	90	40°	Black	White	1200-lm	3000k	90	40	black	white
403EB94040WHF0	1220 lm	4000K	90	40°	Black	White	1220-lm	4000k	90	40	black	white
403EB92740CHF0	1200 lm	2700K	90	40°	Black	Chrome	1200-lm	2700k	90	40	black	chrome
403FB93040CHF0	1260 lm	3000K	90	40°	Black	Chrome	1260-lm	3000k	90	40	black	chrome
403FB94040CHF0	1270 lm	4000K	90	40°	Black	Chrome	1270-lm	4000k	90	40	black	chrome
403EB92740GOF0	1160 lm	2700K	90	40°	Black	Gold	1160-lm	2700k	90	40	black	gold
403EB93040GOF0	1200 lm	3000K	90	40°	Black	Gold	1200-lm	3000k	90	40	black	gold
403EB94040GOF0	1220 lm	4000K	90	40°	Black	Gold	1220-lm	4000k	90	40	black	gold
403EB92740COF0	1160 lm	2700K	90	40°	Black	Copper	1160-lm	2700k	90	40	black	copper
403EB93040COF0	1200 lm	3000K	90	40°	Black	Copper	1200-lm	3000k	90	40	black	copper
403EB94040COF0	1220 lm	4000K	90	40°	Black	Copper	1220-lm	4000k	90	40	black	copper
403EB92740BMF0	1060 lm	2700K	90	40°	Black	Black Matt	1060-lm	2700k	90	40	black	black-matt
403EB93040BMF0	1120 lm	3000K	90	40°	Black	Black Matt	1120-lm	3000k	90	40	black	black-matt
403EB94040BMF0	1130 lm	4000K	90	40°	Black	Black Matt	1130-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux1060 lm, 1120 lm, 1130 lm, 1140 lm, 1160 lm, 1180 lm, 1200 lm, 1220 lm, 1240 lm, 1260 lm, 1270 lm, 1290 lm, 1300 lm

CRI90

CCT2700K, 3000K, 4000K

LED powerN/A

System power14W

System efficiency76lm/W, 80lm/W, 81lm/W, 83lm/W, 84lm/W, 86lm/W, 87lm/W, 89lm/W, 90lm/W, 91lm/W, 92lm/W, 93lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.8Kg

Cut out dimensionN/A

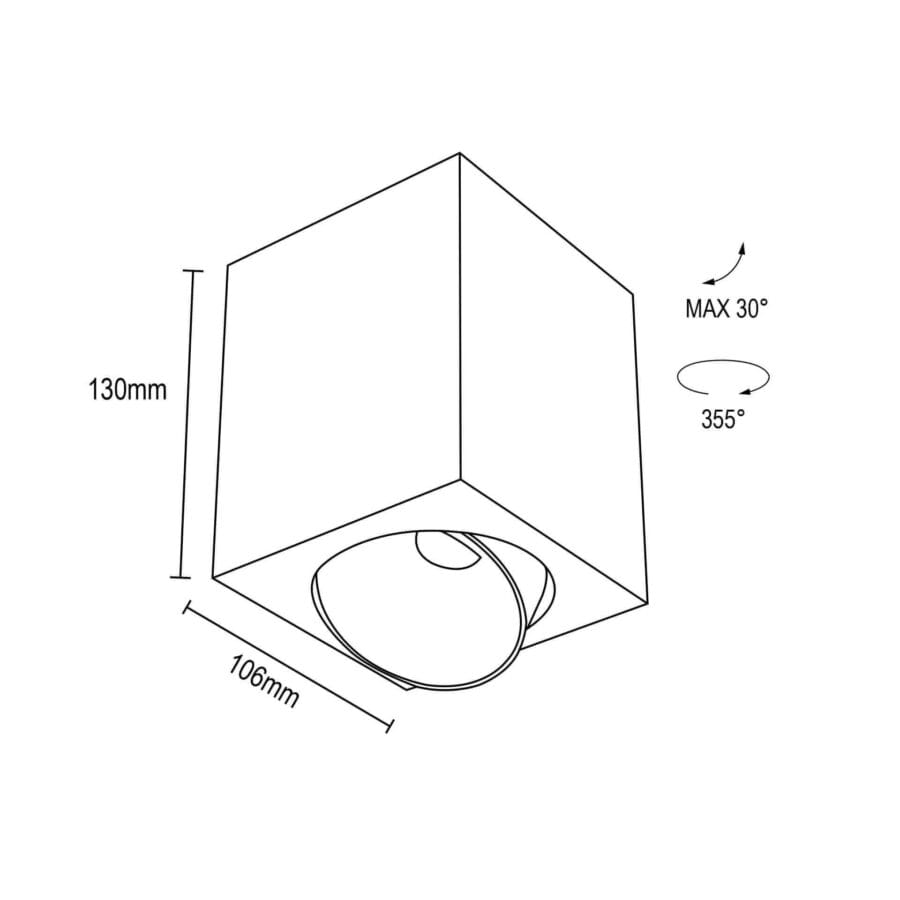

Luminaire dimension106x106x130mm

Nominal fA [mA]N/A

Nominal fV [V]N/A

Power supplyIncluded ON/OFF

Mains Voltage220-240V / 50 -60Hz

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

ControlDALI, Phase Cut

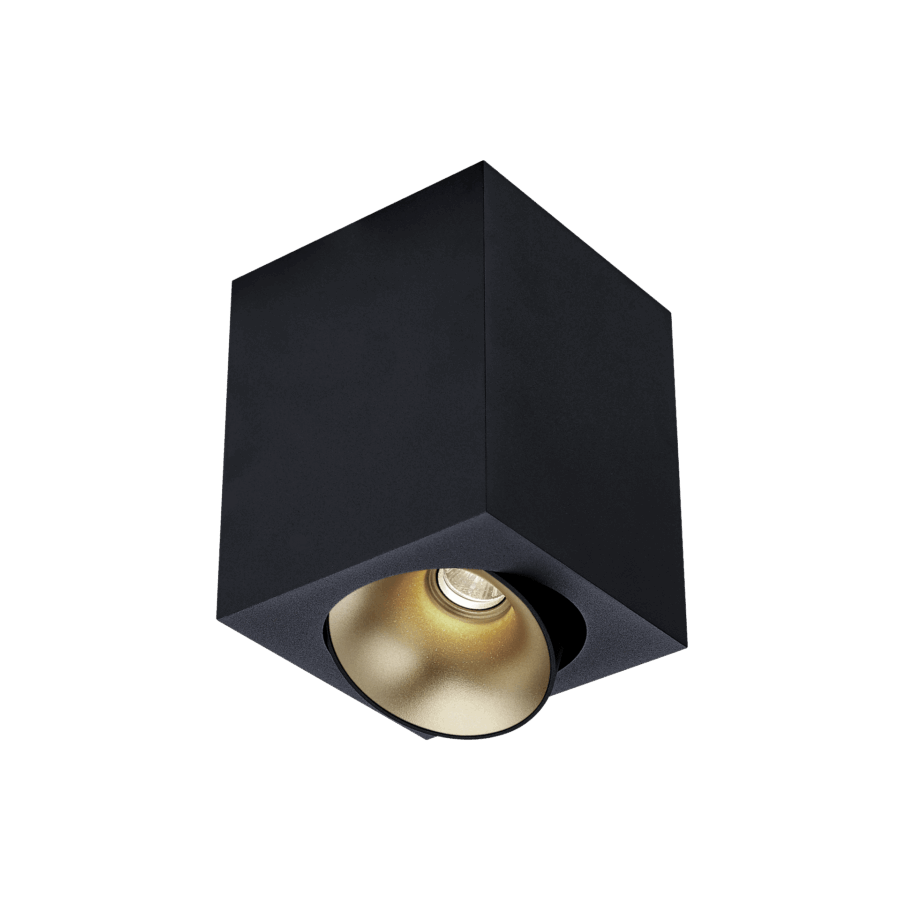

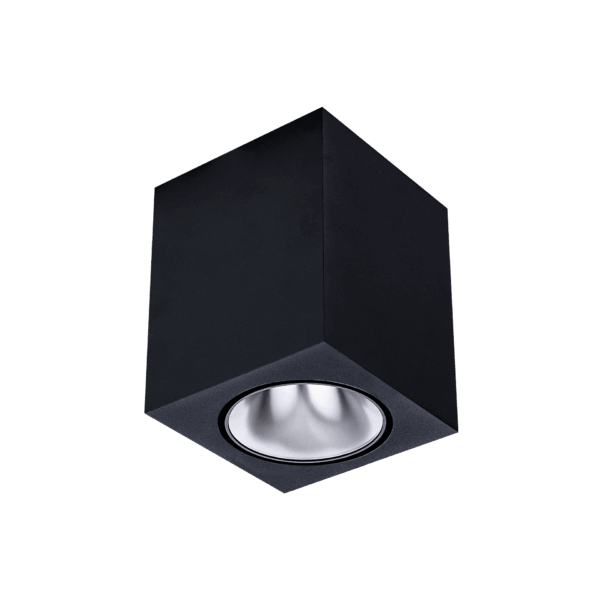

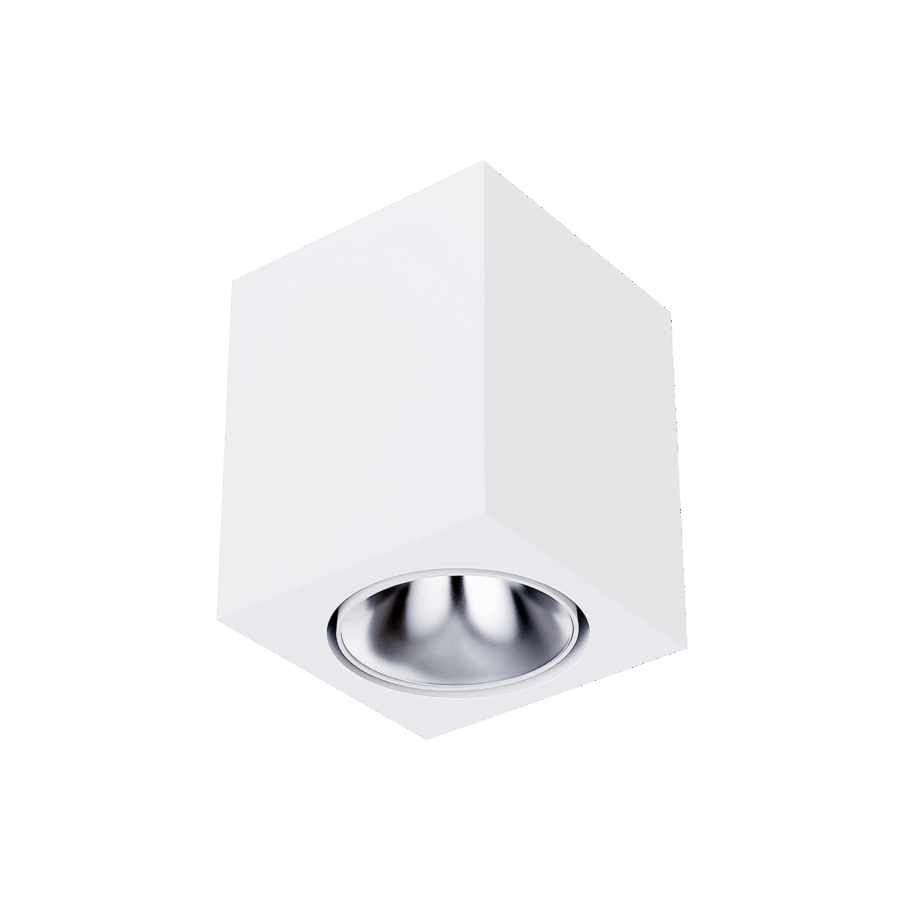

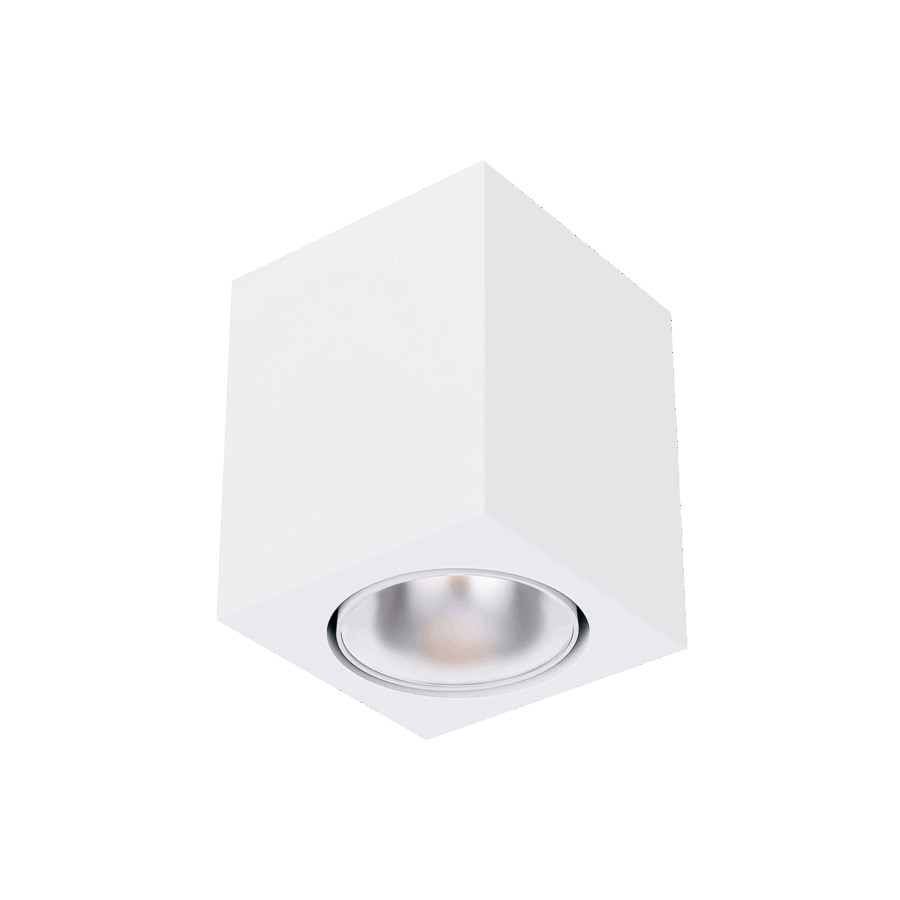

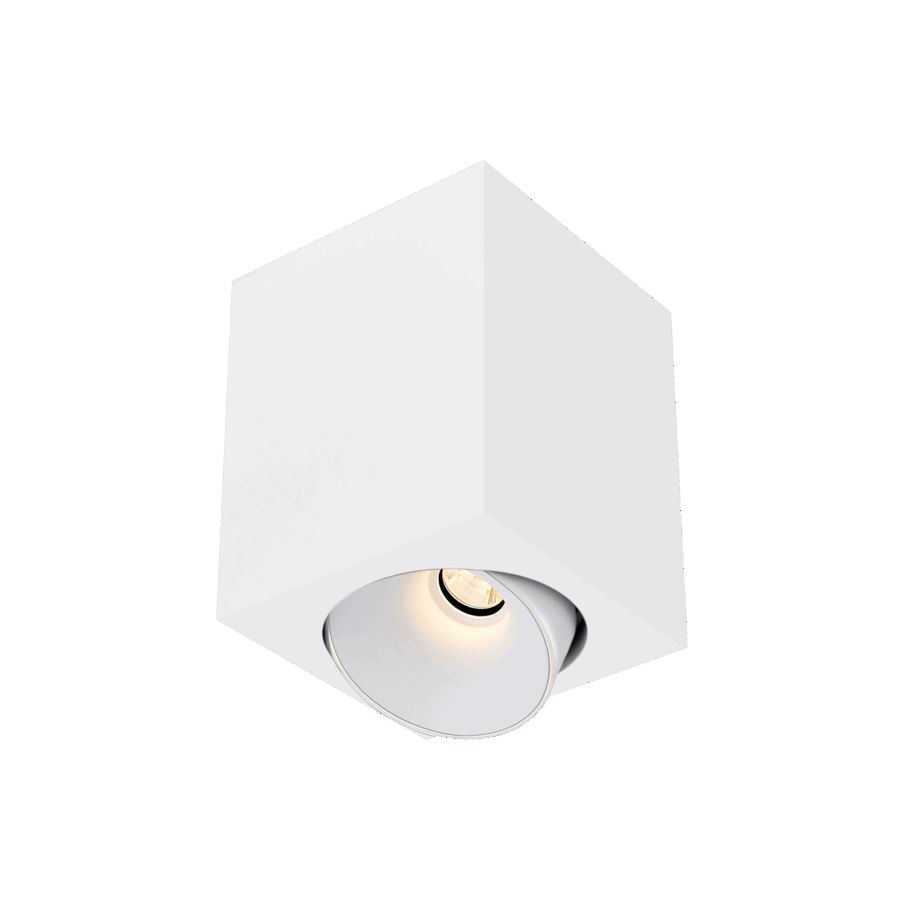

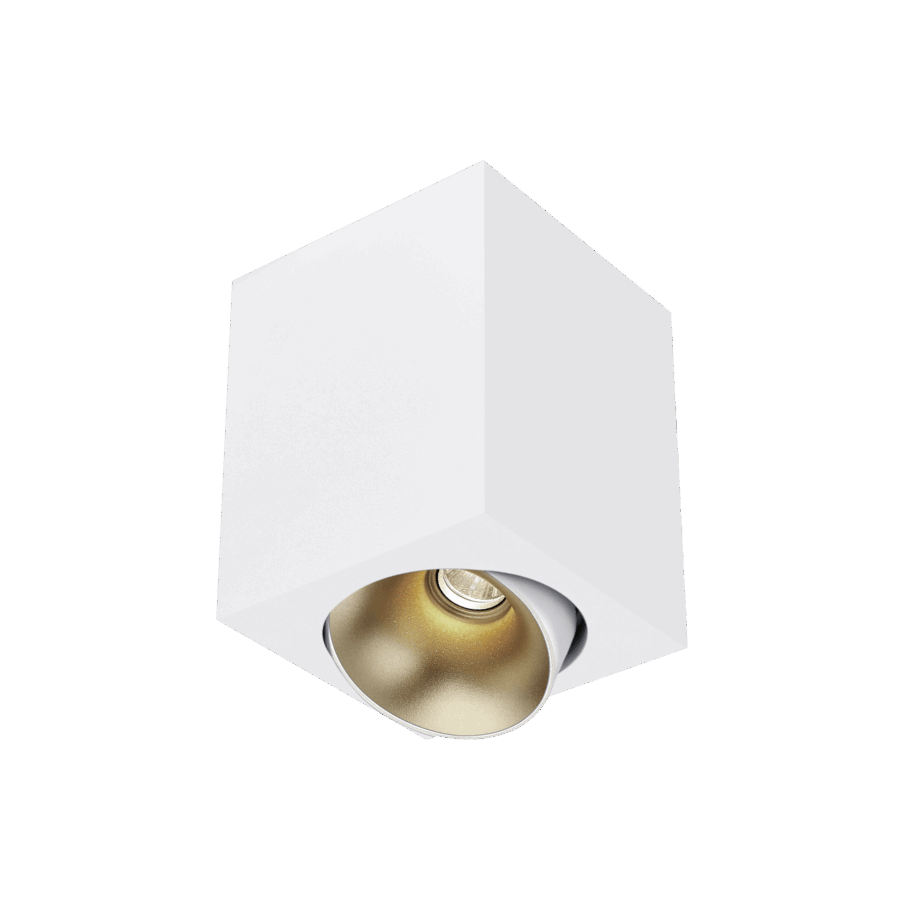

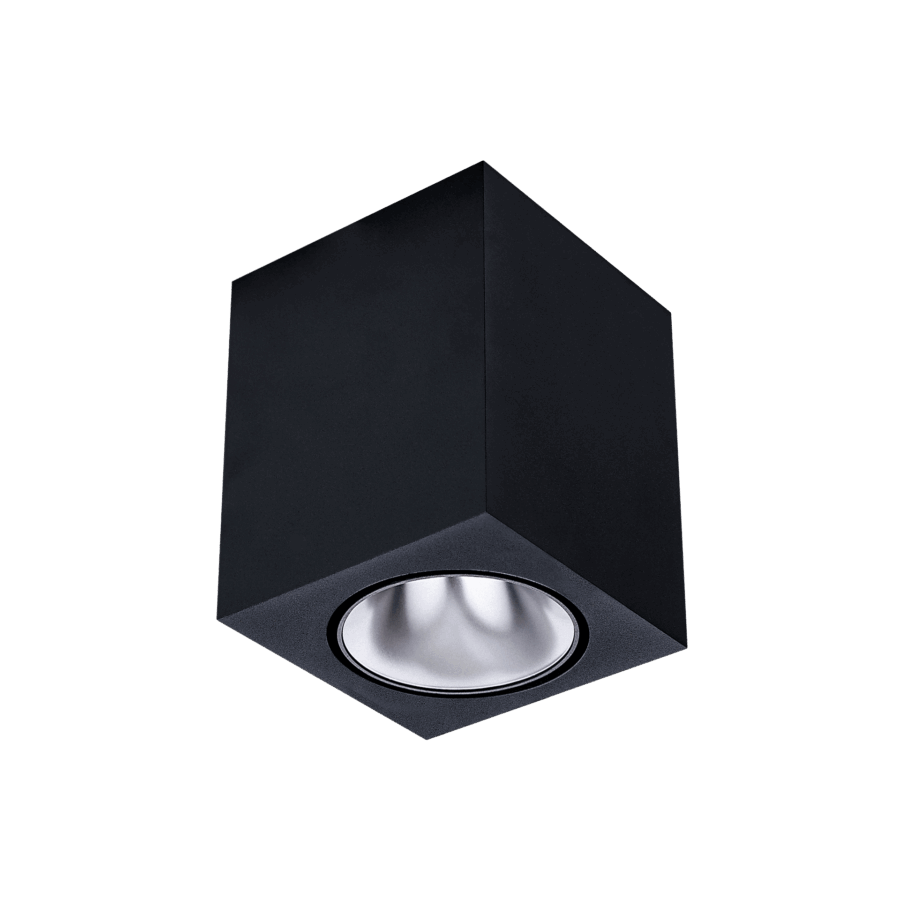

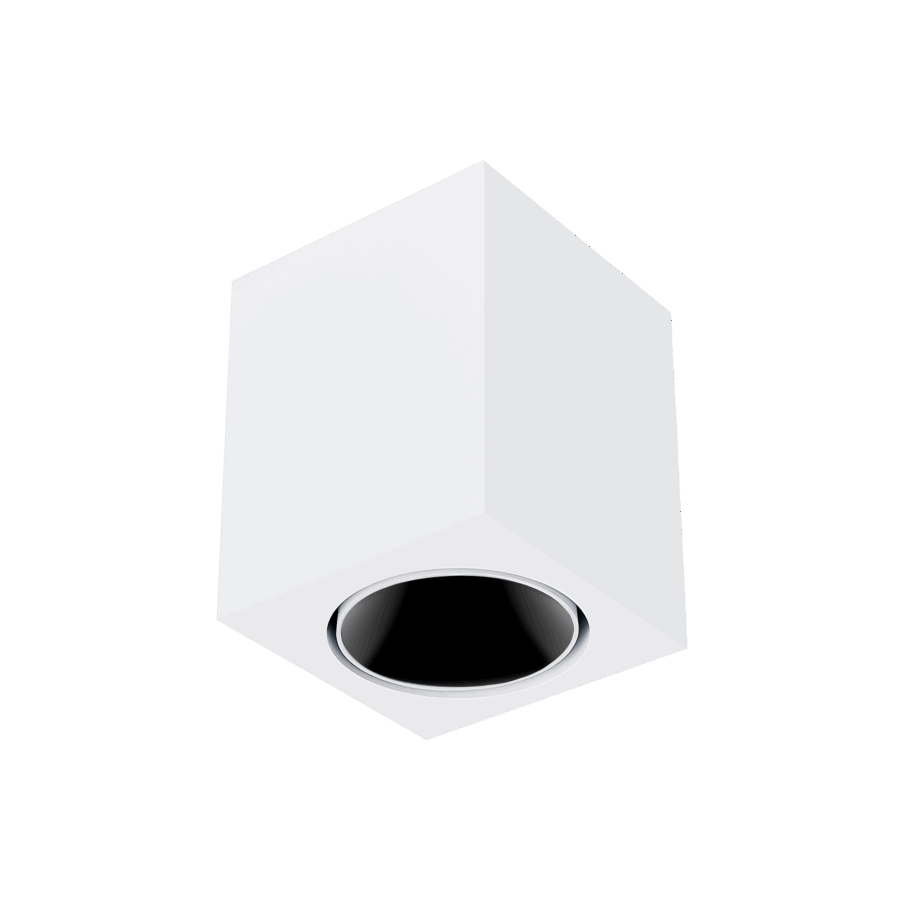

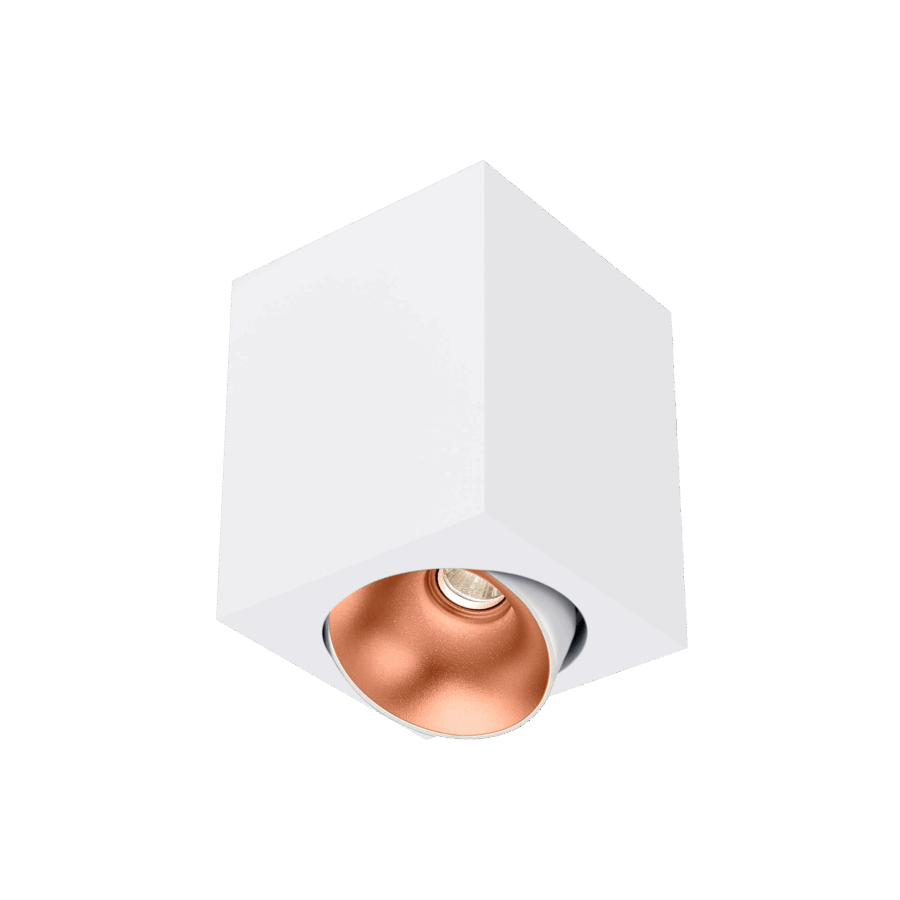

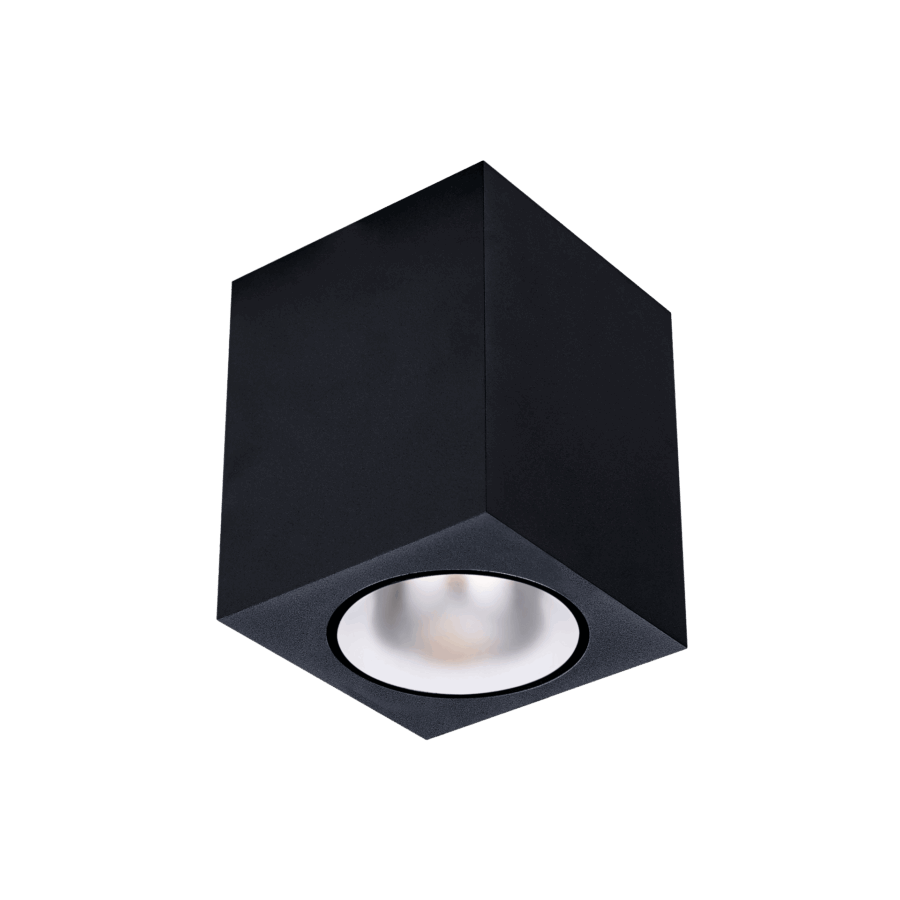

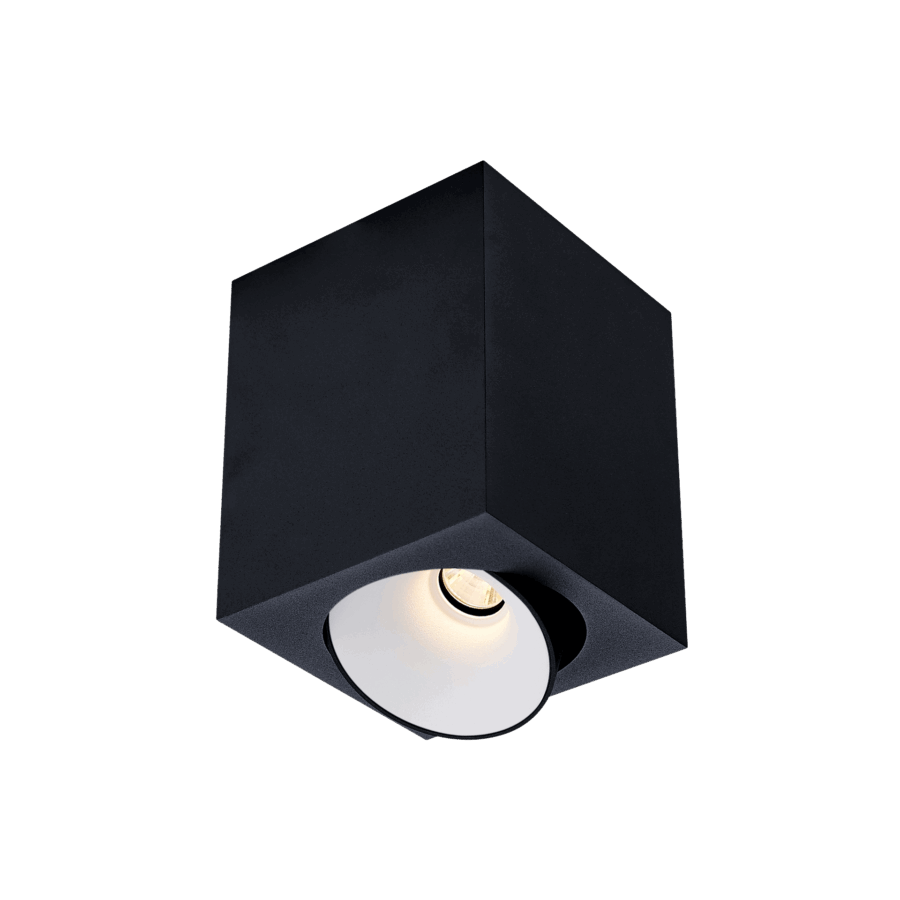

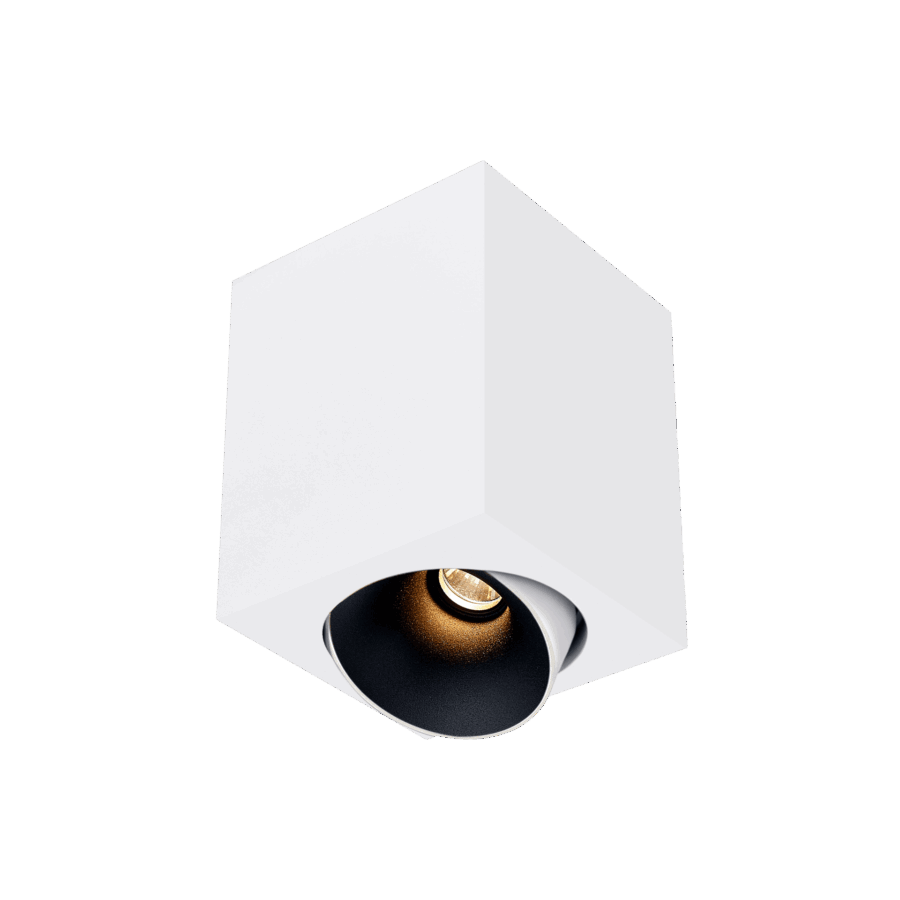

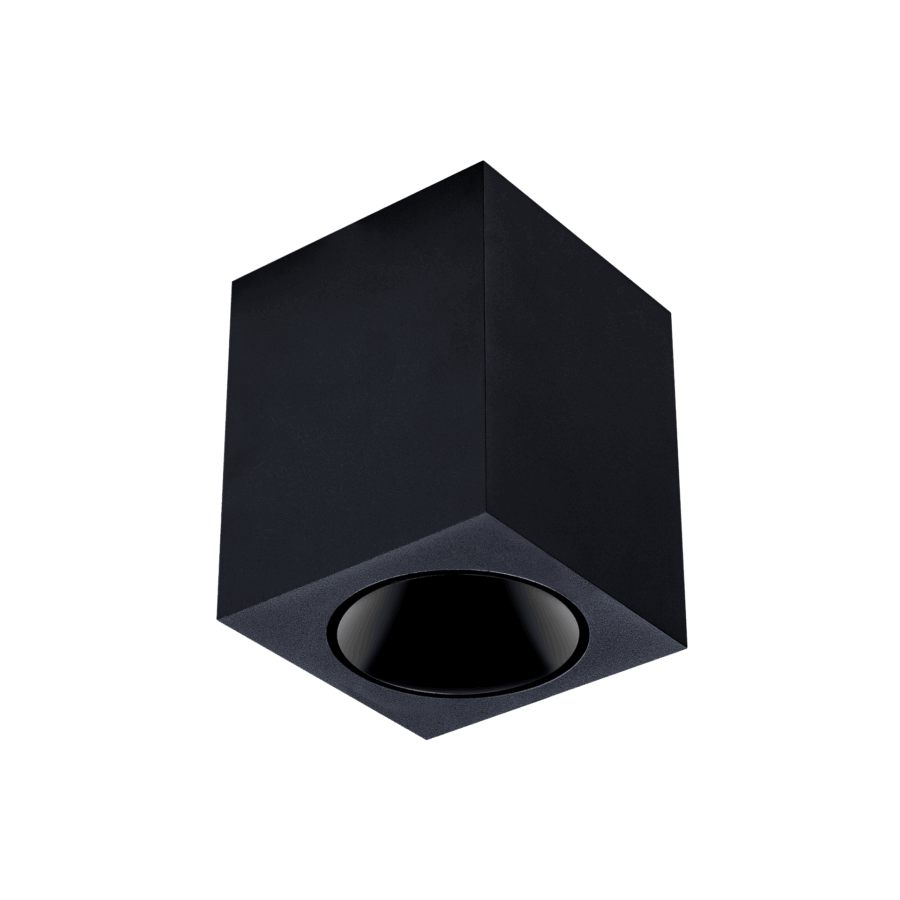

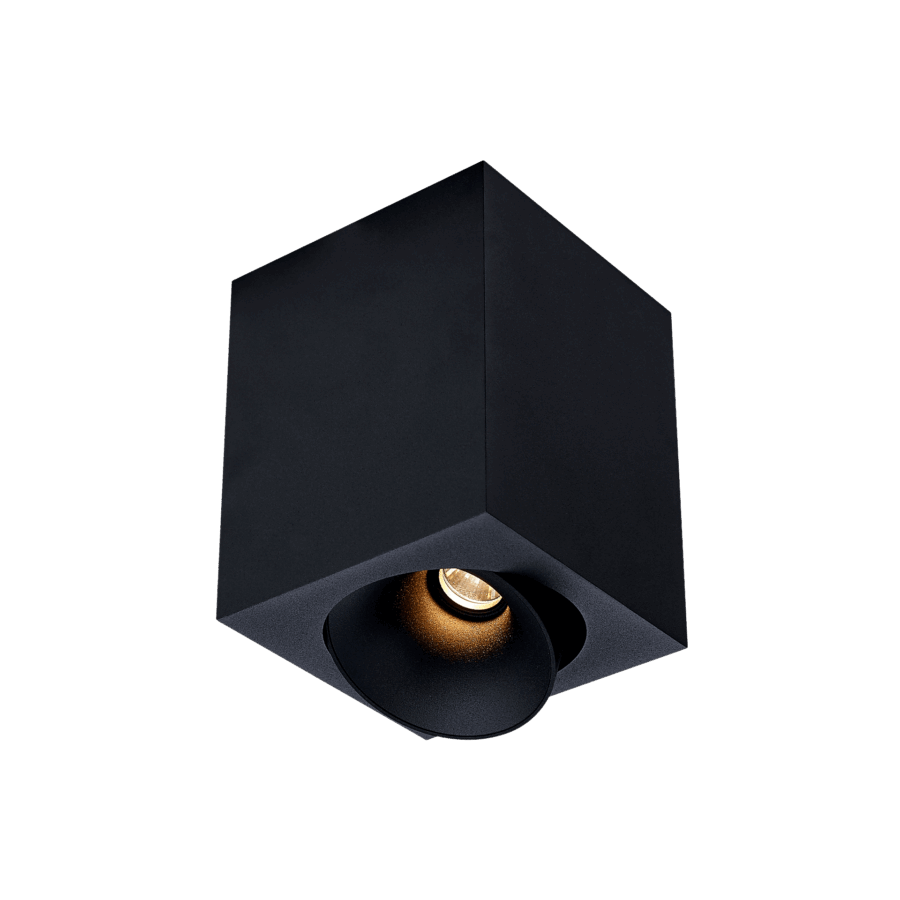

The Karizma Luce Dea Fauna M is a square tiltable surface-mounted downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 1060- 1290 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Make your choice out of the various available colour options of reflectors. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
