Dea Fauna S

Dea Fauna S

Fair and square.

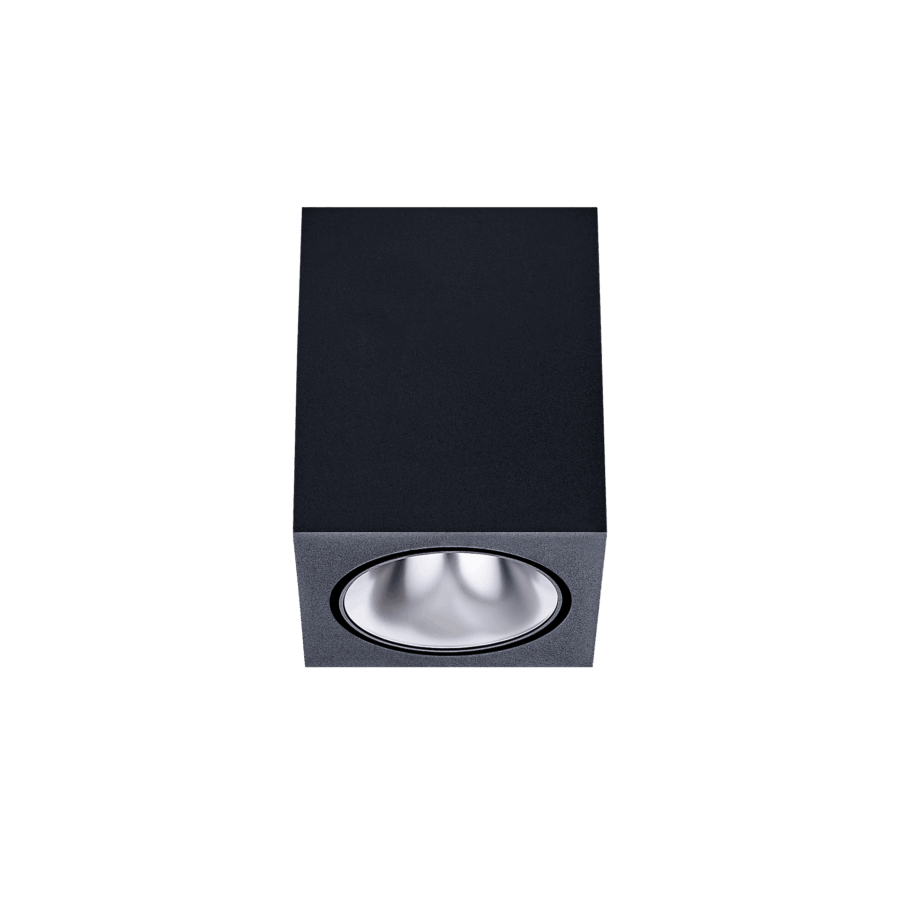

The Dea Fauna is a square tiltable surface-mounted downlight. It truly is an outstanding feature in every environment. This downlight offers the same sizes and lumen packages as our recessed downlights. This guarantees a very high performance, also in rooms where ceilings don’t permit recessed luminaires. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
404DW92740SGF0	900 lm	2700K	90	40°	White	Silver High Gloss	900-lm	2700k	90	40	white	silver-high-gloss
404DW93040SGF0	950 lm	3000K	90	40°	White	Silver High Gloss	950-lm	3000k	90	40	white	silver-high-gloss
404DW94040SGF0	960 lm	4000K	90	40°	White	Silver High Gloss	960-lm	4000k	90	40	white	silver-high-gloss
404DW92740BGF0	830 lm	2700K	90	40°	White	Black High Gloss	830-lm	2700k	90	40	white	black-high-gloss
404DW93040BGF0	860 lm	3000K	90	40°	White	Black High Gloss	860-lm	3000k	90	40	white	black-high-gloss
404DW94040BGF0	870 lm	4000K	90	40°	White	Black High Gloss	870-lm	4000k	90	40	white	black-high-gloss
404DW92740WHF0	840 lm	2700K	90	40°	White	White	840-lm	2700k	90	40	white	white
404DW93040WHF0	880 lm	3000K	90	40°	White	White	880-lm	3000k	90	40	white	white
404DW94040WHF0	890 lm	4000K	90	40°	White	White	890-lm	4000k	90	40	white	white
404DW92740CHF0	890 lm	2700K	90	40°	White	Chrome	890-lm	2700k	90	40	white	chrome
404DW93040CHF0	930 lm	3000K	90	40°	White	Chrome	930-lm	3000k	90	40	white	chrome
404DW94040CHF0	940 lm	4000K	90	40°	White	Chrome	940-lm	4000k	90	40	white	chrome
404DW92740GOF0	840 lm	2700K	90	40°	White	Gold	840-lm	2700k	90	40	white	gold
404DW93040GOF0	880 lm	3000K	90	40°	White	Gold	880-lm	3000k	90	40	white	gold
404DW94040GOF0	890 lm	4000K	90	40°	White	Gold	890-lm	4000k	90	40	white	gold
404DW92740COF0	840 lm	2700K	90	40°	White	Copper	840-lm	2700k	90	40	white	copper
404DW93040COF0	880 lm	3000K	90	40°	White	Copper	880-lm	3000k	90	40	white	copper
404DW94040COF0	890 lm	4000K	90	40°	White	Copper	890-lm	4000k	90	40	white	copper
404DW92740BMF0	760 lm	2700K	90	40°	White	Black Matt	760-lm	2700k	90	40	white	black-matt
404DW93040BMF0	800 lm	3000K	90	40°	White	Black Matt	800-lm	3000k	90	40	white	black-matt
404DW94040BMF0	810 lm	4000K	90	40°	White	Black Matt	810-lm	4000k	90	40	white	black-matt
404DB92740SGF0	900 lm	2700K	90	40°	Black	Silver High Gloss	900-lm	2700k	90	40	black	silver-high-gloss
404DB93040SGF0	950 lm	3000K	90	40°	Black	Silver High Gloss	950-lm	3000k	90	40	black	silver-high-gloss
404DB94040SGF0	960 lm	4000K	90	40°	Black	Silver High Gloss	960-lm	4000k	90	40	black	silver-high-gloss
404DB92740BGF0	830 lm	2700K	90	40°	Black	Black High Gloss	830-lm	2700k	90	40	black	black-high-gloss
404DB93040BGF0	860 lm	3000K	90	40°	Black	Black High Gloss	860-lm	3000k	90	40	black	black-high-gloss
404DB94040BGF0	870 lm	4000K	90	40°	Black	Black High Gloss	870-lm	4000k	90	40	black	black-high-gloss
404DB92740WHF0	840 lm	2700K	90	40°	Black	White	840-lm	2700k	90	40	black	white
404DB93040WHF0	880 lm	3000K	90	40°	Black	White	880-lm	3000k	90	40	black	white
404DB94040WHF0	890 lm	4000K	90	40°	Black	White	890-lm	4000k	90	40	black	white
404DB92740CHF0	890 lm	2700K	90	40°	Black	Chrome	890-lm	2700k	90	40	black	chrome
404DB93040CHF0	930 lm	3000K	90	40°	Black	Chrome	930-lm	3000k	90	40	black	chrome
404DB94040CHF0	940 lm	4000K	90	40°	Black	Chrome	940-lm	4000k	90	40	black	chrome
404DB92740GOF0	840 lm	2700K	90	40°	Black	Gold	840-lm	2700k	90	40	black	gold
404DB93040GOF0	880 lm	3000K	90	40°	Black	Gold	880-lm	3000k	90	40	black	gold
404DB94040GOF0	890 lm	4000K	90	40°	Black	Gold	890-lm	4000k	90	40	black	gold
404DB92740COF0	840 lm	2700K	90	40°	Black	Copper	840-lm	2700k	90	40	black	copper
404DB93040COF0	880 lm	3000K	90	40°	Black	Copper	880-lm	3000k	90	40	black	copper
404DB94040COF0	890 lm	4000K	90	40°	Black	Copper	890-lm	4000k	90	40	black	copper
404DB92740BMF0	760 lm	2700K	90	40°	Black	Black Matt	760-lm	2700k	90	40	black	black-matt
404DB93040BMF0	800 lm	3000K	90	40°	Black	Black Matt	800-lm	3000k	90	40	black	black-matt
404DB94040BMF0	810 lm	4000K	90	40°	Black	Black Matt	810-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux760 lm, 800 lm, 810 lm, 830 lm, 840 lm, 860 lm, 870 lm, 880 lm, 890 lm, 900 lm, 930 lm, 940 lm, 950 lm, 960 lm

CRI90

CCT2700K, 3000K, 4000K

LED powerN/A

System power10.5W

System efficiency72lm/W, 76lm/W, 77lm/W, 79lm/W, 80lm/W, 82lm/W, 83lm/W, 84lm/W, 85lm/W, 86lm/W, 89lm/W, 90lm/W, 91lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.64Kg

Cut out dimensionN/A

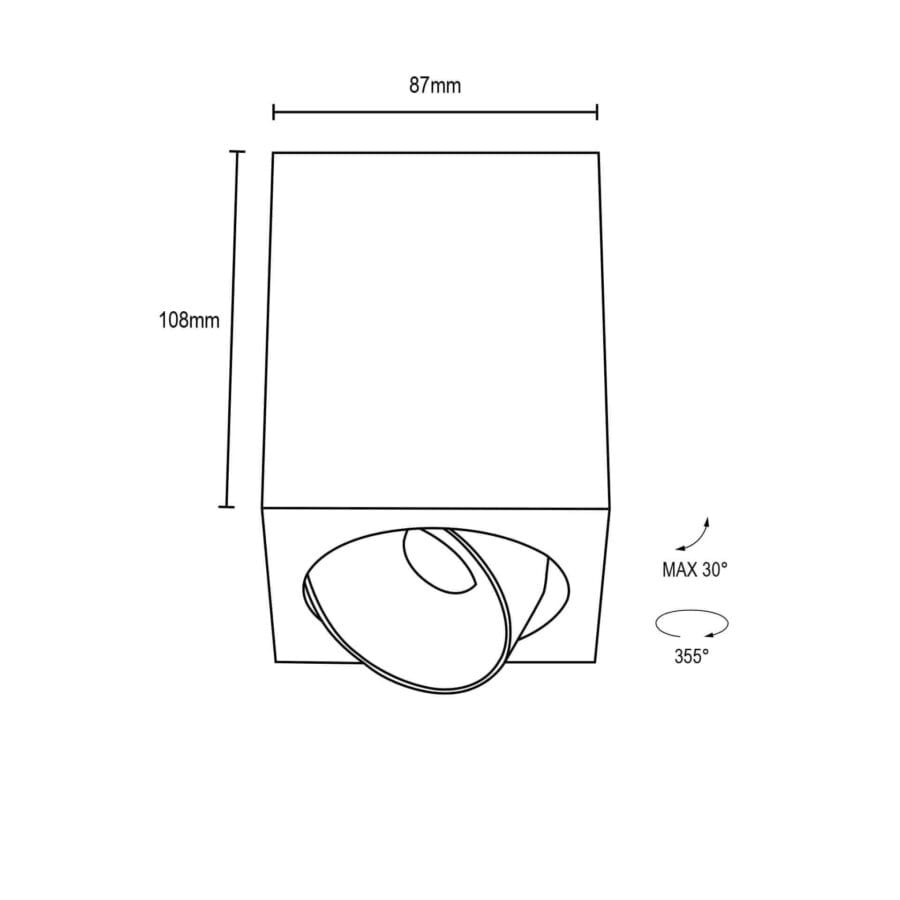

Luminaire dimension87x87x108mm

Nominal fA [mA]N/A

Nominal fV [V]N/A

Power supplyIncluded ON/OFF

Mains Voltage220-240V / 50 -60Hz

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

ControlPhase Cut

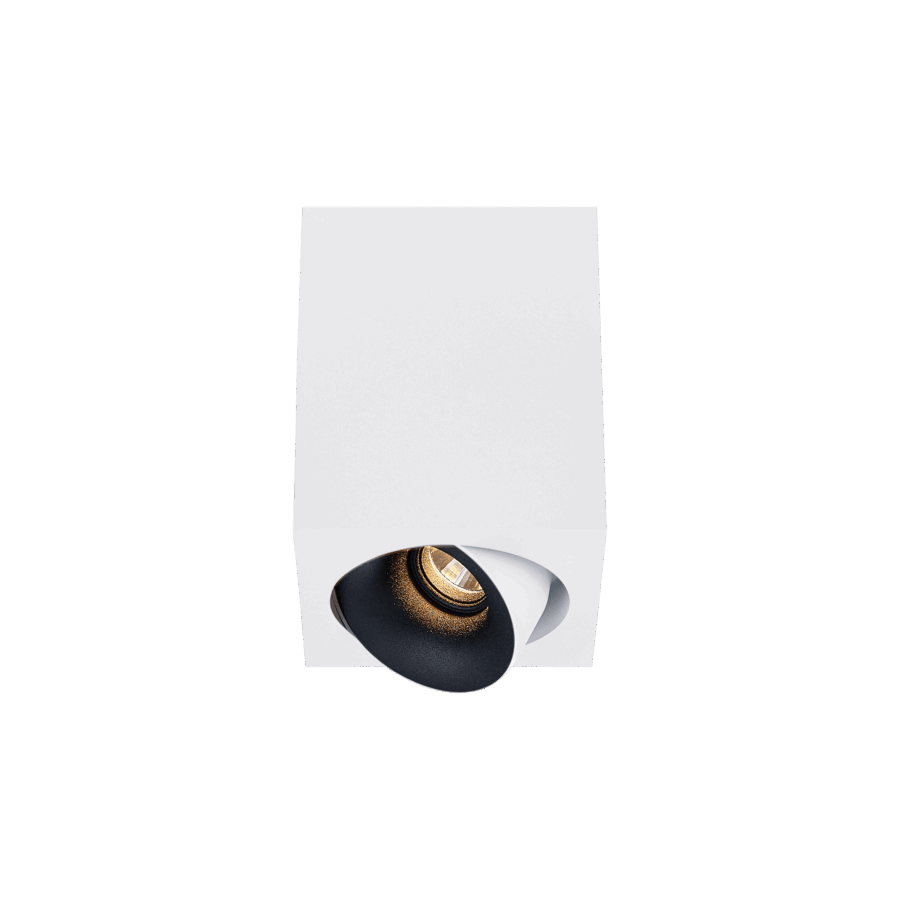

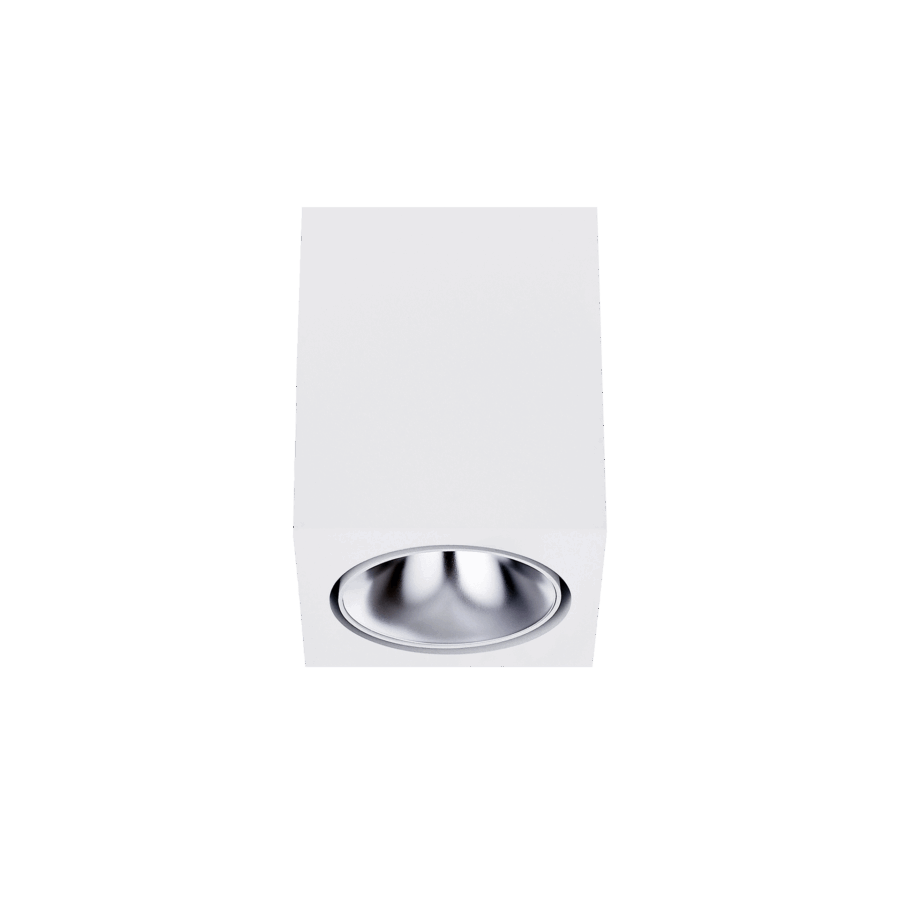

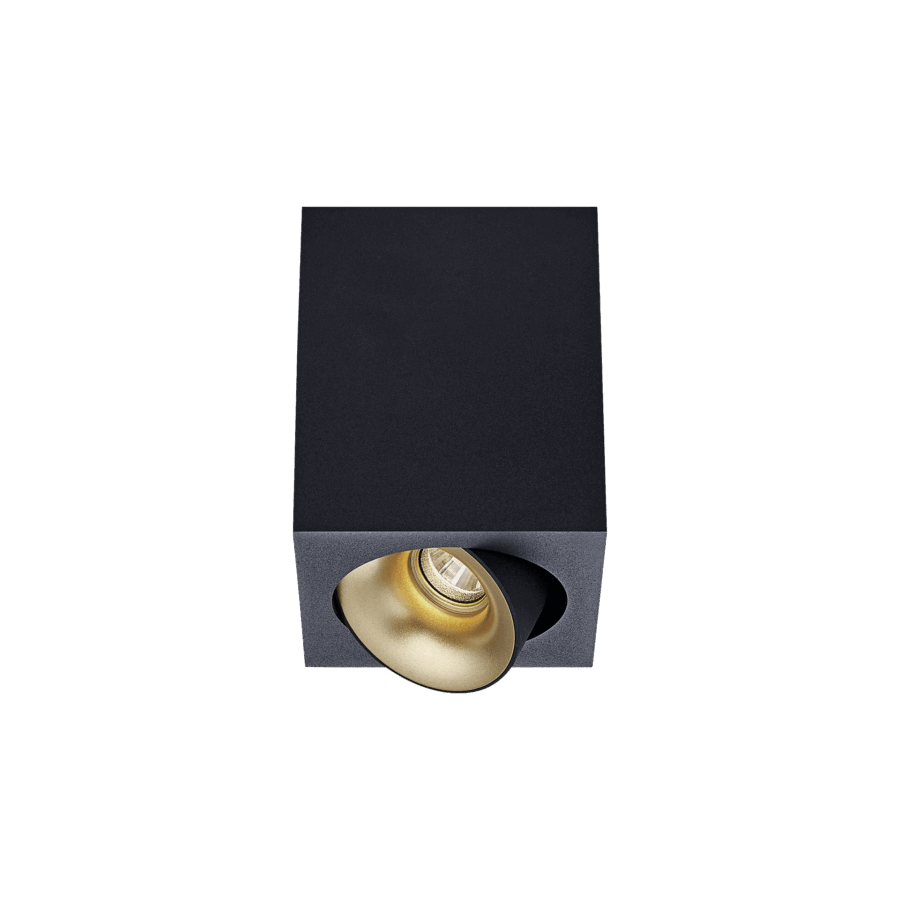

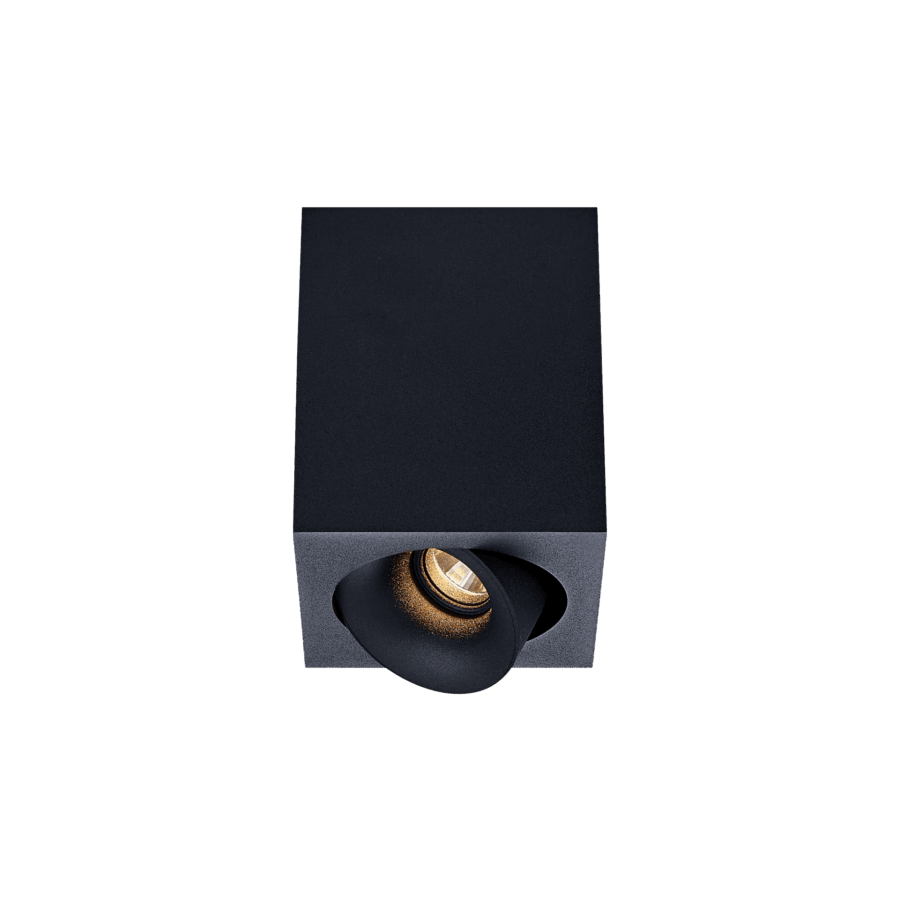

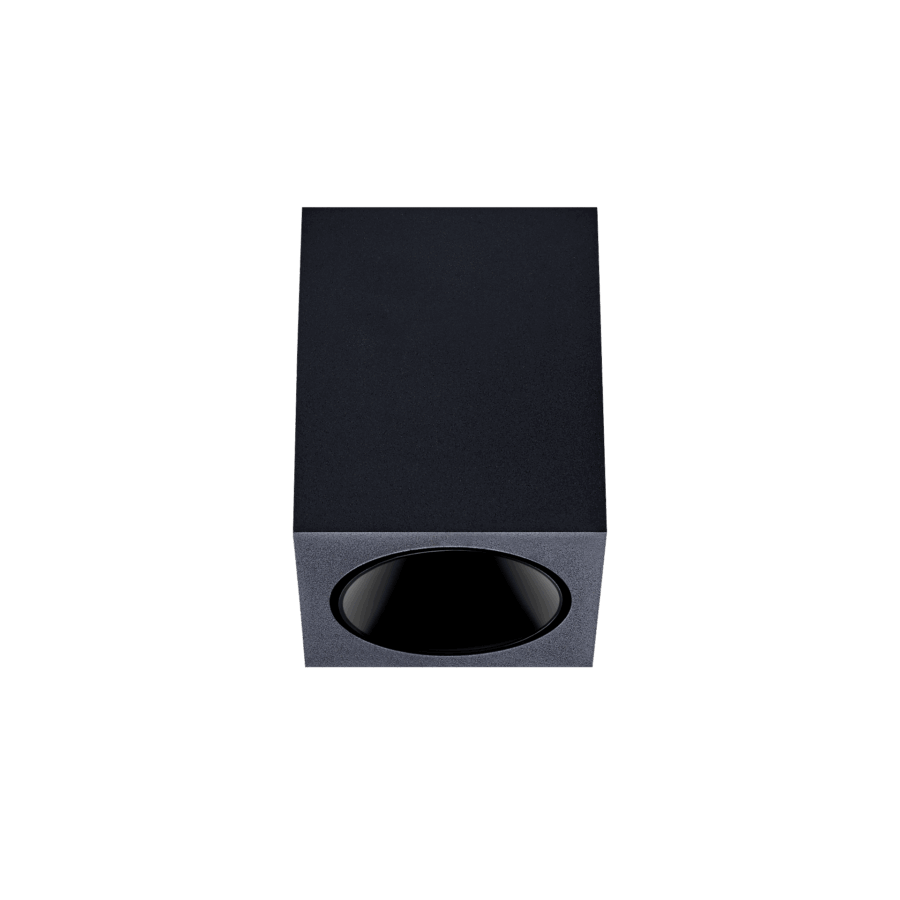

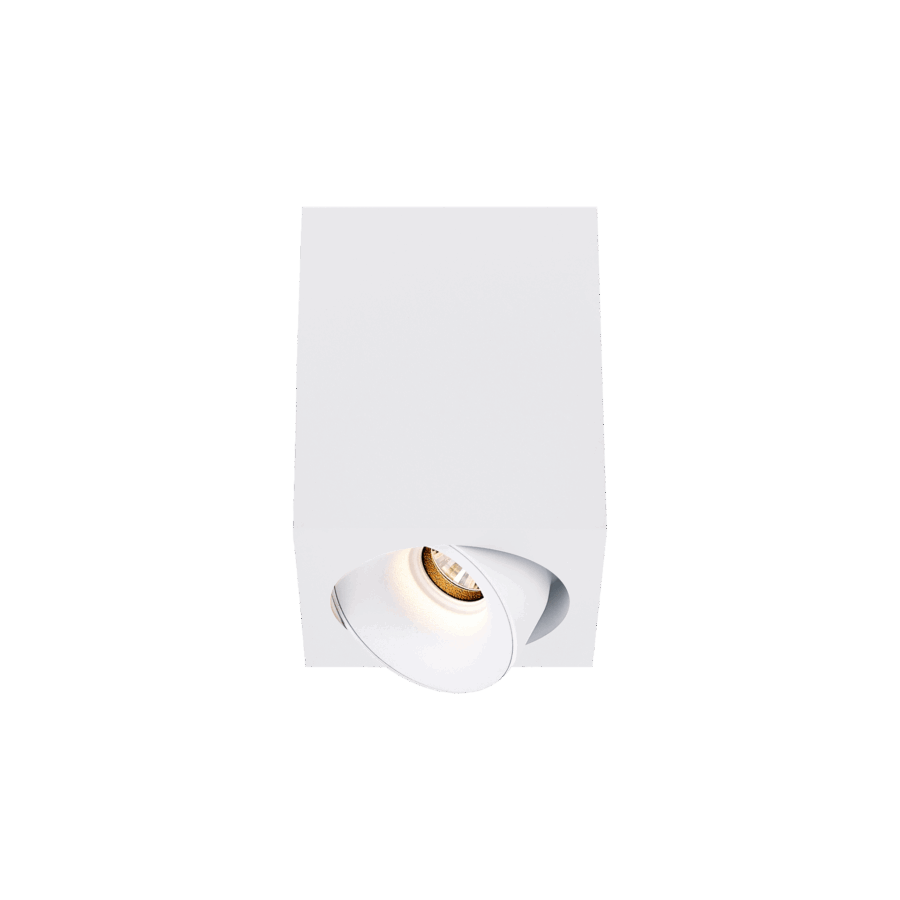

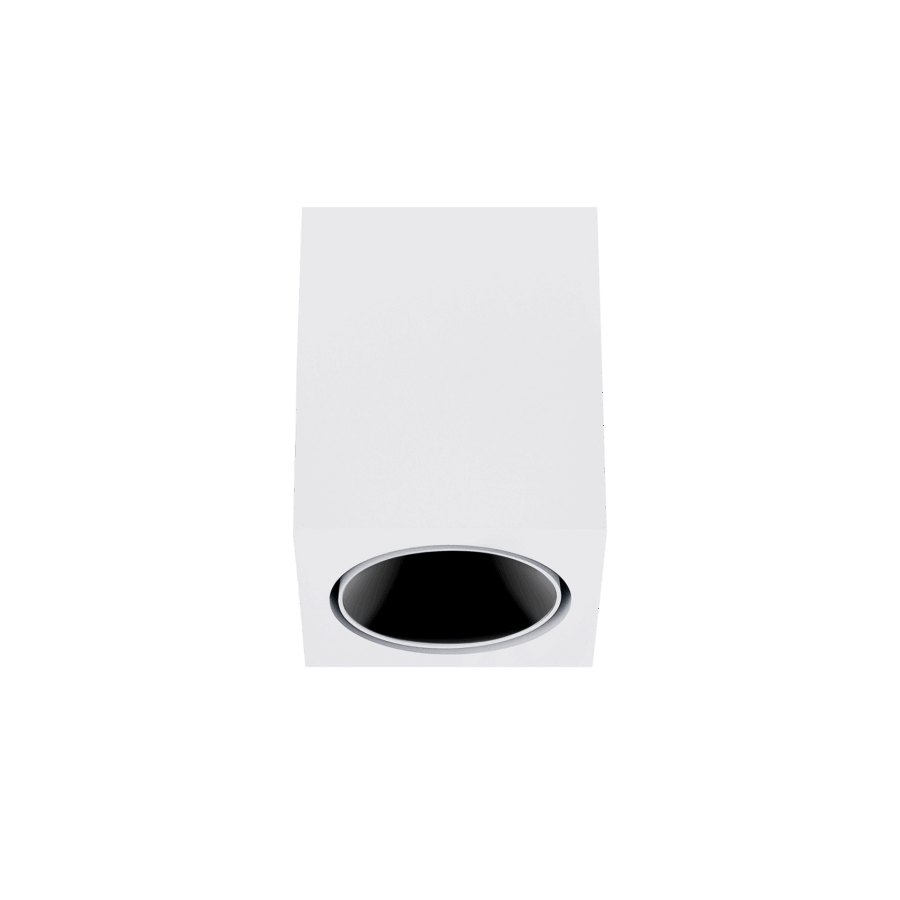

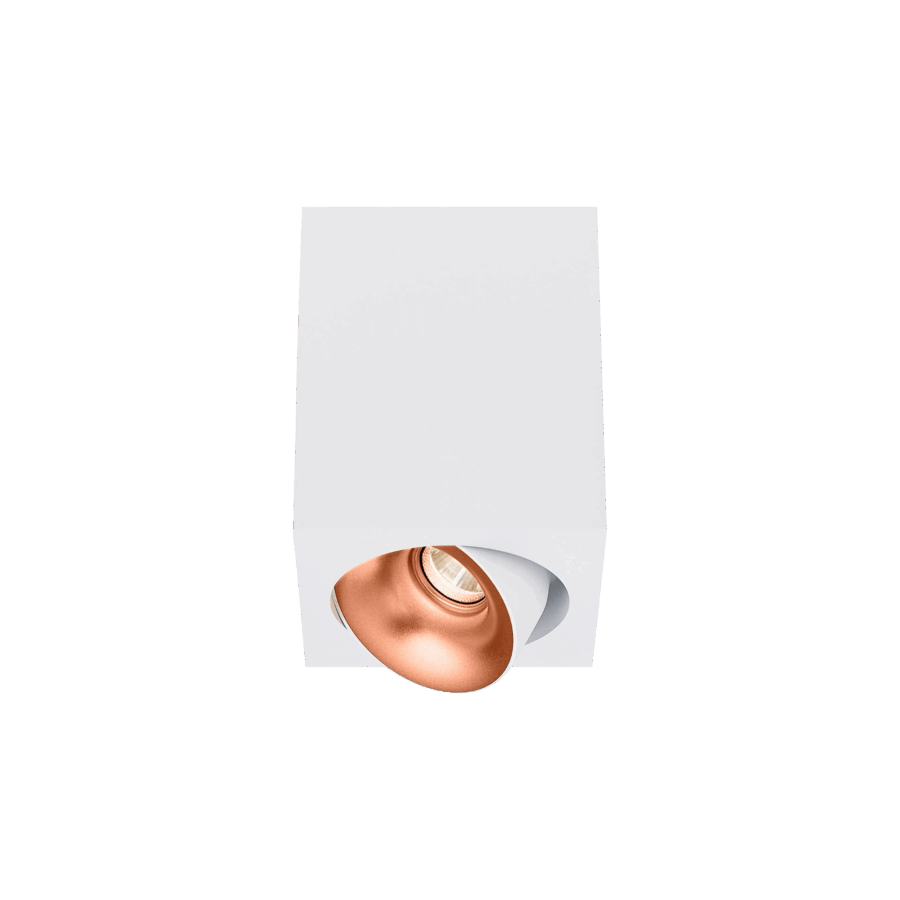

The Karizma Luce Dea Fauna S is a square tiltable surface-mounted downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 760- 940 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. Make your choice out of the various available colour options of reflectors. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
