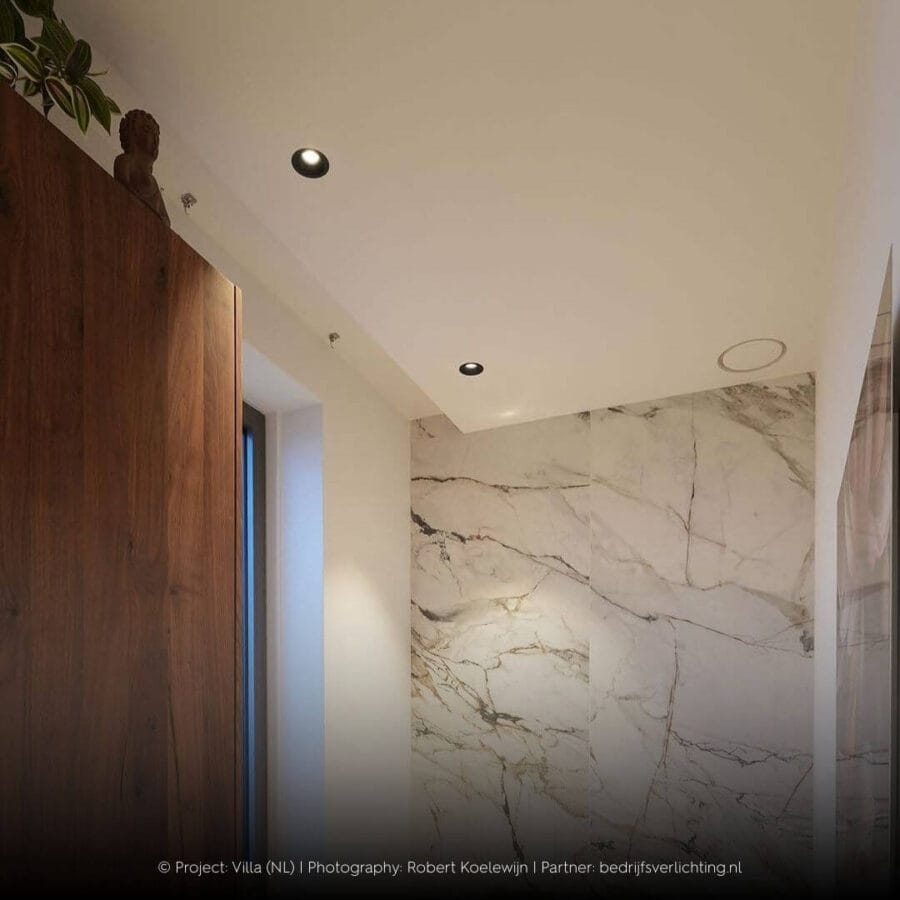

This fixed recessed spot makes lighting extraordinary. This luminaire has been specially developed to illuminate under the most demanding conditions. With its charming appearance and robust IP65 protection, it is the perfect choice for bathrooms, balconies and verandas. Choose from five exclusive reflector colours to make it match to your project!
Dea Apollo
Beautiful yet resistant.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 237EB92735WH00 | 750 lm | 2700K | 90 | 35° | Black | White |
| 237EB92735BM00 | 750 lm | 2700K | 90 | 35° | Black | Black Matt |
| 237EB92735GO00 | 750 lm | 2700K | 90 | 35° | Black | Gold |
| 237EB92735CH00 | 750 lm | 2700K | 90 | 35° | Black | Chrome |
| 237EB92735CO00 | 750 lm | 2700K | 90 | 35° | Black | Copper |
| 237EW92735WH00 | 750 lm | 2700K | 90 | 35° | White | White |
| 237EW92735BM00 | 750 lm | 2700K | 90 | 35° | White | Black Matt |
| 237EW92735GO00 | 750 lm | 2700K | 90 | 35° | White | Gold |
| 237EW92735CH00 | 750 lm | 2700K | 90 | 35° | White | Chrome |
| 237EW92735CO00 | 750 lm | 2700K | 90 | 35° | White | Copper |
| 237EB93035WH00 | 800 lm | 3000K | 90 | 35° | Black | White |
| 237EB93035BM00 | 800 lm | 3000K | 90 | 35° | Black | Black Matt |
| 237EB93035GO00 | 800 lm | 3000K | 90 | 35° | Black | Gold |
| 237EB93035CH00 | 800 lm | 3000K | 90 | 35° | Black | Chrome |
| 237EB93035CO00 | 800 lm | 3000K | 90 | 35° | Black | Copper |
| 237EW93035WH00 | 800 lm | 3000K | 90 | 35° | White | White |
| 237EW93035BM00 | 800 lm | 3000K | 90 | 35° | White | Black Matt |
| 237EW93035GO00 | 800 lm | 3000K | 90 | 35° | White | Gold |
| 237EW93035CH00 | 800 lm | 3000K | 90 | 35° | White | Chrome |
| 237EW93035CO00 | 800 lm | 3000K | 90 | 35° | White | Copper |
| 237EB94035WH00 | 850 lm | 4000K | 90 | 35° | Black | White |
| 237EB94035BM00 | 850 lm | 4000K | 90 | 35° | Black | Black Matt |
| 237EB94035GO00 | 850 lm | 4000K | 90 | 35° | Black | Gold |
| 237EB94035CH00 | 850 lm | 4000K | 90 | 35° | Black | Chrome |
| 237EB94035CO00 | 850 lm | 4000K | 90 | 35° | Black | Copper |
| 237EW94035WH00 | 850 lm | 4000K | 90 | 35° | White | White |
| 237EW94035BM00 | 850 lm | 4000K | 90 | 35° | White | Black Matt |
| 237EW94035GO00 | 850 lm | 4000K | 90 | 35° | White | Gold |
| 237EW94035CH00 | 850 lm | 4000K | 90 | 35° | White | Chrome |
| 237EW94035CO00 | 850 lm | 4000K | 90 | 35° | White | Copper |
Click on specification values for related products.
Housing materialAluminum Die Cast
OpticLens
Reflector colorBlack Matt, Chrome, Copper, Gold, White
Power supplySeparate Available
Luminaire dimensionØ88mm
Cut out dimensionØ80mm
LED power12W
System power14W
Beam angle35°
CRI90
Chromaticity tolerance3 MacAdam
Nominal fA [mA]350mA
Nominal fV [V]33V
Mains Voltage220-240V / 50 -60Hz, N/A
El. ClassClass II
Lifetime50000h
Light source energy classF
Light source identifierCLU701-1002C4-273H5K2, CLU701-1002C4-303H5K2, CLU701-1002C4-403H5K2
Net. Weight0.35kg
Built-in height120mm
Warranty5Y
CollectionDea Della Luce

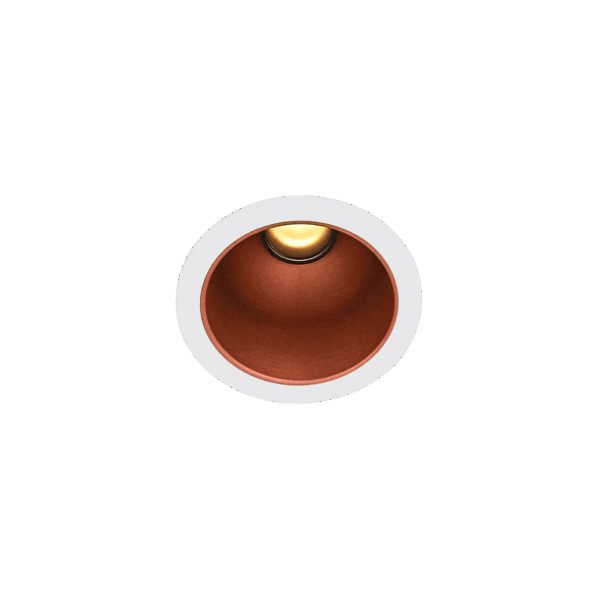

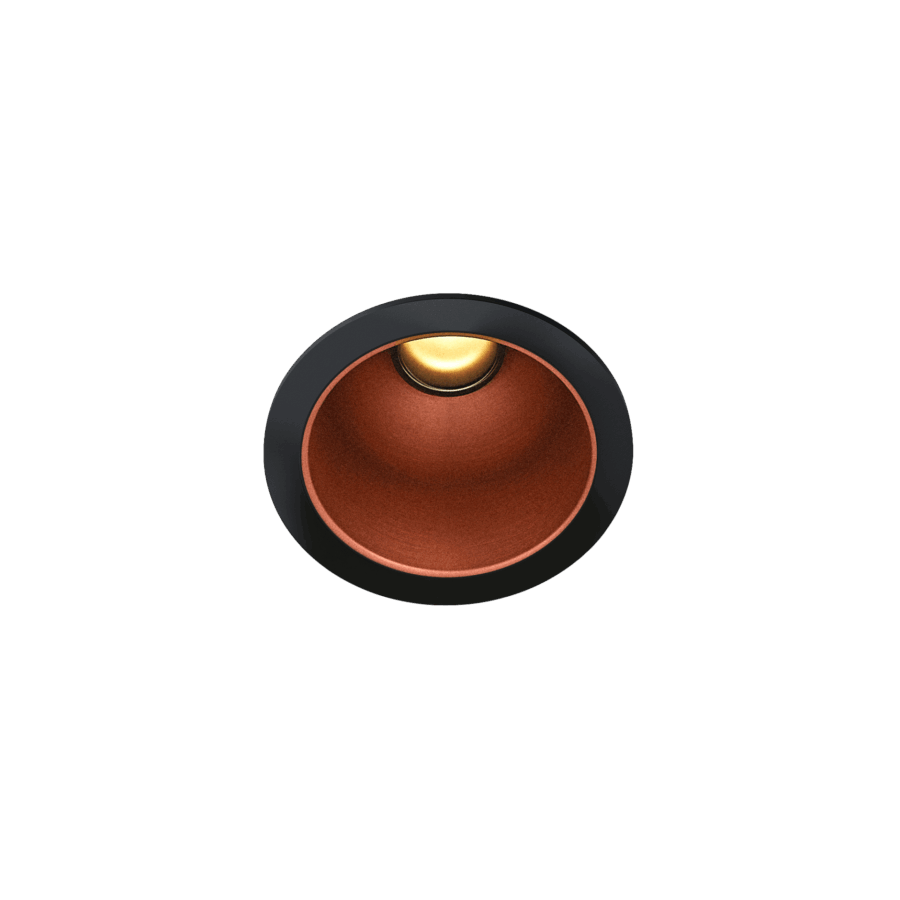

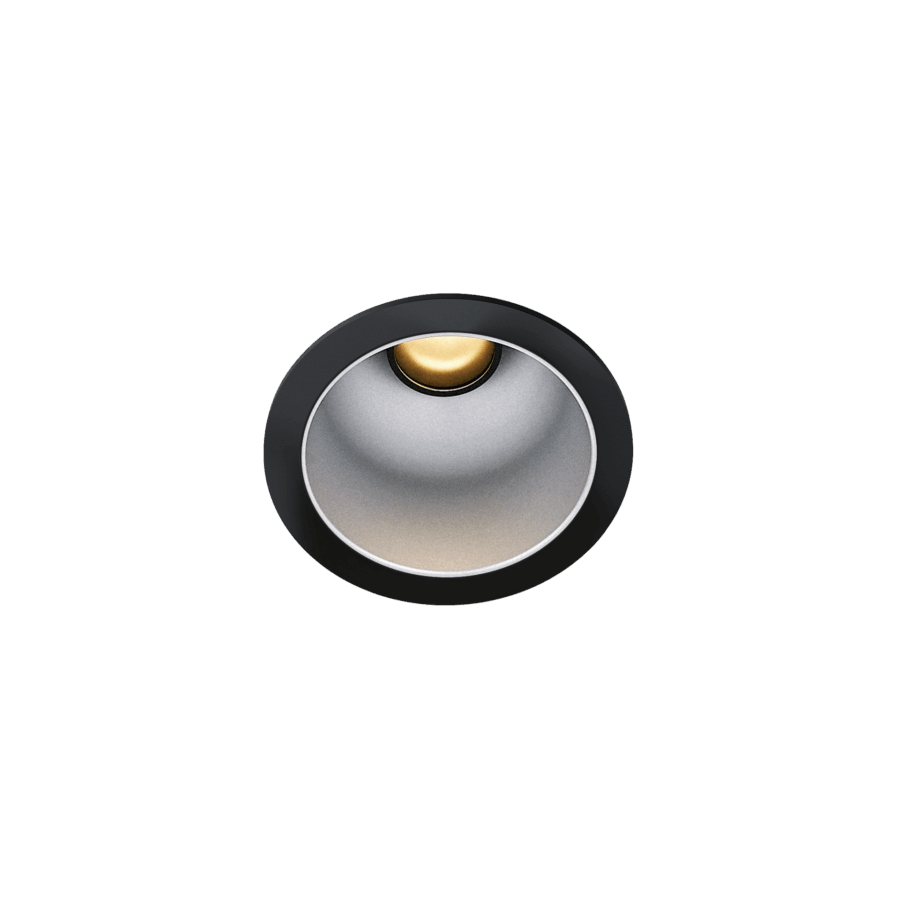

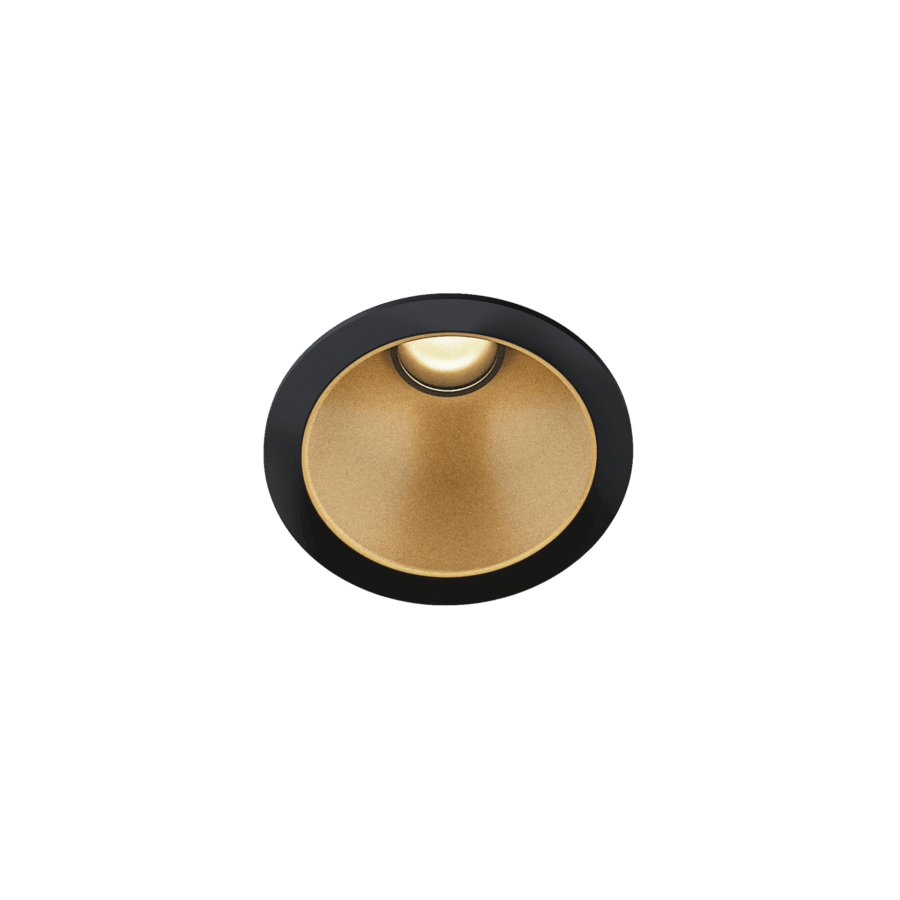

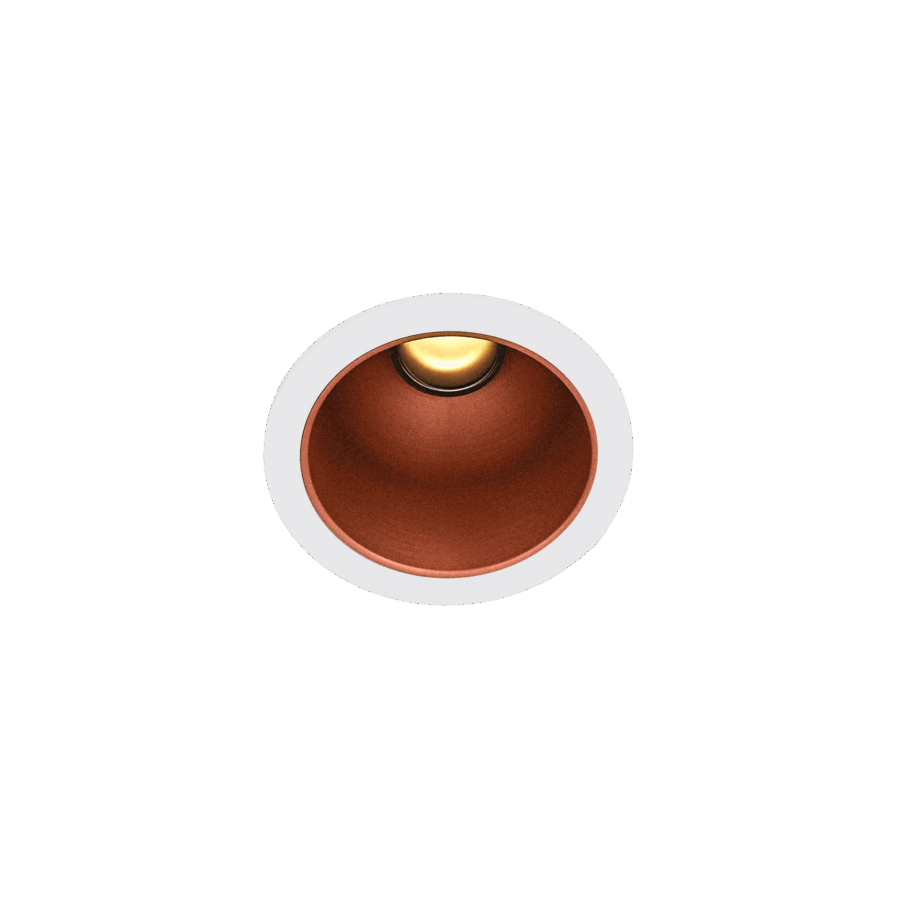

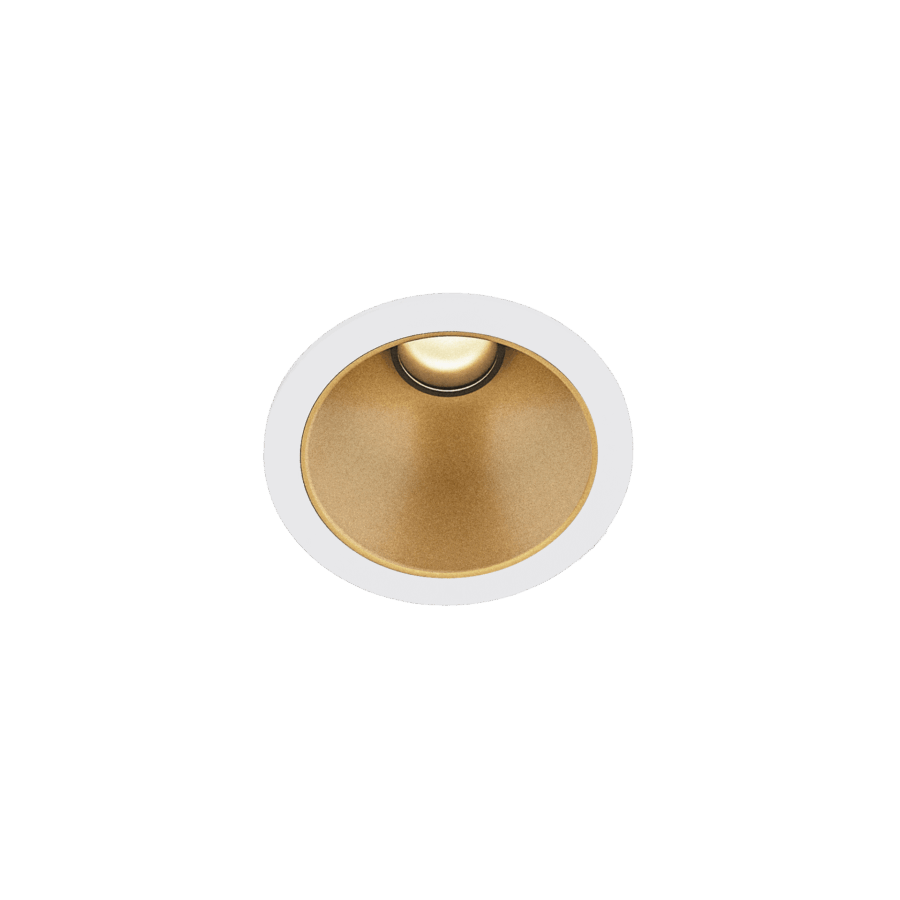

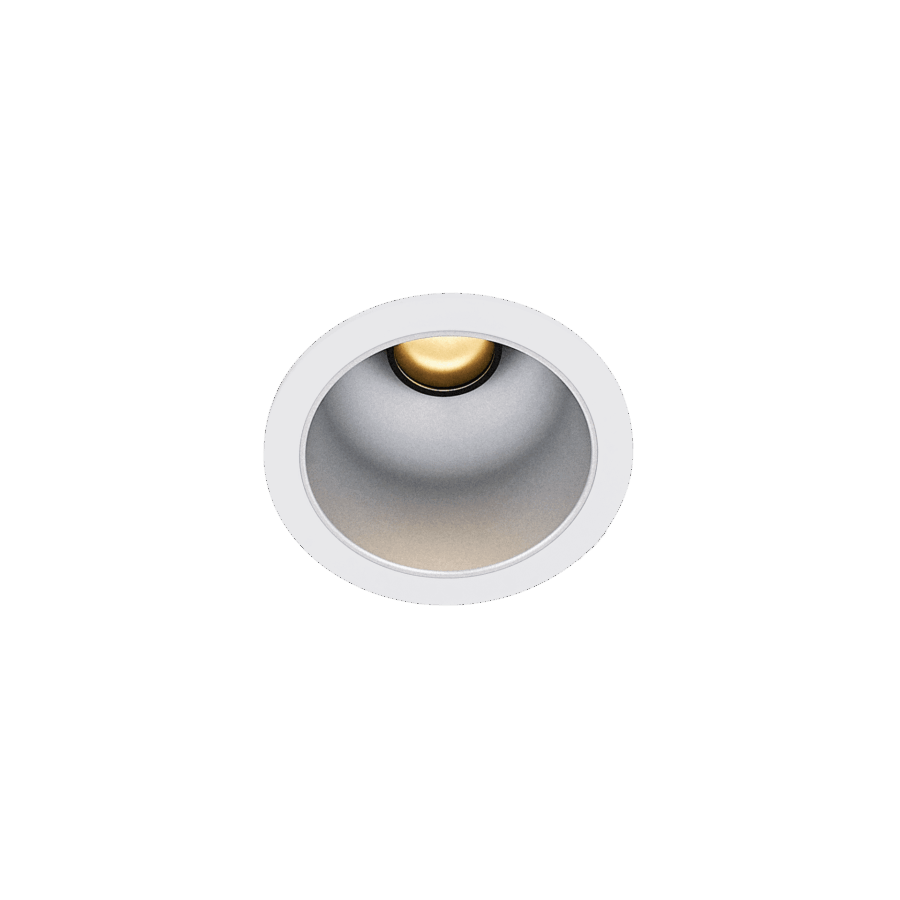

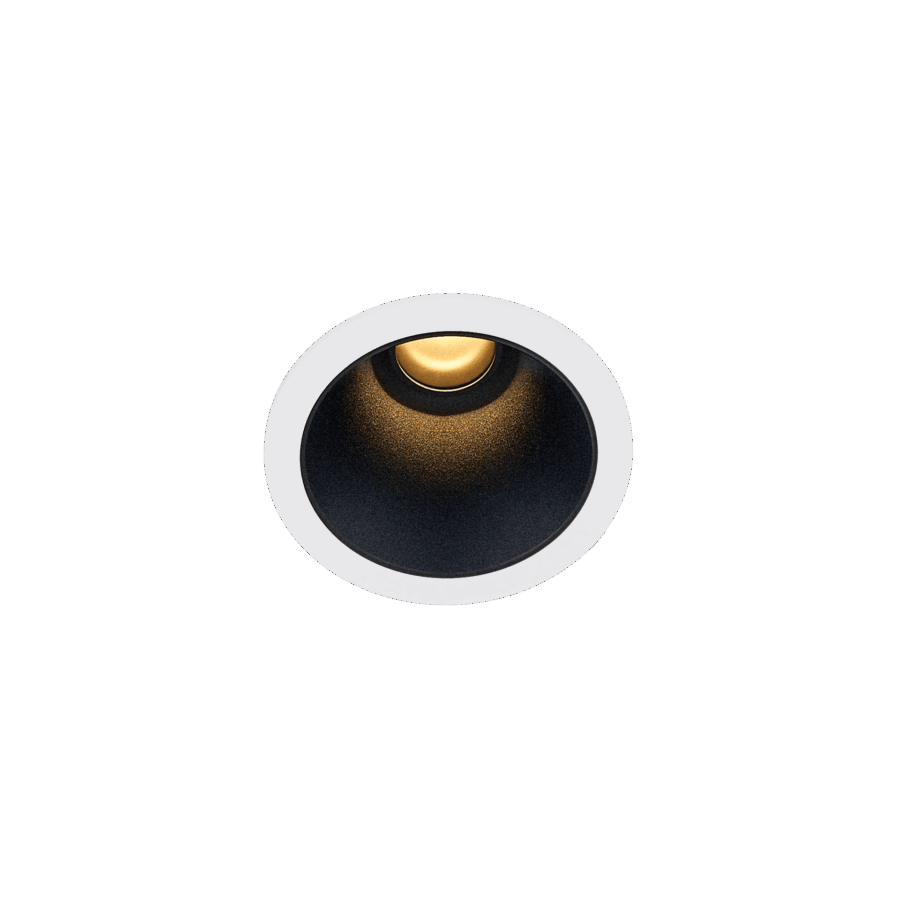

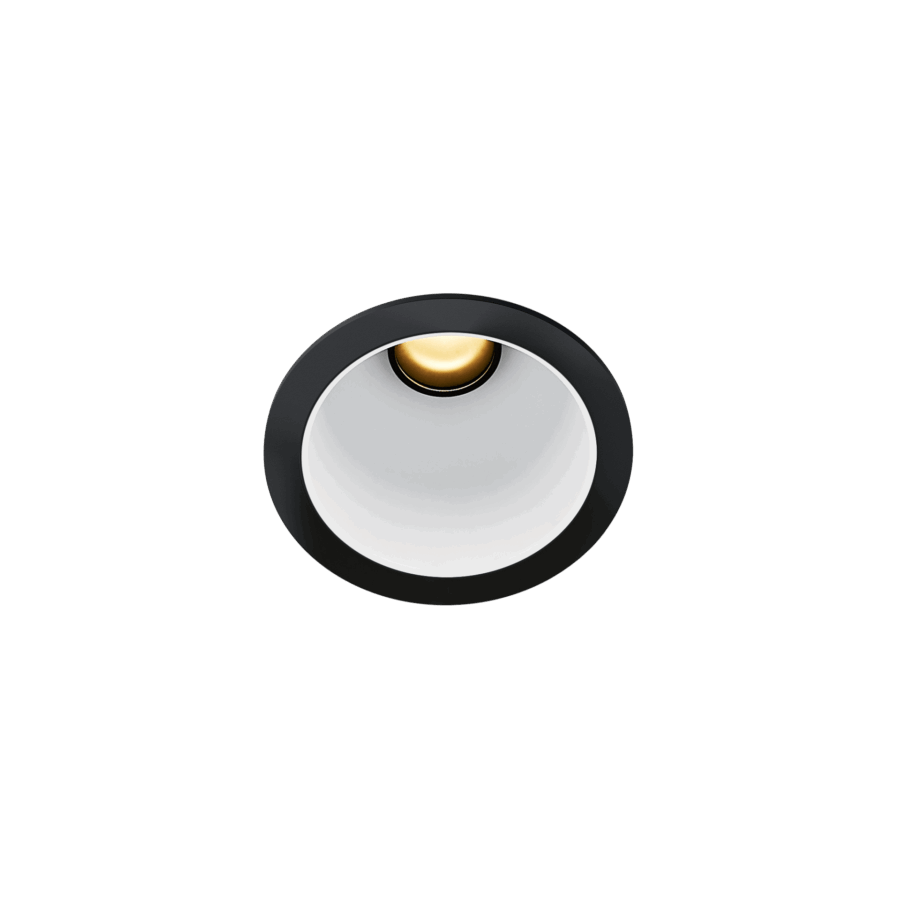

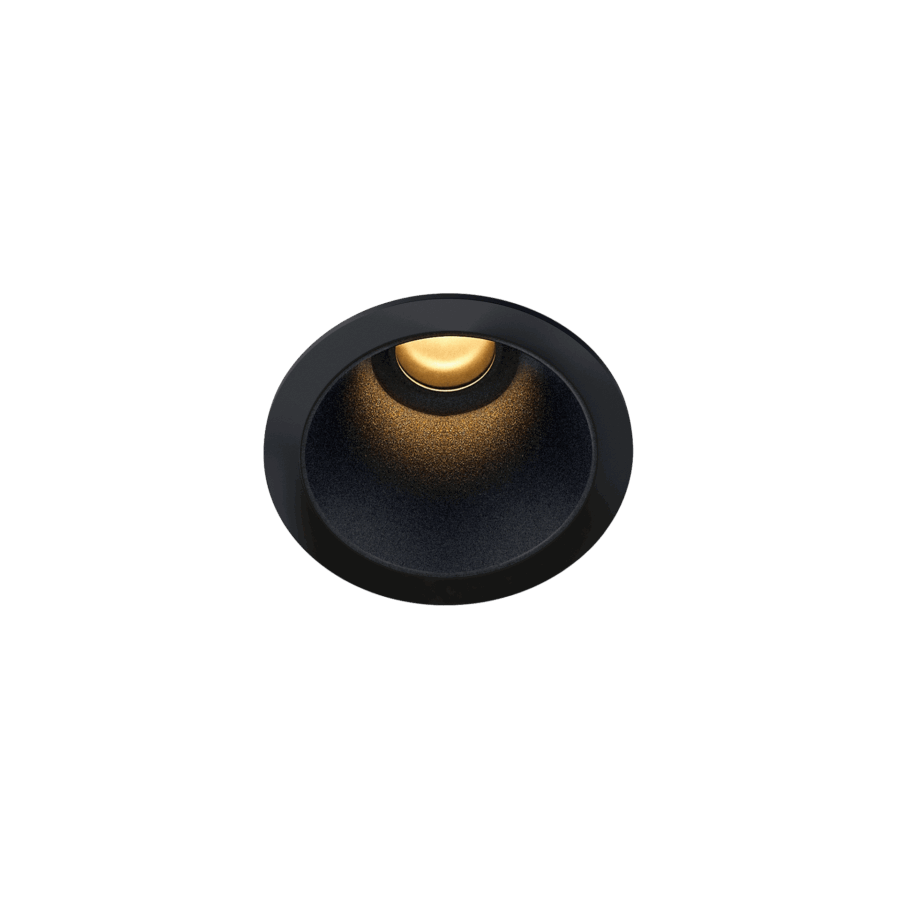

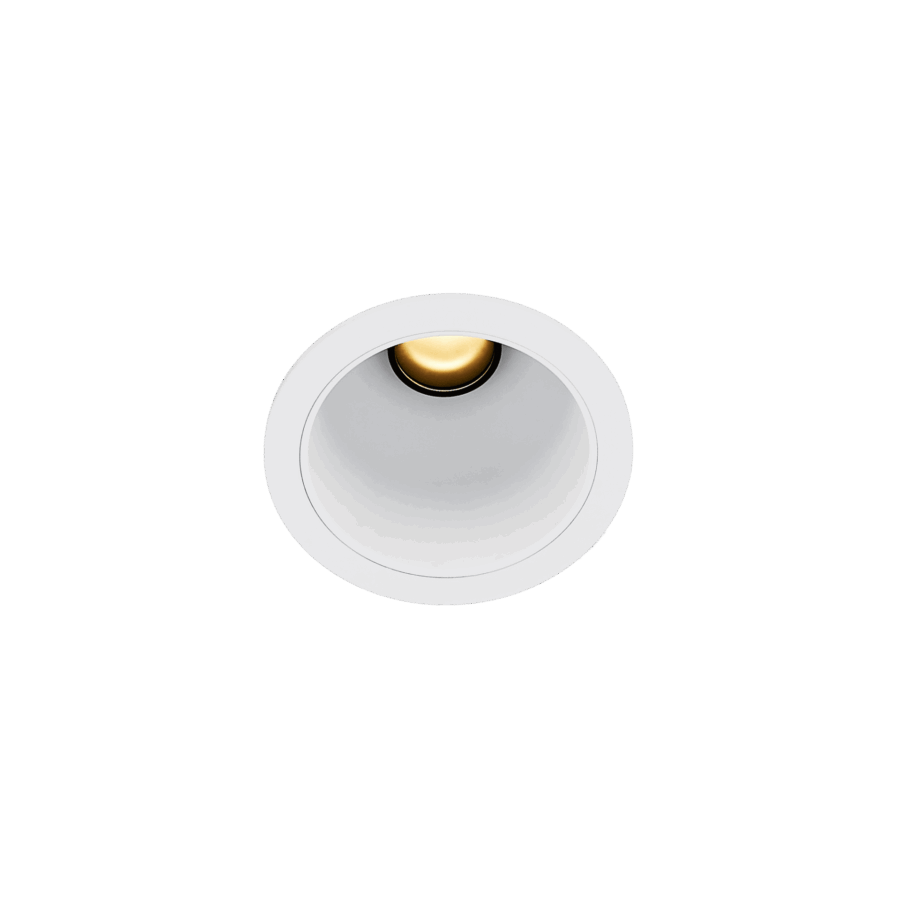

The Karizma Luce Dea Apollo is a recessed fixed downlight from the Dea Della Luce series. Made from aluminium. IP65 protection. Available luminaire flux: 750 lm, 800 lm, 850 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 35°. Luminaire available in black and white. Reflector colours: Black Matt, Chrome, Copper, Gold, White.
