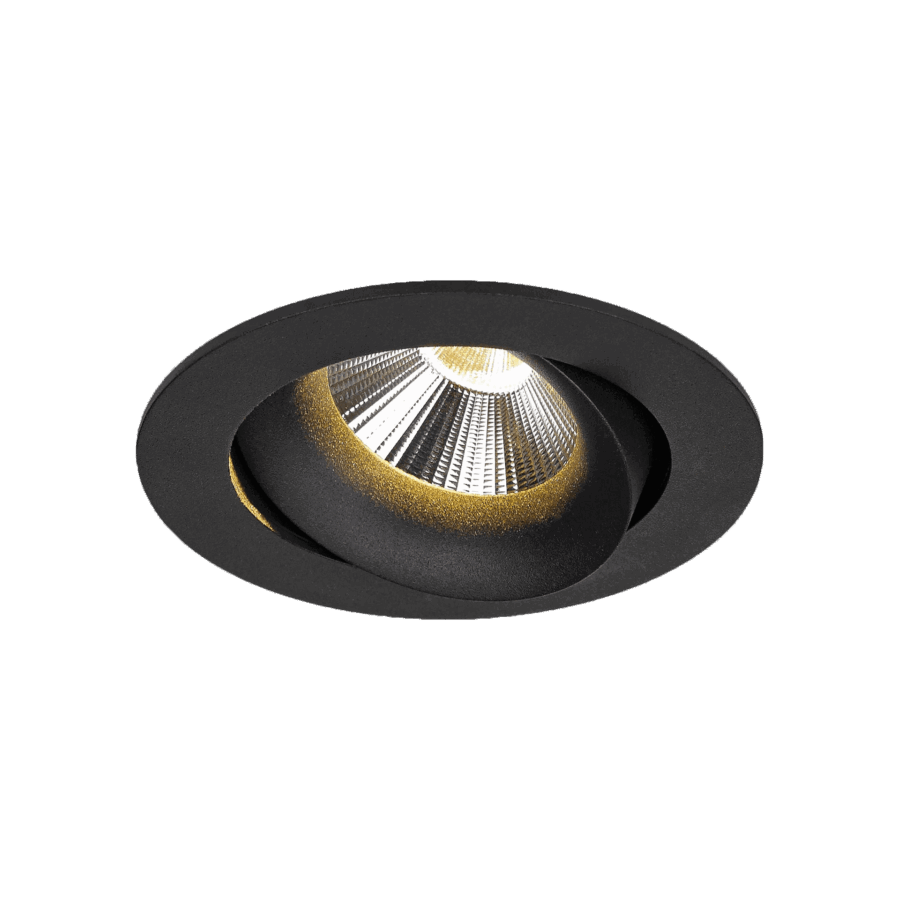

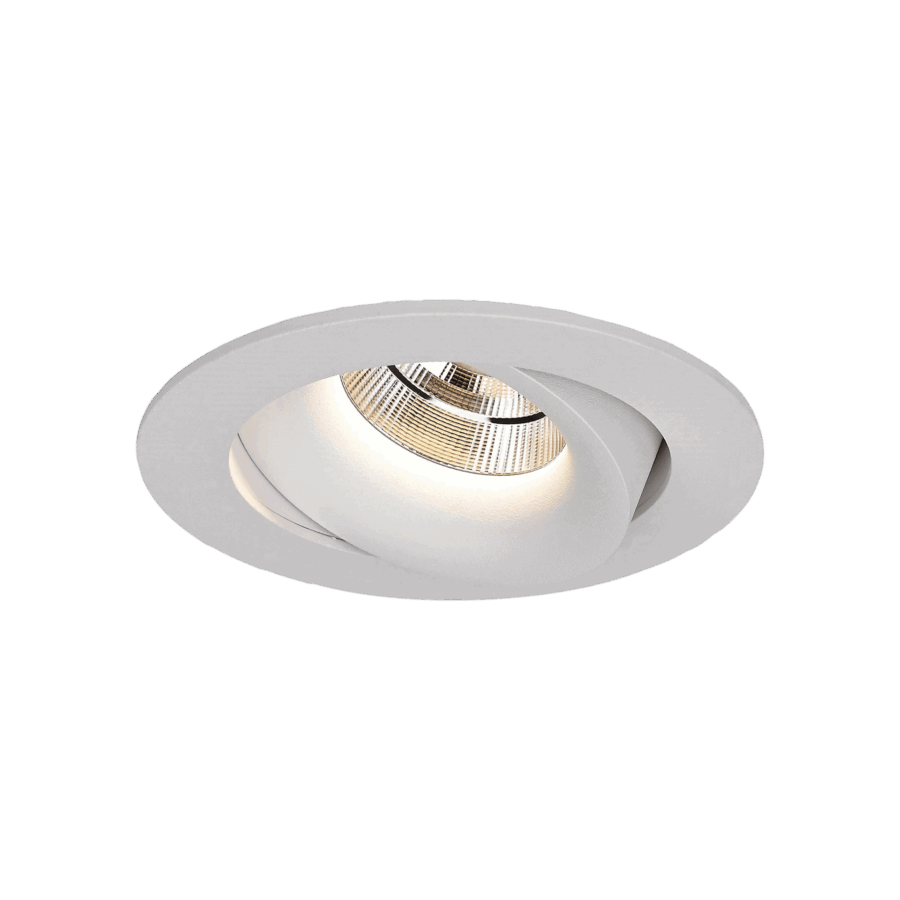

The Corsa is an adjustable led downlight, fitted with a 30°/45°/60° or 36°/45°/60° aluminium reflector. The clean design and its ability to rotate 350° makes it the perfect choice for office lighting, catering lighting, galleries and residential lighting. The Karizma Luce Corsa is up to any lighting task.
Corsa
Rotating made perfect.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 117CW9273000 | 705 lm | 2700K | 90 | 30° | White | Specular Aluminium | 705-lm | 2700k | 90 | 30 | white | specular-aluminium |
| 117CW9303000 | 720 lm | 3000K | 90 | 30° | White | Specular Aluminium | 720-lm | 3000k | 90 | 30 | white | specular-aluminium |
| 117CW9274500 | 705 lm | 2700K | 90 | 45° | White | Specular Aluminium | 705-lm | 2700k | 90 | 45 | white | specular-aluminium |
| 117CW9304500 | 720 lm | 3000K | 90 | 45° | White | Specular Aluminium | 720-lm | 3000k | 90 | 45 | white | specular-aluminium |
| 117CB9273000 | 705 lm | 2700K | 90 | 30° | Black | Specular Aluminium | 705-lm | 2700k | 90 | 30 | black | specular-aluminium |
| 117CB9303000 | 720 lm | 3000K | 90 | 30° | Black | Specular Aluminium | 720-lm | 3000k | 90 | 30 | black | specular-aluminium |
| 117CB9274500 | 705 lm | 2700K | 90 | 45° | Black | Specular Aluminium | 705-lm | 2700k | 90 | 45 | black | specular-aluminium |
| 117CB9304500 | 720 lm | 3000K | 90 | 45° | Black | Specular Aluminium | 720-lm | 3000k | 90 | 45 | black | specular-aluminium |
| 117EW9273600 | 1240 lm | 2700K | 90 | 36° | White | Specular Aluminium | 1240-lm | 2700k | 90 | 36 | white | specular-aluminium |
| 117FW9303600 | 1280 lm | 3000K | 90 | 36° | White | Specular Aluminium | 1280-lm | 3000k | 90 | 36 | white | specular-aluminium |
| 117EW9274500 | 1240 lm | 2700K | 90 | 45° | White | Specular Aluminium | 1240-lm | 2700k | 90 | 45 | white | specular-aluminium |
| 117FW9304500 | 1280 lm | 3000K | 90 | 45° | White | Specular Aluminium | 1280-lm | 3000k | 90 | 45 | white | specular-aluminium |
| 117EB9273600 | 1240 lm | 2700K | 90 | 36° | Black | Specular Aluminium | 1240-lm | 2700k | 90 | 36 | black | specular-aluminium |
| 117FB9303600 | 1280 lm | 3000K | 90 | 36° | Black | Specular Aluminium | 1280-lm | 3000k | 90 | 36 | black | specular-aluminium |
| 117EB9274500 | 1240 lm | 2700K | 90 | 45° | Black | Specular Aluminium | 1240-lm | 2700k | 90 | 45 | black | specular-aluminium |
| 117FB9304500 | 1280 lm | 3000K | 90 | 45° | Black | Specular Aluminium | 1280-lm | 3000k | 90 | 45 | black | specular-aluminium |
| 117DB9403000 | 850 lm | 4000K | 90 | 30° | Black | Specular Aluminium | 850-lm | 4000k | 90 | 30 | black | specular-aluminium |
| 117DB9404500 | 850 lm | 4000K | 90 | 45° | Black | Specular Aluminium | 850-lm | 4000k | 90 | 45 | black | specular-aluminium |
| 117DW9403000 | 850 lm | 4000K | 90 | 30° | White | Specular Aluminium | 850-lm | 4000k | 90 | 30 | white | specular-aluminium |
| 117DW9404500 | 850 lm | 4000K | 90 | 45° | White | Specular Aluminium | 850-lm | 4000k | 90 | 45 | white | specular-aluminium |
| 117GB9403600 | 1450 lm | 4000K | 90 | 36° | Black | Specular Aluminium | 1450-lm | 4000k | 90 | 36 | black | specular-aluminium |
| 117GB9404500 | 1450 lm | 4000K | 90 | 45° | Black | Specular Aluminium | 1450-lm | 4000k | 90 | 45 | black | specular-aluminium |
| 117GW9403600 | 1450 lm | 4000K | 90 | 36° | White | Specular Aluminium | 1450-lm | 4000k | 90 | 36 | white | specular-aluminium |
| 117GW9404500 | 1450 lm | 4000K | 90 | 45° | White | Specular Aluminium | 1450-lm | 4000k | 90 | 45 | white | specular-aluminium |
Click on specification values for related products.
Luminous Flux1240 lm, 1240lm, 1280 lm, 1280lm, 1450 lm, 1450lm, 380lm, 705 lm, 705lm, 720 lm, 720lm, 850 lm, 850lm
CRI90
CCT1800K – 3000K, 2700K, 3000K, 4000K
Chromaticity tolerance10 MacAdam, 11 MacAdam, 12 MacAdam, 13 MacAdam, 14 MacAdam, 15 MacAdam, 16 MacAdam, 17 MacAdam, 18 MacAdam, 19 MacAdam, 3 MacAdam, 4 MacAdam, 5 MacAdam, 6 MacAdam, 7 MacAdam, 8 MacAdam, 9 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight0.42Kg

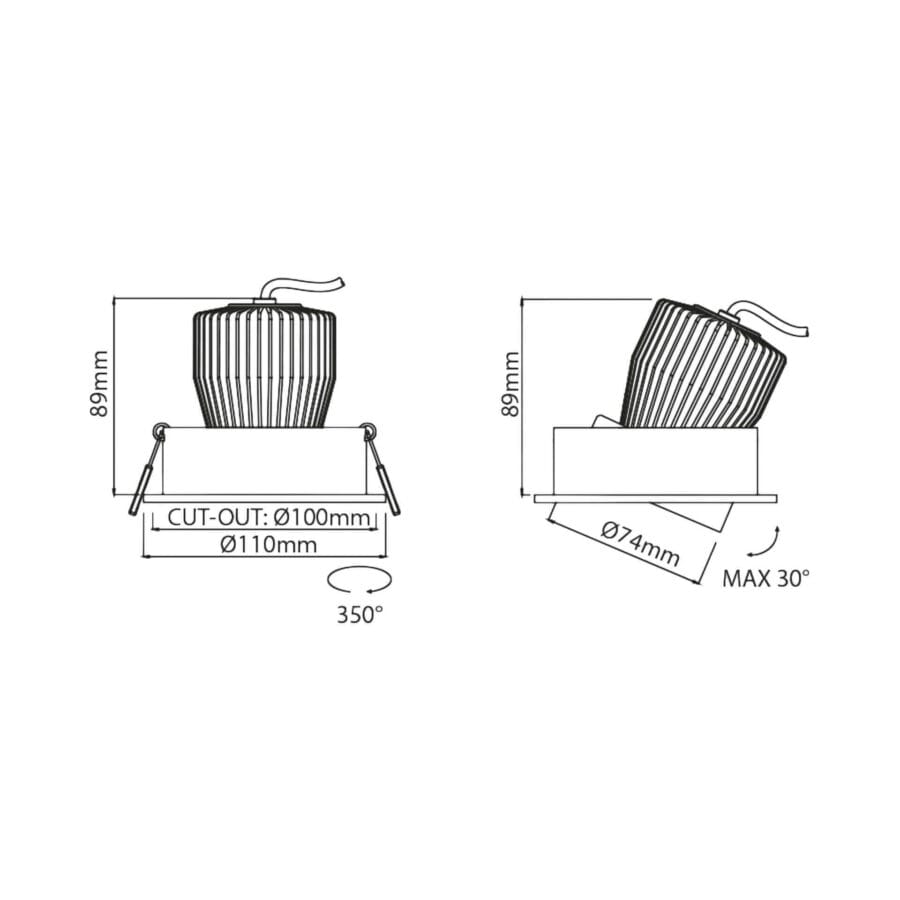

Cut out dimensionØ100mm
Luminaire dimensionØ110x77mm
Nominal fV [V]18.4V, 33.8-35.9V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height100mm
The Karizma Luce Corsa is a recessed adjustable downlight from the Delizia Di Luce series. Made from aluminium. Available luminaire flux: 705 lm, 720 lm, 930 lm, 1240 lm, 1280 lm, 1550 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 30°/45°/60° or 36°/45°/60°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
