The Doppio is an adjustable led downlight. Double the looks, double the lighting power! This square downlight has top level looks, and so is his performance. Each light source can be controlled individually. LED’s delight your hotel, restaurant, museum, office or home with Karizma Luce Doppio.
Doppio
Teaming up.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 121CW9273000 | 2x705 lm | 2700K | 90 | 30° | White | Specular Aluminium |
| 121CW9303000 | 2x720 lm | 3000K | 90 | 30° | White | Specular Aluminium |
| 121CW9274500 | 2x705 lm | 2700K | 90 | 45° | White | Specular Aluminium |
| 121CW9304500 | 2x720 lm | 3000K | 90 | 45° | White | Specular Aluminium |
| 121CB9273000 | 2x705 lm | 2700K | 90 | 30° | Black | Specular Aluminium |
| 121CB9303000 | 2x720 lm | 3000K | 90 | 30° | Black | Specular Aluminium |
| 121CB9274500 | 2x705 lm | 2700K | 90 | 45° | Black | Specular Aluminium |
| 121CB9304500 | 2x720 lm | 3000K | 90 | 45° | Black | Specular Aluminium |
| 121EW9273600 | 2x1240 lm | 2700K | 90 | 36° | White | Specular Aluminium |
| 121FW9303600 | 2x1280 lm | 3000K | 90 | 36° | White | Specular Aluminium |
| 121EW9274500 | 2x1240 lm | 2700K | 90 | 45° | White | Specular Aluminium |
| 121FW9304500 | 2x1280 lm | 3000K | 90 | 45° | White | Specular Aluminium |
| 121EB9273600 | 2x1240 lm | 2700K | 90 | 36° | Black | Specular Aluminium |
| 121FB9303600 | 2x1280 lm | 3000K | 90 | 36° | Black | Specular Aluminium |
| 121EB9274500 | 2x1240 lm | 2700K | 90 | 45° | Black | Specular Aluminium |
| 121FB9304500 | 2x1280 lm | 3000K | 90 | 45° | Black | Specular Aluminium |
| 121DB9403000 | 2x850 lm | 4000K | 90 | 30° | Black | Specular Aluminium |
| 121DB9404500 | 2x850 lm | 4000K | 90 | 45° | Black | Specular Aluminium |
| 121DW9403000 | 2x850 lm | 4000K | 90 | 30° | White | Specular Aluminium |
| 121DW9404500 | 2x850 lm | 4000K | 90 | 45° | White | Specular Aluminium |
| 121GB9403600 | 2x1450 lm | 4000K | 90 | 36° | Black | Specular Aluminium |
| 121GB9404500 | 2x1450 lm | 4000K | 90 | 45° | Black | Specular Aluminium |
| 121GW9403600 | 2x1450 lm | 4000K | 90 | 36° | White | Specular Aluminium |
| 121GW9404500 | 2x1450 lm | 4000K | 90 | 45° | White | Specular Aluminium |
| 121EB9276000 | 2x1240lm | 2700K | 90 | 60° | Black | Specular Aluminium |
| 121EW9276000 | 2x1240lm | 2700K | 90 | 60° | White | Specular Aluminium |
| 121CB9276000 | 2x705lm | 2700K | 90 | 60° | Black | Specular Aluminium |
| 121CW9276000 | 2x705lm | 2700K | 90 | 60° | White | Specular Aluminium |
| 121FB9306000 | 2x1280lm | 3000K | 90 | 60° | Black | Specular Aluminium |
| 121FW9306000 | 2x1280lm | 3000K | 90 | 60° | White | Specular Aluminium |
| 121CB9306000 | 2x720lm | 3000K | 90 | 60° | Black | Specular Aluminium |
| 121CW9306000 | 2x720lm | 3000K | 90 | 60° | White | Specular Aluminium |
| 121GB9406000 | 2x1450lm | 4000K | 90 | 60° | Black | Specular Aluminium |
| 121GW9406000 | 2x1450lm | 4000K | 90 | 60° | White | Specular Aluminium |
| 121DB9406000 | 2x850lm | 4000K | 90 | 60° | Black | Specular Aluminium |
| 121DW9406000 | 2x850lm | 4000K | 90 | 60° | White | Specular Aluminium |
Click on specification values for related products.
Luminous Flux2×1240 lm, 2x1240lm, 2×1280 lm, 2x1280lm, 2×1450 lm, 2x1450lm, 2×705 lm, 2x705lm, 2×720 lm, 2x720lm, 2×850 lm, 2x850lm
CRI90
Chromaticity tolerance10 MacAdam, 11 MacAdam, 12 MacAdam, 13 MacAdam, 14 MacAdam, 15 MacAdam, 3 MacAdam, 4 MacAdam, 5 MacAdam, 6 MacAdam, 7 MacAdam, 8 MacAdam, 9 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight0.9Kg

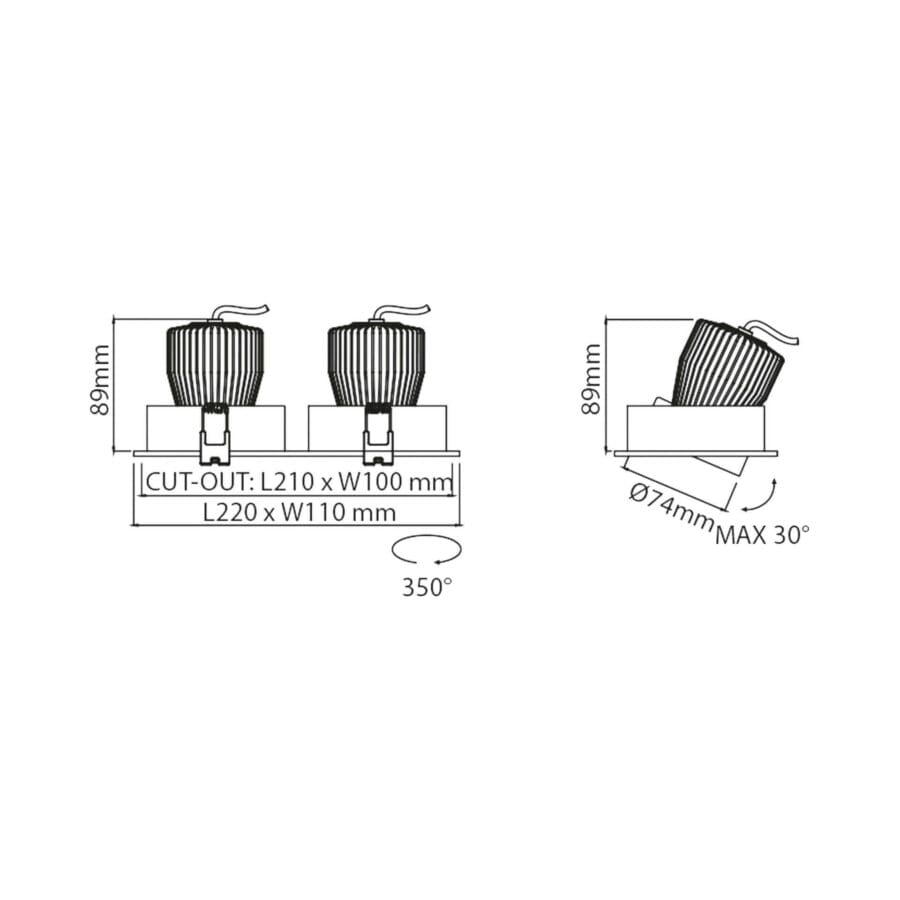

Cut out dimension210x100mm
Luminaire dimension220x110x77mm
Nominal fV [V]18.4V, 33.8-35.9V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source identifierBXRE-27G0800-D-73, BXRE-30G0800-D-73, BXRE-40G0800-D-73, CLU028-1202C4-403H5M3-F1, CLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height100mm

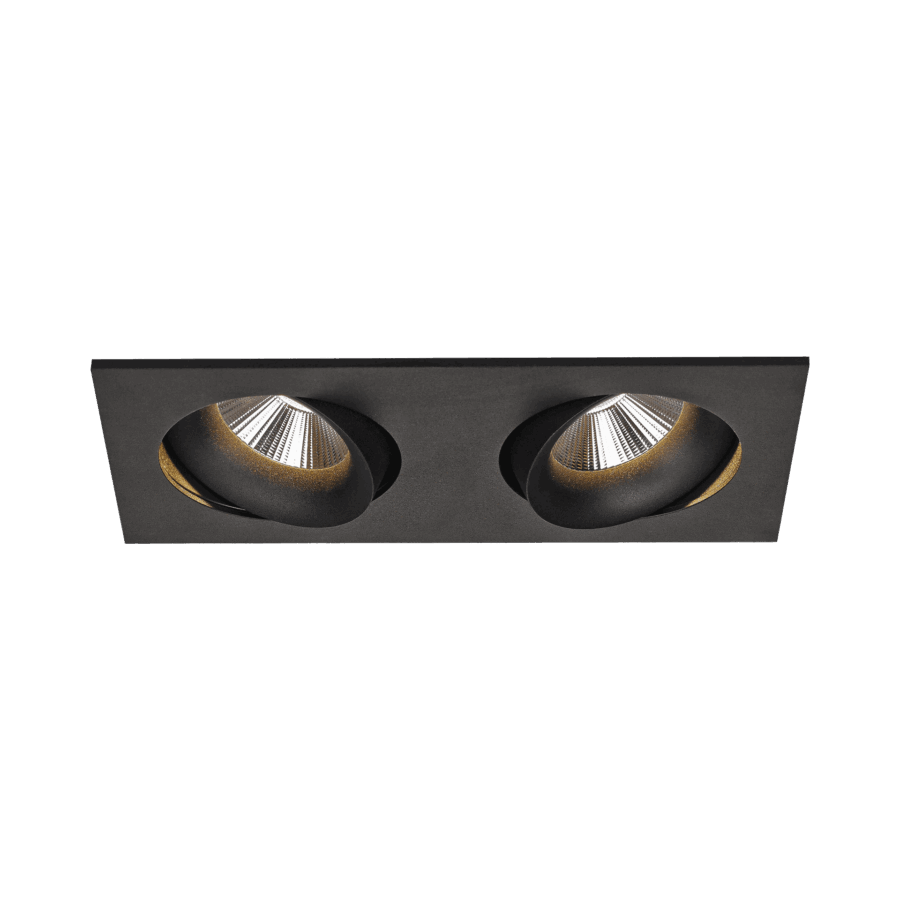

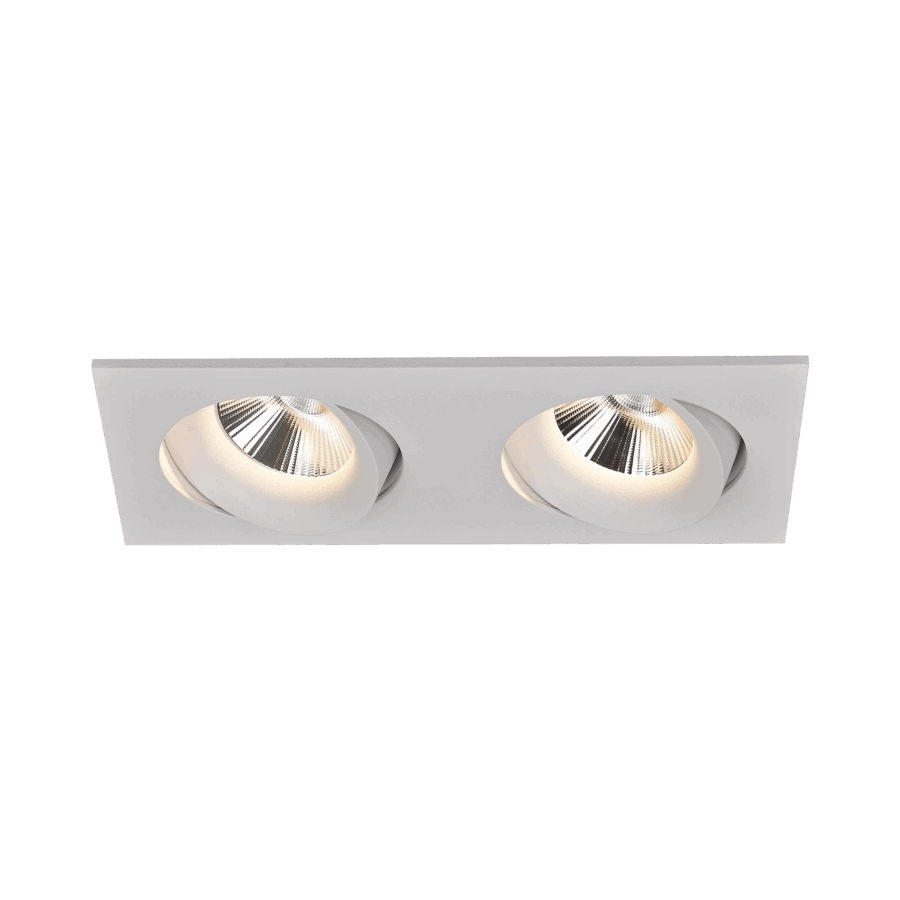

The Karizma Luce Doppio is a double recessed adjustable downlight from the Delizia Di Luce series. Made from aluminium. Available luminaire flux: in range 2×705- 2×1550 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 30°/45°/60° or 36°/45°/60°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
