The Ventiquattro Track proves that major measures can also have a subtle side. The Ventiquattro Track (24 light sources, 666 mm) is our longest track luminaire. But thanks to its versatility in applications this allrounder is also able to make a modest impression. Whatever you prefer, this big boy gets the job done in any spacious office or showroom.

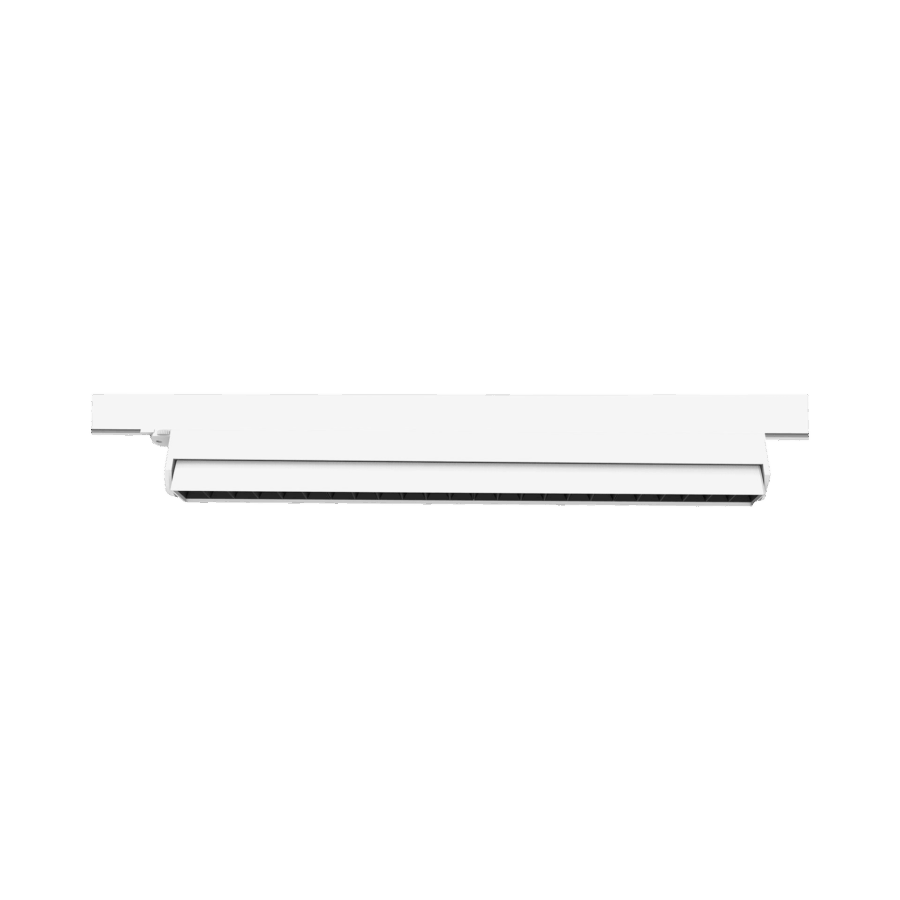

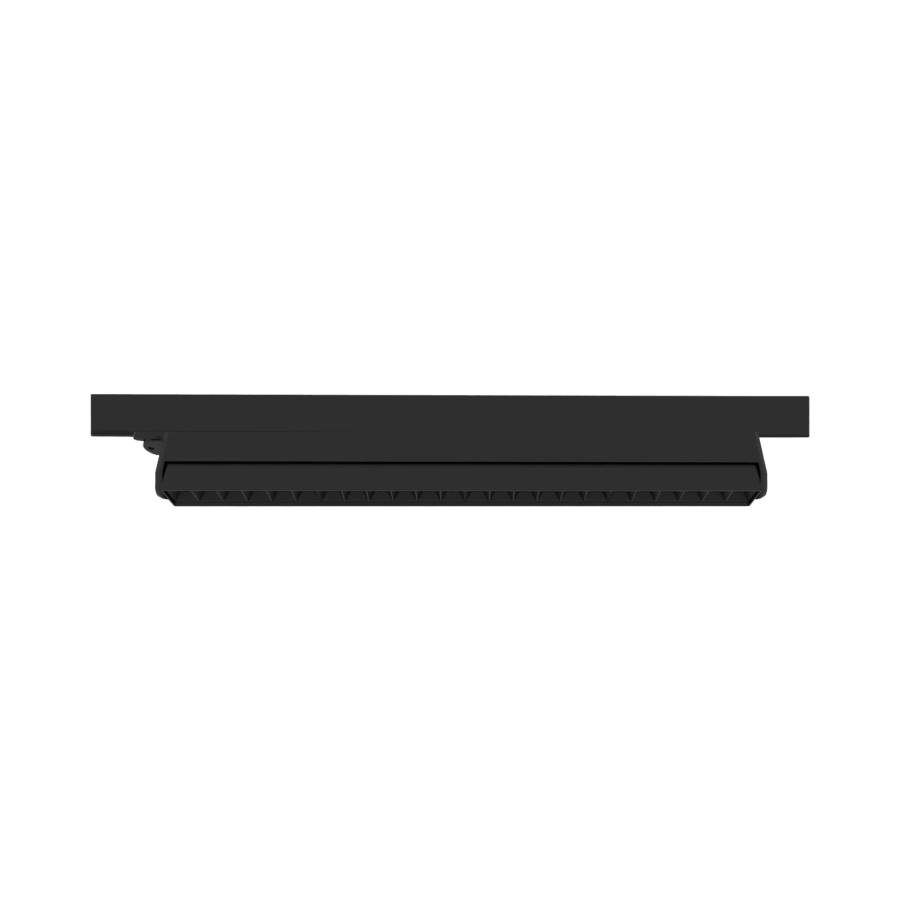

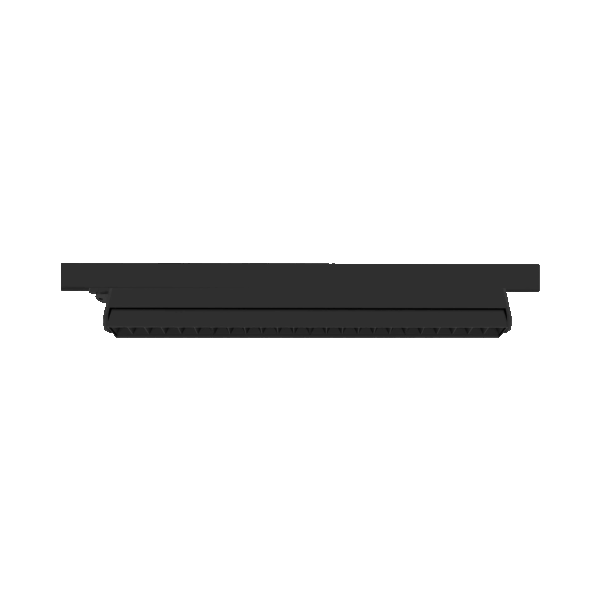

Ventiquattro Track
Modest allrounder.
- Warranty on quality in years.
- Digital dimming interface.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 703KW92730F0 | 2700 lm | 2700K | 90 | 30° | White | Specular Aluminium | 2700-lm | 2700k | 90 | 30 | white | specular-aluminium |
| 703KW92745F0 | 2700 lm | 2700K | 90 | 45° | White | Specular Aluminium | 2700-lm | 2700k | 90 | 45 | white | specular-aluminium |
| 703KB92730F0 | 2700 lm | 2700K | 90 | 30° | Black | Specular Aluminium | 2700-lm | 2700k | 90 | 30 | black | specular-aluminium |
| 703KB92745F0 | 2700 lm | 2700K | 90 | 45° | Black | Specular Aluminium | 2700-lm | 2700k | 90 | 45 | black | specular-aluminium |
| 703LW93030F0 | 2850 lm | 3000K | 90 | 30° | White | Specular Aluminium | 2850-lm | 3000k | 90 | 30 | white | specular-aluminium |
Click on specification values for related products.
CRI90
LED powerN/A
System power40W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight2Kg
Cut out dimensionN/A

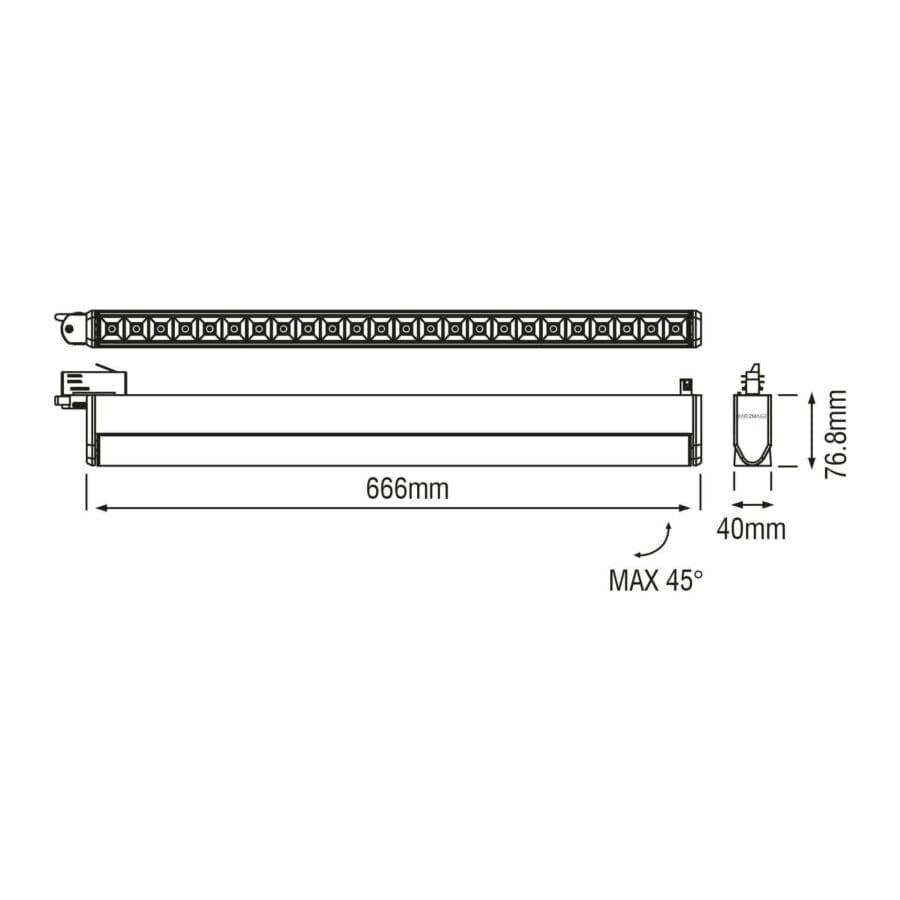

Luminaire dimension666×76.8x40mm
Nominal fA [mA]N/A
Nominal fV [V]N/A
Power supplyIncluded ON/OFF
Mains Voltage220-240V / 50 -60Hz
El. ClassClass I
Housing materialExtruded Aluminum
Lifetime50000h
Light source927 (2700K / CRI90), 930 (3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
ControlDALI
