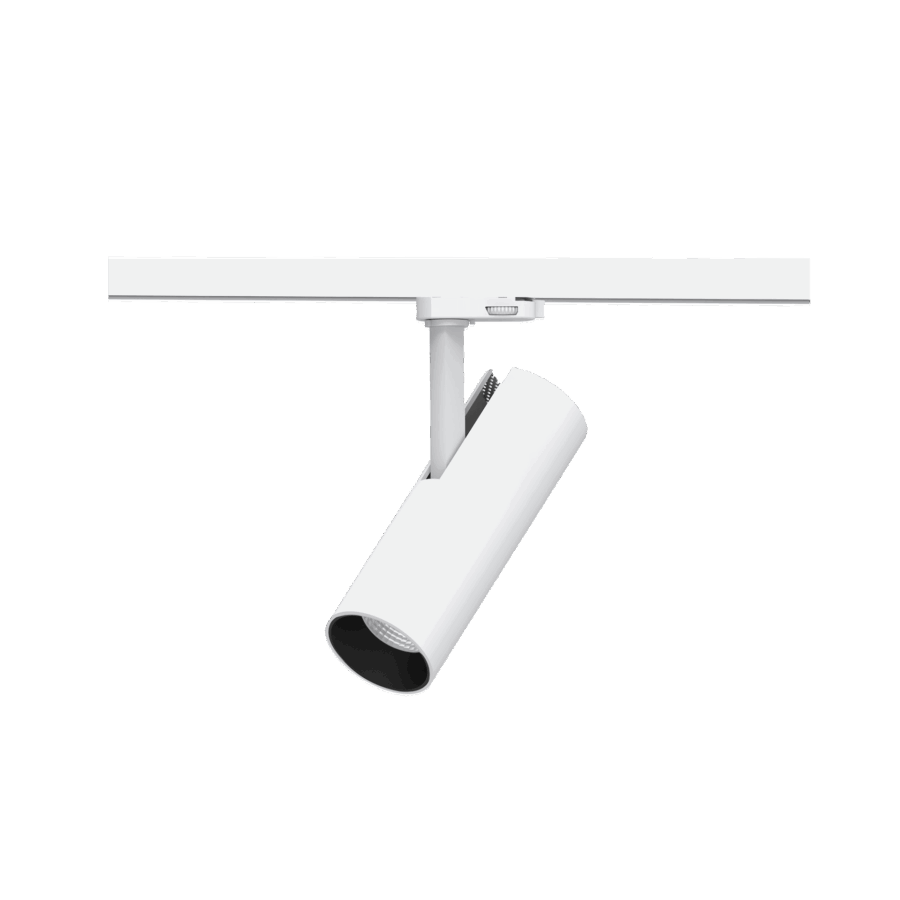

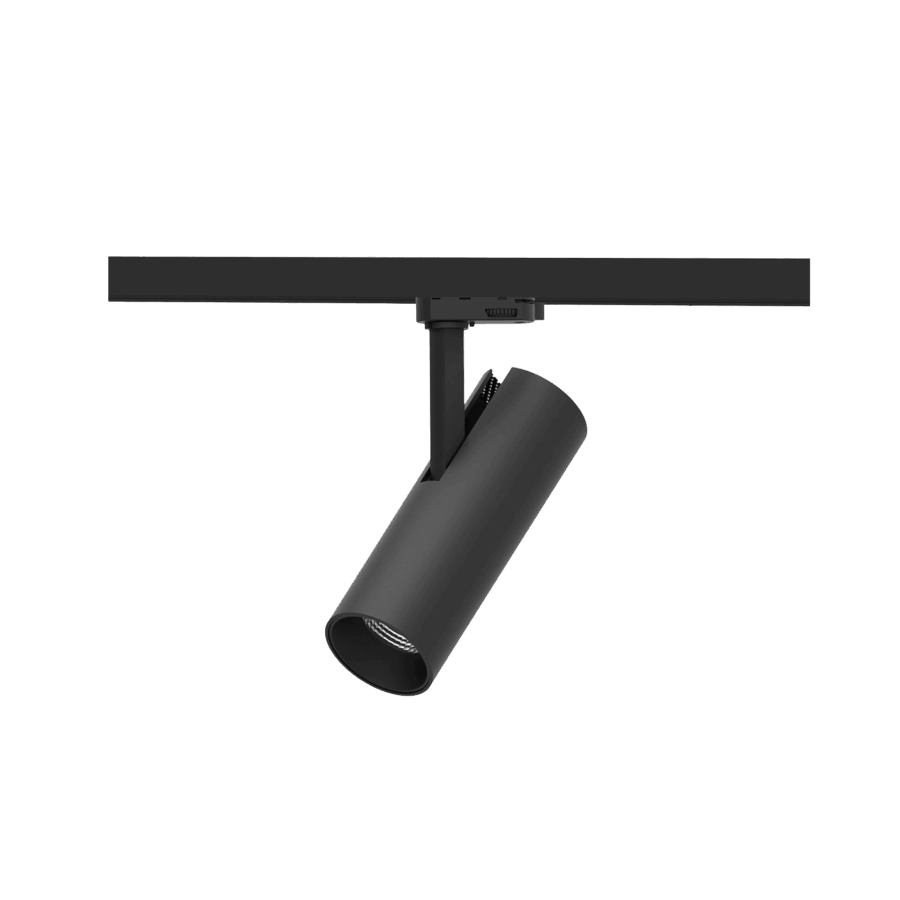

The Tesoro is a track led spotlight, luxurious and extremely versatile. This small LED track spot is for use on a 3-phase rail. This makes the Karizma Luce Tesoro the luminaire of choice in a retail environment. Choose from several options in colour, controllability, CCT and beam angles. No wonder the elegant Tesoro is a favourite among lighting designers.
Tesoro
Discover this treasure.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- The luminaire is as well available for 1-phase tracks.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 603GW92720F0 | 1550 lm | 2700K | 90 | 20° | White | Specular Aluminium | 1550-lm | 2700k | 90 | 20 | white | specular-aluminium |
| 603GW92730F0 | 1550 lm | 2700K | 90 | 30° | White | Specular Aluminium | 1550-lm | 2700k | 90 | 30 | white | specular-aluminium |
| 603GW92745F0 | 1550 lm | 2700K | 90 | 45° | White | Specular Aluminium | 1550-lm | 2700k | 90 | 45 | white | specular-aluminium |
| 603GB92720F0 | 1550 lm | 2700K | 90 | 20° | Black | Specular Aluminium | 1550-lm | 2700k | 90 | 20 | black | specular-aluminium |
| 603GB92730F0 | 1550 lm | 2700K | 90 | 30° | Black | Specular Aluminium | 1550-lm | 2700k | 90 | 30 | black | specular-aluminium |
| 603GB92745F0 | 1550 lm | 2700K | 90 | 45° | Black | Specular Aluminium | 1550-lm | 2700k | 90 | 45 | black | specular-aluminium |
| 603GW93020F0 | 1650 lm | 3000K | 90 | 20° | White | Specular Aluminium | 1650-lm | 3000k | 90 | 20 | white | specular-aluminium |
| 603GW93030F0 | 1650 lm | 3000K | 90 | 30° | White | Specular Aluminium | 1650-lm | 3000k | 90 | 30 | white | specular-aluminium |
| 603GW93045F0 | 1650 lm | 3000K | 90 | 45° | White | Specular Aluminium | 1650-lm | 3000k | 90 | 45 | white | specular-aluminium |
| 603GB93020F0 | 1650 lm | 3000K | 90 | 20° | Black | Specular Aluminium | 1650-lm | 3000k | 90 | 20 | black | specular-aluminium |
| 603GB93030F0 | 1650 lm | 3000K | 90 | 30° | Black | Specular Aluminium | 1650-lm | 3000k | 90 | 30 | black | specular-aluminium |
| 603GB93045F0 | 1650 lm | 3000K | 90 | 45° | Black | Specular Aluminium | 1650-lm | 3000k | 90 | 45 | black | specular-aluminium |
| 603HW94020F0 | 1800 lm | 4000K | 90 | 20° | White | Specular Aluminium | 1800-lm | 4000k | 90 | 20 | white | specular-aluminium |
| 603HW94030F0 | 1800 lm | 4000K | 90 | 30° | White | Specular Aluminium | 1800-lm | 4000k | 90 | 30 | white | specular-aluminium |
| 603HW94045F0 | 1800 lm | 4000K | 90 | 45° | White | Specular Aluminium | 1800-lm | 4000k | 90 | 45 | white | specular-aluminium |
| 603HB94020F0 | 1800 lm | 4000K | 90 | 20° | Black | Specular Aluminium | 1800-lm | 4000k | 90 | 20 | black | specular-aluminium |
| 603HB94030F0 | 1800 lm | 4000K | 90 | 30° | Black | Specular Aluminium | 1800-lm | 4000k | 90 | 30 | black | specular-aluminium |
| 603HB94045F0 | 1800 lm | 4000K | 90 | 45° | Black | Specular Aluminium | 1800-lm | 4000k | 90 | 45 | black | specular-aluminium |
Click on specification values for related products.
LED powerN/A
System power19W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight0.92Kg
Cut out dimensionN/A

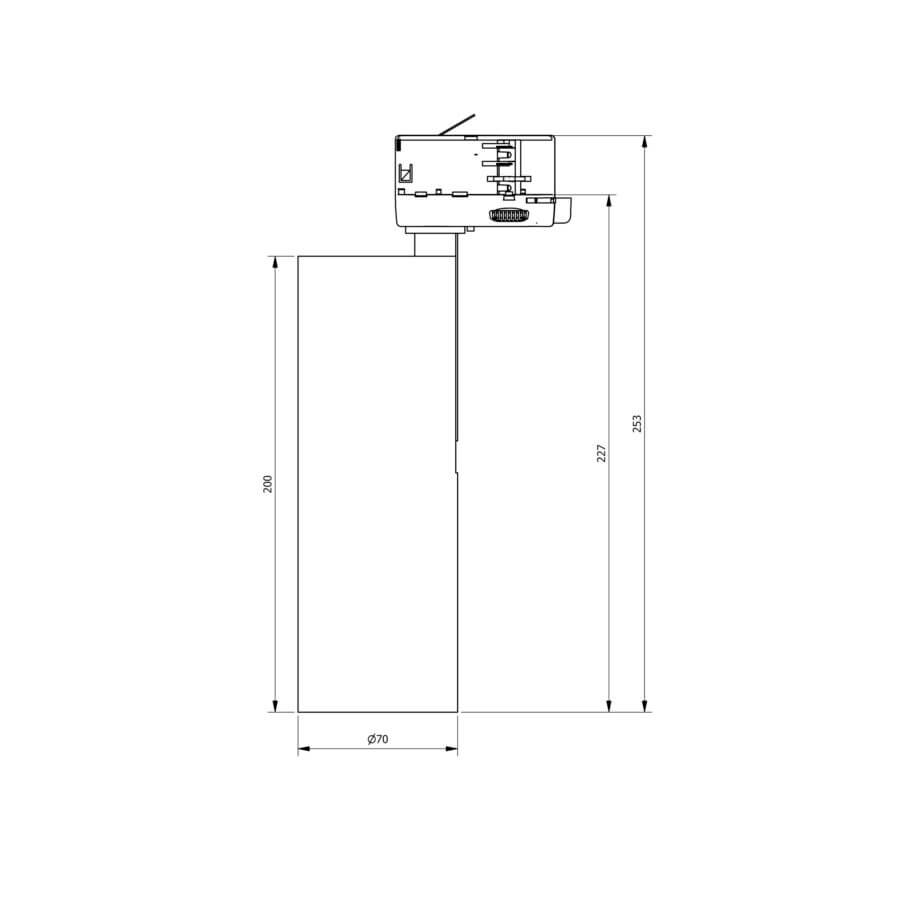

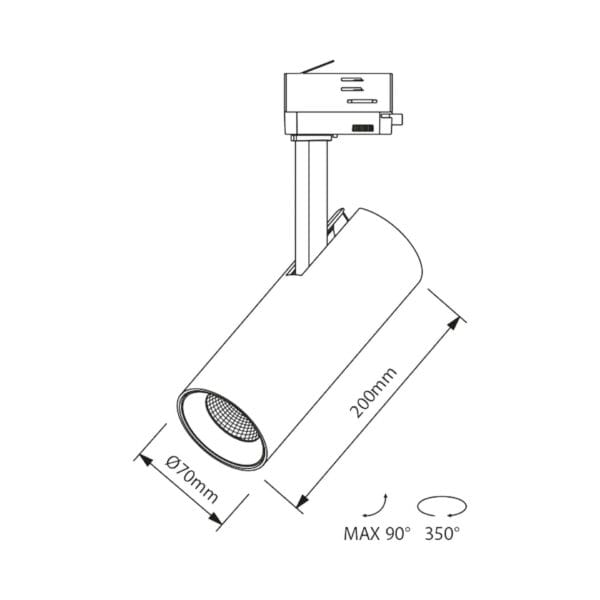

Luminaire dimensionØ70x180mm
Nominal fA [mA]N/A
Nominal fV [V]N/A
Power supplyIncluded ON/OFF
Mains Voltage220-240V / 50 -60Hz
El. ClassClass I
Housing materialAluminum Die Cast
Lifetime50000h
Light source identifierL2C5-27901205F1300, L2C5-30901205F1300, L2C5-40801205F1300, L2C5-40901205F1300
Light source840 (4000K / CRI80), 927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
The Karizma Luce Tesoro is a powerful 220V track spotlight from the Delizia Di Luce series. Made from aluminium. Available luminaire flux range: 1550-2200 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 20°, 30° and 45°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
