Tesoro Lente

Discover this treasure.

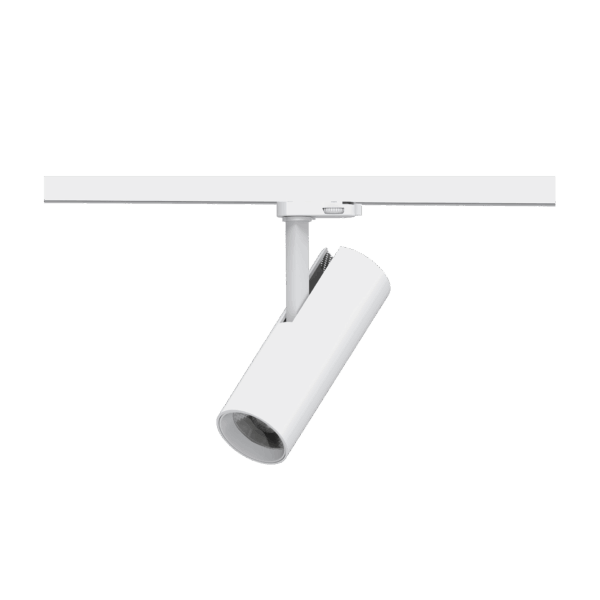

The Tesoro Lente is a powerful track led spotlight with an optical lens, luxurious and extremely versatile. This small track spot is for use on a 3-phase track. This makes the Tesoro Lente the luminaire of choice in a retail and hospitality. Choose from several options in colour, controllability, CCT and beam angels. No wonder the elegant Tesoro is a favourite among lighting designers.

Installation manual

LDT files

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

SKU	Luminous Flux	CCT	CRI	Beam Angle	Luminaire Color	Reflector Color
602GW92715F0	1500 lm	2700K	90	15°	White	N/A
602GW93015F0	1600 lm	3000K	90	15°	White	N/A
602GB92715F0	1500 lm	2700K	90	15°	Black	N/A
602GB93015F0	1600 lm	3000K	90	15°	Black	N/A
602GW92724F0	1500 lm	2700K	90	24°	White	N/A
602GW93024F0	1600 lm	3000K	90	24°	White	N/A
602GB92724F0	1500 lm	2700K	90	24°	Black	N/A
602GB93024F0	1600 lm	3000K	90	24°	Black	N/A
602GW92736F0	1500 lm	2700K	90	36°	White	N/A
602GW93036F0	1600 lm	3000K	90	36°	White	N/A
602GB92736F0	1500 lm	2700K	90	36°	Black	N/A
602GB93036F0	1600 lm	3000K	90	36°	Black	N/A

Click on specification values for related products.

Luminous Flux1500 lm, 1600 lm

CRI90

CCT2700K, 3000K

LED powerN/A

System power20W

System efficiency75lm/W, 80lm/W

Chromaticity tolerance3 MacAdam

OpticLens

Beam angle15°, 24°, 36°

Luminaire colorBlack, White

Reflector colorN/A

IP ratingIP20

Net. Weight0.92Kg

Cut out dimensionN/A

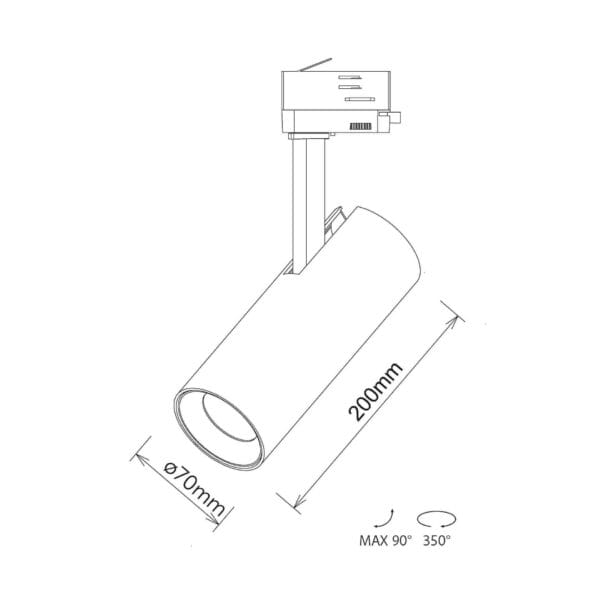

Luminaire dimensionØ70x200mm

Nominal fA [mA]N/A

Nominal fV [V]N/A

Power supplyIncluded ON/OFF

Mains Voltage220-240V / 50 -60Hz

El. ClassClass I

Housing materialAluminum Die Cast

Lifetime50000h

Light source identifierL2C5-27901205F1300, L2C5-30901205F1300

Light source927 (2700K / CRI90), 930 (3000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDelizia di Luce

ControlCasambi, DALI, Phase Cut
