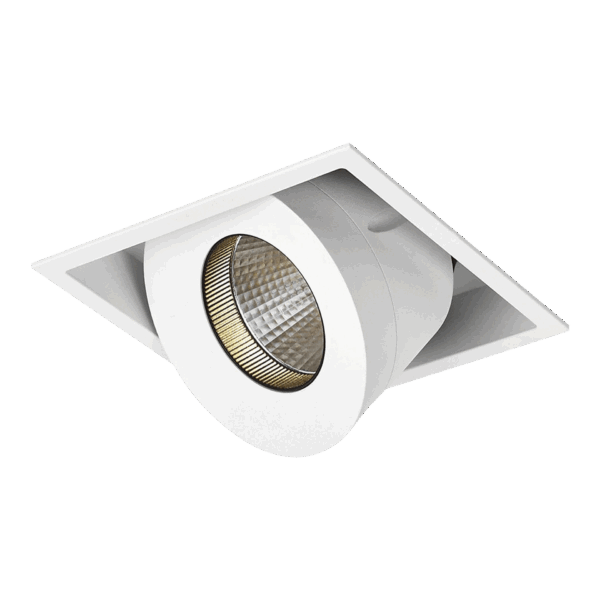

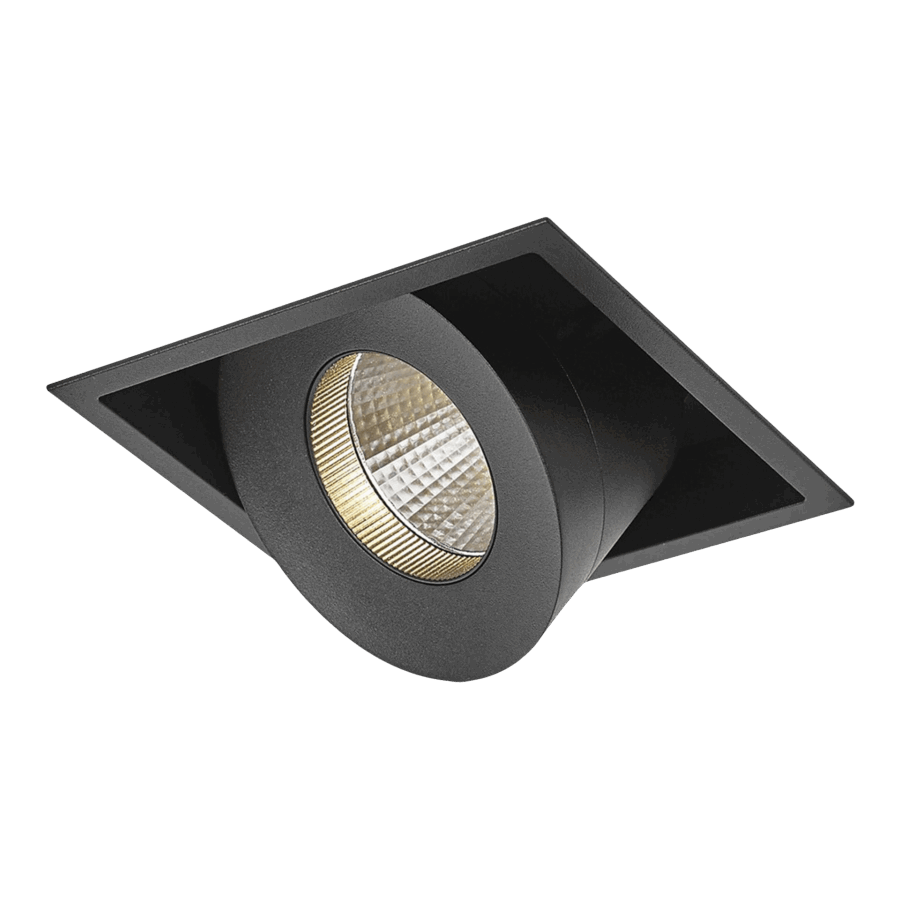

The Solo Grande is a square adjustable led downlight. Not only beautiful because of the looks, but very versatile as well. Thanks to the smooth adjustable functionality, this downlight is always able to put the right accents easily. This makes the Karizma Luce Solo perfect for hotel lighting and restaurant lighting.
Solo Grande
Beautiful and versatile.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 104HW9272400 | 1750 lm | 2700K | 90 | 24° | White | Specular Aluminium |
| 104HW9273800 | 1750 lm | 2700K | 90 | 38° | White | Specular Aluminium |
| 104HW9274500 | 1750 lm | 2700K | 90 | 45° | White | Specular Aluminium |
| 104HB9272400 | 1750 lm | 2700K | 90 | 24° | Black | Specular Aluminium |
| 104HB9273800 | 1750 lm | 2700K | 90 | 38° | Black | Specular Aluminium |
| 104HB9274500 | 1750 lm | 2700K | 90 | 45° | Black | Specular Aluminium |
| 104HW9302400 | 1833 lm | 3000K | 90 | 24° | White | Specular Aluminium |
| 104HW9303800 | 1833 lm | 3000K | 90 | 38° | White | Specular Aluminium |
| 104HW9304500 | 1833 lm | 3000K | 90 | 45° | White | Specular Aluminium |
| 104HB9302400 | 1833 lm | 3000K | 90 | 24° | Black | Specular Aluminium |
| 104HB9303800 | 1833 lm | 3000K | 90 | 38° | Black | Specular Aluminium |
| 104HB9304500 | 1833 lm | 3000K | 90 | 45° | Black | Specular Aluminium |
| 104IW9402400 | 2180 lm | 4000K | 90 | 24° | White | Specular Aluminium |
| 104IW9403800 | 2180 lm | 4000K | 90 | 38° | White | Specular Aluminium |
| 104IW9404500 | 2180 lm | 4000K | 90 | 45° | White | Specular Aluminium |
| 104IB9402400 | 2180 lm | 4000K | 90 | 24° | Black | Specular Aluminium |
| 104IB9403800 | 2180 lm | 4000K | 90 | 38° | Black | Specular Aluminium |
| 104IB9404500 | 2180 lm | 4000K | 90 | 45° | Black | Specular Aluminium |
Click on specification values for related products.
CRI90
LED power17.5W
System power19W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium

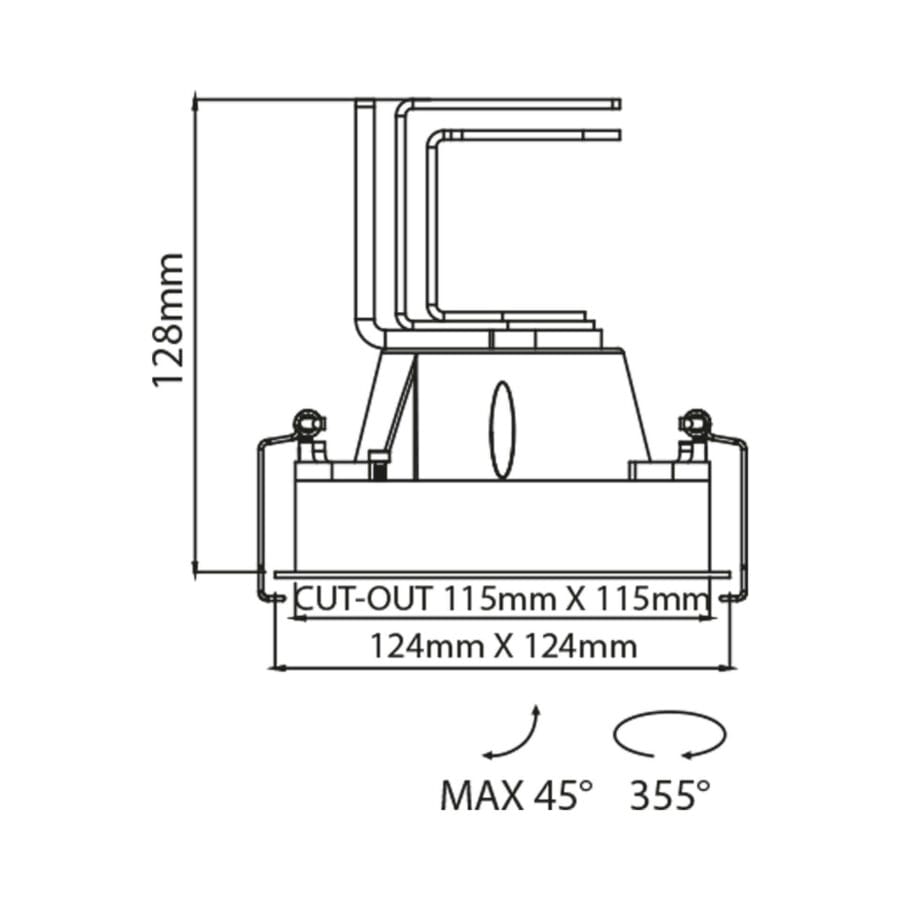

Cut out dimension115x115mm
Luminaire dimension125x125x128mm
Nominal fA [mA]500mA
Nominal fV [V]35V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height150mm
