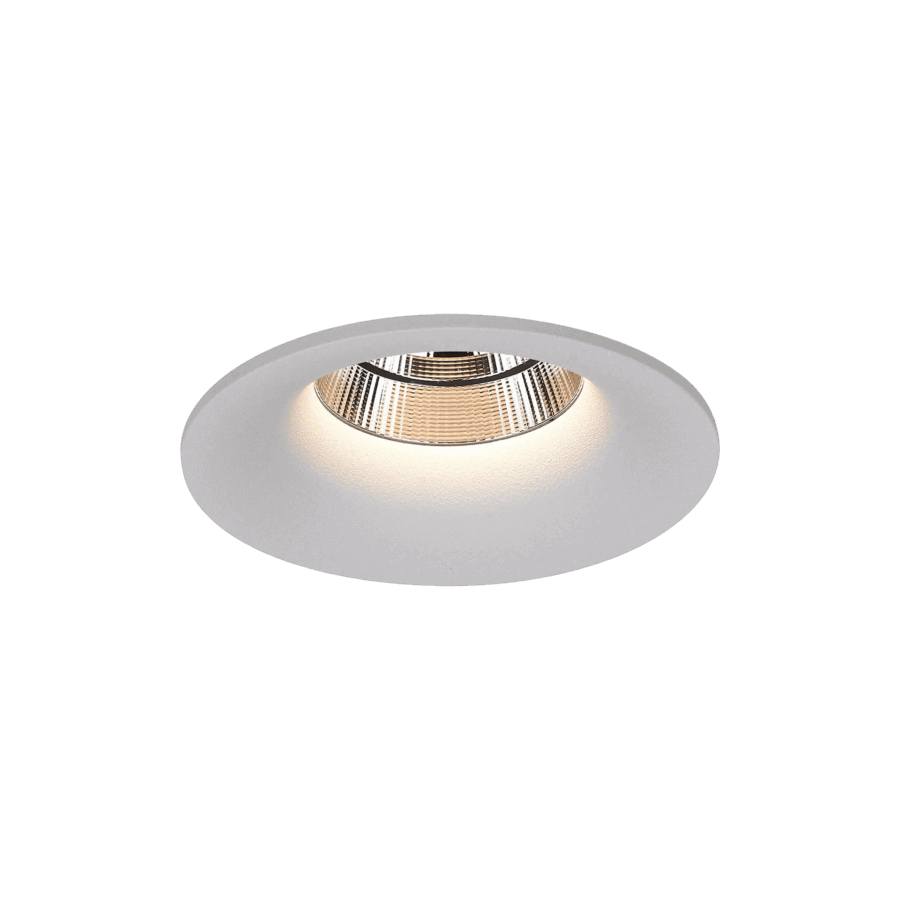

White version of the Piccolo, a fixed recessed luminaire designed by Karizma Luce.

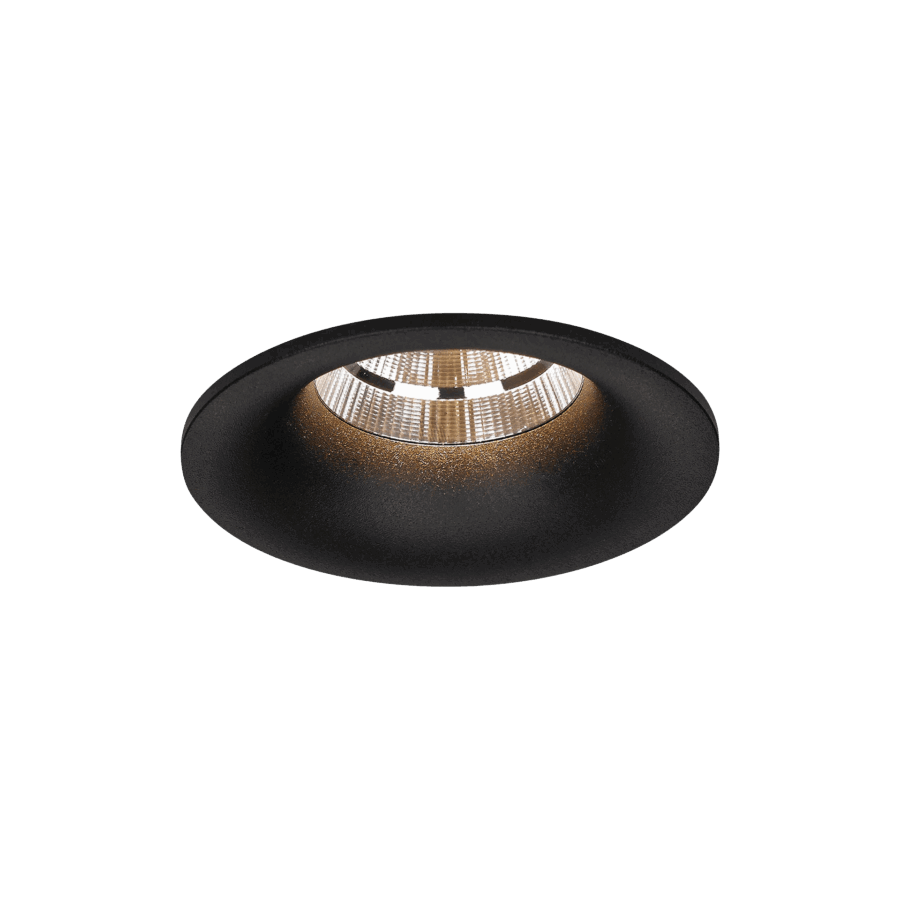

Black version of the Piccolo, a fixed recessed luminaire designed by Karizma Luce.

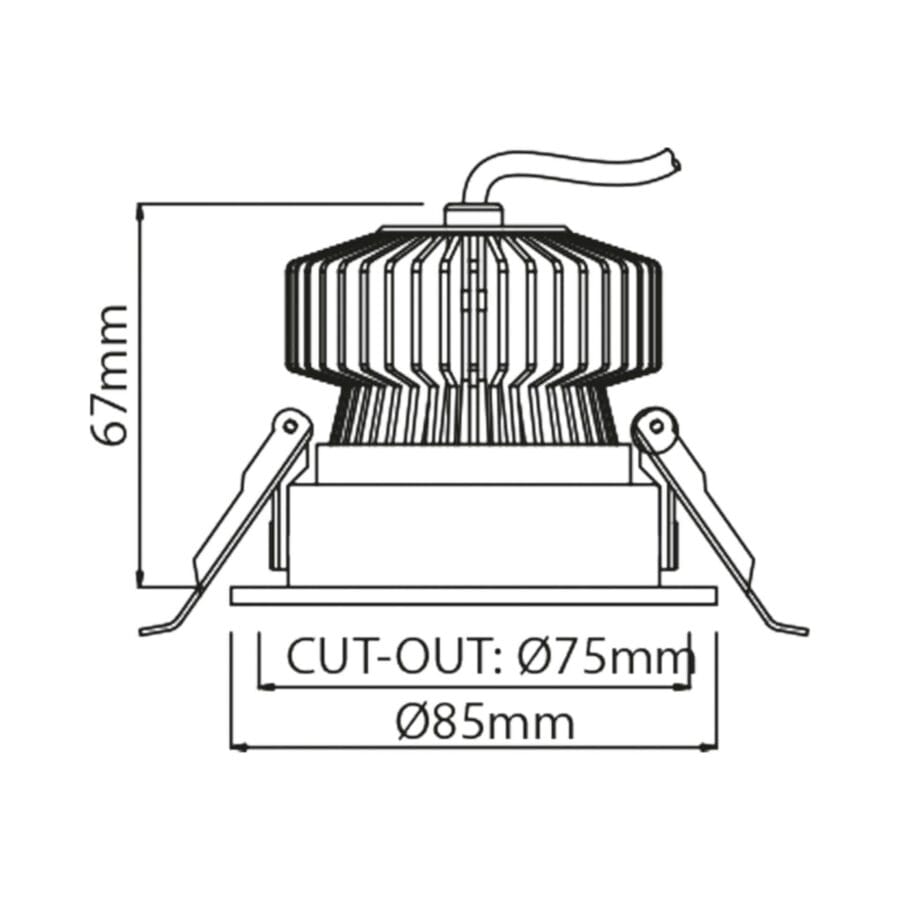

Technical drawing of the Piccolo, a fixed recessed luminaire, illustrating detailed dimensions and design specifications.

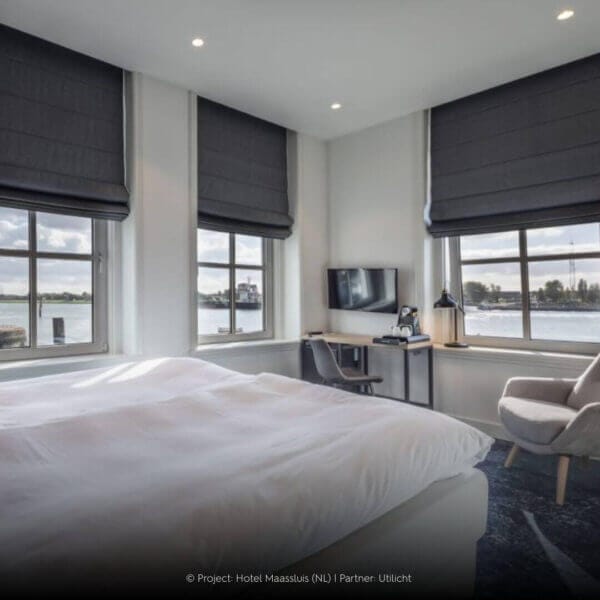

Hotelroom with Piccolo lighting.

Piccolo

Stable classic.

Karizma Luce Piccolo is a fixed recessed downlight designed for compact elegance and soft architectural presence. With a 75mm cut-out and deep-set reflector, it brings visual calm and ambient character to refined spaces. Ideal for residential interiors, hotel rooms, boutiques, shops, and restaurants, Piccolo is made for accent lighting that blends seamlessly into the design.

The luminaire is available in black or white and offers beam angles of 24° and 40°. It delivers up to 850Lm and you can choose from single CCT or dim-to-warm. Its reflector ensures balanced, comfortable light distribution. Piccolo is compatible with on/off, phase-cut, DALI, or Casambi drivers. It is a clean, compact solution where soft lighting and architectural clarity go hand in hand.

Product sheet
Installation manual
LDT files
Related products
CE Declaration
SKULuminous Flux [lm]CCT [K]CRI [Ra]Beam Angle [deg]Housing ColourReflector Colour
210CB9272400705lm2700K9024°Black (RAL 9005)Specular Aluminium
210CB9274000705lm2700K9040°Black (RAL 9005)Specular Aluminium
210CB9302400720lm3000K9024°Black (RAL 9005)Specular Aluminium
210CB9304000720lm3000K9040°Black (RAL 9005)Specular Aluminium
210CW9272400705lm2700K9024°White (RAL 9003)Specular Aluminium
210CW9274000705lm2700K9040°White (RAL 9003)Specular Aluminium
210CW9302400720lm3000K9024°White (RAL 9003)Specular Aluminium
210CW9304000720lm3000K9040°White (RAL 9003)Specular Aluminium
210DB9402400850lm4000K9024°Black (RAL 9005)Specular Aluminium
210DB9404000850lm4000K9040°Black (RAL 9005)Specular Aluminium
210DW9402400850lm4000K9024°White (RAL 9003)Specular Aluminium
210DW9404000850lm4000K9040°White (RAL 9003)Specular Aluminium
210DW18305500650lm1800K-3000K Dim to Warm9055°White (RAL 9003)Specular Aluminium
210DB18305500650lm1800K-3000K Dim to Warm9055°Black (RAL 9005)Specular Aluminium

How EPREL applies to luminaires with replaceable light sources

EPREL, the European Product Registry for Energy Labelling, is a mandatory EU database for light sources placed on the market. It enhances transparency in energy performance and provides lighting professionals with direct access to verified technical data. You can explore the listings via the public EPREL database for light sources. The regulation focuses on light sources rather than entire luminaires—unless the source is sealed and cannot be replaced. This distinction is essential for products like Piccolo.

Piccolo includes a replaceable LED module that a qualified technician can service. Because of this, Karizma Luce does not register the complete luminaire in EPREL. Instead, we indicate the correct EPREL identifier for the light source directly in the product datasheet, for example, BXRE-27G0800-D-73. This approach supports modularity while fulfilling EU requirements for energy labelling.

EPREL records key data for each registered light source, including efficiency class, luminous flux, power consumption, colour temperature, CRI, and lifetime. These values apply to the LED source itself, regardless of the luminaire’s housing or optical setup. This allows designers and specifiers to use consistent technical values in project documents or regulatory submissions.

For Piccolo and all other Karizma Luce luminaires with replaceable LED sources, each technical datasheet includes the correct EPREL identifier. This ensures that replacements meet the original performance and efficiency. To determine which light source a product uses, visit the product overview, select the exact version of the item, and download the datasheet for the matching code. You can check the light source information identifier in every file.

Need help identifying the correct module or confirming EPREL details? Contact us—we’re happy to assist with documentation and compliance.
