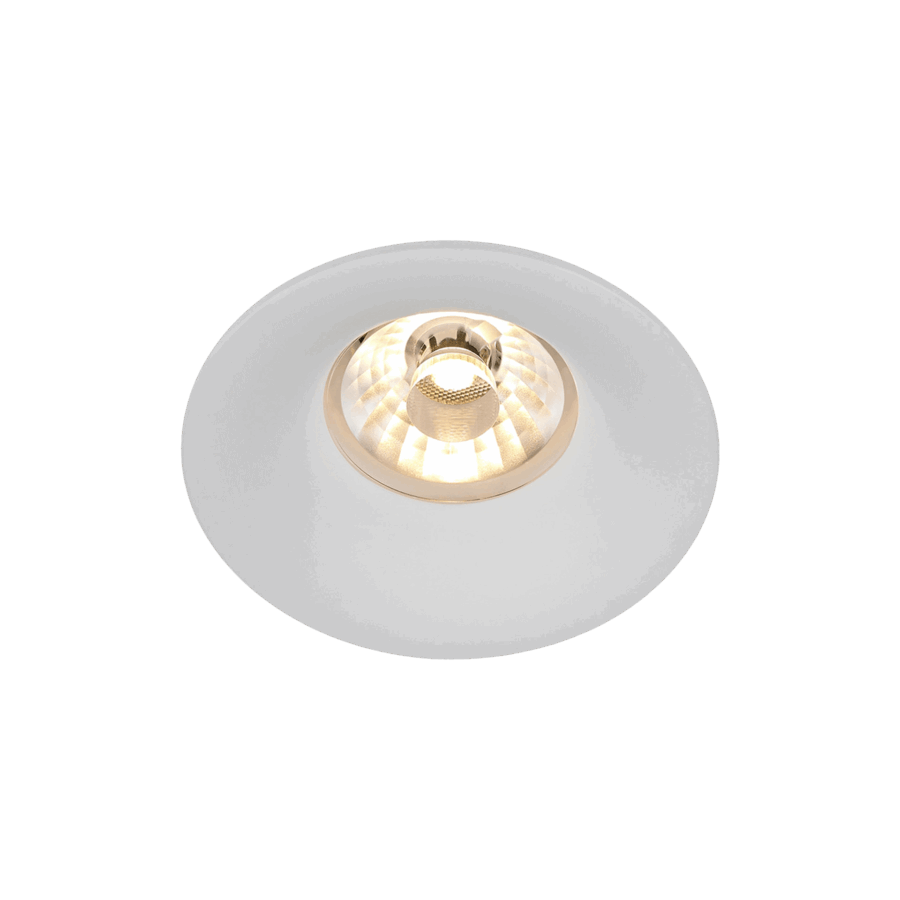

The Piccolo Lente is a fixed led downlight with a recessed lamp position and optical lens. The different beam angles and colours, together with the high CRI makes the compact Karizma Luce Piccolo Lente a little yet very powerful downlight.
Piccolo Lente
Boosting your atmosphere.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 209CW9272200 | 705 lm | 2700K | 90 | 22° | White | N/A | 705-lm | 2700k | 90 | 22 | white | n-a |
| 209CW9302200 | 720 lm | 3000K | 90 | 22° | White | N/A | 720-lm | 3000k | 90 | 22 | white | n-a |
| 209CW9273600 | 705 lm | 2700K | 90 | 36° | White | N/A | 705-lm | 2700k | 90 | 36 | white | n-a |
| 209CW9303600 | 720 lm | 3000K | 90 | 36° | White | N/A | 720-lm | 3000k | 90 | 36 | white | n-a |
| 209CW9276000 | 705 lm | 2700K | 90 | 60° | White | N/A | 705-lm | 2700k | 90 | 60 | white | n-a |
| 209CW9306000 | 720 lm | 3000K | 90 | 60° | White | N/A | 720-lm | 3000k | 90 | 60 | white | n-a |
| 209CB9272200 | 705 lm | 2700K | 90 | 22° | Black | N/A | 705-lm | 2700k | 90 | 22 | black | n-a |
| 209CB9302200 | 720 lm | 3000K | 90 | 22° | Black | N/A | 720-lm | 3000k | 90 | 22 | black | n-a |
| 209CB9273600 | 705 lm | 2700K | 90 | 36° | Black | N/A | 705-lm | 2700k | 90 | 36 | black | n-a |
| 209CB9303600 | 720 lm | 3000K | 90 | 36° | Black | N/A | 720-lm | 3000k | 90 | 36 | black | n-a |
| 209CB9276000 | 705 lm | 2700K | 90 | 60° | Black | N/A | 705-lm | 2700k | 90 | 60 | black | n-a |
| 209CB9306000 | 720 lm | 3000K | 90 | 60° | Black | N/A | 720-lm | 3000k | 90 | 60 | black | n-a |
| 209DB9402200 | 850 lm | 4000K | 90 | 22° | Black | N/A | 850-lm | 4000k | 90 | 22 | black | n-a |
| 209DB9403600 | 850 lm | 4000K | 90 | 36° | Black | N/A | 850-lm | 4000k | 90 | 36 | black | n-a |
| 209DB9406000 | 850 lm | 4000K | 90 | 60° | Black | N/A | 850-lm | 4000k | 90 | 60 | black | n-a |
| 209DW9402200 | 850 lm | 4000K | 90 | 22° | White | N/A | 850-lm | 4000k | 90 | 22 | white | n-a |
| 209DW9403600 | 850 lm | 4000K | 90 | 36° | White | N/A | 850-lm | 4000k | 90 | 36 | white | n-a |
| 209DW9406000 | 850 lm | 4000K | 90 | 60° | White | N/A | 850-lm | 4000k | 90 | 60 | white | n-a |
Click on specification values for related products.
CRI90
LED power9W
Chromaticity tolerance3 MacAdam
OpticLens
Reflector colorN/A
Net. Weight0.24Kg

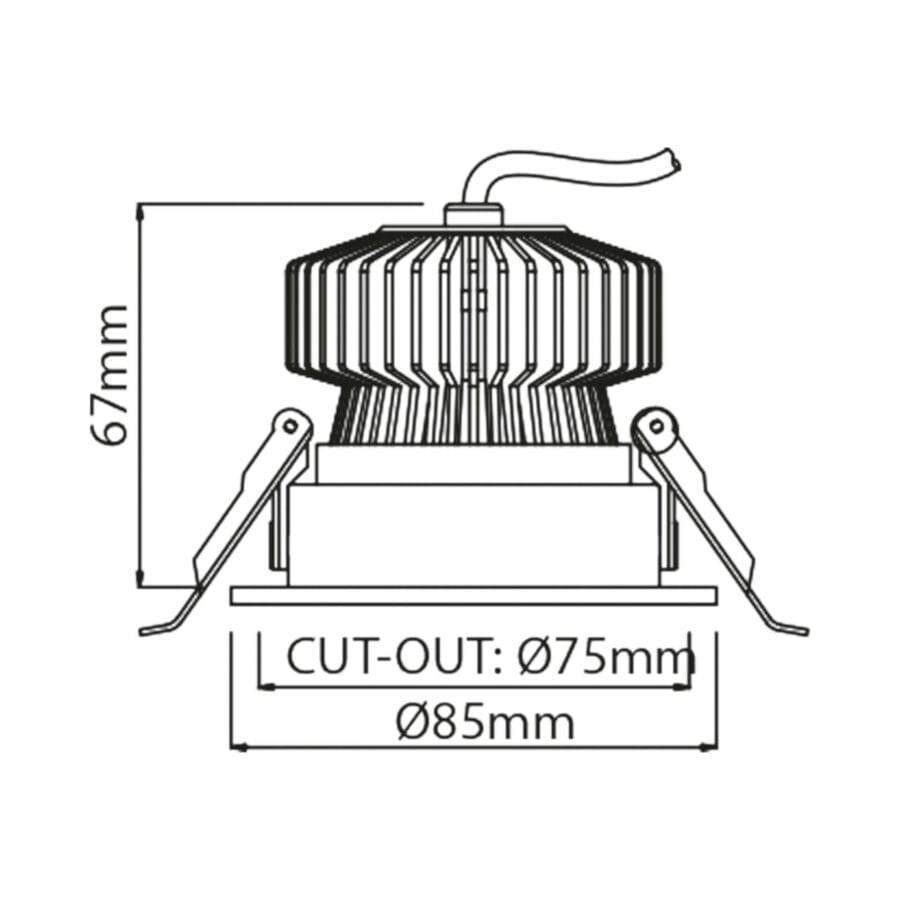

Cut out dimensionØ75mm
Luminaire dimensionØ85x67mm
Nominal fA [mA]500mA
Nominal fV [V]18.4V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source energy classF
Light source identifierBXRE-27G0800-D-73, BXRE-30G0800-D-73, BXRE-40G0800-D-73
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height80mm
The Karizma Luce Picollo Lente is a small fixed led downlight with optical lens from the Delizia Di Luce series. Made from aluminium. Available luminaire flux range: 705-930 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 22°, 36° and 60°. Luminaire available in black and white. Reflector colour: N/A.
