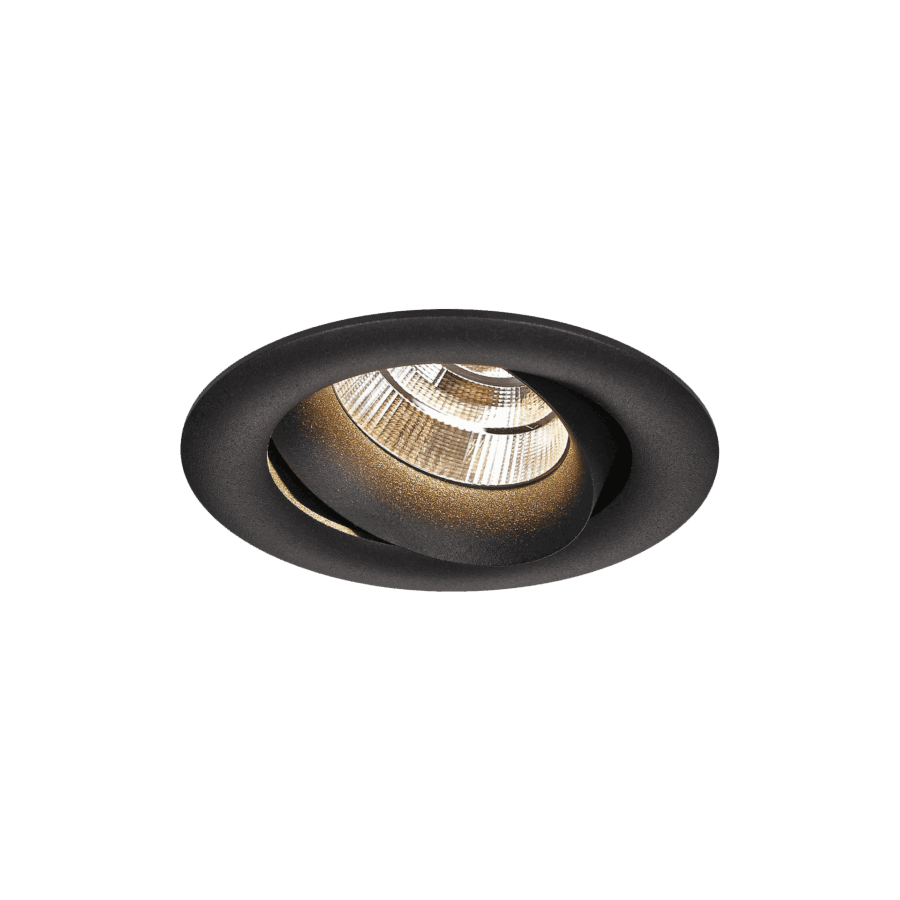

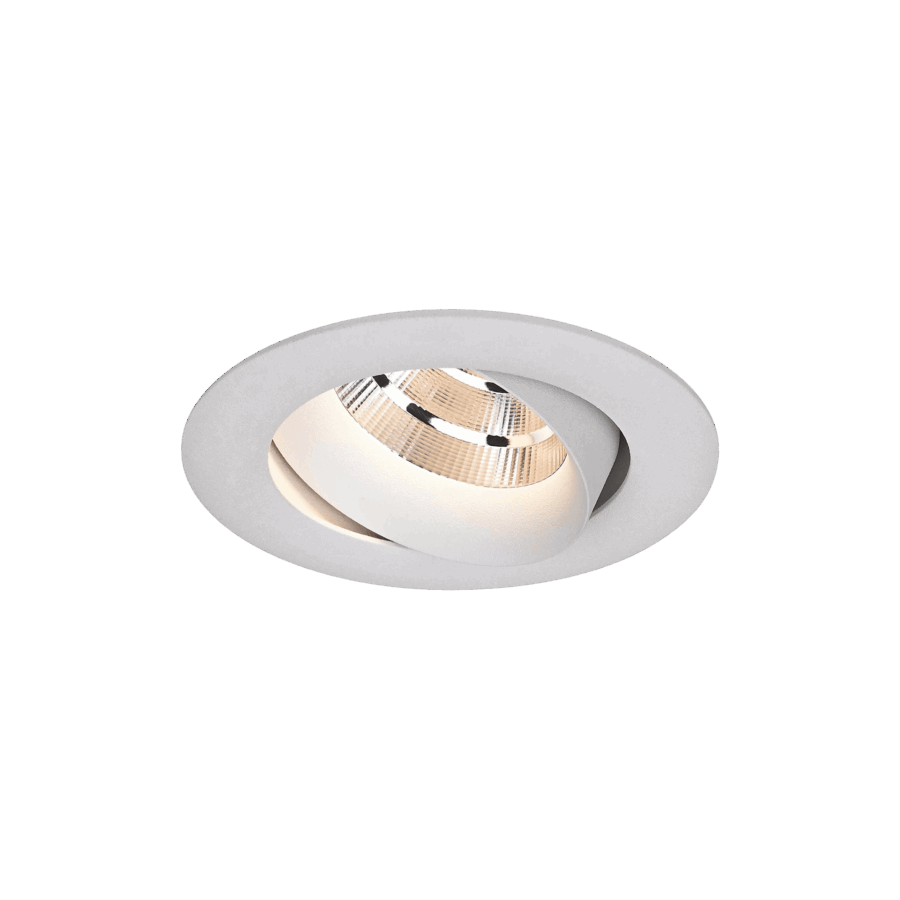

The Minimo is an adjustable led downlight. Thanks to its timeless minimalistic design and versatile character it is very popular in hospitality lighting. The Karizma Luce Minimo simply puts class into any room where people enjoy, work and live.
Minimo
Minimalistic made fantastic.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 115CW9272400 | 705 lm | 2700K | 90 | 24° | White | Specular Aluminium |
| 115CW9302400 | 720 lm | 3000K | 90 | 24° | White | Specular Aluminium |
| 115CW9274000 | 705 lm | 2700K | 90 | 40° | White | Specular Aluminium |
| 115CW9304000 | 720 lm | 3000K | 90 | 40° | White | Specular Aluminium |
| 115CB9272400 | 705 lm | 2700K | 90 | 24° | Black | Specular Aluminium |
| 115CB9302400 | 720 lm | 3000K | 90 | 24° | Black | Specular Aluminium |
| 115CB9274000 | 705 lm | 2700K | 90 | 40° | Black | Specular Aluminium |
| 115CB9304000 | 720 lm | 3000K | 90 | 40° | Black | Specular Aluminium |
| 115DB9402400 | 850 lm | 4000K | 90 | 24° | Black | Specular Aluminium |
| 115DB9404000 | 850 lm | 4000K | 90 | 40° | Black | Specular Aluminium |
| 115DW9402400 | 850 lm | 4000K | 90 | 24° | White | Specular Aluminium |
| 115DW9404000 | 850 lm | 4000K | 90 | 40° | White | Specular Aluminium |
Click on specification values for related products.
CRI90
LED power9W
System power11.5W
Chromaticity tolerance3 MacAdam
OpticReflector
Reflector colorSpecular Aluminium
Net. Weight0.22Kg

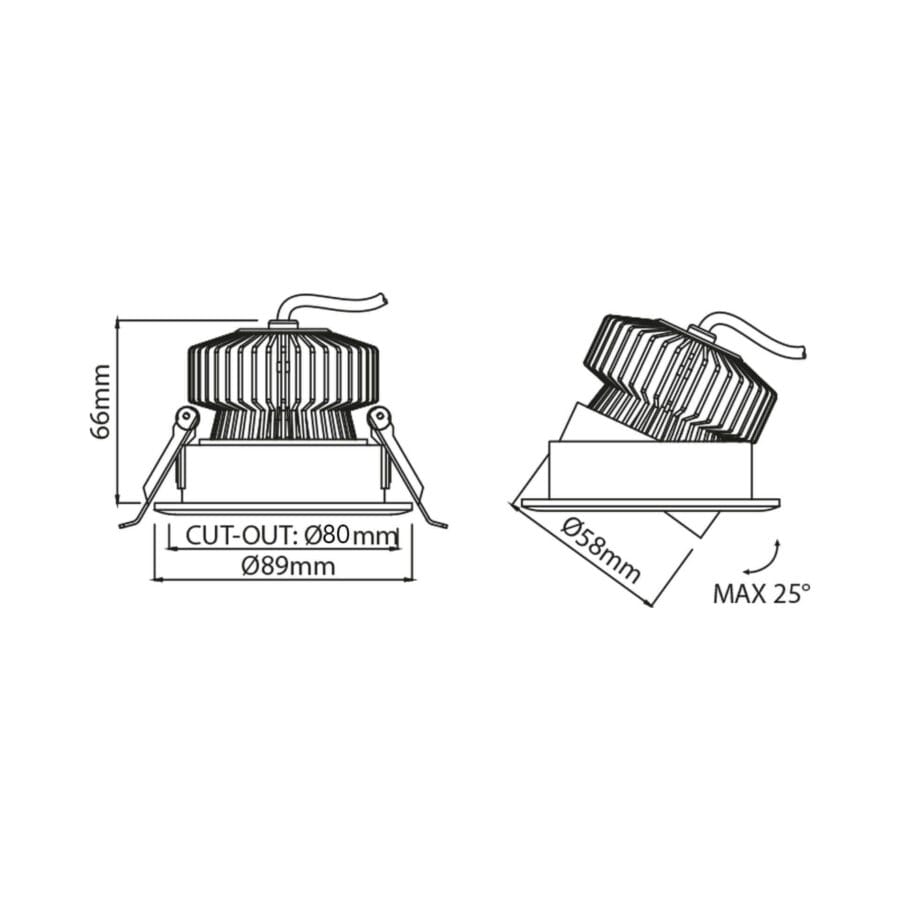

Cut out dimensionØ80mm
Luminaire dimensionØ89x63mm
Nominal fA [mA]500mA
Nominal fV [V]18.4V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source energy classF
Light source identifierBXRE-27G0800-D-73, BXRE-30G0800-D-73, BXRE-40G0800-D-73
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height90mm
The Karizma Luce Minimo is a recessed adjustable downlight from the Delizia Di Luce series. Made from aluminium. Available luminaire flux: in range 705- 930 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24° and 40°. Luminaire available in black and white. Reflector colour: Specular Aluminium.
