Minimo Lente

Products

Minimo Lente

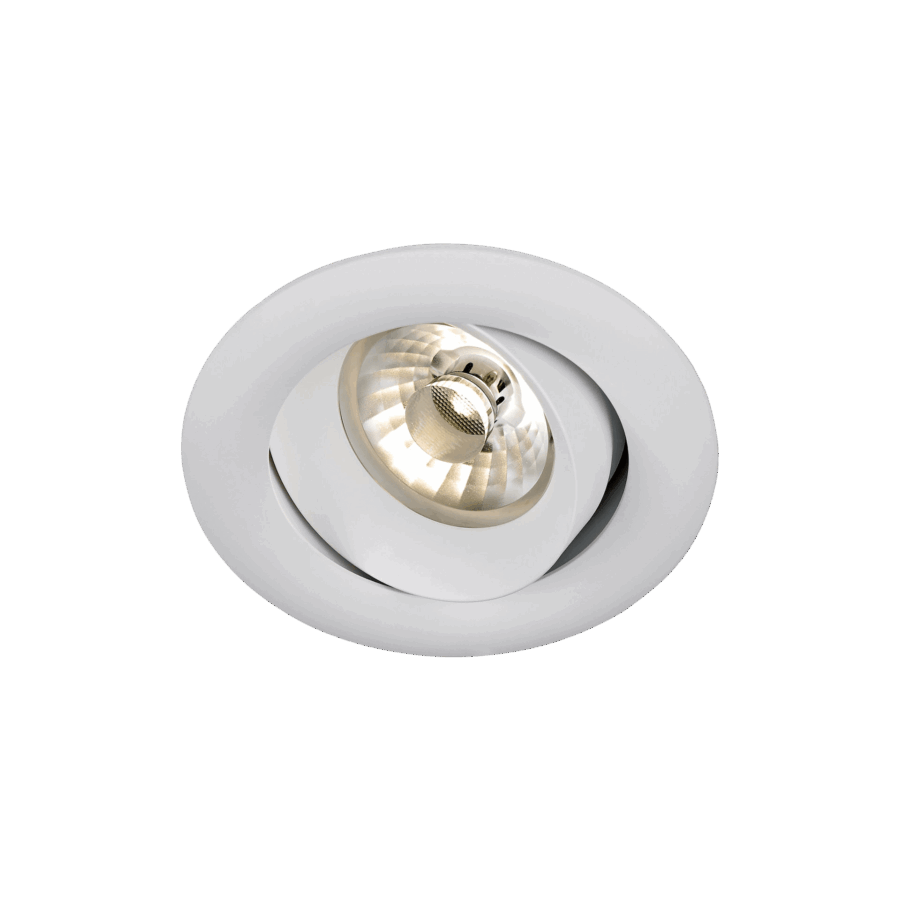

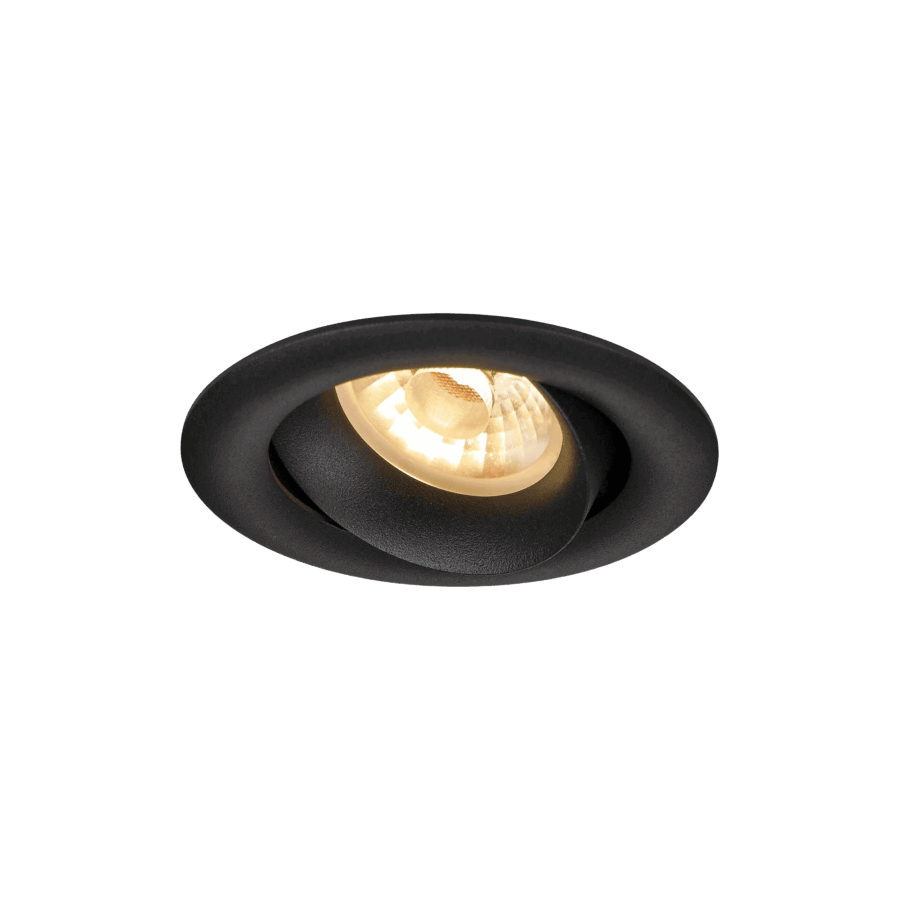

Karizma Luce Minimo Lente is an adjustable recessed downlight with a soft rounded trim and precise optical lens. Its 80mm cut-out and compact shape make it ideal for hotel rooms, homes, boutiques, restaurants, and shops. The lens design adds visual clarity and control, while the 25° tilt allows focused light where it matters most.

The luminaire is available in black or white and offers beam angles of 22°, 36°, and 60°. It delivers up to 980lm and is available in single CCT or dim-to-warm. The lens provides well-defined beam shaping with smooth transitions. Minimo Lente supports on/off, phase-cut, DALI, or Casambi drivers. A small, directional luminaire designed to shape light with precision and grace.

Warranty on quality in years.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Designed with double or reinforced insulation, ensuring protection against electric shock without needing a protective earth connection.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

SKU	Luminous Flux [lm]	CCT [K]	Beam Angle [deg]	Housing Colour	Reflector Colour	System Power [W]	Power Supply
113DB18302200	760lm	1800K-3000K Dim to Warm	22°	Black (RAL 9005)	N/A	10W	Separate Available
113DB18303600	760lm	1800K-3000K Dim to Warm	36°	Black (RAL 9005)	N/A	10W	Separate Available
113DB18306000	760lm	1800K-3000K Dim to Warm	60°	Black (RAL 9005)	N/A	10W	Separate Available
113DW18302200	760lm	1800K-3000K Dim to Warm	22°	White (RAL 9003)	N/A	10W	Separate Available
113DW18303600	760lm	1800K-3000K Dim to Warm	36°	White (RAL 9003)	N/A	10W	Separate Available
113DW18306000	760lm	1800K-3000K Dim to Warm	60°	White (RAL 9003)	N/A	10W	Separate Available
113CB92722F0	705lm	2700K	22°	Black (RAL 9005)	N/A	11.5W	on/off
113CB92736F0	705lm	2700K	36°	Black (RAL 9005)	N/A	11.5W	on/off
113CB92760F0	705lm	2700K	60°	Black (RAL 9005)	N/A	11.5W	on/off
113CB93022F0	720lm	3000K	22°	Black (RAL 9005)	N/A	11.5W	on/off
113CB93036F0	720lm	3000K	36°	Black (RAL 9005)	N/A	11.5W	on/off
113CB93060F0	720lm	3000K	60°	Black (RAL 9005)	N/A	11.5W	on/off
113CW92722F0	705lm	2700K	22°	White (RAL 9003)	N/A	11.5W	on/off
113CW92736F0	705lm	2700K	36°	White (RAL 9003)	N/A	11.5W	on/off
113CW92760F0	705lm	2700K	60°	White (RAL 9003)	N/A	11.5W	on/off
113CW93022F0	720lm	3000K	22°	White (RAL 9003)	N/A	11.5W	on/off
113CW93036F0	720lm	3000K	36°	White (RAL 9003)	N/A	11.5W	on/off
113CW93060F0	720lm	3000K	60°	White (RAL 9003)	N/A	11.5W	on/off
113DB94022F0	850lm	4000K	22°	Black (RAL 9005)	N/A	11.5W	on/off
113DB94036F0	850lm	4000K	36°	Black (RAL 9005)	N/A	11.5W	on/off
113DB94060F0	850lm	4000K	60°	Black (RAL 9005)	N/A	11.5W	on/off
113DW94022F0	850lm	4000K	22°	White (RAL 9003)	N/A	11.5W	on/off
113DW94036F0	850lm	4000K	36°	White (RAL 9003)	N/A	11.5W	on/off
113DW94060F0	850lm	4000K	60°	White (RAL 9003)	N/A	11.5W	on/off
196DB92722F0	980lm	2700K	22°	Black (RAL 9005)	N/A	10.5W	on/off
196DB92736F0	980lm	2700K	36°	Black (RAL 9005)	N/A	10.5W	on/off
196DB92760F0	980lm	2700K	60°	Black (RAL 9005)	N/A	10.5W	on/off
196DB93022F0	980lm	3000K	22°	Black (RAL 9005)	N/A	10.5W	on/off
196DB93036F0	980lm	3000K	36°	Black (RAL 9005)	N/A	10.5W	on/off
196DB93060F0	980lm	3000K	60°	Black (RAL 9005)	N/A	10.5W	on/off
196DW92722F0	980lm	2700K	22°	White (RAL 9003)	N/A	10.5W	on/off
196DW92736F0	980lm	2700K	36°	White (RAL 9003)	N/A	10.5W	on/off
196DW92760F0	980lm	2700K	60°	White (RAL 9003)	N/A	10.5W	on/off
196DW93022F0	980lm	3000K	22°	White (RAL 9003)	N/A	10.5W	on/off
196DW93036F0	980lm	3000K	36°	White (RAL 9003)	N/A	10.5W	on/off
196DW93060F0	980lm	3000K	60°	White (RAL 9003)	N/A	10.5W	on/off
196DB94022F0	980lm	4000K	22°	Black (RAL 9005)	N/A	10.5W	on/off
196DB94036F0	980lm	4000K	36°	Black (RAL 9005)	N/A	10.5W	on/off
196DB94060F0	980lm	4000K	60°	Black (RAL 9005)	N/A	10.5W	on/off
196DW94022F0	980lm	4000K	22°	White (RAL 9003)	N/A	10.5W	on/off
196DW94036F0	980lm	4000K	36°	White (RAL 9003)	N/A	10.5W	on/off
196DW94060F0	980lm	4000K	60°	White (RAL 9003)	N/A	10.5W	on/off
196DB183022D0	760lm	1800K-3000K Dim to Warm	22°	Black (RAL 9005)	N/A	10W	DALI
196DB183036D0	760lm	1800K-3000K Dim to Warm	36°	Black (RAL 9005)	N/A	10W	DALI
196DB183060D0	760lm	1800K-3000K Dim to Warm	60°	Black (RAL 9005)	N/A	10W	DALI
196DW183022D0	760lm	1800K-3000K Dim to Warm	22°	White (RAL 9003)	N/A	10W	DALI
196DW183036D0	760lm	1800K-3000K Dim to Warm	36°	White (RAL 9003)	N/A	10W	DALI
196DW183060D0	760lm	1800K-3000K Dim to Warm	60°	White (RAL 9003)	N/A	10W	DALI
113CB9272200	705lm	2700K	22°	Black (RAL 9005)	N/A	11.5W	Separate Available
113CB9273600	705lm	2700K	36°	Black (RAL 9005)	N/A	11.5W	Separate Available
113CB9276000	705lm	2700K	60°	Black (RAL 9005)	N/A	11.5W	Separate Available
113CB9302200	720lm	3000K	22°	Black (RAL 9005)	N/A	11.5W	Separate Available
113CB9303600	720lm	3000K	36°	Black (RAL 9005)	N/A	11.5W	Separate Available
113CB9306000	720lm	3000K	60°	Black (RAL 9005)	N/A	11.5W	Separate Available
113CW9272200	705lm	2700K	22°	White (RAL 9003)	N/A	11.5W	Separate Available
113CW9273600	705lm	2700K	36°	White (RAL 9003)	N/A	11.5W	Separate Available
113CW9276000	705lm	2700K	60°	White (RAL 9003)	N/A	11.5W	Separate Available
113CW9302200	720lm	3000K	22°	White (RAL 9003)	N/A	11.5W	Separate Available
113CW9303600	720lm	3000K	36°	White (RAL 9003)	N/A	11.5W	Separate Available
113CW9306000	720lm	3000K	60°	White (RAL 9003)	N/A	11.5W	Separate Available
113DB9402200	850lm	4000K	22°	Black (RAL 9005)	N/A	11.5W	Separate Available
113DB9403600	850lm	4000K	36°	Black (RAL 9005)	N/A	11.5W	Separate Available
113DB9406000	850lm	4000K	60°	Black (RAL 9005)	N/A	11.5W	Separate Available
113DW9402200	850lm	4000K	22°	White (RAL 9003)	N/A	11.5W	Separate Available
113DW9403600	850lm	4000K	36°	White (RAL 9003)	N/A	11.5W	Separate Available
113DW9406000	850lm	4000K	60°	White (RAL 9003)	N/A	11.5W	Separate Available
113CB92722P0	705lm	2700K	22°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113CB92736P0	705lm	2700K	36°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113CB92760P0	705lm	2700K	60°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113CB93022P0	720lm	3000K	22°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113CB93036P0	720lm	3000K	36°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113CB93060P0	720lm	3000K	60°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113CW92722P0	705lm	2700K	22°	White (RAL 9003)	N/A	11.5W	Phase Cut
113CW92736P0	705lm	2700K	36°	White (RAL 9003)	N/A	11.5W	Phase Cut
113CW92760P0	705lm	2700K	60°	White (RAL 9003)	N/A	11.5W	Phase Cut
113CW93022P0	720lm	3000K	22°	White (RAL 9003)	N/A	11.5W	Phase Cut
113CW93036P0	720lm	3000K	36°	White (RAL 9003)	N/A	11.5W	Phase Cut
113CW93060P0	720lm	3000K	60°	White (RAL 9003)	N/A	11.5W	Phase Cut
113DB94022P0	850lm	4000K	22°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113DB94036P0	850lm	4000K	36°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113DB94060P0	850lm	4000K	60°	Black (RAL 9005)	N/A	11.5W	Phase Cut
113DW94022P0	850lm	4000K	22°	White (RAL 9003)	N/A	11.5W	Phase Cut
113DW94036P0	850lm	4000K	36°	White (RAL 9003)	N/A	11.5W	Phase Cut
113DW94060P0	850lm	4000K	60°	White (RAL 9003)	N/A	11.5W	Phase Cut
113DB183022P0	760lm	1800K-3000K Dim to Warm	22°	Black (RAL 9005)	N/A	10W	Phase Cut
113DB183036P0	760lm	1800K-3000K Dim to Warm	36°	Black (RAL 9005)	N/A	10W	Phase Cut
113DB183060P0	760lm	1800K-3000K Dim to Warm	60°	Black (RAL 9005)	N/A	10W	Phase Cut
113DW183022P0	760lm	1800K-3000K Dim to Warm	22°	White (RAL 9003)	N/A	10W	Phase Cut
113DW183036P0	760lm	1800K-3000K Dim to Warm	36°	White (RAL 9003)	N/A	10W	Phase Cut
113DW183060P0	760lm	1800K-3000K Dim to Warm	60°	White (RAL 9003)	N/A	10W	Phase Cut
113CB92722D0	705lm	2700K	22°	Black (RAL 9005)	N/A	11.5W	DALI
113CB92736D0	705lm	2700K	36°	Black (RAL 9005)	N/A	11.5W	DALI
113CB92760D0	705lm	2700K	60°	Black (RAL 9005)	N/A	11.5W	DALI
113CB93022D0	720lm	3000K	22°	Black (RAL 9005)	N/A	11.5W	DALI
113CB93036D0	720lm	3000K	36°	Black (RAL 9005)	N/A	11.5W	DALI
113CB93060D0	720lm	3000K	60°	Black (RAL 9005)	N/A	11.5W	DALI
113CW92722D0	705lm	2700K	22°	White (RAL 9003)	N/A	11.5W	DALI
113CW92736D0	705lm	2700K	36°	White (RAL 9003)	N/A	11.5W	DALI
113CW92760D0	705lm	2700K	60°	White (RAL 9003)	N/A	11.5W	DALI
113CW93022D0	720lm	3000K	22°	White (RAL 9003)	N/A	11.5W	DALI
113CW93036D0	720lm	3000K	36°	White (RAL 9003)	N/A	11.5W	DALI
113CW93060D0	720lm	3000K	60°	White (RAL 9003)	N/A	11.5W	DALI
113DB94022D0	850lm	4000K	22°	Black (RAL 9005)	N/A	11.5W	DALI
113DB94036D0	850lm	4000K	36°	Black (RAL 9005)	N/A	11.5W	DALI
113DB94060D0	850lm	4000K	60°	Black (RAL 9005)	N/A	11.5W	DALI
113DW94022D0	850lm	4000K	22°	White (RAL 9003)	N/A	11.5W	DALI
113DW94036D0	850lm	4000K	36°	White (RAL 9003)	N/A	11.5W	DALI
113DW94060D0	850lm	4000K	60°	White (RAL 9003)	N/A	11.5W	DALI
113DB183022D0	760lm	1800K-3000K Dim to Warm	22°	Black (RAL 9005)	N/A	10W	DALI
113DB183036D0	760lm	1800K-3000K Dim to Warm	36°	Black (RAL 9005)	N/A	10W	DALI
113DB183060D0	760lm	1800K-3000K Dim to Warm	60°	Black (RAL 9005)	N/A	10W	DALI
113DW183022D0	760lm	1800K-3000K Dim to Warm	22°	White (RAL 9003)	N/A	10W	DALI
113DW183036D0	760lm	1800K-3000K Dim to Warm	36°	White (RAL 9003)	N/A	10W	DALI
113DW183060D0	760lm	1800K-3000K Dim to Warm	60°	White (RAL 9003)	N/A	10W	DALI
