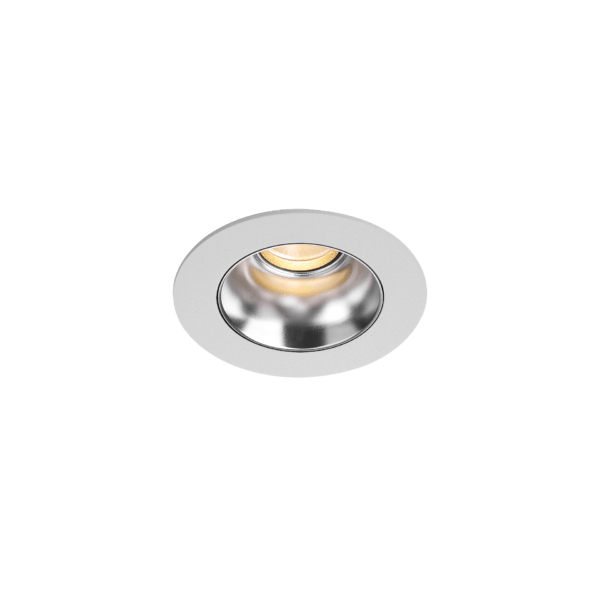

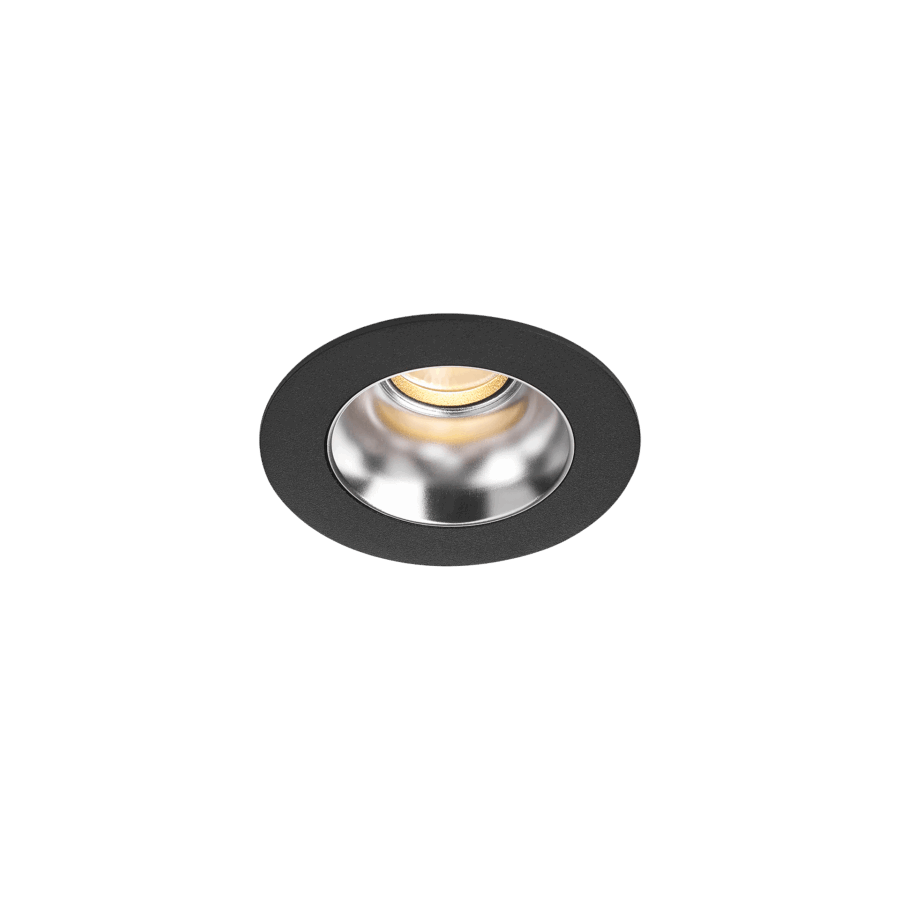

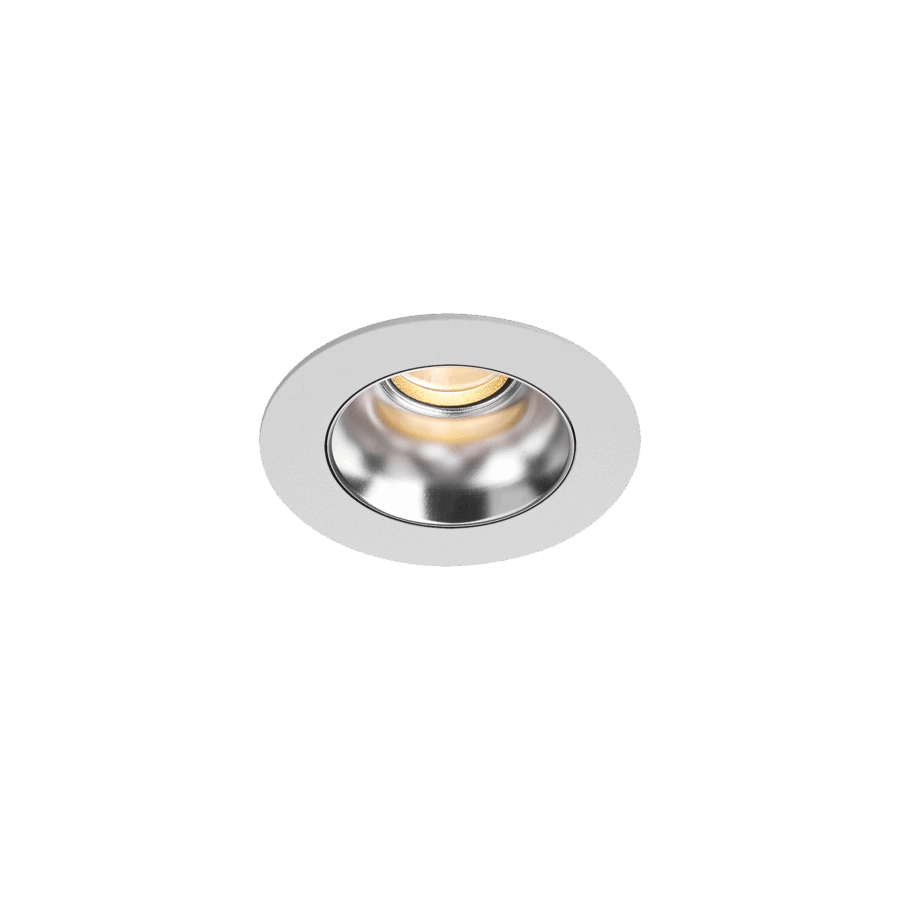

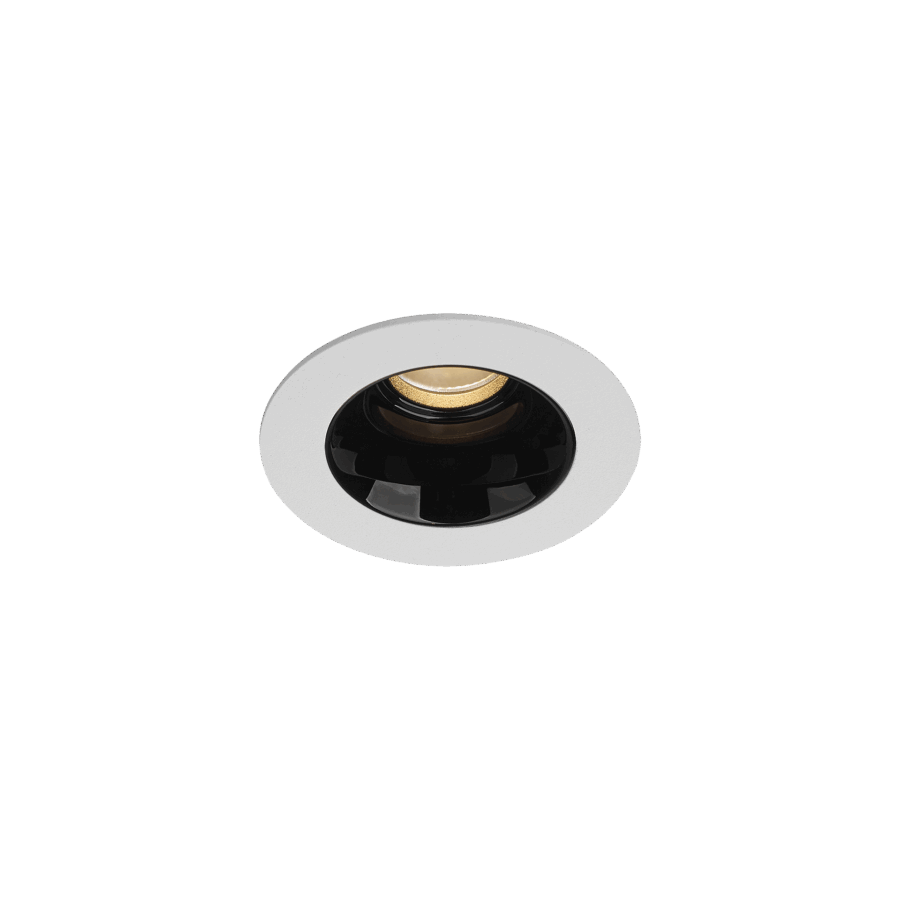

When you want to go subtle, you have to go trimless. The Dea Diana offers a whole new lighting experience. The deep module, elegant looks and endless range of applications guarantee a refined look. Choose for a black or white housing and simply add a reflector in the colour of your choice. The standard installation frame is single, but you can choose also for a duo, triple, quadruple or square application. On request available in 24°.
Dea Diana XS
Deep module, elegant looks.
- Warranty on quality in years.

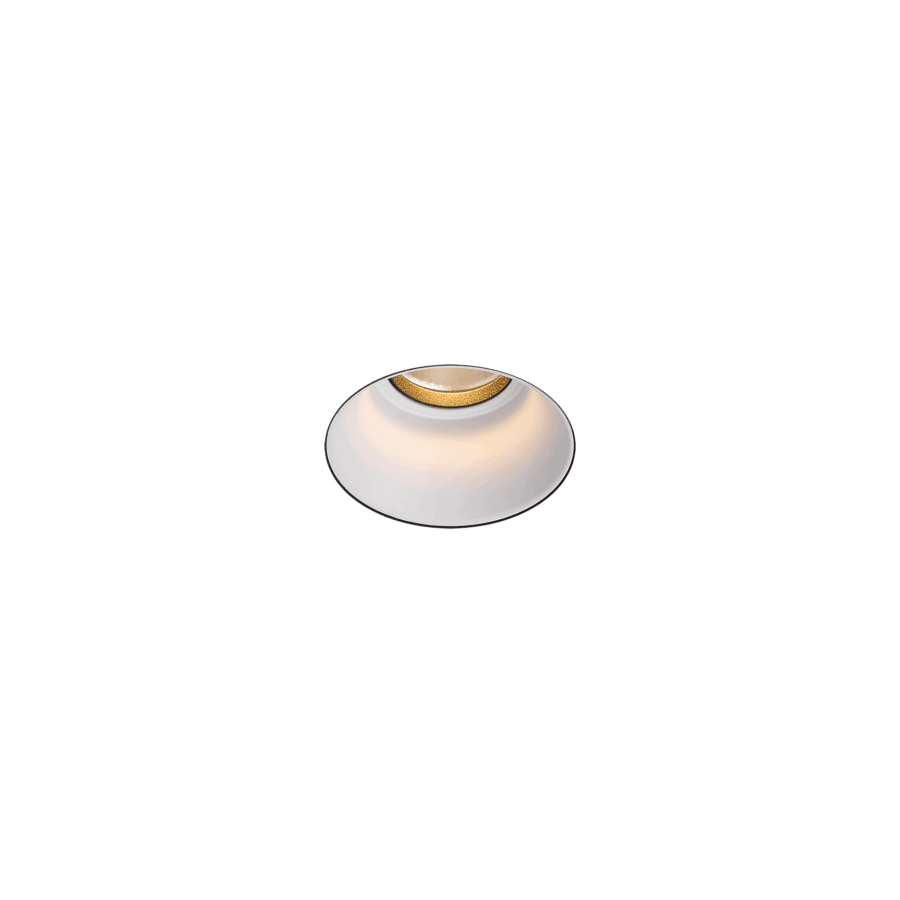

- The luminaire has no visible trim. The supporting frame is concealed in the plastered ceiling.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux | CCT | CRI | Beam Angle | Luminaire Color | Reflector Color |
|---|---|---|---|---|---|---|
| 224BW92734SG00 | 490 lm | 2700K | 90 | 34° | White | Silver High Gloss |
| 224BW93034SG00 | 500 lm | 3000K | 90 | 34° | White | Silver High Gloss |
| 224BW94034SG00 | 510 lm | 4000K | 90 | 34° | White | Silver High Gloss |
| 224BW92734BG00 | 490 lm | 2700K | 90 | 34° | White | Black High Gloss |
| 224BW93034BG00 | 500 lm | 3000K | 90 | 34° | White | Black High Gloss |
| 224BW94034BG00 | 510 lm | 4000K | 90 | 34° | White | Black High Gloss |
| 224BW92734WH00 | 490 lm | 2700K | 90 | 34° | White | White |
| 224BW93034WH00 | 500 lm | 3000K | 90 | 34° | White | White |
| 224BW94034WH00 | 510 lm | 4000K | 90 | 34° | White | White |
| 224BW92734CH00 | 490 lm | 2700K | 90 | 34° | White | Chrome |
| 224BW93034CH00 | 500 lm | 3000K | 90 | 34° | White | Chrome |
| 224BW94034CH00 | 510 lm | 4000K | 90 | 34° | White | Chrome |
| 224BW92734GO00 | 490 lm | 2700K | 90 | 34° | White | Gold |
| 224BW93034GO00 | 500 lm | 3000K | 90 | 34° | White | Gold |
| 224BW94034GO00 | 510 lm | 4000K | 90 | 34° | White | Gold |
| 224BW92734CO00 | 490 lm | 2700K | 90 | 34° | White | Copper |
| 224BW93034CO00 | 500 lm | 3000K | 90 | 34° | White | Copper |
| 224BW94034CO00 | 510 lm | 4000K | 90 | 34° | White | Copper |
| 224BW92734BM00 | 490 lm | 2700K | 90 | 34° | White | Black Matt |
| 224BW93034BM00 | 500 lm | 3000K | 90 | 34° | White | Black Matt |
| 224BW94034BM00 | 510 lm | 4000K | 90 | 34° | White | Black Matt |

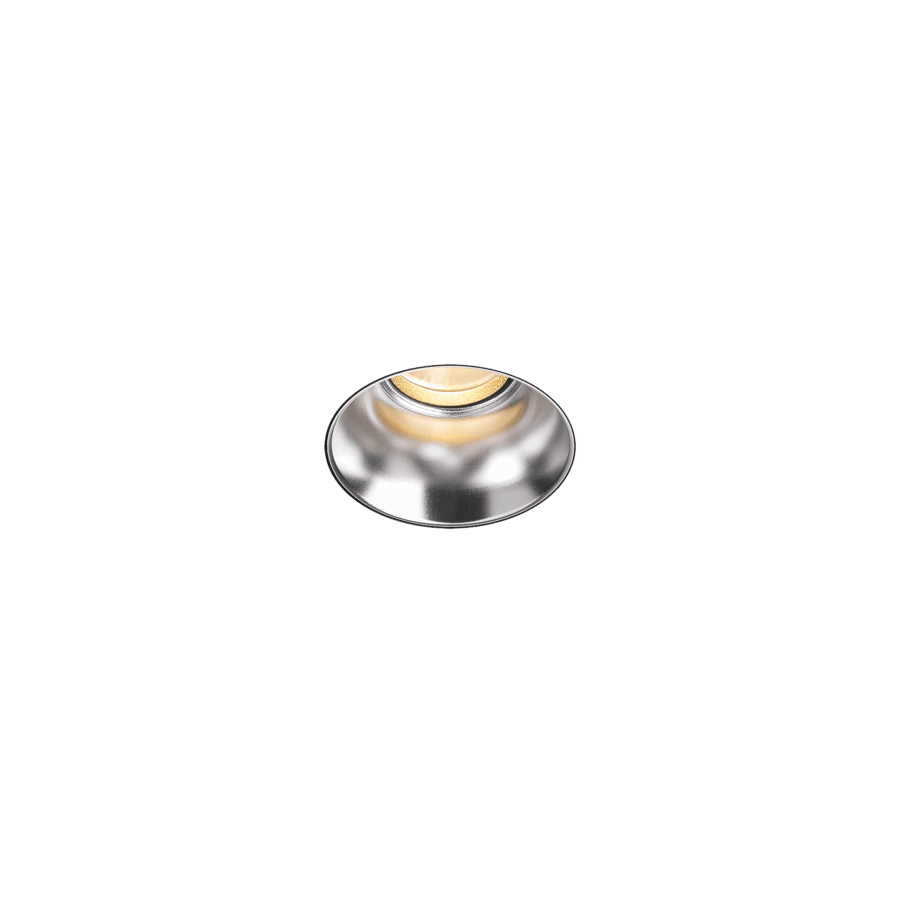

| 224BB92734SG00 | 490 lm | 2700K | 90 | 34° | Black | Silver High Gloss |
| 224BB93034SG00 | 500 lm | 3000K | 90 | 34° | Black | Silver High Gloss |
| 224BB94034SG00 | 510 lm | 4000K | 90 | 34° | Black | Silver High Gloss |

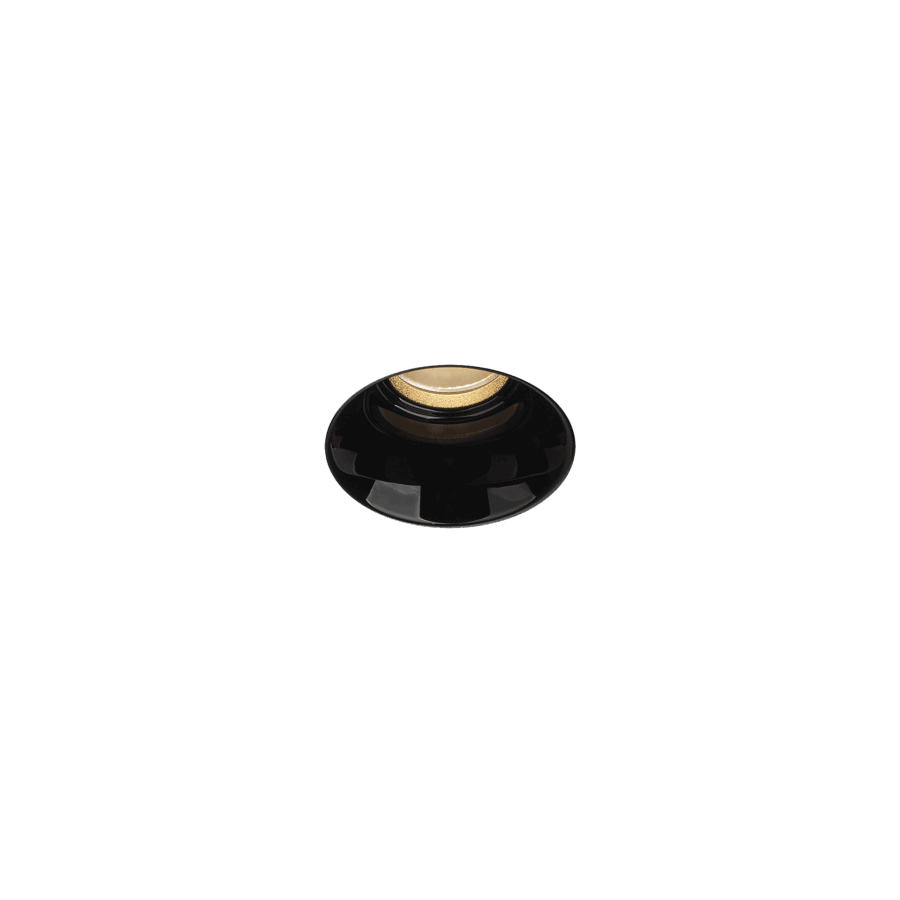

| 224BB92734BG00 | 490 lm | 2700K | 90 | 34° | Black | Black High Gloss |
| 224BB93034BG00 | 500 lm | 3000K | 90 | 34° | Black | Black High Gloss |
| 224BB94034BG00 | 510 lm | 4000K | 90 | 34° | Black | Black High Gloss |
| 224BB92734WH00 | 490 lm | 2700K | 90 | 34° | Black | White |
| 224BB93034WH00 | 500 lm | 3000K | 90 | 34° | Black | White |
| 224BB94034WH00 | 510 lm | 4000K | 90 | 34° | Black | White |
| 224BB92734CH00 | 490 lm | 2700K | 90 | 34° | Black | Chrome |
| 224BB93034CH00 | 500 lm | 3000K | 90 | 34° | Black | Chrome |
| 224BB94034CH00 | 510 lm | 4000K | 90 | 34° | Black | Chrome |
| 224BB92734GO00 | 490 lm | 2700K | 90 | 34° | Black | Gold |
| 224BB93034GO00 | 500 lm | 3000K | 90 | 34° | Black | Gold |
| 224BB94034GO00 | 510 lm | 4000K | 90 | 34° | Black | Gold |
| 224BB92734CO00 | 490 lm | 2700K | 90 | 34° | Black | Copper |
| 224BB93034CO00 | 500 lm | 3000K | 90 | 34° | Black | Copper |
| 224BB94034CO00 | 510 lm | 4000K | 90 | 34° | Black | Copper |
| 224BB92734BM00 | 490 lm | 2700K | 90 | 34° | Black | Black Matt |
| 224BB93034BM00 | 500 lm | 3000K | 90 | 34° | Black | Black Matt |
| 224BB94034BM00 | 510 lm | 4000K | 90 | 34° | Black | Black Matt |
Click on specification values for related products.
CRI90
LED power6.2W
System power7W
Chromaticity tolerance3 MacAdam
OpticReflector
Beam angle34°

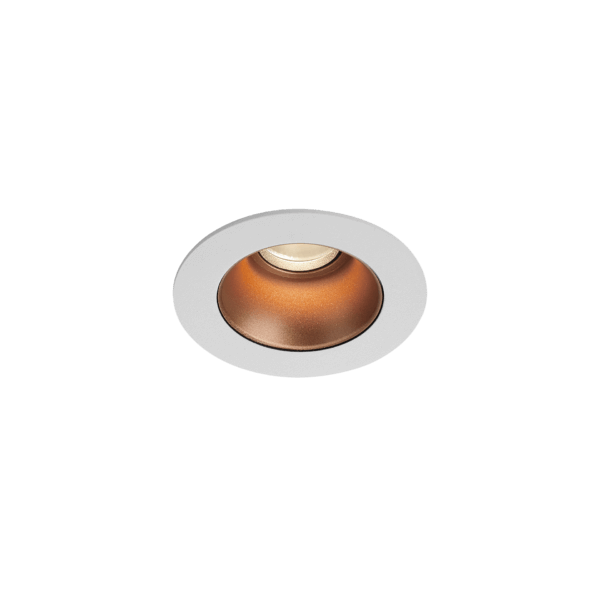

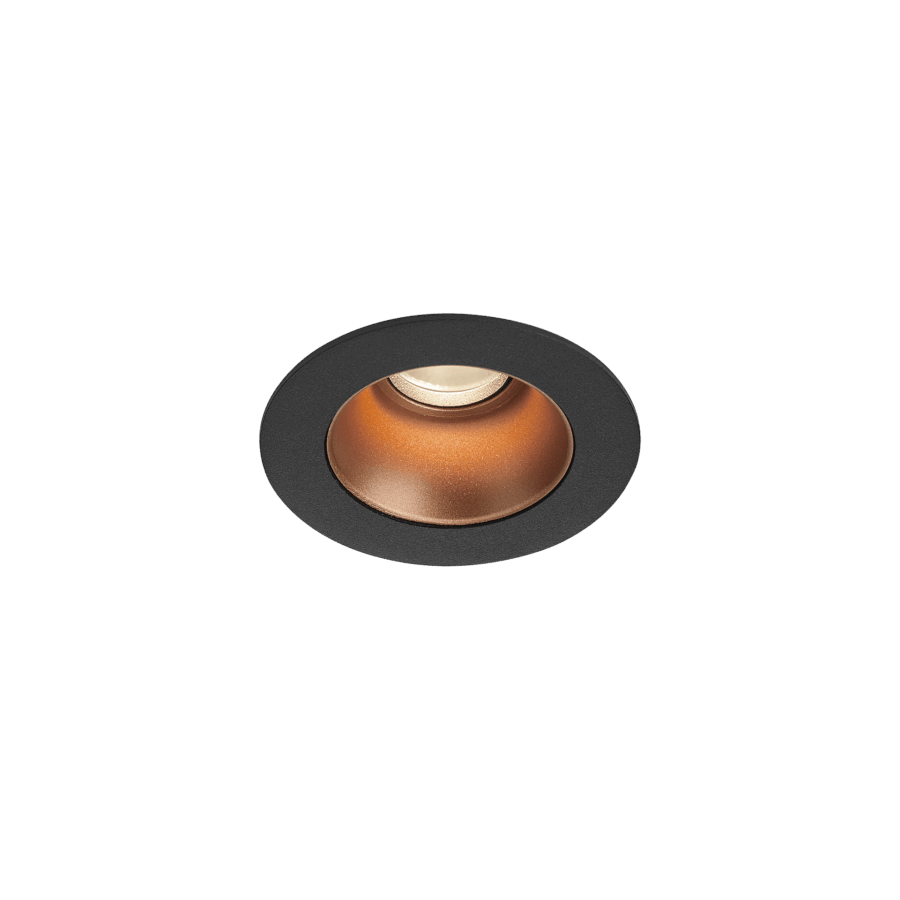

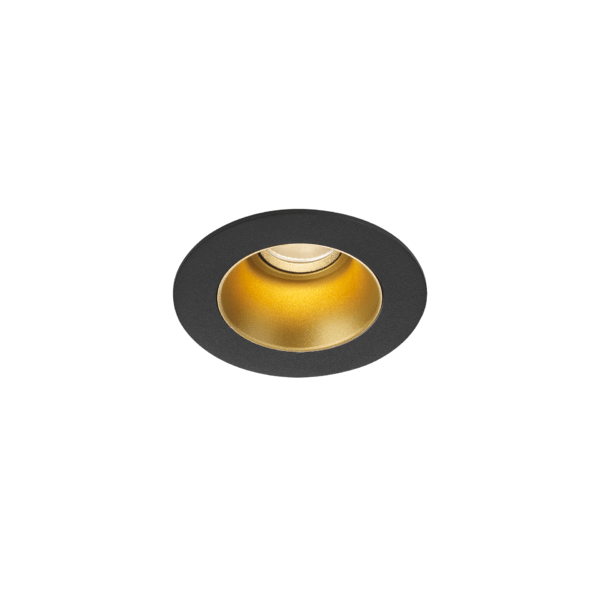

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White
Net. Weight0,3 kg
Cut out dimensionØ82mm

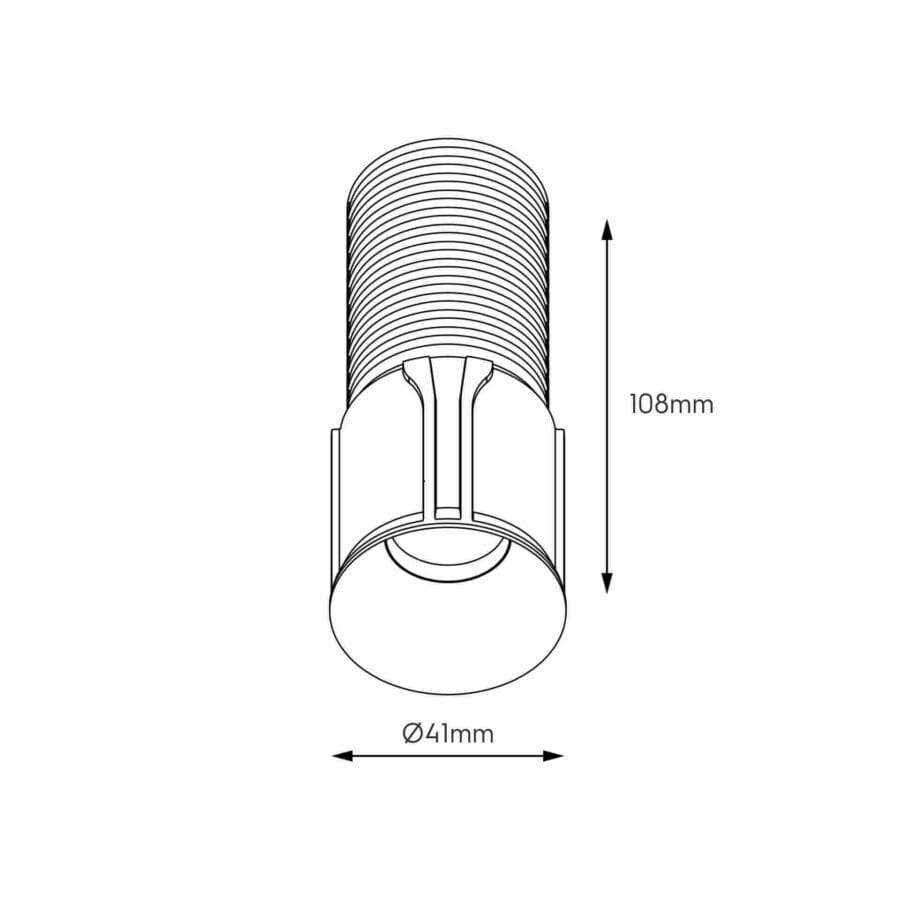

Luminaire dimension105mmx89mm, 105mmx91,50mm
Nominal fA [mA]200mA
Nominal fV [V]31V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source energy classF
Light source identifierCLU701-1002C4-273H5K2, CLU701-1002C4-303H5K2, CLU701-1002C4-403H5K2
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90)
Warranty5Y
CollectionDea Della Luce
Built-in height200mm

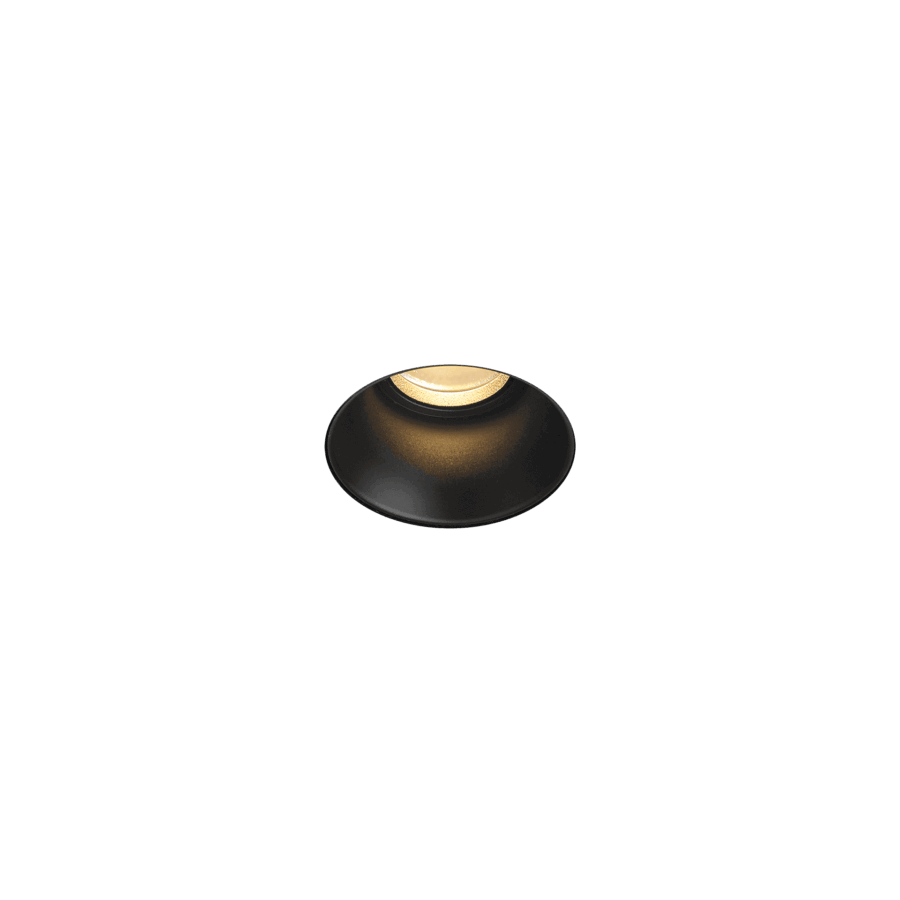

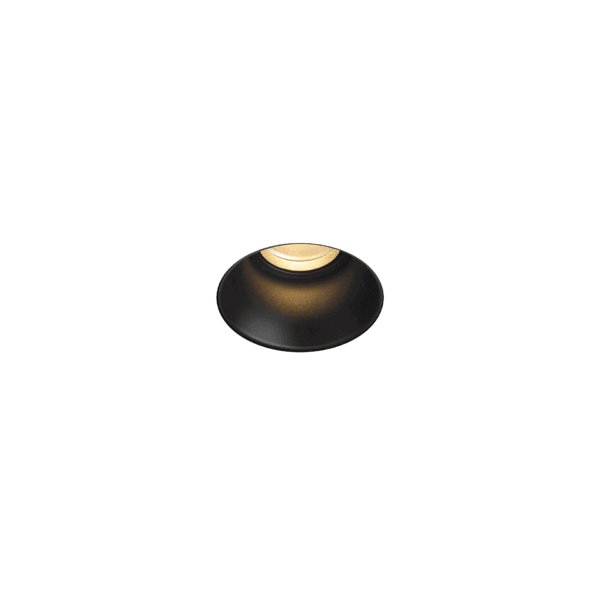

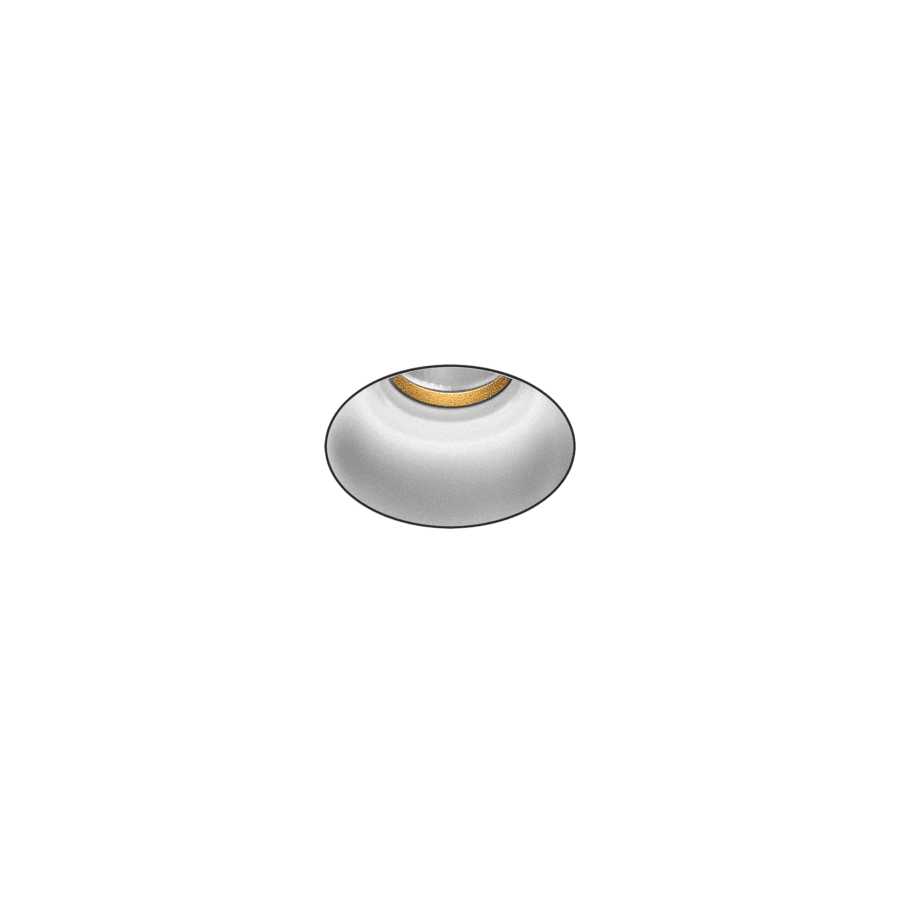

The Karizma Luce Dea Diana XS is a trimless recessed fixed downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 760- 950 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. The reflectors can be changed in case of wish or need, because they are fixed by a magnet. Available reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt. The standard installation frame is single, but you can choose also for a duo, triple or quadruple, or quadruple square application. Just by cutting the sides of the frames and connect them to each other. In this way, the Dea Diana always meets your wishes. Supplied with installation frame, extra frames have to be ordered separately (article number: TL-XS-F-KIT).
