Dea Diana S

Dea Diana S

Deep module, elegant looks.

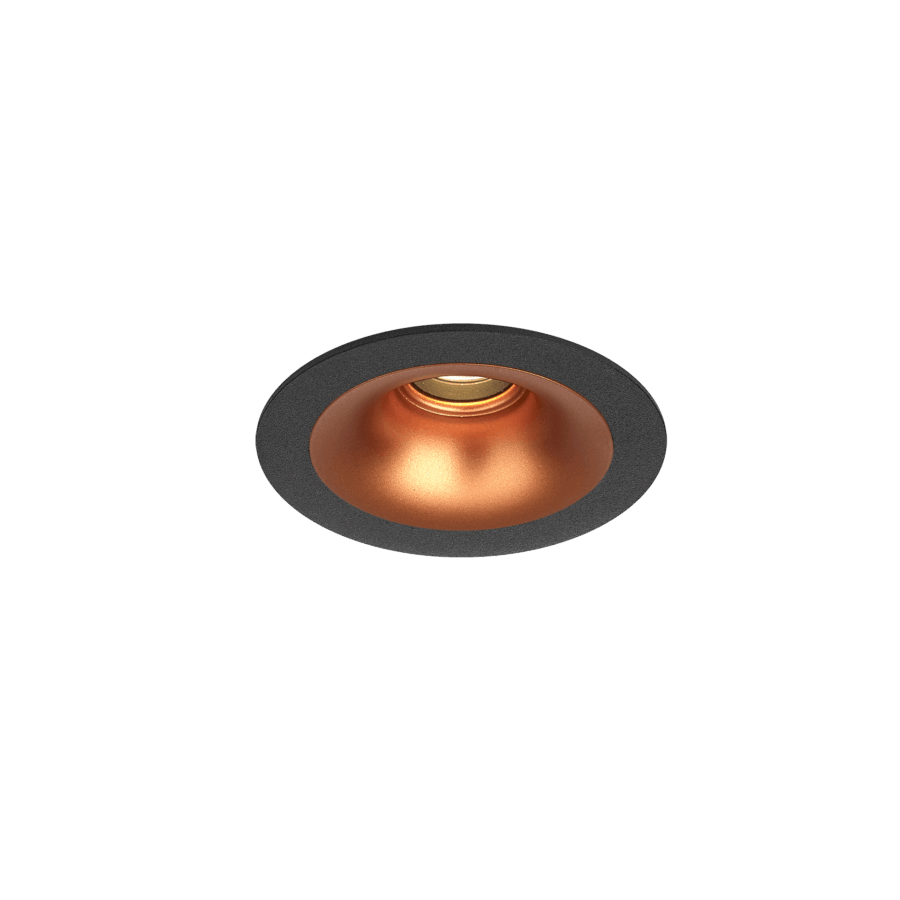

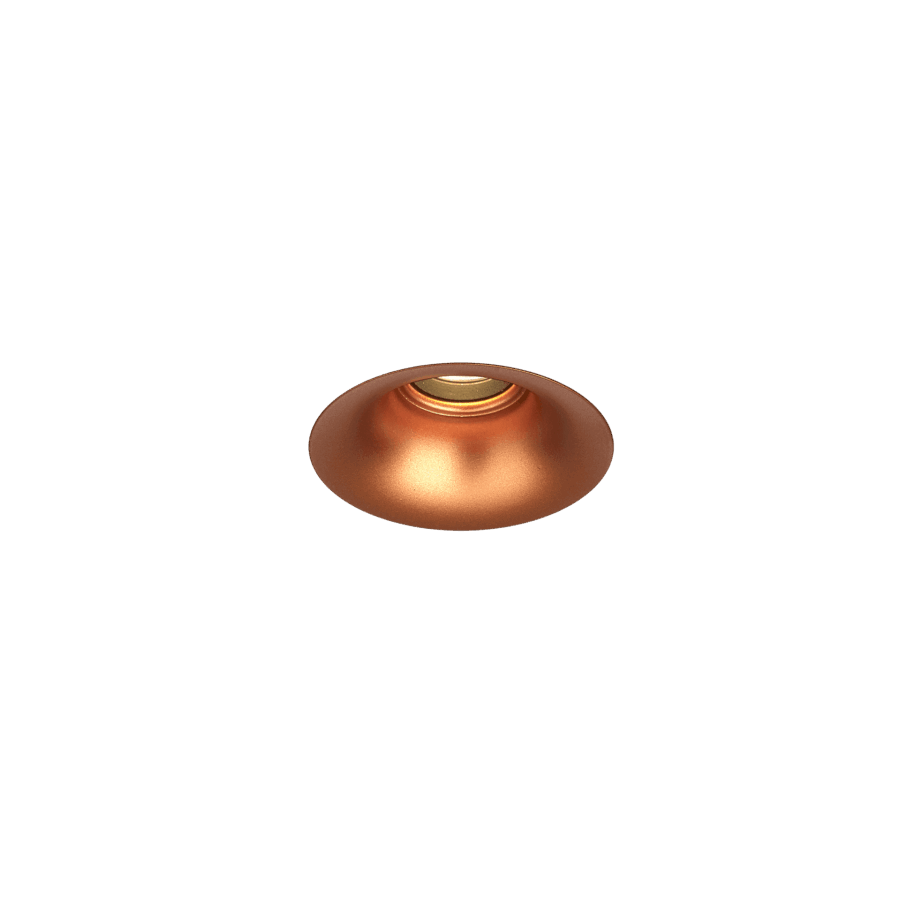

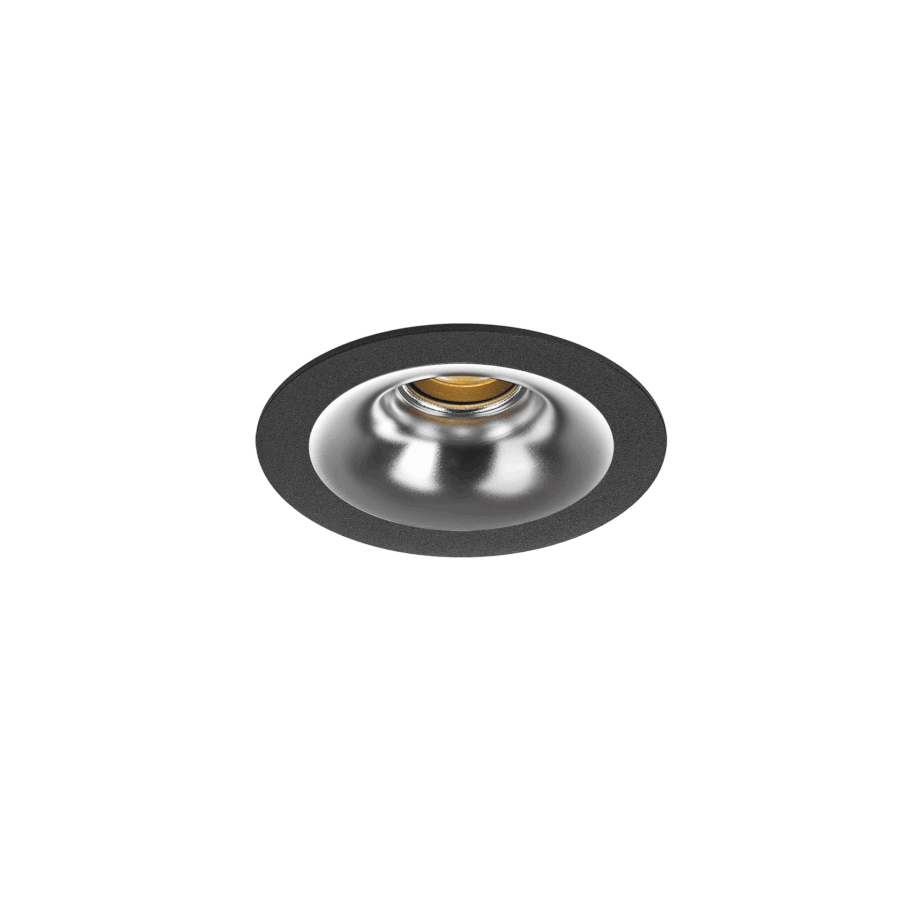

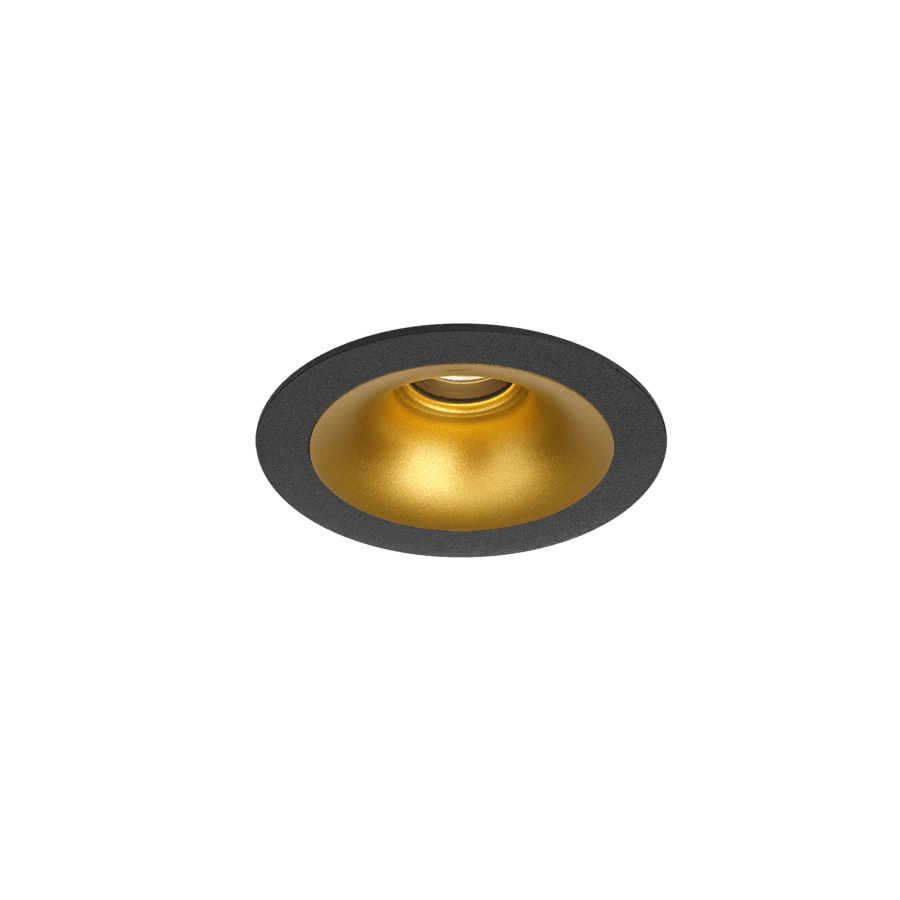

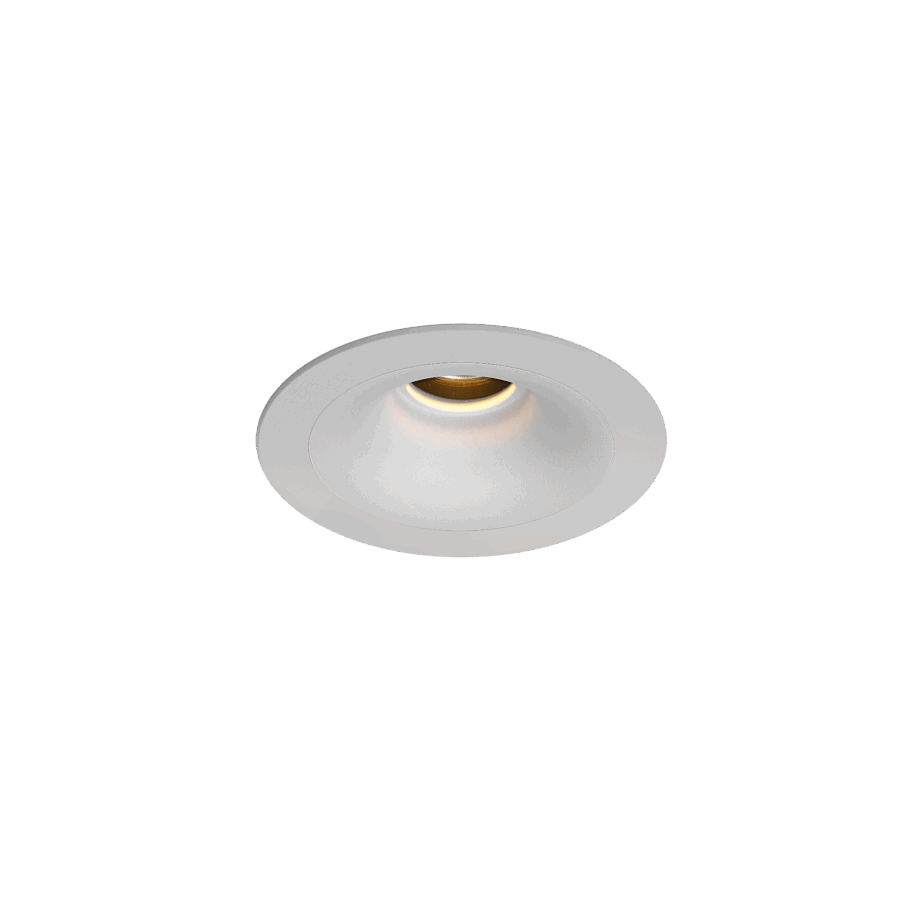

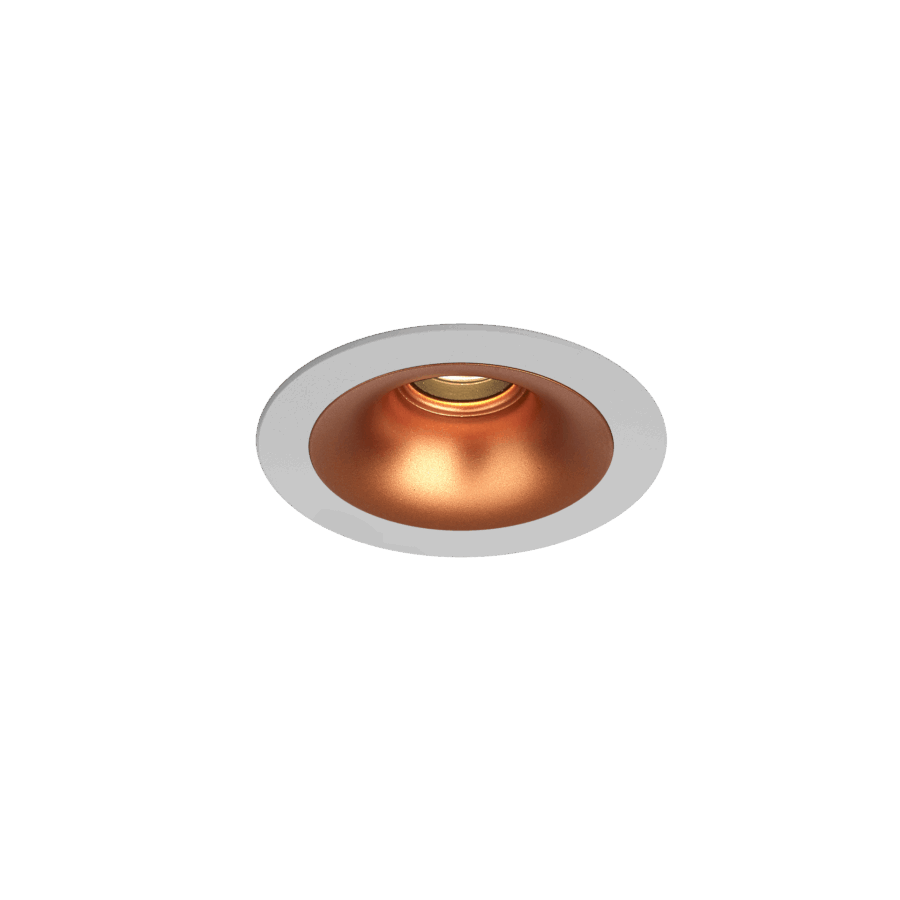

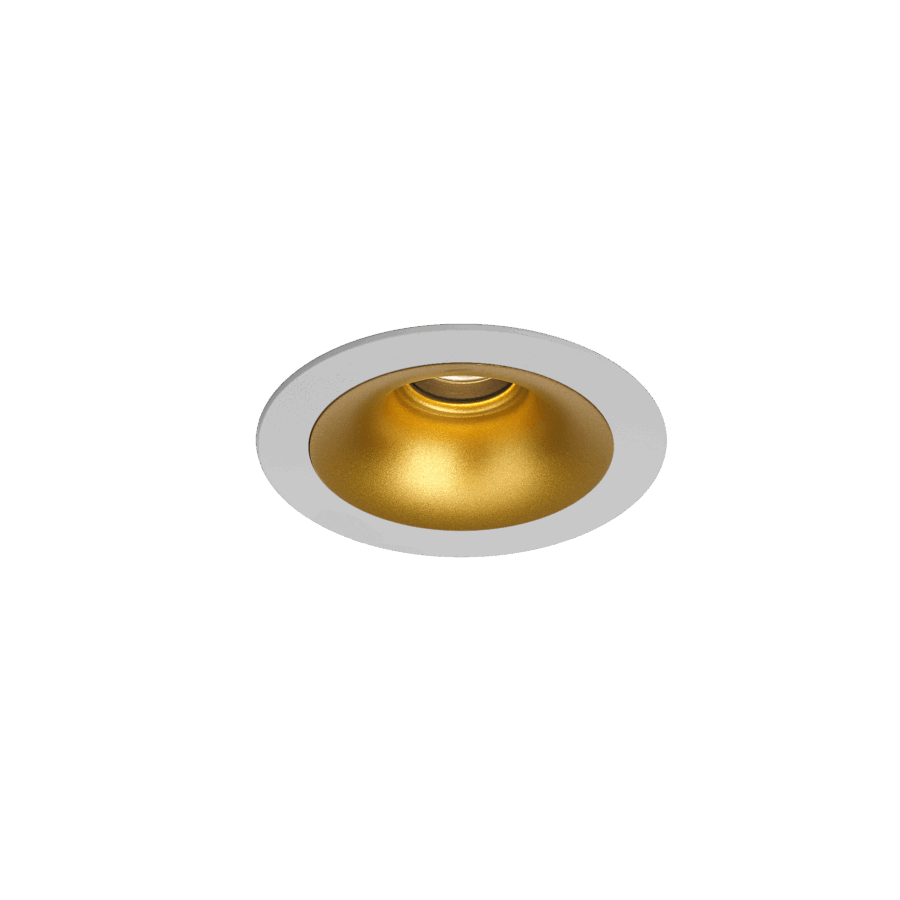

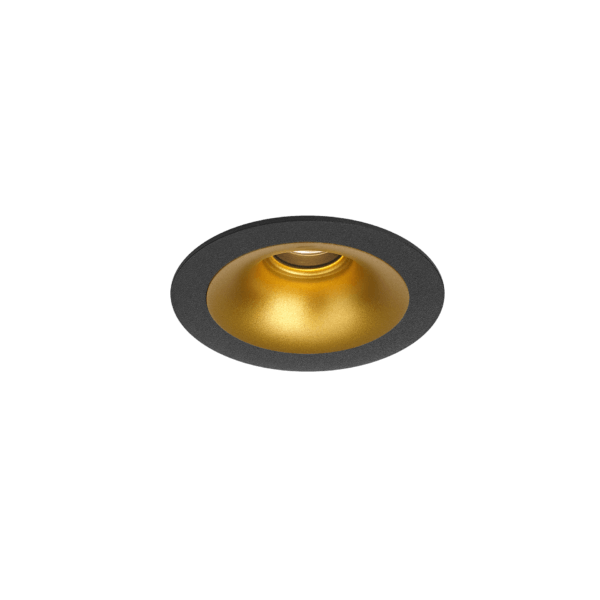

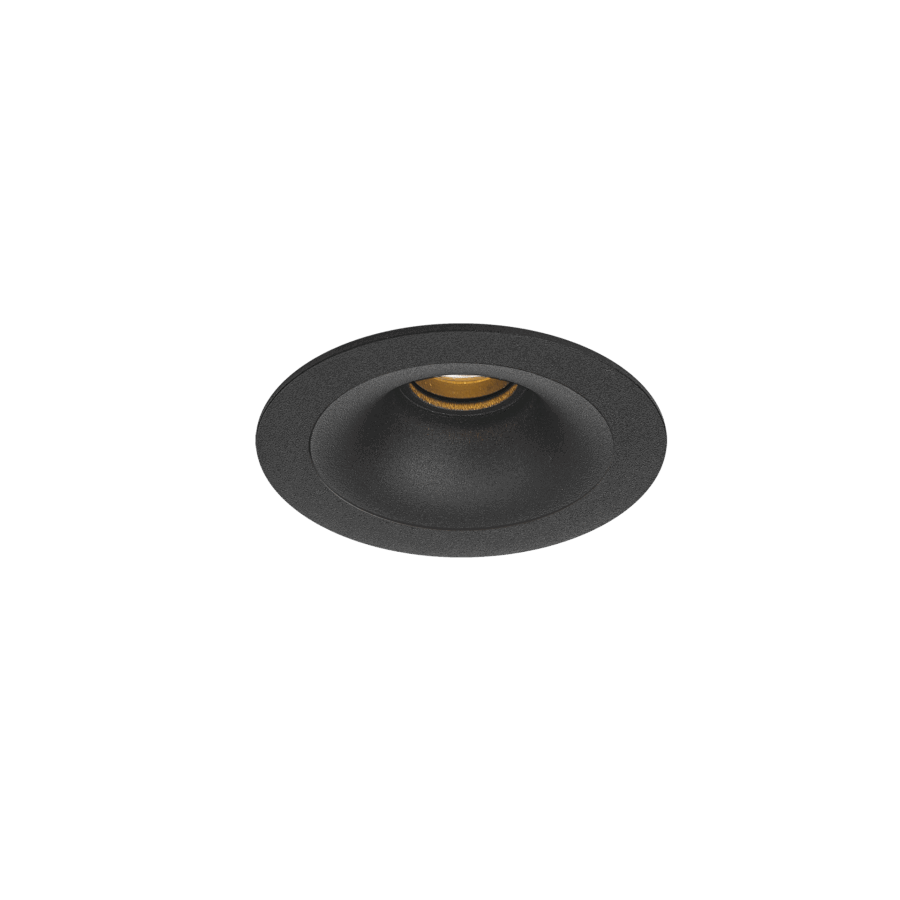

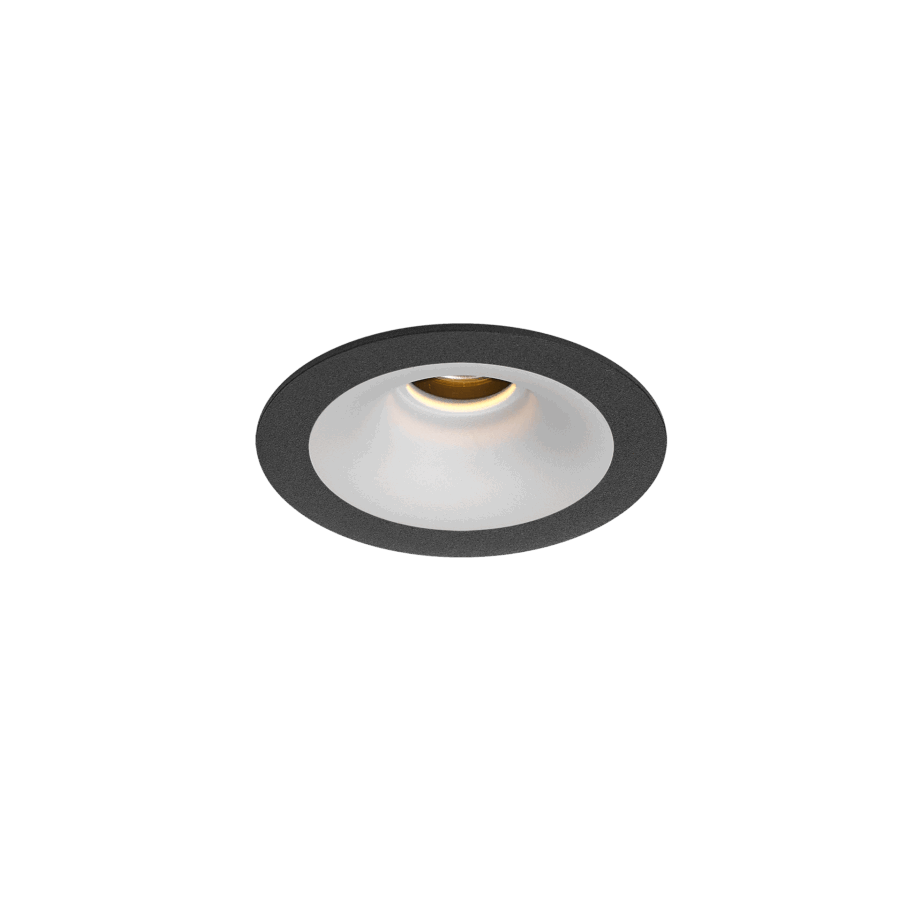

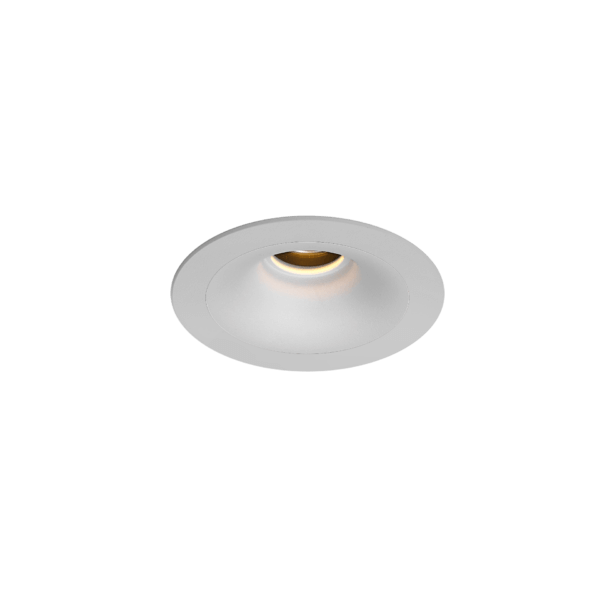

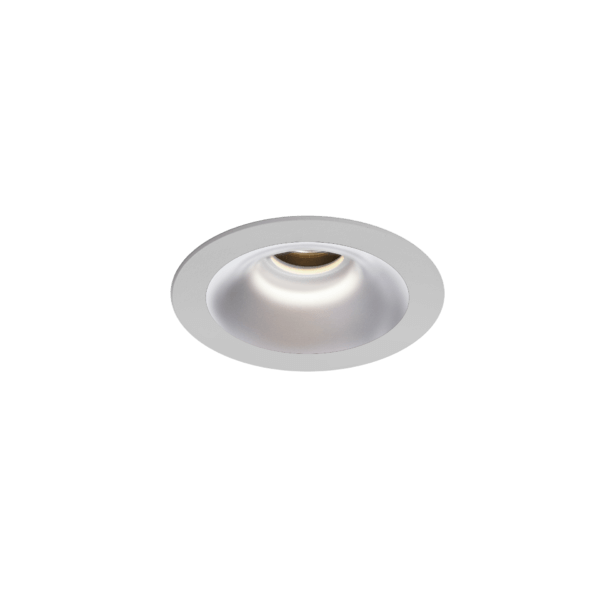

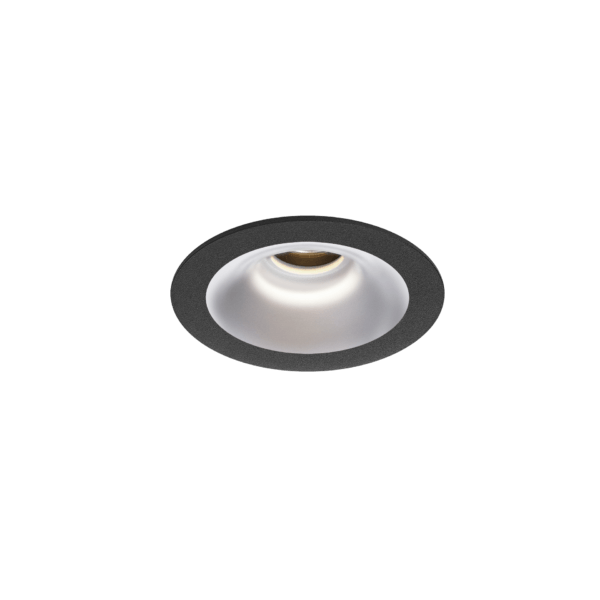

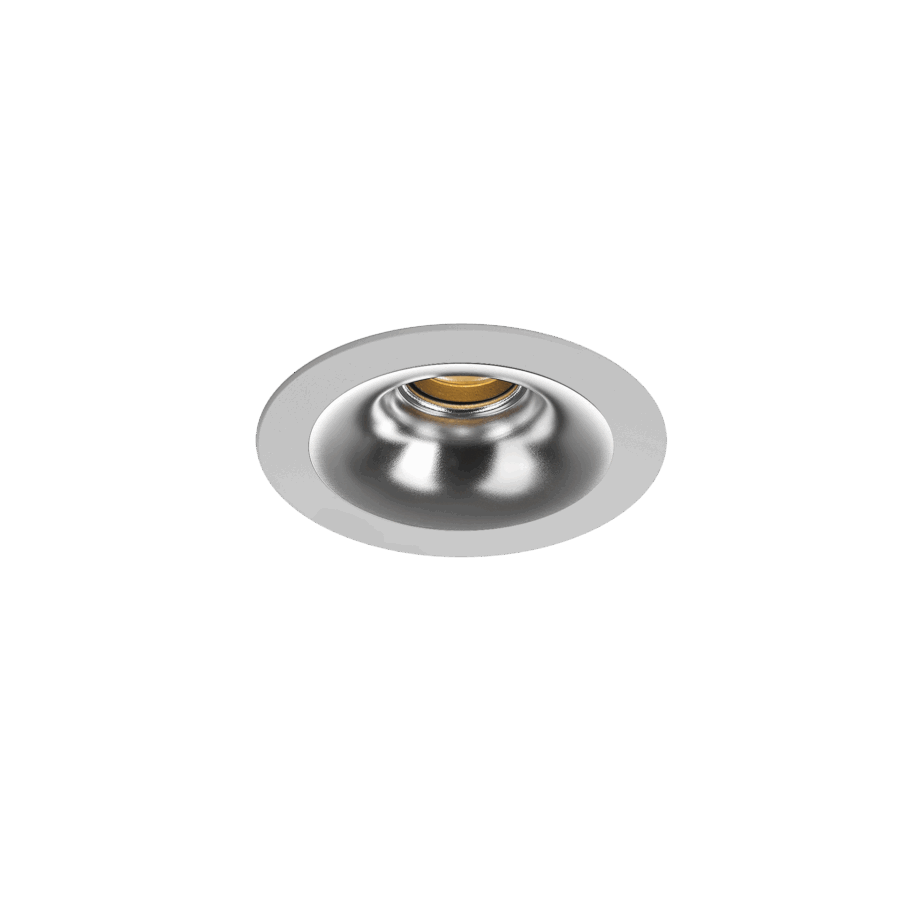

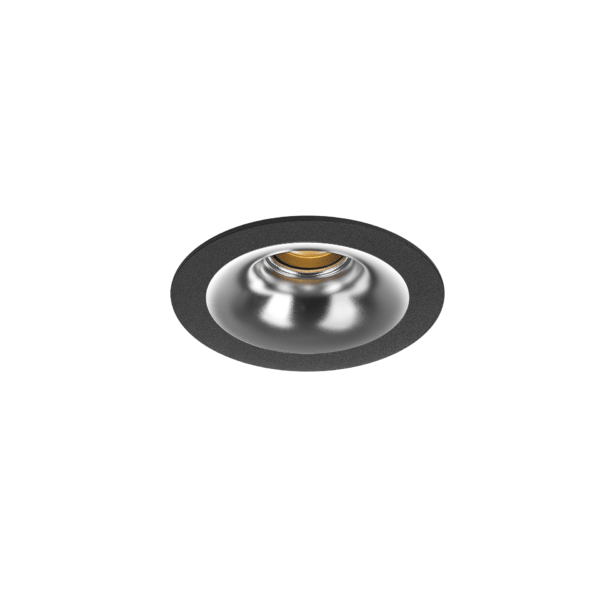

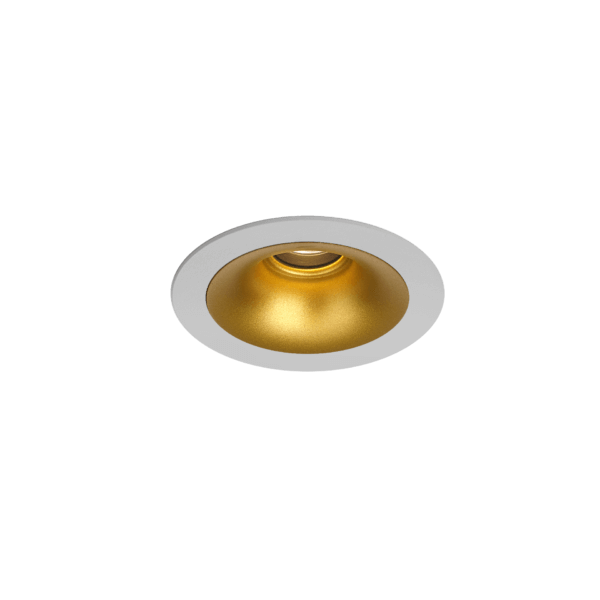

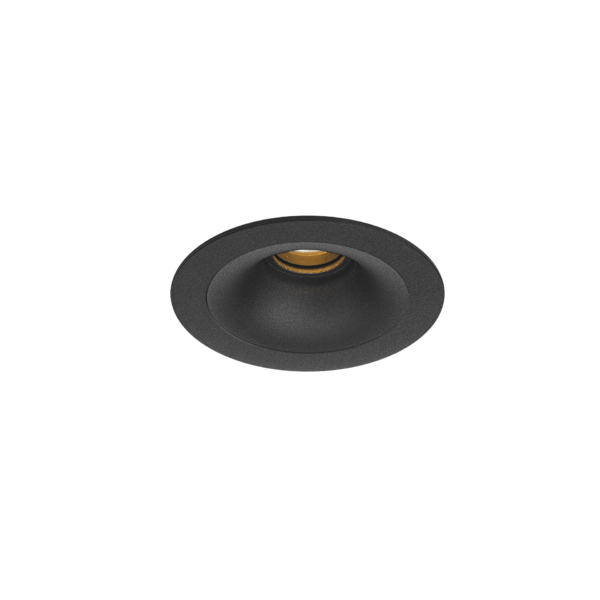

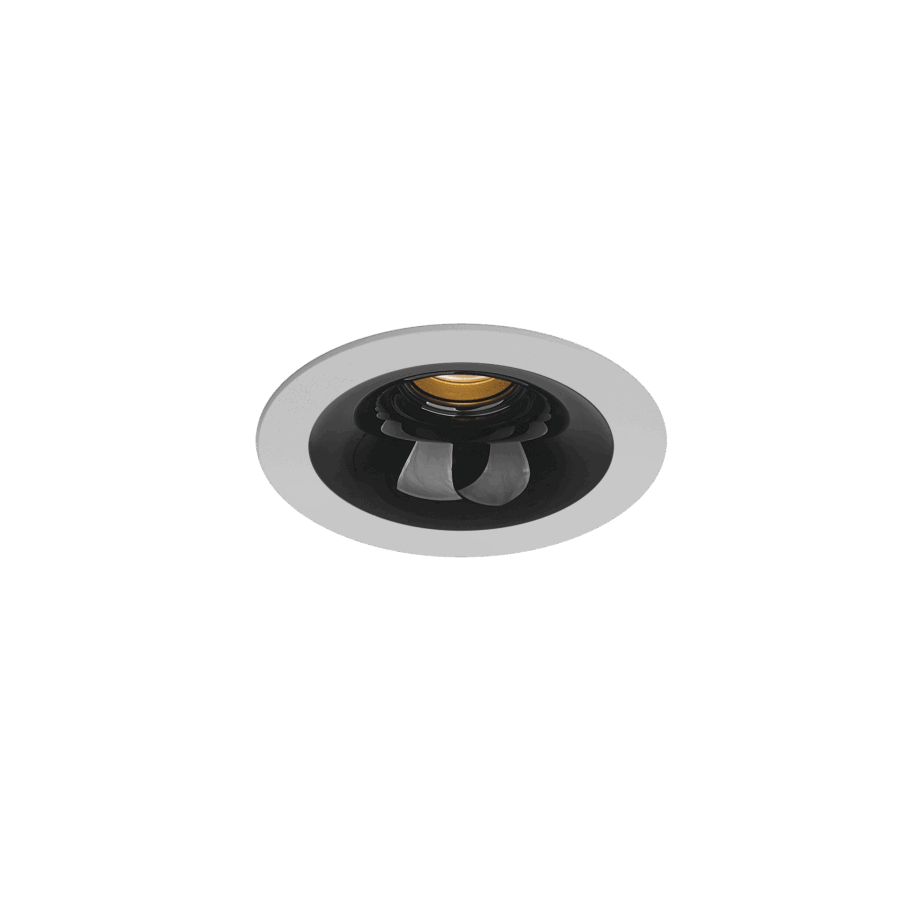

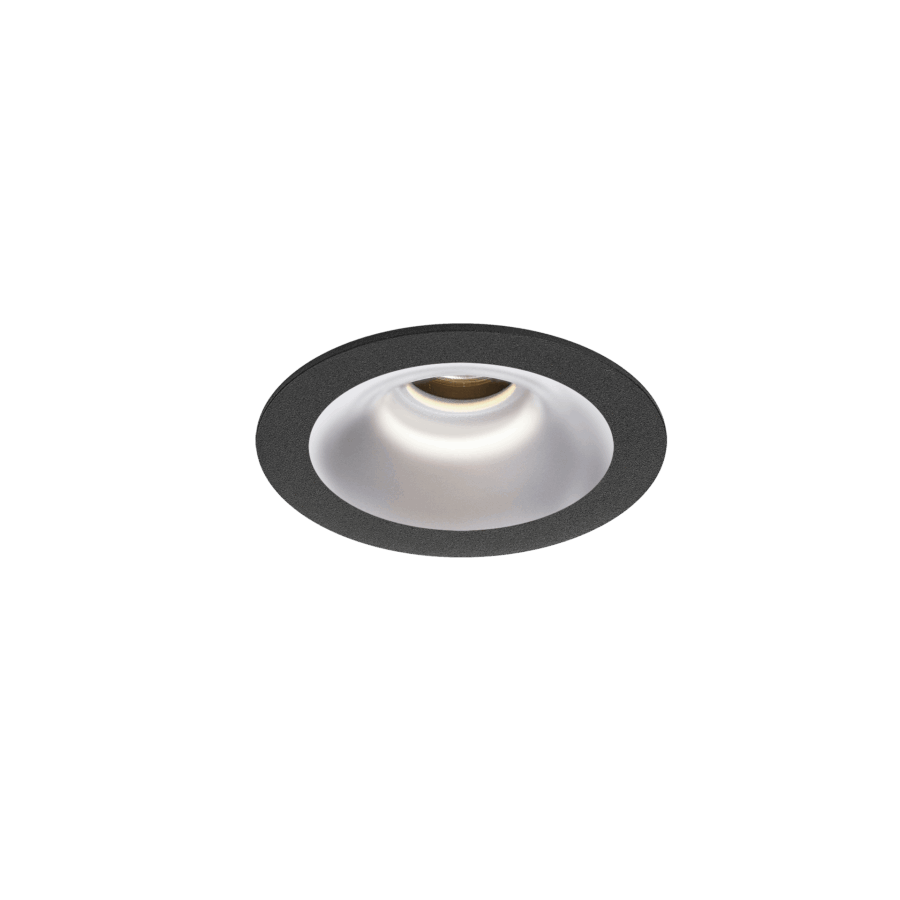

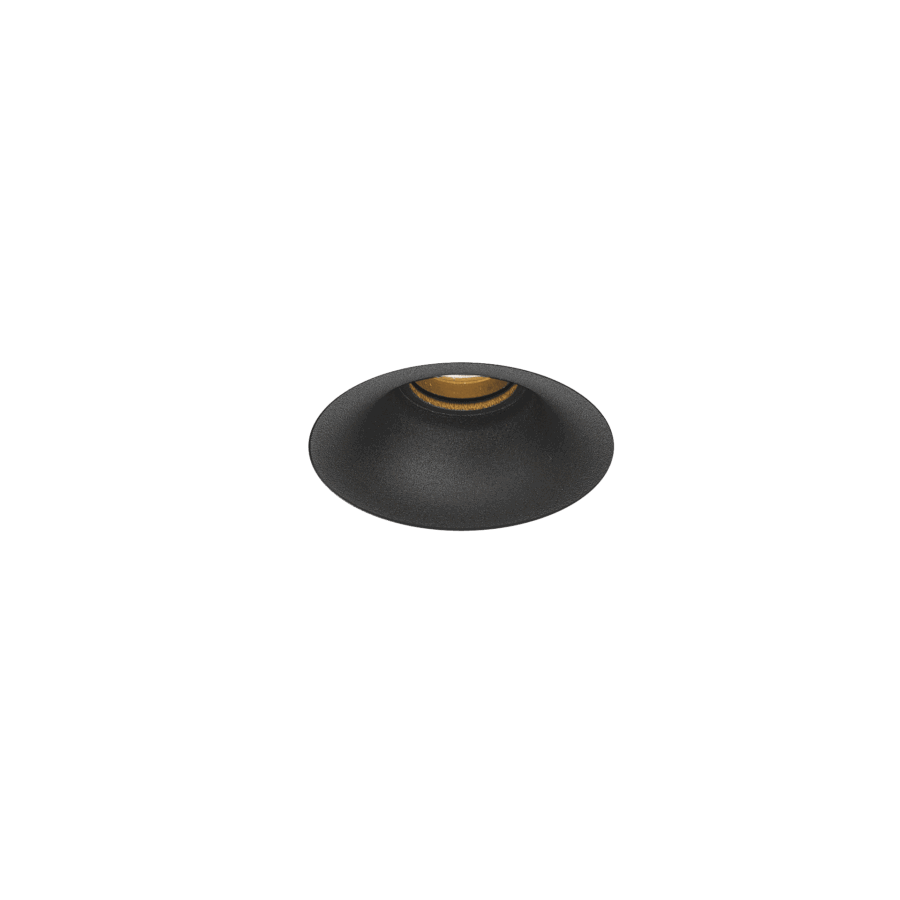

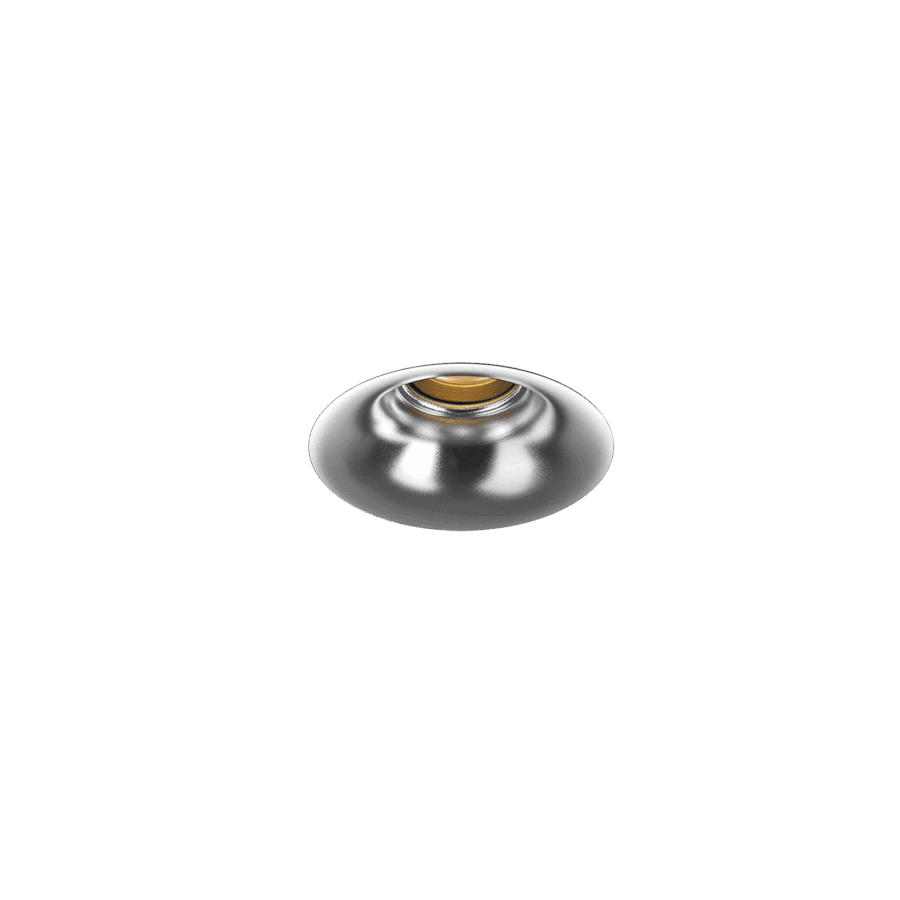

When you want to go subtle, you have to go trimless. The Dea Diana, named after the moon goddess, offers a whole new lighting experience. The deep module, elegant looks and endless range of applications guarantee a refined look. Choose for a black or white housing and simply add a reflector in the colour of your choice. The standard installation frame is single, but you can choose also for a duo, triple, quadruple or quadruple square application. On request available in 24°.

Product sheet

Installation manual

LDT files

Warranty on quality in years.

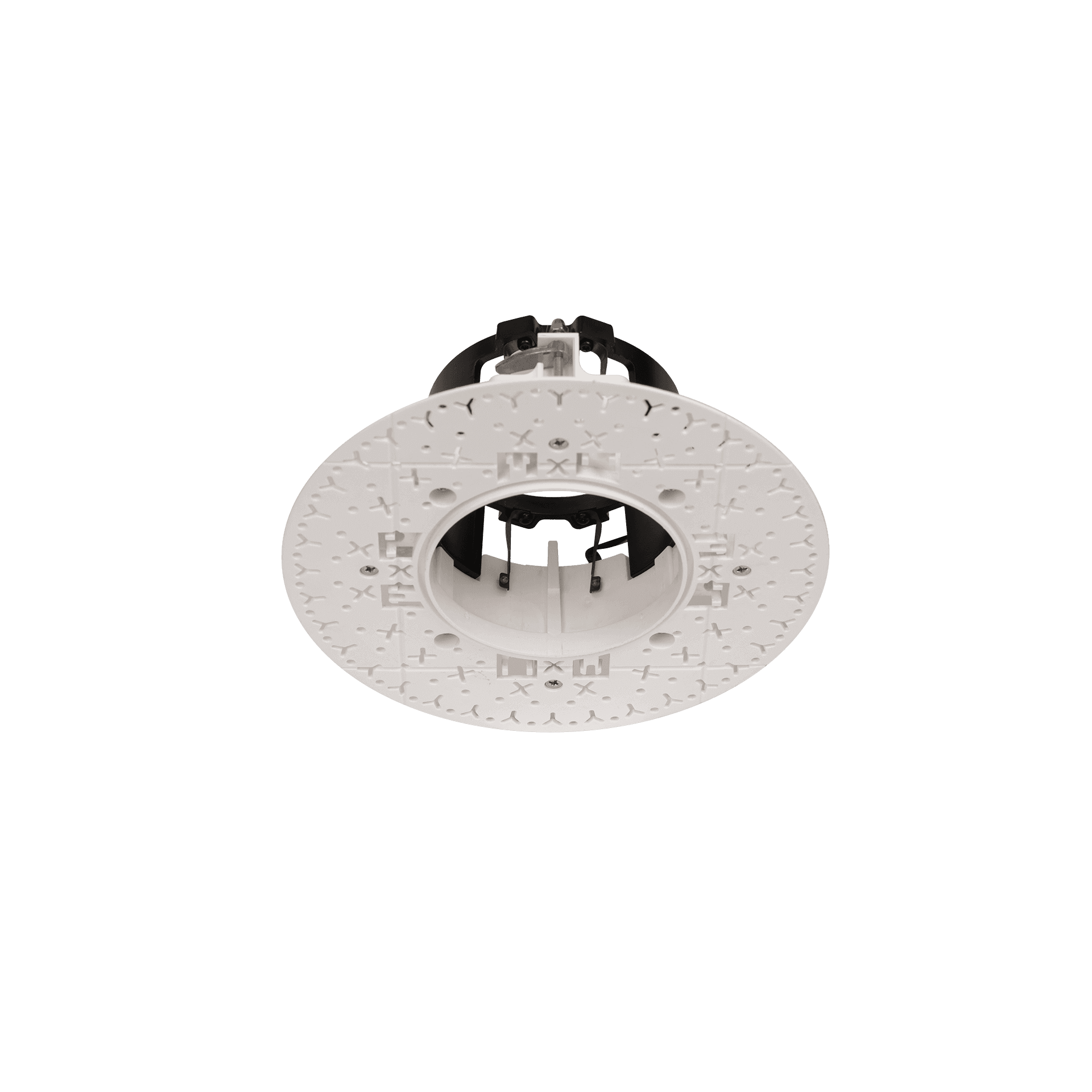

The luminaire has no visible trim. The supporting frame is concealed in the plastered ceiling.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
220DW92740SG00	900 lm	2700K	90	40°	White	Silver High Gloss	900-lm	2700k	90	40	white	silver-high-gloss
220DW93040SG00	950 lm	3000K	90	40°	White	Silver High Gloss	950-lm	3000k	90	40	white	silver-high-gloss
220DW94040SG00	960 lm	4000K	90	40°	White	Silver High Gloss	960-lm	4000k	90	40	white	silver-high-gloss
220DW92740BG00	830 lm	2700K	90	40°	White	Black High Gloss	830-lm	2700k	90	40	white	black-high-gloss
220DW93040BG00	860 lm	3000K	90	40°	White	Black High Gloss	860-lm	3000k	90	40	white	black-high-gloss
220DW94040BG00	870 lm	4000K	90	40°	White	Black High Gloss	870-lm	4000k	90	40	white	black-high-gloss
220DW92740WH00	840 lm	2700K	90	40°	White	White	840-lm	2700k	90	40	white	white
220DW93040WH00	880 lm	3000K	90	40°	White	White	880-lm	3000k	90	40	white	white
220DW94040WH00	890 lm	4000K	90	40°	White	White	890-lm	4000k	90	40	white	white
220DW92740CH00	890 lm	2700K	90	40°	White	Chrome	890-lm	2700k	90	40	white	chrome
220DW93040CH00	930 lm	3000K	90	40°	White	Chrome	930-lm	3000k	90	40	white	chrome
220DW94040CH00	940 lm	4000K	90	40°	White	Chrome	940-lm	4000k	90	40	white	chrome
220DW92740GO00	840 lm	2700K	90	40°	White	Gold	840-lm	2700k	90	40	white	gold
220DW93040GO00	880 lm	3000K	90	40°	White	Gold	880-lm	3000k	90	40	white	gold
220DW94040GO00	890 lm	4000K	90	40°	White	Gold	890-lm	4000k	90	40	white	gold
220DW92740CO00	840 lm	2700K	90	40°	White	Copper	840-lm	2700k	90	40	white	copper
220DW93040CO00	880 lm	3000K	90	40°	White	Copper	880-lm	3000k	90	40	white	copper
220DW94040CO00	890 lm	4000K	90	40°	White	Copper	890-lm	4000k	90	40	white	copper
220DW92740BM00	760 lm	2700K	90	40°	White	Black Matt	760-lm	2700k	90	40	white	black-matt
220DW93040BM00	800 lm	3000K	90	40°	White	Black Matt	800-lm	3000k	90	40	white	black-matt
220DW94040BM00	810 lm	4000K	90	40°	White	Black Matt	810-lm	4000k	90	40	white	black-matt
220DB92740SG00	900 lm	2700K	90	40°	Black	Silver High Gloss	900-lm	2700k	90	40	black	silver-high-gloss
220DB93040SG00	950 lm	3000K	90	40°	Black	Silver High Gloss	950-lm	3000k	90	40	black	silver-high-gloss
220DB94040SG00	960 lm	4000K	90	40°	Black	Silver High Gloss	960-lm	4000k	90	40	black	silver-high-gloss
220DB92740BG00	830 lm	2700K	90	40°	Black	Black High Gloss	830-lm	2700k	90	40	black	black-high-gloss
220DB93040BG00	860 lm	3000K	90	40°	Black	Black High Gloss	860-lm	3000k	90	40	black	black-high-gloss
220DB94040BG00	870 lm	4000K	90	40°	Black	Black High Gloss	870-lm	4000k	90	40	black	black-high-gloss
220DB92740WH00	840 lm	2700K	90	40°	Black	White	840-lm	2700k	90	40	black	white
220DB93040WH00	880 lm	3000K	90	40°	Black	White	880-lm	3000k	90	40	black	white
220DB94040WH00	890 lm	4000K	90	40°	Black	White	890-lm	4000k	90	40	black	white
220DB92740CH00	890 lm	2700K	90	40°	Black	Chrome	890-lm	2700k	90	40	black	chrome
220DB93040CH00	930 lm	3000K	90	40°	Black	Chrome	930-lm	3000k	90	40	black	chrome
220DB94040CH00	940 lm	4000K	90	40°	Black	Chrome	940-lm	4000k	90	40	black	chrome
220DB92740GO00	840 lm	2700K	90	40°	Black	Gold	840-lm	2700k	90	40	black	gold
220DB93040GO00	880 lm	3000K	90	40°	Black	Gold	880-lm	3000k	90	40	black	gold
220DB94040GO00	890 lm	4000K	90	40°	Black	Gold	890-lm	4000k	90	40	black	gold
220DB92740CO00	840 lm	2700K	90	40°	Black	Copper	840-lm	2700k	90	40	black	copper
220DB93040CO00	880 lm	3000K	90	40°	Black	Copper	880-lm	3000k	90	40	black	copper
220DB94040CO00	890 lm	4000K	90	40°	Black	Copper	890-lm	4000k	90	40	black	copper
220DB92740BM00	760 lm	2700K	90	40°	Black	Black Matt	760-lm	2700k	90	40	black	black-matt
220DB93040BM00	800 lm	3000K	90	40°	Black	Black Matt	800-lm	3000k	90	40	black	black-matt
220DB94040BM00	810 lm	4000K	90	40°	Black	Black Matt	810-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux760 lm, 800 lm, 810 lm, 830 lm, 840 lm, 860 lm, 870 lm, 880 lm, 890 lm, 900 lm, 930 lm, 940 lm, 950 lm, 960 lm

CRI90

CCT2700K, 3000K, 4000K

LED power8.5W

System power10.5W

System efficiency72lm/W, 76lm/W, 77lm/W, 79lm/W, 80lm/W, 82lm/W, 83lm/W, 84lm/W, 85lm/W, 86lm/W, 89lm/W, 90lm/W, 91lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Cut out dimensionØ105mm

Luminaire dimensionØ130x74mm

Nominal fA [mA]250mA

Nominal fV [V]33.2V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source energy classE, F

Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height100mm

ControlCasambi, DALI, Phase Cut

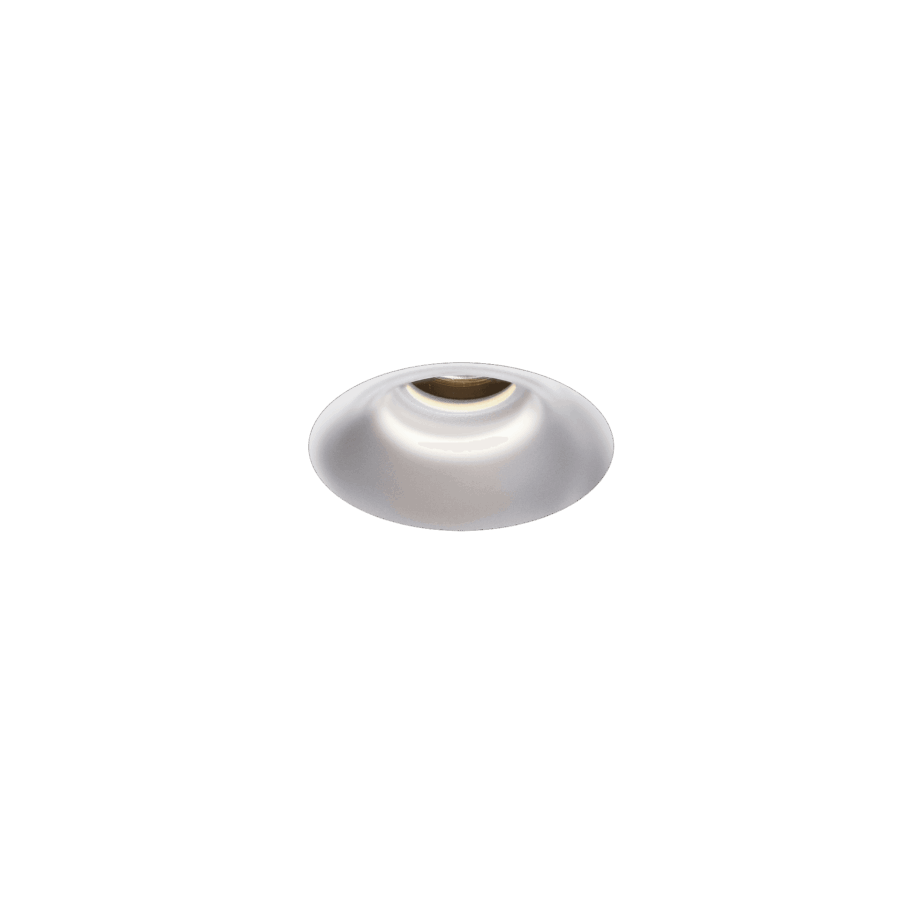

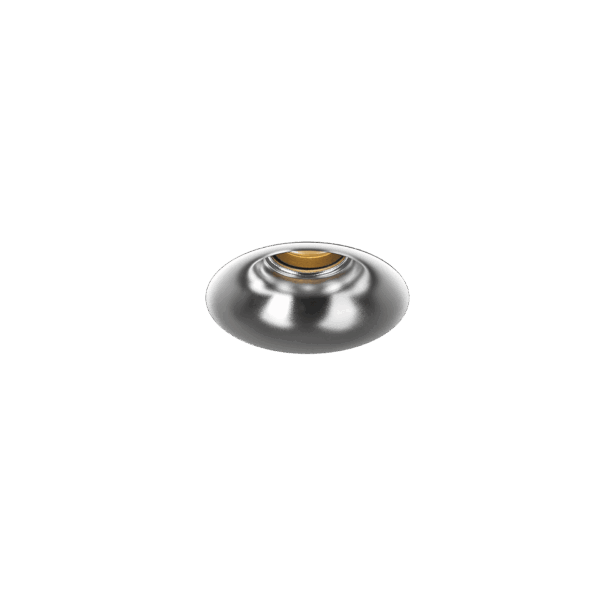

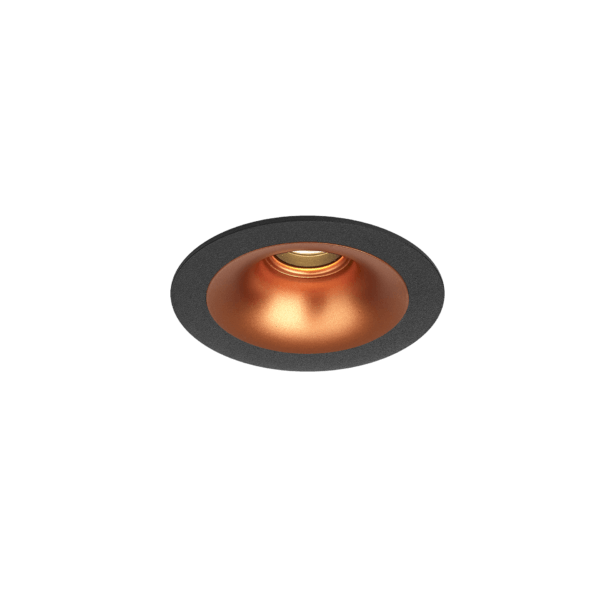

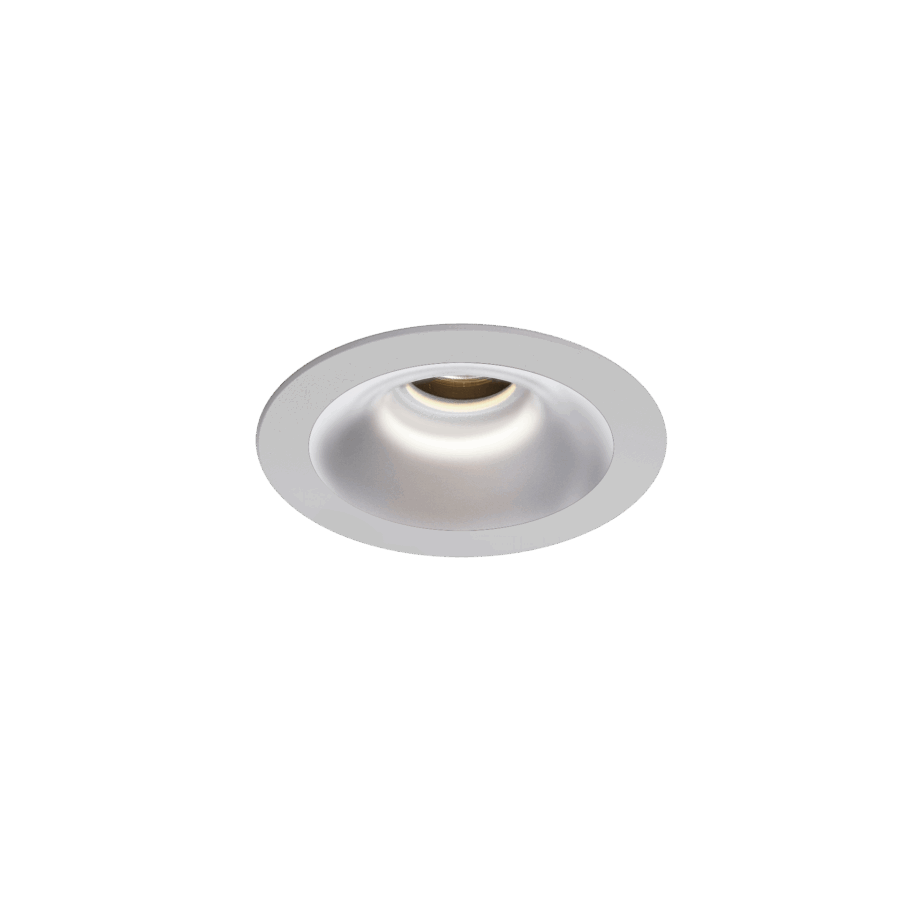

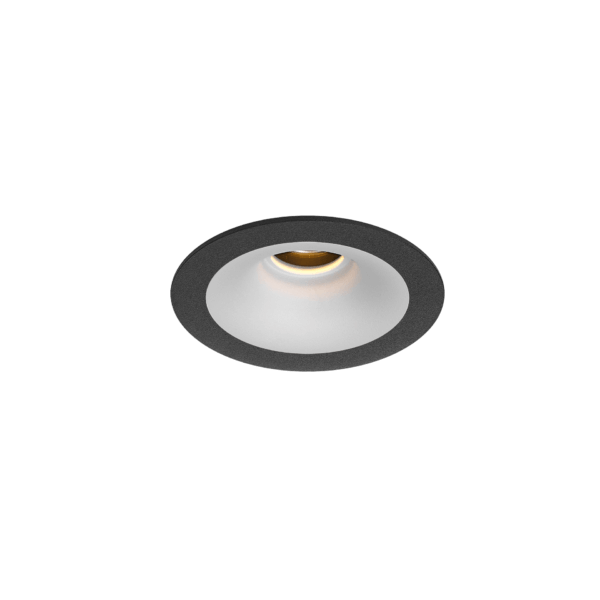

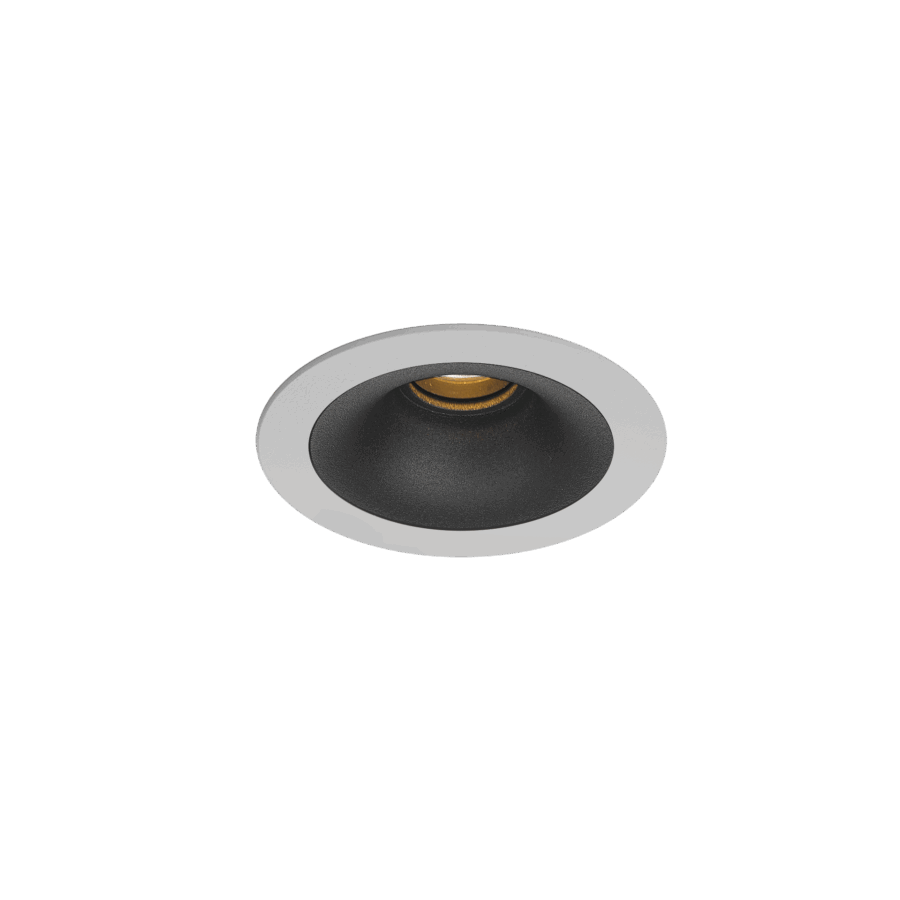

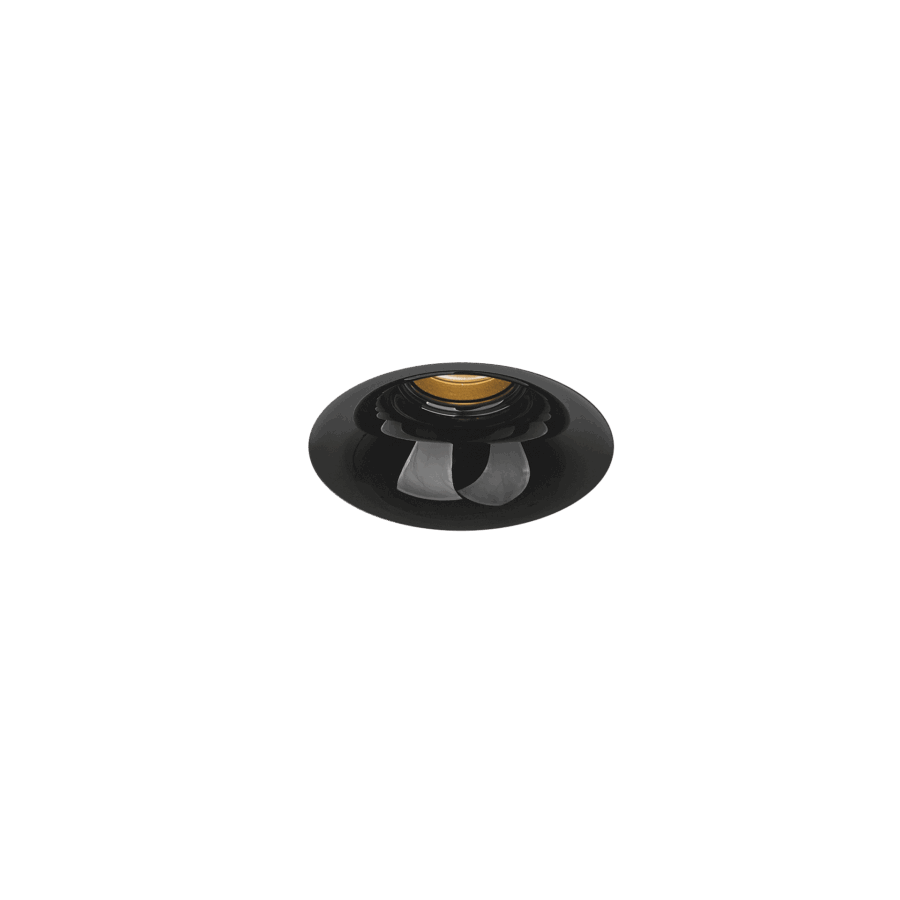

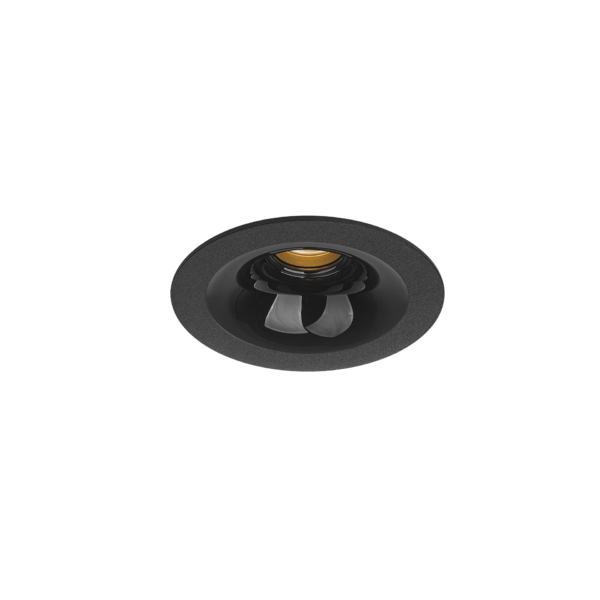

The Karizma Luce Dea Diana S is a trimless recessed fixed spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 760- 960 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. The reflectors can be changed in case of wish or need, because they are fixed by a magnet. The standard installation frame is single, but you can choose also for a duo, triple or quadruple square application. Just by cutting the sides of the frames and connect them to each other. In this way, the Dea Diana always meets your wishes. Available reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt. Supplied with installation frame, extra frames have to be ordered separately (article number: TL-S-F-KIT).

Products

Dea Diana S

Datasheets

Related products

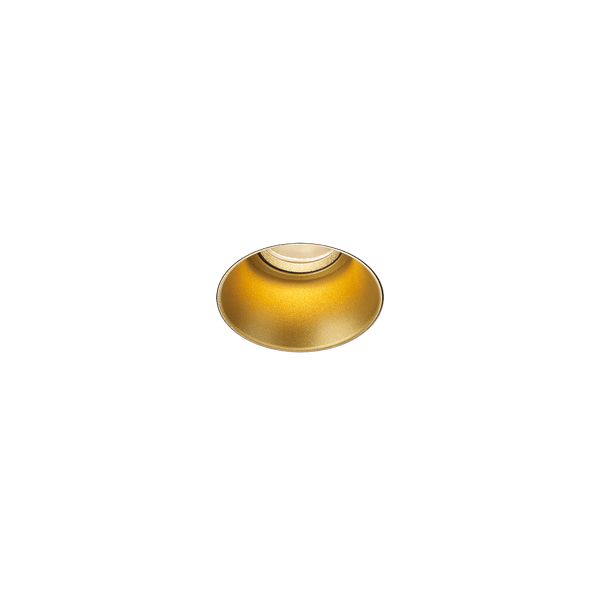

Dea Diana XS
