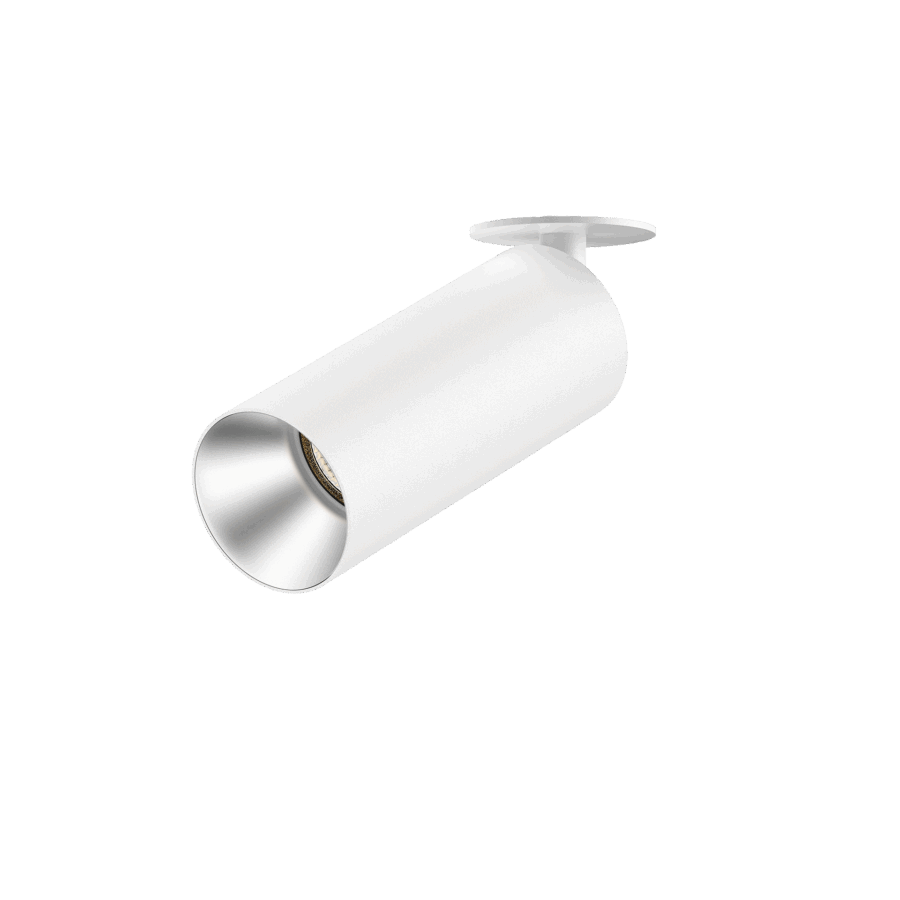

Dea Cura XS

Your tiny caretaker.

The Dea Cura XS is an extra small spot. Named after the Roman goddess, whose name means ‘care’. And that is exactly what you can expect: the Dea Cura takes care of any lighting challenge. Charming, clean and small. Ready to brighten up anything you want. From the tiniest detail to a commercial display, Dea Cura handles its task with confidence.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
141BW92734SG00	490 lm	2700K	90	34°	White	Silver High Gloss	490-lm	2700k	90	34	white	silver-high-gloss
141BW93034SG00	500 lm	3000K	90	34°	White	Silver High Gloss	500-lm	3000k	90	34	white	silver-high-gloss
141BW94034SG00	510 lm	4000K	90	34°	White	Silver High Gloss	510-lm	4000k	90	34	white	silver-high-gloss
141BW92734BG00	490 lm	2700K	90	34°	White	Black High Gloss	490-lm	2700k	90	34	white	black-high-gloss
141BW93034BG00	500 lm	3000K	90	34°	White	Black High Gloss	500-lm	3000k	90	34	white	black-high-gloss
141BW94034BG00	510 lm	4000K	90	34°	White	Black High Gloss	510-lm	4000k	90	34	white	black-high-gloss
141BW92734WH00	490 lm	2700K	90	34°	White	White	490-lm	2700k	90	34	white	white
141BW93034WH00	500 lm	3000K	90	34°	White	White	500-lm	3000k	90	34	white	white
141BW94034WH00	510 lm	4000K	90	34°	White	White	510-lm	4000k	90	34	white	white
141BW92734CH00	490 lm	2700K	90	34°	White	Chrome	490-lm	2700k	90	34	white	chrome
141BW93034CH00	500 lm	3000K	90	34°	White	Chrome	500-lm	3000k	90	34	white	chrome
141BW94034CH00	510 lm	4000K	90	34°	White	Chrome	510-lm	4000k	90	34	white	chrome
141BW92734GO00	490 lm	2700K	90	34°	White	Gold	490-lm	2700k	90	34	white	gold
141BW93034GO00	500 lm	3000K	90	34°	White	Gold	500-lm	3000k	90	34	white	gold
141BW94034GO00	510 lm	4000K	90	34°	White	Gold	510-lm	4000k	90	34	white	gold
141BW92734CO00	490 lm	2700K	90	34°	White	Copper	490-lm	2700k	90	34	white	copper
141BW93034CO00	500 lm	3000K	90	34°	White	Copper	500-lm	3000k	90	34	white	copper
141BW94034CO00	510 lm	4000K	90	34°	White	Copper	510-lm	4000k	90	34	white	copper
141BW92734BM00	490 lm	2700K	90	34°	White	Black Matt	490-lm	2700k	90	34	white	black-matt
141BW93034BM00	500 lm	3000K	90	34°	White	Black Matt	500-lm	3000k	90	34	white	black-matt
141BW94034BM00	510 lm	4000K	90	34°	White	Black Matt	510-lm	4000k	90	34	white	black-matt
141BB92734SG00	490 lm	2700K	90	34°	Black	Silver High Gloss	490-lm	2700k	90	34	black	silver-high-gloss
141BB93034SG00	500 lm	3000K	90	34°	Black	Silver High Gloss	500-lm	3000k	90	34	black	silver-high-gloss
141BB94034SG00	510 lm	4000K	90	34°	Black	Silver High Gloss	510-lm	4000k	90	34	black	silver-high-gloss
141BB92734BG00	490 lm	2700K	90	34°	Black	Black High Gloss	490-lm	2700k	90	34	black	black-high-gloss
141BB93034BG00	500 lm	3000K	90	34°	Black	Black High Gloss	500-lm	3000k	90	34	black	black-high-gloss
141BB94034BG00	510 lm	4000K	90	34°	Black	Black High Gloss	510-lm	4000k	90	34	black	black-high-gloss
141BB92734WH00	490 lm	2700K	90	34°	Black	White	490-lm	2700k	90	34	black	white
141BB93034WH00	500 lm	3000K	90	34°	Black	White	500-lm	3000k	90	34	black	white
141BB94034WH00	510 lm	4000K	90	34°	Black	White	510-lm	4000k	90	34	black	white
141BB92734CH00	490 lm	2700K	90	34°	Black	Chrome	490-lm	2700k	90	34	black	chrome
141BB93034CH00	500 lm	3000K	90	34°	Black	Chrome	500-lm	3000k	90	34	black	chrome
141BB94034CH00	510 lm	4000K	90	34°	Black	Chrome	510-lm	4000k	90	34	black	chrome
141BB92734GO00	490 lm	2700K	90	34°	Black	Gold	490-lm	2700k	90	34	black	gold
141BB93034GO00	500 lm	3000K	90	34°	Black	Gold	500-lm	3000k	90	34	black	gold
141BB94034GO00	510 lm	4000K	90	34°	Black	Gold	510-lm	4000k	90	34	black	gold
141BB92734CO00	490 lm	2700K	90	34°	Black	Copper	490-lm	2700k	90	34	black	copper
141BB93034CO00	500 lm	3000K	90	34°	Black	Copper	500-lm	3000k	90	34	black	copper
141BB94034CO00	510 lm	4000K	90	34°	Black	Copper	510-lm	4000k	90	34	black	copper
141BB92734BM00	490 lm	2700K	90	34°	Black	Black Matt	490-lm	2700k	90	34	black	black-matt
141BB93034BM00	500 lm	3000K	90	34°	Black	Black Matt	500-lm	3000k	90	34	black	black-matt
141BB94034BM00	510 lm	4000K	90	34°	Black	Black Matt	510-lm	4000k	90	34	black	black-matt

Click on specification values for related products.

Luminous Flux490 lm, 500 lm, 510 lm

CRI90

CCT2700K, 3000K, 4000K

LED power6.2W

System power7W

System efficiency70lm/W, 73lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle34°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.2 kg

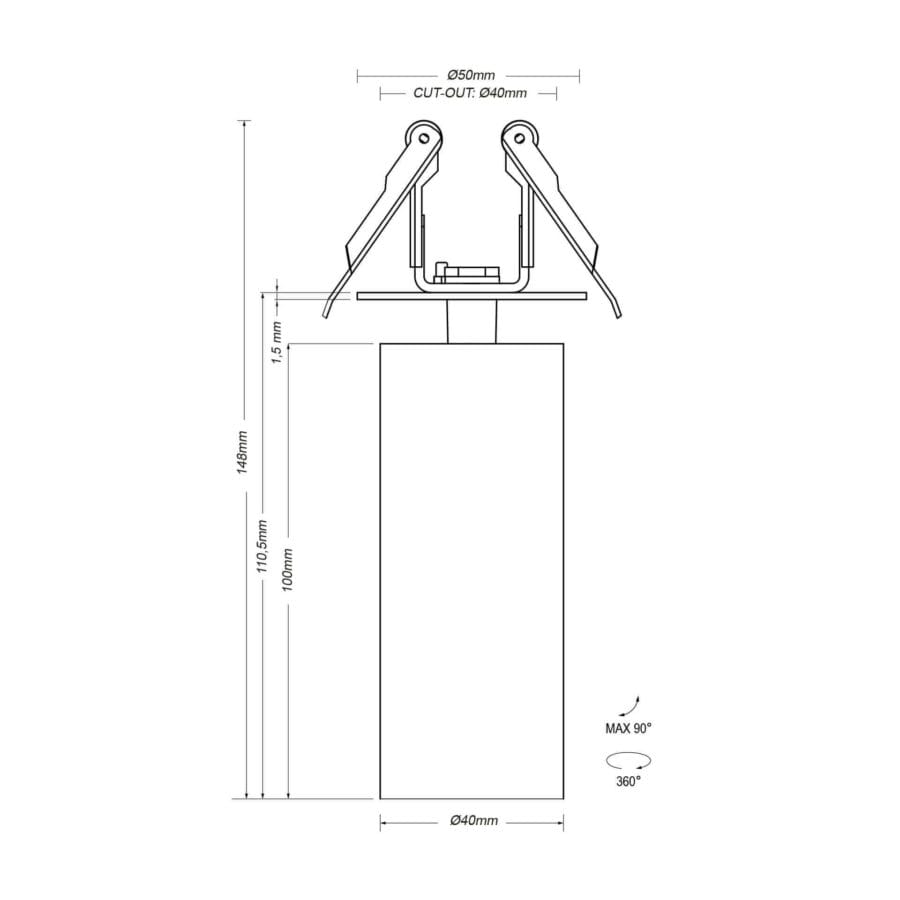

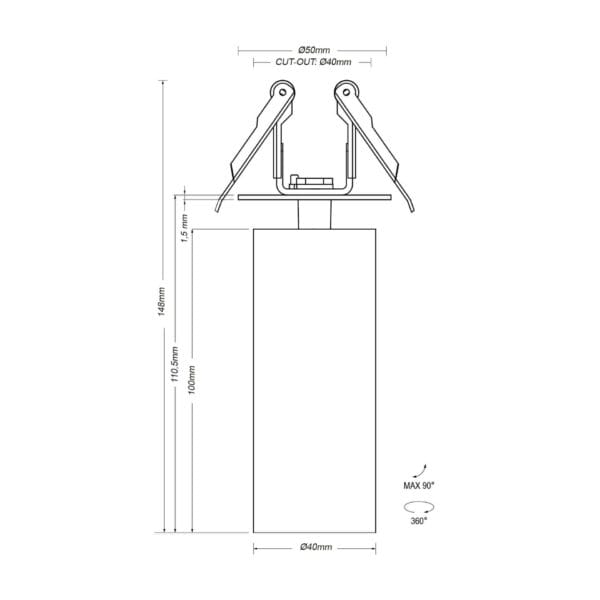

Cut out dimensionØ35mm

Luminaire dimensionØ40mm

Nominal fA [mA]200mA

Nominal fV [V]31V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height100mm

ControlDALI, Phase Cut

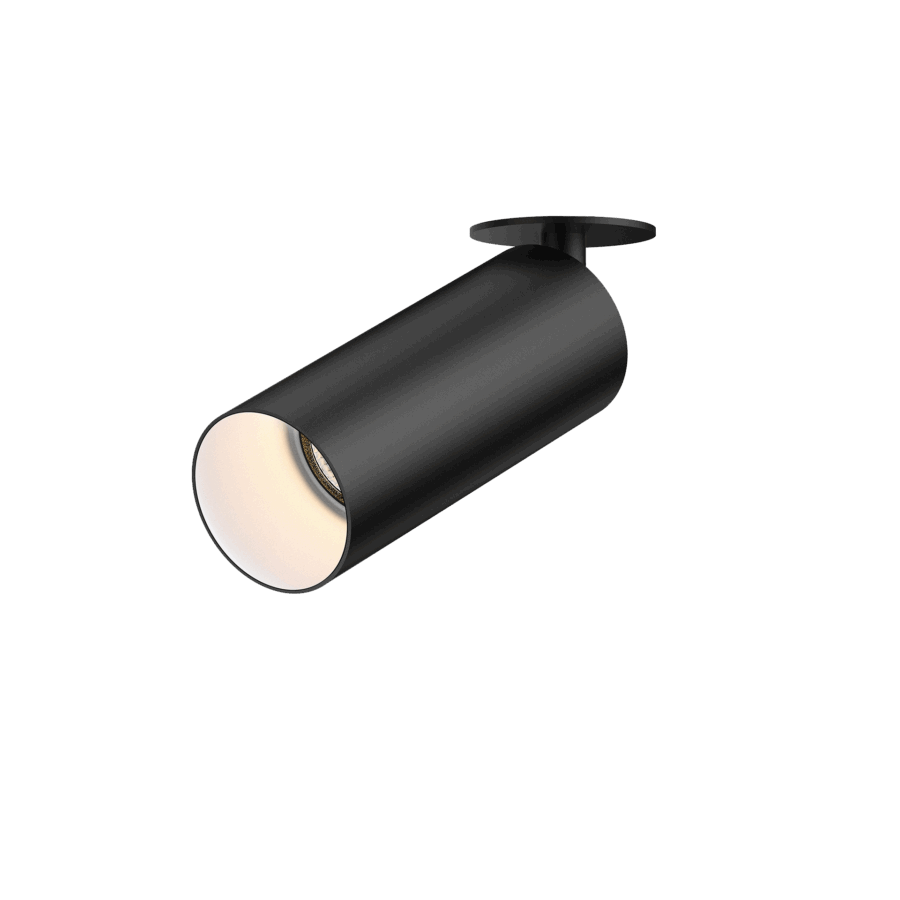

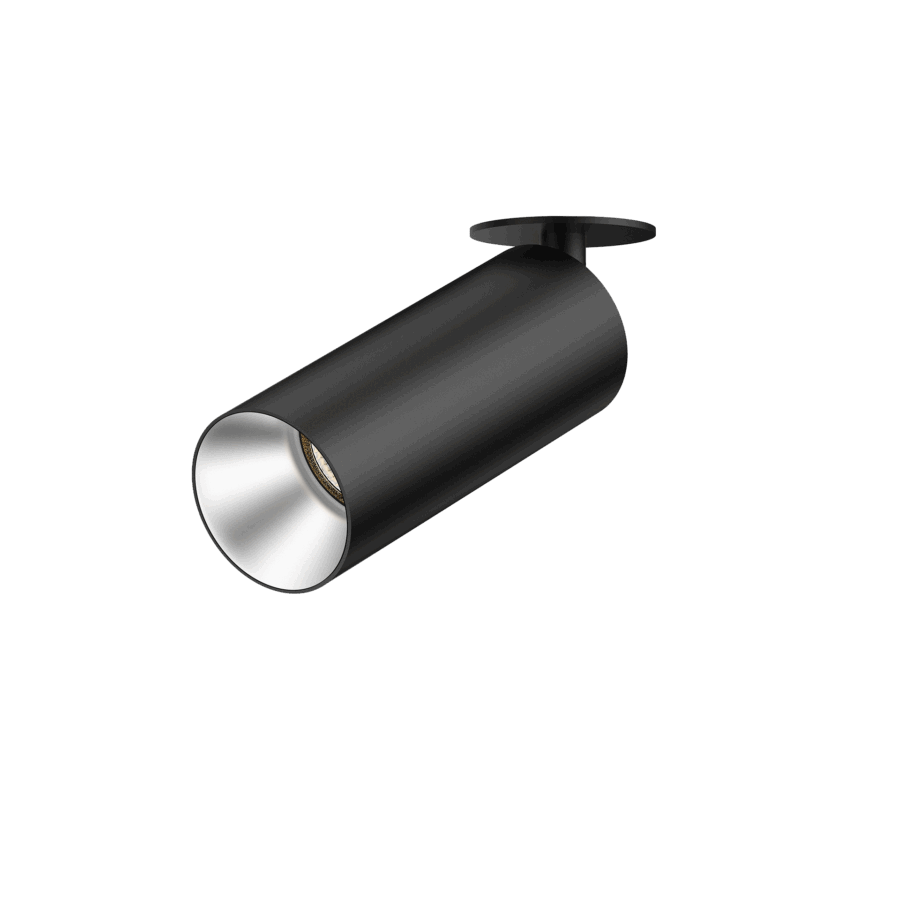

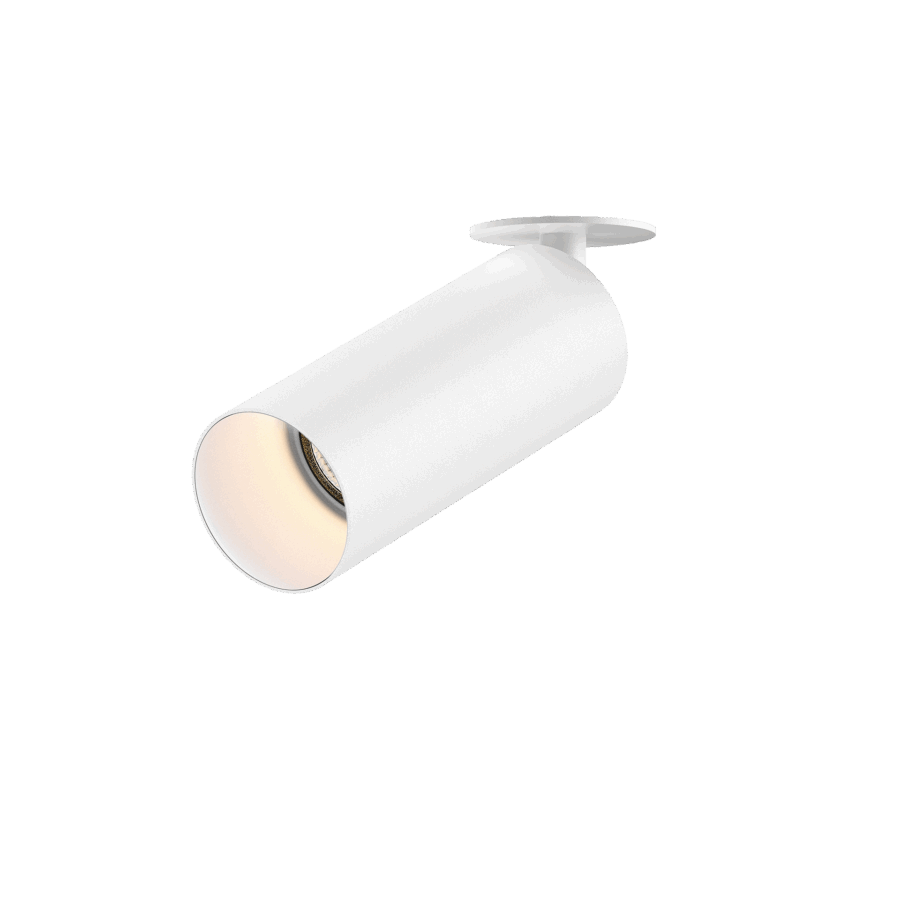

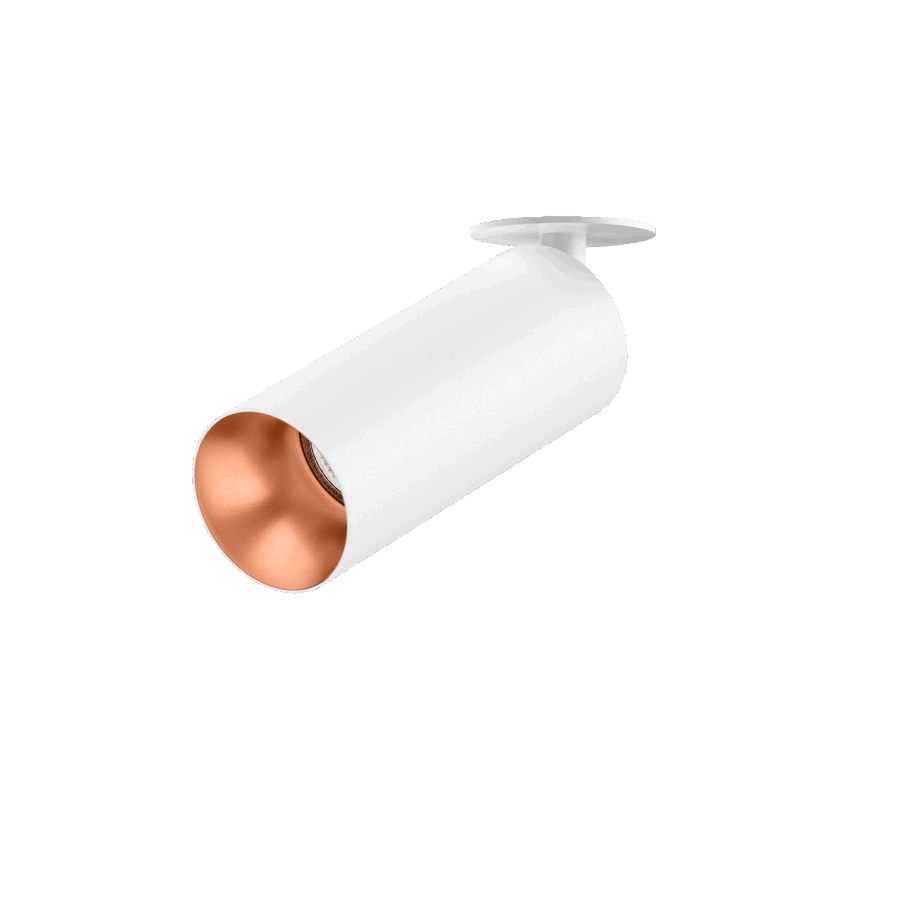

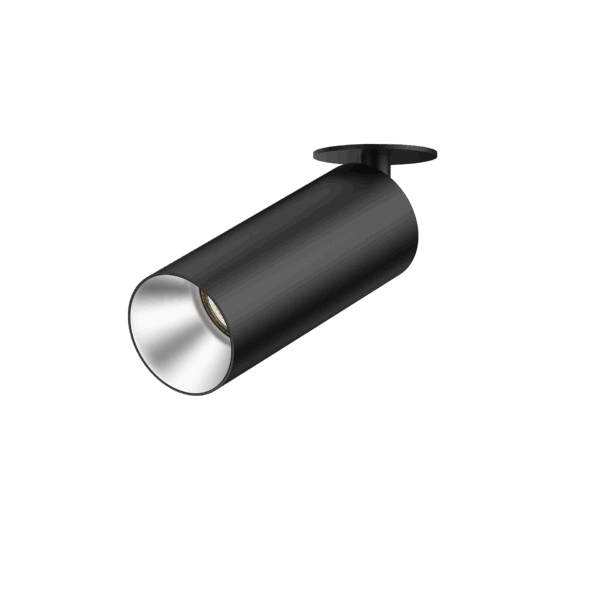

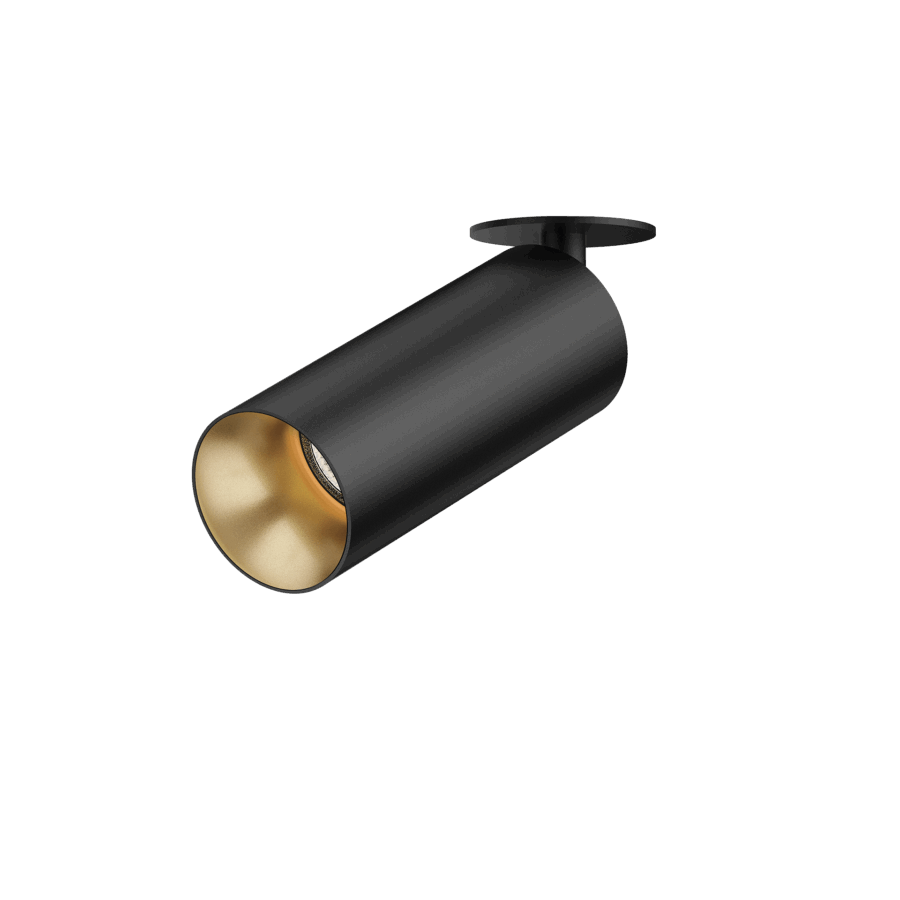

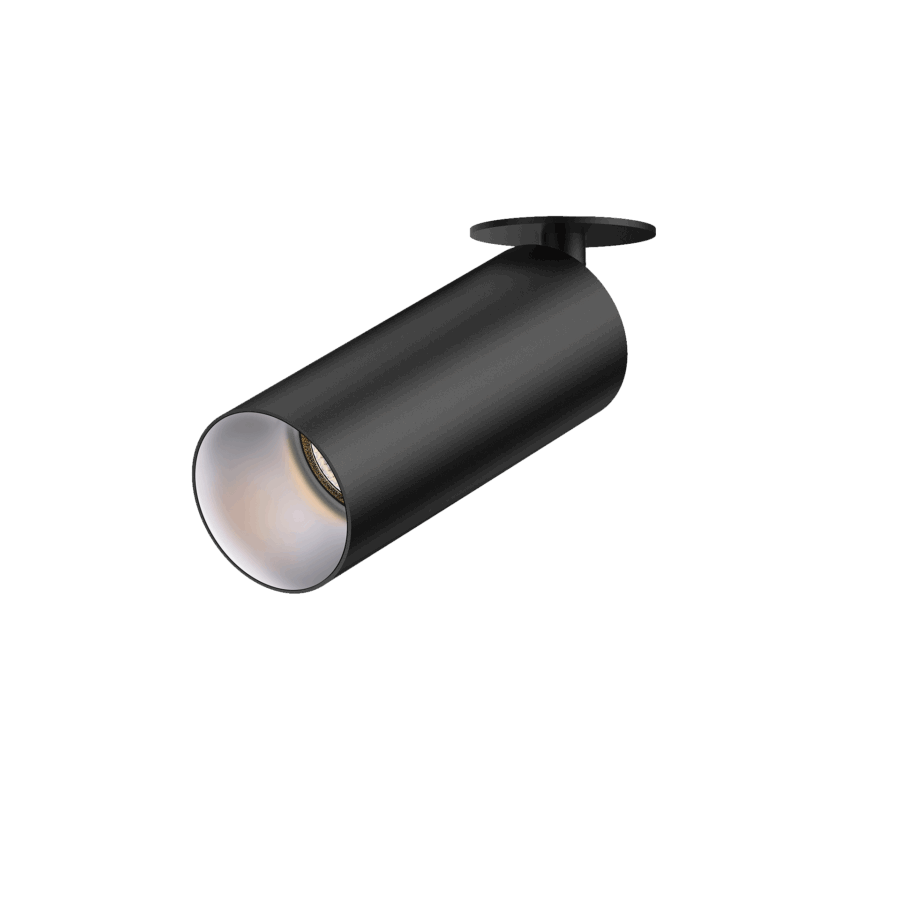

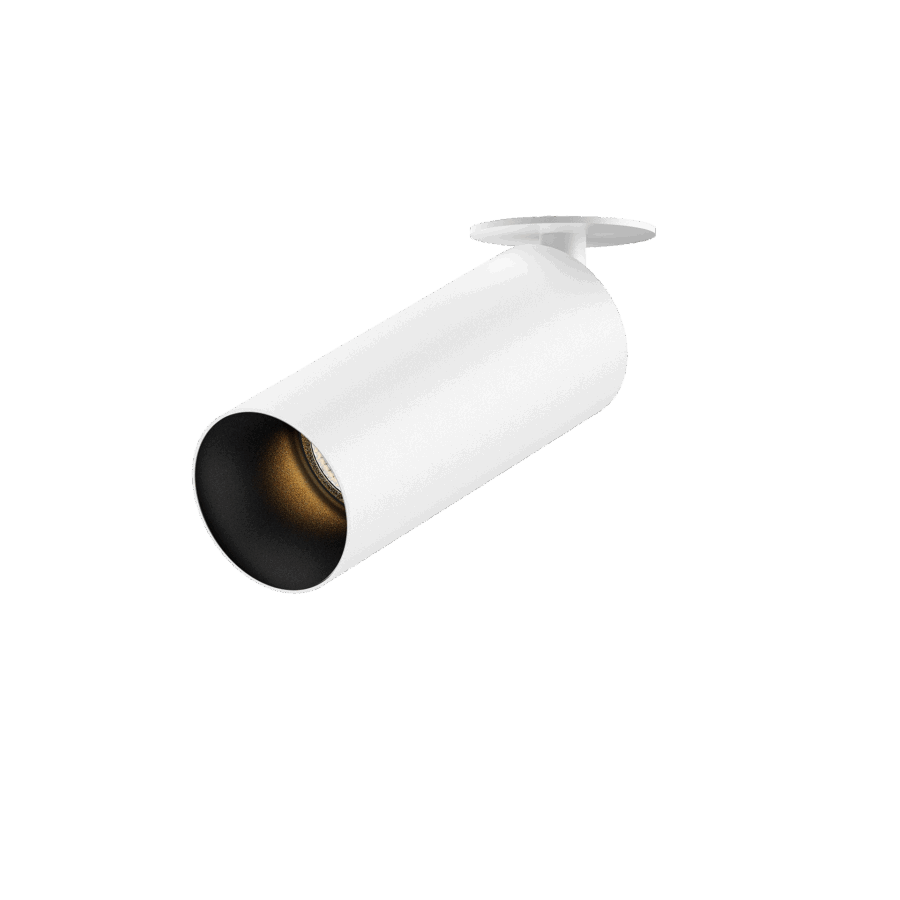

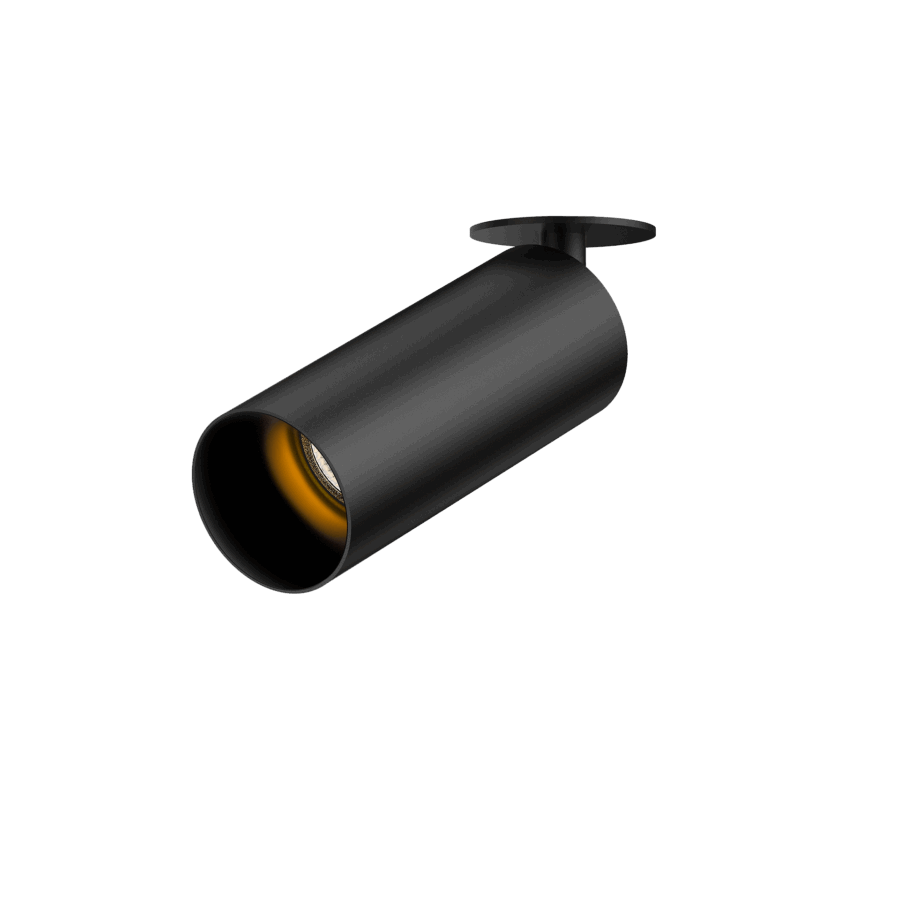

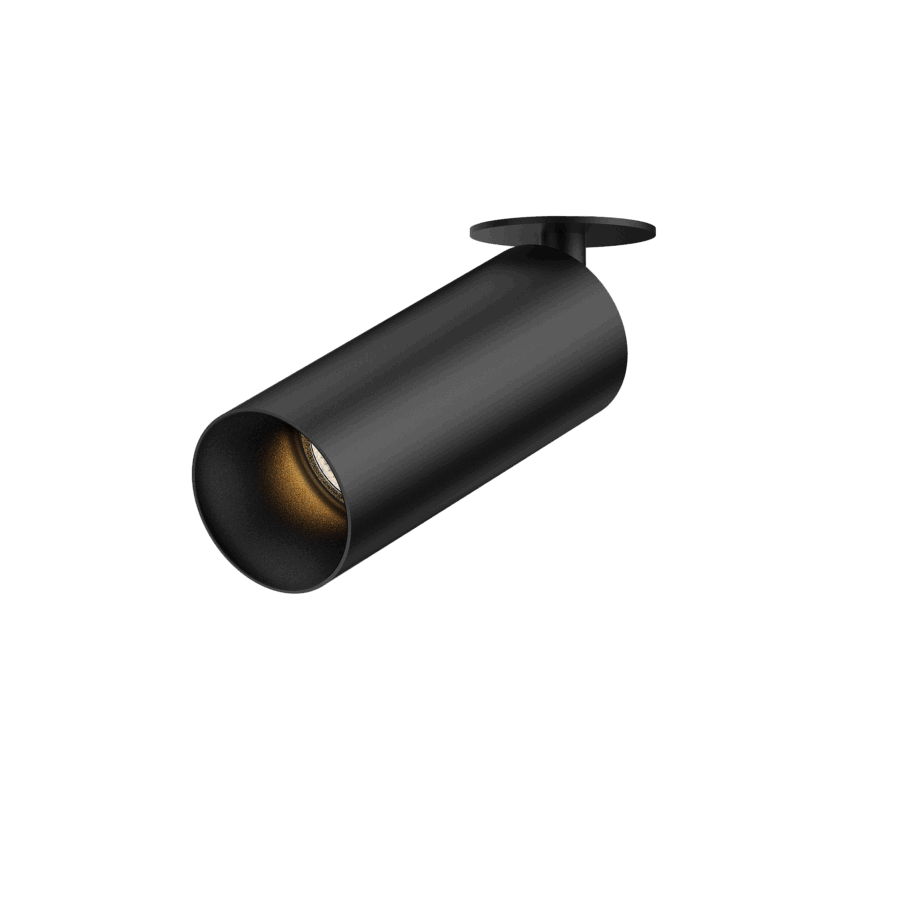

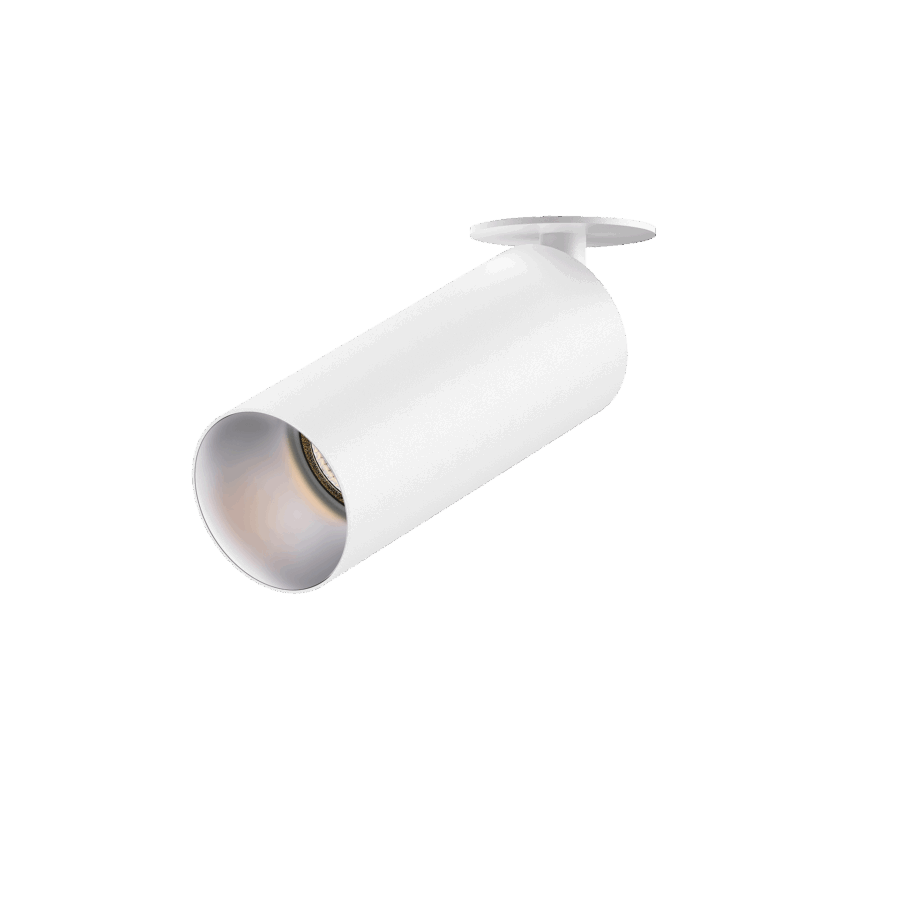

The Karizma Luce Dea Cura XS is a recessed adjustable spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 490- 510 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 34°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.

Products

Dea Cura XS

Datasheets

Related products

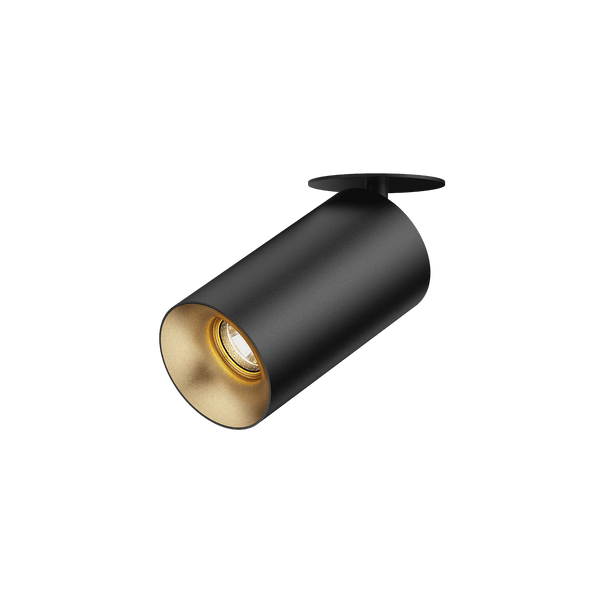

Dea Cura S
