Dea Cura S

Your tiny caretaker.

The Dea Cura S is a small spot. Named after the Roman goddess, whose name means ‘care’. And that is exactly what you can expect: the Dea Cura takes care of any lighting challenge. Charming, clean and small. Ready to brighten up anything you want. From the tiniest detail to a commercial display, Dea Cura handles its task with confidence.

Product sheet

Installation manual

Warranty on quality in years.
Wireless lighting control based on Bluetooth.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
142CW92740SG00	900 lm	2700K	90	40°	White	Silver High Gloss	900-lm	2700k	90	40	white	silver-high-gloss
142CW93040SG00	950 lm	3000K	90	40°	White	Silver High Gloss	950-lm	3000k	90	40	white	silver-high-gloss
142CW94040SG00	960 lm	4000K	90	40°	White	Silver High Gloss	960-lm	4000k	90	40	white	silver-high-gloss
142CW92740BG00	830 lm	2700K	90	40°	White	Black High Gloss	830-lm	2700k	90	40	white	black-high-gloss
142CW93040BG00	860 lm	3000K	90	40°	White	Black High Gloss	860-lm	3000k	90	40	white	black-high-gloss
142CW94040BG00	870 lm	4000K	90	40°	White	Black High Gloss	870-lm	4000k	90	40	white	black-high-gloss
142CW92740WH00	840 lm	2700K	90	40°	White	White	840-lm	2700k	90	40	white	white
142CW93040WH00	880 lm	3000K	90	40°	White	White	880-lm	3000k	90	40	white	white
142CW94040WH00	890 lm	4000K	90	40°	White	White	890-lm	4000k	90	40	white	white
142CW92740CH00	890 lm	2700K	90	40°	White	Chrome	890-lm	2700k	90	40	white	chrome
142CW93040CH00	930 lm	3000K	90	40°	White	Chrome	930-lm	3000k	90	40	white	chrome
142CW94040CH00	940 lm	4000K	90	40°	White	Chrome	940-lm	4000k	90	40	white	chrome
142CW92740GO00	840 lm	2700K	90	40°	White	Gold	840-lm	2700k	90	40	white	gold
142CW93040GO00	880 lm	3000K	90	40°	White	Gold	880-lm	3000k	90	40	white	gold
142CW94040GO00	890 lm	4000K	90	40°	White	Gold	890-lm	4000k	90	40	white	gold
142CW92740CO00	840 lm	2700K	90	40°	White	Copper	840-lm	2700k	90	40	white	copper
142CW93040CO00	880 lm	3000K	90	40°	White	Copper	880-lm	3000k	90	40	white	copper
142CW94040CO00	890 lm	4000K	90	40°	White	Copper	890-lm	4000k	90	40	white	copper
142CW92740BM00	760 lm	2700K	90	40°	White	Black Matt	760-lm	2700k	90	40	white	black-matt
142CW93040BM00	800 lm	3000K	90	40°	White	Black Matt	800-lm	3000k	90	40	white	black-matt
142CW94040BM00	810 lm	4000K	90	40°	White	Black Matt	810-lm	4000k	90	40	white	black-matt
142CB92740SG00	900 lm	2700K	90	40°	Black	Silver High Gloss	900-lm	2700k	90	40	black	silver-high-gloss
142CB93040SG00	950 lm	3000K	90	40°	Black	Silver High Gloss	950-lm	3000k	90	40	black	silver-high-gloss
142CB94040SG00	960 lm	4000K	90	40°	Black	Silver High Gloss	960-lm	4000k	90	40	black	silver-high-gloss
142CB92740BG00	830 lm	2700K	90	40°	Black	Black High Gloss	830-lm	2700k	90	40	black	black-high-gloss
142CB93040BG00	860 lm	3000K	90	40°	Black	Black High Gloss	860-lm	3000k	90	40	black	black-high-gloss
142CB94040BG00	870 lm	4000K	90	40°	Black	Black High Gloss	870-lm	4000k	90	40	black	black-high-gloss
142CB92740WH00	840 lm	2700K	90	40°	Black	White	840-lm	2700k	90	40	black	white
142CB93040WH00	880 lm	3000K	90	40°	Black	White	880-lm	3000k	90	40	black	white
142CB94040WH00	890 lm	4000K	90	40°	Black	White	890-lm	4000k	90	40	black	white
142CB92740CH00	890 lm	2700K	90	40°	Black	Chrome	890-lm	2700k	90	40	black	chrome
142CB93040CH00	930 lm	3000K	90	40°	Black	Chrome	930-lm	3000k	90	40	black	chrome
142CB94040CH00	940 lm	4000K	90	40°	Black	Chrome	940-lm	4000k	90	40	black	chrome
142CB93040GO00	880 lm	3000K	90	40°	Black	Gold	880-lm	3000k	90	40	black	gold
142CB94040GO00	890 lm	4000K	90	40°	Black	Gold	890-lm	4000k	90	40	black	gold
142CB92740GO00	840 lm	2700K	90	40°	Black	Gold	840-lm	2700k	90	40	black	gold
142CB93040CO00	880 lm	3000K	90	40°	Black	Copper	880-lm	3000k	90	40	black	copper
142CB94040CO00	890 lm	4000K	90	40°	Black	Copper	890-lm	4000k	90	40	black	copper
142CB92740CO00	840 lm	2700K	90	40°	Black	Copper	840-lm	2700k	90	40	black	copper
142CB92740BM00	760 lm	2700K	90	40°	Black	Black Matt	760-lm	2700k	90	40	black	black-matt
142CB93040BM00	800 lm	3000K	90	40°	Black	Black Matt	800-lm	3000k	90	40	black	black-matt
142CB94040BM00	810 lm	4000K	90	40°	Black	Black Matt	810-lm	4000k	90	40	black	black-matt

Click on specification values for related products.

Luminous Flux760 lm, 800 lm, 810 lm, 830 lm, 840 lm, 860 lm, 870 lm, 880 lm, 890 lm, 900 lm, 930 lm, 940 lm, 950 lm, 960 lm

CRI90

CCT2700K, 3000K, 4000K

LED power8.5W

System power10.5W

System efficiency85.5lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle40°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0.4 kg

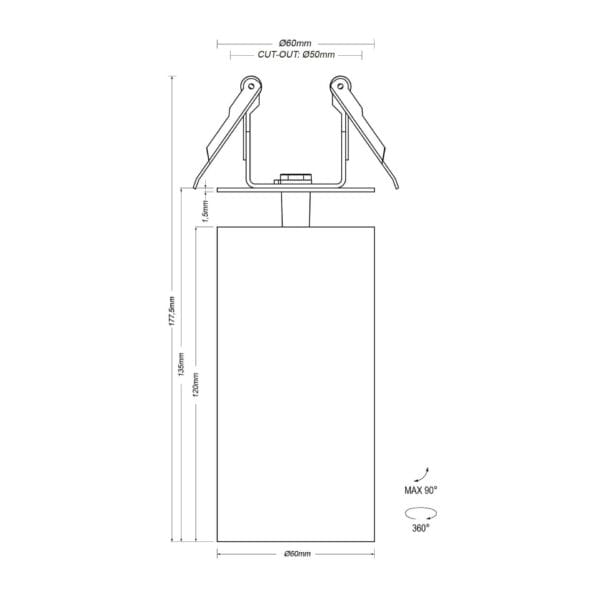

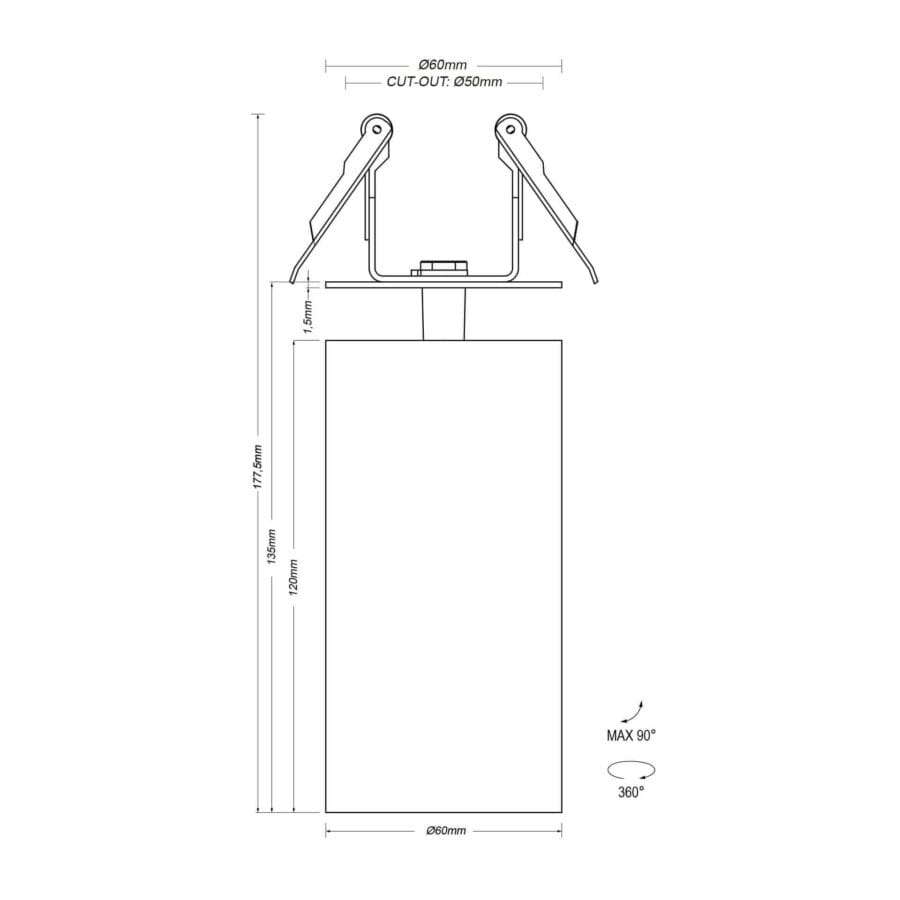

Cut out dimensionØ50mm

Luminaire dimensionØ60mm

Nominal fA [mA]250mA

Nominal fV [V]34V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height100mm

ControlCasambi, DALI, Phase Cut

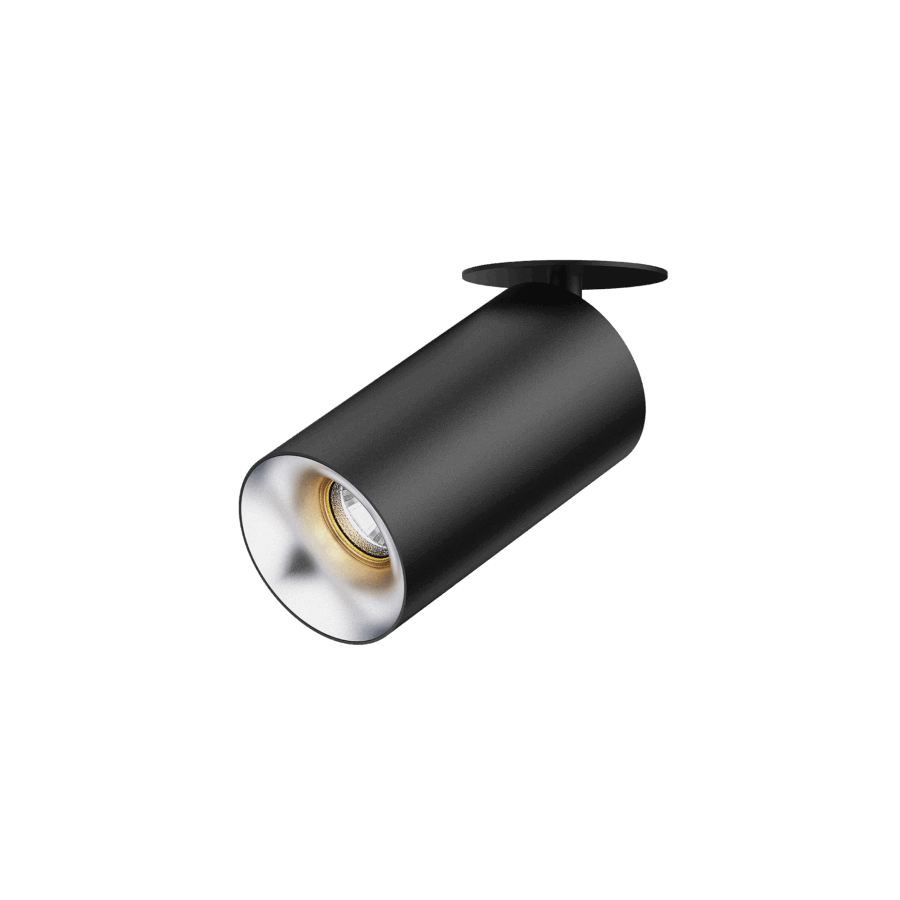

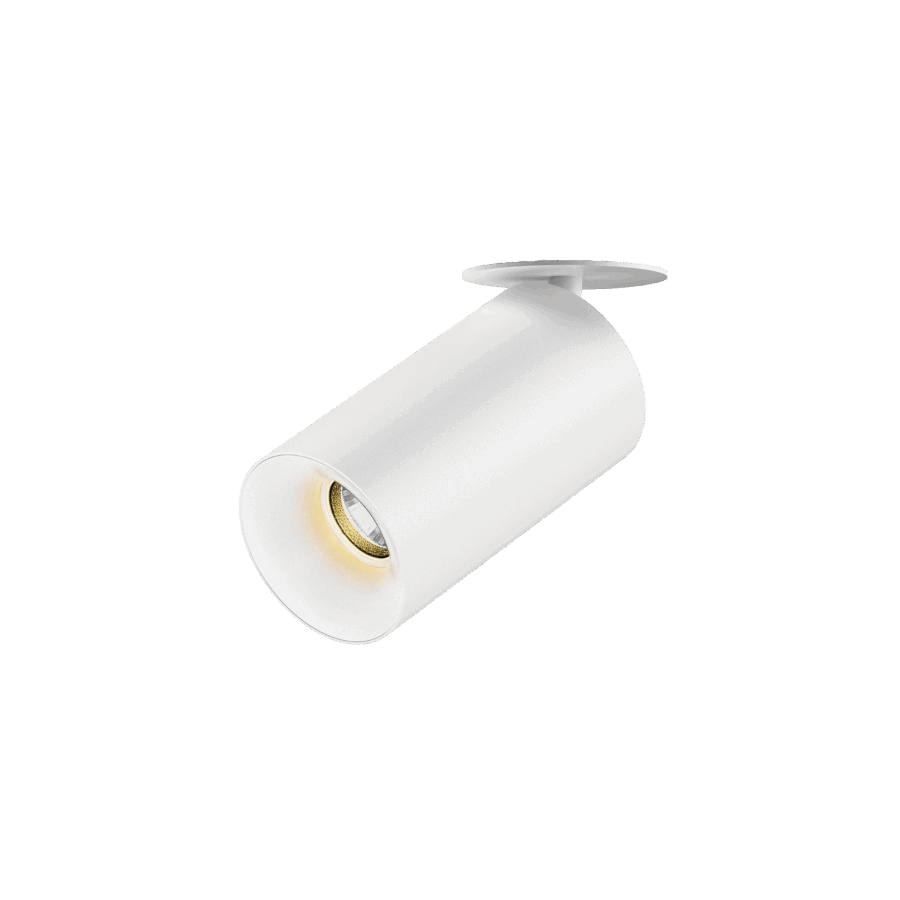

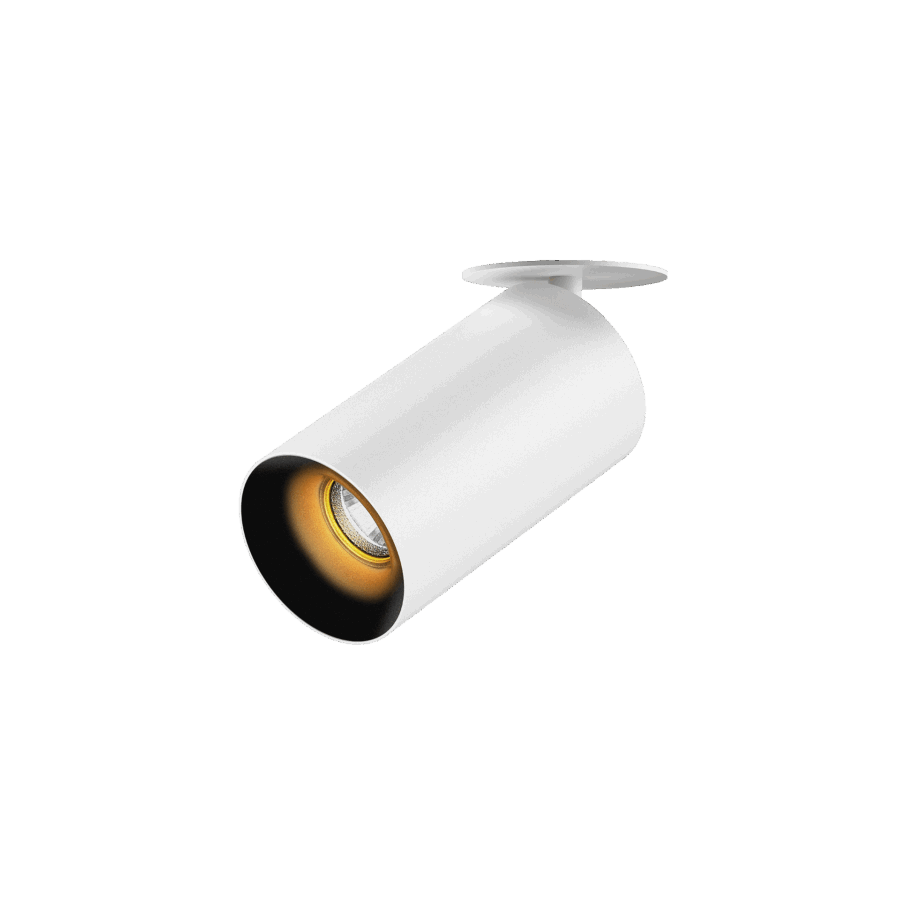

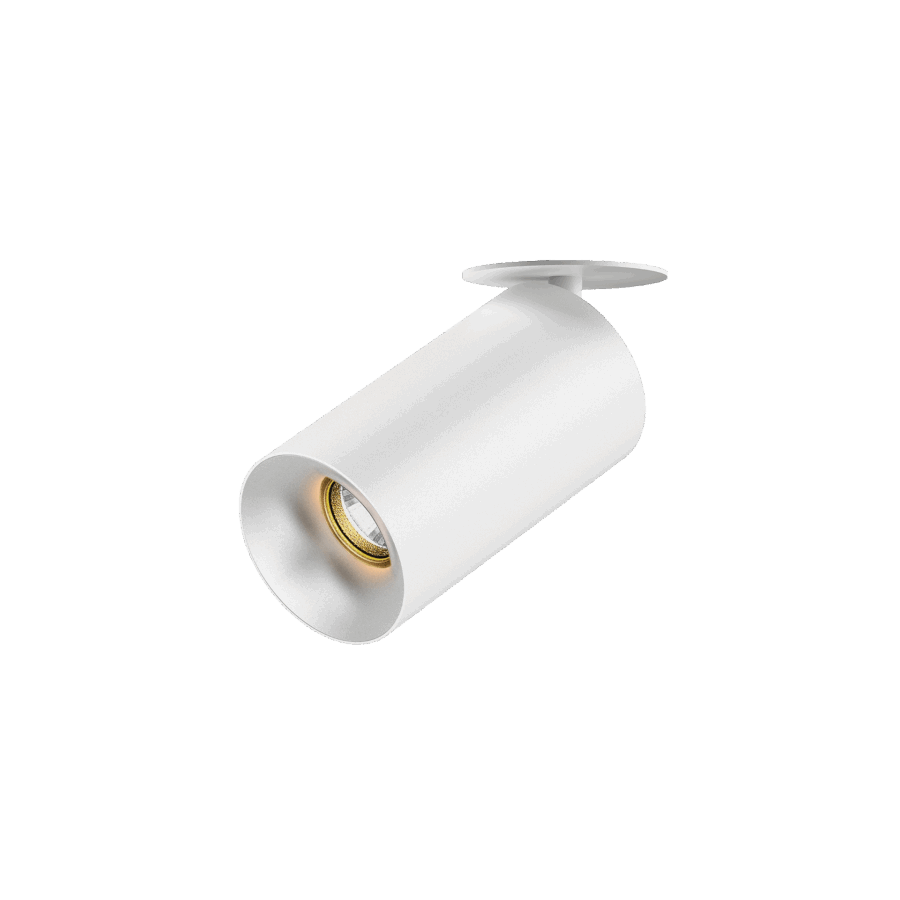

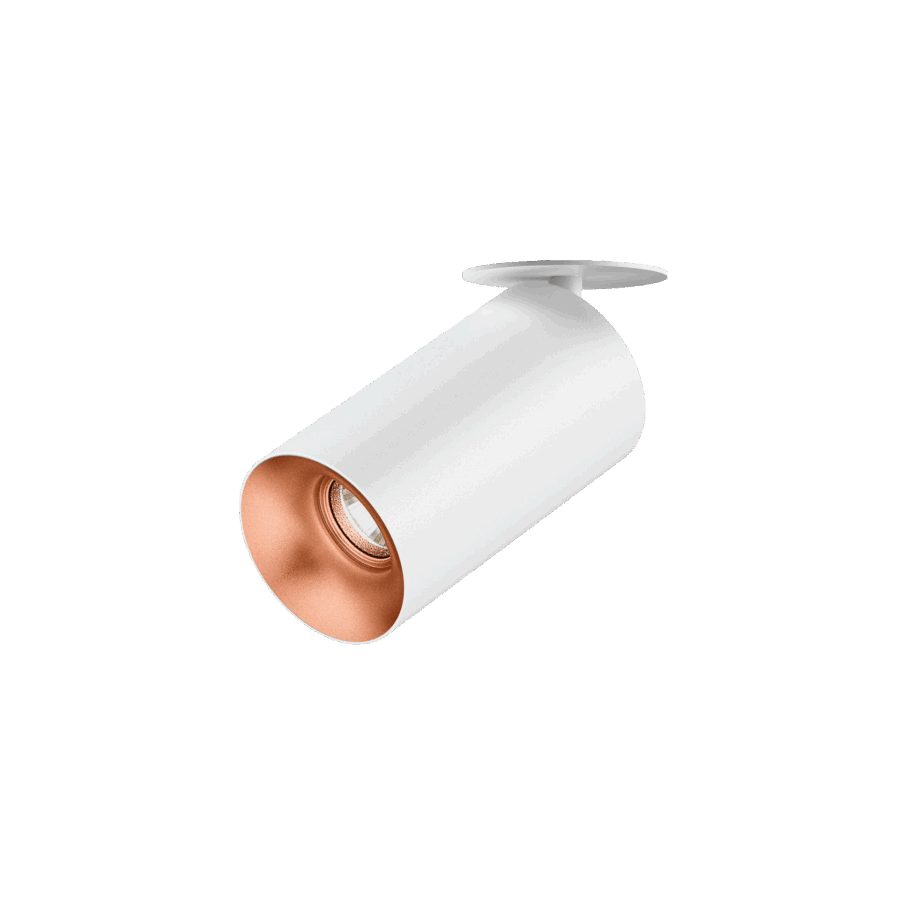

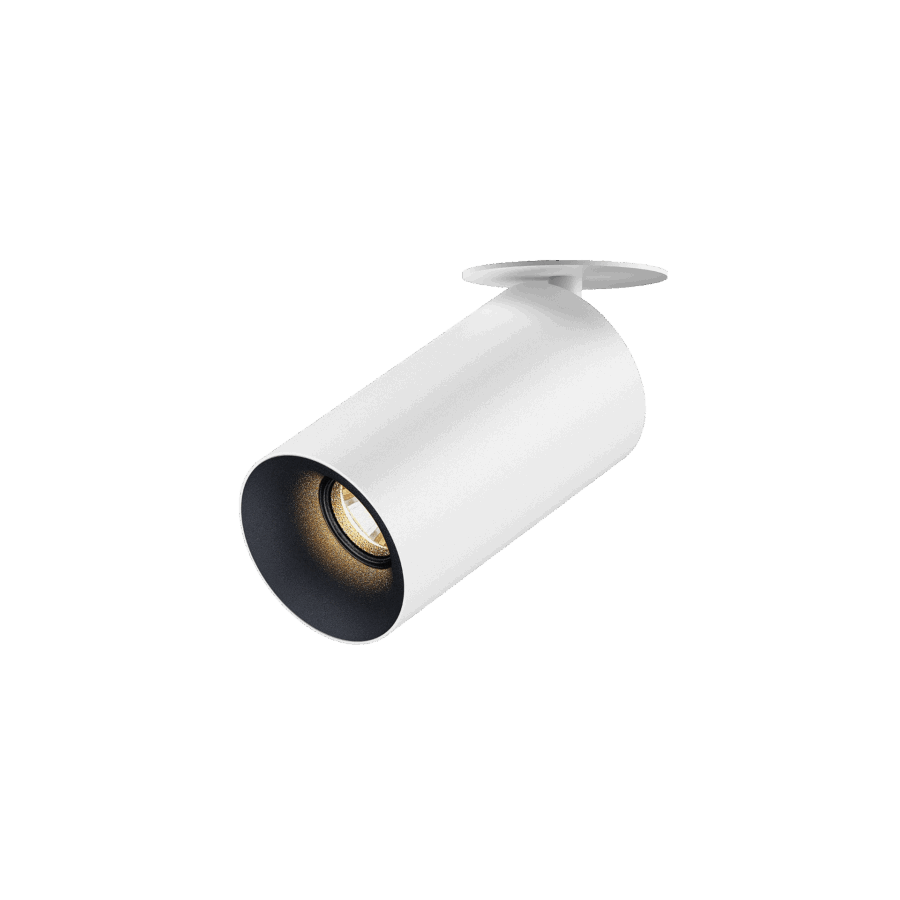

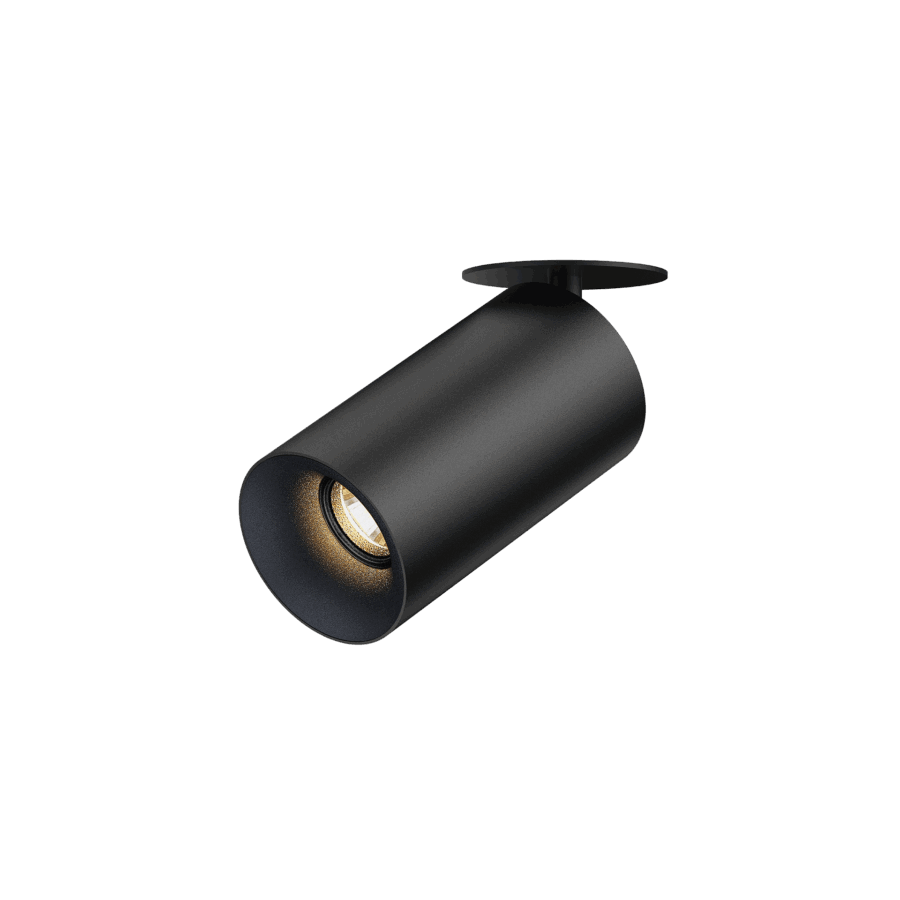

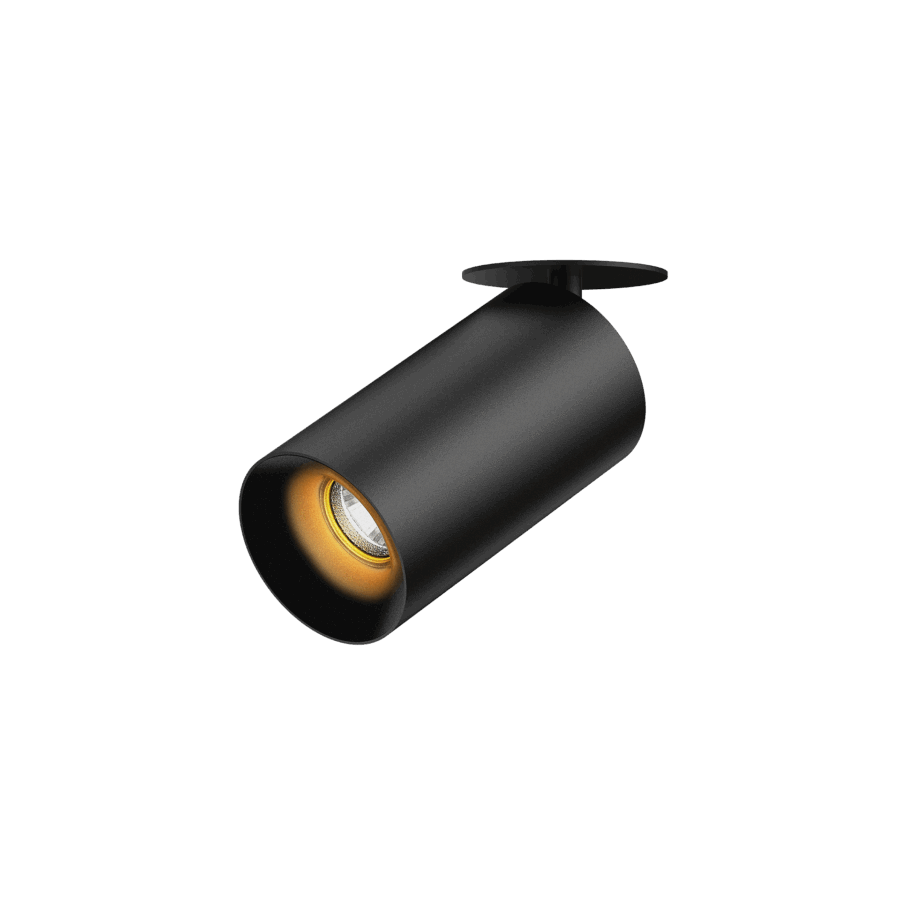

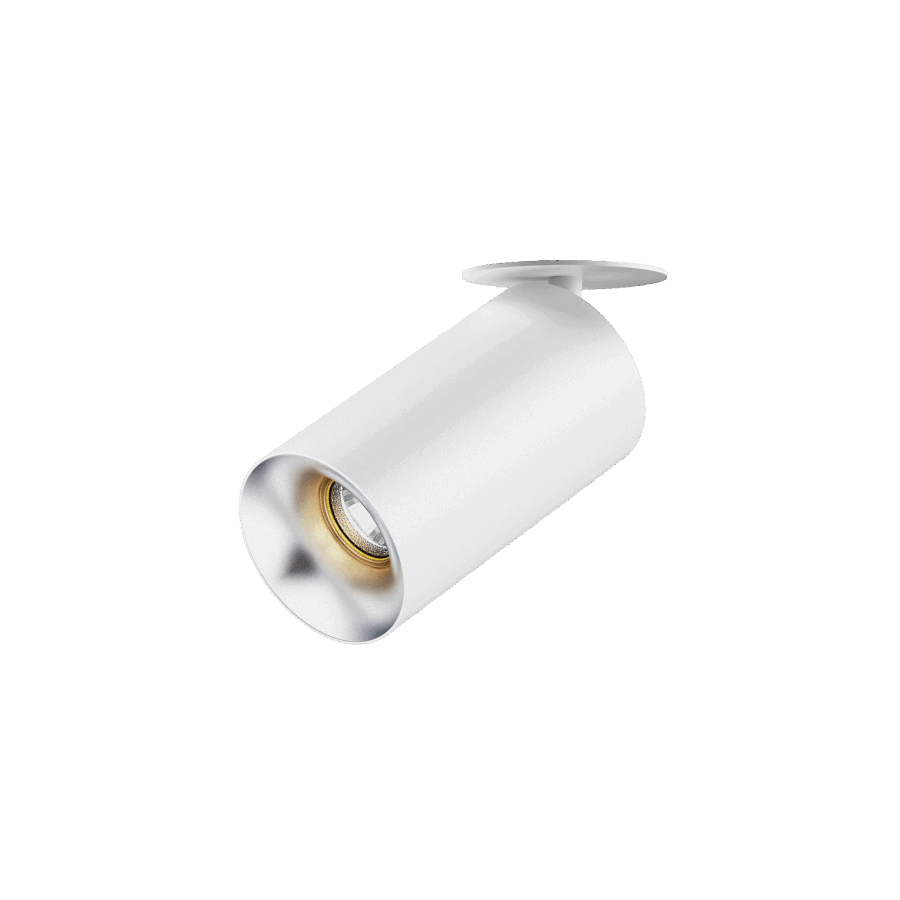

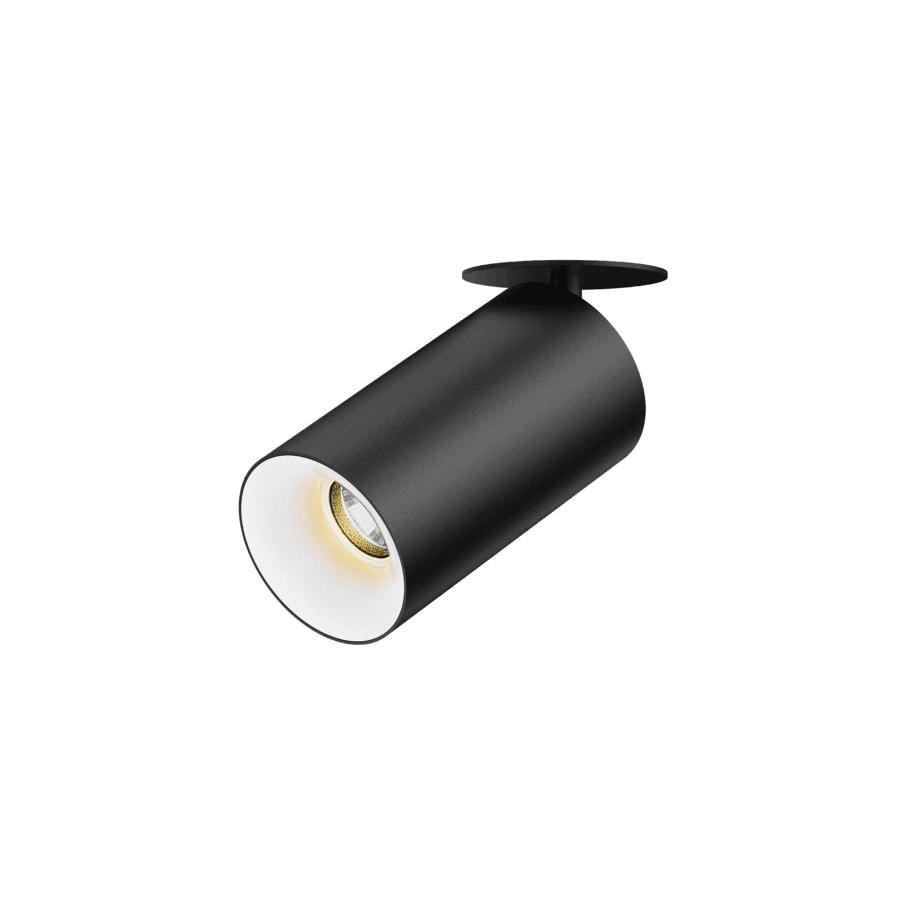

The Karizma Luce Dea Cura S is a recessed adjustable spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 760- 960 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
