Dea Charon XS

Subtle elegance.

The Dea Charon is named after the Roman goddess Charon, who protects and keeps healthy. It can play a vital role in your lighting plan. Available in black and white, and with numerous colour options for the reflector. Choose from various applications and extensive package of dimming options and brings any interior to a higher level.

Product sheet

Installation manual

LDT files

Warranty on quality in years.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

Datasheets

Download, print and share all the extended technical specifications of your luminaire.

Sku	Luminous Flux	CCT	CRI	Beam angle	Luminaire color	Reflector color	hf:att:pa_luminous-flux	hf:att:pa_cct	hf:att:pa_cri	hf:att:pa_beam-angle	hf:att:pa_luminaire-color	hf:att:pa_reflector-color
136CW92734SG00	490 lm	2700K	90	34°	White	Silver High Gloss	490-lm	2700k	90	34	white	silver-high-gloss
136CW93034SG00	500 lm	3000K	90	34°	White	Silver High Gloss	500-lm	3000k	90	34	white	silver-high-gloss
136CW94034SG00	510 lm	4000K	90	34°	White	Silver High Gloss	510-lm	4000k	90	34	white	silver-high-gloss
136CW92734BG00	490 lm	2700K	90	34°	White	Black High Gloss	490-lm	2700k	90	34	white	black-high-gloss
136CW93034BG00	500 lm	3000K	90	34°	White	Black High Gloss	500-lm	3000k	90	34	white	black-high-gloss
136CW94034BG00	510 lm	4000K	90	34°	White	Black High Gloss	510-lm	4000k	90	34	white	black-high-gloss
136CW92734WH00	490 lm	2700K	90	34°	White	White	490-lm	2700k	90	34	white	white
136CW93034WH00	500 lm	3000K	90	34°	White	White	500-lm	3000k	90	34	white	white
136CW94034WH00	510 lm	4000K	90	34°	White	White	510-lm	4000k	90	34	white	white
136CW92734CH00	490 lm	2700K	90	34°	White	Chrome	490-lm	2700k	90	34	white	chrome
136CW93034CH00	500 lm	3000K	90	34°	White	Chrome	500-lm	3000k	90	34	white	chrome
136CW94034CH00	510 lm	4000K	90	34°	White	Chrome	510-lm	4000k	90	34	white	chrome
136CW92734GO00	490 lm	2700K	90	34°	White	Gold	490-lm	2700k	90	34	white	gold
136CW93034GO00	500 lm	3000K	90	34°	White	Gold	500-lm	3000k	90	34	white	gold
136CW94034GO00	510 lm	4000K	90	34°	White	Gold	510-lm	4000k	90	34	white	gold
136CW92734BM00	490 lm	2700K	90	34°	White	Black Matt	490-lm	2700k	90	34	white	black-matt
136CW93034BM00	500 lm	3000K	90	34°	White	Black Matt	500-lm	3000k	90	34	white	black-matt
136CW94034BM00	510 lm	4000K	90	34°	White	Black Matt	510-lm	4000k	90	34	white	black-matt
136CB92734SG00	490 lm	2700K	90	34°	Black	Silver High Gloss	490-lm	2700k	90	34	black	silver-high-gloss
136CB93034SG00	500 lm	3000K	90	34°	Black	Silver High Gloss	500-lm	3000k	90	34	black	silver-high-gloss
136CB94034SG00	510 lm	4000K	90	34°	Black	Silver High Gloss	510-lm	4000k	90	34	black	silver-high-gloss
136CB92734BG00	490 lm	2700K	90	34°	Black	Black High Gloss	490-lm	2700k	90	34	black	black-high-gloss
136CB93034BG00	500 lm	3000K	90	34°	Black	Black High Gloss	500-lm	3000k	90	34	black	black-high-gloss
136CB94034BG00	510 lm	4000K	90	34°	Black	Black High Gloss	510-lm	4000k	90	34	black	black-high-gloss
136CB92734WH00	490 lm	2700K	90	34°	Black	White	490-lm	2700k	90	34	black	white
136CB93034WH00	500 lm	3000K	90	34°	Black	White	500-lm	3000k	90	34	black	white
136CB94034WH00	510 lm	4000K	90	34°	Black	White	510-lm	4000k	90	34	black	white
136CB92734CH00	490 lm	2700K	90	34°	Black	Chrome	490-lm	2700k	90	34	black	chrome
136CB93034CH00	500 lm	3000K	90	34°	Black	Chrome	500-lm	3000k	90	34	black	chrome
136CB94034CH00	510 lm	4000K	90	34°	Black	Chrome	510-lm	4000k	90	34	black	chrome
136CB92734GO00	490 lm	2700K	90	34°	Black	Gold	490-lm	2700k	90	34	black	gold
136CB93034GO00	500 lm	3000K	90	34°	Black	Gold	500-lm	3000k	90	34	black	gold
136CB94034GO00	510 lm	4000K	90	34°	Black	Gold	510-lm	4000k	90	34	black	gold
136CB92734BM00	490 lm	2700K	90	34°	Black	Black Matt	490-lm	2700k	90	34	black	black-matt
136CB93034BM00	500 lm	3000K	90	34°	Black	Black Matt	500-lm	3000k	90	34	black	black-matt
136CB94034BM00	510 lm	4000K	90	34°	Black	Black Matt	510-lm	4000k	90	34	black	black-matt
136CW92734CO00	490 lm	2700K	90	34°	White	Copper	490-lm	2700k	90	34	white	copper
136CW93034CO00	500 lm	3000K	90	34°	White	Copper	500-lm	3000k	90	34	white	copper
136CW94034CO00	510 lm	4000K	90	34°	White	Copper	510-lm	4000k	90	34	white	copper
136CB92734CO00	490 lm	2700K	90	34°	Black	Copper	490-lm	2700k	90	34	black	copper
136CB93034CO00	500 lm	3000K	90	34°	Black	Copper	500-lm	3000k	90	34	black	copper
136CB94034CO00	510 lm	4000K	90	34°	Black	Copper	510-lm	4000k	90	34	black	copper

Click on specification values for related products.

Luminous Flux490 lm, 500 lm, 510 lm

CRI90

CCT2700K, 3000K, 4000K

LED power6.2W

System power7W

System efficiency70lm/W, 73lm/W

Chromaticity tolerance3 MacAdam

OpticReflector

Beam angle34°

Luminaire colorBlack, White

Reflector colorBlack High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

IP ratingIP20

Net. Weight0,4 kg

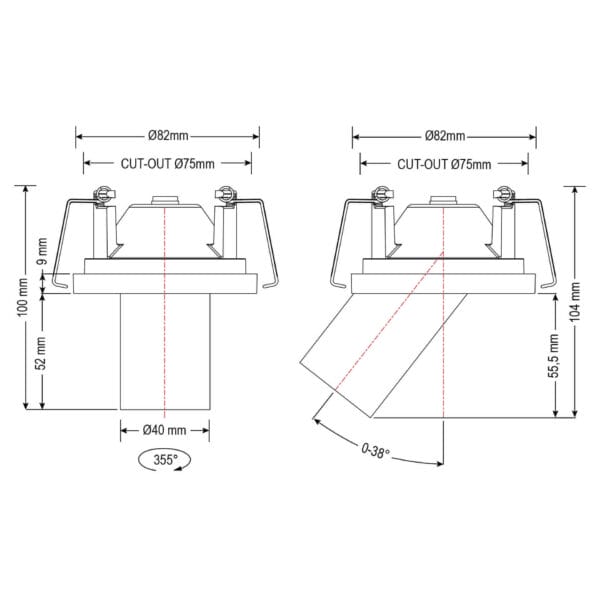

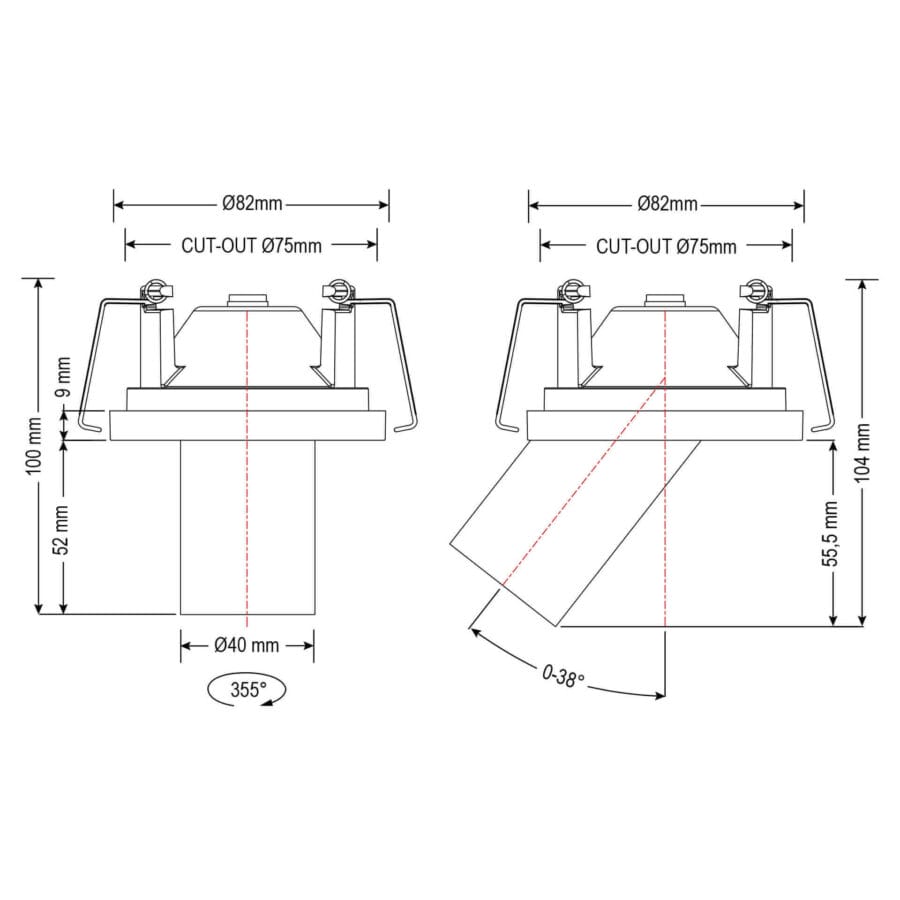

Cut out dimensionØ75mm

Luminaire dimensionØ40mm

Nominal fA [mA]200mA

Nominal fV [V]31V

Power supplySeparate Available

Mains VoltageN/A

El. ClassClass II

Housing materialAluminum Die Cast

Lifetime50000h

Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)

Warranty5Y

CollectionDea Della Luce

Built-in height100mm

ControlDALI, Phase Cut

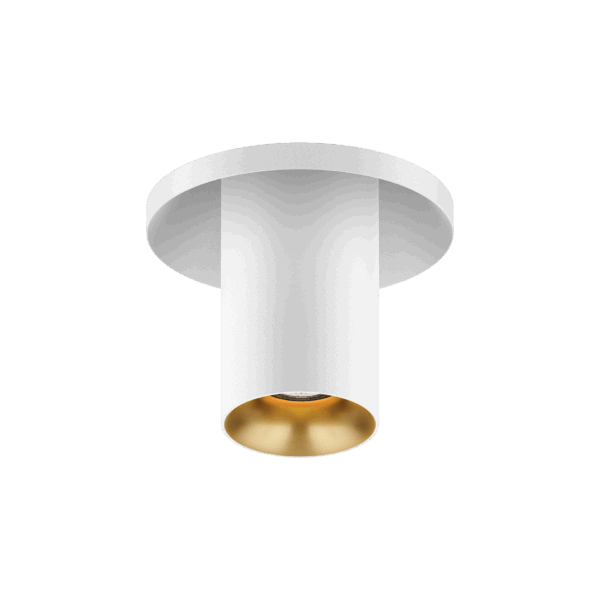

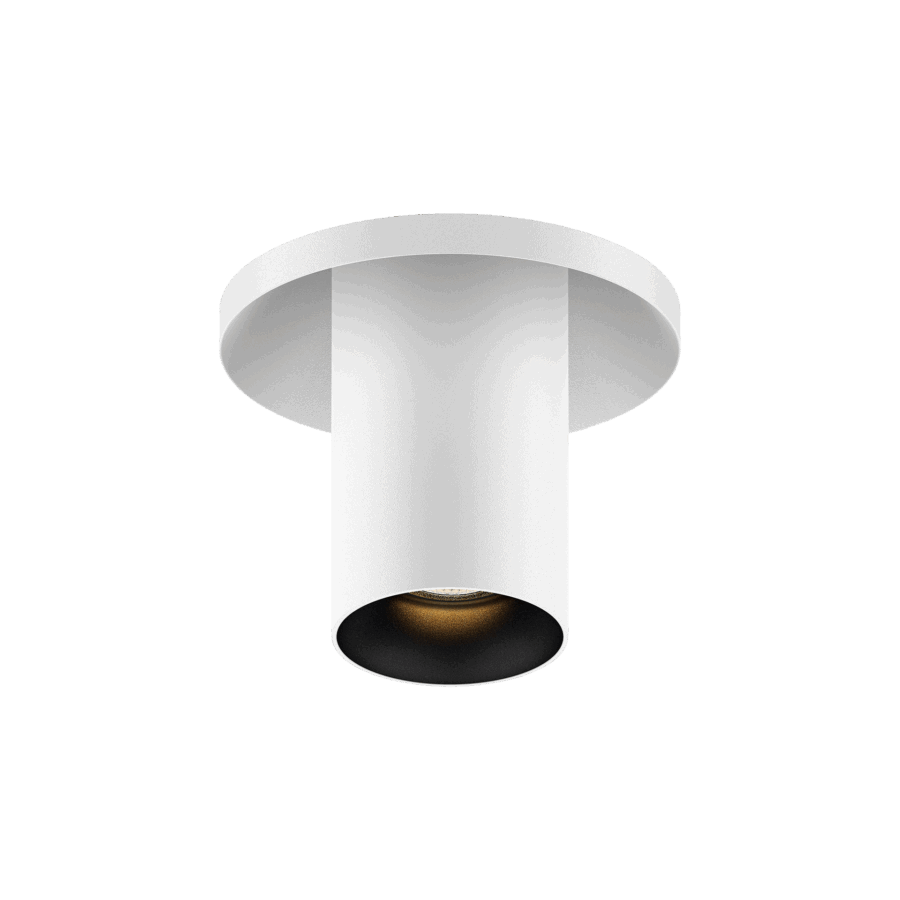

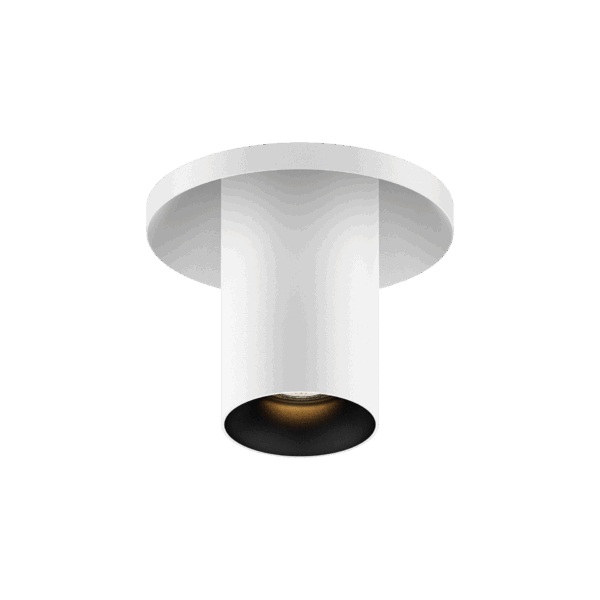

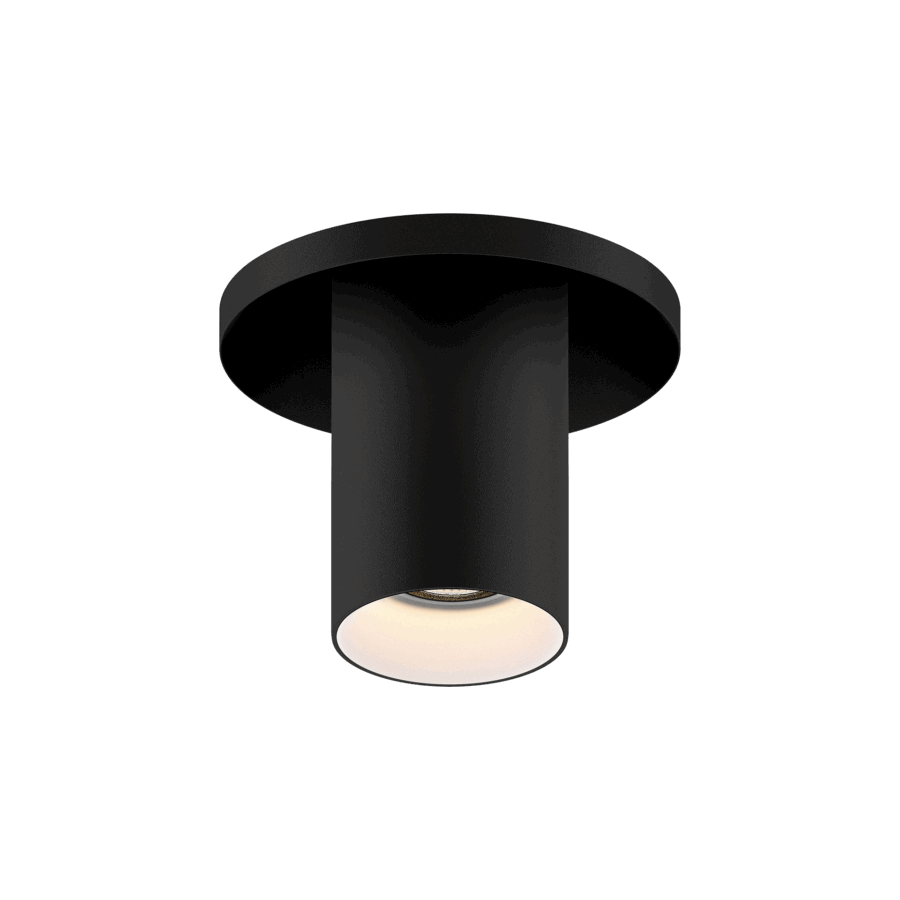

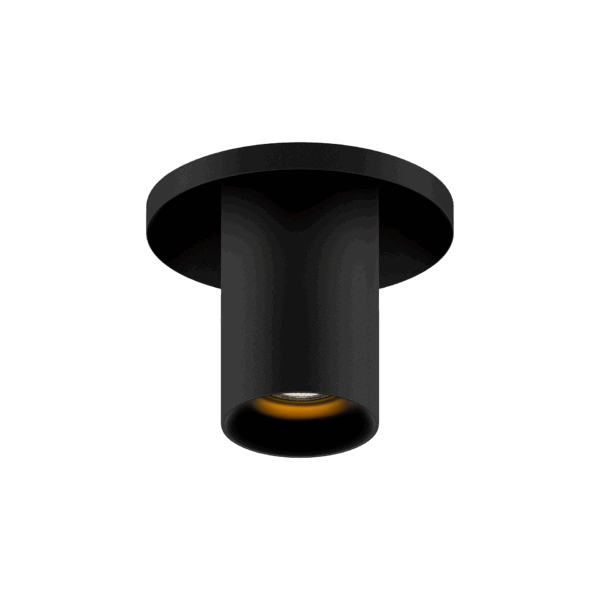

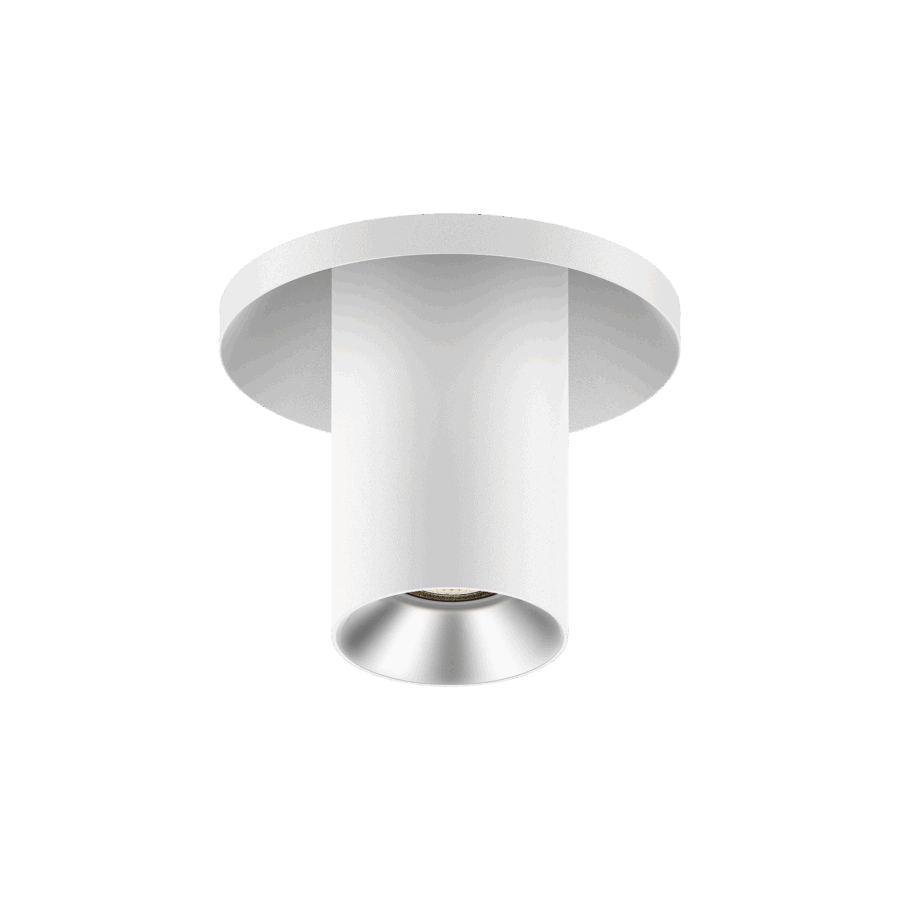

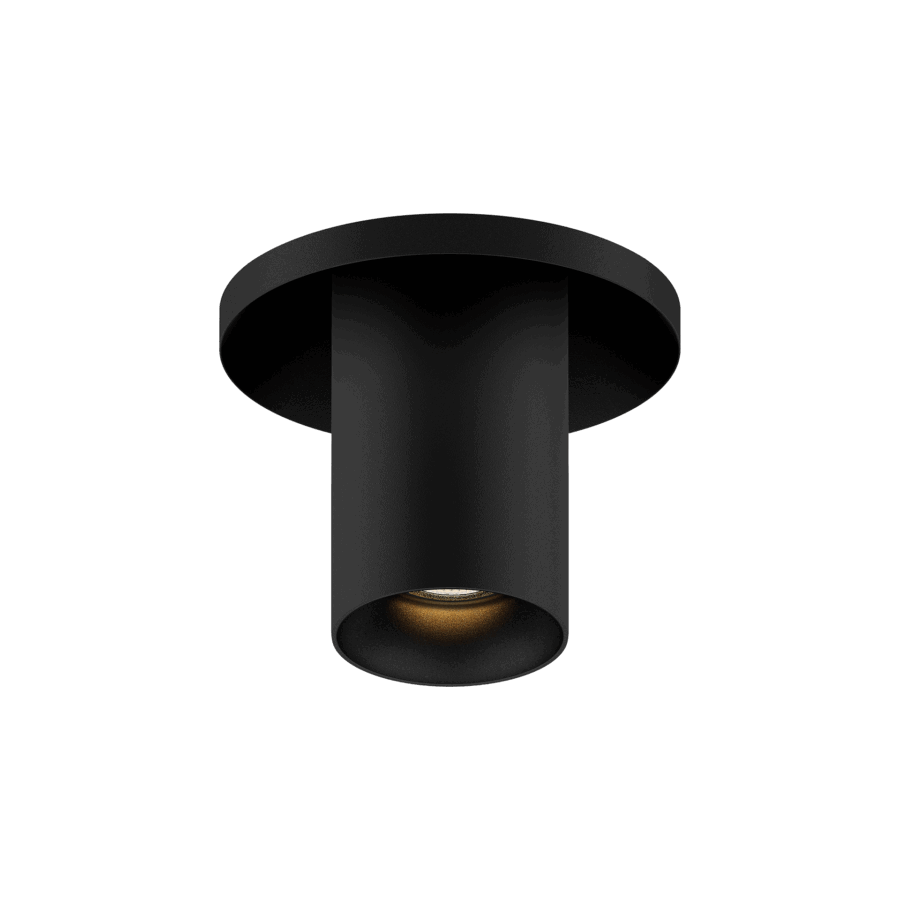

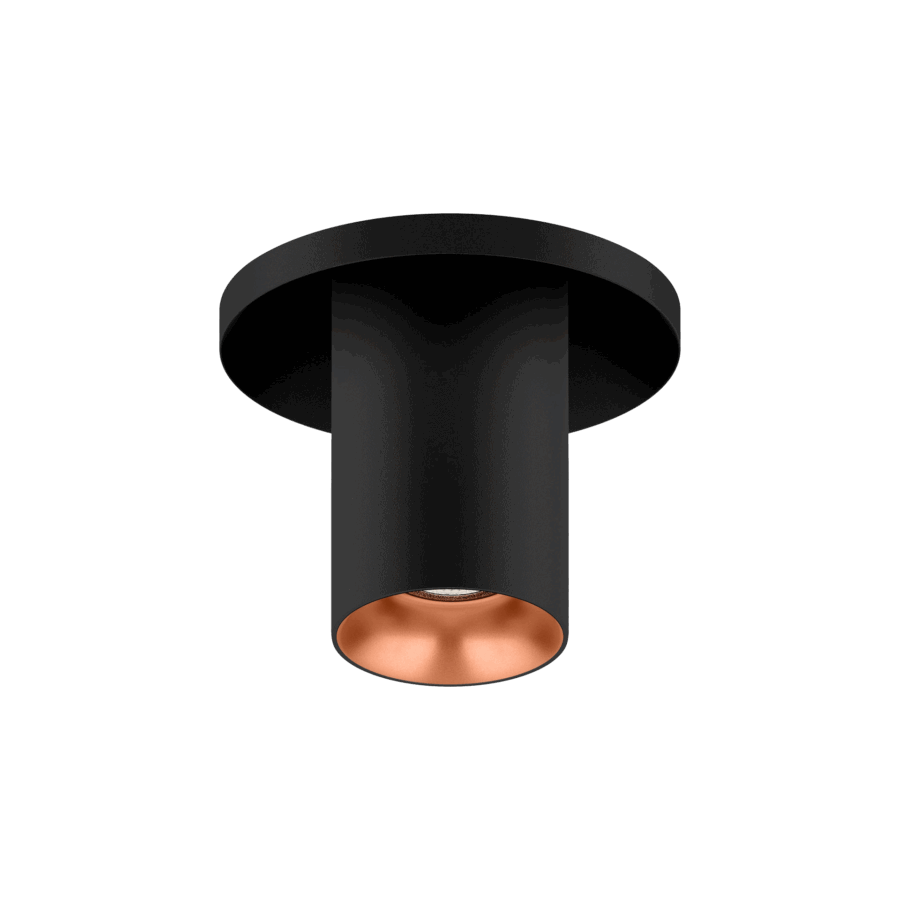

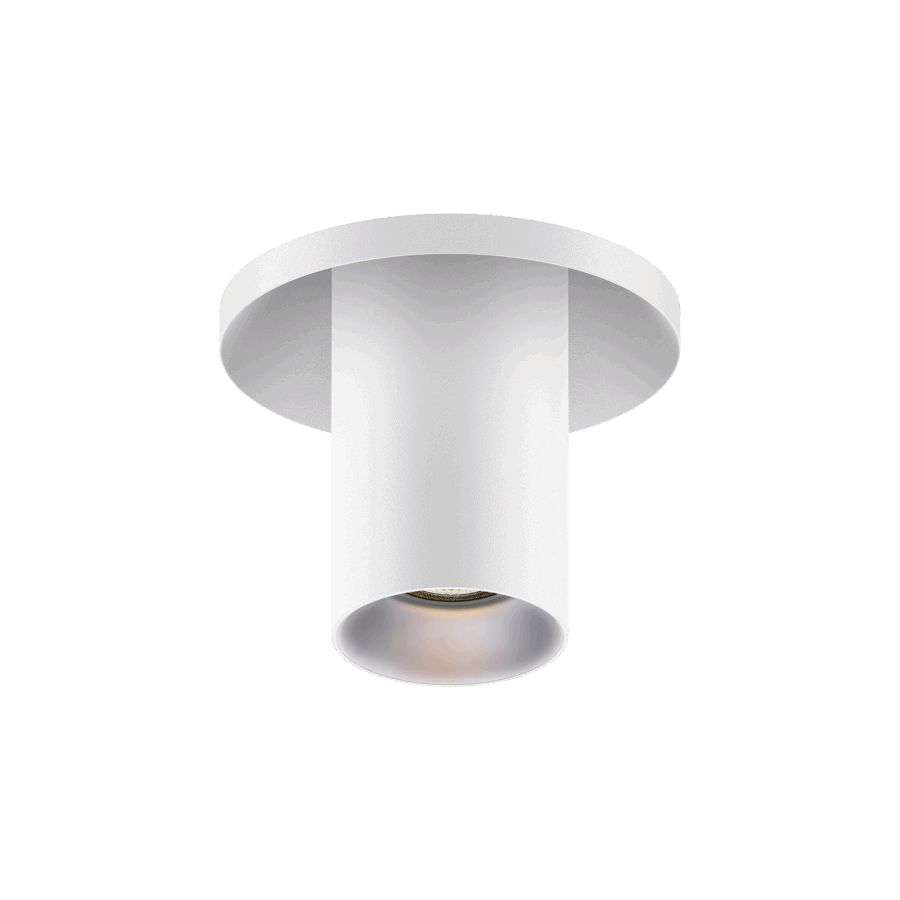

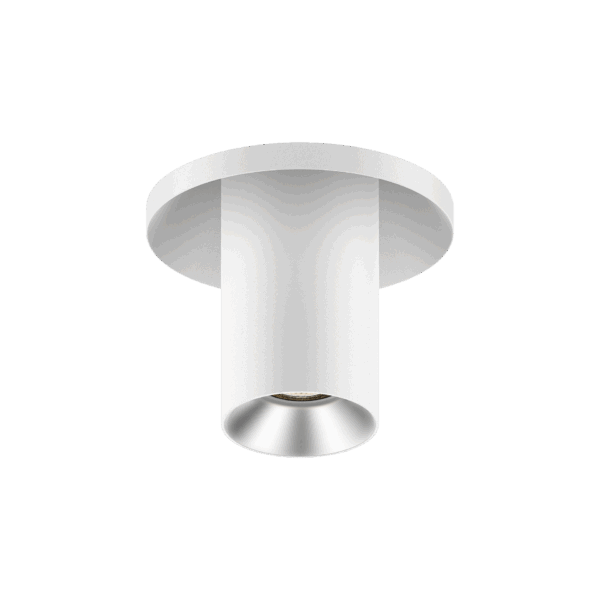

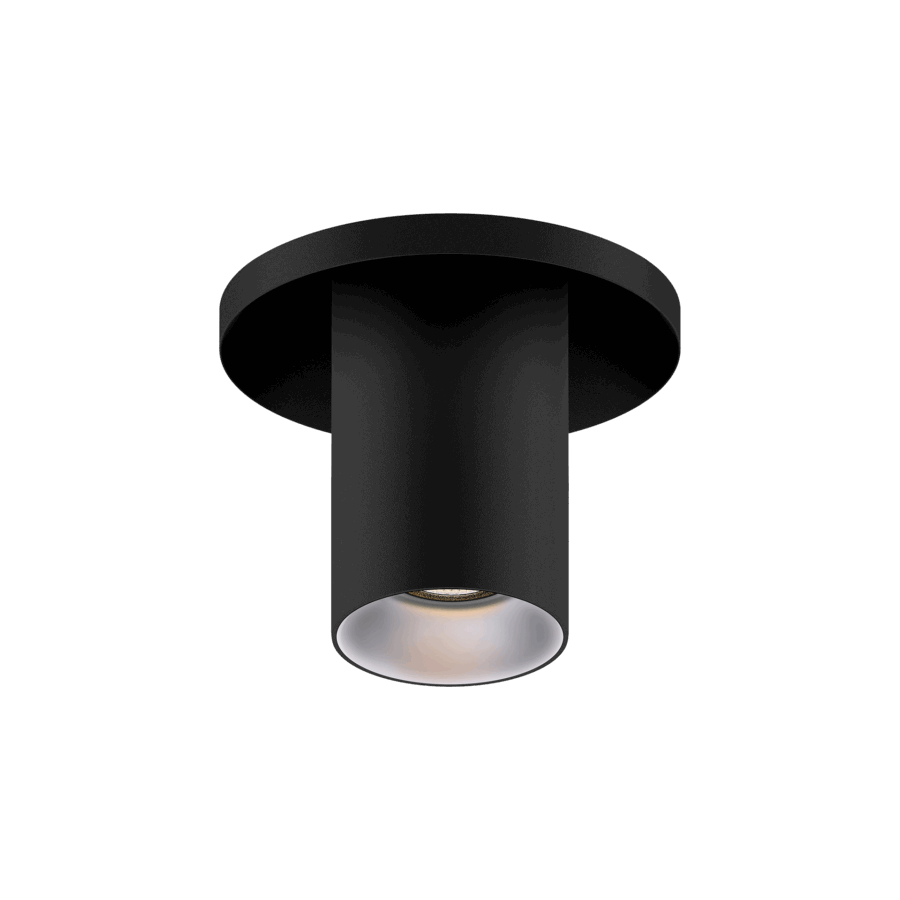

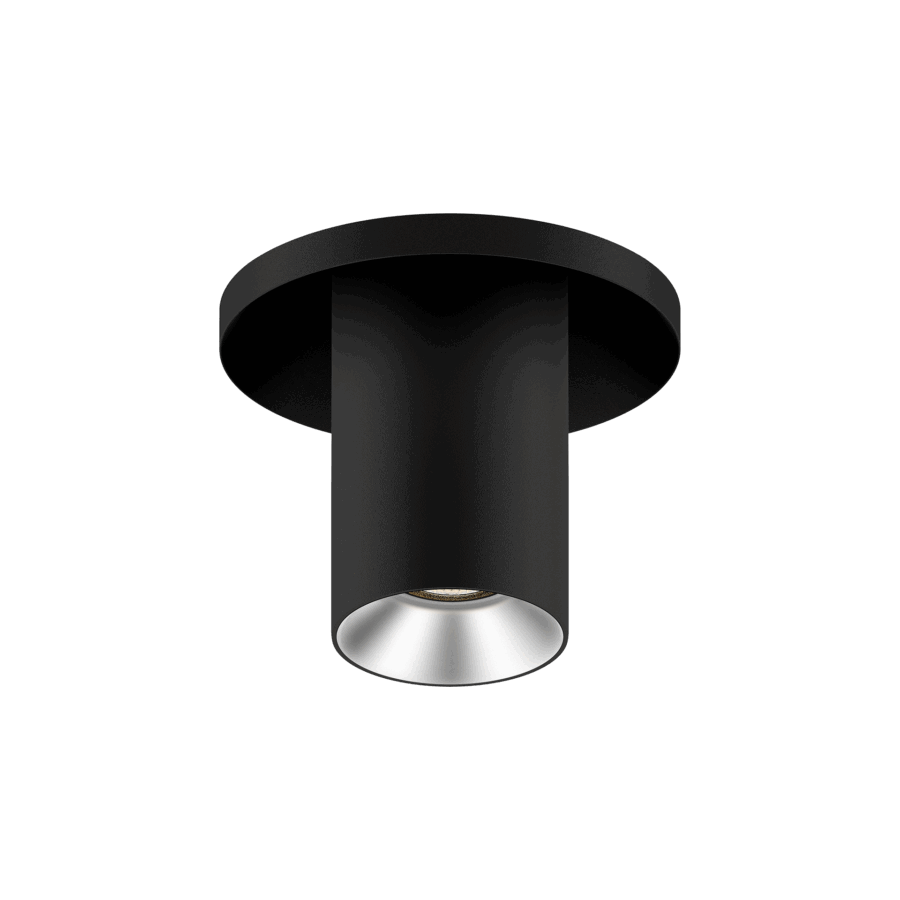

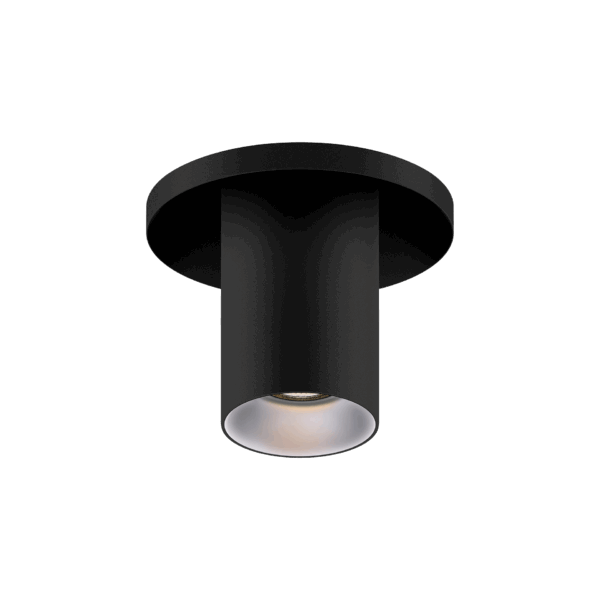

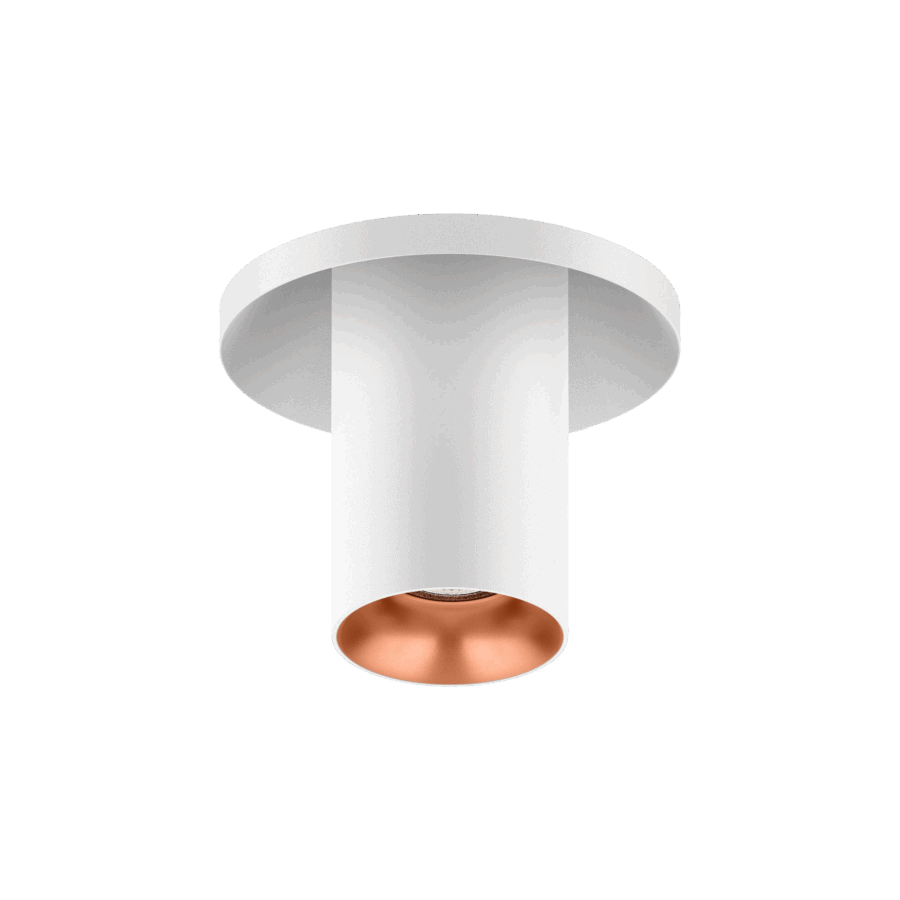

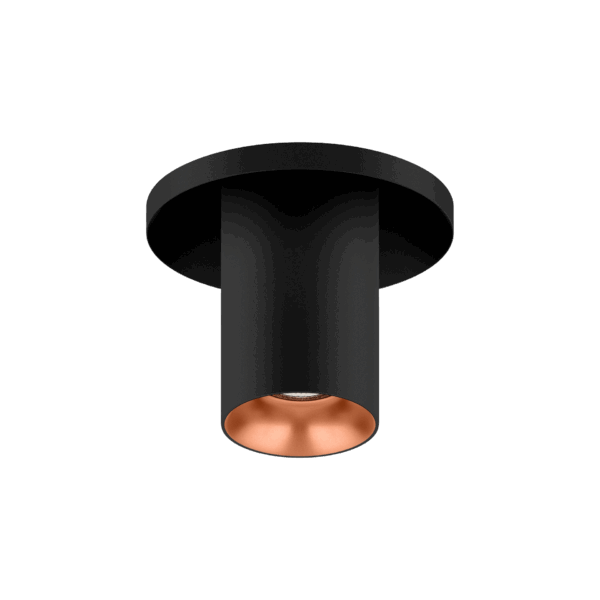

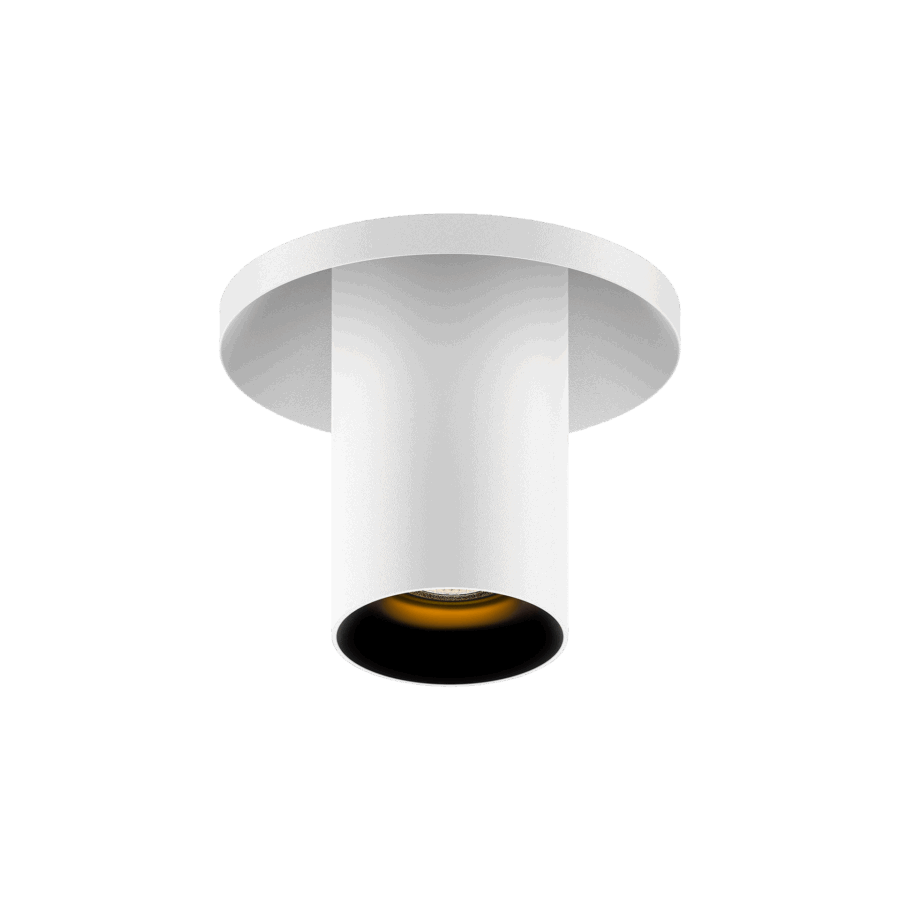

The Karizma Luce Dea Charon XS is a recessed adjustable downlight from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 490-500 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 34°. Luminaire available in black and white. Reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
