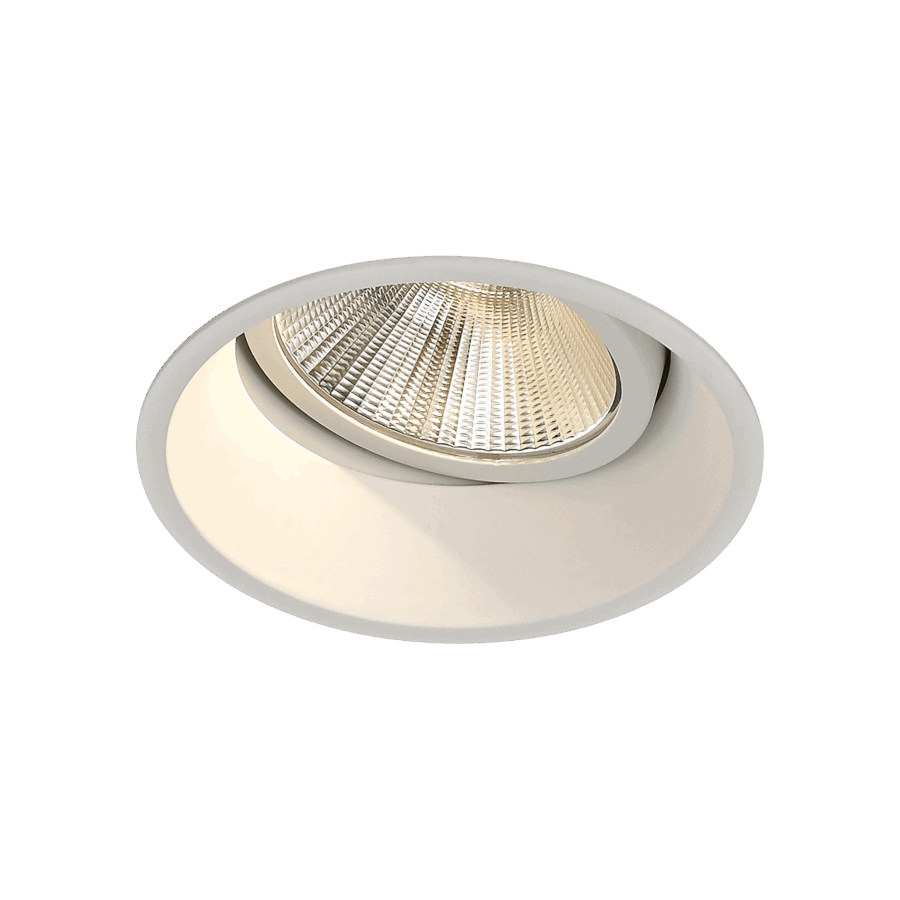

Luna is an adjustable led downlight. Just like the moon, Luna provides supernatural delight, creates a pleasant relaxing atmosphere and adjust to your needs by different options of CCT and CRI. The LED module is positioned deeply to avoid a glare and the high IP54 protection makes the Karizma Luce Luna perfect for use in a luxurious bathroom or kitchen.
Luna
Supernatural.
- Warranty on quality in years.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| Sku | Luminous Flux | CCT | CRI | Beam angle | Luminaire color | Reflector color | hf:att:pa_luminous-flux | hf:att:pa_cct | hf:att:pa_cri | hf:att:pa_beam-angle | hf:att:pa_luminaire-color | hf:att:pa_reflector-color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 110EW9273600 | 1240 lm | 2700K | 90 | 36° | White | Specular Aluminium | 1240-lm | 2700k | 90 | 36 | white | specular-aluminium |
| 110FW9303600 | 1280 lm | 3000K | 90 | 36° | White | Specular Aluminium | 1280-lm | 3000k | 90 | 36 | white | specular-aluminium |
| 110GW9403600 | 1350 lm | 4000K | 90 | 36° | White | Specular Aluminium | 1350-lm | 4000k | 90 | 36 | white | specular-aluminium |
| 110EB9273600 | 1240 lm | 2700K | 90 | 36° | Black | Specular Aluminium | 1240-lm | 2700k | 90 | 36 | black | specular-aluminium |
| 110FB9303600 | 1280 lm | 3000K | 90 | 36° | Black | Specular Aluminium | 1280-lm | 3000k | 90 | 36 | black | specular-aluminium |
| 110GB9403600 | 1350 lm | 4000K | 90 | 36° | Black | Specular Aluminium | 1350-lm | 4000k | 90 | 36 | black | specular-aluminium |
Click on specification values for related products.
CRI90
LED power12W
System power14W
Chromaticity tolerance3 MacAdam
OpticReflector
Beam angle36°
Reflector colorSpecular Aluminium
Net. Weight0.36Kg

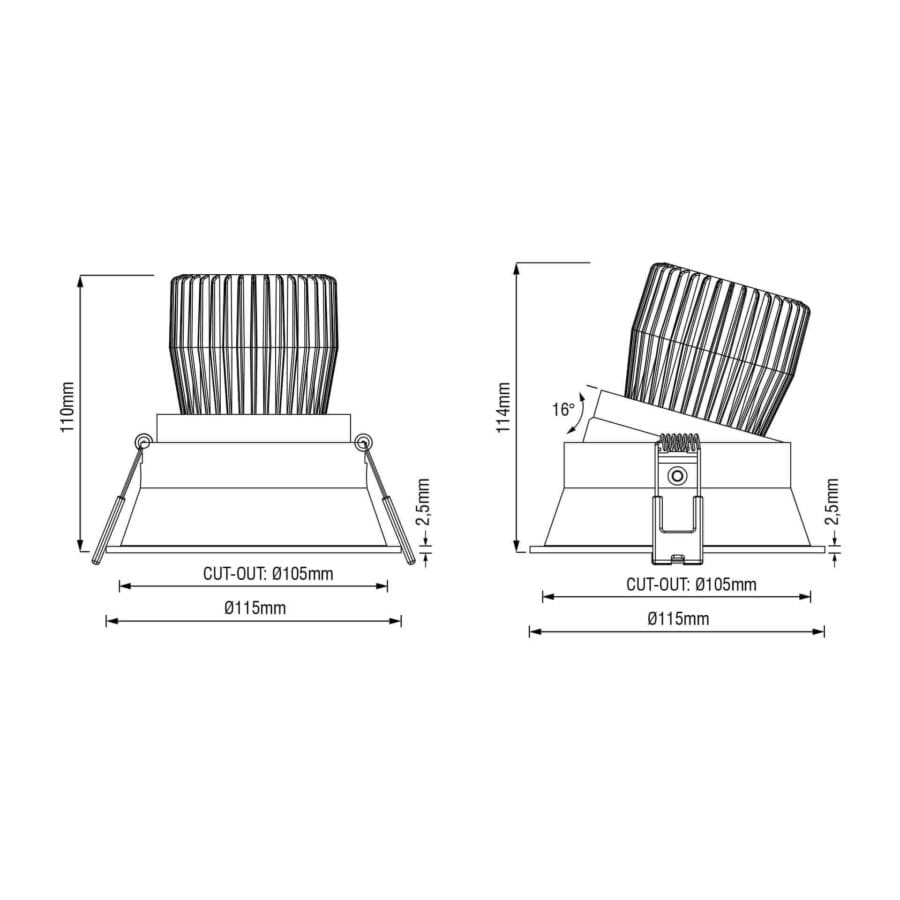

Cut out dimensionØ105mm
Luminaire dimensionØ115x122mm
Nominal fA [mA]350mA
Nominal fV [V]33.8-35.9V
Power supplySeparate Available
Mains VoltageN/A
El. ClassClass II
Housing materialAluminum Die Cast
Lifetime50000h
Light source identifierCLU028-1204C4-273H5M3-F1, CLU028-1204C4-303H5M3-F1, CLU028-1204C4-403H5M3-F1
Light source927 (2700K / CRI90), 930 (3000K / CRI90), 940 (4000K / CRI90), Dim to Warm (1800K – 3000K / CRI90)
Warranty5Y
CollectionDelizia di Luce
Built-in height140mm

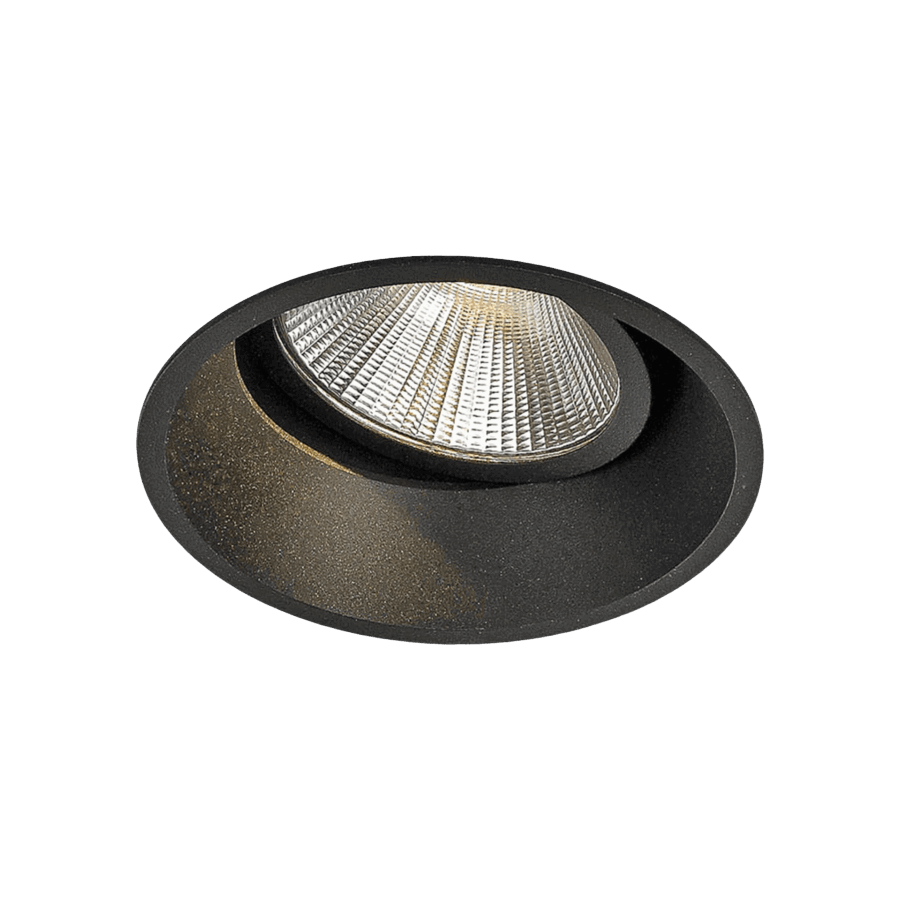

The Karizma Luce Luna is a recessed adjustable luminaire from the Delizia Di Luce series. Made from aluminium. Available luminaire flux: in range 1240- 1350 lm. CCT: 2700K, 3000K, 4000K. CRI up to >93. Beam angle: 36°. Luminaire available in black and white. Reflector colour: Specular Aluminium. LED module 14W.
