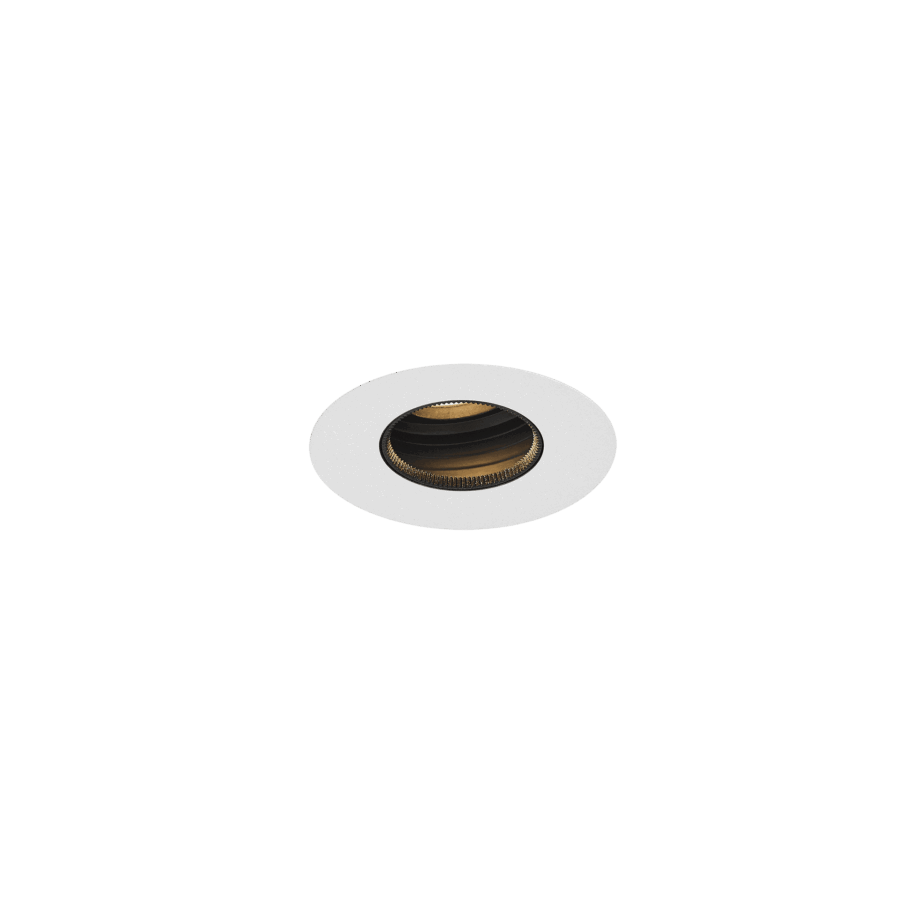

White version of the Dea Luca S (trimless), a fixed pin hole luminaire designed by Karizma Luce.

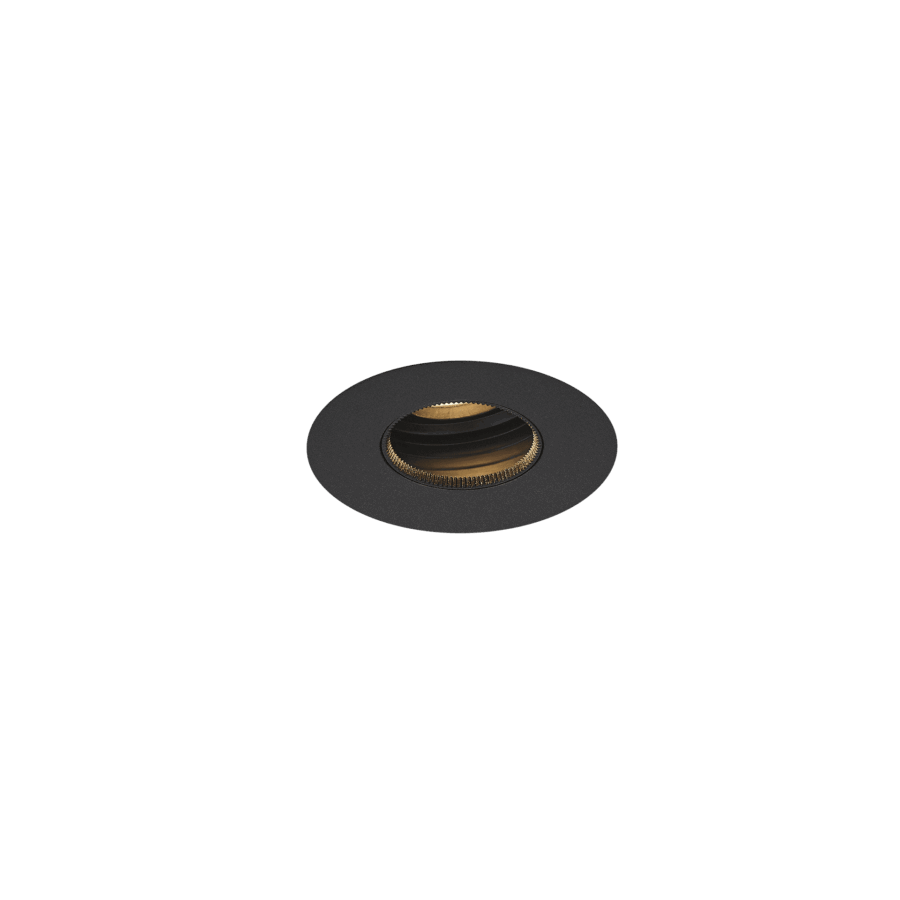

Black version of the Dea Luca S (trimless), a fixed pin hole luminaire designed by Karizma Luce.

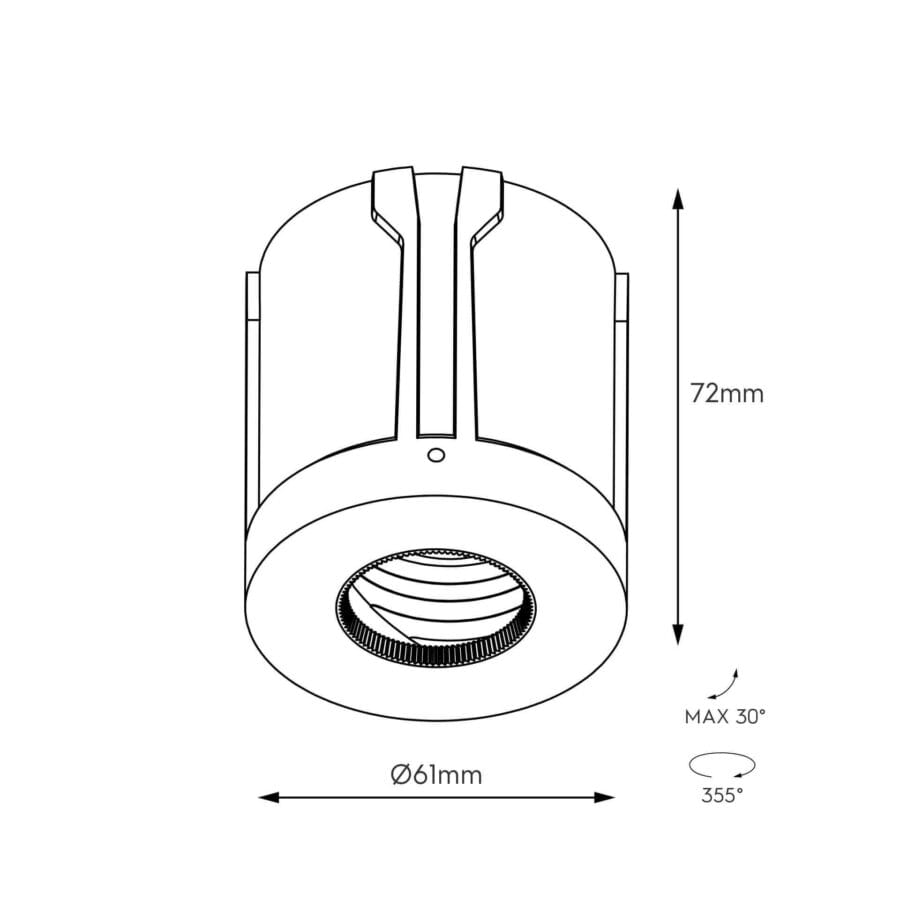

Technical drawing of the Dea Luca S, a fixed pin hole luminaire, illustrating detailed dimensions and design specifications.

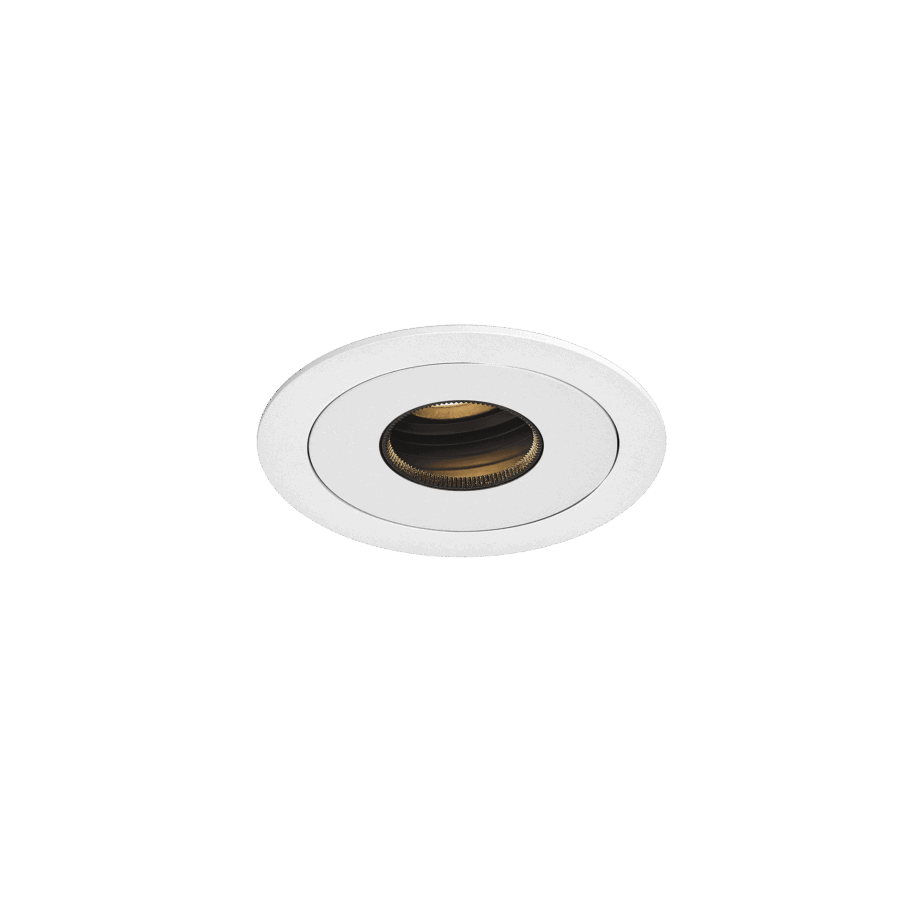

White version of the Dea Luca S (trim), a fixed pin hole luminaire designed by Karizma Luce.

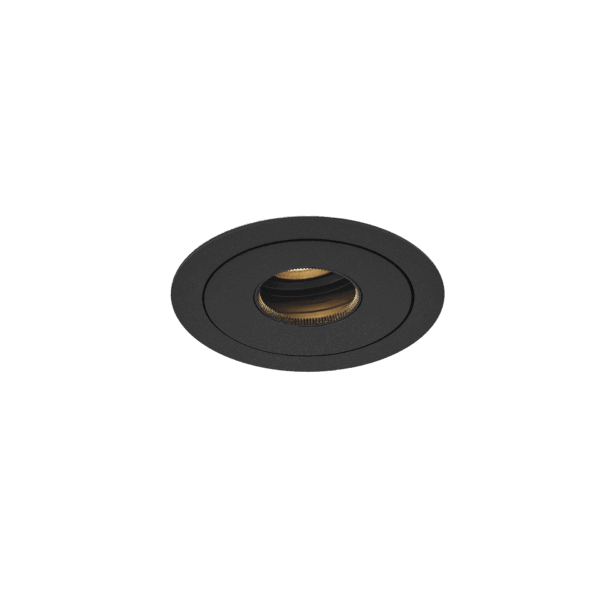

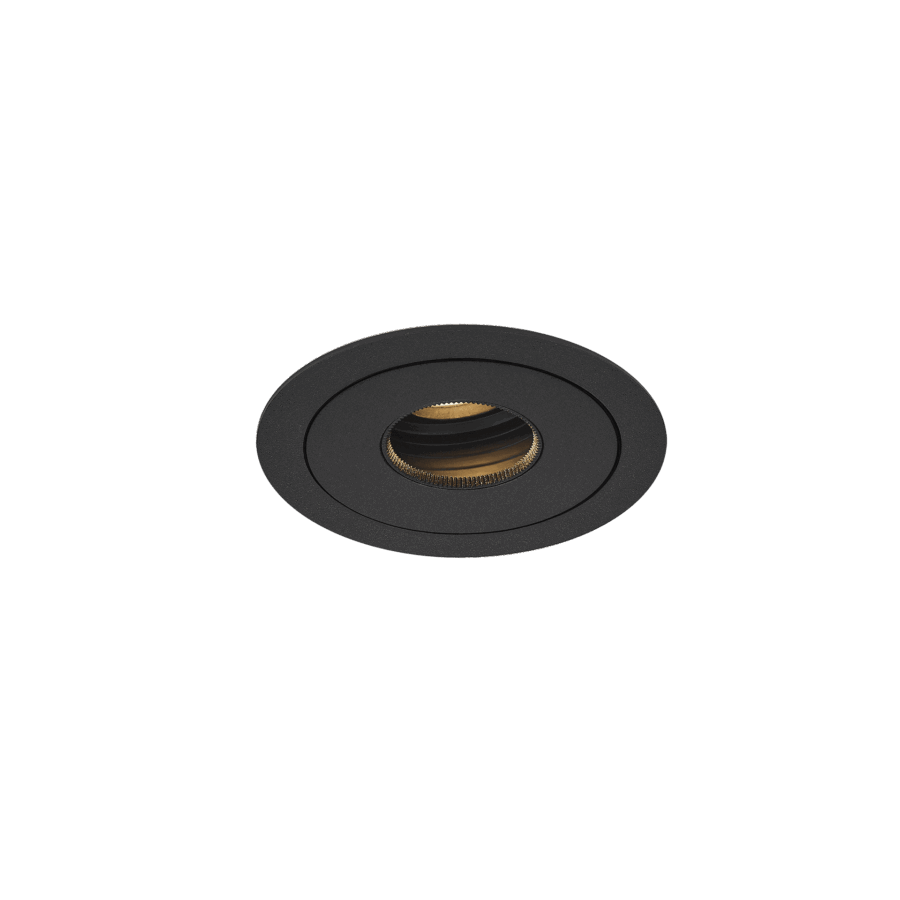

Black version of the Dea Luca S (trim), a fixed pin hole luminaire designed by Karizma Luce.

Dea Luca S

Black depth.

Karizma Luce Dea Luca S is a recessed downlight for the Dea Athena modular system, designed for luxury interiors. Its wide opening and invisible, deeply placed light source create a soft glow that blends effortlessly into the ceiling plane. It delivers quiet illumination with architectural balance—like a breath of light woven into the room.

With a luminous flux of up to 550Lm and beam angles of 24°, 36°, or 55°, Dea Luca S adapts to various lighting needs with subtle precision. It fits into an S-size trimless frame or trim from the Dea Athena family and comes in black or white finishes. Available in single CCT or dim-to-warm, and compatible with the proper driver—on/off, phase dim, or for more refined control, DALI or Casambi. Dea Luca S brings understated luxury to every corner, where softness and structure meet in perfect quiet.

Product sheet
Installation manual
Frames
LDT files
Related products
CE Declaration
SKULuminous Flux [lm]CCT [K]CRI [Ra]Beam Angle [deg]Housing ColourReflector Colour
170AW9272400500lm2700K9024°White (RAL 9003)Specular Aluminium
170AW9273600500lm2700K9036°White (RAL 9003)Specular Aluminium
170AW9275500500lm2700K9055°White (RAL 9003)Specular Aluminium
170AB9272400500lm2700K9024°Black (RAL 9005)Specular Aluminium
170AB9273600500lm2700K9036°Black (RAL 9005)Specular Aluminium
170AB9275500500lm2700K9055°Black (RAL 9005)Specular Aluminium
170AW9302400520lm3000K9024°White (RAL 9003)Specular Aluminium
170AW9303600520lm3000K9036°White (RAL 9003)Specular Aluminium
170AW9305500520lm3000K9055°White (RAL 9003)Specular Aluminium
170AB9302400520lm3000K9024°Black (RAL 9005)Specular Aluminium
170AB9303600520lm3000K9036°Black (RAL 9005)Specular Aluminium
170AB9305500520lm3000K9055°Black (RAL 9005)Specular Aluminium
170AW9402400550lm4000K9024°White (RAL 9003)Specular Aluminium
170AW9403600550lm4000K9036°White (RAL 9003)Specular Aluminium
170AW9405500550lm4000K9055°White (RAL 9003)Specular Aluminium
170AB9402400550lm4000K9024°Black (RAL 9005)Specular Aluminium
170AB9403600550lm4000K9036°Black (RAL 9005)Specular Aluminium
170AB9405500550lm4000K9055°Black (RAL 9005)Specular Aluminium

The Karizma Luce Dea Luca S is a recessed fixed -pin hole- downlight from the Dea Della Luce series. Compatible with the Dea Athena modular system. Made from aluminium. Available luminaire flux: in range 500 – 550 lm. CCT: 2700K, 3000K, 4000K. Beam angles: 24°|36°|55°. Luminaire available in black and white.
