Add character to every room with the Dea Eros mezzo-incasatto luminaire. Its modern design and radiant lighting will influence any occasion. Combine with other Dea Eros fixtures to unify your project. Now it is up to you to choose which reflector color suits your project best.
Dea Eros XS ME-in
Spreading the love.
- Warranty on quality in years.
- Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
- Wireless lighting control based on Bluetooth.
- Digital dimming interface.
- Phase dimming systems dim the lights by changing the supply voltage.
- Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
- Replaceable (LED only) light source by a professional.
- Replaceable control gear by a professional.
Datasheets
| SKU | Luminous Flux [lm] | CCT [K] | CRI [Ra] | Beam Angle [deg] | Housing Colour | Reflector Colour |
|---|---|---|---|---|---|---|
| 144BB92734BGF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Black High Gloss |
| 144BB92734BMF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Black Matt |
| 144BB92734COF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Copper |
| 144BB92734CHF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Chrome |
| 144BB92734GOF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Gold |
| 144BB92734SGF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| 144BB92734WHF0 | 490lm | 2700K | 90 | 34° | Black(RAL9005) | White |
| 144BW92734BGF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Black High Gloss |
| 144BW92734BMF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Black Matt |
| 144BW92734COF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Copper |
| 144BW92734CHF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Chrome |
| 144BW92734GOF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Gold |
| 144BW92734SGF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| 144BW92734WHF0 | 490lm | 2700K | 90 | 34° | White(RAL9003) | White |
| 144BB93034BGF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Black High Gloss |
| 144BB93034BMF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Black Matt |
| 144BB93034COF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Copper |
| 144BB93034CHF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Chrome |
| 144BB93034GOF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Gold |
| 144BB93034SGF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| 144BB93034WHF0 | 500lm | 3000K | 90 | 34° | Black(RAL9005) | White |
| 144BW93034BGF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Black High Gloss |
| 144BW93034BMF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Black Matt |
| 144BW93034COF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Copper |
| 144BW93034CHF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Chrome |
| 144BW93034GOF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Gold |
| 144BW93034SGF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| 144BW93034WHF0 | 500lm | 3000K | 90 | 34° | White(RAL9003) | White |
| 144BB94034BGF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Black High Gloss |
| 144BB94034BMF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Black Matt |
| 144BB94034COF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Copper |
| 144BB94034CHF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Chrome |
| 144BB94034GOF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Gold |
| 144BB94034SGF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| 144BB94034WHF0 | 510lm | 4000K | 90 | 34° | Black(RAL9005) | White |
| 144BW94034BGF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Black High Gloss |
| 144BW94034BMF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Black Matt |
| 144BW94034COF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Copper |
| 144BW94034CHF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Chrome |
| 144BW94034GOF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Gold |
| 144BW94034SGF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| 144BW94034WHF0 | 510lm | 4000K | 90 | 34° | White(RAL9003) | White |
| 144AW183034WHP0 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | White |
| 144AW183034BMP0 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Black Matt |
| 144AW183034COP0 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Copper |
| 144AW183034SGP0 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Silver High Gloss |
| 144AW183034CHP0 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Chrome |
| 144AW183034GOP0 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Gold |
| 144ABW183034BGP0 | 300lm | 1800K - 3000K | 90 | 34° | White(RAL9003) | Black High Gloss |
| 144AB183034WHP0 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | White |
| 144AB183034BMP0 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Black Matt |
| 144AB183034COP0 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Copper |
| 144AB183034SGP0 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Silver High Gloss |
| 144AB183034CHP0 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Chrome |
| 144AB183034GOP0 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Gold |
| 144ABB183034BGP0 | 300lm | 1800K - 3000K | 90 | 34° | Black(RAL9005) | Black High Gloss |
Click on specification values for related products.
Housing MaterialAluminum Die Cast
Housing ColourBlack(RAL9005), Black(RAL9005)(RAL9005), White(RAL9003), White(RAL9003)(RAL9003)

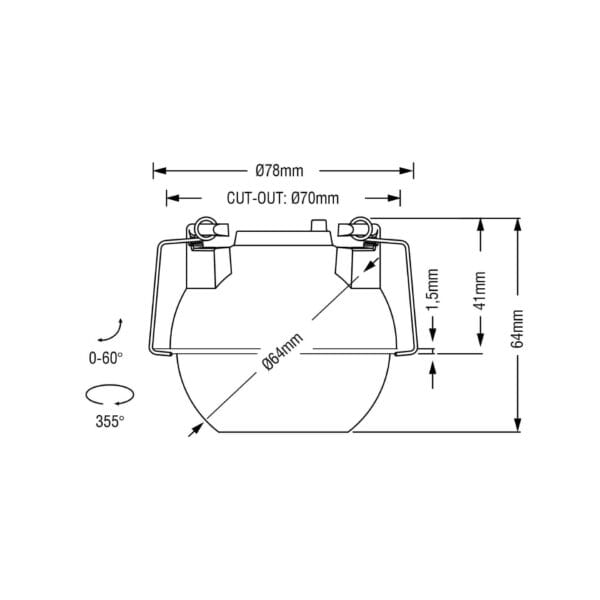

Luminaire Dimension [mm]Ø78mm
Cut-Out [mm]Ø70mm
OpticReflector
Reflector ColourBlack High Gloss, Chrome, Copper, Gold, Silver High Gloss, White, Black Matt
Beam Angle [deg]34°
System Power [W]7W
CCT [K]1800K – 3000K, 2700K, 3000K, 4000K
CRI [Ra]90
Chromaticity Tolerance3 MacAdam
Mains Voltage [VAc]220-240V / 50 -60Hz
Power SupplyIncluded ON/OFF, Included Phase Cut
Ambient Temperature [degC]35°C
Ingress ProtectionIP20
Light Source Energy ClassF
Light Source IdentifierBXRV-DR-1830G-0600-A-23, CLU701-1002C4-273H5K2, CLU701-1002C4-303H5K2, CLU701-1002C4-403H5K2
Lifetime/Failure Rate [h]50000h
Electrical Safety ClassClass II
Net Weight [Kg]0.35kg
Certificates/DeclarationsCE/UKCA
Warranty [Y]5Y
CollectionDea Della Luce
Built-in Height [mm]100mm

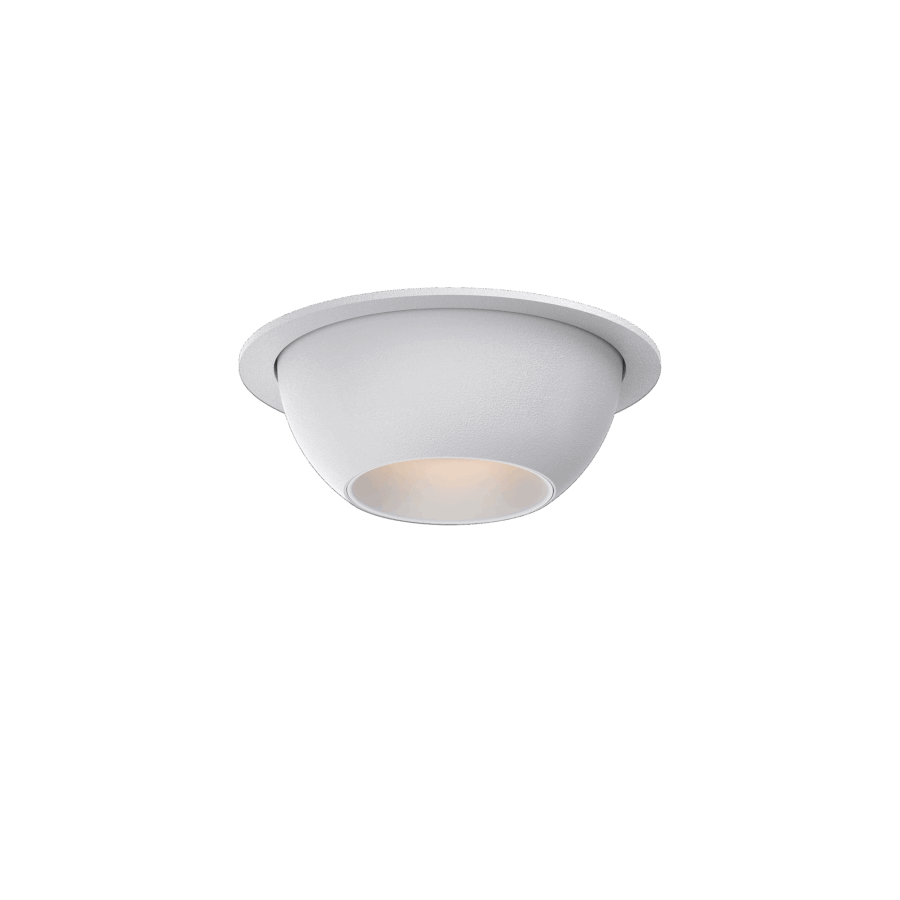

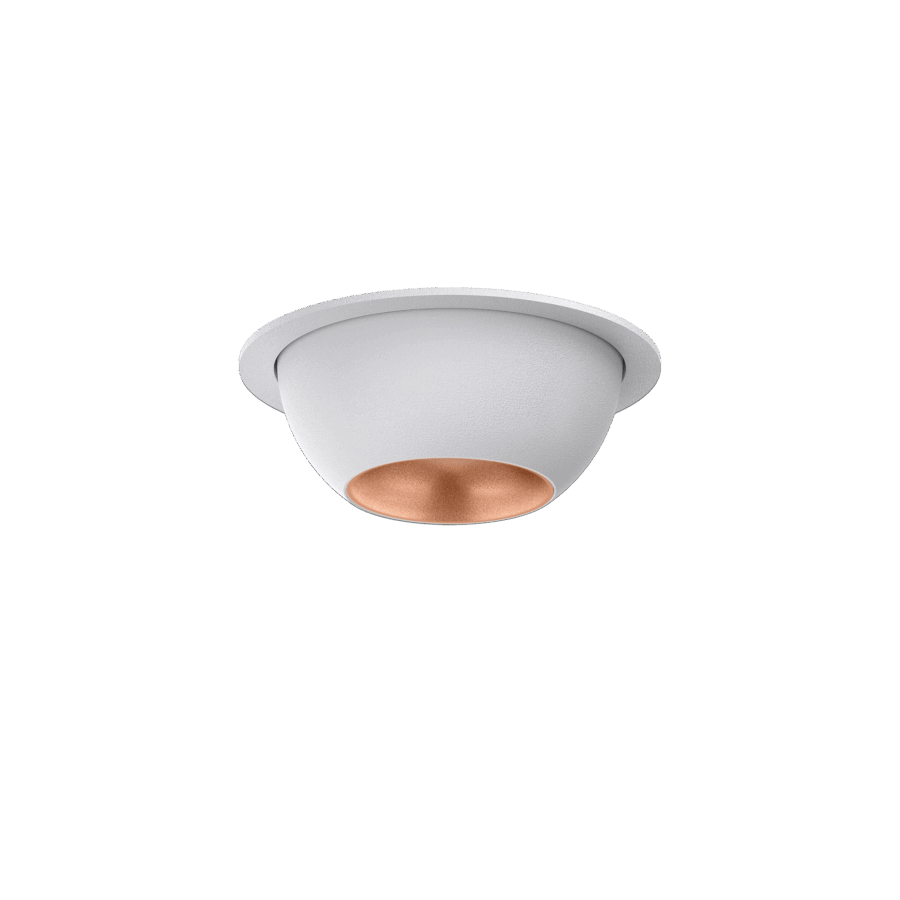

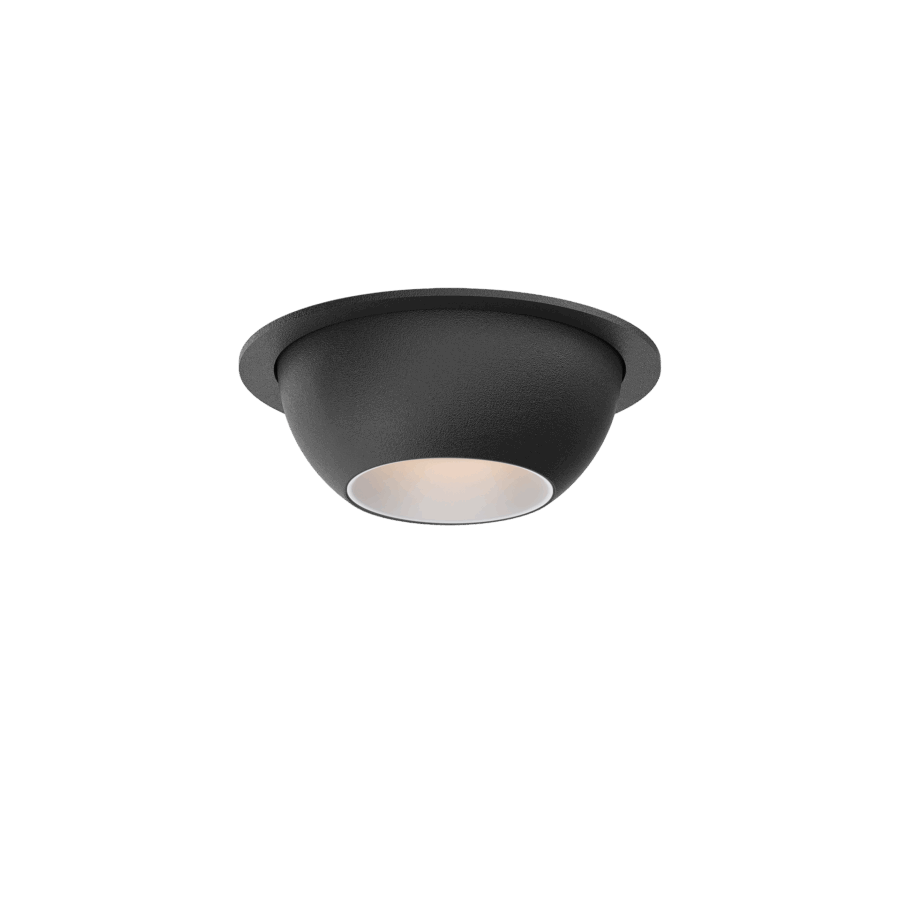

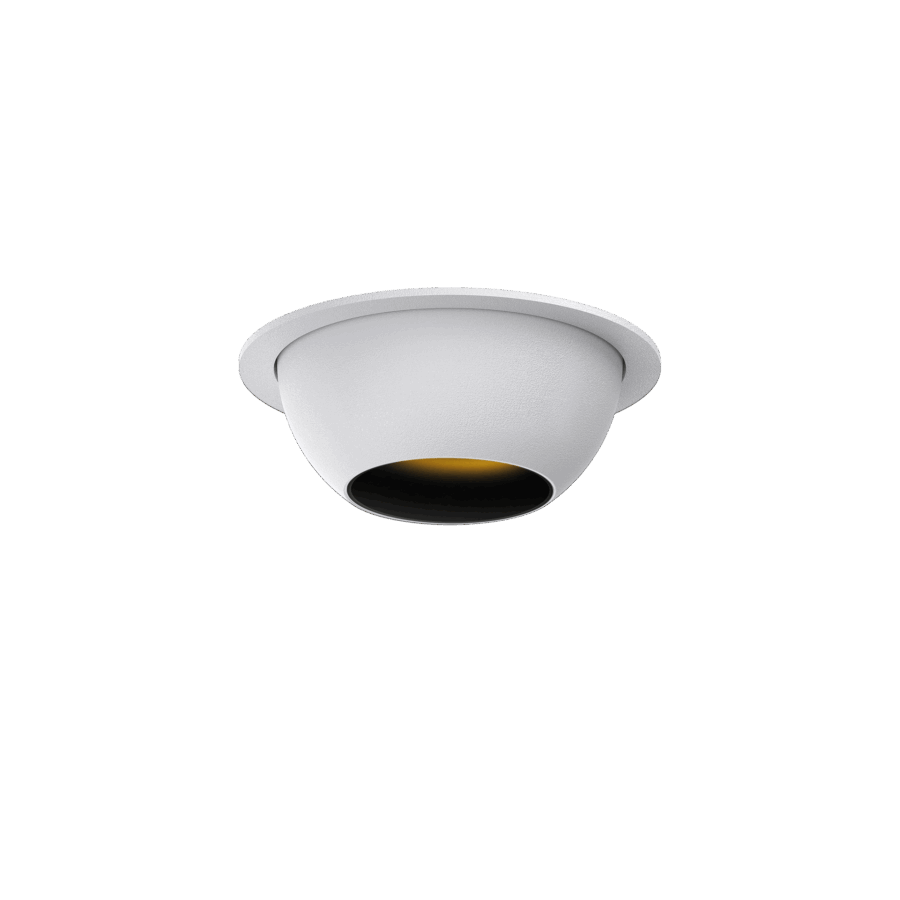

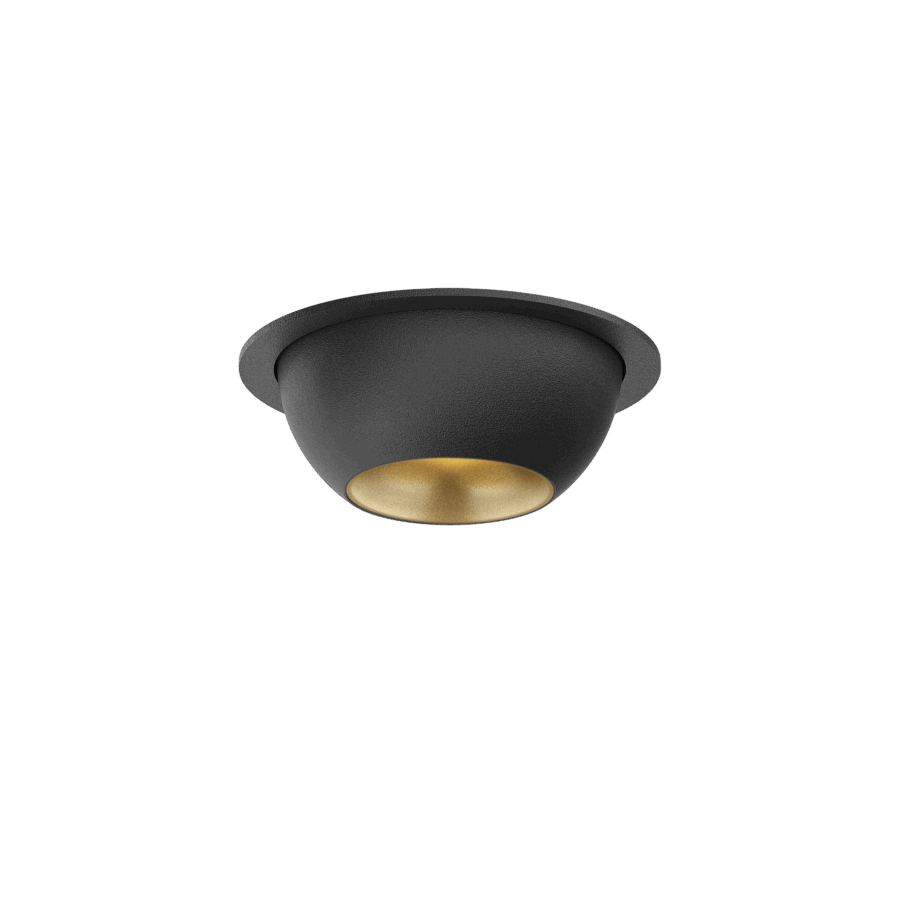

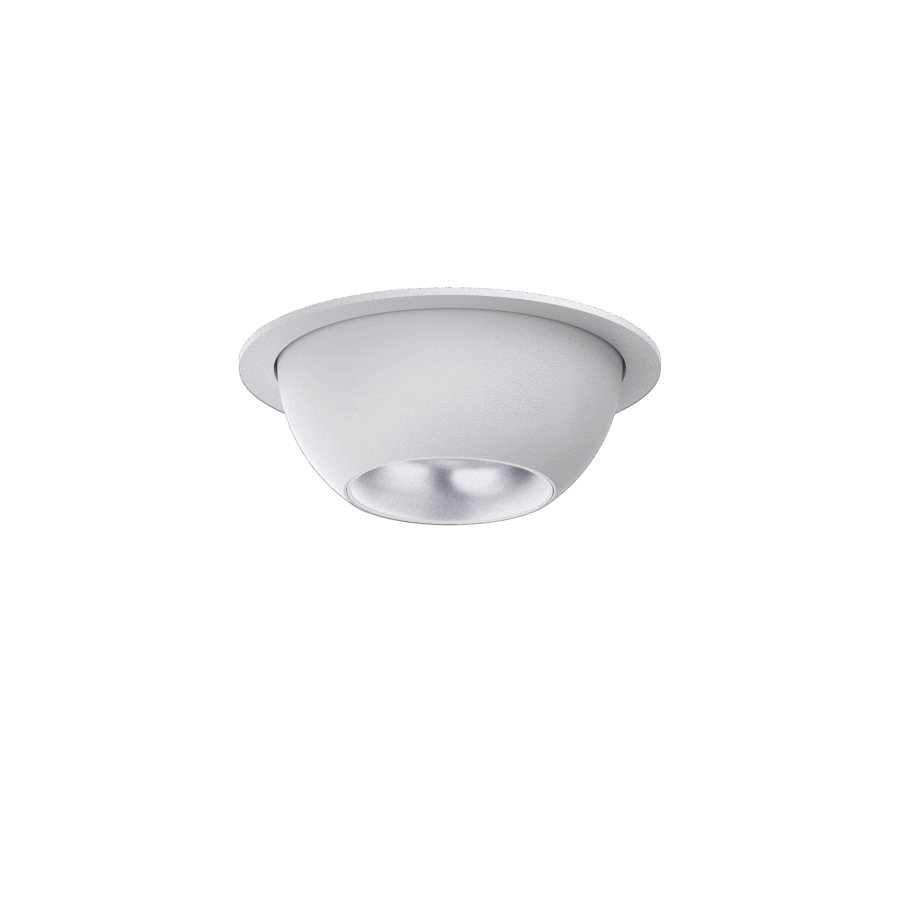

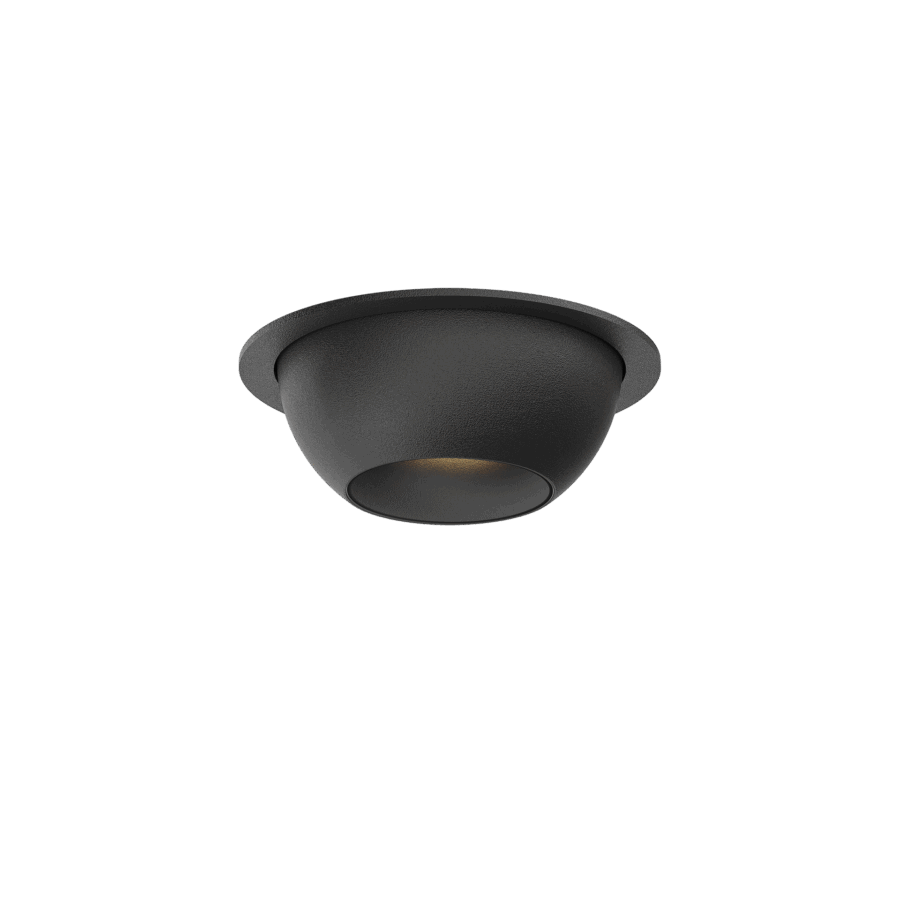

The modern Karizma Luce Dea Eros XS mezzo-incasatto is a half-round recessed adjustable downlight from the Dea Della Luce series. Perfectly suitable for hospitality and residential projects. Made from aluminum. Available luminaire flux: in range 490lm-510lm. CCT: 2700K, 3000K, 4000K. Beam angle: 34°. Luminaire is available in black and white housing. Reflector colors: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt.
