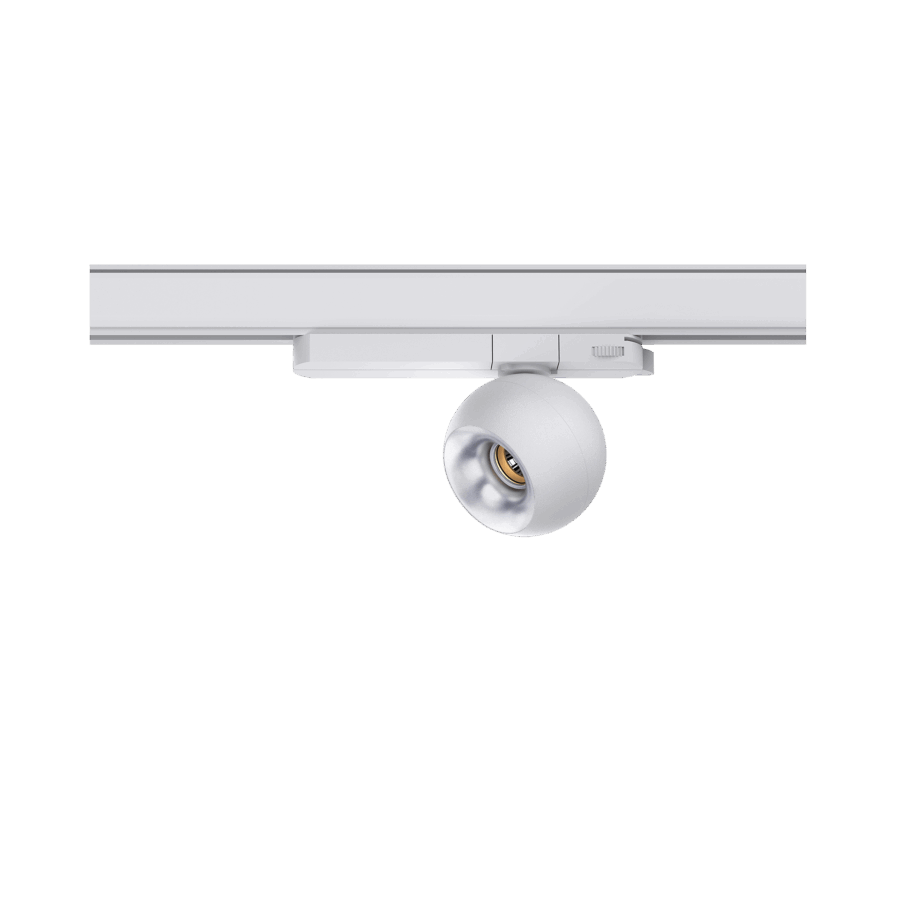

White version of the Dea Eros S TR with silver reflector, a 220V track luminaire designed by Karizma Luce.

White version of the Dea Eros S TR with white reflector, a 220V track luminaire designed by Karizma Luce.

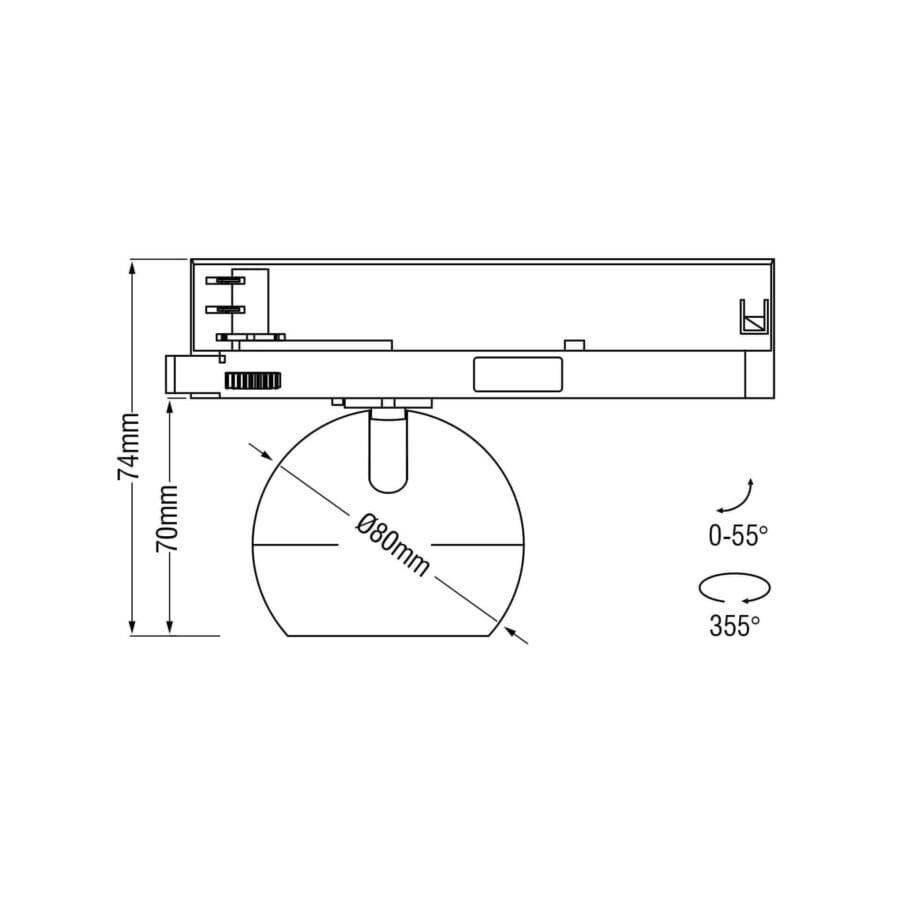

Technical drawing of the Dea Eros S TR, a 220V track luminaire, illustrating detailed dimensions and design specifications.

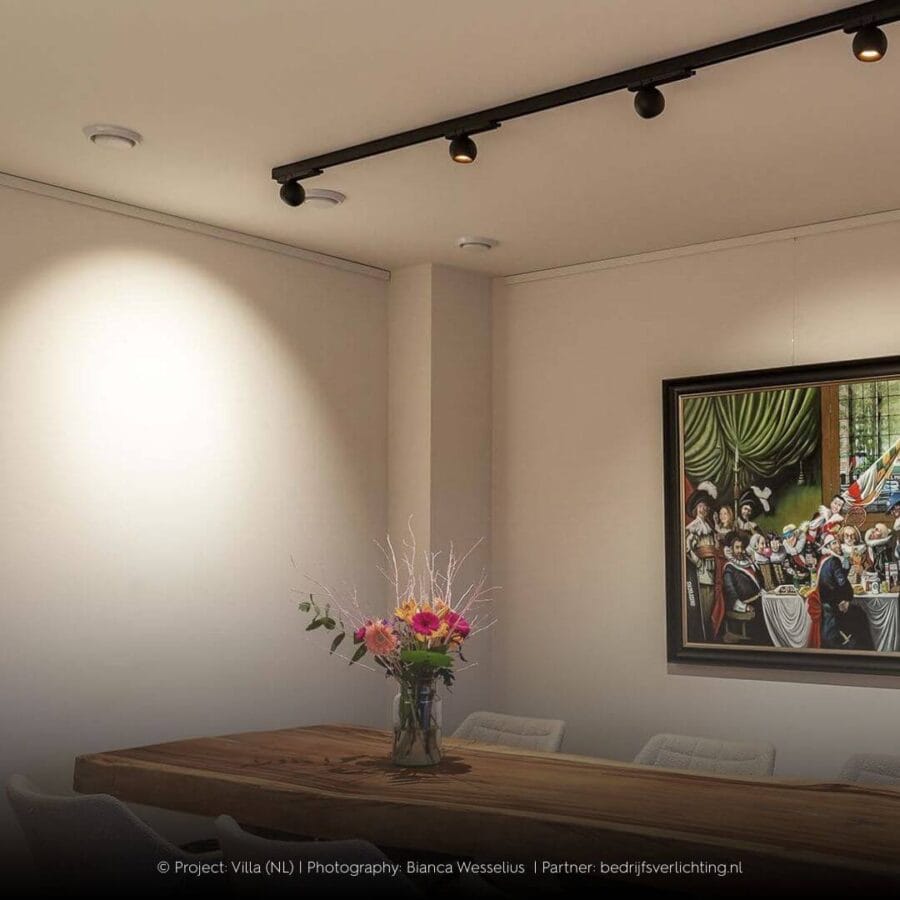

DEA EROS track sphere shaped luminaires above wooden table.

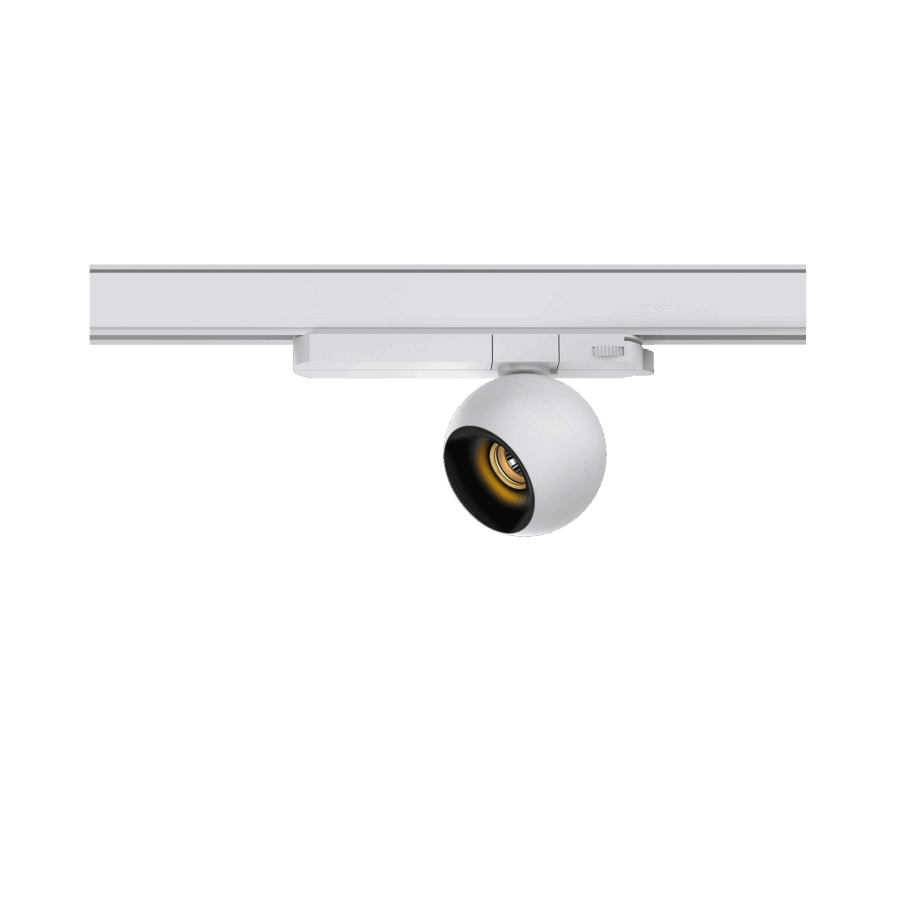

White version of the Dea Eros S TR with black gloss reflector, a 220V track luminaire designed by Karizma Luce.

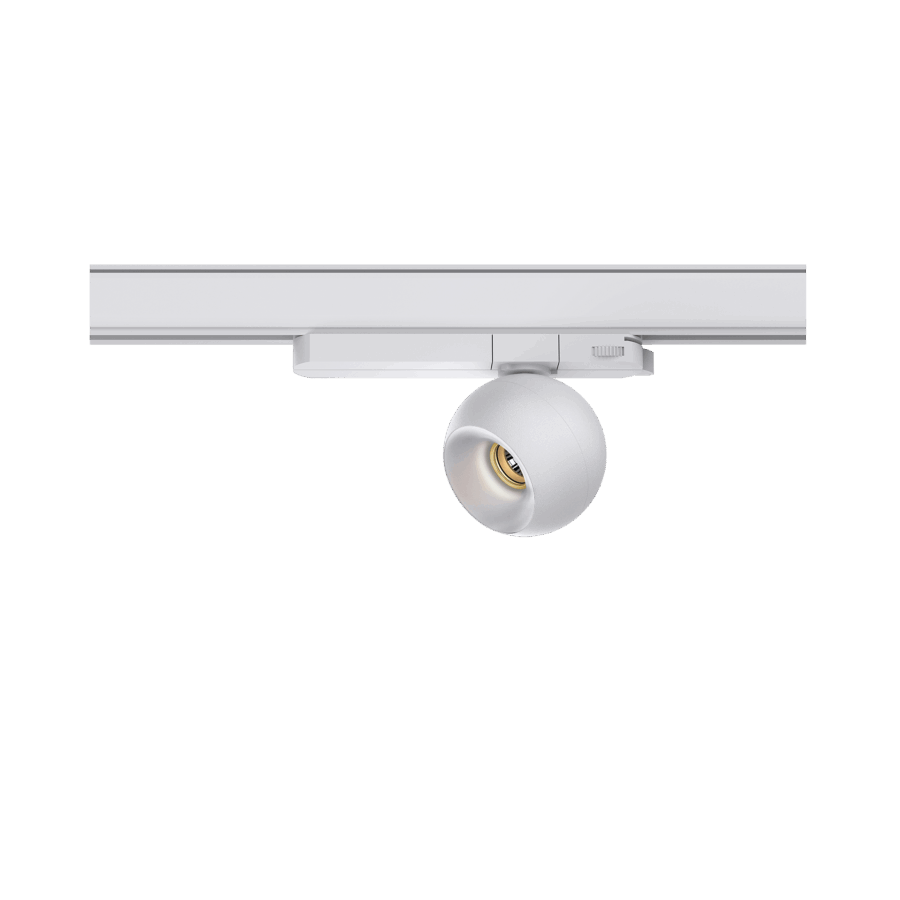

White version of the Dea Eros S TR with chrome reflector, a 220V track luminaire designed by Karizma Luce.

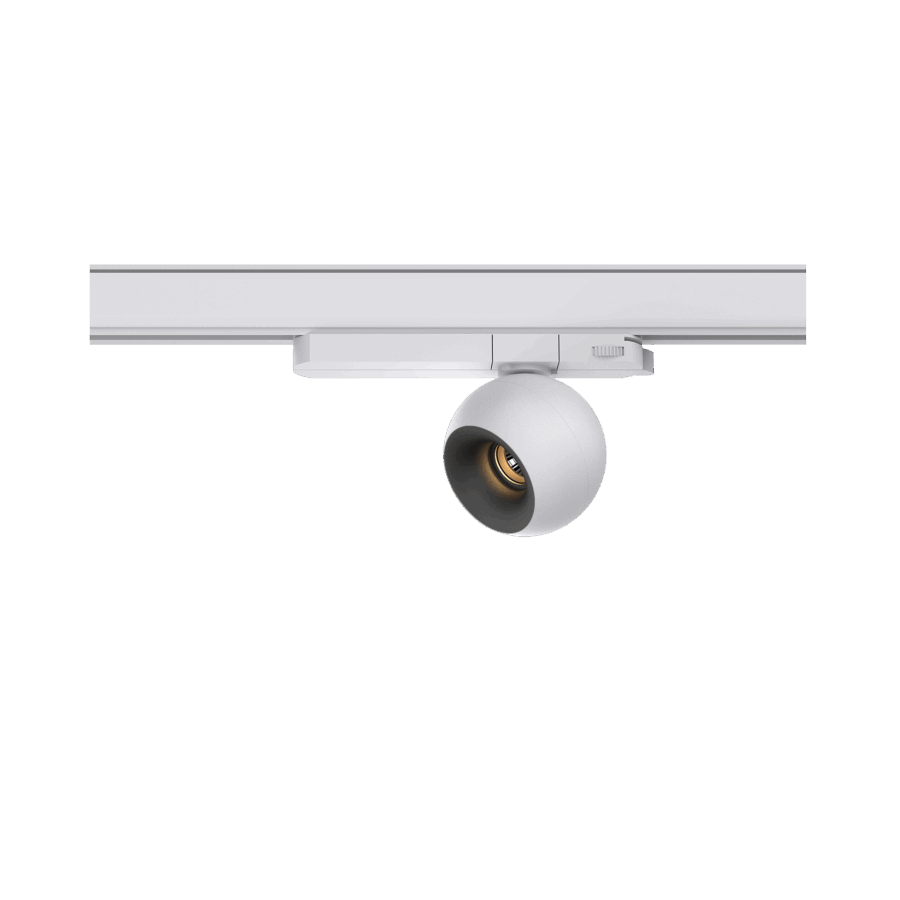

White version of the Dea Eros S TR with black matt reflector, a 220V track luminaire designed by Karizma Luce.

White version of the Dea Eros S TR with copper reflector, a 220V track luminaire designed by Karizma Luce.

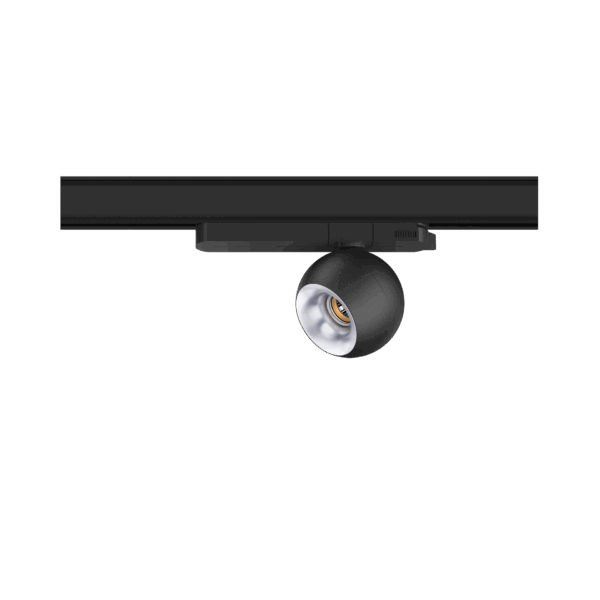

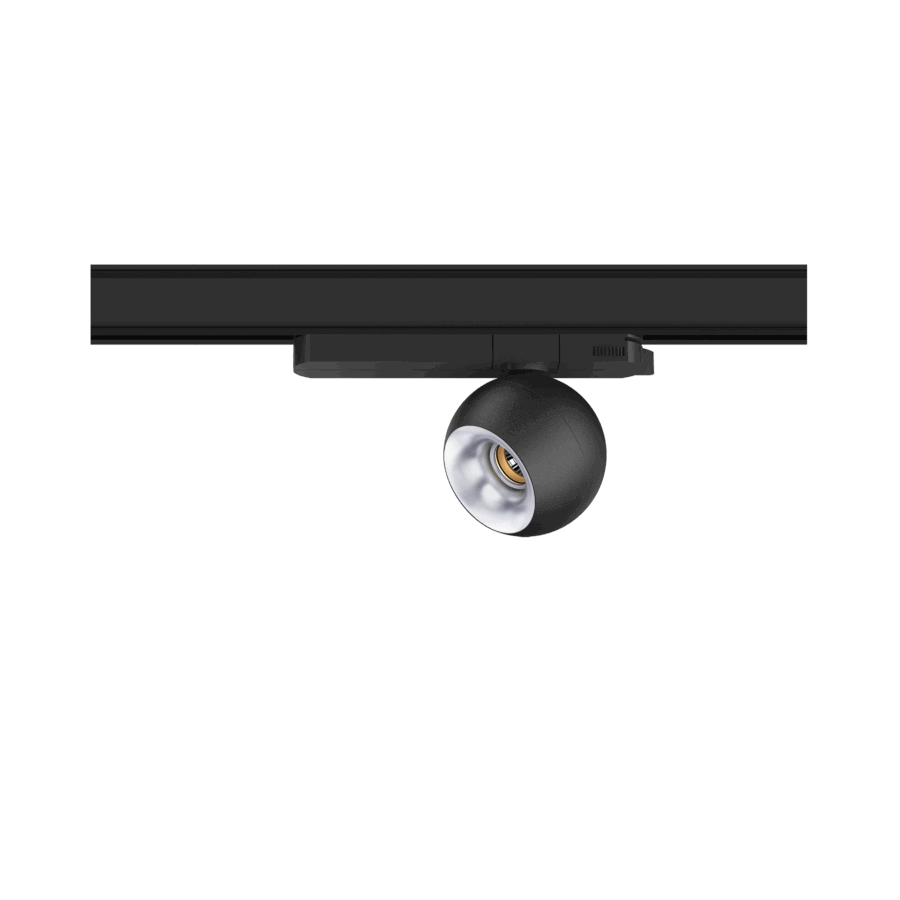

Black version of the Dea Eros S TR with silver reflector, a 220V track luminaire designed by Karizma Luce.

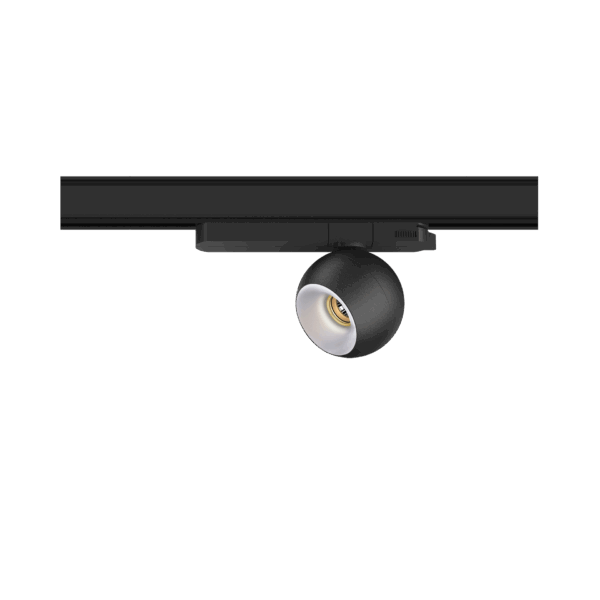

Black version of the Dea Eros S TR with white reflector, a 220V track luminaire designed by Karizma Luce.

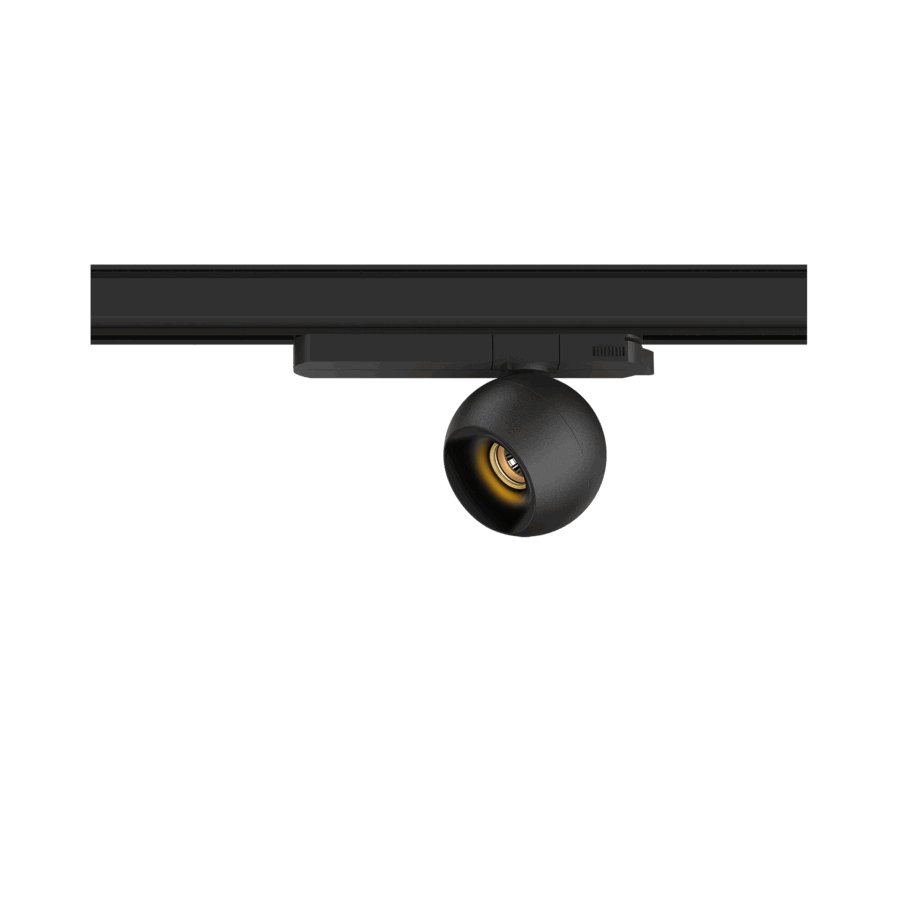

Black version of the Dea Eros S TR with black gloss reflector, a 220V track luminaire designed by Karizma Luce.

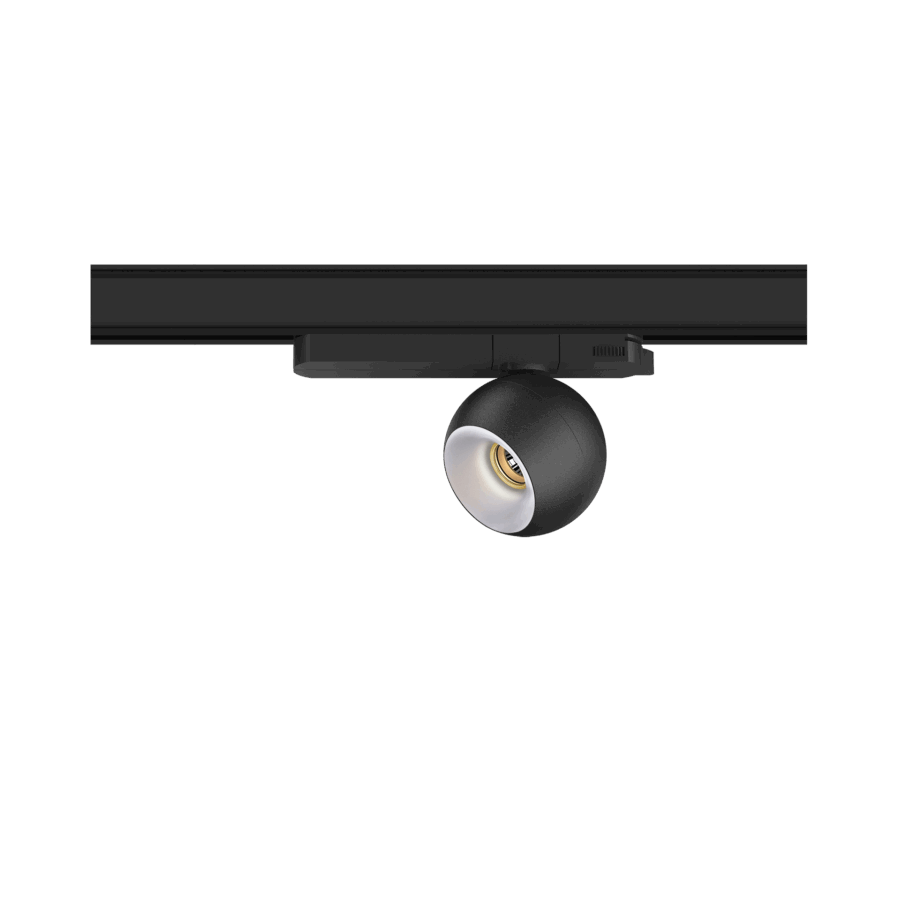

Black version of the Dea Eros S TR with chrome reflector, a 220V track luminaire designed by Karizma Luce.

Dea Eros S TR

Track sphere.

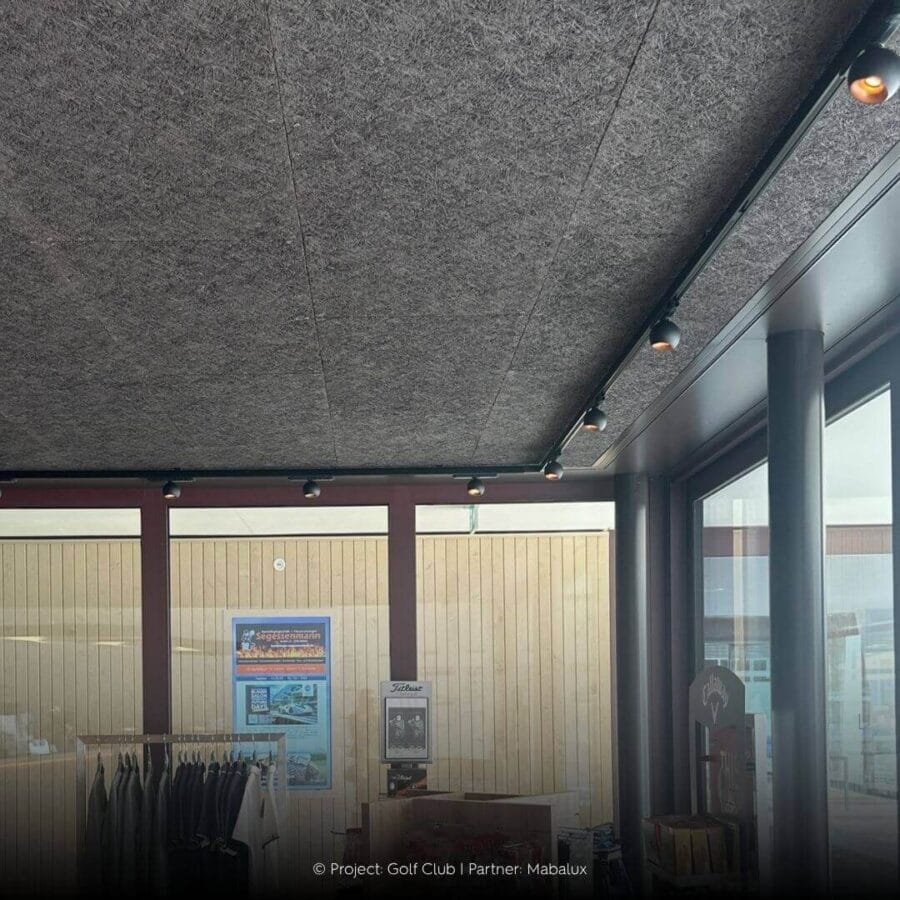

Karizma Luce Dea Eros S TR is a compact adjustable spotlight for 3-phase or 1-phase track systems. Its distinctive spherical design adds a gentle touch to hospitality and residential interiors. Perfect for hotels, restaurants, lounges, private homes, or exclusive golf and sports clubs, it brings focused, refined illumination to spaces with lower ceilings and elegant detailing.

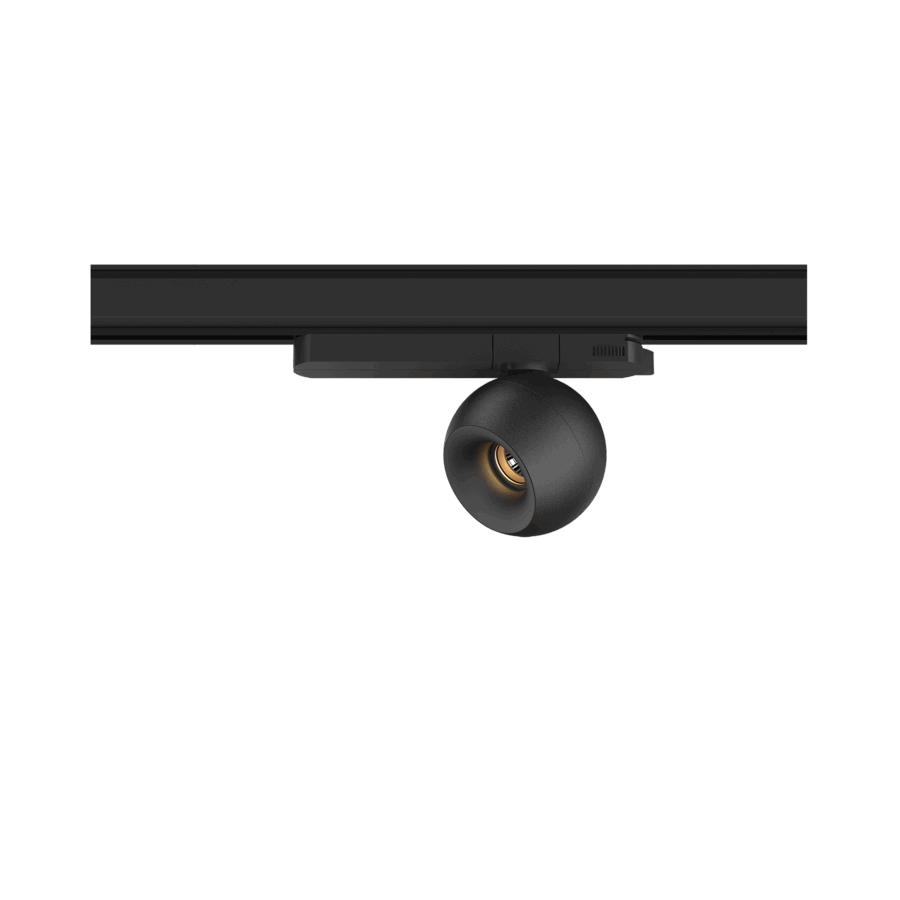

The luminaire delivers up to 810Lm through a 40° medium beam, providing glare-controlled light with high visual comfort. It is available in black or white housing, with reflector finishes in gold, silver, chrome, white, copper, glossy black, or matt black. Control options include on/off, phase cut, DALI, or Casambi. Except for standard CCT, it is also offered in dim-to-warm for warm, atmospheric lighting. Select the ideal setup and create spaces that invite and impress.

Warranty on quality in years.
Ingress Protection, indicates the degree to which lighting fixtures are protected against dust and waterspray.
Designed with double or reinforced insulation, ensuring protection against electric shock without needing a protective earth connection.
Digital dimming interface.
Phase dimming systems dim the lights by changing the supply voltage.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
This luminaire is available for 1-phase tracks.
This luminaire is available for 3-phase tracks.
Honeycombs are widely used to reduce direct glare. Luminaires with honeycombs have usually a tighter beam.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.

SKU	Luminous Flux [lm]	CCT [K]	CRI [Ra]	Beam Angle [deg]	Housing Colour	Reflector Colour
655DB92740BGF0	790lm	2700K	90	40°	Black (RAL 9005)	Black High Gloss
655DW92740BGF0	790lm	2700K	90	40°	White (RAL 9003)	Black High Gloss
655DB92740BMF0	790lm	2700K	90	40°	Black (RAL 9005)	Black Matt
655DW92740BMF0	790lm	2700K	90	40°	White (RAL 9003)	Black Matt
655DB92740CHF0	790lm	2700K	90	40°	Black (RAL 9005)	Chrome
655DW92740CHF0	790lm	2700K	90	40°	White (RAL 9003)	Chrome
655DB92740COF0	790lm	2700K	90	40°	Black (RAL 9005)	Copper
655DW92740COF0	790lm	2700K	90	40°	White (RAL 9003)	Copper
655DB92740GOF0	790lm	2700K	90	40°	Black (RAL 9005)	Gold
655DW92740GOF0	790lm	2700K	90	40°	White (RAL 9003)	Gold
655DB92740SGF0	790lm	2700K	90	40°	Black (RAL 9005)	Silver High Gloss
655DW92740SGF0	790lm	2700K	90	40°	White (RAL 9003)	Silver High Gloss
655DB92740WHF0	790lm	2700K	90	40°	Black (RAL 9005)	White
655DW92740WHF0	790lm	2700K	90	40°	White (RAL 9003)	White
655DB93040BGF0	800lm	3000K	90	40°	Black (RAL 9005)	Black High Gloss
655DB93040BMF0	800lm	3000K	90	40°	Black (RAL 9005)	Black Matt
655DW93040BGF0	800lm	3000K	90	40°	White (RAL 9003)	Black High Gloss
655DW93040BMF0	800lm	3000K	90	40°	White (RAL 9003)	Black Matt
655DB93040COF0	800lm	3000K	90	40°	Black (RAL 9005)	Copper
655DB93040GOF0	800lm	3000K	90	40°	Black (RAL 9005)	Gold
655DB93040WHF0	800lm	3000K	90	40°	Black (RAL 9005)	White
655DW93040COF0	800lm	3000K	90	40°	White (RAL 9003)	Copper
655DW93040GOF0	800lm	3000K	90	40°	White (RAL 9003)	Gold
655DW93040WHF0	800lm	3000K	90	40°	White (RAL 9003)	White
655DB93040CHF0	800lm	3000K	90	40°	Black (RAL 9005)	Chrome
655DW93040CHF0	800lm	3000K	90	40°	White (RAL 9003)	Chrome
655DB93040SGF0	800lm	3000K	90	40°	Black (RAL 9005)	Silver High Gloss
655DW93040SGF0	800lm	3000K	90	40°	White (RAL 9003)	Silver High Gloss
655DB94040BGF0	810lm	4000K	90	40°	Black (RAL 9005)	Black High Gloss
655DB94040BMF0	810lm	4000K	90	40°	Black (RAL 9005)	Black Matt
655DW94040BGF0	810lm	4000K	90	40°	White (RAL 9003)	Black High Gloss
655DW94040BMF0	810lm	4000K	90	40°	White (RAL 9003)	Black Matt
655DB94040COF0	810lm	4000K	90	40°	Black (RAL 9005)	Copper
655DB94040GOF0	810lm	4000K	90	40°	Black (RAL 9005)	Gold
655DB94040WHF0	810lm	4000K	90	40°	Black (RAL 9005)	White
655DW94040COF0	810lm	4000K	90	40°	White (RAL 9003)	Copper
655DW94040GOF0	810lm	4000K	90	40°	White (RAL 9003)	Gold
655DW94040WHF0	810lm	4000K	90	40°	White (RAL 9003)	White
655DB94040CHF0	810lm	4000K	90	40°	Black (RAL 9005)	Chrome
655DW94040CHF0	810lm	4000K	90	40°	White (RAL 9003)	Chrome
655DB94040SGF0	810lm	4000K	90	40°	Black (RAL 9005)	Silver High Gloss
655DW94040SGF0	810lm	4000K	90	40°	White (RAL 9003)	Silver High Gloss
655CW183040WHP0	570lm	1800K-3000K Dim to Warm	90	40°	White (RAL 9003)	White
655CW183040BGP0	570lm	1800K-3000K Dim to Warm	90	40°	White (RAL 9003)	Black High Gloss
655CW183040BMP0	570lm	1800K-3000K Dim to Warm	90	40°	White (RAL 9003)	Black Matt
655CW183040GOP0	570lm	1800K-3000K Dim to Warm	90	40°	White (RAL 9003)	Gold
655CW183040CHP0	570lm	1800K-3000K Dim to Warm	90	40°	White (RAL 9003)	Chrome
655CW183040SGP0	570lm	1800K-3000K Dim to Warm	90	40°	White (RAL 9003)	Silver High Gloss
655CW183040COP0	570lm	1800K-3000K Dim to Warm	90	40°	White (RAL 9003)	Copper
655CB183040WHP0	570lm	1800K-3000K Dim to Warm	90	40°	Black (RAL 9005)	White
655CB183040BGP0	570lm	1800K-3000K Dim to Warm	90	40°	Black (RAL 9005)	Black High Gloss
655CB183040BMP0	570lm	1800K-3000K Dim to Warm	90	40°	Black (RAL 9005)	Black Matt
655CB183040GOP0	570lm	1800K-3000K Dim to Warm	90	40°	Black (RAL 9005)	Gold
655CB183040CHP0	570lm	1800K-3000K Dim to Warm	90	40°	Black (RAL 9005)	Chrome
655CB183040SGP0	570lm	1800K-3000K Dim to Warm	90	40°	Black (RAL 9005)	Silver High Gloss
655CB183040COP0	570lm	1800K-3000K Dim to Warm	90	40°	Black (RAL 9005)	Copper

What is phase-cut (TRIAC) dimming?

Phase-cut dimming, also called TRIAC dimming, is one of the most popular methods of controlling light levels. It allows users to dim luminaires with a standard wall dimmer, without the need for advanced control systems or additional wiring.

How does phase-cut dimming work?

TRIAC stands for “Triode for Alternating Current.” It is a small electronic component that controls the voltage flow in a circuit. Phase-cut dimming works by cutting part of the electrical wave that powers the luminaire. The more of the wave is cut, the lower the light output becomes. This method provides direct and effective control over light intensity.

Where is phase-cut dimming used?

Lighting designers often use phase-cut dimming in residential spaces, restaurants, retail shops, and boutique hospitality interiors. It provides smooth dimming and an easy setup without complex control systems. This makes it a practical choice for smaller projects or areas where basic control is sufficient.

Phase-cut dimming in track lighting

Phase-cut dimming works in both 1-phase and 3-phase track systems. However, Dea Eros S TR from Karizma Luce includes a specific solution. Its phase-cut driver is integrated directly into the track adapter, available only for 3-phase track systems. Therefore, Dea Eros S TR can only be used as a phase-cut option for 3-phase tracks.

When is phase-cut dimming the right choice?

This solution saves installation space and ensures a clean ceiling appearance. Moreover, it provides an easy and fast setup. The user connects the luminaire to a compatible wall dimmer for complete control.

However, phase-cut dimming offers basic control only. It does not provide system feedback, scene-setting, or app-based control. For projects requiring intelligent control and wireless features, you can choose DALI or Casambi control.

If you would like to know more about phase-cut dimming’s limitations, visit the Dea Vesta S PE product page for detailed information.

With Dea Eros S TR, Karizma Luce offers a compact track spotlight with all control options, including phase-cut dimming—a solution for 3-phase track systems where simplicity and performance are key.
